1 Introduction↩︎

Recent advances in large language models (LLMs) have accelerated the development of agentic systems [1]–[3]. These systems extend model capabilities by interacting with tools, APIs, and complex execution environments [4]–[7]. Such interactions are not governed by the foundation model alone. They are coordinated by the harness, which constructs prompts, manages state, invokes tools, and controls execution across system components. The harness therefore determines how model capabilities are translated into system behavior. As models, APIs, execution environments, and application requirements evolve, the harness must be adapted accordingly. Harness evolution has consequently become a recurring engineering challenge in modern agent development [8]–[10].

In practice, harness evolution requires changes that add capabilities, adapt existing behaviors, or refine execution workflows [11], [12]. Traditionally, human developers make these changes by reading the repository, tracing the relevant behavior, and editing its implementation. Coding agents are increasingly expected to perform the same work from natural-language requests [7], [10], [13], [14]. However, a modification request describes what behavior should change, but it does not identify where that behavior is implemented. Whether the modification is performed by a human developer or a coding agent, the first step is therefore to locate all relevant implementation sites.

Finding every relevant implementation site is difficult in production-scale harnesses [15]. A large harness may span hundreds of functions across many files, with execution logic distributed across stages and connected through shared state. As a result, a single behavior may depend on several nonadjacent implementation sites.

We refer to identifying all implementation sites associated with a behavioral request as behavior localization. In a large and structurally complex harness repository, this task is costly for both human developers and coding agents. Human developers must invest substantial time and effort in building a mental model of the system and tracing behavior across files and execution stages. Coding agents face an additional constraint from limited input context, which prevents them from examining all relevant code at once. They must therefore explore the repository iteratively and may still overlook scattered or rarely executed paths [16], [17].

Existing approaches to repository understanding make codebases easier to explore. Repository maps, code search, code summarization, repository memory, and long-context editing help coding agents find, inspect, and retain relevant code [16]–[20]. However, these approaches organize information around files, functions, and modules, whereas a harness modification request describes a desired behavior. They may identify individual pieces of relevant code, but they do not show how those pieces work together to produce the behavior or whether every affected location has been found. The coding agent must still connect these pieces and infer how the requested behavior maps to the underlying implementation. This missing connection is the gap we address.

We address this gap with Harness Handbook, an operational behavior representation that connects system behavior to source code. Instead of organizing implementation knowledge by files and functions, the Handbook organizes it by what the harness does and links each behavior to the code that implements it. Developers and coding agents can therefore identify the relevant behavior first and then navigate directly to the corresponding code. We construct Harness Handbook instances automatically using static program analysis and LLM-assisted behavioral structuring. To evaluate whether the Handbook improves harness modification, we use realistic requests from two open-source agent harnesses and compare Baseline and Handbook-Assisted planning on the same tasks. Handbook-Assisted planning improves behavior localization and edit-plan quality while using fewer planner tokens. These results show that making the connection between behavior and implementation explicit can make harness evolution more accurate and efficient. Our contributions are as follows:

• We define behavior localization as finding all code locations that implement the behavior described in a modification request. This step is necessary before a complete edit can be planned.

• We introduce Harness Handbook, which organizes implementation knowledge by what the harness does and links each behavior directly to its source code. We also develop an automated framework that builds Handbook instances from existing codebases using static program analysis and LLM-assisted behavioral structuring.

• We introduce Behavior-Guided Progressive Disclosure (BGPD), a workflow that guides coding agents from high-level behavior descriptions to relevant implementation details in stages.

• We evaluate Harness Handbook on diverse modification requests from two open-source harnesses. We compare Handbook-Assisted BGPD planning with planning without Handbook access on the same tasks. Handbook assistance improves behavior localization and edit-plan quality while using fewer planner tokens.

2 Related Work↩︎

Our work is closely related to three research directions: agent harnesses, harness evolution, and repository representations for coding agents. We briefly review each direction and discuss how Harness Handbook differs from existing approaches by introducing an explicit operational behavior representation for behavior localization.

2.1 Agent Harness↩︎

Recent work has increasingly recognized the agent harness as a first-class software abstraction that extends foundation models into deployable agentic systems. Rather than treating prompting, tool use, memory, and execution logic as implementation details, Code as Agent Harness formalizes the harness as an executable and stateful software layer supporting reasoning, acting, feedback, and coordination [15]. Complementary surveys and engineering efforts further characterize the harness as the runtime infrastructure responsible for prompt construction, state management, tool invocation, control flow, and interactions with external environments [21], [22]. This abstraction has been widely adopted by modern agent frameworks and production systems. Frameworks such as AutoGen and OpenHands expose modular runtime components for agent orchestration, tool execution, environment interaction, and multi-agent collaboration [13], [23]. Industrial systems such as Claude Code and Codex similarly emphasize harness design as a key factor in building reliable long-running coding agents [24], [25]. While these works establish the importance of agent harnesses, they primarily focus on harness construction and system design rather than understanding and evolving existing production-scale harnesses.

2.2 Harness Evolution↩︎

As coding agents become increasingly capable, software engineering efforts are gradually shifting from manually implementing functionality to automatically evolving the underlying harness [7], [13]. Recent work has begun to investigate harness engineering, adaptive harness optimization, and automated harness repair [8], [10], [14], [26]–[28]. These approaches improve the capability and reliability of agent systems by constructing, adapting, or repairing harness implementations. Our work addresses a complementary problem. Rather than directly modifying harness implementations, we study the prerequisite challenge of harness evolution: behavior localization. Harness Handbook enables developers and coding agents to identify where behavioral changes should be made before reasoning about how to modify the underlying implementation.

2.3 Behavior Representations↩︎

Recent work has proposed various representations to improve repository understanding for coding agents, including structural repository representations, repository indexing, repository memory, and natural-language artifacts [18], [19], [29], [30]. These representations improve repository navigation, code retrieval, and editing by organizing implementation knowledge into more accessible forms. However, existing representations remain fundamentally implementation-centric, organizing information around source code, repository structure, or execution infrastructure. They do not explicitly capture how system behaviors emerge across distributed execution stages, functional modules, and shared states. In contrast, Harness Handbook introduces an operational behavior representation that explicitly bridges behavioral requirements and their underlying implementation, enabling behavior localization before repository exploration.

3 Harness Handbook↩︎

Harness Handbook has three parts for understanding and modifying an agent harness. The representation organizes source around runtime behavior (Section 3.1). The construction pipeline builds this representation from a repository (Section 3.2). The modification workflow uses the handbook to guide code changes and automatically resynchronizes it after every non-empty repository diff (Section 3.3).

3.1 Harness Handbook Representation↩︎

Source repositories show where code is stored, but they do not directly show how a runtime behavior unfolds. One behavior may cross several files, execution stages, and shared states. Harness Handbook reorganizes this information around behavior while preserving links to the source. As Figure 1 shows, it contains an L1–L3 document tree \(\mathcal{D}\) and a complementary state-register view \(\mathcal{Z}\).

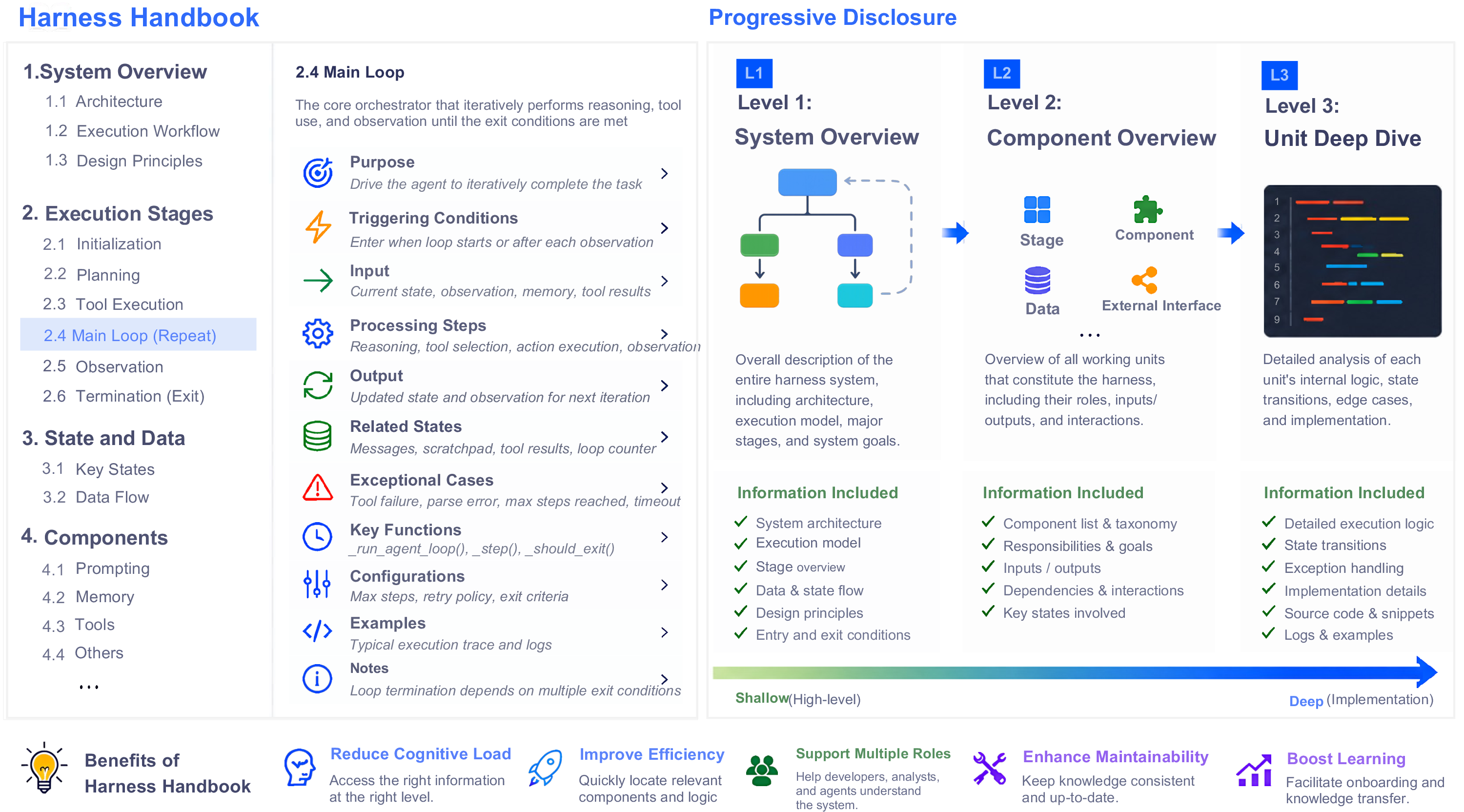

A reader normally starts at L1 (system overview), which summarizes the architecture, execution model, major stages, and global data flow. The reader then moves to L2 (component overview) for the responsibilities, inputs, outputs, dependencies, and local state of a selected stage. Finally, L3 (unit deep dive) links that stage to source-grounded implementation entries. The complementary view \(\mathcal{Z}\) records state relationships that cross stage boundaries.

Two rules keep the representation useful. Progressive disclosure means that readers move from L1 to L3 only when a task requires more detail. Behavior–implementation alignment means that every active L3 locator must still resolve to the current repository. If a locator cannot be revalidated, its entry is frozen and excluded from localization until it is refreshed. The repository therefore remains the authority for implementation details.

3.2 Harness Handbook Construction↩︎

Construction builds a handbook from a repository \(\mathcal{R}\). The leaf mode \(g\in\{\mathrm{function},\mathrm{file}\}\), which remains fixed for the lifetime of the handbook, determines the granularity of L3 entries: in function-as-leaf mode each L3 entry covers a whole function or one or more contiguous regions, whereas in file-as-leaf mode each L3 entry represents a file.

The two modes differ in how the stage skeleton is obtained. function-as-leaf starts from a seed skeleton \(\mathcal{S}_0\) containing the stage and state-register definitions; we use it when a trustworthy seed skeleton that faithfully reflects the harness’s execution stages is available and function-level L3 entries fit the available budget. file-as-leaf instead infers the stage skeleton rather than starting from a seed; we use it when no such seed is available or when function-level organization would exceed the available budget. Both modes produce the representation described in Section 3.1, and Algorithm 7 defines the two branches.

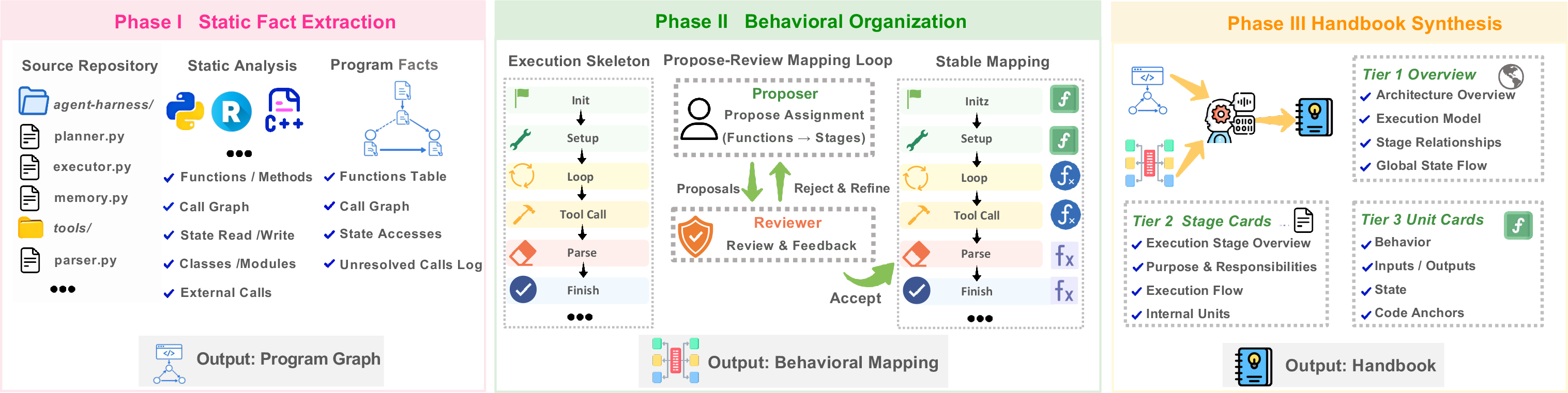

Once \(g\) is chosen, construction proceeds in three phases, illustrated for the function-as-leaf branch in Figure 2.

1. Static Fact Extraction. Language-specific adapters parse the repository and extract functions, named external boundaries, source locations, signatures, and call edges. The program graph \(\mathcal{G}\) keeps only calls that resolve to an internal function or a named boundary. Unresolved calls are logged rather than assigned guessed targets. This phase is deterministic and makes no LLM calls.

2. Behavioral Organization. The pipeline organizes source units into the execution-stage skeleton \(\mathcal{S}\) according to the selected leaf mode.

   • Function-as-leaf. The pipeline uses source and call-graph context to propose function-to-stage assignments, which are refined through iterative review. A function can be assigned to one or more execution stages, either as a whole or as contiguous regions when it serves multiple behavioral roles. Accepted assignments and revisions update the stage skeleton \(\mathcal{S}\).

   • File-as-leaf. The pipeline summarizes the scanned files as cards and combines them with the program graph to infer the stage skeleton \(\mathcal{S}\). It then organizes the files by execution stage. An optional proposal-and-review process iteratively refines this structure, while uncovered files and unresolved organizational issues remain explicitly recorded in \(\mathcal{Y}\).

   Appendix 6 provides the full organization procedures and validation checks for both modes.

3. Hierarchical Synthesis and Packaging. This phase converts the stage skeleton and source organization from Phase II into the L1–L3 document tree and cross-stage state-register view. Each L3 entry is linked to a statically identified source location and validated against the current repository. This keeps the handbook traceable to the source. Finally, the pipeline renders \(\mathcal{V}\) and packages the structured data needed for source localization and future resynchronization.

3.3 Handbook-Guided Modification and Resynchronization↩︎

After construction, the handbook serves as a behavior-oriented guide for modifying the repository. Given a request \(q\), the workflow uses the handbook \(\mathcal{H}\) together with its corresponding repository \(\mathcal{R}\). The leaf mode \(g\) remains unchanged throughout the process.

The workflow consists of four steps. First, Behavior-Guided Progressive Disclosure (BGPD) localizes the requested behavior through coarse-to-fine handbook navigation. It progressively reveals relevant information, follows it to candidate source locations, and verifies those locations against the current repository. This process produces a set of source-grounded evidence for planning. Second, the planner converts the evidence into an edit plan \(\mathcal{P}\) and action declarations \(\Gamma\). Third, a separate executor applies \(\mathcal{P}\) to the repository. Finally, any non-empty diff triggers handbook resynchronization. Algorithm 3 summarizes the complete workflow.

3.3.1 Behavior Localization with BGPD↩︎

Rather than treating all source locations equally, BGPD uses the handbook to identify candidate sites from coarse to fine. It then verifies these sites against the current repository.

Localization begins at the level of execution stages. BGPD first uses L1 and L2 of \(\mathcal{D}\) to identify the stages directly relevant to the request. It then follows \(\mathcal{Z}\) to include stages coupled through shared state. This step captures mutually dependent stages even when they are structurally distant. Within these stages, BGPD selects the most relevant L3 entries and retrieves their source locators.

BGPD then expands the candidate set along call relations. In function-as-leaf mode, it uses the function-call graph; in file-as-leaf mode, it uses the induced file-call graph. External boundary nodes provide context but are never returned as edit sites.

Up to this point, BGPD operates on the handbook. It then opens the current repository \(\mathcal{R}\), resolves the candidate locators, and retains only the sites that remain relevant to \(q\). This yields the verified evidence \(\widehat{\mathcal{E}}_q\). Each record contains a file path, an optional function or region anchor, and a current source excerpt. The handbook thus guides the search, while the repository remains the basis for the edit plan.

3.3.2 Edit Planning and Execution↩︎

The planner converts \(\widehat{\mathcal{E}}_q\) into an edit plan \(\mathcal{P}\). Each edit block specifies where the change should be made, which source evidence supports it, and what should change. The block records a target file, an optional function or region anchor, a current source excerpt, and the intended change.

For each edit, the planner also records an action declaration containing the target file, optional anchor, and one of three action types: modify, add, or remove. The resulting declarations are collected as \(\Gamma=(\Gamma_{\mathrm{modify}},\Gamma_{\mathrm{add}}, \Gamma_{\mathrm{remove}})\). A rename is represented as one removal and one addition.

The executor applies \(\mathcal{P}\) to \(\mathcal{R}\) and produces the updated repository \(\mathcal{R}'\). The resulting diff is \(\Delta=\mathrm{Diff}(\mathcal{R},\mathcal{R}')\). Because \(\Delta\) is the factual record of what changed, it drives handbook invalidation. By contrast, \(\Gamma\) is used only to check whether execution followed the plan.

3.3.3 Handbook Resynchronization↩︎

Every non-empty diff \(\Delta\) triggers \(\mathrm{Resync}_g\). Whenever possible, the procedure updates only the affected parts rather than rebuilding the entire handbook.

First, it reparses the changed source, refreshes the program graph, and aligns the old and new versions to identify added, removed, and modified units: in function-as-leaf mode, it matches functions using fingerprints that do not depend on line numbers, and in file-as-leaf mode, it matches files using file-set differences and content hashes.

Second, it determines the update scope. If the stage skeleton \(\mathcal{S}\) remains valid, only the affected entries and their enclosing structure are refreshed; otherwise, Algorithm 7 is rerun on \(\mathcal{R}'\) with the same leaf mode \(g\) and stored configuration \(\Theta\).

Finally, content that cannot be parsed or classified is handled conservatively: it is frozen or recorded in the coverage record rather than guessed.

Once the update completes, the new pair \((\mathcal{R}',\mathcal{H}')\) becomes the starting state for the next request. Within resynchronization, model calls are limited to four semantic steps: classification, file assignment, within-stage organization, and description revision. All other operations are deterministic.

4 Experiment↩︎

We evaluate Harness Handbook on two open-source agent harnesses around three research questions, describing the experiment setup in Section 4.1 and reporting results in Section 4.2.

• RQ1: Does handbook-guided localization improve plan quality while reducing planning cost?

• RQ2: With the handbook, can a weaker planner match the implementation-site localization of substantially more capable models?

• RQ3: Do these gains persist across request types and localization difficulty levels?

4.1 Experiment Setup↩︎

4.1.0.1 Evaluation Setting.

This experiment evaluates localization and edit planning in the modification workflow. Given a natural-language request, a read-only planner built with NexAU [31] and powered by DeepSeek-V4-Pro produces an edit plan \(\mathcal{P}\), and we score the quality of \(\mathcal{P}\) directly.

We compare two arms: the Baseline explores the repository directly, whereas the Handbook-Assisted arm locates relevant source code under handbook guidance using a BGPD-consistent navigation policy. Apart from handbook access and navigation, the two arms are identical in requests, model, repository, tool permissions, and decoding settings. The handbook used in the Handbook-Assisted arm is built from the same source.

Plan quality is judged independently by three models: GPT-5.5, Opus 4.8, and DeepSeek-V4-Pro.

4.1.0.2 Benchmarks and Modification Requests.

We evaluate Terminus-2 [32] and Codex [25], two open-source agent harnesses that adopt the two leaf modes from Section 3.2: Terminus-2 uses function-as-leaf because it has a reliable seed skeleton, and Codex uses file-as-leaf to infer the hierarchy at repository scale.

Each harness contributes 30 behavior-driven modification requests. They are grouped by type into Query (Q), which modifies existing behavior without revealing target locations; Cross-file (CF), which adds an end-to-end capability spanning files or modules; and Search-Hostile (SH), which places relevant implementations in locations that are hard to recover by keyword search. Requests are also labeled Easy, Medium, or Hard by localization difficulty.

4.1.0.3 Evaluation Metrics.

We evaluate plan quality, localization accuracy, and planning cost.

4.1.0.4 Plan quality.

Three independent judges score each plan on three dimensions: Localization (whether the edit sites are accurate), Scope Control (whether the plan stays focused, with less scope bloat), and Reasoning (whether the rationale and supporting evidence are adequate). The weighted score is \[S= 0.5S_{\mathrm{Loc}} +0.25S_{\mathrm{Scope}} +0.25S_{\mathrm{Reason}},\] on a 0–100 scale, with Localization receiving the largest weight. Handbook-Assisted and Baseline are declared the winner when their scores differ by at least \(\delta=3\) points; otherwise the comparison is a tie. The win rate for any reported slice is the number of wins divided by the number of valid judge–request comparisons in that slice.

4.1.0.5 Localization accuracy.

We compare each predicted edit plan with independent reference plans from Opus 4.8 and GPT-5.5, reporting Recall, Precision, F1, and Wrong at file and symbol granularity. Wrong is the share of valid requests with zero overlap against the reference; lower is better.

4.1.0.6 Planning cost.

We report the average number of planner tokens per request, including the handbook and source context consumed during localization and plan construction.

4.2 Experiment Results↩︎

The results show three consistent patterns. Handbook guidance improves plan quality without increasing planner token use. It also helps a weaker planner produce file- and symbol-level predictions that more closely align with reference plans from stronger models. These gains persist across request types and localization difficulty levels. The following subsections examine each finding in turn.

4.2.1 Better Plans at Lower Token Cost↩︎

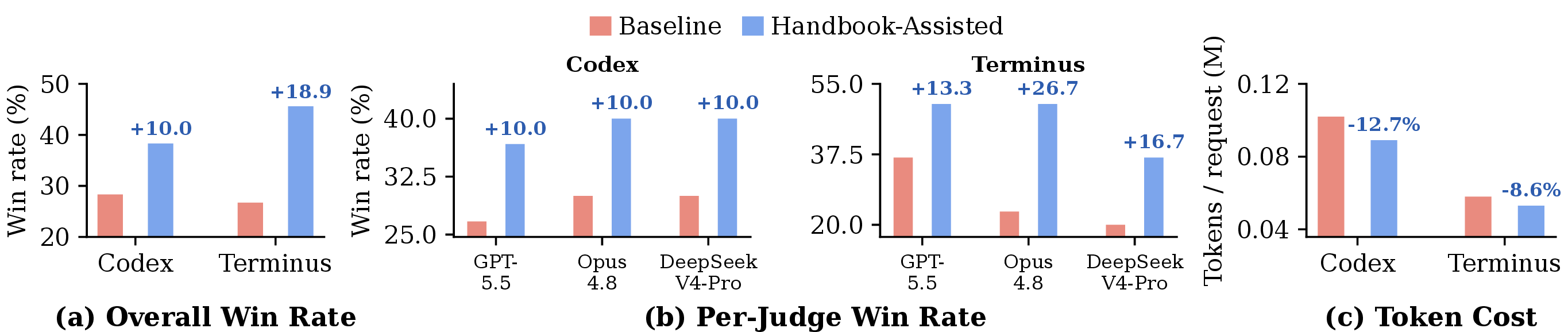

Figure 4 summarizes plan-quality win rates and average planner token use. The Handbook-Assisted arm achieves a higher overall win rate on both harnesses: 38.3% versus 28.3% on Codex and 45.6% versus 26.7% on Terminus-2. The improvement is consistent across all three judges: the gap is 10.0 percentage points for every judge on Codex and ranges from 13.3 to 26.7 points on Terminus-2. Thus, the direction of the result does not depend on any single judge.

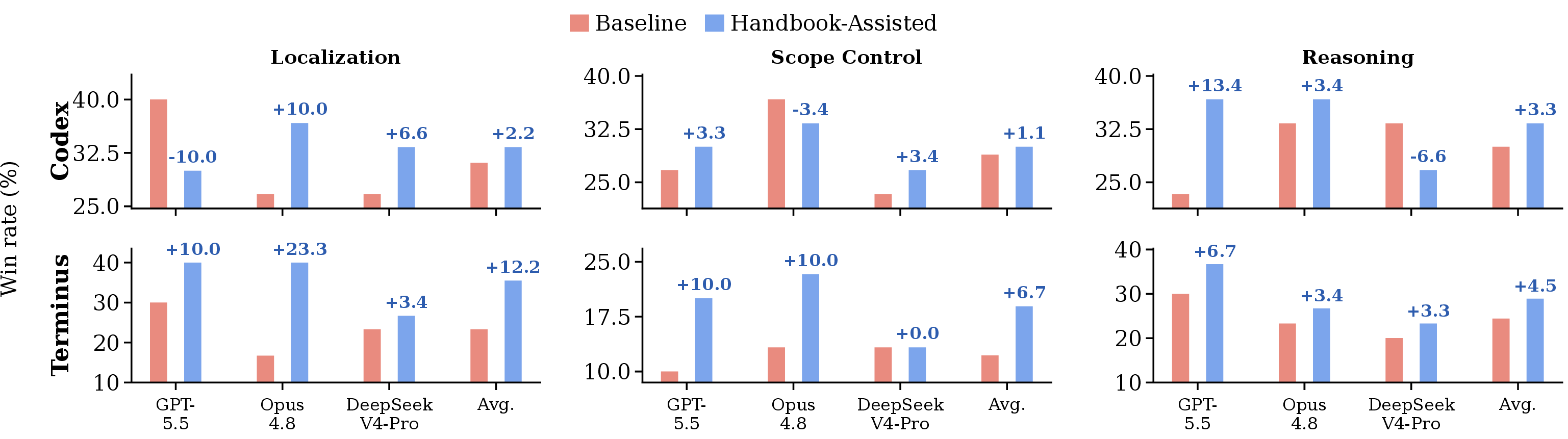

Figure 5 decomposes these judgments by dimension. Averaged across the three judges, the Handbook-Assisted arm has higher win rates for Localization, Scope Control, and Reasoning on both harnesses. The respective gains are 12.2, 6.7, and 4.5 points on Terminus-2, and 2.2, 1.1, and 3.3 points on Codex.

The quality gains are accompanied by lower planner token use. Average use falls from 0.102M to 0.089M tokens per Codex request (12.7%) and from 0.058M to 0.053M tokens per Terminus-2 request (8.6%). The simultaneous increase in win rate and decrease in token use shows that the improvement is not explained by a larger planning-token budget.

4.2.2 A Weaker Planner Matches Stronger Models↩︎

To assess whether handbook guidance helps a weaker planner approach stronger models in implementation-site localization, we compare its predicted edit sites with independent reference plans from Opus 4.8 and GPT-5.5 (Table 1).

3pt

Across both harnesses, both reference models, and both granularities, all 24 Recall, Precision, and F1 comparisons are higher for the Handbook-Assisted arm, with F1 gains ranging from 5.0 to 18.8 points. Recall and precision increase together, so the improvement is not explained by returning more candidate sites at the expense of focus.

The absolute agreement is highest on Terminus-2. With handbook guidance, the weaker planner reaches file-level F1 scores of 84.7% and 89.3%, and symbol-level scores of 77.1% and 89.3%, against the Opus 4.8 and GPT-5.5 references, respectively. Precision reaches 93.3% against GPT-5.5 at both granularities. The consistent direction across two independent references shows that the improvement is not specific to one reference model.

Handbook guidance also reduces complete localization failures. Wrong, the share of requests with zero overlap against the reference, never increases and falls by as much as 25.9 points. Thus, the gains include fewer complete misses, not only better overlap among already plausible plans.

4.2.3 Consistent Gains Across Requests and Difficulty↩︎

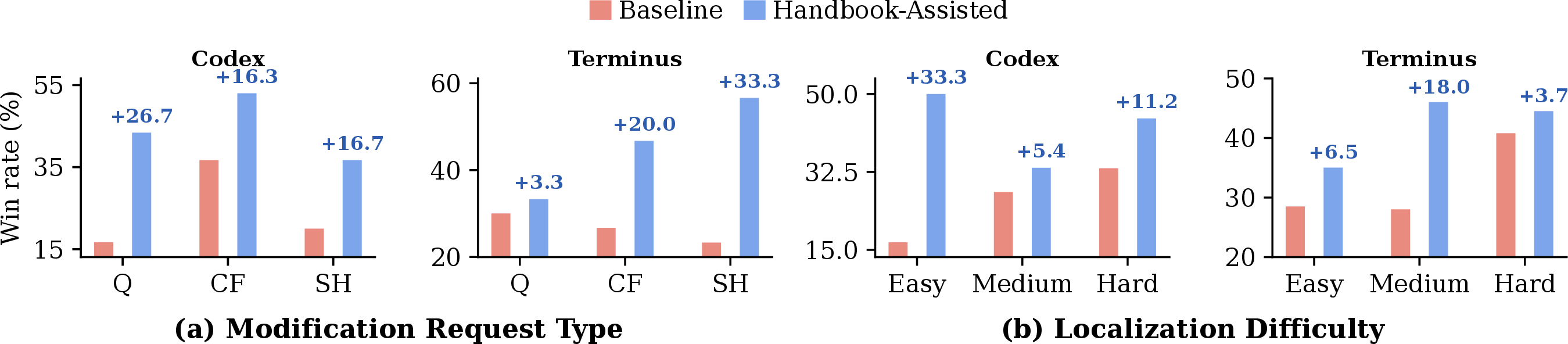

Figure 6 stratifies the win-rate results by request type and localization difficulty.

All six harness-by-type comparisons favor the Handbook-Assisted arm, with gains ranging from 16.3 to 33.3 percentage points. Codex improves most on Query requests (26.7 points), whereas Terminus-2 improves most on Search-Hostile requests (33.3 points). Cross-file requests improve by 16.3 and 20.0 points, respectively. The gains therefore span existing-behavior changes, cross-file capabilities, and requests that are difficult to localize through keyword search.

All six harness-by-difficulty comparisons are also positive, ranging from 3.7 to 33.3 points. Codex improves most on Easy requests, whereas Terminus-2 improves most on Medium requests. Because the gains are not monotonic in labeled difficulty, the difficulty label alone does not explain their variation.

5 Conclusion↩︎

This work identifies behavior localization as a central challenge in evolving production-scale agent harnesses and introduces Harness Handbook, a behavior-centric representation that links behavioral descriptions to their distributed source implementations. Harness Handbook reorganizes repository knowledge around runtime behavior, constructs this representation directly from source, and supports modification through behavior-guided progressive disclosure and automatic resynchronization.

Our experiments demonstrate the value of this representation along three dimensions. First, handbook guidance improves plan quality while lowering planning cost: on Codex and Terminus-2, overall win rates rise by 10.0 and 18.9 percentage points, while planner token use falls by 12.7% and 8.6%, respectively. Second, with the handbook a weaker planner matches the implementation-site localization of substantially stronger models, improving all 24 file- and symbol-level Recall, Precision, and F1 comparisons against two independent reference plans. Third, these gains persist across request types and localization difficulty levels. Together, these results indicate that making the relationship between behavior and implementation explicit can improve both modification planning and localization efficiency without requiring a larger planning-token budget.

The utility of Harness Handbook extends beyond modification planning. As a behavior-centric repository representation that stays synchronized with the code, it can also support broader uses such as behavior auditing and regression-impact analysis. Our next step is to apply it to harness self-evolving: using the handbook as a shared behavioral memory, an agent can autonomously close the loop of localization, planning, execution, and resynchronization as the repository evolves, moving the harness toward self-improvement.

.tocsubsubsection

6 Harness Handbook Construction Details↩︎

This appendix expands the three construction phases in Section 3.2. The selected leaf mode \(g\) and construction configuration \(\Theta\) stay fixed through construction and later resynchronization. Both modes work from the same static facts but organize them differently: function-as-leaf starts from a trusted seed skeleton \(\mathcal{S}_0\) and places functions within it, whereas file-as-leaf describes files first and infers the skeleton. Both ultimately produce the same reader-facing handbook—an L1–L3 document tree, a cross-stage state-register view, and source locators for L3 entries. Algorithm 7 summarizes the shared workflow and its mode-specific branches.

6.1 Phase I: Shared Static Fact Extraction↩︎

Phase I is a single deterministic analysis shared by both modes. Language-specific adapters parse \(\mathcal{R}\) and build the program graph \(\mathcal{G}\). An internal-function node records a function’s qualified name, source file, signature, line range, enclosing class, and observed state access; a boundary node represents a named external target, such as a library function.

The graph keeps a call edge only when the target resolves to an internal function or a named boundary; unresolved calls are written to an audit log rather than assigned a guessed target. Because this phase uses no LLM, every later organization step builds on the same source-grounded facts.

6.2 Phase II: Behavioral Organization↩︎

Phase II organizes the facts in \(\mathcal{G}\) around execution behavior. Its output is the current stage skeleton \(\mathcal{S}\) together with the mode-specific organization state \(\mathcal{U}_g\). The two leaf modes differ in both their starting point and their unit of organization.

6.2.1 Function-as-Leaf↩︎

6.2.1.1 Initial assignment.

The function-as-leaf branch (\(g=\mathrm{function}\)) starts from the seed skeleton \(\mathcal{S}_0\), whose stage and state-register declarations initialize \(\mathcal{S}\). On the first pass, it considers every analyzable internal function—that is, every non-synthetic function with usable source locations—and attempts to assign it to one or more stages. The decision uses the function’s source in \(\mathcal{R}\), its callers and callees in \(\mathcal{G}\), the current neighboring assignments, and the stage descriptions. A function is normally placed as a whole. If different parts serve different behavioral roles, it can instead be divided into contiguous source regions and each region placed separately.

6.2.1.2 Review and convergence.

A single pass may expose weaknesses in either the assignments or the seed structure, so later rounds review both. Each round first checks whether stages should be added, removed, merged, or split. A structural change is accepted only if the resulting hierarchy is valid and every state-register declaration still refers to an existing stage. Functions affected by an accepted change are then classified again against the revised structure.

After reclassification, a global audit checks whether whole-function placements remain consistent with the surrounding stages, and a separate pass repairs the boundaries of retained regions. Proposed changes must pass model-based review before they are applied. The rounds stop when the stage skeleton and all function or region assignments match the previous round and no function is waiting to be reconsidered. If this state is not reached, the process stops at the organization budget stored in \(\Theta\) and keeps the remaining gaps explicit.

6.2.1.3 Validation and finalization.

Every accepted assignment must name a valid stage, use a legal source range, and avoid conflicting actions. Region boundaries are aligned to parser-derived statement spans when possible, and the enclosed source is hashed for later comparison. A boundary that cannot be aligned is marked needs-review; Phase III then decides whether its locator can remain active or must be frozen.

Deterministic cleanup removes a redundant whole-function entry when retained regions already cover that function in the same stage, without disturbing its assignments to other stages. The pipeline then rebuilds cross-stage references, records all functions that remain unmapped, and orders entries within each stage using their purposes and stage-internal calls. If the proposed order is incomplete or contains duplicates, file and line order provides a stable fallback. Together, the finalized memberships, region anchors and hashes, boundary status, within-stage order, and record of unmapped functions constitute \(\mathcal{U}_{\mathrm{function}}\).

6.2.2 File-as-Leaf↩︎

The file-as-leaf branch (\(g=\mathrm{file}\)) uses no seed skeleton (\(\mathcal{S}_0=\emptyset\)). It first describes each file, then infers \(\mathcal{S}\) from those descriptions, and finally organizes the files within each stage.

6.2.2.1 Step 1: Build a card for each file.

The pipeline attempts to create one file card for every scanned file, including files from which static analysis extracts no function. A successfully generated card describes the file’s purpose, repository role, and place in the execution lifecycle. When deep card generation is enabled, it also includes a static inventory of function identities, signatures, source ranges, and resolved calls. The model may explain this inventory but cannot change it.

Card generation uses a fixed fallback sequence. A file omitted from a batch is retried individually. If a deep card still fails, the source is retried in function-range chunks. If no prose can be produced, a fallback card is emitted; in deep mode, it retains the graph-derived inventory. The file stays available to later steps but is marked undescribed in the coverage record \(\mathcal{Y}\), so no scanned file is silently dropped.

6.2.2.2 Step 2: Infer stages and assign files.

The pipeline groups cards by directory and combines their descriptions with graph-derived entry points and resolved calls. From this context, it drafts an ordered stage skeleton and attempts to assign each scanned file to exactly one primary stage, using its card description when available. That stage is the file’s home in the handbook. A genuinely cross-cutting file, such as a logging, protocol, type, or configuration utility, may also name one or two secondary stages. Missing assignments and assignments to unknown stages remain visible in \(\mathcal{Y}\) rather than being forced into the nearest stage.

The organization variant stored in \(\Theta\) determines whether the initial result is refined. oneshot, the default, ends after one stage draft and one file-assignment pass. doctor starts from that draft and applies a reviewed refinement loop. agent uses an agent-generated draft followed by the same loop; if the agent cannot produce a valid draft, it falls back to the one-shot draft. A refinement round may add, remove, merge, or split stages, after which only affected or unassigned files are reconsidered. The loop stops when all files are assigned and the skeleton is stable, when neither coverage nor stage balance improves for two consecutive rounds, or when the organization budget is reached. Any files that remain unassigned stay visible in \(\mathcal{Y}\).

6.2.2.3 Step 3: Organize files within each stage.

For each non-empty stage, the file-call graph first provides a caller-before-callee order. The file cards are then used to refine that order into thematic groups and a readable sequence. A deterministic check removes unknown or duplicate paths and verifies that every assigned file appears exactly once. An omitted file is appended to a fallback group, and a failed organization call falls back to the deterministic flat order. This step can reorder files within a stage but cannot change the stage skeleton. Together, the file cards, stage assignments, within-stage grouping and order, and coverage record \(\mathcal{Y}\) constitute \(\mathcal{U}_{\mathrm{file}}\).

6.3 Phase III: Hierarchical Synthesis and Packaging↩︎

Phase III turns \((\mathcal{S},\mathcal{U}_g)\) into the document tree \(\mathcal{D}\) and state-register view \(\mathcal{Z}\), records reusable generation outputs in the cache \(\mathcal{B}\), and validates both against the repository before packaging.

6.3.0.1 Synthesizing the document tree.

In both modes, \(\mathcal{D}\) contains an L1 system overview, an L2 component overview for each included stage, and source-backed L3 entries. The modes differ in the direction of synthesis:

• function-as-leaf builds top-down. The known stage skeleton provides the outline. Generation proceeds from the L1 overview to each L2 component overview and then to the stage’s L3 entries. Each L3 entry represents one function within that stage; multiple retained regions of the same function are merged into that entry.

• file-as-leaf builds bottom-up. Assigned file cards become the L3 entries. A stage is summarized when it owns assigned files or has child stages; empty leaf placeholders are skipped. The remaining stages are processed from the leaves upward: child summaries and one-line descriptions of a stage’s own files produce its L2 component overview, and the top-level summaries produce L1.

In function-as-leaf mode, each L1, L2, and L3 node uses a bounded generate–review–revise process. The best draft is retained, and generation stops when it passes the rubric, its score no longer improves, or the generation budget is reached. Independent stages can be processed in parallel, but L3 entries within one stage are generated in sequence so that a later entry can refer to earlier ones.

In file-as-leaf mode, file cards are rendered directly. Each stage and system summary is generated once, with a deterministic fallback if generation fails, and each parent summary waits for its child summaries.

The resulting descriptions and summaries are retained in \(\mathcal{B}\) so that unchanged content can be reused during later generation or resynchronization.

6.3.0.2 Building the state-register view.

In function-as-leaf mode, the register identities and stage relationships in \(\mathcal{Z}\) come from the declarations in the current stage skeleton; generation turns these declarations into reader-facing descriptions without inventing new registers. In file-as-leaf mode, the pipeline instead proposes cross-stage registers from the top-level stage summaries and the purposes of data-model files. It repeats this search until two consecutive rounds add nothing or the register budget is reached. References to stages absent from the current structure are removed from the candidate mapping.

6.3.0.3 Grounding and failure handling.

The static facts in \(\mathcal{R}\) and \(\mathcal{G}\) remain authoritative throughout synthesis. The model may add behavioral explanations, but it cannot alter file paths, function identities, signatures, source ranges, or resolved calls. Functions and files that cannot be placed remain explicitly recorded rather than being assigned by guesswork.

Before rendering, the pipeline resolves every L3 locator in \(\mathcal{D}\) against \(\mathcal{R}\) and compares the located source with the stored evidence. An entry that cannot be revalidated is marked frozen and excluded from localization until it is refreshed, keeping the repository authoritative even when prose is reused from the cache.

6.3.0.4 Rendering and saved synchronization state.

After validation, the pipeline renders \(\mathcal{D}\) and \(\mathcal{Z}\) as the reader-facing view \(\mathcal{V}\). It then packages this view with \(\mathcal{D}\), \(\mathcal{Z}\), the fixed \(g\), and the machine-readable resynchronization state \(\mathcal{K}_g\) as the handbook \(\mathcal{H}\). Across both modes, \(\mathcal{K}_g\) retains the fixed leaf mode, program graph, current stage skeleton, mode-specific organization state, construction configuration, and generation cache. The stored configuration \(\Theta\) records the selected organization or refinement variant, card-detail level, and the budgets for organization, generation, and register extraction where applicable. In function mode, \(\mathcal{K}_g\) also retains the original seed skeleton \(\mathcal{S}_0\); no seed is stored in file mode. Saving \(\mathcal{H}\) in this form allows a later code change to refresh affected content without reconstructing unchanged parts of the handbook.

7 Modification and Resynchronization Details↩︎

This appendix expands the four-step modification workflow in Section 3.3 using the package contract defined in Appendix 6. It follows a request \(q\) through BGPD localization, edit planning, execution, and automatic resynchronization. Throughout the workflow, the handbook \(\mathcal{H}\) is paired with its matching repository \(\mathcal{R}\), and the stored leaf mode \(g\) remains fixed.

7.1 Behavior-Guided Progressive Disclosure↩︎

BGPD guides a read-only agent through the handbook from coarse to fine. A locator enters the evidence set only after it has been resolved against the current repository.

7.1.0.1 Stage selection.

Navigation begins at L1 and L2 of the document tree \(\mathcal{D}\) stored in \(\mathcal{H}\). The agent reads the system overview and stage index to select the execution stages whose behavior matches \(q\). It then follows the state-register view \(\mathcal{Z}\) to add stages coupled through shared state. This step recovers behavior that is structurally distant yet mutually dependent, such as a value written in one stage and consumed several stages later.

7.1.0.2 Entry selection.

Within the selected stages, the agent opens the corresponding stage pages and chooses the most relevant L3 entries. Each entry exposes a summary and a source locator. Its body is disclosed only when needed, limiting unnecessary context.

7.1.0.3 Call-relation expansion.

The candidate set is expanded along call relations in the program graph \(\mathcal{G}\) retained by the synchronization state \(\mathcal{K}_g\). In function-as-leaf mode, expansion follows the function-call graph; in file-as-leaf mode, it follows the induced file-call graph. Named external boundary nodes may supply context but are never returned as edit sites.

7.1.0.4 Source verification.

All preceding steps operate on \(\mathcal{H}\). The agent then opens \(\mathcal{R}\), resolves each candidate locator, and keeps only the sites that remain relevant to \(q\). The result is the verified evidence \(\widehat{\mathcal{E}}_q\). Each record carries a file path, an optional function or region anchor, and a current source excerpt. The handbook guides the search, while the repository remains the authority for the edit plan.

7.2 Edit Planning↩︎

The planner converts \(\widehat{\mathcal{E}}_q\) into an edit plan \(\mathcal{P}\) whose blocks name a target file, an optional anchor, the supporting source excerpt, and the intended change. In our evaluation implementation, each change is expressed as a verbatim old/new pair. For every block, the planner also emits an action declaration. These declarations are collected as \(\Gamma=(\Gamma_{\mathrm{modify}},\Gamma_{\mathrm{add}}, \Gamma_{\mathrm{remove}})\), with a rename encoded as one removal and one addition.

7.3 Execution↩︎

Execution is delegated to a separate agent that applies \(\mathcal{P}\) to \(\mathcal{R}\) and produces \(\mathcal{R}'\). The factual record of the change is \(\Delta=\mathrm{Diff}(\mathcal{R},\mathcal{R}')\).

In our implementation, the executor can read and write files, perform targeted replacements, and search within a file, but it cannot list directories or access a shell. It first applies each verbatim replacement directly and reads the target source only if the replacement fails. It then verifies the touched files and runs a target-specific syntax gate when one is configured. The diff \(\Delta\) drives handbook invalidation, whereas \(\Gamma\) is used only to check whether execution followed the plan.

7.4 Automatic Resynchronization↩︎

Every non-empty \(\Delta\) automatically invokes \(\mathrm{Resync}_g\), which updates only the affected parts of the handbook whenever possible. If \(\Delta=\emptyset\), resynchronization is skipped and \(\mathcal{H}'=\mathcal{H}\).

7.4.0.1 Version alignment.

The procedure reparses \(\mathcal{R}'\) and builds the updated program graph \(\mathcal{G}'\). It compares \(\mathcal{G}'\) with the stored graph \(\mathcal{G}\), using \(\Delta\) to identify added, removed, and modified units.

In function-as-leaf mode, functions are matched using body fingerprints that ignore line numbers. A function that only moves is therefore treated as unchanged, and its locator is shifted by the corresponding line offset. A rename is detected by matching the body below the signature line. In file-as-leaf mode, file-set differences identify added and removed files, while content hashes identify changed files. A path rename therefore appears as one removal and one addition.

Before the observed actions are compared with \(\Gamma\), a detected function rename is normalized to one removal and one addition. This audit does not alter the \(\Delta\)-driven invalidation scope.

7.4.0.2 Scoped update.

Resynchronization next checks whether the current stage skeleton \(\mathcal{S}\) can accommodate the change. If it remains valid, \(\mathcal{S}'=\mathcal{S}\) and the affected part of \(\mathcal{U}_g\) is updated to \(\mathcal{U}'_g\). In function-as-leaf mode, this update removes deleted memberships, carries forward matched functions, and reclassifies new or changed functions. It also refreshes region anchors, source hashes, within-stage order, and unmapped status. In file-as-leaf mode, it removes obsolete cards and assignments, refreshes cards for new or changed files, assigns new files, reorganizes affected stages, and updates the coverage record \(\mathcal{Y}\) to \(\mathcal{Y}'\).

The pipeline then regenerates the affected L3 entries, their enclosing L2/L1 ancestors, and dependent state registers. This produces the updated document tree \(\mathcal{D}'\) and state-register view \(\mathcal{Z}'\). Unaffected generation outputs are reused from \(\mathcal{B}\). The updated cache \(\mathcal{B}'\) retains these reusable entries and adds or replaces the refreshed outputs.

If \(\mathcal{S}\) can no longer accommodate the change, Algorithm 7 is rerun on \(\mathcal{R}'\) with the same leaf mode \(g\) and stored configuration \(\Theta\). The function-as-leaf branch also reuses the stored seed skeleton \(\mathcal{S}_0\). The file-as-leaf branch instead infers a new stage skeleton from the updated repository. During the full rebuild, Phase I produces \(\mathcal{G}'\), Phase II produces \((\mathcal{S}',\mathcal{U}'_g)\), and Phase III synthesis produces \((\mathcal{D}',\mathcal{Z}',\mathcal{B}')\). These components follow the shared validation and packaging contract described below.

7.4.0.3 Conservative handling.

Source that cannot be parsed or classified is not guessed. An existing L3 entry whose locator or source hash cannot be revalidated is marked frozen and excluded from localization. In function-as-leaf mode, new or changed functions that cannot be mapped remain explicitly recorded as unmapped in \(\mathcal{U}'_{\mathrm{function}}\). If a changed function previously had an active L3 entry, that entry is frozen until classification succeeds. In file-as-leaf mode, files without a valid card or assignment remain in the coverage record \(\mathcal{Y}'\) within \(\mathcal{U}'_{\mathrm{file}}\).

Parsing, hashing, graph construction, locator roll-forward, and coverage checks are deterministic. Model calls are limited to classification, file assignment, within-stage organization, and description revision. These categories also cover a full rebuild. Stage and function decisions count as classification; file-to-stage decisions count as file assignment; and file grouping counts as within-stage organization. Regenerating cards, document nodes, or registers counts as description revision.

7.4.0.4 Validation and packaging.

Both update paths then follow the packaging contract of Appendix 6: the pipeline validates the locators in \(\mathcal{D}'\) against \(\mathcal{R}'\) and the stage references in \(\mathcal{Z}'\) against the updated skeleton, archives \(\mathcal{G}'\) and \((\mathcal{S}',\mathcal{U}'_g)\) with \(\mathcal{B}'\), the fixed \(g\), and \(\Theta\) (plus \(\mathcal{S}_0\) in function mode) as \(\mathcal{K}'_g\), and renders and packages the validated \((\mathcal{D}',\mathcal{Z}')\) with \(\mathcal{K}'_g\) as \(\mathcal{H}'\). The pair \((\mathcal{R}',\mathcal{H}')\) becomes the starting state for the next request.

8 Experimental Details↩︎

This appendix details the setup summarized in Section 4.1, where every factor other than handbook access is held fixed across the two arms. It covers the two evaluated harnesses and their Phase I static facts, the modification requests (\(30\) per harness, balanced across request type and localization difficulty), and the two evaluation arms with the SKILL.md manifest that exposes the handbook to the planner. The evaluation metrics are defined in Section 4.1.

8.1 Harnesses and Static Facts↩︎

We evaluate on two production-style agent harnesses that differ sharply in scale and language.

• Terminus-2 is a Python terminal agent from the Harbor framework. It drives a real terminal through a tmux session in an observe–decide–act loop: it reads the terminal state, queries an LLM for the next action, sends commands, and reads back the results, repeating until the task finishes or a limit is reached. It is compact (6 source files) but behaviorally rich, with a multi-stage iteration loop, context management, and cross-iteration state.

• Codex is the Rust monorepo behind the Codex coding agent. It is large and multi-surface, spanning a CLI, a TUI, an app-server, configuration, and sandboxing across many crates, with thousands of files and deep call graphs.

Following the selection rule in Section 3.2, Terminus-2 uses the function-as-leaf mode, since a reliable seed skeleton is available and function-level entries stay within budget, whereas Codex uses the file-as-leaf mode to infer the hierarchy at repository scale. Table ¿tbl:tab:handbook-stats? reports the Phase I static facts extracted from each repository together with the resulting handbook structure.

10pt

The two repositories differ by roughly two orders of magnitude in files, functions, and call edges, which is precisely why they instantiate the two leaf modes.

8.2 Modification Requests↩︎

Each harness contributes 30 behavior-driven modification requests, evenly split into three types. Each request states an intended behavioral change without revealing target locations. The two suites are built from the same behavioral intents but phrased against each harness’s own code, so the same goal lands on different implementation sites in Terminus-2 and Codex.

• Query (Q) modifies existing behavior, such as a trigger, a timing rule, or a control-flow decision.

• Cross-file (CF) adds an end-to-end capability that spans files, schemas, pipeline logic, or interfaces.

• Search-Hostile (SH) places relevant sites in mirrored implementations, fallback branches, or cold paths that keyword search alone struggles to recover.

Table 2 gives a representative request of each type, chosen separately for each harness.

5pt

Requests are additionally labeled Easy, Medium, or Hard by localization difficulty, reflecting whether the change touches one primary behavior, requires coordination across stages and files, or requires discovering dependencies along indirect execution paths. Table 3 gives a representative request at each level for both harnesses.

5pt

None

8.3 Evaluation Arms↩︎

To isolate the effect of the handbook, both arms share the same configuration. The planner is an agent built on NexAU whose underlying LLM is DeepSeek-V4-Pro and whose repository tools are read-only, and both arms use the same requests, repository snapshot, planning contract, and decoding settings. They differ only in whether the handbook is available and in the corresponding localization instructions. The assisting handbook is built from the same repository snapshot used in the evaluation.

• Baseline. Without a handbook, the planner locates edit sites by exploring the repository with read-only tools (file read, in-file search, and directory listing).

• Handbook-Assisted. The planner is additionally given the handbook as a navigable skill and follows the BGPD policy, proposing source locators from the handbook and then verifying them against the repository.

The handbook is exposed to the planner as a skill: a SKILL.md manifest tells the planner when and how to consult the handbook, and points to the reference files it navigates. Figure 8 shows this manifest. The same structure is used in both leaf modes; each stage’s leaf cards hold functions in function-as-leaf mode and files in file-as-leaf mode.

9 Prompt Templates↩︎

This appendix reproduces the main prompts used by the pipeline, organized by the stage in which they are used: those that build the handbook (Appendix 9.1), those that localize and plan a change under BGPD (Appendix 9.2), and those that score plans with an LLM judge (Appendix 9.3). The listings are transcribed from the implementation; per-run fields substituted at runtime are shown as {{...}} or {...} placeholders, and a few non-ASCII characters are rendered in ASCII. Static fields such as qualified names, signatures, source ranges, and call edges are supplied by static analysis and cannot be overwritten by the model.

9.1 Handbook Generation↩︎

These prompts drive the construction pipeline of Appendix 6: they organize source units into execution stages and synthesize the L1–L3 document tree. Throughout, the statically extracted identities stay fixed and the model only supplies behavioral descriptions.

9.1.1 Classifying Functions into Stages↩︎

Used in function-as-leaf Phase II to assign one function to one or more stages, as a whole or as contiguous regions. The rules block below is followed at runtime by the available stage list, the function’s metadata, its caller/callee context with their current stage assignments, and the line-numbered source.

You are analyzing one Python function from the Terminus 2 agent harness, and
classifying it into one or more stages of a hand-authored data-flow skeleton.

GRANULARITY
- "function": the entire function is a single narrative unit. Use for short,
  cohesive functions (<=30 lines or with a single clear purpose).
- "region": the function contains multiple distinct narrative steps and should be
  split into 2-10 regions. Use for large functions with multiple decision points
  or sequential phases.

REGION RULES (when granularity == "region")
- Each region MUST be contiguous and end at a complete statement boundary (not
  mid-statement).
- Provide first_line and last_line as the EXACT text content of the first and last
  lines of the region.
- Each region has its own stage_id.

STAGE ASSIGNMENT
- Pick stage IDs ONLY from the list provided.
- CROSS-CUTTING utility functions (small utilities called from many places -- token
  counting, output length capping, recording markers) go to crosscut-X* ONLY. Do
  NOT add them to consuming stages.
- A function that uses self.logger.X is NOT cross-cutting just because of that --
  assign by its primary identity.
- For api-surface methods (e.g. name(), version()): set function_assignments=[] and
  granularity="function" (will be recorded as unmapped api_surface).
- For subsystem-internal functions (in tmux_session.py / terminus_*_parser.py /
  asciinema_handler.py): assign to the main-flow stage that drives them.

PURPOSE FIELD (60-150 words, structured across 5 aspects)
1. ACTION: what the function does, concretely (no "handles" / "manages")
2. INPUTS / STATE READ: arguments + self._* attrs that determine behavior
3. OUTPUTS / STATE WRITTEN: return value + self._* attrs mutated
4. WHEN INVOKED: who calls it, under what condition
5. NON-OBVIOUS: retry logic, fallback paths, design choices a reader would miss

CONSISTENCY WITH CONTEXT
Look at the caller/callee context provided -- your classification should be
consistent with their stage assignments. A function that's only called from
stage-4.2's region typically belongs near stage-4.2.

OUTPUT
Return ONLY a JSON object inside a ```json fenced block:

{
  "qualname": "<exact qualname>",
  "purpose": "<60-150 word 5-aspect description>",
  "granularity": "function" | "region",
  "function_assignments": ["stage-X", ...],
  "regions": [
    {"line_range":[a,b], "first_line":"...", "last_line":"...",
     "purpose":"<30-80 word>", "stage_id":"..."}, ...
  ] | null,
  "file": "<file>",
  "line_range": [<start>, <end>]
}

When granularity == "function", regions = null.

9.1.2 Reviewing Function Assignments↩︎

Each proposed assignment is reviewed by a critic against the source, the stage definitions, and caller/callee evidence. The reviewer role block (the “engineer” role) is followed by the task context, the review evidence, and the proposal under review, then the output rules below. Reviewers lean toward APPROVE so the pipeline keeps making progress.

You are a SENIOR ENGINEER reviewing a proposed change to how a function is
classified or organized in a handbook for an AI agent harness. Your job is to be
skeptical and find real concerns rooted in code behavior.

Focus on:
  - Does the proposed classification reflect what the function ACTUALLY does at the
    code level?
  - Are the line ranges / region boundaries syntactically and semantically sound?
  - Does the proposal misuse cross-cutting categories (e.g. labeling a function
    "crosscut-X3 logging" just because it calls self.logger)?
  - Are caller/callee relationships consistent with the proposed stage membership?

You may APPROVE, REVISE (with concrete concerns), or REJECT.

DECISION GUIDELINES
- APPROVE: the proposal is reasonable, even if minor wording could be tweaked. A
  correct-enough proposal is APPROVE, not REVISE. Be GENEROUS with APPROVE.
- REVISE: only when there is a SPECIFIC, ACTIONABLE flaw that materially affects
  correctness (wrong stage assignment, wrong region boundary, factual error about
  the code). Do NOT REVISE for style, phrasing, or "could be more thorough" reasons.
- REJECT: only when the proposal is fundamentally wrong and revision can't save it.

By default lean APPROVE. The pipeline must make progress.

OUTPUT FORMAT
Return ONLY a single JSON object wrapped in a ```json fenced block:

{
  "decision": "APPROVE" | "REVISE" | "REJECT",
  "concerns": ["<concern 1>", ...],
  "suggested_revision": { ... } OR null,
  "rationale": "<one sentence explanation>"
}

When decision == "APPROVE", concerns and suggested_revision may be empty.
When decision == "REVISE", concerns must be non-empty AND each concern must point
to a concrete, fixable flaw.
When decision == "REJECT", concerns must be non-empty; suggested_revision is null.

9.1.3 Generating File Cards↩︎

Used in file-as-leaf Phase II to summarize each scanned file. In deep mode—where the file is the handbook’s L3 leaf—the model reads the whole file and writes the card content, while the graph-derived function inventory, line numbers, and call relations are supplied as fixed facts. The deep-mode prompt is:

You are reading SOURCE FILES IN FULL and writing a plain-language, easy-to-follow
description of each, for a system handbook in which the FILE is the smallest unit
(its leaf node). The description you write IS the handbook's content for this file.

WHO YOU ARE WRITING FOR: a curious OUTSIDER -- someone intelligent but new to this
project and possibly not an expert programmer in this area. They should be able to
read your text and come away genuinely understanding what this file does and why it
matters, WITHOUT having to already know the codebase or the jargon.

HOW TO WRITE (this matters as much as the content):
- Use plain, everyday language. Prefer short, clear sentences over dense ones.
- Explain the WHY and the WHAT in human terms before any mechanism: what real
  problem does this file solve, and what would break without it?
- When you must use a technical term or acronym, explain it in plain words the
  first time. Never leave jargon unexplained.
- Use a brief everyday analogy when it genuinely makes something click.
- Do NOT dump implementation trivia. Favor the big picture and intuition. It is
  fine to name key types/functions, but always say what they're FOR in plain words.
- Stay accurate. Simplify, but never say something that is actually wrong.
- Avoid empty filler like "handles"/"manages related logic"; be specific.

Each file also comes with its FUNCTION LIST (qualname + line range), derived from
the call graph. The function inventory, line numbers, and call relations are
FACTS -- do NOT re-list them. Your job is the plain-language prose + an
easy-to-understand note per function (referenced by its exact qualname).

For EACH file return:
- "purpose": 1-2 plain sentences a newcomer can understand: what this file is for.
- "description": an accessible walkthrough (roughly 120-300 words): what problem
  this file solves and why it exists; what it does, step by step, in plain
  language; how its main pieces work together; and any surprising behavior.
- "functions": one entry per function in the file's function list, referenced by
  its exact "qualname", each with:
    - "purpose": in plain words, what this function does and why (1-3 sentences).
    - "data_flow": what goes IN -> what it does -> what comes OUT, told as a simple
      before/after story a non-expert can follow.
    - "relations": how it fits into the bigger flow -- who calls it and when, and
      what it hands off to, grounded in the provided calls/called-by facts.
- "role": EXACTLY one of: entrypoint, orchestration, domain_logic, io_transport,
  data_model, config, util, test, generated, other.
- "lifecycle": SHORT hint of when in the run this file is active (e.g. "startup",
  "config load", "main loop", "request handling", "teardown", "cross-cutting").

OUTPUT -- ONLY a JSON object in a ```json block:
{
  "purposes": [
    {"file": "<exact path>", "purpose": "...", "description": "...",
      "role": "<role>", "lifecycle": "...",
      "functions": [
        {"qualname": "<fn qualname>", "purpose": "...", "data_flow": "...",
          "relations": "..."}, ...]},
    ...
  ]
}
Return one entry per file given, using the exact file paths provided.

9.1.4 Synthesizing the L1–L3 Document Tree↩︎

The two modes synthesize the document tree differently. In function-as-leaf mode, each L1, L2, and L3 node is produced by a bounded actor–critic–reflexion loop: an actor drafts the node from grounded inputs, a critic scores it against a tier-specific rubric and returns actionable findings, and the actor revises until the rubric passes, the score stops improving, or the generation budget is reached. L1 and L2 use long, tier-specific writing guides (a whiteboard-tour style for L1; a problem/main-flow/state-flow/hand-off structure for L2). In file-as-leaf mode, the validated file cards from Appendix 9.1 already are the L3 content, and a single-pass rollup produces the L2 component overviews and the L1 system overview.

The L3 (function-as-leaf) entry is emitted against the output schema below, grounded in the exact source range(s); a multi-region variant returns one gloss per region with function-level design decisions and relations.

## Output format (single)

Return a JSON object inside a ```json fence:

```json
{
  "schema_version": 1,
  "type": "single",
  "locator_role": "<one-line role tag, 6-15 words>",
  "stage_context": "<2-4 sentences: what role this plays in the stage; when it is
                     invoked; how it relates to its siblings>",
  "synopsis": "<2-4 sentences: What + inputs + outputs + side effects>",
  "interface": {
    "signature": "<full signature, e.g. (self, environment) -> None>",
    "params": [{"name": "<param>", "type": "<type, or ? if unclear>",
                "role": "<one-line role / source>"}],
    "reads_state": ["<self._ attributes this function reads>"],
    "returns": "<what it returns; if None, state the real product (side effect)>",
    "side_effects": ["<self._ attributes written / external effects>"]
  },
  "execution_flow": [
    "<step 1: action + which args/state + what's produced>",
    "<step 2: ...>"
  ],
  "design_decisions": [
    "<decision 1: the trade-off point + why this choice + what an alternative costs>",
    "<decision 2: ...>"
  ],
  "relations": {
    "callers": ["<qualname or brief description>"],
    "core_callees": ["..."],
    "config_state_sources": ["..."],
    "results_to": ["..."],
    "siblings": [],
    "register_interactions": [
      {"action": "write|read|clear|reset", "register": "reg-<id>",
       "note": "<5-12 words: when / why>"}
    ]
  }
}
```

Count constraints:
  - interface.signature: required, copied accurately from the source.
  - interface params / reads_state / returns / side_effects: list them all from the
    source; empty array / "none" if there are none.
  - execution_flow: 2-8 steps; design_decisions: 1-5 items.
  - relations.{callers, core_callees, config_state_sources, results_to}: at least 4
    of these must be non-empty.
  - relations.register_interactions: list every register this function
    reads/writes/resets; empty array [] only if it interacts with none.

9.2 BGPD Localization and Planning↩︎

This is the planner prompt used under BGPD in the Handbook-Assisted arm: it localizes by routing through the handbook and then verifying candidate edit sites against the real source before emitting a self-contained edit plan. Per-harness fields substituted at runtime are shown as {{...}} placeholders.

You are a senior software engineer PLANNING a change to {{PROJECT_INTRO}}, on
behalf of a code reviewer.

You are given ONE natural-language change request. In this phase you produce a
precise, SELF-CONTAINED PLAN of the edits -- you do NOT edit any files. A separate
executor will apply your plan MECHANICALLY: for each edit it will substitute your
exact OLD text with your exact NEW text, WITHOUT re-reading the file. So your
plan's verbatim text must be byte-exact.

## Two artifacts, two distinct roles
- The handbook is a pure LOCATION INDEX of the harness, NOT a description of the
  code. Each function appears as a one-line locator: `<summary><b>Qualified.name</b>
  -- file:start-end . one-line role</summary>`, optionally followed by a Relations
  block (callers/callees/register read-write sites). A card has NO function body and
  NO source code. On top of that, `index.md` lists every stage with its function
  locators and `registers.md` lists every state variable with its exact read/write
  code sites. Use these to decide WHICH files, functions and sites are in scope --
  they surface scattered, non-obvious sites (mirror copies in the other
  parser/template, a register's every read/write, cross-subsystem touch points)
  that a plain text search can miss.
- The real source code is the GROUND TRUTH for WHAT to change. The handbook tells
  you the ADDRESS (file:start-end); the code at that address is the only reliable
  source of the actual structure. You MUST read the real source.

## How to plan -- ROUTE with the handbook, READ the real source, EMIT verbatim edits
1. Understand the request's true intent: the behavior delta, and the
   state/conditions/values it fixes.
2. Route with the handbook. Read its `SKILL.md`, then `index.md`, then only the
   `stages/<id>.md` chapters and `registers.md` entries your intent points to.
   Assemble the candidate set: every file + function + anchor the change must touch.
   Watch for scattered/mirror sites (a parser change usually has a twin in the OTHER
   parser and in both prompt templates; a state change fans out to every read site
   listed under that register).
3. Read the REAL source of every site you intend to edit with `read_file` on the
   actual code files. Confirm the exact body, control flow, conditions, and that the
   site does what the card implied.
4. For EACH edit, produce a self-contained EDIT BLOCK (format below) whose
   `old_string` is copy-pasted verbatim from the `read_file` output you just saw --
   never retyped from memory, never paraphrased. Match whitespace and indentation
   exactly, and include at least 3 lines of context BEFORE and AFTER the changed
   lines so the snippet is UNIQUE in the file.
5. A change can also silently break something the request never mentions; if you
   find such a coupled assumption, add an edit (or note it) accordingly.
6. Only include edits you are confident the request requires.

## EDIT BLOCK format (the executor applies these directly)
For every edit, output exactly:

### EDIT <n>
- file: `<path relative to the working dir, e.g. {{PATH_EXAMPLE}}>`
- where: `<{{WHERE_EXAMPLE}}>` -- why this change
```old
<EXACT current text, copied verbatim from read_file -- whitespace-perfect, unique>
```
```new
<the replacement text -- correct, idiomatic, the smallest change that realizes the intent>
```

Rules for the blocks (the executor trusts them blindly, so precision is on you):
- `old` MUST be byte-exact to the file's current content. If you are not certain it
  is verbatim, `read_file` that region again before writing the block.
- Keep each `old` the SMALLEST span that is still unique (1-8 lines typically); do
  not paste whole functions.
- SAME-FILE edits must NOT overlap. The executor applies your blocks in order
  against text that earlier blocks have ALREADY changed, and it does not re-read
  between them. So no block's `old` (including its context lines) may contain a line
  that another block in the same file changes -- otherwise the second match will be
  stale. If two changes are close enough that their context would overlap, MERGE
  them into ONE block covering both. Order same-file blocks top-to-bottom.
- For a brand-NEW file, use a single block with an empty ```old``` and the full
  content in ```new```, and say "(new file)" in `where`.
- Anchor on stable lines; never let `old` span a region you are unsure of.

When done, call `complete_task` with: a short prose summary of the edits, then ALL
the EDIT blocks, then the declarations JSON. Do NOT edit any files in this phase.

## Declarations (machine-readable -- the handbook-resync pipeline consumes this)
End with EXACTLY one ```json block declaring the change-set at FUNCTION
granularity, using {{QUALNAME_NOTE}}:

```json
{{DECL_JSON}}
```

- `will_modify` -- every EXISTING function whose implementation your edits change.
- `will_add`    -- every brand-new function introduced.
- `will_remove` -- every function deleted outright. A rename = remove(old)+add(new).

9.3 LLM Judging↩︎

Plan quality is scored in two steps. The judge first builds a leakage-safe answer key from the request and pristine source, before seeing any plan, and then scores each plan independently against that key.

9.3.1 Building the Answer Key↩︎

The judge builds a leakage-safe answer key from the request and pristine source before seeing any plan (hint fields are stripped from the request). This is the Terminus-2 judge; the Codex judge mirrors it, using correct_approach in place of correct_localization.

[SYSTEM]
You are an expert Python engineer building a grading ANSWER KEY for a code-change
task on the Terminus-2 Python agent harness.

You are NOT looking at any solution yet. Read the pristine source and independently
determine which concrete files, functions, methods, branches, templates, or state
variables a correct solution must localize before editing.

Output ONLY this JSON object:
{"required_sites":["<concrete file/function/branch/template/state site>"],
"correct_localization":"<2-4 sentences: where the planner should look and why>",
"pitfalls":["<easily missed mirror/fallback/cold/state/template sites>"]}

[USER]
## CHANGE REQUEST
{query}

## PRISTINE TERMINUS-2 SOURCE
{pristine}

Build the localization answer key now. Output the JSON object only.

9.3.2 Scoring the Plan↩︎

Each plan is scored independently against the answer key on a \(0.0\)–\(5.0\) scale in \(0.5\) steps. The three dimensions are combined with weights \(0.50\) (localization), \(0.25\) (scope_bloat), and \(0.25\) (reasoning); scope_bloat is reported as Scope Control, where a higher value means a more focused plan.

[SYSTEM]
You are an expert Python engineer GRADING the LOCALIZATION quality of one planner's
PLAN for a code-change task on the Terminus-2 Python agent harness.

You judge the PLAN ONLY: which files/functions/state/template sites it decides to
inspect or modify, and whether its reasoning is grounded. Do NOT grade the final
code diff or execution correctness. The executor is shared across arms and is out
of scope.

Grade these dimensions from 0.0 to 5.0 in 0.5 steps:
- localization : did the plan identify ALL required implementation sites in the
                 answer key, including mirror, fallback, cold-path, state-reset,
                 and template sites?
- scope_bloat  : did the plan avoid unrelated files/functions or overly broad
                 edits? 5 means tightly scoped; low means it wandered into
                 irrelevant areas.
- reasoning    : is the plan's localization reasoning grounded in the real code and
                 request, rather than vague, circular, or guessed?

Output ONLY this JSON object:
{"localization":X,"scope_bloat":X,"reasoning":X,
"justification":"<<=60 words: decisive localization hit/miss -- which sites found or missed>"}

[USER]
## CHANGE REQUEST
{query}

## ANSWER KEY
{answer_key}

## PRISTINE TERMINUS-2 SOURCE
{pristine}

## THIS ARM -- plan.md
{plan}

Grade this arm's PLAN localization against the answer key. Output the JSON object only.

10 Illustrative Handbook-Assisted Planning Walkthrough↩︎

This appendix walks through one real Handbook-Assisted run on Terminus-2 (case Q1, DeepSeek-V4-Pro planner), reconstructed from its recorded trace. The run makes concrete the two moves at the heart of BGPD: the planner first routes through the handbook to decide which code sites are in scope, and then verifies each candidate against the live source before writing a plan. Every tool call, source locator, and edit shown below is taken from the run; only whitespace is trimmed.

The request is Query-type: it revises an existing control-flow rule but names no file or function. The planner’s first task is therefore one of localization — finding every site that implements the completion handshake.

10.0.0.1 Edit plan.

With the sites confirmed, the plan replaces the Boolean _pending_completion with an integer counter _completion_confirmations: the loop increments it on each completion mark, resets it on a non-completion turn, and returns for grading only on the third consecutive mark. The change set is four modify actions, all in terminus_2.py — initialization, per-run reset, and the loop’s two branches. The completion gate itself is the representative edit:

Before — two-mark Boolean handshake:

if is_task_complete:
    if was_pending_completion:
        # second task_complete: confirmed, grade now
        return
    else:
        # first attempt: ask to confirm, continue
        prompt = observation
        continue

After — three-mark counter:

if is_task_complete:
    if was_completion_confirmations >= 2:
        # third consecutive task_complete: confirmed, grade now
        return
    else:
        # first or second attempt: ask to confirm, continue
        prompt = observation
        continue

References↩︎
