1 Introduction↩︎

Battery-free wireless technologies offer a promising pathway toward scalable, unobtrusive, and maintenance-free interactive interfaces. [1]–[3]. In particular, radio-frequency identification (RFID) systems provide a compelling platform for battery-free interfaces, offering passive communication [4], [5], wireless power harvesting [1], and infrastructure-level connectivity [6]. Prior work has explored embedding RFID tags into everyday objects for identification and sensing [4], [7], incorporating them on the body for localization and activity recognition [8], [9].

RFID tags typically consist of an off-the-shelf chip and an antenna [10]. In most cases, the antenna dominates the physical form of the tags, largely determining their sizes, mechanical properties and reading ranges. Existing flexible and wearable RFID tags commonly realize antennas as additional layers attached to a substrate. This lack of seamless integration can lead to detachment over time, limiting reliability for continuous on-body use.

In this work, we present KnitID, a machine-knitted RFID antenna design that support battery-free authentication, interaction and localization. KnitID reduces the size of conventional loop antennas by around 90% [11], [12] while extending sensing range by around 30% compared with naive knitted dipole designs. Its compact size enables dense integration of multiple RFID tags within a single garment without compromising wearability. To demonstrate its’ capability, we build an interactive sleeve that incorporates four KnitIDs for on-body sensing and interaction. Our prototype achieves 100% authentication accuracy, over 90% interaction detection accuracy, and a localization Mean Squared Error(MSE) of 5cm.

2 KnitID and Design Optimization↩︎

KnitID is a compact RFID loop antenna design realized by leveraging the loop-over-It supports three core functionalities: authentication, localization, and interaction detection. All three require an effective antenna with stable gain. Thus, we treat read range and gain as primary objectives and first optimize the antenna design.

2.0.0.1 Empirical Characterization

We fabricate and evaluate antennas across key design parameters, including antenna geometry, conductive materials, knitting structures, wale (w), and course (c), as shown in Fig. 1a and b. Results show that machine-knitted antennas using folded+, PTFE-coated copper wire, and alternating slip structure achieve the longest read ranges. Among all tested sizes, the 3w \(\times\) 9c design performs best, likely because its total conductive length is approximately twice the wavelength. We further validate this observation through simulation.

2.0.0.2 Modeling and Simulation

Based on the empirical results, we simulate slip knitted antennas of different sizes by varying w and c. The results show that antenna gain peaks when the total conductive length approaches 2\(\lambda\), validating the trend observed in the empirical characterization.

3 Multimodal Sensing via KnitID↩︎

To demonstrate the potential of KnitID, we create an interactive sleeve integrated with four KnitID on the cuff (Fig. [fig:teaser]). We also build a system that combine authentication, interaction and localization.

3.0.0.1 Hardware Prototype

We fabricate a wearable sleeve integrated with multiple KnitID tags. Specifically, three tags are placed around the wrist, and one additional tag is positioned on the forearm, as illustrated in Fig. [fig:teaser]. The deployed antennas continuously capture the unique IDs and backscattered signal responses from these tags. We deploy two 9 dBi RFID antennas ([13]) connected to a reader board with 1̃5Hz sampling rate based on the Impinj E710 (readerboard?), mounted on a wall to continuously scan the tags, as shown in Fig. [fig:teaser].

3.0.0.2 Sensing Algorithm

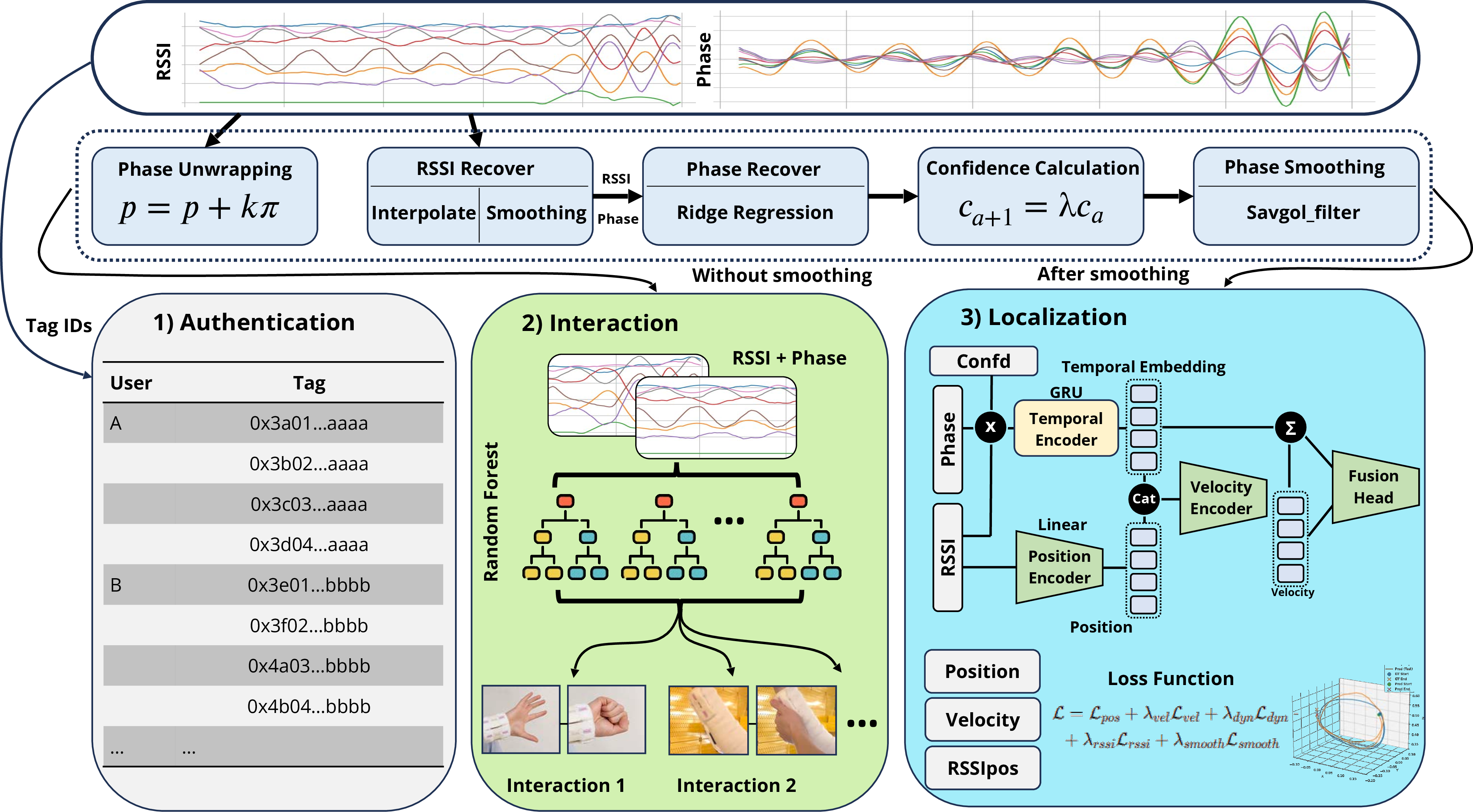

As shown in Fig. 2, the system first performs signal preprocessing to improve data quality, including phase unwrapping, RSSI and phase recovery, and confidence estimation. Authentication then verifies the combination of RFID tag IDs, achieving 100% accuracy across 10 subjects. For interaction recognition, we use RSSI, phase, and confidence features to capture temporal patterns with a random forest, achieving over 90% accuracy for fist clenching and arm holding. For localization, we use a GRU-based temporal encoder to fuse smoothed RSSI and phase signals. With a loss function combining position and velocity, the model achieves a localization MSE of 5cm.

3.0.0.3 Applications

We present a subject-aware drawing board as an example that unifies authentication, interaction, and localization (Fig. [fig:teaser](b)). Upon entering the sensing area, the system identifies the user via RFID and associates subsequent interactions with that user. A fist-clenching gesture initiates drawing, after which hand trajectories are tracked to render strokes in real time. The system maintains user-specific states and seamlessly switches context when a new user is authenticated, enabling multi-user interaction without explicit switching. In addition to jointly leveraging KnitID’s authentication, interaction, and localization capabilities, the system can also function as a standard RFID-based interface.
