1 Introduction↩︎

Process mining turns event data into insights about how work is performed, who performs it, and under which constraints [@van2016data]. Software engineering (SE) processes are no exception: the activities of developers, reviewers, and testers leave rich event traces in version control and issue management systems, forming a largely untapped source of process knowledge. Today, SE teams are undergoing a fundamental transformation as AI agents (autonomous systems capable of decomposing goals, executing tasks, and collaborating with humans) are increasingly embedded into development workflows [@RoychoudhuryPPR26; @TOSEM2026; @OtoumE26]. The SE community has already acknowledged the rise of AI teammates, and the evolution towards hybrid human-AI SE teams raises an important new engineering challenge: How to specify and realize AI agents that can effectively work alongside humans?

Addressing this question has several challenges. Assigning a classical SE role (such as team member in agile processes) to a single agent yields a monolithic and complex teammate that is difficult to build, test, maintain, and delegate tasks to. Conversely, defining highly fine-grained, single-task agents increases coordination overhead among agents and humans. Also, not all SE tasks may be relevant in every project, and those that are may require concrete adaptations. Formal verification may be mandatory in safety-critical systems yet irrelevant in a simple utility tool, while complex business logic may demand property-based tests beyond standard unit testing. Finally, software engineers expect agents to adhere strictly to established standards and project-specific processes [@dongtowards]. Current frameworks rely on rigid, predefined canonical roles that do not adapt a project’s actual workflows [@HeTL25; @RoychoudhuryPPR26; @GoyalCT24; @Hemmer2025].

We address these challenges with pm\(_4\)aa, a generative pipeline that mines project-specific SE agent specifications directly from repository event data. pm\(_4\)aa treats SE processes as business processes and the activity history recorded in version control and issue management systems as event logs. It applies object-centric process mining [@Seidel2026] to capture the multi-object structure of SE activities. This allows the discovery of the task scope and object interactions of each role, and declarative process mining [@DBLP:books/sp/22/CiccioM22] to elicit behavioral constraints that serve as guardrails for agent execution. Together, these two complementary views provide both the procedural blueprint and the normative boundaries needed to specify a well-scoped agent. pm\(_4\)aa then leverages LLMs for process model analysis [@KubrakBMND24] to synthesize executable agent specifications. As a proof of concept, we implement pm\(_4\)aa using the LangGraph framework and evaluate it through a case study on the open-source Commitizen project, which yields an event log of more than 21,000 events spanning eight years of development history, functional testing of the generated agents, and a user study involving ten human participants, who assessed how well process-mined, project-specific agents align with human expectations in hybrid SE teams.

Below, Sec. 2 introduces relevant background and related work. Sec. 3 explains pm\(_4\)aa. Sec. 4 presents the case study and reports our pm\(_4\)aa evaluation. Sec. 5 concludes the paper and outlines future work.

2 Background and Related Work↩︎

2.1 Process Mining↩︎

Process mining is a discipline that aims to extract insights about processes from event data traces [@van2016data]. Object-Centric Process Management [@Seidel2026] captures business processes around interacting objects such as orders, invoices, and shipments, rather than a single predefined workflow. Object-Centric Process Mining (OCPM) extends traditional process mining by explicitly considering processes that involve multiple interacting objects [@WilOCPM2019]. Taking object-centric event logs as input, OCPM helps capture synchronization, interaction, and dependency relations among objects and providing a more accurate representation of highly interconnected processes. A central artifact produced by OCPM is the Object-Centric Directly-Follows Graph (OC-DFG), which extends the classical Directly-Follows Graph (DFG) (a graphical representation of activities that directly succeed one another in the observed process). Declarative process mining elicits process behavior through constraints that govern allowable behavior, rather than prescribing a fixed sequence of activities. Constraints express temporal or logical relations such as precedence, response, or mutual exclusion [@DBLP:books/sp/22/CiccioM22; @Wil2006; @Maggi2011; @Maggi2012]. Declarative approaches are well-suited to flexible, knowledge-intensive processes where strict control-flow specifications are difficult to define or maintain. Languages such as DECLARE have become widely adopted due to their formal semantics and expressive power, and have been applied in healthcare, customer service, and human-centric workflows.

2.2 Event Logs from Software Repositories↩︎

Software development is a process: developers open issues, write code, commit changes, review pull requests, run tests, and release software. Like a business process, it generates event data as a natural by-product of execution. These events are captured in version control and issue management systems such as Git, GitHub, and Jira. Repositories provide a rich set of data. A single commit records the actor, a timestamp, a descriptive message, and references to modified files, related issues, and pull/merge requests. An issue has its own lifecycle: opened, labeled, assigned, commented upon, and resolved. A pull/merge request links one or more commits to one or more issues and involves multiple actors across review, approval, and merge events. A single SE action, such as fixing a bug, thus spans multiple objects simultaneously, which is precisely what OCPM is designed to capture [@Seidel2026]. 1 shows a simplified extract of repository event data structured as an OCEL.

Each row represents an event tied to one or more objects of different types. The commit, issue, and PR columns capture the multiple concurrent object lifecycles involved in each event. The message column carries the human-readable description attached to the change. The table shows, for instance, how issue #42 spans six events across three actors: alice opens the issue, bob commits a fix and opens a pull request, alice reviews and merges it, and a bot closes the issue.

2.3 Related Work on AI Agents↩︎

AI agents possess their own thread of control and make autonomous decisions about which actions to perform and when [@Wooldridge2009; @Li2025]. They decompose high-level goals into tasks and execute them in unstructured environments. Agents can form multi-agent systems in which they collaborate with humans and other agents to carry out tasks [@Wooldridge2009; @Sapkota25; @CALVANESE2026]. Their tasks are realized through AI algorithms and models, including generative AI such as LLMs [@DBLP:conf/ijcai/GuoCWCPCW024]. In SE, examples include autonomous coding agents that initiate, review, and evolve code at scale [@Li2025]. Recent literature reviews document a rapid paradigm shift from single-agent coding assistants to complex multi-agent SE ecosystems [@OtoumE26; @HeTL25]. They conclude that a single, monolithic AI agent is insufficient due to the multifaceted complexity of real-world software projects. Consequently, state-of-the-art frameworks (e.g., ChatDev and MetaGPT) divide the development lifecycle into specialized roles, such as product managers, programmers, and testers, to improve task execution, collaborative reasoning, and fault tolerance. However, these frameworks rely on fixed architectures based on canonical roles (e.g., Programmer, Reviewer, Tester) [@HeTL25]. Such rigid role structures may cause severe inter-agent coordination bottlenecks as projects scale [@OtoumE26]. Both [@OtoumE26] and [@HeTL25] call for adapting agent roles to evolving project demands, yet operational, data-driven techniques remain lacking. pm\(_4\)aa directly addresses this challenge by extracting, scoping, and generating project-specific SE agents from project event logs.

The BPM field has developed organizational mining and Agent System Mining (ASM) to derive role structures and behavioral models from event logs [@shen2026mining]. ASM tools like Agent Miner extract complete, multi-agent behavioral and interaction models directly from event logs. Still, these approaches are retrospective and simulative: they mine structures to generate synthetic traces or build digital twins of existing processes.

While pm\(_4\)aa shares the foundational premise of Shen et al. [@shen2026mining] that historical event logs contain vital, role-specific behavioral blueprints, it takes a more prescriptive and operational stance. Specifically, we argue that event logs contain role-specific behavior that can be mined into (OC-)DFGs and declarative constraints to engineer and deploy AI agents within an executable LangGraph architecture, enabling them to work alongside humans rather than merely simulate human actors.

3 The PM4AA Approach↩︎

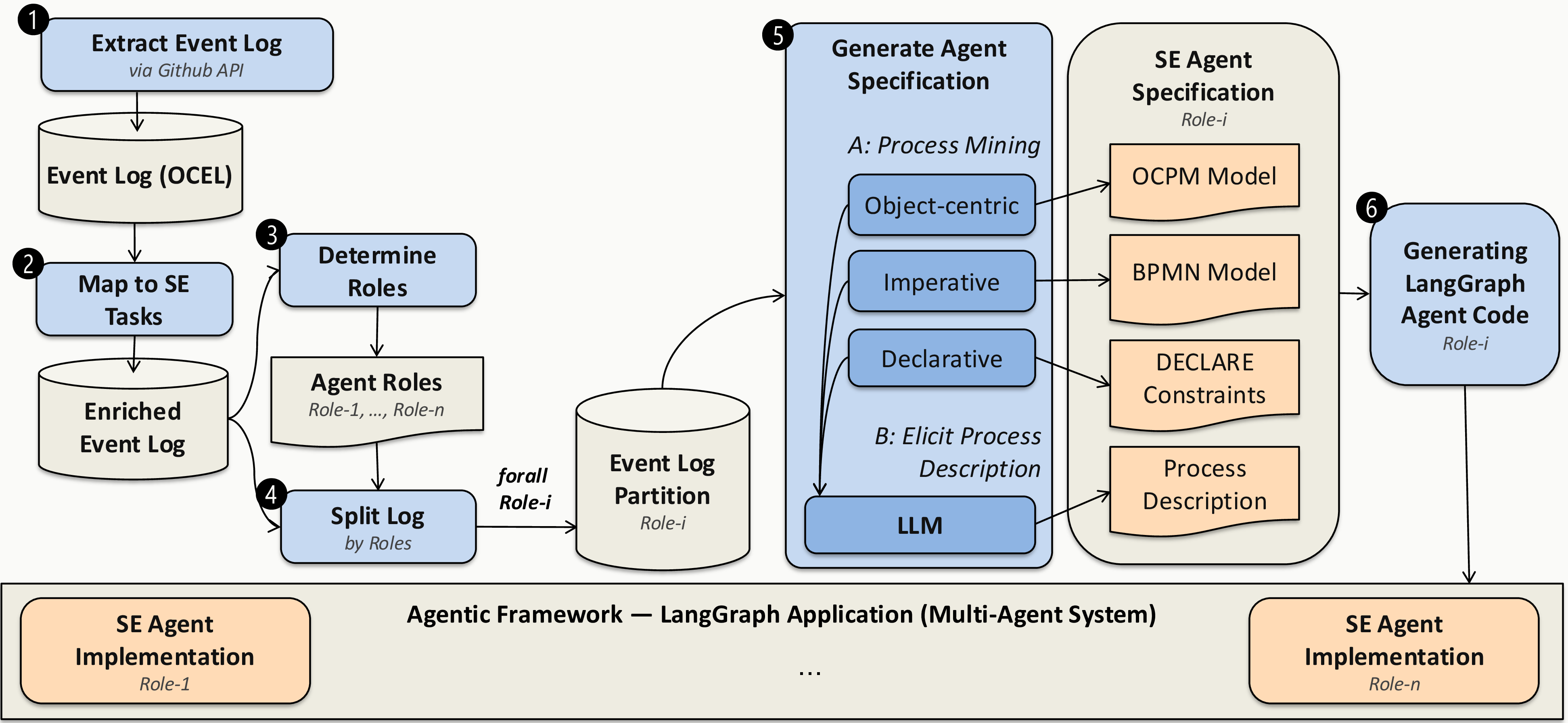

pm\(_4\)aa(Process Mining for Agentic AI) is a generic, multi-step pipeline that transforms SE repository data into operational, role-specific AI agents. Fig. 1 provides an overview of the steps of the pm\(_4\)aa pipeline, which we elaborate below. A repository containing the full pipeline implementation and the accompanying application is available at: https://github.com/liorlimonad/pmaa.

pm\(_4\)aa assumes the availability of sufficient historical repository data. It is therefore primarily applicable to existing projects with observable development history, rather than greenfield projects with no prior traces. For new projects, pm\(_4\)aa-derived agents may be transferred only as templates and would require later adaptation once project-specific traces become available.

Step Event Log Extraction: The first step is to extract a raw Object-Centric Event Log (OCEL) from a GitHub repository using PyStack’t [@Bosmans2024], a Python library designed to produce OCEL 2.0 logs via the GitHub REST API. PyStack’t maps GitHub entities to OCEL object types (i.e., user account, issues and commits), and repository interactions to timestamped events, yielding a log that natively captures the multi-object nature of software development activity. To derive roles, we first identify the tasks recorded in the event log.

Step Mapping to SE Tasks: The raw OCEL does not represent SE tasks as first-class objects. PyStack’t also does not parse pull requests (often associated with tasks). Therefore, we need to derive the tasks from the commit messages.

A key enabler for this step is the commit message. Many open-source projects enforce Conventional Commits [@ConventionalCommits], a lightweight standard that structures commit messages as type(scope): description. The type prefix classifies the intent of each change: feat signals a new feature, fix a bug repair, docs a documentation update, and test a testing contribution. This allows assigning each event a corresponding type of SE task without manual annotation [@RoychoudhuryPPR26]. Many projects (e.g., Angular, Vue.js, ESLint, and Commitizen) follow this standard.

Accordingly, we enriched the event log by parsing each commit message against the Conventional Commits pattern type(scope): description [@ConventionalCommits] using a regular-expression classifier. Each successfully parsed commit is annotated with a task_type (e.g., feat, fix, docs) and a task_semantic_class drawn from a fixed ten-class classification scheme derived from the Conventional Commits specification (e.g., feature_development, defect_resolution, quality_assurance). A corresponding task object is created for each matching commit and linked to its commit and to all events that reference that commit.

Step Determine Roles: Given the tasks, the goal of this step is to derive a set of process roles from the contributor behavior recorded in the OCEL (cf. organizational mining [@van2016data]). All persons who have contributed to the repository (e.g., by committing a change) are available as user objects (collected in Step ). For every user object, a resource profile is computed by aggregating three behavioral dimensions: (i) the distribution of activities the user participates in, (ii) the number of commits attributed to the user, and (iii) the distribution of task semantic classes (e.g., feature development, defect resolution, documentation) obtained from commit-level attributes in the log.

A priority-ordered rule-based classifier then maps each profile to exactly one fixed and prescribed role. This hard partition is a deliberate simplification: a single dominant role per contributor keeps the sub-logs disjoint and the agent scopes unambiguous, at the cost of flattening contributors who act in multiple capacities. Organizational mining alternatively permits overlapping or weighted role assignments [@van2016data]. The rules discriminate along two axes: platform identity and behavioural dominance. Automated accounts are identified first through their platform metadata. Contributors with no commit activity are classified as issue reporters, capturing actors whose participation is limited to issue creation and discussion. Among committing contributors, those exceeding a configurable commit-count threshold and exhibiting diversity across at least three task classes are classified as maintainers. The remaining contributors are assigned to specialist roles (such as quality engineer, DevOps engineer, technical writer, or feature developer) based on the task-class group that accounts for the plurality of their work, with a generic contributor role as fallback. The assigned role is persisted as a new attribute on the corresponding user object in the enriched OCEL log, enabling the downstream partitioning in the next step.

Step Split Log: We then isolate each role’s behavior. Using the role-annotated OCEL, a per-role sub-log is constructed for each discovered role. For a given role, each event in which at least one user object carrying that role participates is selected. All objects referenced by those events (including non-user objects such as issues, commits, and tasks) are retained, thereby preserving the object-centric structure of the original log. The result is one OCEL sub-log per role, capturing the multi-typed object context of the activities performed by that role.

Step -A: Process Mining. The per-role event log partitions serve as input for three complementary process mining steps:

Object-centric: An OC-DFG is discovered using the pm4py library. To filter infrequent behavior while accommodating sub-logs of varying size, a dynamic frequency threshold is applied: both the activity and edge thresholds are set to approximately 2% of the sub-log’s event count, with a minimum of one. The resulting OC-DFG captures each role’s typical activity sequences, annotated with the object types co-involved in each transition. It serves two purposes. First, it delineates the task scope of the agent: the activities retained after thresholding determine which operations the agent is responsible for. Second, the object types in the graph define the entities the agent interacts with (e.g., issues, commits, pull requests), grounding the agent’s interface in empirical process data rather than manual specification.

Imperative: Complementing the OC-DFG, a BPMN model is derived via Inductive Miner. The log is first flattened onto a designated primary object type (selected as the case notion), converted to a traditional event log, and the resulting process tree is then transformed into a BPMN diagram. Together, with the OC-DFG this provides a per-role view of how work is carried out.

Declarative: Declarative process mining is applied to the role-specific logs to elicit normative behavioral constraints, complementing the imperative models produced previously. Using DeclareMiner [@DonadelloRMS22], each log was first flattened onto the issue object type to yield a case-centric representation, and constraint discovery was executed with a minimum support threshold of 0.5 and a maximum constraint cardinality of two. Roles with fewer than two distinct activities after flattening were excluded from discovery, as meaningful constraint inference requires activity diversity. For the remaining roles, DeclareMiner was executed, and the discovered constraint sets were serialised as JSON artifacts for downstream consumption.

Step -B: Elicit Process Description. For each role, a process profile with activity frequencies, object-type distributions, directly-follows patterns, and event-object interaction counts is provided to GPT-4-mini using the following prompt.

The markdown output provides a structured business-oriented description of the role-specific object-centric process, including behavioral, interactional, and statistical perspectives for each of the roles.

Step Generate LangGraph Agent Code: With the specification in place, we move to the implementation of the agents. We make use of LangGraph as the target Agentic AI technology to instantiate the roles generated in the previous steps. The LangGraph application is realized through a prompt-driven synthesis process in which IBM BOB¹ interpreted the user request and turned the mined SE Agent specifications into an executable application. IBM BOB employs a mixture of frontier and specialized language models for interpretation, drawing on Anthropic Claude, Mistral open-source models, IBM Granite, and additional specialized fine-tuned models. The BOB prompt is as follows:

The resulting agent implementations are embedded into a LangGraph workflow with shared typed state, prompt templates, and routing logic. The population process combines mined process semantics with software architecture constraints: the mined artifacts determine what kinds of role behavior are meaningful. The LangGraph implementation turns those behaviors into executable agent nodes with explicit interfaces, routable responsibilities, and bounded actions.

4 Evaluation↩︎

We evaluated pm\(_4\)aa through (1) a case study, (2) functional testing of agent implementations, (3) a user study assessing the generated agent specifications.

4.1 Case Study: Commitizen↩︎

We applied pm\(_4\)aa to a repository of a real-world software project to demonstrate the technical feasibility of our approach. We chose Commitizen², a well-established open-source project active since 2017 and having 3,400+ stars and 339 forks.

Step Event Log Extraction. The raw OCEL extracted for Commitizen covers the period November 2017 – November 2025 (approximately eight years of project history) and contains 21,488 events and 4,813 objects across three object types: 1,459 issues, 2,765 commits, and 589 user accounts. Although the full log contains 21,488 events, the distribution is highly skewed. The issue_reporter and bot roles account for most events. Consequently, generated specifications for low-volume roles should be interpreted as more exploratory.

Step Mapping to SE Tasks. Of the 2,765 commits in the log, 1,721 (62.2%) carry a well-formed Conventional Commit message and were successfully enriched, yielding 1,721 task objects and a final OCEL of 6,534 objects across four types (commits, tasks, issues, users).

Step Determine Roles. To partition the enriched OCEL into role-specific sub-logs, pm\(_4\)aa automatically assigns each of the 589 user objects to one of eight roles using a rule-based classifier applied in priority order, see Table 2. The classifier first separates GitHub bot accounts (bot), then distinguishes users who participate in issue discussions but never commit (issue_reporter) from those who do. Among committing users, maintainer is assigned to those with at least 20 commits spanning at least three distinct task classes, reflecting broad, sustained involvement. The thresholds were selected as pragmatic heuristics for this proof-of-concept to distinguish sustained, diverse contribution from low-volume specialist activity. They were not optimized statistically and should be treated as configurable parameters rather than universal constants. The remaining committing users are classified by their dominant task with contributor being a "catch-all" for low-volume or single-contribution users. The four main, distinct roles (with \(\geq\) 20 users) that remain are highlighted in bold.

Step Split Log. Given the above roles, the annotated OCEL was split accordingly, resulting in role-specific sub-logs, one per role.

Step Generate Agent Specification. Except bot and issue_reporter, all roles only performed a single activity type, and thus DECLARE constraints are only informative for the above two roles. This does not invalidate the pipeline, but indicates that the utility of imperative and declarative mining depends on activity diversity in the role-specific sub-log. The following is a summary of the markdown generated for the issue_reporter role.

For the remaining roles, the OC-DFG is the primary process model represented as shown in the following example, expressing that Existence1[closed] requires the activity closed occuring at least once.

{  "raw": "Existence1[closed] | |",
  "template": "Existence1",  "activity_a": "closed", "activity_b": ""  }

Step Generate LangGraph Agent Code. This yielded an issue-centric agentic application in which the issue object coordinates requests across all lifecycle stages. BPMN artifacts provided the issue management structure, DECLARE artifacts contributed policy checks and approval gating, and process descriptions populated the role-specific agents.

The LangGraph application was generated by combining prompt interpretation with artifacts mined from the repository process rather than being handcrafted from scratch. A central design choice was that not every mined role became an agent. Instead, the final implementation selected roles whose behavior was both sufficiently distinct and operationally useful in a GitHub issue workflow. This produced five role-specific agents: issue_reporter_agent, bot_workflow_agent, implementation_agent, quality_agent, and technical_writer_agent. The implementation_agent combines the behavior mined from the roles: feature developer, contributor, maintainer, and DevOps engineer. Rather than exposing several narrowly separated development roles, the app consolidated them into a single agent responsible for interpreting feature requests, enhancements, and bug fixes as implementation work. The consolidation was deliberate: the mined roles showed similar implementation semantics, and the application required a practical executable role rather than a faithful organizational replica.

The example below shows a human-readable agent specification, also used in our user study.

4.2 Functional Testing↩︎

We tested the generated LangGraph application for Commitizen using actual GitHub issues. We conducted three smoke tests, selected to exercise distinct routing paths. These tests are not intended as evidence of general runtime effectiveness, but as sanity checks that the generated LangGraph application can ingest issues, route them, and produce coherent next actions. In all cases, the app ingested the issue, loaded its GitHub context, interpreted the text through LLM-based classification, routed the issue to a role-specific agent, and derived a corresponding next action.

Issue #1: “Readme.md requires more content to describe this project.” This was interpreted as a documentation-oriented request. The routing logic correctly selected the technical_writer_agent. In turn this agent then used its LLM-based analysis to derive a suitable documentation task focused on updating or preparing explanatory material.

Issue #2: “Add a first basic hello-world function in Python with no input arguments that prints ‘hello world’.” This issue was routed correctly to the implementation_agent. The agent translated the request into a development-oriented action plan, containing a concrete implementation workflow comprising repository inspection, minimal code changes, traceability links to the originating issue, and preparation of a pull request for review.

Issue #3: “Application crashes when uploading large CSV files.” This issue was routed correctly to the bot_agent. The agent translated the issue into a workflow-oriented coordination plan, containing low-risk repository maintenance actions comprising issue triage through the application of triage and needs-review labels, routing to the appropriate review stage, and automatic reviewer assignment to the maintainer for further technical assessment.

4.3 Exploratory User Study↩︎

To empirically evaluate pm\(_4\)aa, we performed an exploratory, qualitative user study focusing on the four main, distinct roles identified in Table 2. The aim was to assess how well process-mined, project-specific agents address the problem of Human-AI alignment, as perceived by the participants. Human-AI alignment is a concept from HCI research referring to how well an AI agent meets the goal of producing the desired outcomes, without undesirable side effects [@christian2020alignment; @GoyalCT24]. Due to the project-specific separation of concerns and agent modularity, pm\(_4\)aa’s agent specifications should exhibit a relatively high degree of human-AI alignment.

We involved ten participants recruited from our pool of PhD students, teaching assistants, and Master students. Participants evaluated written specifications, not the running agents.

Study Flow:↩︎

The study entailed the following steps. 1. Motivation and Introduction: Participants received a briefing on the problem of modeling and realizing SE agents, the ensuing challenges of human-AI alignment, and the pm\(_4\)aa approach. 2. Case Study & User Study Goals: The participants were given an overview of the case study, the generated SE Agent roles and the evaluation dimensions (explained below). We shared all identified roles except bot, as this is already automated by Github. 3. The Survey: Human participants were informed about the study goals, protection of personal data and the voluntary nature of the study. Each participant received a set of agent specifications together with a questionnaire to be answered as detailed below.

Questionnaire Structure:↩︎

We evaluate Human-AI alignment from a human-computer-interaction (HCI) perspective. We address the following alignment concerns introduced in [@GoyalCT24], thereby contributing to the challenge of effective AI-human collaboration [@RoychoudhuryPPR26]. Assessments for these concerns are given on a five-point Likert scale: (1) strongly disagree, \(\ldots\), (5) strongly agree.

Knowledge Schema: The information needed by an agent for a successful transaction must be clear to prevent back-and-forth communication. Herewith, we assess what level of contextual clarity role-scoped agents may provide.

Autonomy: Humans must understand the boundaries within which an AI agent can operate autonomously and when it must consult a human for decisions.

Operational: Humans and agents must actively identify and align on which tasks to execute, which requires that humans are aware of the agent skills.

Accountability: Humans might worry that an agent misbehaves, which could negatively impact the humans’ personal reputation. Consequently, for the sake of accountability, it must be possible to efficiently debug the AI agents.

Human Engagement: Because humans may have varying preferences for control and oversight, humans and SE agents should align on when, how, and why the human should be interrupted or engaged.

To strengthen the findings and compensate for the relatively small sample size, we asked additional open-ended, cross-cutting questions.

Data Quality and Threat Mitigation:↩︎

To ensure the integrity of the survey data and mitigate the risk of careless responding (e.g., straight-lining), we implemented several established quality control mechanisms: (1) To mitigate fatigue and ordering effects when answering four roles \(\times\) eight questions (= 32 questions in total), the presentation order of the agent specifications was randomized for each participant; (2) Statement C5 was negatively framed to detect straight-lining; (3) Responses that are logically inconsistent (e.g., answering "Strongly Agree" to both C1 and the reverse-coded C5) were flagged.

4.3.1 Results:↩︎

Fig. 2 shows the medians of the participants’ assessment for each of the four SE agents.

Overall Achievement of Alignment Criteria:↩︎

Analyzing the medians across all four evaluated agent roles reveals distinct strengths and weaknesses in how process-mined specifications address human-AI alignment:

C1: Knowledge Schema (Med: 4): This was the highest-rated dimension, indicating strong agreement that the specifications clearly communicate the specific inputs the agents need to successfully complete their tasks. The object-centric process models successfully delineate task scope and required entities.

C3: Operational Clarity (Med: 4): Participants found the tasks and responsibilities of the agents to be highly identifiable, suggesting that deriving role boundaries from event logs yields practical and understandable work assignments.

C5: Human Engagement (Med: 4): A moderate-to-high score implies that humans feel coordinating hand-offs, monitoring outputs, and intervening with the agents would require relatively low cognitive effort.

C4: Accountability (Med: 3): The ability to isolate, understand, and debug an agent’s mistakes scored neutrally. While process boundaries are clear, the underlying execution may still appear a “black box” for debugging.

C2: Autonomy (Med: 2): This dimension scored notably low, highlighting a severe challenge. Humans struggled to understand the boundaries dictating when an agent is allowed to act autonomously versus when it must wait for human approval. This reflects a marked human-AI divergence on autonomy boundaries.

Role-Specific Assessment of C1-C5:↩︎

A detailed breakdown of the five criteria across the four specific agent roles uncovers variations in how alignment is perceived depending on the nature of the software engineering tasks.

feature_developer: This role exhibited the highest overall human alignment. Participants found its operational scope (4) and required knowledge schema (4.5) exceptionally clear. It also achieved the highest accountability score (3.5), likely because code implementations provide concrete, verifiable artifacts (e.g., a pull request) that are native to human review processes.

quality_engineer: While the inputs (5) and tasks (4) for testing were well understood, accountability (3) and autonomy (2) dropped significantly, suggesting users are uncertain about how much leeway a testing agent has to automatically reject code or define its own test parameters.

technical_writer: This role exposed the most extreme disparity in the study. While participants clearly understood its operational purpose (4.50) and the inputs it requires (4.00), it received an exceptionally poor autonomy score (1.5). Users seem highly uncertain about whether documentation agents publish changes autonomously or strictly draft content for human approval.

issue_reporter: The issue reporter role yielded the most balanced, albeit slightly lower, assessment. Because this role centers on communication, coordination, and repeated review cycles, its autonomy boundaries (2.5) and human engagement expectations (3.5) may be slightly more apparent to human counterparts compared to the testing and writing roles.

Summary of Q1-Q3:↩︎

Below, we summarize the main positive (+) and negative (\(-\)) comments to the open-text questions.

Q1: (+) Roles map to distinct SE responsibilities, avoiding monolithic complexity and provide good coordination balance without excessive friction. (\(-\)) feature_developer and quality_engineer roles seem too broad. Handoffs lack detailed boundaries, and there is perceived redundancy between technical_ writer and issue_reporter.

Q2: (+) Agents successfully handle tedious tasks, such as technical documentation and systematic test coverage improvements. (\(-\)) Ambiguous validation criteria pose a risk of endless loops between feature_developer and quality_engineer. Furthermore, the rapid generation of agent output risks turning the human developer into a vetting bottleneck.

Q3: (+) There is strong support for agents handling unappealing peripheral work and preparatory phases, allowing humans to focus on major architectural decisions. (\(-\)) Echoing Q2, risks include endless validation loops, premature actions (e.g., reporters interrupting drafts), and severe human review bottlenecks due to high-volume outputs lacking prioritization guardrails.

4.4 Threats to Validity and Limitations↩︎

Our user study measures perceived human-AI alignment based on reading agent specifications, not actual task performance or agent behavior. A specification may appear well-scoped and comprehensible while producing misaligned behavior at runtime. We partly mitigate this through functional testing in Sec. 4.2.

The absolute assessments of our user study limit causal claims. Yet, determining a fair baseline for a comparative assessment is rather challenging in our case. Monolithic or fine-grained agent baselines are obviously unfair. Using canonical SE roles – as done by current frameworks [@HeTL25] – while presenting realistic and feasible baselines, would significantly overlap with the generated roles. This makes it difficult to use them as hidden baselines, which are required to not compromise the study’s validity due to psychological effects that skew perceived alignment.

The participant sample comprised Master’s students, teaching assistants, and PhD researchers from a single university, recruited as a convenience sample. This may introduce social desirability bias. Also, as non-practicing software engineers, participants may not truly reflect the perspectives of developers deploying hybrid human-AI SE teams in production.

pm\(_4\)aa was evaluated on a single open-source project, Commitizen, which follows the Conventional Commits specification and exhibits a relatively clean event log. Generalization to projects lacking structured commit conventions, or to proprietary or enterprise repositories, remains an open question.

A further threat stems from the single-role assignment in Step . Open-source contributors routinely act in multiple capacities, and forcing one label per user withholds behavior from the specialist sub-logs it could inform: in our case study, the maintainer role (8 users, 2,149 events) absorbs documentation, testing, and development activity that would otherwise enrich the technical_writer, quality_engineer, and feature_developer models. Extending role assignment to overlapping memberships is future work.

SE event logs capture coarse-grained developer activities (e.g., commits or issue updates), whereas AI coding agents operate at a finer granularity (e.g., writing code or running tests). Mined role specifications thus may not fully capture deployed agent behavior. OCPM partly mitigates this by linking commits, issues, and pull requests across object types.

5 Conclusion↩︎

We presented pm\(_4\)aa, a pipeline that derives project-specific SE agent specifications and implementations from SE repository event logs by mining roles, behavioral patterns, and normative constraints. As proof-of-concept we realized the pipeline and applied it to the Commitizen open-source project. Initial smoke tests showed coherent issue routing, and an exploratory user study suggested that the generated specifications appear to be well-aligned with human expectations.

Future work will evaluate pm\(_4\)aa on more diverse repositories, including projects without structured commits and proprietary code bases, involve practicing engineers, and extend role assignment from hard partitions to overlapping role memberships. Enriching event logs with IDE telemetry and CI/CD logs will support finer-grained agent scoping and specifications.
