1 Introduction↩︎

Adaptive-inference research for foundation models has organised around two levers (1). The first lever changes the architecture or depth a token traverses — early-exit and adaptive-depth networks [1], [2], mixture-of-experts routing, slimmable supernets, and recursive transformers. The second lever changes the attention pattern — sparse attention, deformable attention reference points [3], [4], and dynamic KV-cache compression. Both levers act after a fixed, content-blind input tokenisation.

This paper concerns a complementary third lever: the input token set itself. For a \(224{\times}224\) image, ViT [5] emits \(N{=}196\) patches in raster order regardless of where the discriminative content lies; two images with identical resolutions yield identical tokens at identical locations and scales. By a rate-distortion argument [6], optimal capacity allocation should be proportional to local information density. Uniform tokenisation violates this baseline and pays the violation at every transformer layer.

1.0.0.1 Why pruning is not the same lever.

Token pruning [1], [2], [7] is sometimes labelled “adaptive tokenisation,” but it is structurally Lever-1: a content-blind uniform grid is formed, projected via patch_embed, and partially attended for at least one transformer block before any token is dropped. The cost of forming and processing uninformative tokens is paid; only the marginal cost of further blocks is saved. Lever 3 asks the prior question — which tokens should exist for this image at all? — and answers it before any backbone parameter is queried. The two are not redundant: they compose (5).

1.0.0.2 Foveated tokenisation.

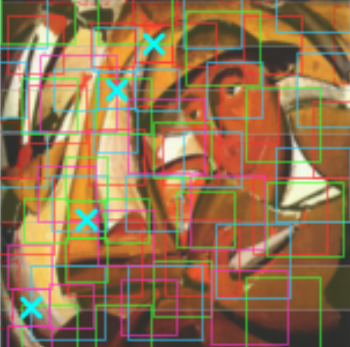

We answer that prior question with local visual entropy, computed in \(\mathcal{O}(HW)\) without any learnable parameters. 1 illustrates: SpiralFovea places dense small tokens on the high-entropy face and brushwork, and zero tokens on the low-entropy background; ViT partitions identically regardless of subject. The two-stage design (peripheral entropy \(\to\) foveal ring extraction) directly mirrors the human fovea centralis [8], where peripheral saliency processing redirects high-density photoreceptor sampling toward high-information regions. For ViT and DINO [9] backbones the resulting \(\leq\!78\) patches are projected via the backbone’s frozen patch_embed.proj and processed by the full transformer stack — so the backbone never sees uninformative patches at any layer.

1.0.0.3 Contributions.

1. We position input-adaptive tokenisation as a third lever of resource-adaptive inference, complementary to architecture-level and attention-level adaptivity (1).

2. We instantiate the lever with SpiralFovea: a parameter-free, \(\mathcal{O}(HW)\) entropy-guided tokeniser with provable anchor coverage (1) and multi-scale spiral ring extraction; selection completes before any backbone parameter is evaluated (2).

3. We provide a rate-distortion and biological rationale (3), motivating the design from first principles rather than retrofitting it to the results.

4. Across four fine-grained benchmarks and four backbone families, SpiralFovea yields a strict-dominance Pareto improvement: higher accuracy at \(60\%\) fewer input tokens, \(84\%\) fewer self-attention FLOPs at every layer, and \(18\)–\(29\%\) higher throughput (4).

5. A controlled boundary analysis on CUB-Genus across four backbones gives a deployment diagnostic: the gain tracks inversely with the strength of the backbone’s whole-image positional prior, isolating self-supervised foundation models as the highest-value regime (4.4).

2 SpiralFovea↩︎

2 shows the pipeline. The core property is that the token set \(\mathcal{T}=f(\mathbf{I})\) is a function of image content; uniform tokenisation and post-hoc pruning produce \(\mathcal{T}=f(H,W)\). Selection runs entirely before backbone forward, so neither patch projection nor self-attention is ever applied to uninformative regions. This contrasts sharply with Lever-1/2 methods, which process the full uniform grid for at least one block before any adaptation can take effect.

2.0.0.1 Entropy map.

Project \(\mathbf{I}\) to luminance using BT.601 [10], downsample to \(D{\times}D\), quantise to \(B\) bins. For a sliding window of radius \(r\) (\(\omega{=}2r{+}1\)) the empirical bin probability \(\hat{p}_b(x,y)\) is computed by F.unfold, and local Shannon entropy is \[\mathcal{E}(x,y) = -\!\!\sum_{b=0}^{B-1}\! \hat{p}_b(x,y)\log_2\!\bigl(\hat{p}_b(x,y)+\varepsilon\bigr), \label{eq:entropy95fast}\tag{1}\] upsampled to \(H{\times}W\) via bilinear interpolation. The \(\mathcal{O}(BHW\omega^2/s^2)\) cost is \(<\!2\%\) of a single transformer block in practice.

2.0.0.2 Hotspot anchors.

Divide image height into \(S\) strips; for each active strip \(s\in\mathcal{S}\) take the argmax-entropy location within a margin-constrained domain \(\Omega_s\): \[\boldsymbol{c}_s = \mathop{\mathrm{arg\,max}}_{(x,y)\in\Omega_s}\mathcal{E}(x,y). \label{eq:hotspot}\tag{2}\] Strip decomposition enforces horizontal anchor diversity; without it all anchors collapse to the global maximum. Anchors are normalised to \([-1,1]^2\) and deduplicated under a radius-\(\tau_{\mathrm{dedup}}\) rule: \(q\) is suppressed if any earlier retained \(q'<q\) lies within \(\tau_{\mathrm{dedup}}\).

2.0.0.3 Multi-scale spiral rings.

Around each retained anchor, we place patches in \(K=4\) concentric rings of increasing radius and increasing patch size: ring \(k=0\) is a single foveal patch; ring \(k>0\) holds \(n_k = \max(1, \lfloor 2\pi\rho_k / (\alpha\sigma_k) \rfloor)\) patches at angles \(\theta_{k,j} = 2\pi j / n_k\), with \(\alpha=1.3\) controlling angular overlap. Radii grow so rings tile the space without gaps; the schedule on a 224-pixel canvas is \([(\sigma_k, g_k)] = [(24, 0), (28, 18), (36, 22), (48, 26)]\), yielding \(\rho = [0, 26, 58, 96]\) and \(1+5+10+13=29\) patches per anchor. With \(|\mathcal{S}|=4\) active strips, the theoretical upper bound is \(29 \times 4 = 116\) patches; however, in practice, a substantial fraction of outer-ring patches fall outside image bounds and are discarded by the out-of-bounds filter. Empirically, this yields a retained token count of \(\le 78\) for the vast majority of samples—a \(\sim 60\%\) reduction from 196 uniform tokens.

2.0.0.4 Token acquisition and embedding.

Patches are sampled at \(P_r{\times}P_r\) via bilinear grid_sample [11]; a patch is discarded if its out-of-bounds fraction exceeds \(\tau_{\mathrm{oob}}{=}0.6\). For ViT/DINO backbones each \(14{\times}14\) patch is projected via the backbone’s frozen patch_embed.proj; the standard raster sinusoidal PE is replaced with a content-aligned polar PE (below); the CLS token is prepended; the variable-length sequence is passed through the full frozen transformer stack; the final CLS token is classified by a linear head. Implementation in 12.

2.0.0.5 Polar PE rationale.

A learned 2-layer MLP from polar coordinates \((\hat{\boldsymbol{c}}_s,k,\theta)\) is more natural than raster sinusoidal PE for two reasons. (i) Geometric proximity in the foveated layout is naturally polar: patches at the same angular position around an anchor are spatially adjacent regardless of ring index, an adjacency that sinusoidal raster PE breaks. (ii) The polar code is permutation-equivariant within a ring, mirroring the rotational symmetry of the spiral extraction. The ablation (4) confirms \(+0.5\) pp over sinusoidal PE.

2.0.0.6 Mamba fusion (CNN setting).

For CNN backbones we encode each \(32{\times}32\) patch with a shared ResNet-18 trunk and fuse the variable-length sequence with two Mamba blocks [12]: \(\mathcal{O}(N)\) recurrence accommodates per-image token-count variability from OOB filtering, and Mamba’s sequential prior aligns with the ring-ordered (foveal-centre-outward) sequence. For ViT/DINO the transformer stack itself fuses; no extra module is needed.

2.0.0.7 Compute trade-off.

The transformer attends over \(\leq\!78\) tokens vs.\(197\), so self-attention costs \((78/197)^2\!\approx\!0.1544{\times}\) the FLOPs at every layer — approximately \(84\%\) reduction throughout the backbone, not at a single fusion stage. Selection is parameter-free, so the policy adds no overfitting surface.

3 Why Input-Adaptive Tokenisation Helps↩︎

We motivate SpiralFovea from first principles before turning to the empirics. Two regularities of fine-grained recognition — and of spatially-concentrated visual recognition more broadly — justify treating the input token set as a primary efficiency lever.

3.0.0.1 Rate-distortion mismatch of uniform tokenisation.

By the rate-distortion principle [6], optimal bit allocation for a non-uniform information source is proportional to local information density. Uniform tokenisation violates this principle by allocating equal capacity everywhere, irrespective of where information actually lives. On all four of our benchmarks the discriminative signal is empirically concentrated: on Oxford Flowers, the central bloom occupies \(\sim\!30\)–\(40\%\) of pixels under standard cropping; on CUB-200-2011, the bird (per-image bounding box) occupies a median \(\sim\!35\%\) of image area; on WikiArt portraits, the subject occupies \(\sim\!25\)–\(35\%\) of the canvas; on PatchCamelyon the tumour-margin structure is spatially localised within each tissue patch. In each case, \(60\)–\(75\%\) of image area is low-entropy context that contributes nothing to the decision but consumes equal patches and equal attention under uniform tokenisation. SpiralFovea reallocates that capacity to high-entropy regions identified without any learnable parameters.

3.0.0.2 Biological motivation.

Biological vision concentrates \({\sim}6\) million cone photoreceptors within the fovea centralis [8], a tiny \(1.5\) mm patch of retina, while peripheral saliency processing redirects fixation toward high-entropy regions. The two-stage SpiralFovea architecture (peripheral entropy map \(\to\) foveal multi-scale ring extraction) is a direct algorithmic counterpart of this organisation.

3.0.0.3 When the gain should narrow.

The same rationale predicts a clean boundary case — which we verify in 4.4. When a backbone’s pre-training has already committed its positional priors to a uniform raster grid (e.g., supervised ImageNet classification), replacing those tokens with sparse content-driven ones forfeits some of that prior. On backbones with weaker or task-agnostic priors (DINO self-supervised; ResNet trained from scratch), the rate-distortion gain dominates and the substitution is net positive. The prediction is monotone: gain \(\propto\) inverse strength of the whole-image raster prior. 4.4 confirms this monotone ordering across four backbones.

4 Experiments↩︎

4.0.0.1 Benchmarks.

Four canonical fine-grained recognition benchmarks plus an additional boundary-analysis set, all satisfying the spatially-concentrated-signal property: WikiArt GAN-Genre and WikiArt Style [13]; Oxford Flowers-102 [14]; PatchCamelyon (binary metastatic-tissue detection) [15]; and CUB-200-2011 Genus [16] for boundary analysis (4.4; we group the 200 species into 70 colloquial genera by the last underscore-separated token of each class name).

4.0.0.2 Implementation.

\(H{=}W{=}224\), \(P_r{=}14\) (ViT) / \(32\) (CNN), \(B{=}16\), \(\omega{=}15\), \(D{=}112\), \(\tau_{\mathrm{oob}}{=}0.60\), \(\tau_{\mathrm{dedup}}{=}0.15\), \(S{=}8\), \(\mathcal{S}{=}\{0,2,4,6\}\). AdamW (\(\eta{=}10^{-4}\), \(\lambda{=}0.01\)), label smoothing \(0.1\), batch 32, two Tesla T4 GPUs. ResNet-18 has layer-4 trainable; ViT-S/16, ViT-B/16, DINO-ViT-S/16 are fully frozen, with only the polar PE MLP and linear head trained . Per-seed statistics in 10; full hyperparameters in 11.

4.1 Pareto Frontier and Main Results↩︎

3 shows the headline result: across all four backbone families, SpiralFovea pushes the accuracy/token-count Pareto frontier up and to the left simultaneously. 2 reports the full numbers. Average gain ranges from \(+1.7\) pp on DINO-ViT-S/16 and ResNet-18+Mamba to \(+2.1\) pp on ViT-S/16 at \(\leq\!78\) tokens vs.the matched 196-token uniform baseline, with consistent improvements on every (backbone, benchmark) pair except a single \(-0.28\) pp boundary case discussed in 4.4.

4.2 Efficiency: Strict-Dominance Resource Profile↩︎

3 reports throughput on a Tesla T4. SpiralFovea improves accuracy and throughput simultaneously for every backbone: \(+19\%\) throughput on ViT-S/16, \(+29\%\) on ViT-B/16, \(+18\%\) on DINO-ViT-S/16. Self-attention FLOPs are reduced by \(\approx\!84\%\) at every layer, not at a single fusion stage — a structural advantage over Lever-1 methods whose savings start only after one or more pre-pruning blocks. For ResNet-18 the SpiralFovea pipeline is also faster than the uniform ResNet+Mamba baseline (803 vs. img/s) because Mamba’s \(\mathcal{O}(N)\) recurrence accommodates the variable-length sparse token sequence directly.

4.3 Ablations: Anchor Placement Dominates↩︎

4 isolates each design choice on DINO+SpiralFovea over the four main benchmarks. Entropy-guided anchor placement is the dominant factor: random hotspots cost \(-1.5\) pp; a random 78-patch sparse input costs \(-1.7\) pp; the full uniform 196-patch baseline costs \(-1.9\) pp. Which patches are selected matters more than how many. Multi-scale rings add \(+1.1\) pp over a single fixed scale; spiral layout adds \(+0.9\) pp over linear row-scan; polar PE adds \(+0.5\) pp over sinusoidal PE.

4.4 A Deployment Diagnostic: CUB-Genus↩︎

To probe when input-adaptive tokenisation helps, we evaluate on CUB-200-2011 grouped to 70 colloquial genera. 5 reveals a clean monotone ordering, exactly as predicted by the rate-distortion + raster-prior argument in 3: gain is largest on backbones whose pre-training imposes the weakest whole-image positional prior — ResNet from scratch (\(+0.9\) pp), DINO self-supervised (\(+0.9\) pp), supervised ViT-B/16 (\(+0.5\) pp) — and slightly negative on supervised ViT-S/16 (\(-0.28\) pp), whose ImageNet pre-training has committed its positional priors to a uniform raster grid.

A second mechanism amplifies the same boundary: the supervised ViT-S/16 baseline has saturated at \(93.53\%\) on a 70-class benchmark, leaving little headroom for any input perturbation to register as gain; ViT-B/16 at \(90.46\%\) has more headroom and accordingly shows \(+0.50\) pp.

This monotone ordering is itself a contribution: we present not only a method but a predictive characterisation of when a Lever-3 method should help. The expected gain from any input-adaptive tokeniser can be forecast a priori from the strength of the backbone’s whole-image positional prior — actionable information for AdaptFM practitioners deciding whether to apply input-adaptivity at all. SpiralFovea is most valuable on backbones with task-agnostic positional priors, i.e.self-supervised foundation models — precisely the backbones that dominate modern fine-grained pipelines and that AdaptFM-style flexible-architecture work increasingly targets.

5 Related Work and Positioning↩︎

5.0.0.1 Token pruning (Lever 1).

DynamicViT [1], EViT [2], and ATS [7] reduce token count after the uniform grid is already formed and partially attended. SpiralFovea differs structurally: token count, location, scale, and identity are all content-dependent functions evaluated before any backbone parameter is queried. Empirically, pruning’s gain is bounded by the cost of pre-pruning blocks; SpiralFovea’s \(84\%\) self-attention saving applies at every layer.

5.0.0.2 Deformable / adaptive attention (Lever 2).

Deformable DETR [3] and DAT [4] content-condition attention reference points; the input grid remains uniform raster. SpiralFovea is orthogonal — it reshapes the input set; deformable attention reshapes how that set is consumed — and the two stack.

5.0.0.3 Foveated and saliency-driven sampling.

[17] introduce a saliency-based sampling layer for CNNs; [18] model gaze-contingent log-polar sampling for human visual psychophysics. Both propose foveated input sampling but at the pixel level via a learned saliency network, not at the patch-token level compatible with frozen pretrained transformers. SpiralFovea is parameter-free, drops directly into a frozen backbone’s patch_embed.proj, and pairs naturally with state-space models [12], [19] whose sequential prior matches the ring-ordered token sequence. 6 (9) summarises positioning across all four token-set axes.

5.0.0.4 Self-supervised features.

The CUB-Genus boundary (4.4) shows that DINO [9] provides the strongest backbone for our setting because self-supervised features encode no fixed whole-image positional commitment. We expect this to extend broadly: as self-supervised foundation models become the default for transfer, input-adaptive tokenisation becomes correspondingly more valuable.

5.0.0.5 Stacking with other AdaptFM techniques.

SpiralFovea is structurally complementary to Lever-1/2 adaptivity, and the multiplicative form of the compositional savings is easy to read off. The 78-token sequence it produces can be paired with: (a) early-exit — exiting at block \(\ell\) instead of \(L\) multiplies the saving by \(\ell/L\), on top of the \(84\%\) per-layer attention reduction; (b) MoE routing — per-token expert selection is sequence-length-bounded, so the \(\sim\!2.5\times\) shorter input directly shrinks routing overhead; (c) KV-cache compression — the already-small \(\leq\!78\)-token cache compounds further with quantisation or low-rank compression at autoregressive decode time; (d) slimmable supernets — variable-width inference applies orthogonally per layer to the already-shorter sequence. The compositional Pareto frontier dominates any single-lever frontier; characterising it empirically is, in our view, a primary open problem for the AdaptFM research community.

6 Limitations↩︎

Anchor diversity. Strip-wise anchor decomposition enforces only horizontal anchor diversity; a learned 2D saliency estimator would generalise. Variable sequence length. Per-image token counts vary with image content, requiring padding for batched inference; bucketed batching is left to future work. Scope. Evaluation focuses on fine-grained benchmarks where the spatially-concentrated assumption holds. Based on the boundary analysis (4.4) we expect the gain pattern on whole-image classification (ImageNet) to mirror the supervised ViT-S/16 CUB result — neutral to slightly negative under supervised pre-training, positive under self-supervised DINO — and we leave that confirmation to future work. Boundary case. The supervised ViT-S/16 regression on CUB-Genus (\(-0.28\) pp) is reported honestly and explained in 4.4 via two complementary mechanisms (raster-prior commitment; saturation headroom).

7 Conclusion↩︎

We argued that input-adaptive tokenisation is a third lever of resource-adaptive inference, complementary to architecture-level and attention-level adaptivity, and operationalised it with SpiralFovea — a parameter-free, content-driven tokeniser that completes selection before any backbone parameter is queried. Across four fine-grained benchmarks and four backbone families we showed a strict-dominance Pareto improvement: \(+1.7\) to \(+2.1\) pp accuracy at \(60\%\) fewer input tokens, \(84\%\) fewer self-attention FLOPs at every layer, and \(18\)–\(29\%\) throughput gains. A controlled boundary analysis yielded a predictive characterisation: gain from Lever-3 methods can be forecast a priori from the strength of a backbone’s whole-image positional prior, isolating self-supervised foundation models as the highest-value regime.

7.0.0.1 Open questions for AdaptFM.

The third lever is largely unexplored. Three questions are within immediate reach of the AdaptFM community: (i) what does the compositional Pareto frontier of Lever 3 with each of Levers 1 and 2 look like? Our analysis predicts the multiplicative form (5); empirical confirmation is the natural next step. (ii) Does the third lever extend to non-image modalities — text, code, audio — where local entropy of token streams may admit analogous content-aware tokenisation? (iii) Does a small learnable content-aware tokeniser improve over the parameter-free entropy heuristic at large pre-training scale, or does the parameter-free design transfer better across distributions? We hope this work motivates the AdaptFM community to treat the input token set as a first-class lever for resource-adaptive foundation-model inference.

Impact Statement↩︎

This paper presents work whose goal is to advance resource-adaptive foundation-model inference. Reducing tokens fed to a frozen backbone yields proportional savings in GPU memory and energy, lowering the carbon cost of training and deployment. The PatchCamelyon result suggests applicability to medical imaging where informative content is sparse. As with most efficient-vision research, the same techniques can be applied to surveillance and biometric systems; responsible deployment is the responsibility of downstream users. We do not see other societal consequences requiring specific highlighting beyond those well established for the broader area.

8 Proof of 1↩︎

Anchor \(q\) is retained only if no previously retained anchor lies within distance \(\tau_{\mathrm{dedup}}\) in the normalised coordinate system \([-1,1]^2\). Equivalently, for every pair of retained anchors \((\hat{\boldsymbol{c}}_q,\hat{\boldsymbol{c}}_{q'})\) with \(q\neq q'\), \(\|\hat{\boldsymbol{c}}_q-\hat{\boldsymbol{c}}_{q'}\|_2\geq\tau_{\mathrm{dedup}}\). The collection therefore satisfies the definition of a packing of the unit box at radius \(\tau_{\mathrm{dedup}}/2\). 0◻

9 Token-Set Taxonomy↩︎

10 Per-Seed Standard Deviations↩︎

11 Hyperparameters and Compute Budget↩︎

All experiments were run on Kaggle Tesla T4 GPUs (\(\times 2\), \(16\) GB each). Optimiser AdamW with \(\eta{=}10^{-4}\), \(\lambda{=}0.01\); label smoothing \(0.1\); batch size \(32\); cosine LR schedule with \(5\%\) warmup. 30 epochs for WikiArt, Flowers, CUB; 20 epochs for PCam.

Entropy-map parameters: \(D{=}112\) (downsample), \(B{=}16\) (bins), \(\omega{=}15\) (window). Anchor parameters: \(S{=}8\) strips with active subset \(\mathcal{S}{=}\{0,2,4,6\}\), \(\tau_{\mathrm{dedup}}{=}0.15\) in \([-1,1]^2\). Spiral-ring schedule \([(\sigma_k,g_k)]=[(24,0),(28,18),(36,22),(48,26)]\) pixels on a 224-pixel canvas, yielding \(\rho=[0,26,58,96]\). Patch sampling resolution \(P_r{=}14\) for ViT/DINO and \(P_r{=}32\) for ResNet, with \(\tau_{\mathrm{oob}}{=}0.60\). Polar-PE MLP: 2 layers, \(64\) hidden units, GELU activation.

12 ViT Sparse-Patch-Input Protocol↩︎

The DINO-ViT-S/16 backbone (patch size \(P{=}16\), input \(224{\times}224\), hidden dim \(384\)) normally processes a \(14{\times}14{=}196\) patch token sequence in raster order plus a CLS token. SpiralFovea bypasses the uniform grid and feeds the backbone only the \(\leq\!78\) entropy-guided spiral patches. Each spiral centre \(\boldsymbol{r}_{k,j}\in[-1,1]^2\) defines an image crop of size \(\sigma_k{\times}\sigma_k\) pixels, bilinearly resized to \(14{\times}14\) and embedded via the frozen patch_embed.proj:

with torch.no_grad():
    ent     = compute_entropy_map(img)
    anchors = detect_anchors(ent)
    patches, anchor_ids = extract_spiral_patches(img, anchors)
    tokens  = dino.patch_embed.proj(patches).flatten(1)
    tokens  = tokens + polar_pe_mlp(anchors)[anchor_ids]
    cls     = dino.cls_token + dino.pos_embed[0, 0]
    tokens  = torch.cat([cls, tokens], 0).unsqueeze(0)
    for block in dino.blocks:
        tokens = block(tokens)
    tokens = dino.norm(tokens)
    logit  = head(tokens[0, 0])

Patches whose centre falls outside the image boundary or whose OOB fraction exceeds \(\tau_{\mathrm{oob}}\) are discarded prior to embedding, yielding the variable count \(N_{\mathrm{sp}}\leq 78\).
