1 Introduction↩︎

Despite its enormous success, the Standard Model (SM) is widely regarded as a low-energy effective theory of a more fundamental framework. The nature of this underlying physics is currently being explored at the LHC and will be further probed by next-generation colliders. The Electron-Ion Collider (EIC) at the Brookhaven National Laboratory [2], [3], which is expected to start taking data during the next decade, is probably going to be the only new high-energy collider worldwide in the next twenty–thirty years, so that exploiting its potential to address fundamental questions in particle physics is warranted. Indeed, in spite of the fact that the EIC is primarily designed for exploration of nuclear physics [2], [3], there has been a growing interest in pointing out the EIC’s sensitivity and capability for precision tests of the SM [4]–[9] and for the search of Beyond the SM (BSM) physics [9]–[31]. We note, in particular, that the potential high polarization (expected to approach 80%) of the incoming electron beam at the EIC and its anticipated high integrated luminosity of \({\cal L} \sim {\cal O}(100)\) fb\(^{-1}\) is highlighted in many of these studies; for comparison we recall that the HERA \(ep\) collider collected \({\cal O}(1)\) fb\(^{-1}\) of data and ran with about \(30\%\) of average electron beam polarization during its phase II [32], [33].

In this paper we would like to promote the possibility of exploiting the EIC as a testing platform for the study of flavor-changing (FC) physics, which remains one of the fundamental unresolved matters in theoretical particle physics; a signal of TeV-scale FC interactions will be a clear and unambiguous evidence for BSM physics. There are reasons to believe that FC interactions involving the 3rd generation quarks are likely to show the largest effect.¹ Following the idea introduced by the authors in [1], we propose here to test FC new physics (NP) effects in single and di-jet production at the EIC by simply counting the number of \(b\)-jets in the final state (FS). As outlined in [1], this approach is best suited for lepton colliders but in some cases it may be extended to hadron colliders or electron-proton colliders if the \(b\)-quark content in the proton can be ignored. In particular, we will show in this work that it can be applied to the EIC in charge-current (CC) interactions, by achieving a high purity of the \(b\)-jet sample and leveraging the polarization of the incoming electron beam.

Indeed, the combination of high luminosity, high \(b\)-jet identification efficiency, the availability of polarized beams and the relatively low CM energy of the EIC (below the top-quark threshold) prove combined virtues leading to a rather impressive sensitivity of this collider to the kind of flavor physics investigated below. In particular, the expected EIC sensitivity is significantly better to that of HERA despite the fact that HERA operated at more than twice the CM energy.

The physics behind the method we use is based on the observation that in the limit where the CKM parameters \(V_{3j}=V_{j3}=0\) (\(j\neq 3\)), the SM acquires an additional global \(U(1)_b\) symmetry ("bottomness"), where \(b\) and \(\bar b\) have opposite charges, and which holds to any order in perturbation theory. Specifically, since \(V_{j3},V_{3j}\) (\(j \neq 3\)), though not zero, are small [\(V_{31},V_{13} \sim {\cal O}(\lambda^3)\) and \(V_{32},V_{23} \sim {\cal O}(\lambda^2)\), where \(\lambda \sim 0.22\) is the Wolfenstein parameter], the quantum number associated with \(U(1)_b\) is approximately conserved (in particular, the top quark decays almost exclusively into \(bW\)). Then, for example, given a reaction of the type \[\begin{align} n_i \cdot b + X \to n_f \cdot b + Y ~, \label{bp1} \end{align}\tag{1}\] where (i) \(X,Y\) denote sets of particles not containing \(b\)-quark/jets; (ii) \(n_i,n_f\) are the number of \(b\)-quark/jets in the initial and final states, respectively; and (iii) there are no top quarks in the initial sate, and those in the final state have decayed via \(t \to bW\); we have \((-1)^{n_i} = (-1)^{n_f}\) and we can define an approximately conserved flavor number for collider scattering processes, \(b_P \equiv (-1)^{n_f -n_i}\), which was named \(b\)-Parity in [1]. Therefore, if there is no \(b\)-quark content in the initial state (\(n_i=0\)), then an odd number of \(b\)-quark jets cannot be generated in the SM in scattering processes, as was pointed out in [1].

In this work we wish to apply the concept of \(b\)-Parity for searches of new BSM sources of FC physics in the third generation quark sector at the EIC, in multi-jet production: \[\begin{align} e + p/A \to n \cdot j_b + m \cdot j_\ell + X \label{nbx}~, \end{align}\tag{2}\] where \(n\) denotes the number of \(b\) and/or \(\bar b\) jets in the FS,² \(m\) is the number of light-jets and \(X\) stands for leptons and/or missing energy. We assume below an EIC running phase with a CM energy \(\sqrt{s} < m_t\), so that the production of \(b\)-quarks via \(t \to b W\) is vanishingly small, as it will occur only through an off-shell top-quark in the FS. Thus, to the extent that the \(b\)-quark content inside the proton can be ignored, the \(b\)-Parity number for the reaction in Eq.@eq:nbx becomes: \[\begin{align} b_P=(-1)^n ~, \label{bParity} \end{align}\tag{3}\] so that the measured quantum number reduces to the net number of detected \(b\)-quark jets, in which case it is convenient to use the derived quantity \(b_P\). The only SM processes that violate \(b_P\) in these multi-jet production processes at the EIC necessarily involve the CC \(u \to b\) and/or \(c \to b\) interactions, which are suppressed by the corresponding small off-diagonal CKM element factors, \(|V_{ub}|^2\) and \(|V_{cb}|^2\), so that the SM is \(b_P\)-even at the EIC to a good accuracy. Thus, to experimentally detect NP signals with \(b_P=-1\) in the processes of the type shown in Eq. 2 , one should simply measure/count the number of events with an odd number of \(b\)-jets in the FS.

Denoting by \(t_j\) the light-jet mis-tagging probability (i.e., that of mistaking a light-quark jet or gluon-jet for a \(b\)-jet)³ and by \(\epsilon_b\) the \(b\)-tagging efficiency, the probability (or cross-section) for detecting precisely \(k\) \(b\)-jets in the reaction of Eq.@eq:nbx is given by \[\begin{align} \bar\sigma_{kj_b} = \sum_{u,v} P_u^n P_v^m \left[ \epsilon_b^u (1-\epsilon_b)^{n-u} \right] \left[ t_j^v (1-t_j)^{m-v} \right] \sigma_{ n m} \delta_{u+v,k} \label{sigmabar} ~, \end{align}\tag{4}\] where \(P^i_j = i!/j!/(i-j)!\) and \(\sigma_{ n m} = \sigma (e +p/A \to n \cdot j_b + m \cdot j + X)\).

Clearly, the main obstacle in the search for \(b_P\)-odd NP signals is, therefore, the reducible SM background due to jet mis-identification, which results from having a non-optimal \(b\)-tagging efficiency (\(\epsilon_b\)) below 1, and/or having non-zero probabilities (\(t_j\)) of mis-tagging a light-quark jet for a \(b\)-jet (also known as the purity of the \(b\)-jet sample). This type of background would of course disappear as \(\epsilon_b \to 1\) and \(t_j \to 0\), but even with the seemingly small \(t_j \sim 0.01\) (and a relatively high \(b\)-tagging efficiency of \(\epsilon_b \sim 0.8\)) can produce a significant number of (miss-identified) "fake" \(b_P\)-odd events in the detector.

In what follows, we will consider new flavor physics involving the third generation quarks, which impacts single \(b\)-jet production at the EIC. We use effective field theory to describe the NP and find that the EIC will be sensitive to NP scales of \(\Lambda \lower 0.5ex\:\buildrel <\over\sim\:1-3\) TeV and for a certain type of interaction up to \(\Lambda \lower 0.5ex\:\buildrel <\over\sim\:5\) TeV. As will be shown, this will require a relatively high purity of the \(b\)-jets sample and a substantial polarization of the electron-beam.

2 new 3rd generation flavor physics and the EIC↩︎

With no indications of NP observed so far up to the TeV scale, it is useful to parameterize the impact of new heavy states by higher dimensional, gauge-invariant effective operators, \(Q_i^{(n)}\), in the so-called SM Effective Field Theory (SMEFT) framework, where the effective operators are constructed using the SM fields and their coefficients are suppressed by inverse powers of the NP scale \(\Lambda\) [34]–[38]: \[\begin{align} {\cal L} = {\cal L}_{SM} + \sum_{n=5}^\infty \frac{1}{\Lambda^{n-4}} \sum_i \alpha_i Q_i^{(n)} \label{eq:EFT1}~, \end{align}\tag{5}\] where here \(n\) is the mass dimension of \(Q_i^{(n)}\) and we assume decoupling and weakly-coupled heavy NP, so that \(n\) equals the canonical dimension. One can further divide the higher-dimension effective operators into those that can be potentially generated at tree-level (PTG) and those that are necessarily loop generated (LG) by the underlying heavy theory [39]. The dominating NP effects are then expected to be generated by contributing operators with the lowest dimension (smallest \(n\)) that are PTG in the underlying UV theory. The (Wilson) coefficients \(\alpha_i\) depend on the details and dynamics of the underlying heavy theory and, therefore, they parameterize all possible weakly-interacting and decoupling types of heavy physics. In particular, it is expected that \(\alpha_i =O(1)\) for the PTG operators (for favorable types of NP), and \(\alpha_i \sim 1/(4\pi)^2\) for all LG operators; the effects of LG operators are thus a-priory suppressed by a loop factor and, therefore, their effects at lower energies (i.e., \(E < \Lambda\)) are expected to be subleading.

We will use below a more practical "effective" NP scale, which is the variable that enters the calculation: \[\begin{align} \Lambda_{\tt eff} \equiv \frac{\Lambda}{\sqrt{\alpha}} ~; \label{lam95eff} \end{align}\tag{6}\] note that \(\Lambda_{\tt eff} \sim \Lambda\) for natural PTG couplings. As mentioned above, in this work we characterize and exploit the possible manifestations of new flavor structures which involve the 3rd generation quarks, assuming a generic decoupling and weakly-coupled underlying heavy NP and using the SMEFT framework. In particular, we examine below single and di-jet production at the EIC via \(2 \to 2\) and \(2 \to 3\) processes, focusing (for reasons explained below) on CC interactions comprising a single \(b\)-quark in the FS. The relevant dimension six (dim.6) operators that are PTG and that can mediate sizable new flavor physics effects in these reactions involve a FC \(b \to u\) transition and are listed in Table 1.

Let us make a few comments on the effective operators listed in Table 1:

• We focus only on the operators that mediate \(b \to u\) flavor transitions, generating the \(e \nu_ebu\) 4-Fermi contact terms and the \(Wub\) charged currents, since these yield the dominant contribution to single \(b\)-jet production at the EIC, e.g., via \(e u \to \nu_e b\) and \(e u \to \nu_e b g\) (see next section). In particular, we find that the sensitivity to the corresponding operators which generate \(b \to c\) transitions is significantly reduced, due to the suppressed \(c\)-quark content inside the proton.

• The operators \(Q_{\ell e dq}\), \(Q_{\ell e qu}^{(1)}\) and \(Q_{\ell e qu}^{(3)}\) are non-hermitian and no symmetry applies to their indices, so that, for example, the \((1131)\) entry is different from the \((1113)\) one.⁴ We note that, for the CC reactions \(e + p/A \to j_b + \nu_e\) and \(e + p/A \to j_b + j_\ell + \nu_e\), only the \((1131)\) entries of these operators contribute.

• The operator \(Q_{Hud}\) is also non-hermitian and \(\alpha_{Hud}(31) \neq \alpha_{Hud}(13)\); here also only \(Q_{Hud}(13)\) contributes to \(e + p/A \to j_b + \nu_e\) and \(e + p/A \to j_b + j_\ell + \nu_e\).

• The operators \(Q_{\ell q}^{(3)}\) and \(Q_{Hq}^{(3)}\) are hermitian so that, for real Wilson coefficients: \(\alpha_{\ell q}^{(3)}(1131) = \alpha_{\ell q}^{(3)}(1113)\) and \(\alpha_{Hq}^{(3)}(13) = \alpha_{Hq}^{(3)}(31)\).

Bounds on the operators listed in Table 1 can be derived from Drell-Yan (DY) processes at the LHC, via the CC \(\bar b u \to e^+ \nu_e\) and neutral current (NC) \(\bar b d \to e^+ e^-\) interactions [40]–[44], from the \(b\)-decays \(b \to u e \nu_e\) and \(b \to d ee\) [40], [42] and from \(e^+ e^- \to t \bar u\) at LEP2 [45]–[47] and \(t \bar t\) production at the LHC followed by the FC top decay \(t \to u e^+ e^-\) [48]–[52]. While the latter (i.e., top-quark production and decays) gives the weakest bounds of \(\Lambda_{\tt eff} \lower 0.5ex\:\buildrel >\over\sim\:{\cal O}(1)\) TeV, analysis of the DY processes at the LHC mentioned above yield \(\Lambda_{\tt eff} \lower 0.5ex\:\buildrel >\over\sim\:3-7\) TeV, depending on the type of operator and process. The bounds from \(b\)-decays are the strongest, reaching in some cases \(\Lambda_{\tt eff} > {\cal O}(10-20)\) TeV when a single NP operator is turned on. As mentioned earlier and will be shown below, the sensitivity to these dim. 6 effective operators at the EIC strongly depends on the \(b\)-tagging efficiency and purity and on the availability of polarized electron beams, where, for most operators, it is expected to be more sensitive to this type of NP than the top-quark systems (mentioned above) and, for a certain type of 4-fermi interaction, it is competitive with the current bounds from DY processes at the LHC.

3 \(b\)-Parity and single jet production at the EIC↩︎

Let us consider \(2 \to 2\) processes from CC and NC interactions, which are potentially the most sensitive to new flavor physics: \[\begin{align} {\rm CC:} ~~~ && e + p/A \to j + {\not\!\! E_T}~, \tag{7} \\ {\rm NC:} ~~~ && e + p/A \to j + e ~, \tag{8} \end{align}\] where \(j=j_b\) and \(j=j_l\) for a \(b\)-jet and light-quark jet, respectively, and \({\not\!\! E_T}\) stands for missing energy from the outgoing electron-neutrino \(\nu_e\).

In the limit of a diagonal CKM, the CC parton-level process in Eq.@eq:CCeq proceeds in the SM only via the t-channel \(W\)-boson exchanges \(e u \to d \nu_e\) (this channel contributes more than \(90\%\) to the total CC \(2 \to 2\) cross-section in the SM), \(e c \to s \nu_e\), \(e \bar d \to \bar u \nu_e\) and \(e \bar s \to \bar c \nu_e\), while the NC process in Eq.@eq:NCeq proceeds via the t-channel \(\gamma\) and \(Z\)-boson exchanges \(e q \to q e\) and \(e \bar q \to \bar q e\), where \(q=u,d,c,s,b\) (in this case \(e u \to e u\) and \(e d \to e d\) contribute about \(80\%\) and \(10\%\), respectively, of the total NC \(2 \to 2\) SM cross-section).

Note that a single \(b\)-jet can be produced in the SM via the NC reaction in Eq.@eq:NCeq , even in the limit of a diagonal CKM mixing matrix, due to the presence of the \(b\)-quark in the proton via \(e b \to e b\) and \(e \bar b \to e \bar b\); this however accounts for a marginal fraction (about 0.3%) of the total \(2 \to 2\) NC cross-section. The total SM contribution to the single \(b\)-jet signal via the NC process of Eq.@eq:NCeq is driven primarily by light jets mis-tagged as \(b\)-jets, and we find that it is overwhelmingly large relative to the NP effects under consideration (see next section), even for a high purity \(t_j \sim 0.001\) of the \(b\)-jet sample. In other words, the SM portion of the single \(b\)-jet signal in the NC process case of Eq.@eq:NCeq (due to \(t_j \neq 0\)) dominates our \(b_P\) analysis, to the level that it cannot yield useful bounds on the new flavor physics involving the \(b\)-quark.⁵

We therefore focus in the rest of this study on the CC process of Eq.@eq:CCeq and define the corresponding effective SM and NP cross-sections for producing a single \(b\)-jet, that we denote by \(\bar\sigma_{1j_b}\) (cf. Eq.@eq:sigmabar ) , which takes into account the non-ideal \(b\)-jet tagging efficiency and purity:⁶ \[\begin{align} \bar\sigma_{1j_b}^{CC}(SM) &=& t_j \cdot \sigma_{SM}^{CC} ~~;~~ \sigma_{SM}^{CC} = \sigma(e + p/A \to j_l + {\not\!\! E_T}) ~, \tag{9}\\ \bar\sigma_{1j_b}^{CC}(NP) &=& \epsilon_b \cdot \sigma_{NP}^{CC} ~~; ~~ \sigma_{NP}^{CC} = \sigma(e + p/A \to j_b + {\not\!\! E_T}) ~,\tag{10} \end{align}\] so that, as noted above, the SM contribution to \(e + p/A \to j_b + {\not\!\! E_T}\) arises due to mis-tagged light-quark jets as \(b\)-jets in \(e + p/A \to j_l + {\not\!\! E_T}\). We find that \(\sigma_{SM}^{CC} \sim 13\)pb at the EIC with beam energies of \(E_e=18\) GeV and \(E_p=275\) GeV (see also below), while the irreducible SM background from \(e + p/A \to j_b + {\not\!\! E_T}\) arises from the parton level \(eu \to b \nu_e\) and \(ec \to b \nu_e\) processes and, therefore, is CKM suppressed and negligibly small compared to \(\sigma_{SM}^{CC}\). In particular, \(\sigma_{SM}(e u \to b \nu_e) \sim \sigma_{SM}(e u \to d \nu_e) \times |V_{ub}|^2\) and \(\sigma_{SM}(e c \to b \nu_e) \sim \sigma_{SM}(e c \to s \nu_e) \times |V_{cb}|^2\) and these two channels yield an overall single \(b\)-jet + MET cross-section of \(\sigma_{SM}(e + p/A \to j_b + {\not\!\! E_T}) \sim 5 \cdot 10^{-4}\) pb, which is more than four orders of magnitudes smaller than \(\sigma_{SM}^{CC}\) in Eq. 9 .

Another potential SM (reducible) background may arise from the \(2 \to 2\) NC process \(e + p/A \to j + e\), due to non-ideal detector performance and event selection, when the electron is missed; in this case such an event appears as a CC event, i.e., with a single jet and MET in the final state. We note, however, that this type of background is expected to be easier to control at the EIC (compared e.g., to the LHC), since its initial state energy is relatively well known and so global energy-momentum conservation is easier to apply. Also, the electron-Proton/Ion Collider (ePIC) detector is specifically designed with a very good forward coverage specifically for the scattered electron as well as a very good MET resolution (i.e., about an order of magnitude better than at the LHC), so that lost-electron backgrounds producing fake MET are expected to be much less problematic at the EIC, see [2] and subsequent ePIC studies; a detailed study of such detector simulations of fake MET signals is beyond the scope of this paper.

We, therefore, do not include below the SM background from the CKM suppressed channels and from fake MET signals due to missed electrons in the NC channel \(e + p/A \to j + e\). In particular, for the total CC \(j_b + {\not\!\! E_T}\) production cross-section we take: \[\begin{align} \bar\sigma_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff})=\bar\sigma_{1j_b}^{CC}(SM) + \bar\sigma_{1j_b}^{CC}(NP) ~,\label{sigeff} \end{align}\tag{11}\] which depends on the \(b\)-tagging and purity factors as well as on the effective NP scale, \(\Lambda_{\tt eff}\) (see Eq.@eq:lam95eff ). The projected performance for the tagging efficiencies at the EIC is still not known and, in the following, we will use values in the ranges \(0.6<\epsilon_b<0.8\) and, depending on \(\epsilon_b\), \(0.001 < t_j < 0.1\). Specifically, we consider below three representative benchmark choices for the pair \((\epsilon_b,t_j)\), spanning from optimistic to conservative scenarios. We will also present in some instances results as a function of \(t_j\) over a broader interval, since, as discussed below, this parameter plays a central role in the analysis performed here. We hope that these setups will provide a challenging yet interesting cases to investigate at the EIC.

In Table 2 we list the NP cross-sections \(\sigma_{NP}^{CC} = \sigma(e + p/A \to j_b + \nu_e)\), corresponding to each of the operators in Table 1, with beam energies \(E_p=275\) GeV and \(E_e= 18\) GeV, i.e., a CM energy of \(\sqrt{s} = 141\) GeV. All cross-sections (here and in the next sections) were calculated using MadGraph5_aMC@NLO [53] at LO parton-level and with the SMEFTsim model of [54], [55] for the EFT framework. The 5-flavor scheme was used, with the CT18NNLO parton distribution functions [56] and the default MadGraph5_aMC@NLO LO dynamical scale. Also, the acceptance cuts of \(p_{T_j} > 20\) GeV and \(|\eta_j| < 3.5\) were applied on the transverse momentum and pseudo-rapidity distributions of the light-quark and/or \(b\)-quark jets in the final state.

To asses the sensitivity of the \(b_P\)-odd NP signal of our interest, we use the number of expected single \(b\)-jet events, which correspond to \(\bar\sigma_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff})\) in Eq.@eq:sigeff : \[\begin{align} N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff}) = {\cal L} \cdot {\cal A} \cdot \bar\sigma_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff}) ~, \label{NCC} \end{align}\tag{12}\] and we will henceforward take \({\cal L}=100\) fb\(^{-1}\) as the projected integrated EIC luminosity and \({\cal A}\) as the overall acceptance + efficiency factor which we will set below to \({\cal A}=0.8\).

The sensitivity is then determined by comparing the theoretical shift due to the underlying \(b_P\)-odd interactions with the expected error (\(\Delta\)) in measuring the given quantity. Thus, requiring a signal of at least \(N_{SD}\) standard deviations, we have \[\begin{align} \left| N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff}) - N_{1j_b}^{CC}(SM) \right| \geq N_{SD} \cdot \Delta \label{nsd}~. \end{align}\tag{13}\] where \(N_{1j_b}^{CC}(SM) = {\cal L} \cdot {\cal A} \cdot \bar\sigma_{1j_b}^{CC}(SM)\) (see Eq.@eq:sigeffSM ) is the expected number of \(e + p/A \to j_b + {\not\!\! E_T}\) events in the SM due to light-jet mis-identification as \(b\)-jets. We include three contributions in the overall expected error \(\Delta\):

Statistical error

\(\Delta_{\rm stat}=\sqrt{N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff})}\)

Systematic error

\(\Delta_{\rm sys}=N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff}) \cdot \delta_s\)

Theory error

\(\Delta_{\rm theor}= N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff}) \cdot \delta_t\)

which we combine in quadrature: \(\Delta^2 = \Delta_{\rm stat}^2 + \Delta_{\rm sys}^2 + \Delta_{\rm theor}^2\), where the \(\delta_{s},\delta_{t}\) denote the statistical and theoretical errors per event; \(\delta_s\) is usually estimated using experimental values from related processes and \(\delta_t\) is derived from the errors in the Monte Carlo integration used in calculating the various cross sections. Unless stated otherwise, we will use below \(\delta_{s} = \delta_{t} = 0.02\).

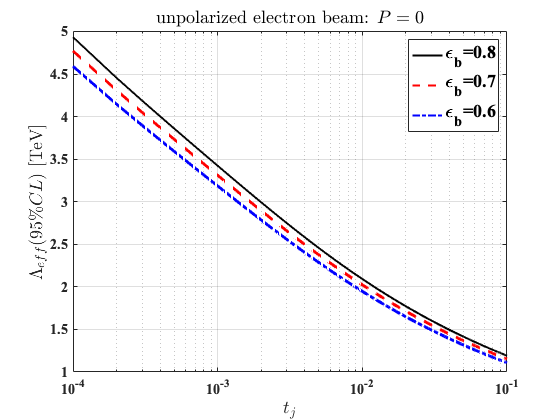

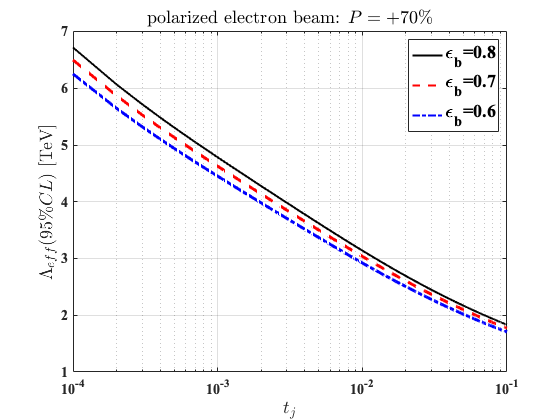

In Fig. 1 we plot the 95% CL bounds on \(\Lambda_{\tt eff}\) for the tensor operator \(Q_{\ell e qu}^{(3)}(1131)\), as a function of the light-jet mis-tagging purity factor \(t_j\) and for three values of the \(b\)-jet tagging efficiency \(\epsilon_b=0.6,0.7,0.8\). In Table 3 we give the 95% CL bounds on \(\Lambda_{\tt eff}\) for all the operators in Table 1, where we consider three representative tagging efficiency/purity scenarios: "loose": \((\epsilon_b,t_j)=(0.8,0.03)\), "medium": \((\epsilon_b,t_j)=(0.7,0.01)\) and "tight": \((\epsilon_b,t_j)=(0.6,0.001)\). We see from both Fig. 1 and Table 3 that the critical parameter in our case is the purity factor, i.e., the "tight" \(b\)-tagging setup is by far the most advantageous. This is indeed expected when the background from light-quark jets is large (as in our case), so that the analysis benefits more from purity rather than from a higher \(b\)-tagging efficiency.

3.1 Effects of beam polarization↩︎

Let us next discuss the effects of beam polarization at the EIC. As mentioned earlier, an important feature of the EIC is the possibility of electron beam polarization, which is particularly useful for improving the sensitivity to NP with chiral couplings, as in our case. The polarized cross-section is: \[\begin{align} \sigma(P_e)=\frac{1}{2} \left[ \left(1-P_e\right) \sigma_{-} + \left(1+P_e\right) \sigma_{+} \right] ~, \label{sig95pol} \end{align}\tag{14}\] where \(P_e\) is the percentage longitudinal polarization, so that \(\sigma_{-}=\sigma(P_e=-1)\) and \(\sigma_{+}=\sigma(P_e=+1)\) are the purely left-handed and right-handed cross-sections, respectively. In Fig. 1 and Table 3 we also show the expected 95% CL bounds on \(\Lambda_{\tt eff}\) with \(P_e=+70\%\), i.e., a 70% right-handed incoming electron beam. We see that beam polarization will significantly improve the sensitivity to NP contributing to right-handed incoming electrons by up to \(\sim 50\%\), since the SM contribution to these single jet events arises from left-handed incoming electrons.

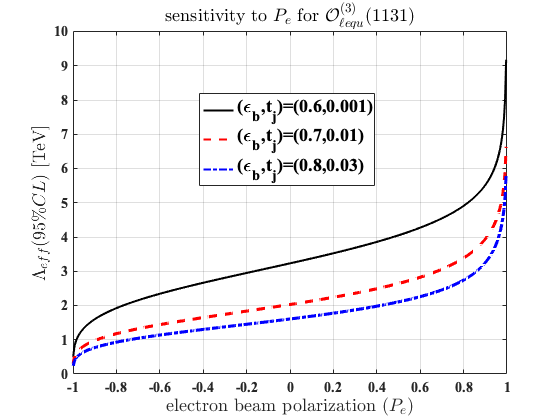

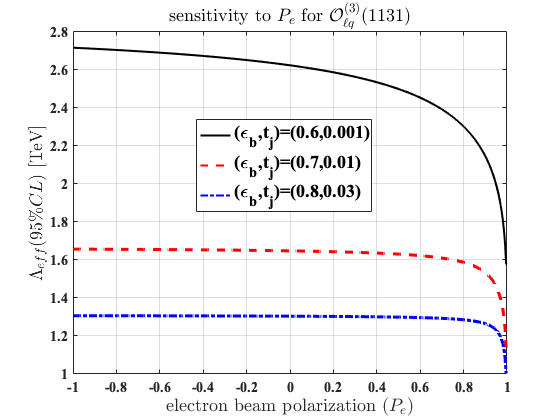

To get a better assessment of the potential effects of electron beam polarization (\(P_e\)) on the sensitivity to NP with specific chiral couplings, we depict in Fig.2 the 95% CL bound on \(\Lambda_{\tt eff}\) (denoted by \(\Lambda_{\tt eff}(95\% CL)\) in the plot), as a function of \(P_e\) for the tensor and vector 4-Fermi operators, \(Q_{\ell e q u}^{(3)}(1131)\) and \(Q_{\ell q }^{(3)}(1113)\), in the three "loose", "medium" and "tight" \(b\)-tagging scenarios. In order to understand the behavior of the curves in Fig.2, we recall that for the CC process \(e + p/A \to j_b + {\not\!\! E_T}\) of our interest here, the tensor operator \(Q_{\ell e q u}^{(3)}(1131)\) contributes to \(e_R + p/A \to j_b + {\not\!\! E_T}\) (i.e., incoming right-handed electron beam), while the contribution from the vector operator \(Q_{\ell q }^{(3)}(1113)\) (as well as the SM background) involve left-handed incoming electrons, i.e., \(e_L + p/A \to j_b + {\not\!\! E_T}\). In particular, notice that with \(P_e \to +100\%\) one would be able to probe \(\Lambda_{\tt eff} \to {\cal O}(10)\) TeV for the tensor operator; although not realistic, it is still quite remarkable bearing that the CM energy used for the EIC in this simulation is \(E_{CM} \sim 140\) GeV, so that this collider will approach a sensitivity to \(\Lambda_{\tt eff}\) of up to \(\sim 70 \times E_{CM}({\rm EIC})\) if \(P_e \to +100\%\)!

One can further define a polarization asymmetry, which turns out to be a useful sensitive probe of chiral NP effects: \[\begin{align} {\cal A}_{P_e}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff}) = \frac{N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff};P_e)-N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff};-P_e)}{N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff};P_e) + N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff};-P_e)} ~, \label{pol95asym} \end{align}\tag{15}\] where \(N_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff};P_e)\) is the number of expected single \(b\)-jet \(+{\not\!\! E_T}\) events from initial electron beam with polarization \(P_e\) which is extracted from the corresponding polarized cross-section using Eq.@eq:sig95pol . For the SM (and/or for any type of NP that contributes only to left-handed incoming electron beam, i.e., only to \(e_L + p/A \to j + {\not\!\! E_T}\)) we have \({\cal A}_{P_e}^{CC}(SM) = - P_e\), whereas in general we find: \[\begin{align} {\cal A}_{P_e}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff}) = P_e \cdot \frac{\epsilon_b \cdot \sigma_{NP}^{CC} - t_j \cdot \sigma_{SM}^{CC}}{\epsilon_b \cdot \sigma_{NP}^{CC} + t_j \cdot \sigma_{SM}^{CC}} ~, \label{polA95gen} \end{align}\tag{16}\] where \(\sigma_{SM}^{CC}\) and \(\sigma_{NP}^{CC}\) are the cross-sections for the production of \(j_l + {\not\!\! E_T}\) and \(j_b + {\not\!\! E_T}\) at the EIC, respectively, without the tagging efficiencies, see Eqs.@eq:sigeffSM and Eq.@eq:sigeffNP ; note that \(\sigma_{NP}^{CC} \propto 1/ \Lambda_{\tt eff}^4 \cdot\).

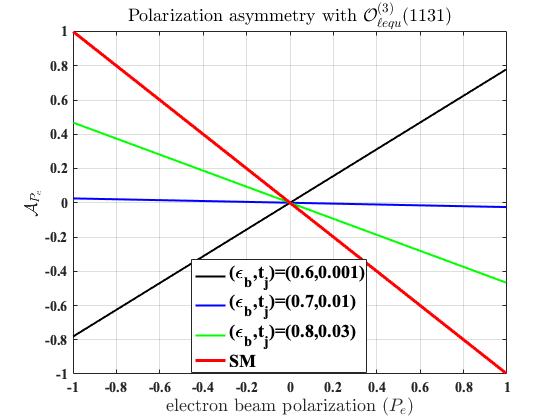

In Fig.3 we plot the resulting polarization asymmetry for the SM case (i.e., no NP insertion) and for the case where the tensor operator \(Q_{\ell e q u}^{(3)}(1131)\) is turned on with \(\Lambda_{\tt eff}=1\) TeV, as a function of \(P_e\) and for the three "loose", "medium" and "tight" \(b\)-tagging scenarios. As mentioned above, \({\cal A}_{P_e}^{CC}(SM) = - P_e\), so that the SM case is independent of the \(b\)-tagging and purity factors. We see that the asymmetry is very sensitive to the purity factor \(t_j\) and, in particular, it approaches its SM value as \(t_j\) grows. This is due to the growth of the SM background in the single \(b\)-jet production rate as \(t_j\) increases, to the level that it dominates the single \(b\)-jet + missing energy signal. We find that the sensitivity of \({\cal A}_{P_e}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff})\) to the operators that mediate \(e_R + p/A \to j_b + {\not\!\! E_T}\) (i.e., with a right-handed electron beam) is comparable to what we found above simply by counting single \(b\)-jet events, cf. Eq.@eq:nsd .

4 \(b\)-Parity and di-jet production at the EIC↩︎

The di-jet production at the EIC can also be separated into the CC and NC interactions: \[\begin{align} {\rm CC:} ~~~ && e + p/A \to 2 \cdot j + {\not\!\! E_T}~, \tag{17} \\ {\rm NC:} ~~~ && e + p/A \to 2 \cdot j + e ~, \tag{18} \end{align}\] where within the the SM in the limit of a diagonal CKM, the parton-level processes contributing to the CC reaction in Eq.@eq:CCeq2j are the electron-gluon fusion \(e g \to d \bar u \nu_e ,s \bar c \nu_e\) and \(e u \to d g \nu_e\), \(e c \to s g \nu_e\), \(e \bar d \to \bar u g \nu_e\), \(e \bar s \to \bar c g \nu_e\); the latter group correspond to the \(2 \to 2\) CC interactions with a gluon radiated off the initial or FS quarks. Here also, we find that the dominant contribution originates from the process \(e u \to d g \nu_e\), which consist more than 95% of the total \(2 \to 3\) CC cross-section.

The NC \(2 \to 3\) reaction in Eq.@eq:NCeq2j proceeds via the electron-gluon fusion processes \(e g \to q \bar q e\) and electron-quark scattering \(e q \to q g e\) and \(e \bar q \to \bar q g e\), where \(q=u,d,c,s,b\) and \(e q \to q g e\), \(e \bar q \to \bar q g e\) correspond to the NC \(2 \to 2\) processes considered earlier with an additional gluon radiation off the initial and FS quarks. Notice that direct production of a single \(b\)-jet in the \(2 \to 3\) NC case is possible in the SM via \(e b \to b ge\) and \(e \bar b \to \bar b g e\), though giving a negligibly small contribution to the di-jet cross-section of about 0.1% (as in the NC \(2 \to 2\) case discussed earlier). Thus the dominant SM background contribution to \(e + p/A \to j_b + j_\ell + e\) arises from light-jet mis-identified as a \(b\)-jets in \(e + p/A \to 2 \cdot j + e\), where we find that the parton-level \(e u \to u g e\) is responsible for about \(80\%\) of the corresponding total SM cross-section. However, as in the \(2 \to 2\) case, the \(2 \to 3\) NC configuration exhibits noticeably lower sensitivity to the new flavor physics considered.

Therefore, for the di-jet case as well we concentrate below on the CC process of Eq.@eq:CCeq2j , where here the effective SM and NP single \(b\)-jet cross-sections are (see Eq.@eq:sigmabar ): \[\begin{align} \bar\sigma_{1j_b}^{CC}(SM) &=& 2 t_j (1-t_j) \cdot \sigma_{SM}^{CC} ~~~~~~~~~~~~~~~~~~;~~ \sigma_{SM}^{CC} = \sigma(e + p/A \to 2 \cdot j_l + {\not\!\! E_T}) ~, \tag{19}\\ \bar\sigma_{1j_b}^{CC}(NP) &=& \left[ \epsilon_b (1-t_j) + t_j (1-\epsilon_b) \right] \cdot \sigma_{NP}^{CC} ~~; ~~ \sigma_{NP}^{CC} = \sigma(e + p/A \to j_b + j_\ell + {\not\!\! E_T}) ~,\tag{20} \end{align}\] and we find that \(\sigma_{SM}^{CC} \sim 109.5\)fb (dominated by \(e u \to d g \nu_e\), as noted above) and e.g., \(\sigma_{NP}^{CC} \sim 1.6\)fb for the tensor operator \({\cal O}_{\ell e qu}^{(3)}(1131)\), at the EIC with beam energies of \(E_e=18\) GeV and \(E_p=275\) GeV. The total effective cross-section for the \(2 \to 3\) CC single \(b\)-jet production process \(e + p/A \to j_\ell + j_b + {\not\!\! E_T}\) is given by the sum of the SM and NP contributions, i.e., \(\bar\sigma_{1j_b}^{CC}(\epsilon_b,t_j,\Lambda_{\tt eff})\) of Eq.@eq:sigeff , where the term \(\propto \epsilon_b (1-t_j)\) dominates the NP part \(\bar\sigma_{1j_b}^{CC}(NP)\) when \(t_j \ll \epsilon_b\).

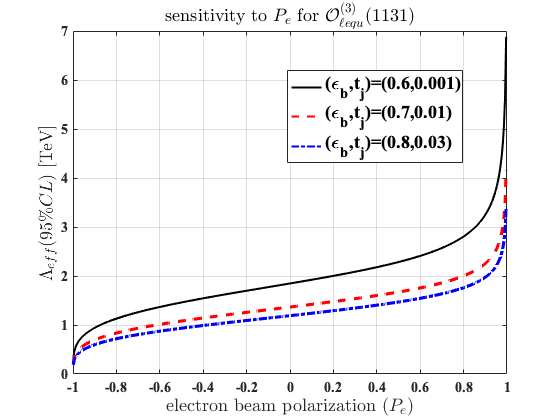

in Fig.3 we depict the 95% CL bound on \(\Lambda_{\tt eff}\) that can be expected from a search of single \(b\)-jet events in di-jet signals at the EIC \(e + p/A \to 2 \cdot j + {\not\!\! E_T}\), as a function of \(P_e\) for the tensor operator, \(Q_{\ell e q u}^{(3)}(1131)\). Here also we present results for the "loose", "medium" and "tight" \(b\)-tagging scenarios defined above. Evidently, the di-jet CC signal analyzed in this section is less sensitive to the scale of the FC operator \(\mathcal{O}_{\ell equ}^{(3)}(1131)\) than the single-jet process discussed previously. This lower sensitivity also persists for the other FC operators examined throughout this study.

5 Summary↩︎

We suggest that single and di-jet production at the EIC via the CC interactions \(e +p/A \to j + {\not\!\! E_T}\) and \(e +p/A \to 2 \cdot j + {\not\!\! E_T}\) (\(j=j_\ell\) and \(j=j_b\) for a light and \(b\)-quark jet, respectively) will be a valuable environment for testing new BSM TeV-scale sources of flavor violation involving the 3rd generation quarks. In particular, these reactions are even under \(b\)-Parity in the SM, defined by \(b_P = (-1)^{n}\) [1], where \(n\) is the number of b-quarks jets in the final state, since the \(b_P\)-odd signals of single \(b\)-jet events (i.e., \(b_P=-1\) for \(n=1\)), \(e +p/A \to j_b + {\not\!\! E_T}\) and \(e +p/A \to j_b + j_l + {\not\!\! E_T}\), are necessarily proportional to the off-diagonal CKM factors \(|V_{ub}|^2\) and/or \(|V_{cb}|^2\) in the SM and are, therefore, un-observably small (more precisely, in the limit \(V_{j3},V_{3j} \to 0,\,j \neq 3\), the SM possesses an additional global \(U(1)_b\) symmetry, "bottomness", that holds to any order in perturbation theory). Thus, the only significant source of SM background to \(b_P\)-violation (for our purpose in the CC reactions \(e +p/A \to j + {\not\!\! E_T}\) and \(e +p/A \to 2 \cdot j + {\not\!\! E_T}\)) arises from mis-identifying a light-jet for a \(b\)-jet, i.e., from non-ideal purity of the \(b\)-jet sample.

Conversely, we show that new types of TeV-scale flavor physics involving the 3rd generation quark fields can mediate the \(b_P\)-odd single \(b\)-jet \(j_b + {\not\!\! E_T}\) and \(j_b + j_\ell + {\not\!\! E_T}\) events at the EIC via CC interactions, where we use the SMEFT framework and examine the sensitivity of the EIC to dim.6 flavor-changing \(\ell \ell q q^\prime\) 4-Fermi contact terms as well operators that modify the \(Wqq^\prime\) vertex; both types involving \(b \to u\) transitions. In particular, since the SM is essentially \(b_P\)-even, we show that \(b\)-jet counting offers a useful discriminator for new flavor physics effects, where the \(b\)-tagging efficiency and, more importantly, the purity of the \(b\)-jet sample, become critical factors for this type of analysis.

Capitalizing on the different behaviors of the SM and the new flavor physics under \(b\)-Parity, we find that by counting single \(b\)-jet events in CC reactions at the EIC, one will be able to probe new flavor-violating physics with a scale in the range \(\Lambda \sim 1 - 5\), depending on the underlying heavy dynamics; notably, reaching a sensitivity to NP scales which are \(10 - 30\) times larger than the EIC CM energy considered (\(E_{CM} \sim 140\) GeV). This represents a substantial improvement over what could have been achieved at the HERA \(ep\) collider and it will require a high purity of the \(b\)-jet sample and, for some types of NP, also a highly polarized electron beam.
