1 Physics↩︎

The state-space representation for cavity voltage \(V\) is \[{dV\over dt} = aV + bK + cI\] where (following Heaviside) all of \(V\), \(K\), \(I\), \(a\), \(b\), and \(c\) are complex numbers, varying slowly compared to the timescale of the RF resonance itself. We ignore the units of \(V\) and \(K\) in this discussion, except to note that \(b\) and \(K\) have to be self-consistent. \(a\) necessarily has units of s\(^{-1}\). This discussion will also ignore the beam-loading term \(cI\).

SRF cavities have the confusing property that \(a\) is not constant; as their sheet-metal construction bends with the acoustic environment and Lorentz forces, the imaginary part of \(a\) (detuning) varies in real time. That means that the governing equation is not LTI (Linear Time Invariant), although for short time scales that’s still a useful approximation.

One of Delayen’s key 1978[1] contributions was to start from the usual Lorentzian equation for a resonator output as a function of detuning \[{V\over K} = {1\over 1 + j\chi}~~~,\] where \(\chi = \Im(a) / \Re(a)\). That can be inverted to give the needed drive \[K = V (1 + j\chi)~~~.\] A single feedback loop for the reactive component of the drive signal will therefore “fix” both amplitude and phase fluctuations created by detuning. His diagram for the requisite hardware is shown.

The observed benefit in that era of very narrow-band helix resonators was that the field could be brought to its operating point without regard for fine frequency tuning. Even the amplitude feedback loop can be engaged while detuned; with the amplitude loop closed, potential ponderomotive instabilities are strongly suppressed[2]. Finally, once the resonance is adjusted to the operational value, the tuning loop can be closed. While amplitude and phase loops should be closed (not clipping) during beam operation, temporary frequency excursions that clip the phase feedback loop will naturally return to lock without manual or automated intervention. More on that later.

2 Abstract SEL behavior and feedback↩︎

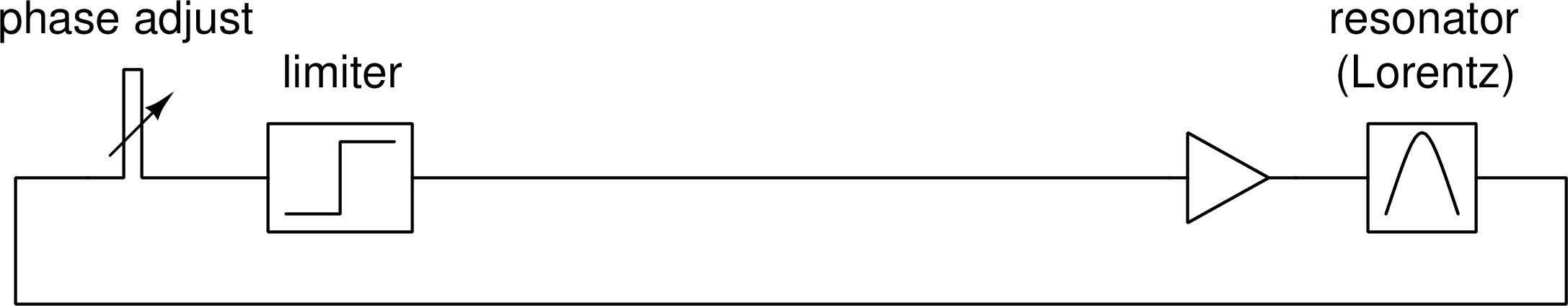

A traditional analog SEL oscillator has a phase adjustment to compensate for cable lengths to give pure positive feedback. The resulting system “starts from noise.” After start-up, the limiter limits, and the amplitude feedback gain drops to 0. Phase feedback literally has a gain of +1.00.

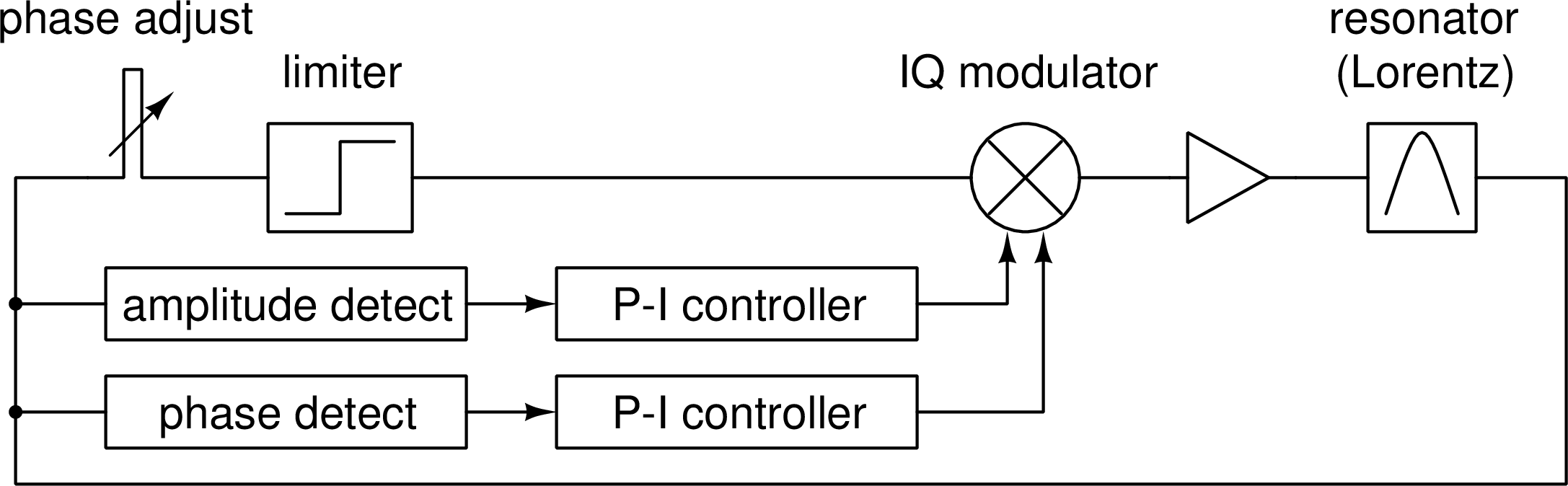

Delayen added amplitude and phase stabilization loops to that core design. This stiff negative PI feedback totally overwhelms that baseline SEL “positive feedback.”

3 CORDIC↩︎

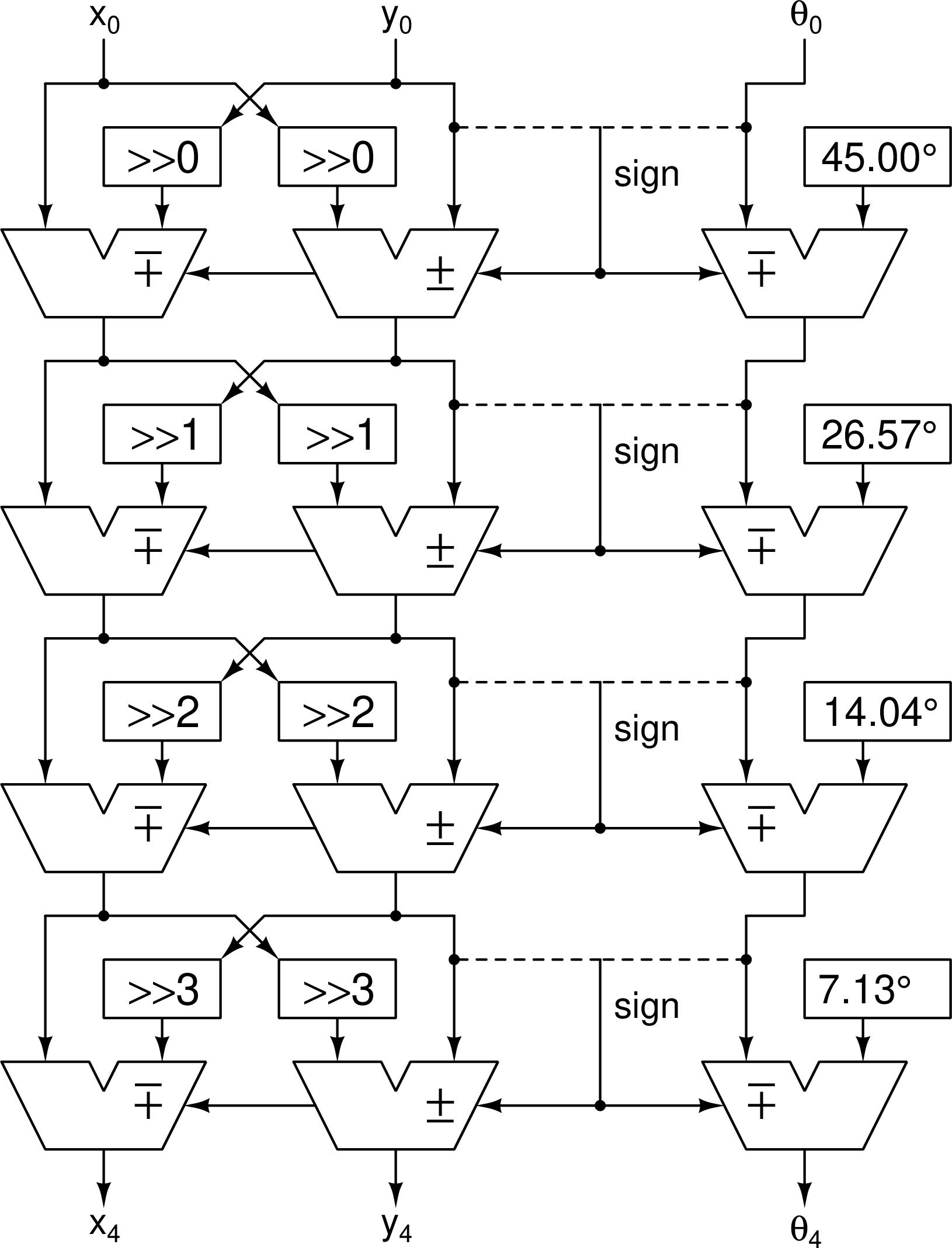

The CORDIC structure was invented by Jack Volder in 1959[3] to compute trigonometric functions using pure shift-and-add digital hardware. Every such CORDIC block produces \[z_{\rm out} = A \cdot z_{\rm in}\prod_{i=0}^{n-1} \exp\left(j\sigma_i\theta_i\right)\] \[\theta_{\rm out} = \theta_{\rm in} - \sum_{i=0}^{n-1} \sigma_i\theta_i\] where \[\theta_i = \tan^{-1} 2^{-i}\] \[A = \prod_{i=0}^{n-1} \sqrt{1+2^{-2i}} \approx 1.64676\] There are two standard mechanisms for choosing \(\sigma_i\).

Rotation mode: \(\theta_{\rm out} \approx 0\), used to get \(z_{\rm out} = A \cdot z_{\rm in} \cdot \exp\left(j\theta_{\rm in}\right)\). In the special case when \(z_{\rm in} = 1/A\), that yields \(\cos\theta_{\rm in}\) and \(\sin\theta_{\rm in}\).

Vectoring mode: \(\Im\left(z_{\rm out}\right) \approx 0\), used to get \(\theta_{\rm out} = \angle z_{\rm in}\) and \(\Re\left(z_{\rm out}\right) = A \cdot |z_{\rm in}|\).

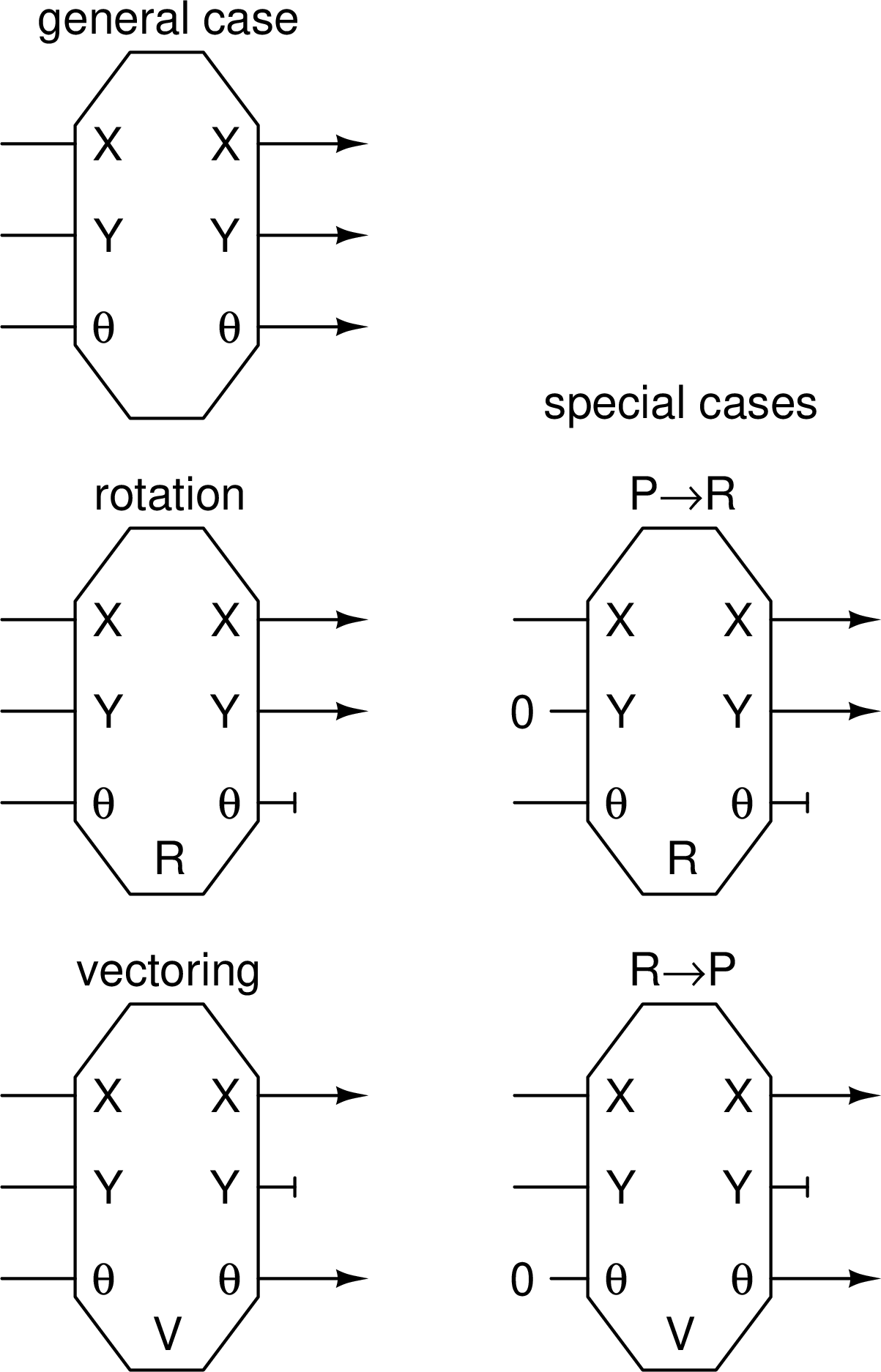

An FPGA implementation of CORDIC will therefore always have three inputs and three outputs. We create a visual vocabulary showing that in rotation mode (note the “R” in the CORDIC block), the \(\theta\) output is unused (and is within rounding error of 0). Similarly, with vectoring mode (marked with “V”) the \(y\) output is ignored. Additional special cases yield traditional polar-to-rectangular and rectangular-to-polar configurations.

The CORDIC module supplied in LBNL’s Bedrock code base[4] is pipelined, and the selection between vectoring and rotation modes can be made on a cycle-by-cycle basis, allowing a single CORDIC instance to be time-multiplexed between different tasks in the final circuit. See a LLRF 2013 tutorial[5].

4 PI Controller↩︎

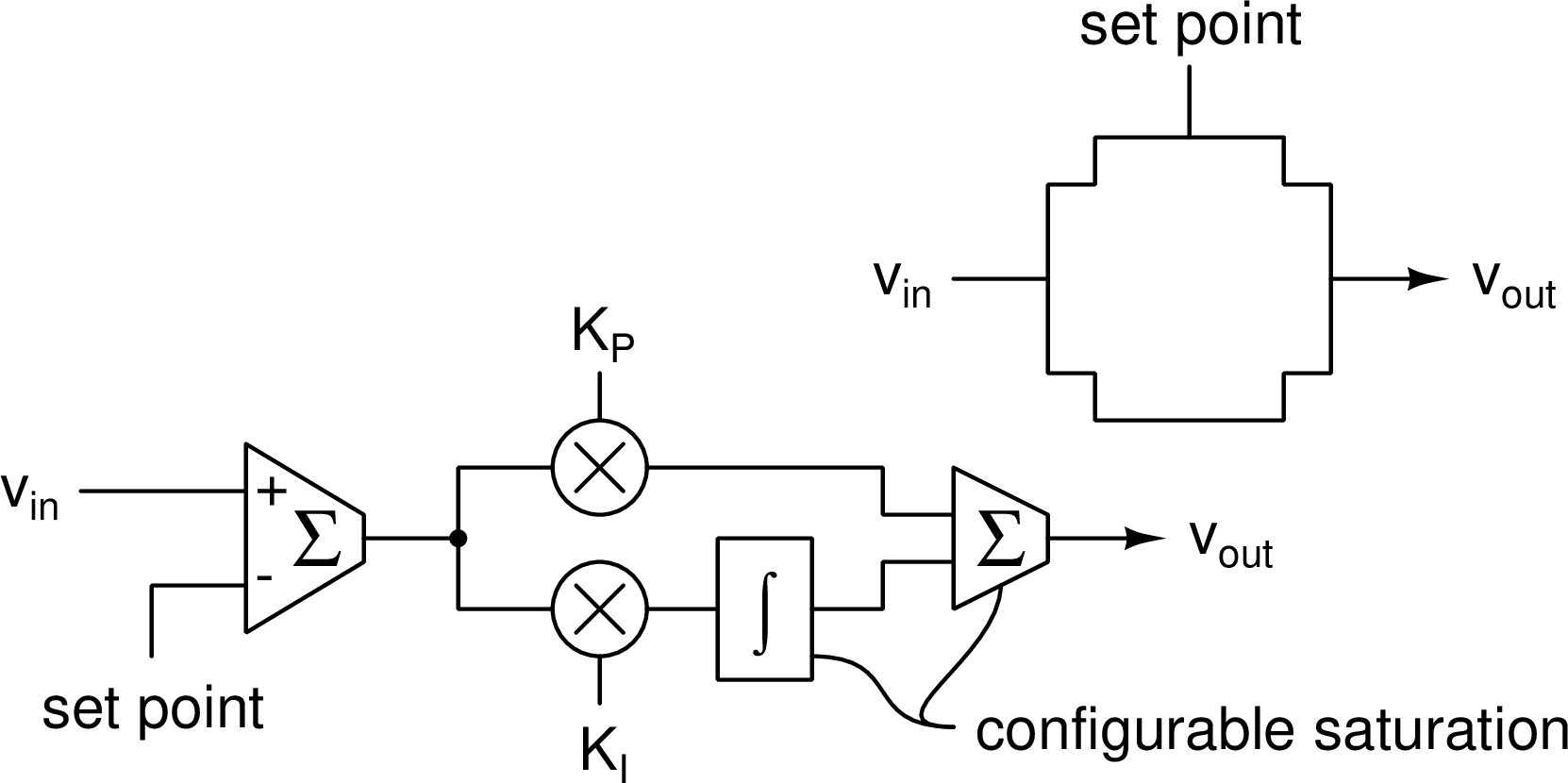

The first rule of PID controllers is that there is no D. A block diagram of a combined proportional and integral implementation is shown, together with the visual vocabulary used here to represent it.

Clipping of SEL phase-tracking loop is essential part of the process! That is the output of one of these PI controllers; it therefore needs a zero-windup clipping implementation, as well as good runtime control of the clip value.

This block diagram shows the I term as gain followed by the (saturating) integrator; the reverse doesn’t make sense when there is a possibility of run-time gain adjustments. This circuit can be “reset” (force output and integrator state to zero) as needed by setting the saturation level to zero.

5 Considerations for off-frequency operation↩︎

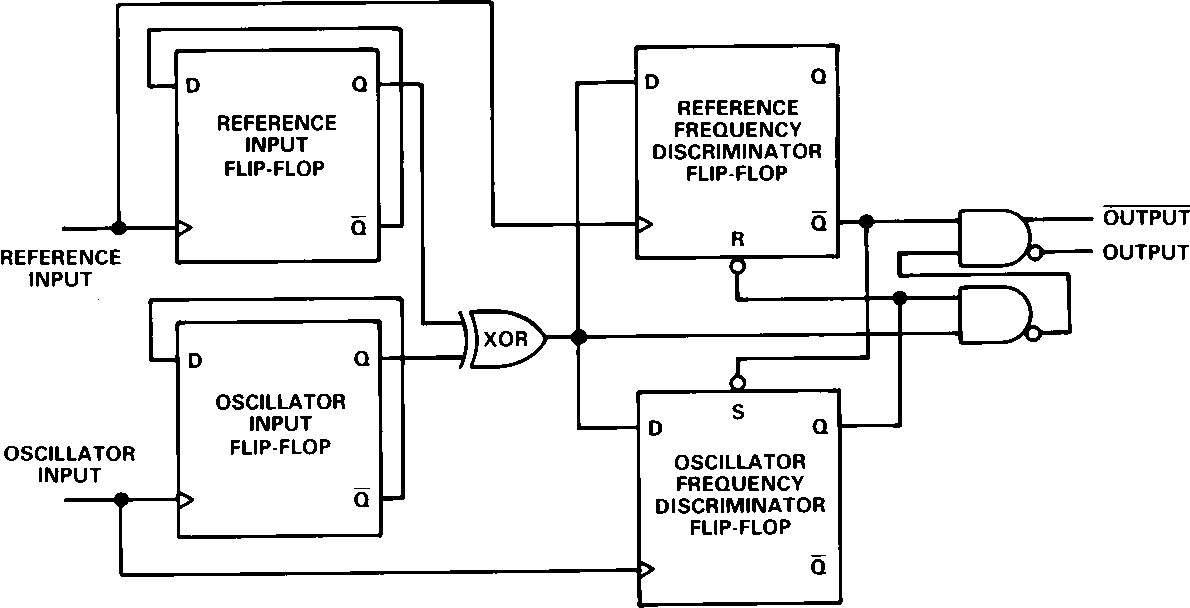

Simple phase detectors can create unpleasant results when faced with off-frequency operation. Clues for how to properly mitigate that comes from the AD9901 chip (1996)[6]. In the SEL context, the output of the phase setpoint subtracter should be processed with a state machine. When the actual phase error wraps around from positive to negative, for instance, that condition needs to be registered, so the output of the phase detector stays saturated at the maximum positive value. The LBNL code base refers to this as a Stateful Phase Resolver.

When such a phase resolver is used, the reactive drive created by the phase loop will “stick” at that limit until the frequency error is removed – presumably by a tuner control loop not discussed here.

6 Digital SEL topologies↩︎

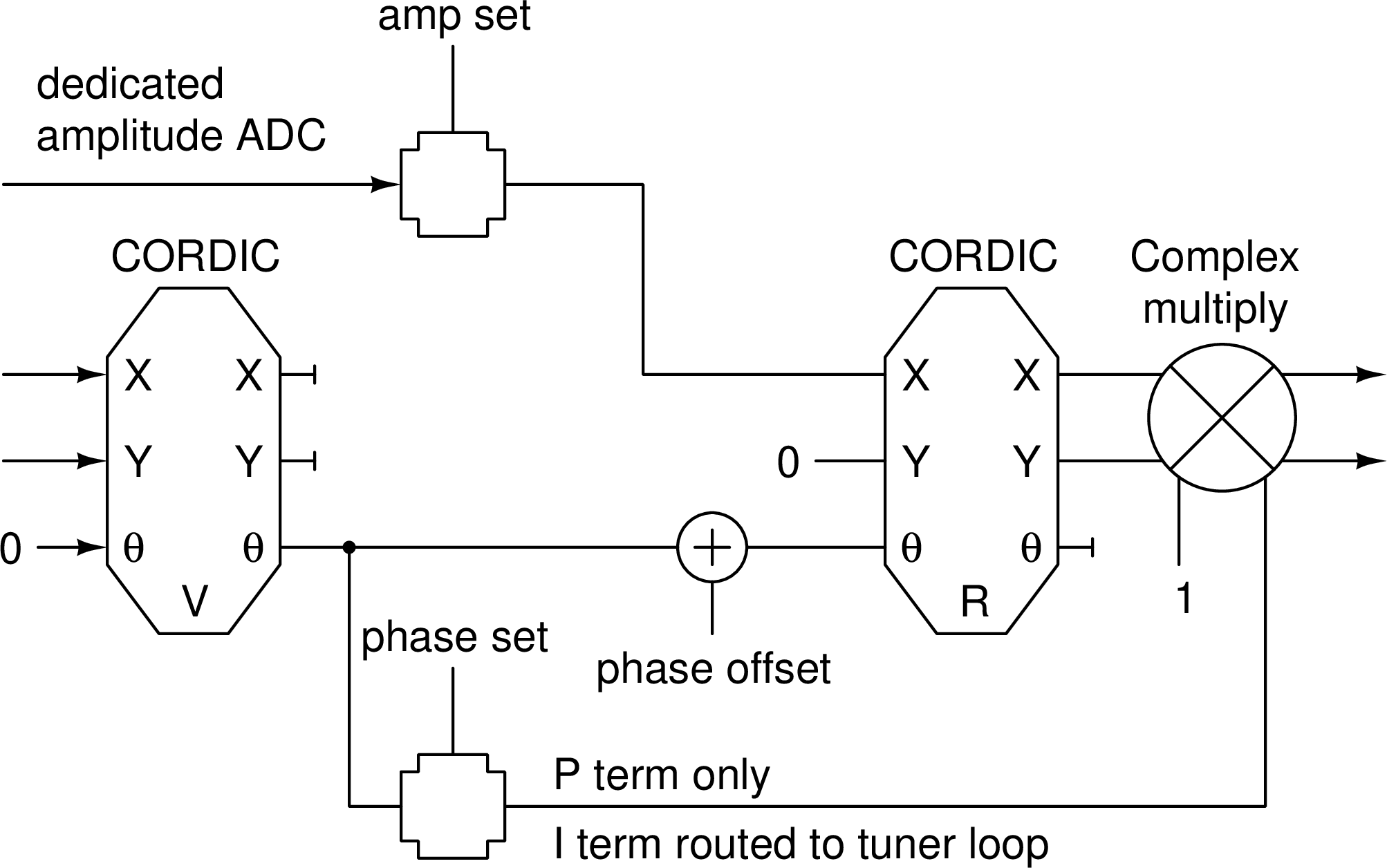

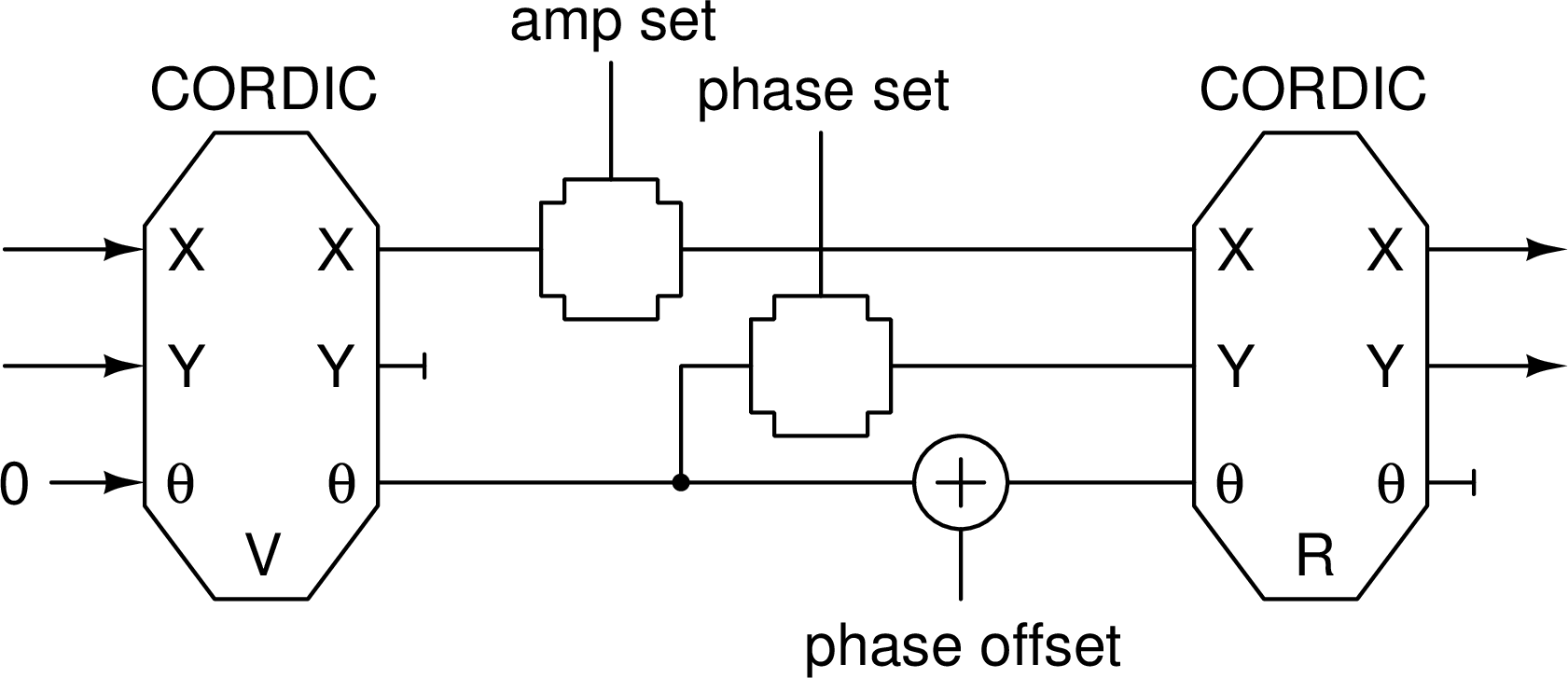

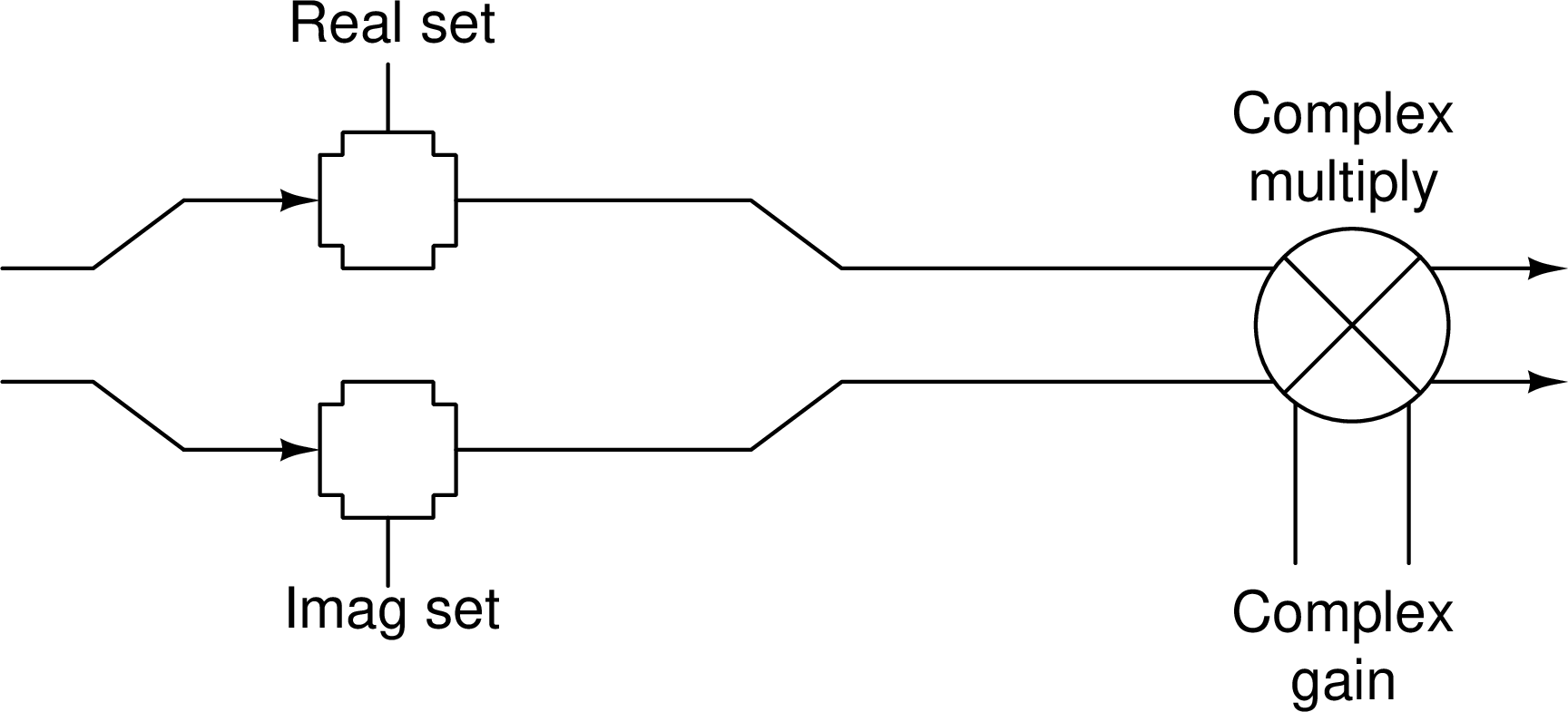

A series of topologies for realizing SEL in DSP are shown: LBNL[7], JLab[8], S-DALINAC[9] and BARC[10]. The GDR topology is shown for completeness. Each diagram assumes \(x\) and \(y\) (a.k.a. I and Q) inputs and outputs. Digital and/or analog down- and up-conversion, required to complete the LLRF system, are off-topic here.

Although details vary, they all do share the core 1978-vintage feature of detecting phase errors, and using a feedback controller to generate a drive of form \(1+j\chi\) to fix both amplitude and phase errors.

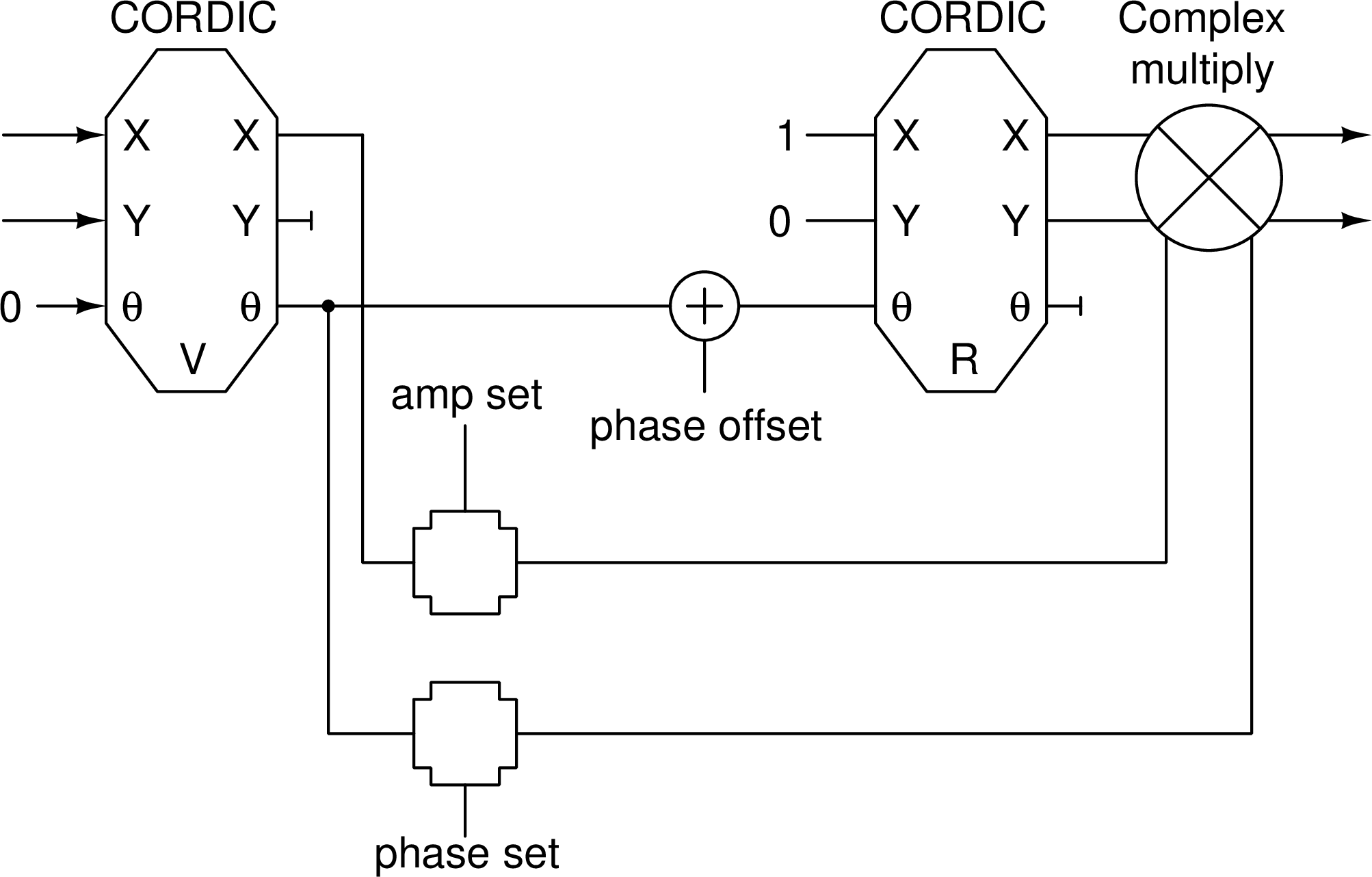

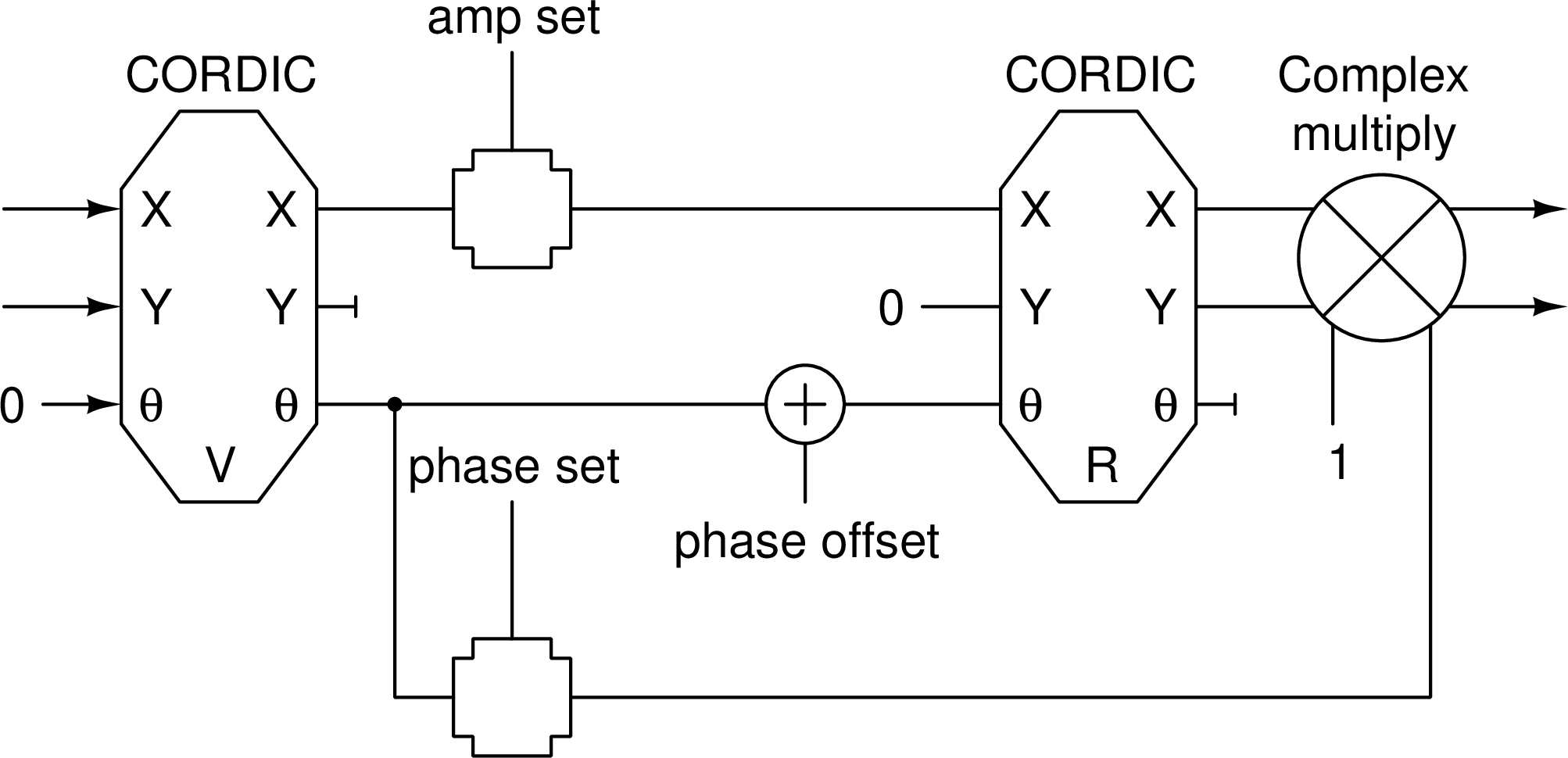

The JLab design introduces an odd serialization of amplitude and phase feedback paths. The third diagram suggests extending the JLab idea to re-orthogonalize the amplitude and phase loops. Now neither PI output is routed through the second (delay-creating) CORDIC.

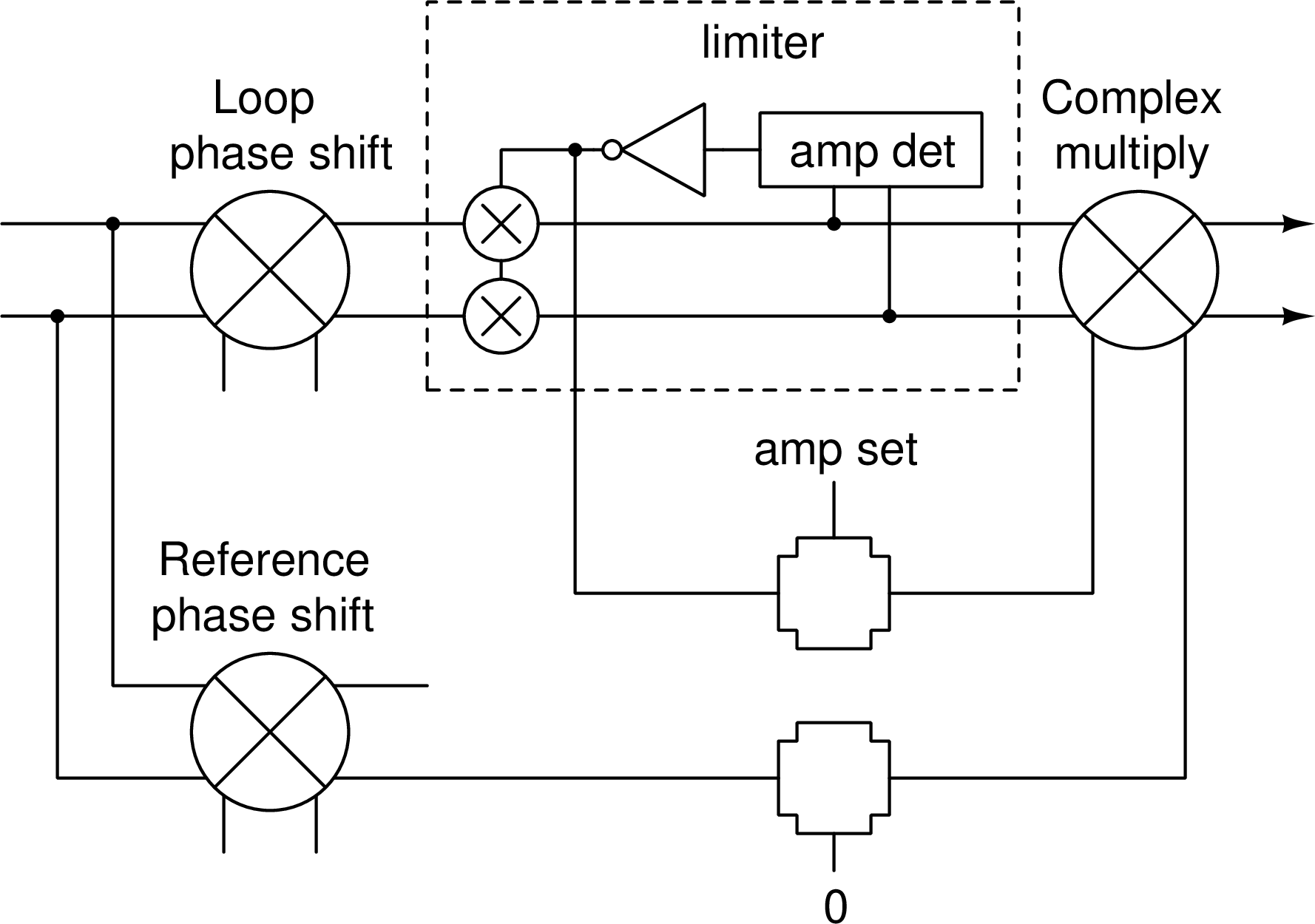

The BARC design uses no CORDIC blocks; instead it builds a limiter out of squaring circuits and a local feedback loop. Its logic footprint is heavier on multipliers than the other designs, which is not a concern for typical FPGAs today. The lack of CORDIC means its phase feedback latency is lower than the other designs shown.

7 Stability↩︎

As the pole position \(a\) moves around in the imaginary axis, the dynamics of the system also changes. It’s important to understand if and how that changes the stability of the feedback system. We assert that if the condition \(\Im(a) << \omega_{\rm 0dB}\) is maintained, the system stability is not materially affected.

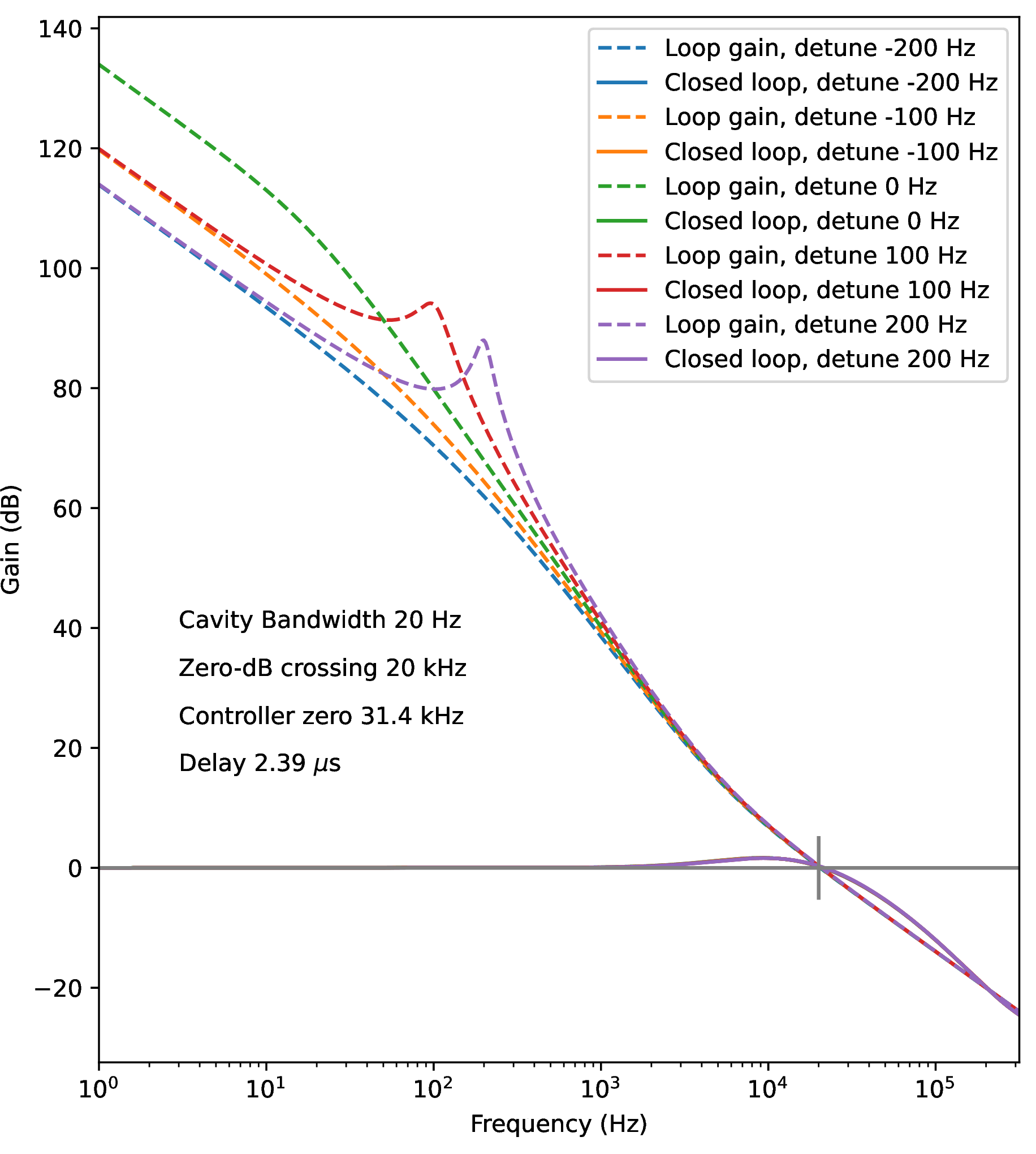

A Nyquist stability graph with example numbers will illustrate that.

8 Operation↩︎

It’s important to understand how an SEL is intended to work when the resonator frequency deviates from nominal (e.g., microphonics) and the reactive drive required to stay locked exceeds the defined limits.

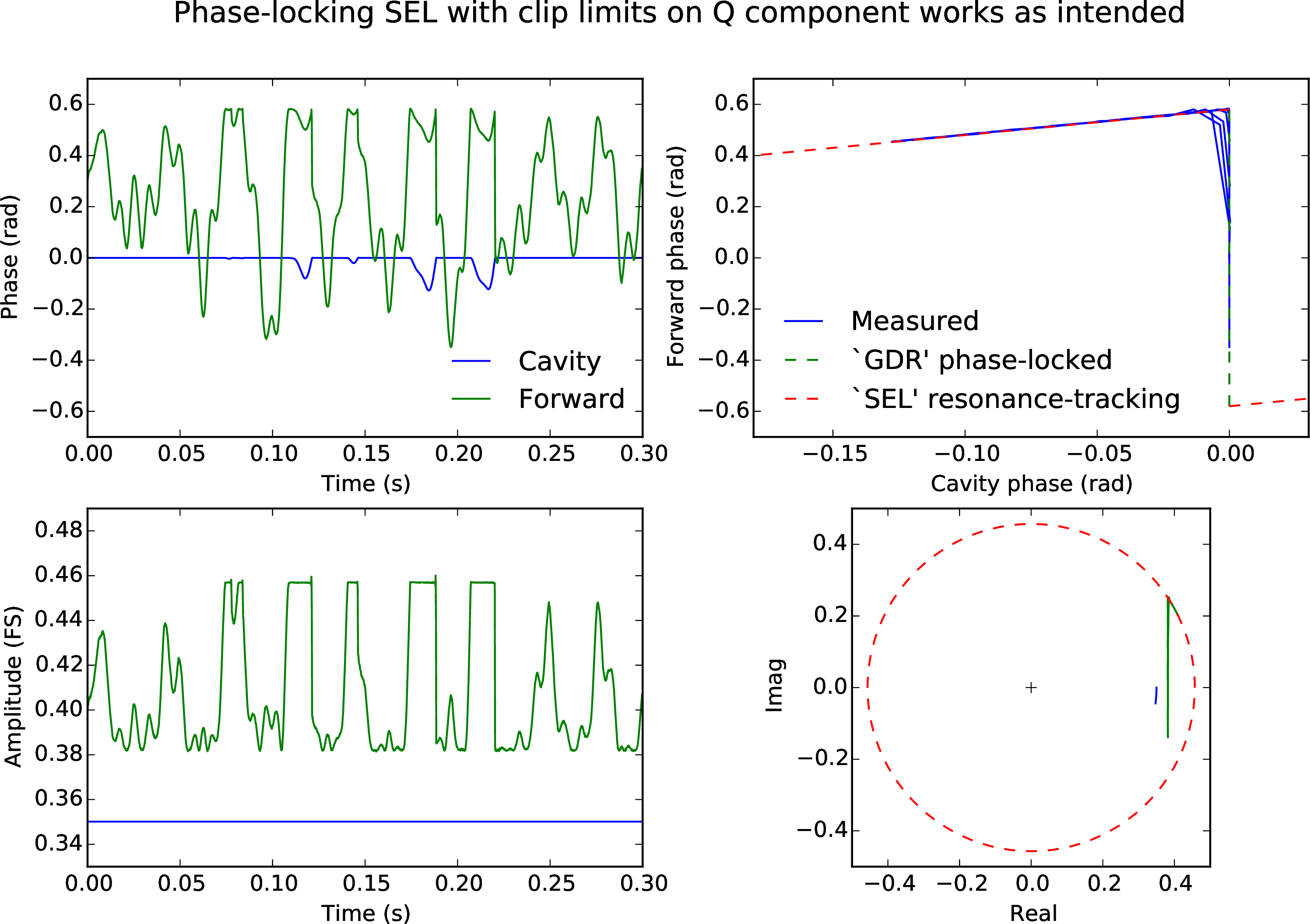

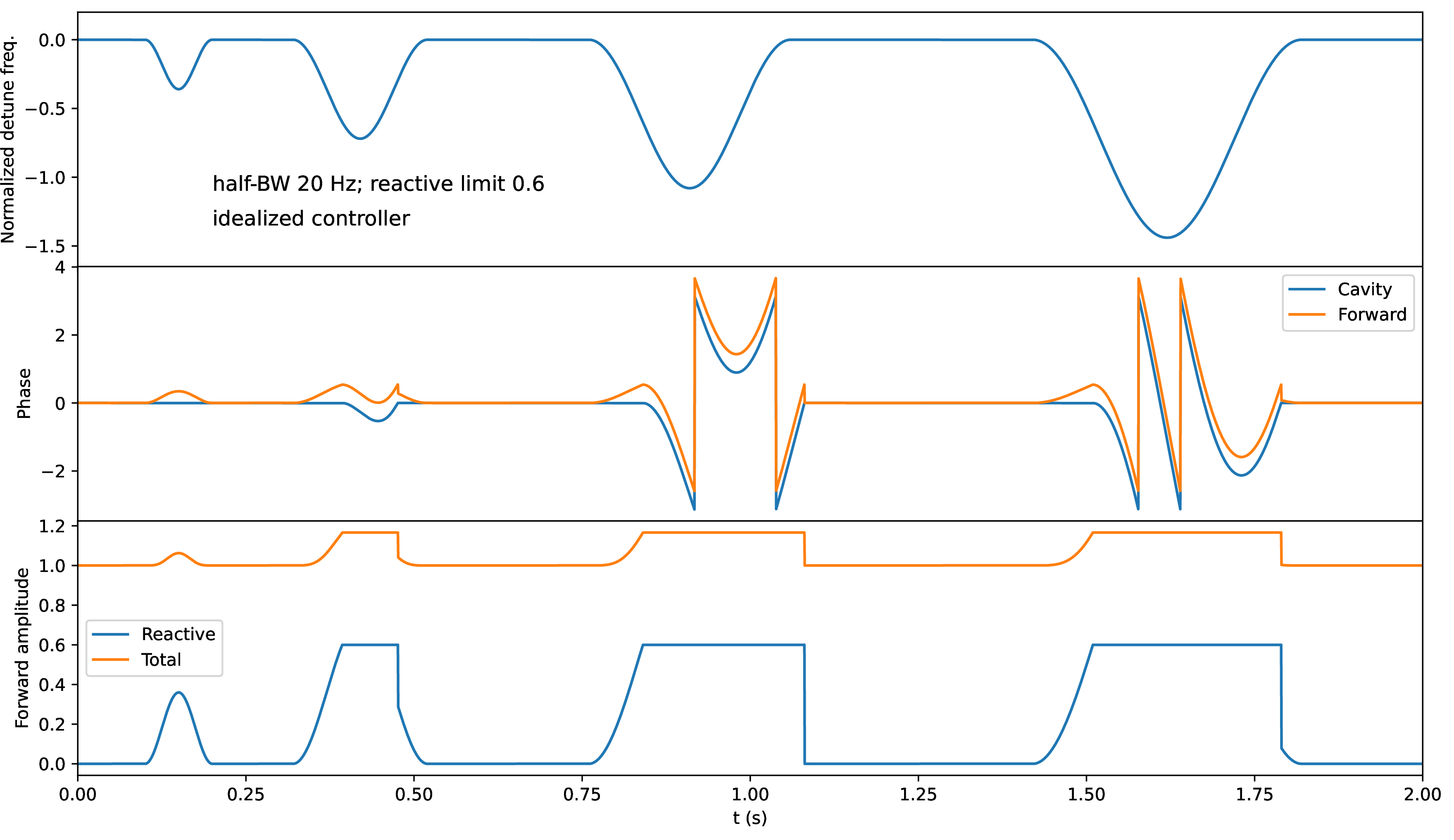

The experimental results shown were presented at LLRF17[11]. The simulated waveforms use an idealized feedback controller.

9 Future work↩︎

Future work could attempt to achieve lower latency. One approach is to simply use higher clock speeds for the DSP; FPGAs are faster now than they were in the 2008-2014 time frame. There is also a possibility to add a direct P term, bypassing the relatively slow CORDIC steps. That would require careful management of both its gain coefficients and a fallback configuration if/when clipping is detected.

Leader/follower CORDIC tricks can easily reduce (by a factor of two) the latency of the two-CORDICs-in-series phase-following function in the final suggested SEL topology, without affecting the feedback path.

We wish for more code-sharing, in particular the ability to mix-and-match test-benches and implementations from labs around the world. Of course that will require surmounting barriers from licensing and disparate languages.

10 Not considered↩︎

• Units for and calibration of cavity state value

• System-ID and drift correction, including PI gain setup[12]

• Analog and/or digital down- and up-conversion

• Mitigation of instabilities caused by high P-gain and nearby cavity passband modes

• Tx channel linearization.

• Beam loading corrections (timing-based feedforward)
