Abstract

An odd independent set \(S\) in a graph \(G=(V,E)\) is an independent set of vertices such that, for every vertex \(v \in V \,\diagdown\,S\), either \(N(v) \cap S = \varnothing\) or \(|N(v) \cap S| \equiv 1\) (mod 2), where \(N(v)\) stands for the open neighborhood of \(v\). The largest cardinality of odd independent sets of a graph \(G\), denoted \(\alpha_\mathrm{od}(G)\), is called the odd independence numberof \(G\).

This new parameter is a natural companion to the recently introduced strong odd chromatic number. A proper vertex coloring of a graph \(G\) is a strong odd coloring if, for every vertex \(v \in V(G)\), each color used in the neighborhood of \(v\) appears an odd number of times in \(N(v)\). The minimum number of colors in a strong odd coloring of \(G\) is denoted by \(\chi_\mathrm{so}(G)\).

A simple relation involving these two parameters and the order \(|G|\) of \(G\) is \(\alpha_\mathrm{od}(G)\cdot\chi_\mathrm{so}(G) \geq |G|\), parallel to the same on chromatic number and independence number.

In the present work, which is a companion to our first paper on the subject [The odd independence number of graphs, I: Foundations and classical classes], we focus on grid-like and chessboard-like graphs and compute or estimate their odd independence number and their strong odd chromatic number. Among the many results obtained, the following give the flavour of this paper:

(1)\(0.375 \leq \varrho_\mathrm{od}(P_\infty \,\Box\,P_\infty) \leq 0.384615...\), where \(\varrho_\mathrm{od}(P_\infty \,\Box\,P_\infty)\) is the odd independence ratio.

(2)\(\chi_\mathrm{so}(G_{d\,;\,\infty}) = 3\) for all \(d \geq 1\), where \(G_{d\,;\,\infty}\) is the infinite \(d\)-dimensional grid. As a consequence, \(\varrho_\mathrm{od}(G_{d\,;\,\infty}) \geq 1/3\).

(3)The \(r\)-King graph \(G\) on \(n^2\) vertices has \(\alpha_\mathrm{od}(G) = \lceil n/(2r+1) \rceil ^2\). Moreover, \(\chi_\mathrm{so}(G) = (2r + 1)^2\) if \(n \geq 2r + 1\), and \(\chi_\mathrm{so}(G) = n^2\) if \(n \leq 2r\).

Many open problems are given for future research.

Keywords: independence number, odd independence number, strong odd coloring, grid, chessboard graph.

AMS Subject Classification 2020: 05C09, 05C15, 05C69, 05C63, 05C76

1 Introduction↩︎

An odd independent set \(S\) in a graph \(G = (V, E)\) is an independent set of vertices such that, for every vertex \(v \in V \,\diagdown\,S\), either \(N (v) \cap S = \varnothing\) or \(|N (v) \cap S| \equiv 1\) (mod 2), where \(N (v)\) stands for the open neighbourhood of \(v\). The largest cardinality of odd independent sets in \(G\), denoted \(\alpha_\mathrm{od}(G)\), is called the odd independence number of \(G\). This new parameter is a natural companion to the recently introduced strong odd chromatic number [1]–[5]. A proper vertex coloring of a graph \(G\) is a strong odd coloring if, for every vertex \(v \in V (G)\), each color used in the neighborhood of \(v\) appears an odd number of times in \(N (v)\). The minimum number of colors in a strong odd coloring of \(G\) is denoted by \(\chi_\mathrm{so}(G)\).

After the initial paper [6] introducing and starting a systematic study of the odd independence number, the present work is aimed to consider in depth the odd independence number of various types of grids and chessboard-like graphs, both finite and infinite.

In Section 2 we present basic upper bounds for the odd independence number of regular or nearly regular \(K_{1,r}\)-free graphs. These will be then applied for the various grids which are \(K_{1,3}\)-free or \(K_{1,5}\)-free.

In section 3 we consider the odd independence number of three types of grids: \(\alpha_\mathrm{od}(P_k \,\Box\,P_k)\), \(\alpha_\mathrm{od}(P_k \,\Box\,C_k)\), and \(\alpha_\mathrm{od}(C_k \,\Box\,C_k)\). Further, we also study the infinite grid \(P_\infty \,\Box\,P_\infty\). After some technical preparation we prove that the maximum density \(\varrho_\mathrm{od}(P_\infty \,\Box\,P_\infty)\) of odd independent sets in this grid can be bounded as \(3/8 = 0.375 \leq \varrho_\mathrm{od}(P_\infty \,\Box\,P_\infty) \leq 5/13 < 0.38462\).

For the infinite \(d\)-dimensional grid \(G_{d\,;\,\infty}:= P_\infty \,\Box\,\cdots \,\Box\,P_\infty\) on the vertex set \(\mathbb{Z}^d\) we have \(\chi((G_{d\,;\,\infty})^2) = 2d + 1\). In sharp contrast to this, the strong odd chromatic number of the \(d\)-dimensional infinite grid is independent of the dimension, and we prove \(\chi_\mathrm{so}(G_{d\,;\,\infty}) = 3\) for all \(d \geq 1\). As a consequence, the maximum density of odd independent sets in these grids satisfies \(\varrho_\mathrm{od}(G_{d\,;\,\infty}) \geq 1/3\).

In section 4 we consider various chessboard-like grid graphs. Among the many results proved, we mention here the \(r\)-King graph. The \(r\)-King graph, \(\sf KG_{n,r}\) (\(r \in \mathbb{N}\)) of order \(n \times n\), has the same vertex set as \(P_n \,\Box\,P_n\). Two vertices \((a,b),(a',b')\in\{1,\dots,n\}\times\{1,\dots,n\}\) are adjacent if and only if \(|a-a'|\leq r\) and \(|b-b'|\leq r\). The case \(r = 1\) is the classical King graph. We prove that the \(r\)-King graph of order \(n \times n\) has \(\alpha_\mathrm{od}(\sf KG_{n,r}) = \lceil n/(2r+1) \rceil ^2\). Moreover, \(\chi_\mathrm{so}(\sf KG_{n,r}) = (2r + 1)^2\) if \(n \geq 2r + 1\), and \(\chi_\mathrm{so}(\sf KG_{n,r}) = n^2\) if \(n \leq 2r\). Similarly, we develop lower and upper bounds for the odd independence numbers of \(r\)-Rook graphs, \(r\)-Bishop graphs, and their infinite graph version, as well as the Knight graph and the Queen graph.

In section 5 we consider the infinite triangular grid \(T_\infty\), proving that the maximum density of odd independent sets is \(\varrho_\mathrm{od}(T_\infty)= 1/3\); also, \(\chi_\mathrm{so}(T_\infty)= 3\). Moreover, for the infinite hexagonal grid \(H_\infty\) we prove \(\varrho_\mathrm{od}(H_\infty) = 1/2\) and \(\chi_\mathrm{so}(H_\infty) = 2\).

In section 6 we offer many open problems and conjectures concerning odd independence in various grid and chessboard-like graphs, as well as concerning density of odd independence in the infinite grid and chessboard graphs.

The Appendix contains data obtained with computer and used in the various tables in this paper.

1.1 Notation↩︎

For a graph \(G\), standard notation inclues the order \(|G|:=|V(G)|\) (the number of vertices in \(G\)), the independence number \(\alpha(G)\), the chromatic number \(\chi(G)\), and the square \(G^2\), in which two vertices are adjacent if and only if they are at distance at most 2 apart in \(G\) (i.e., they are adjacent or have a common neighbor in \(G\)).

The open and closed neighborhood of vertex \(v\) is denoted by \(N(v)\) and \(N[v]\), respectively. A graph is said to be \(K_{1,r}\)-free (\(r\geq 3\)) if it contains no induced subgraph isomorphic to \(K_{1,r}\). The common term for \(K_{1,3}\)-free is claw-free.

As a less common notation, we write \(p\) [mod \(q\)] for the residue of \(p\) modulo \(q\) (where \(p\geq 0\) and \(q\geq 2\) are integers).

2 Some basic tools↩︎

This section in mainly about obtaining upper bounds on the odd independence number for \(d\)-regular or nearly \(d\)-regular \(K_{1,r}\)-free graphs. These estimates are then used to upper-bound \(\alpha_\mathrm{od}\) in various grid and chessboard-like graphs which are nearly regular and either \(K_{1,3}\)-free or \(K_{1,5}\)-free.

Proposition 1. Let \(G\) be a \(d\)-regular, \(K_{1,r}\)-free graph (\(r \geq 3\)) on \(n\) vertices.

If \(r \equiv 0\) (mod 2), then \(\alpha_\mathrm{od}(G) \leq \frac{r-1}{d+r-1}\,n\) .
If \(r \equiv 1\) (mod 2), then \(\alpha_\mathrm{od}(G) \leq \frac{r-2}{d+r-2}\,n\) .

Proof. Let \(S\) be a maximum odd independent set in \(G\). Consider any \(v \in V \,\diagdown\,S\). Either \(v\) is not adjacent to any vertex in \(S\), or it has at least one neighbor \(u \in S\). In the latter case it can have at most \(r - 1\) neighbors in \(S\) if \(r\) is even, and at most \(r - 2\) neighbors if \(r\) is odd, since \(r\) independent neighbors would yield an induced \(K_{1,r}\) subgraph. Now count the number of edges between \(S\) and \(V \,\diagdown\,S\) in two ways and obtain \(d\cdot |S| \leq (r-1)(n-|S|)\) if \(r\) is even, and \(d\cdot |S| \leq (r-2)(n-|S|)\) if \(r\) is odd. Hence it follows that \(|S| \leq (r - 1)n/(d + r -1)\) or \(|S| \leq (r - 2)n/(d + r -2)\), respectively. ◻

The above estimates are tight for infinitely many combinations of the parameters, as shown next.

Example 2. \((i)\) Let \(p\geq 3\) be odd, and \(t\geq 2\) any integer. Consider the complete \(t\)-partite graph \(G=K_{t*p}\), with \(t\) vertex classes of size \(p\) each. This \(G\) is \(K_{1,r}\)-free with \(r=p+1\) even. The degree of regularity is \(d=(t-1)\cdot p\), the order is \(n=pt\), and the obtained upper bound is \((r-1)\cdot n/(d +r - 1) = tp^2/((t-1)\cdot p + p) = p\) ; and each vertex class is indeed an odd independent set of cardinality \(p\). This shows the tightness of \((i)\) for all \(r\geq 4\) even, and all \(d\equiv 0\) (mod \(r-1\)).

\((ii)\) Taking \(G=K_{t*p}\) with \(p\geq 2\) even, the graph is \(K_{1,r}\)-free with \(r=p+1\) odd. In this case we have the upper bound \((r-2)\cdot n/(d +r - 2) = tp\cdot(p-1)/((t-1)\cdot p + p-1) = tp\cdot(p-1)/(tp-1) = p-1 + (p-1)/(tp-1)\), whose integer part is \(p-1\) for all \(t\geq 2\). This is tight for \((ii)\), because the largest odd independent sets are obtained by omitting one vertex from any one vertex class, hence of cardinality \(p-1\).

Also, the following asymptotic version of the above proposition is useful.

Proposition 3. Let \(\Delta\) be a natural number, and for \(j=1,2,\dots\) let \(G_j\) be a \(K_{1,r}\)-free graph (\(r\geq 3\)) on \(n_j\) vertices, \(n_j \to\infty\), of maximum degree \(\Delta\) in which the number \(z_j\) of vertices of degrees smaller than \(\Delta\) satisfies \(z_j = o(n_j)\).

If \(r \equiv 0\) (mod 2), then \(\limsup \alpha_\mathrm{od}(G_j) / n \leq \frac{r-1}{\Delta+r-1}\) .
If \(r \equiv 1\) (mod 2), then \(\limsup \alpha_\mathrm{od}(G_j) / n \leq \frac{r-2}{\Delta+r-2}\) .

Proof. As in the the proof of Proposition 1, for the size of a maximum odd-independent set \(S\) we obtain the inequality \(d\cdot (|S|-z_j) \leq (r-1)(n_j-|S|)\) or \(d\cdot (|S|-z_j) \leq (r-2)(n_j-|S|)\), depending on whether \(r\) is even or odd. Since \(z_j=o(n_j)\), the asymptotic upper bounds follow. ◻

Among the chessboard graphs studied in Section 4 below, Bishop and Rook are \(K_{1,3}\)-free, whereas Queen, \(r\)-Rook and \(r\)-Bishop (and also the grid graphs) are \(K_{1,5}\)-free, all with even maximum degree. For \(K_{1,3}\)-free boards we know directly \(\alpha_\mathrm{od}(G) = \alpha(G^2)\), and for \(K_{1,5}\)-free boards we obtain the upper-bound ratio of \(3/(\Delta+3)\).

The following concept of forbidden pair / forcing pair, introduced in Part 1 [6], will be also useful here.

Definition 4. ****(Forbidden pair & Forcing pair)**

Two nonadjacent vertices \(x,y\) form a forbidden pair* if they have a common neighbor \(z\) such that \(N[z]\subseteq N[x]\cup N[y]\).*
Two nonadjacent vertices \(x,y\) form a forcing pair* if they have a common neighbor \(z\) such that, for each vertex \(w\) in \(N(v)\) which is independent of \(x\) or \(y\) or both, either \(x,w\) or \(y,w\) or both are forbidden pairs.*

Lemma 5 ([6]). If \(S\subseteq V(G)\) is an odd-independent set, then it contains no forbidden pair, nor a forcing pair.

3 Three types of square grids↩︎

Here we consider grids \(P_k \,\Box\,P_k\) in the plane, \(P_k \,\Box\,C_k\) on the cylinder, and \(C_k \,\Box\,C_k\) on the torus. Moreover, the infinite grid in the plane will be investigated, and a strong odd coloring of higher-dimensional grids is also provided.

Before all these, let us state that the odd independence number is supermultiplicative with respect to the Cartesian product operation.

Proposition 6. For any two graphs \(G\) and \(H\) the general lower bound \(\alpha_\mathrm{od}(G \,\Box\,H)\geq \alpha_\mathrm{od}(G) \cdot \alpha_\mathrm{od}(H)\) is valid.

Proof. Let \(S_G = \{ u_1,\dots,u_g \}\) and \(S_H = \{ v_1,\dots,v_h \}\) be maximum odd independent sets of \(G\) and \(H\), respectively (where \(g=\alpha_\mathrm{od}(G)\) and \(h=\alpha_\mathrm{od}(H)\)). We claim that the set \(S_G \times S_H = \{ (u_i,v_j) \mid 1\leq i\leq g, \;1\leq j\leq h \}\) is odd-independent in \(G \,\Box\,H\).

The graph \(G \,\Box\,H\) is the edge-disjoint union of \(|H|\) copies of \(G\) and \(|G|\) copies of \(H\). More specifially, each vertex \(w=(u_a,v_b) \in G \,\Box\,H\) is in one copy \(G_b\) of \(G\) and in one copy \(H_a\) of \(H\). This immediately implies that \(S_G \times S_H\) is independent. Assuming that \(w=(u_a,v_b) \notin S_G \,\Box\,S_H\), we claim that if \(w\) has at least one neighbor (and then by assumption an odd number of them) in \(S_G\cap G_b\), then it has no neighbor in \(S_H\cap H_a\), and vice versa. Inded, suppose that both \((u_i,v_b),(u_a,v_j)\in S_G \times S_H\) are adjacent to \((u_a,v_b)\). This can occur only if both \(u_a,u_i\in S_G\). But then adjacency of \((u_a,v_b)\) and \((u_i,v_b)\) implies \(u_iu_a\in E(G)\), contradicting the assumption that \(S_G\) is independent. ◻

Products of complete graphs establish infinitely many cases of equality. However, \(\alpha_\mathrm{od}(C_3 \,\Box\,C_4) = 4\) while \(\alpha_\mathrm{od}(C_3) = \alpha_\mathrm{od}(C_4) = 1\). Hence already very small examples show that multiplicativity with respect to Cartesian product does not hold in general, not even in cases where one of the factors is a complete graph.

Table 1: Values of \(\alpha_\mathrm{od}\) in small square grids
\(k\)	3	4	5	6	7	8	9	10	11	12	13	14
\(P_k \,\Box\,P_k\)	5	5	12	12	20	21	29	33	42	48	60	64
\(P_k \,\Box\,C_k\)	2	5	6	12	14	24	25	34	37	48	52	70
\(C_k \,\Box\,C_k\)	1	6	5	12	12	24	21	30	34	54	49	62

Proposition 7. For \(k\leq 14\), the values \(\alpha_\mathrm{od}(P_k \,\Box\,P_k)\), \(\alpha_\mathrm{od}(P_k \,\Box\,C_k)\), and \(\alpha_\mathrm{od}(C_k \,\Box\,C_k)\) are as shown in Table 1.

Proof. These data have been determined using computer search. The lower bounds are obtained by explicit constructions, which are listed in the appendix. ◻

Our next concern is the proportion of vertices in an odd independent set.

Definition 8. If \(G\) is a finite graph, we denote \(\varrho_\mathrm{od}(G) := \alpha_\mathrm{od}(G)/|G|\) and call it the odd independence ratio* of \(G\). Further, if \(G\) is an infinite plane graph with a given planar embedding, we define the odd independence density of \(G\) as \(\varrho_\mathrm{od}(G) := {\displaystyle \sup_S \, \limsup_{H_n\,, \;n\to\infty} } |S\cap V(H_n)|/|H_n|\) taken over all odd independent sets \(S\) of \(G\) and all \(H_n\) induced by the vertices inside axis-parallel squares of size \(n\) in the plane.*

Definition 9. Given \(k\geq 3\), an internally odd-independent set is an independent set \(S\subset V(P_k\,\Box\,P_k)\) such that every vertex of degree 4 in \(P_k\,\Box\,P_k\) (i.e., those not on the boundary) either belongs to \(S\) or has an odd number of neighbors in \(S\). The largest possible \(|S|\) of this kind is denoted by \(\alpha_\mathrm{iod}(P_k\,\Box\,P_k)\).

For \(k<3\) there are no internal vertices in \(P_k\,\Box\,P_k\), this is the reason why we start the definition from 3. As we shall see in Theorem 11, the notion of internally odd independence is useful in upper-bounding the density of odd independence in the infinite 2-dimensional grid.

Proposition 10. The values of \(\alpha_\mathrm{iod}(P_k\,\Box\,P_k)\) for \(k\leq 26\) are equal to those given in table [tab:intern-odd].

Proof. These values have been determined via exhaustive computer search. ◻

[ht]
\begin{center}
{\scriptsize
    \begin{tabular}{ccccccccc}
       $k$  & 3 & 4 & 5 & 6 & 7 & 8 & 9 & 10  \\
\hline
      $\siid$   & 5 & 7 & 12 & 15 & 21 & 26 & 34 & 40  \\
      $\siid/k^2$   & 0.555556 & \textbf{0.4375} & 0.48 & \textbf{0.416667} & 0.428571 & \textbf{0.40625} & 0.419753 & \textbf{0.4}  \\
      &&&&&&&& \\
       $k$  & 11 & 12 & 13 & 14 & 15 & 16 & 17 & 18  \\
\hline
      $\siid$   & 49 & 57 & 68 & 77 & 89 & 100 & 114 & 125  \\
      $\siid/k^2$   & 0.404959 & \textbf{0.395833} & 0.402367 & \textbf{0.392857} & 0.395556 & \textbf{0.390625} & 0.394464 & \textbf{0.388889}  \\
      &&&&&&&& \\
       $k$  & 19 & 20 & 21 & 22 & 23 & 24 & 25 & 26  \\
\hline
      $\siid$   & 141 & 155 & 172 & 187 & 204 & 222 & 242 & 260  \\
      $\siid/k^2$   & 0.390582 & \textbf{0.3875} & 0.390023 & \textbf{0.386364} & 0.387524 & \textbf{0.385417} & 0.3872 & \textbf{0.384615}
    \end{tabular}
    \caption{Values of $\siid(P_k\Boxx P_k)$, exact or rounded to six decimal digits}
    \label{tab:intern-odd}
}
\end{center}

One can observe that the subsequences of fixed parity are monotone decreasing, for both \(k\) odd and \(k\) even. However, the value of \(\alpha_\mathrm{iod}/k^2\) for \(k=2t-1\) and \(k=2t+1\) are greater than that for \(k=2t\), in all of the investigated cases. It is our belief that this property remains valid for all \(k\), and that the limit of the sequence is equal to \(3/8\).

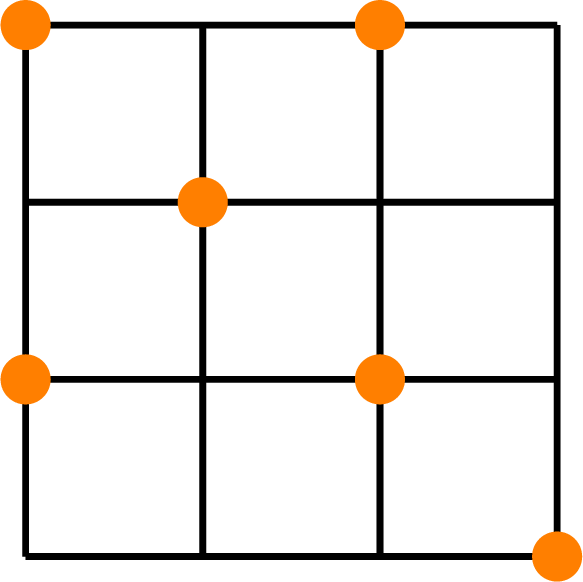

Figure 1: \alpha_\mathrm{od}(C_4\,\Box\,C_4)=6. — Figure 1: \(\alpha_\mathrm{od}(C_4\,\Box\,C_4)=6\).

Figure 2: Detail of independent set of density 3/8 in P_\infty\,\Box\,P_\infty, generated from \alpha_\mathrm{od}(C_4\,\Box\,C_4)=6. — Figure 2: Detail of independent set of density \(3/8\) in \(P_\infty\,\Box\,P_\infty\), generated from \(\alpha_\mathrm{od}(C_4\,\Box\,C_4)=6\).

Theorem 11. \({\displaystyle \sup_{k\geq 3} } \;\varrho_\mathrm{od}(C_k\,\Box\,C_k) \leq \varrho_\mathrm{od}(P_\infty\,\Box\,P_\infty) \leq \inf \alpha_\mathrm{iod}(P_k\,\Box\,P_k)/k^2\).

Proof. For the lower bound we partition the plane into \(k\times k\) squares. More explicitly, we copy an optimal odd independent set\(S_k\) of \(C_k\,\Box\,C_k\) inside the integer points \(\{1,\dots, k\} \times \{1,\dots, k\}\) and take its translates by the vectors \((ak,bk)\) for all \(a,b\in\mathbb{Z}\); see Figure 1 with a pattern for \(k=4\), and a detail of the corresponding odd independent setof the infinite grid exhibited in Figure 2. In this way starting from \(C_k\,\Box\,C_k\) we obtain an odd independent setof density \(\alpha_\mathrm{od}(C_k\,\Box\,C_k)/k^2\), hence a lower bound. The additional Figure 3 represents the vertices of the grid by small square cells. The cells corresponding to the vertices of the selected odd independent set\(S\) are marked with x. Further, thick frame surrounds the pattern whose translates yield \(S\). This \(4\times 4\) pattern is the equivalent of the set \(S_4\) exhibited in Figure 1.

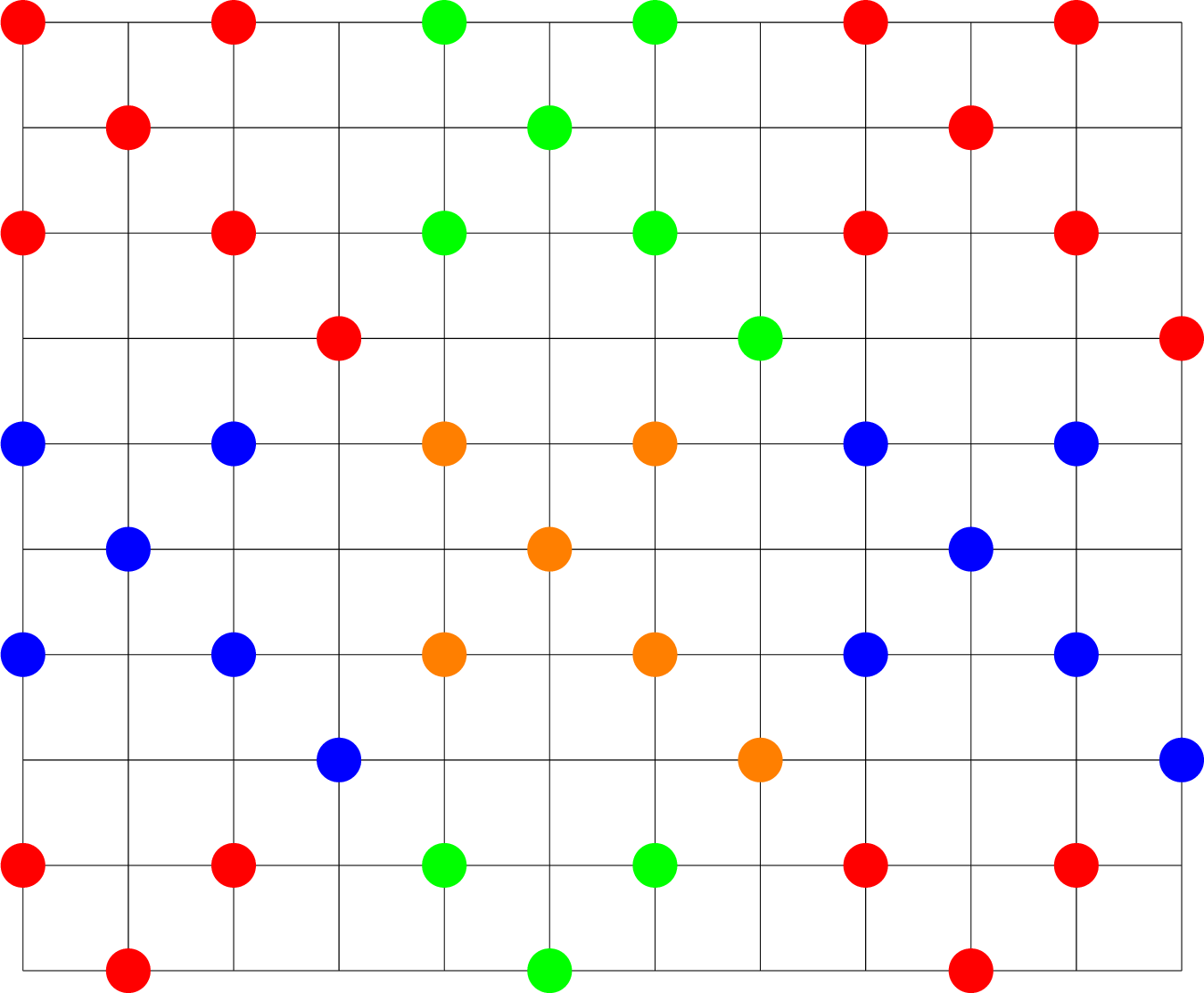

Figure 3: Cellular representation, also indicating the generating pattern which yields \(\varrho_\mathrm{od}\geq 3/8\)..

For the upper bound, partition the infinite grid into vertex-disjoint copies of \(P_k \,\Box\,P_k\). If \(S\) is an odd independent setof the grid, by definition it can have at most \(\alpha_\mathrm{iod}(P_k \,\Box\,P_k)\) vertices in each copy. Consider a sequence \(H_n \cong P_n \,\Box\,P_n\), \(n\to\infty\), establishing \(\varrho_\mathrm{od}(G) := \sup_S {\displaystyle\lim_{ n\to\infty} } |S\cap V(H_n)|/|H_n|\). Writing \(n\) in the form \(n=qk+r\) (\(0\leq r\leq k-1\)), we pack \(q^2\) vertex-disjoint copies of \(P_k \,\Box\,P_k\) in \(H_n\) and obtain

\[\varrho_\mathrm{od}(G) = \sup_S {\lim_{ n\to\infty} } |S\cap V(H_n)|/|H_n| \leq \frac{q^2\cdot \alpha_\mathrm{iod}(P_k \,\Box\,P_k) + n^2-(qk)^2}{n^2}\]

\[\leq \frac{\alpha_\mathrm{iod}(P_k \,\Box\,P_k)}{k^2} + \frac{2rn-r^2}{n^2} < \frac{\alpha_\mathrm{iod}(P_k \,\Box\,P_k)}{k^2} + \frac{2k}{n} \,.\] The last term tends to 0 for any \(k\) as \(n\to\infty\). Thus, the density of \(S\) is at most \(\alpha_\mathrm{iod}(P_k \,\Box\,P_k)/k^2\). Taking a sequence of \(k\) that attains the infimum of this ratio, the theorem follows. ◻

Corollary 12. \(\alpha_\mathrm{od}(C_4\,\Box\,C_4)/4^2 \leq \varrho_\mathrm{od}(P_\infty\,\Box\,P_\infty) \leq \alpha_\mathrm{iod}(P_{26}\,\Box\,P_{26})/26^2\); more explicitly, \(\varrho_\mathrm{od}(P_\infty\,\Box\,P_\infty)\) is between \(3/8 =0.375\) and \(260/676 = 5/13 \approx 0.38461538461538464\).

This result substantially improves the upper bound of 3/7 obtained from Proposition 3 using the fact that the grid graphs are \(K_{1,5}\)-free and have maximum degree 4.

We close this subsection with results on the infinite grids of any finite dimension \(d\). A natural way to define the odd independence density \(\varrho_\mathrm{od}\) in higher-dimensional grids is to take \({\displaystyle \sup_S \limsup_{H_n\,, \;n\to\infty} } |S\cap V(H_n)|/n^d\) where all odd independent sets \(S\) of the grid are considered, and the current \(H_n\) ranges over all \(d\)-dimensional \(P_n\Box\cdots\,\Box\,P_n\) in the grid.

Let us consider first the chromatic number with respect to distance 2.

Proposition 13. For the \(d\)-dimensional infinite grid \(G_{d\,;\,\infty}:=P_\infty \,\Box\,\cdots \Box P_\infty\) on the vertex set \(\mathbb{Z}^d\) we have \(\chi((G_{d\,;\,\infty})^2) = 2d+1\).

Proof. It is clear that \(\chi((G_{d\,;\,\infty})^2) \geq \omega((G_{d\,;\,\infty})^2) \geq \Delta(G_{d\,;\,\infty})+1 = 2d+1\). Consider now the coloring \(\varphi: \mathbb{Z}^d \to \{ 0,1,\dots,2d \}\) on \(G_{d\,;\,\infty}\) determined by the rule \(\varphi(a_1,\dots,a_d) = \bigl( \, \sum_{i=1}^d i\cdot a_i \bigr)\) (mod \(2d+1\)). This assignment is a proper vertex coloring of \((G_{d\,;\,\infty})^2\), because the weighted sums defined above in the neighborhood of any vertex \(v\) differ by at most \(2d\), taking all values \(\varphi(v)-d, \varphi(v)-d+1, \dots, \varphi(v)-1, \varphi(v)+1, \varphi(v)+2, \dots, \varphi(v)+d\) modulo \(2d+1\). Thus, the assertion follows. ◻

Since the inequality \(\chi_\mathrm{so}(G) \leq \chi(G^2)\) holds for all graphs \(G\), it follows that \(\chi_\mathrm{so}(G_{d\,;\,\infty}) \leq 2d+1\) and then \(\varrho_\mathrm{od}(G_{d\,;\,\infty}) \geq 1/(2d+1)\). It turns out that these estimates are very far from being tight, as \(\chi_\mathrm{so}\) does not depend on \(d\).

Theorem 14. We have \(\chi_\mathrm{so}(G_{d\,;\,\infty}) = 3\) for all \(d\geq 1\). As a consequence, \(\varrho_\mathrm{od}(G_{d\,;\,\infty}) \geq 1/3\).

Proof. Assume that \(\varphi\) is a strong odd coloringon \(G_{d\,;\,\infty}\). The vertex degrees are equal to \(2d\), hence due to the parity conditions each vertex \(v\) has two neighbors \(x,y\) with \(\varphi(x)\neq \varphi(y)\). Since \(\varphi\) is also a proper vertex coloring, \(\varphi(v)\) is a third color, implying \(\chi_\mathrm{so}\geq 3\). The proof will be done if we show that three colors are sufficient.

Let \(v=(a_1 , \dots , a_d)\) be any vertex of \(G_{d\,;\,\infty}\). If \(d\) is odd, we define the color of \(v\) as \(\varphi(v) := (a_1 + \dots + a_d)\) [mod 3] . Then, modulo 3, \(v\) has \(d\) neighbors of color \(\varphi(v)+1\) and also \(d\) neighbors of color \(\varphi(v)-1\), hence both multiplicities are odd, and a strong odd coloringof \(G_{d\,;\,\infty}\) with three colors is obtained.

Assume from now on that \(d\) is even. We introduce two auxiliary functions:

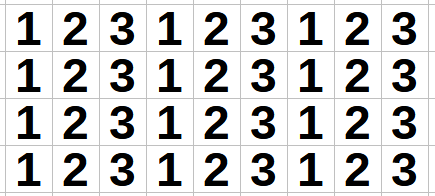

\[h'(v) := ( a_1 + \dots + a_{d-1} ) \;[\mathrm{mod} \;3]\,, \qquad h''(v) := a_d \;[\mathrm{mod} \;2] \,;\] and then define

\[\varphi(v) := ( \, h'(v) + h''(v) \, ) \;[\mathrm{mod} \;3] \,.\] Purely \(h'\) assigns color \(h'(v)-1\) to \(d-1\) neighbors of \(v\), also color \(h'(v)+1\) to \(d-1\) neighbors of \(v\) (both multiplicities are odd), and color \(h'(v)\) to just two neighbors of \(v\) (those two which agree with \(v\) in all of the first \(d-1\) coordinates), An illustration for \(d=2\) is exhibited in Figure 4; the cells modified with \(h''\) are indicated with red numbers.

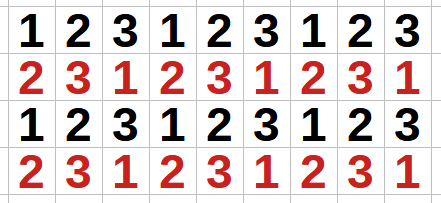

Figure 4: Strong odd 3-coloring of \(P_\infty\,\Box\,P_\infty\), cellular representation. (a) Odd coloring in the first coordinate, (b) modified coloring in levels of odd index..

If \(a_n\) is even, then modifying \(h'\) to \(\varphi\) keeps the color of \(v\) unchanged, as well as the colors of those vertices whose last coordinate equals \(a_d\). This includes \(2d-2\) neighbors of \(v\) in the colors \(h'(v)-1\) and \(h'(v)+1\). The last two neighbors of \(v\) change their color from \(h'(v)\) to \(h'(v)+1\). As a result, \(d+1\) neighbors of \(v\) (an odd number) have color \(\varphi(v)+1\), and \(d-1\) neighbors (also odd) have color \(\varphi(v)-1\).

On the other hand, if \(a_n\) is odd, then modifying \(h'\) to \(\varphi\) changes the color of \(v\) from \(h'(v)\) to \(h'(v)+1\) (computed modulo 3, of course), as well as the colors of those vertices whose last coordinate equals \(a_d\). This includes \(2d-2\) neighbors of \(v\) in the colors \(h'(v)-1\) and \(h'(v)+1\). The last two neighbors of \(v\) change their color from \(h'(v)\) to \(h'(v)+1\). As a result, \(d+1\) neighbors of \(v\) (an odd number) have color \(\varphi(v)+1\), and \(d-1\) neighbors (also odd) have color \(\varphi(v)-1\). Further, all vertices \(w\) having last coordinate \(a_n\) undergo the same modification. As a consequence, among them \(d-1\) have \(\varphi(w)=\varphi(v)+1\) and the same number of them have \(\varphi(w)=\varphi(v)-1\). Since the last two neighbors of \(v\) have an even last coordinate, they keep their color \(h'(v)=\varphi(v)-1\). Thus, in this case \(d+1\) neighbors of \(v\) have color \(\varphi(v)-1\), and \(d-1\) neighbors have color \(\varphi(v)+1\). ◻

3.1 Planar grids↩︎

Here we briefly consider the function \(f(n,k):=\chi_\mathrm{so}(P_k\,\Box\,P_n)\), where \(k\) is fixed and \(n\) is arbitrary. Of course, \(k=1\) just means the graph \(P_n\), already settled as \(\chi_\mathrm{so}(P_n)=\chi((P_n)^2)=3\) for all \(n\geq 3\), with \(\alpha_\mathrm{od}(P_n)=\lceil n/3 \rceil\).

Theorem 15. The following holds for the function \(f(n,k)\) defined above.

\(f(n,k)\leq 5\) for all \(n,k\);
\(f(n,k)\geq 3\) for all \(n,k\geq 2\);
\(f(n,k)\geq 4\) for all \(n,k\geq 4\);
\(f(n,k)\leq 4\) whenever \(2\mid k\) and \(k-1 \mid n\);
\(f(k,k)=5\) for all odd \(k\geq3\).

Proof. Throughout we use a cellular representation of \(G=P_n\,\Box\,P_k\). Consider the following vertex coloring \(\varphi:V(G)\to\{0,1,2,3,4\}\). For any vertex \(v=(a,b)\) of \(G\) let us define \(\varphi(v)=2\cdot (a\ [\mathrm{mod}\ 5])+(b\ [\mathrm{mod}\ 5])\), addition modulo 5. One readily observes that if \(\varphi(v)=x\) then its neighbors are assigned with distinct values from the set \(\{x-2,x-1,x+1,x+2\}\), addition and subtraction modulo 5. Thus \(\varphi\) is a proper coloring of \(G^2\), which in turn gives that \(\varphi\) is a strong odd \(5\)-coloring of \(G\). This implies \((i)\).

Concerning \((ii)\), two colors are not sufficient for any pair \((n,k)\) with \(n,k\geq 2\) because a corner vertex and its two neighbors have to receive mutually distinct colors under any strong odd coloring.

Let \(n,k\geq 4\), and suppose that \(G\) admits a strong odd coloring with color set \(\{1,2,3\}\). Upon permuting colors, we may assume that \(f(1,1)=f(2,2)=1\), \(f(1,2)=2\) and \(f(2,1)=3\). Consequently, \(f(1,3)=f(3,1)=1\) and \(f(2,3)=f(1,4)=2\). However, then it must be that \(f(3,2)=2\) as well, which in turn leaves us without an option for \(f(4,1)\). The obtained contradiction proves \((iii)\).

Concerning \((iv)\), let us first construct a strong odd \(4\)-coloring of \(P_{2t-1}\,\Box\,P_{2t}\). We introduce the following ad-hoc terminology. A peripheral cell of the table is any \(1\times 1\) cell \((a,b)\) such that \(a\in\{1,2,2t-2,2t-1\}\) or \(b\in\{1,2,2t-1,2t\}\) (or both). Note that the non-peripheral cells comprise a ‘central’ \((2t-5)\times (2t-4)\) (sub)table. For any \((2s-1)\times (2s-1)\) square (sub)table within the \((2t-1)\times (2t)\) rectangle, its frame consists of the cells depicted as grey in Figure 5.

Figure 5: A 7\times 7 square table (left), and its frame (right). — Figure 5: A \(7\times 7\) square table (left), and its frame (right).

Now look at the \((2t-1)\times (2t)\) rectangle (in the cellular representation of \(P_{2t-1}\,\Box\,P_{2t}\)) as if comprised of two partially overlapping \((2t-1)\times (2t-1)\) square tables: a left one consisting of the cells \((a,b)\) with \(1\leq b\leq 2t-1\), and a right one consisting of the cells \((a,b)\) with \(2\leq b\leq 2t\). Assign to each frame cell of the left \((2t-1)\times (2t-1)\) square the color \(1\). Similarly, assign to each frame cell of the right \((2t-1)\times (2t-1)\) square the color \(2\) (cf.Figure 6).

Figure 6: A partially colored 7\times 8 rectangular table. Apart from the cells in even-numbered rows from the first and last column, every other peripheral cell is assigned with a color from the set \{1,2\}. Additionally, some non-peripheral cells are assigned with a color from the set \{1,2\} — these cells are peripheral (located in even-numbered rows from the first and last column) in regard to the central 3\times 4 rectangular (sub)table. — Figure 6: A partially colored \(7\times 8\) rectangular table. Apart from the cells in even-numbered rows from the first and last column, every other peripheral cell is assigned with a color from the set \(\{1,2\}\). Additionally, some non-peripheral cells are assigned with a color from the set \(\{1,2\}\) — these cells are peripheral (located in even-numbered rows from the first and last column) in regard to the central \(3\times 4\) rectangular (sub)table.

We assign to the remaining uncolored peripheral cells a color from the set \(\{3,4\}\) as follows: for the uncolored cells in the first column (the cells \((a,b)\) with \(a\in\{2,4,2t-2\}\) and \(b=1\)) we alternate between the color \(3\) and the color \(4\) as the row coordinate of the cell increases; we color analogously the uncolored cells in the last column (the cells \((a,b)\) with \(a\in\{2,4,2t-2\}\) and \(b=2t\)) (cf.Figure 7).

Figure 7: A partially colored 7\times 8 rectangular table. Every frame cell is assigned with a color from the set \{1,2\}. The remaining peripheral cells are assigned with a color from the set \{3,4\}. Additionally, the cells that are in even-numbered rows from the first and last column in regard to the central 3\times 4 rectangular (sub)table are assigned with a color from the set \{1,2\}. — Figure 7: A partially colored \(7\times 8\) rectangular table. Every frame cell is assigned with a color from the set \(\{1,2\}\). The remaining peripheral cells are assigned with a color from the set \(\{3,4\}\). Additionally, the cells that are in even-numbered rows from the first and last column in regard to the central \(3\times 4\) rectangular (sub)table are assigned with a color from the set \(\{1,2\}\).

Note that the uncolored cells comprise the central \((2t-5)\times (2t-4)\) (sub)table, excepting the peripheral cells of this subtable which come from its even-numbered row in its first/last column. We iterate the ‘frame coloring’ procedure with permuted color: instead of colors \(1\) and \(2\) we use \(3\) and \(4\), respectively, and vice versa. In more detail, we look at this central \((2t-5)\times (2t-4)\) rectangle (its peripheral cells in even-numbered rows from the first/last column are already colored with \(1\) or \(2\)) as comprised of two partially overlapping \((2t-5)\times (2t-5)\) squares, and color their respective frames using colors \(3\) and \(4\) (the color \(3\) for the frame of the left square, and the color \(4\) for the frame of the right square). And so on, until every cell gets colored. The final outcome is a strong odd coloring of \(P_{2t-1}\,\Box\,P_{2t}\) such that every cell in the first and last row is assigned with a color from the set \(\{1,2\}\).

The mentioned extra feature for the colors of the first/last row enables us to generate a strong odd \(4\)-coloring for any \(P_{m(2t-1)}\,\Box\,P_{2t}\). Indeed, given \(P_{m(2t-1)}\,\Box\,P_{2t}\), decompose it into \(m\) copies of \(P_{2t-1}\,\Box\,P_{2t}\), and enumerate these copies as first, second, \(\ldots,\) \(m\)-th so that the last row of the \((i-1)\)-st copy of \(P_{m(2t-1)}\,\Box\,P_{2t}\) is adjacent to the first row of the \(i\)-th copy for any \(i=1,2,\ldots,m\). For the first copy of \(P_{m(2t-1)}\,\Box\,P_{2t}\) use the already constructed strong odd \(4\)-coloring. Once the coloring of the \((i-1)\)-st copy has been completed, color the \(i\)-th copy of \(P_{2t-1}\,\Box\,P_{2t}\) by switching the roles played by colors \(1\) and \(3\), as well as the roles played by colors \(2\) and \(4\) in the coloring of the previous copy of \(P_{2t-1}\,\Box\,P_{2t}\). This gives a strong odd \(4\)-coloring of \(P_{m(2t-1)}\,\Box\,P_{2t}\), which proves \((iv)\).

Finally, let us show that \(P_{2t+1}\,\Box\,P_{2t+1}\) requires five colors for any strong odd coloring. Consider the pairs of cells that cross the main diagonal: the first such pair is comprised of the cells \((1,2)\) and \((2,1)\), the second pair of the cells \((2,3)\) and \((3,2)\), and so on, the last pair is comprised of the cells \((2t,2t+1)\) and \((2t+1,2t)\). The total number of considered pairs is even (namely, \(2t\)). We argue by contradiction, and suppose a strong odd \(4\)-coloring is possible. Then the two cells comprising the first pair must receive distinct colors (in view of the corner cell \((1,1)\)). Consequently, the two cells forming the second pair must be colored the same (in view of the cell \((2,2)\)). Consequently, the two cells forming the third pair must receive distinct colors (in view of the cell \((3,3)\)), and so on. We conclude that the two cells forming the last considered pair must receive the same color, since the total number of considered pairs of cells is even, \(2t\), as already noted. However, this cannot be the case because then the corner cell \((2t+1,2t+1)\) would have its only two neighboring cells colored the same. \(\Box\)

Note that \((iii)\) is tight as \(f(3,4)=3\). In view of Theorem 15, for all \(n,k\geq4\) it holds that \(f(n,k)\) equals \(4\) or \(5\), and either value is attained for infinitely many pairs \((n,k)\). It is our belief that \(f(k,k)=5\) for all even \(k\geq4\); however, we are unable to provide a succinct argument for this. ◻

4 Chessboard graphs↩︎

The chessboard graphs are defined on the vertex set \(\{1,\dots,n\} \times \{1,\dots,n\}\), where adjacencies correspond to the moving rules of chess. We call \(n\) the size of the graph in question, referring to the side length of the board on which it is taken. Such graphs are defined for the king, queen, rook, bishop, and knight. In some of them the determination of \(\alpha_\mathrm{od}\) is easy, in some others it leads to a challenging open problem.

As in the preceding section, also here a cellular representation can be applied. It is helpful in visualization; equivalence between the \(n^2\) vertices and the \(n^2\) cells (as well as in the infinite case) is established by using coordinate pairs \((i,j)\).

4.0.0.1 King.

The King graph is the same as the strong product \(P_n \,\boxtimes\,P_n\).

Proposition 16. If \(G\) is the King graph of size \(n\), then \(\alpha_\mathrm{od}(G)=\lceil n/3 \rceil ^2\), and \(\chi_\mathrm{so}(G)=9\) for all \(n\geq 3\). Moreover, the largest odd independent set is unique if and only if \(n\equiv 1 \;(\mathrm{mod}~3)\).

Proof. Recall that every independent set in \(G^2\) is an odd independent set, in any graph \(G\). We first show that in the King graph the converse implication is also valid: if \(S\) is an odd independent setin the King graph \(G\), then \(S\) is also an independent set in \(G^2\). Once proved, we can infer \(\alpha_\mathrm{od}(G) = \alpha(G^2)\).

The eight neighbors of a vertex \((a,b)\) are of the form \((a\pm1,b\pm1)\). Among them, \(S\) can contain at most one \((a',b')\) with \(|a-a'|+|b-b'|=1\), because e.g.\((a-1,b)\) forms a forbidden pair with \((a+1,b)\), and is adjacent to both \((a,b-1)\) and \((a,b+1)\). From the other four with \(|a-a'|+|b-b'|=2\), the only non-forbidden pairs are the opposite diagonal ones. However, if \((a-1,b-1), (a+1,b+1)\in S\), then this vertex pair dominates every neighbor of \((a,b)\) with \(|a-a'|+|b-b'|=1\), thus \(|S\cap N[(a,b)]|\leq 2\). By the parity condition on \(S\), this implies that every vertex has at most one neighbor in \(S\).

Independence in \(G^2\) means that the sets \(N[v]\) are mutually disjoint for all \(v\in S\). Then for any two \((a,b),(a',b')\in S\) we have \(|a-a'|\geq3\) or \(|b-b'|\geq3\) or both. Viewing \(S\) as the vertex set of an auxiliary \(K_{|S|}\), orient a blue arc from \((a,b)\) to \((a',b')\) if \(a'\geq a+3\); and orient a red arc if \(|a-a'|\leq 2\) and \(b'\geq b+3\). Clearly, no monochromatic directed path can have more than \(\lceil n/3 \rceil\) vertices, and \(\lceil n/3 \rceil\) is attained for \(n\equiv 1 \;(\mathrm{mod}~3)\) by the unique sequence \(1,4,7,\dots,n\). If \(b_v,r_v\) are the lengths of the longest blue and red path starting from \(v\), then for any two \(v,w\in S\) we have \(b_v\neq b_w\) or \(r_v\neq r_w\) or both (due to the fact that there is a blue or red arc between \(v\) and \(w\)). Thus, \(|S|\leq \lceil n/3 \rceil ^2\), as claimed. Also, the assertion concerning uniqueness follows.

A strong odd coloringwith 9 colors is obtained by the color assignment \((a,b)\mapsto (a\) [mod 3]) + \(3\cdot (b\) [mod 3]). Fewer colors are not enough because, as seen above, already a \(3\times 3\) subsquare requires mutually distinct colors on its nine vertices. ◻

The same argument yields \(\alpha_\mathrm{od}(P_p \,\boxtimes\,P_q)=\lceil p/3 \rceil \cdot\lceil q/3 \rceil\) for all \(p,q\geq 1\), with a unique largest odd independent setif and only if both \(p\) and \(q\) are congruent to 1 modulo 3. Also the strong odd coloringwith nine colors, as defined in the proof, works for all \(p,q\geq 3\).

The above results can be generalized as follows. The \(r\)-King graph (\(r\in\mathbb{N}\)) of size \(n\) has the same vertex set of \(n^2\) vertices as the other chessboard graphs. Two vertices \((a,b),(a',b')\in\{1,\dots,n\}\times\{1,\dots,n\}\) are adjacent if and only if \(|a-a'|\leq r\) and \(|b-b'|\leq r\). The King graph represents the particular case \(r=1\).

Theorem 17. The \(r\)-King graph of any size \(n\) has \(\alpha_\mathrm{od}=\lceil \frac{n}{2r+1} \rceil ^2\). Moreover, \(\chi_\mathrm{so}=(2r+1)^2\) if \(n\geq 2r+1\), and \(\chi_\mathrm{so}=n^2\) if \(n\leq 2r\).

Proof. Let \(G\) be the \(r\)-King graph of size \(n\). Recall that in the \(n\times n\) square board representation the rows and columns are numbered from 1 to \(n\), hence vertex \((a,b)\) of \(G\) naturally corresponds to the cell in the intersection of column \(a\) and row \(b\), making vertices and cells equivalent.

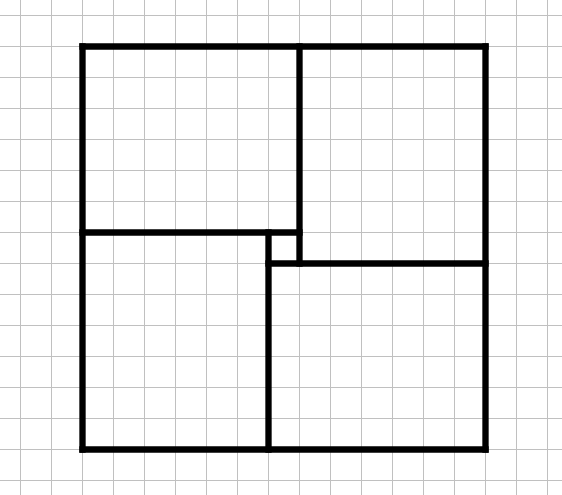

Figure 8: Partition of a \((2r+1)\times(2r+1)\) subsquare (\(r=6\))..

Consider any odd independent set\(S\) in \(G\). We prove that no \((2r+1)\times(2r+1)\) subsquare can contain more than one vertex from \(S\). Suppose for a contradiction that a \((2r+1)\times(2r+1)\) subsquare \(Q\) contains more than one member of \(S\). The central cell, say \(w\), of \(Q\) is not in \(S\), because it is not independent of any cell of \(Q\). We split \(Q-w\) into four \(r\times(r+1)\) rectangles as shown in Figure 8. Inside each rectangle any two cells are dependent, hence \(S\) has at most one vertex there. Further, exactly one of those four rectangles must be free of \(S\), otherwise \(w\) would be dominated by two or four members of \(S\), contrary to odd independence. We assume without loss of generality that the upper left rectangle is blank. Let the three vertices \(A,B,C\in S\) adjacent to \(w\) be arranged as indicated in Figure 9; that is, \(A\), \(B\), \(C\) are placed in the upper right, lower left, and lower right rectangle, respectively.

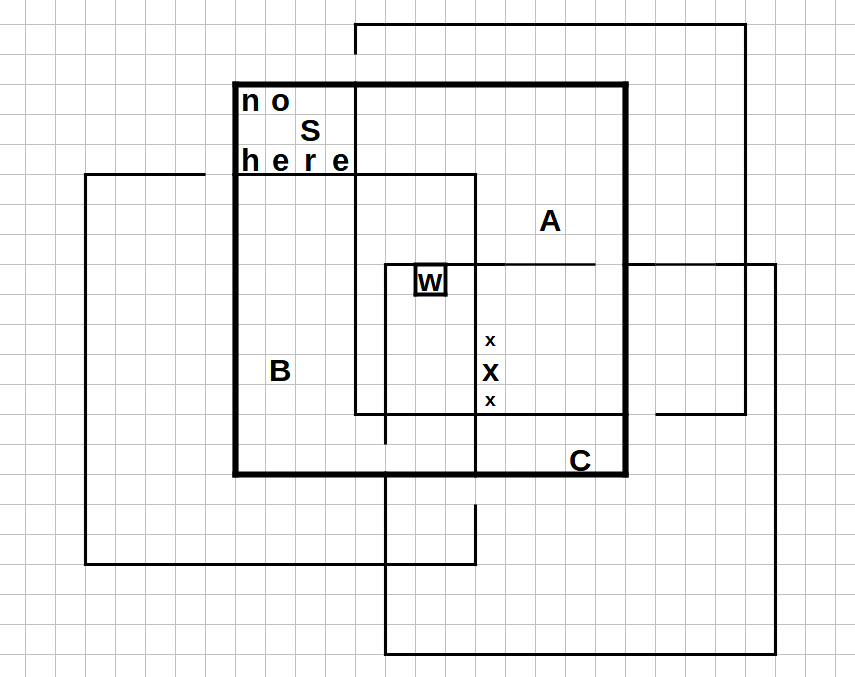

Figure 9: Thick lines: border of the \((2r+1)\times(2r+1)\) subsquare with center \(w\); lines of half thickness: boundaries of the neighborhoods of \(A,B,C\); some cells next to \(N[B]\) are indicated with \(X\) or \({\scriptstyle X}\)..

We use the notation \(<_h\), \(\leq_h\) to indicate relative horizontal positions with respect to columns; for instance, \(B<_h w\leq_h C\) is implied by the chosen rectangle partition. We write \(<_v\) and \(\leq_v\) with a similar meaing in the vertical direction; for instance \(C<_v A\).

Since \(A\) and \(B\) are independent in \(G\), the horizontal or vertical distance between \(A\) and \(B\) must exceed \(r\). We assume that the former is valid (or both), with the above notation we can write this relation as \(N[B]<_hA\).

We are now most interested in the area \(R=(N[A]\cap N[C])\,\diagdown\,N[B]\). The cells in \(R\) are dominated by \(A\) and \(C\), but not by \(B\). We are going to prove that this \(R\), more precisely its column next to the right edge of \(N[B]\), contains a cell \(X\) such that \(N[X]\subseteq N[A]\cup N[C]\). If this property holds, then \(A,C\) is a forcing pair for \(X\), which contradicts the assumption that \(S\) is an odd independent set, due to Lemma 5. Thus, \(|S\cap Q|\leq 1\) will then be proved.

Assuming that this property is valid, it immediately implies that in a strong odd coloringall vertices must have distinct colors if \(n\leq 2r+1\), and also at least \((2r+1)^2\) colors are needed if \(n\geq 2r+1\). On the other hand, \((2r+1)^2\) colors are always enough, as shown by the color assignment \((a,b) \mapsto (a\) mod \(r) + r\cdot (b\) mod \(r)\).

For the rest of the proof, concerning \(\alpha_\mathrm{od}\), we apply an argument analogous to the second part of the proof of Proposition 16. We define the oriented blue-red edge-colored complete graph \(K_{|S|}\), orienting a blue arc from \((a, b)\) to \((a', b')\) if \(a' \geq a + 2r+1\), and a red arc if \(|a - a'| \leq 2r\) and \(b' \geq b + 2r+1\). Then no monochromatic directed path can have more than \(\lceil \frac{n}{2r+1} \rceil\) vertices, and for \(n \equiv 1\) (mod \(2r+1\)) this bound is attained by the unique sequence 1, \(2r+2\), \(4r+3, \dots , n\). Also here, if \(b_v, r_v\) are the lengths of the longest blue and red path starting from vertex \(v\), then for any two \(v,w \in S\) we have \(b_v \neq b_w\) or \(r_v \neq r_w\) or both. Consequently, \(|S| \leq \lceil \frac{n}{2r+1} \rceil ^2\). ◻

4.0.0.2 Rook.

The Rook graph of size \(n\) is \(K_n \,\Box\,K_n\).

Proposition 18. \(\alpha_\mathrm{od}(K_n \,\Box\,K_n)=1\) for every \(n\geq 1\); and \(\chi_\mathrm{so}(K_n \,\Box\,K_n)=n^2\).

Proof. The open neighborhood of every vertex is isomorphic to \(2K_{n-1}\), hence the graph is claw-free, therefore \(\alpha_\mathrm{od}(G)=\alpha(G^2)\), as proved in [6]. Since \(G\) has diameter 2, we obtain \(\alpha(G^2)=1\). Then also \(\chi_\mathrm{so}(K_n \,\Box\,K_n)=n^2\) follows immediately. ◻

One can also observe the extensions \(\alpha_\mathrm{od}(K_p \,\Box\,K_q)=1\) and \(\chi_\mathrm{so}(K_p \,\Box\,K_q)=pq\) for all \(p,q\geq 1\).

As for the king, also for the rook, finite and infinite \(r\)-Rook graphs can be defined for any \(r\in\mathbb{N}\). In this case the horizontal or vertical move of the rook is limited to distance \(r\). Taking the representation with coordinate pairs, this means adjacency of \((a,b)\) and \((a',b')\) if and only if either \(a=a'\) and \(|b-b'|\leq r\), or \(b=b'\) and \(|a-a'|\leq r\). For the infinite \(r\)-Rook graph we have general estimates in which the ratio of the upper and lower bound tends to 3/2 as \(r\) gets large.

Theorem 19. The odd density \(\varrho_\mathrm{od}\) of the infinite \(r\)-Rook graph satisfies

\[\frac{1}{2r+1} \leq \varrho_\mathrm{od}\leq \frac{3}{4r+3} \,.\]

Figure 10: Detail of the infinite 3-Rook graph; x = vertex selected for \(S\)..

Proof. The upper bound is a consequence of Proposition 3, taking into account that the graph is \(K_{1,5}\)-free and has maximum degree \(4r\).

For the lower bound we arrange \(r+1\) rooks in a diagonal position and leave the next \(r\) columns blank. We repeat this pattern vertically modulo \(r+1\), and horizontally modulo \(2r+1\). Illustration for \(r=3\) is given in Figure 10. From any \((r+1)\times (2r+1)\) rectangle, exactly \(r+1\) cells (vertices) are selected, hence the density equals \(\frac{1}{2r+1}\). Each cell in the blank columns is dominated just once from \(S\), and the blank cells in the other columns have precisely three neighbors in \(S\). Thus, \(S\) is an odd independent set. ◻

4.0.0.3 Bishop.

In the Bishop graph of any size, two vertices \((a,b)\) and \((a',b')\) are adjacent if and only if \(a-a'=b-b'\) or \(a-a'=b'-b\). It has two components, the connected white and black graphs, which are isomorphic if and only if \(n\) is even. Moreover, each component (black or white) of the infinite Bishop graph is isomorphic to the infinite Rook graph.

Proposition 20. The Bishop graph of any size \(n\geq 2\) has \(\alpha_\mathrm{od}=2\) and \(\chi_\mathrm{so}=\lceil n^2\!/2 \rceil\).

Proof. In each component, the open neighborhood of each vertex is the disjoint union of two complete graphs (or is just one complete graph if the vertex is in a corner), hence the graph is claw-free. Consequently \(\alpha_\mathrm{od} (G)=\alpha(G^2)\), which is now equal to 2 because both components have diameter 2 (or 1 if \(n=2\)).

The larger component has \(\lceil n^2\!/2 \rceil\) vertices, each of which is a maximal odd independent setand so requires a private color in its component. Assigning this way, and repeating those colors (except one if \(n\) is odd) in the other component, a strong odd coloringis obtained. ◻

For the bishop, the above result does not extend directly to a \(p\times q\) board, because the diameter of the corresponding graph can be large, depending on the ratio between \(p\) and \(q\). This admits larger odd independence, and hence also strong odd coloringwith fewer colors.

Similarly to the case of rook, in the \(r\)-Bishop graphs (\(r\in\mathbb{N}\)) the (diagonal) move of a bishop is limited to distance at most \(r\). Expressing this condition with coordinates, adjacency of \((a,b)\) and \((a',b')\) is taken under the restriction \(|a-a'|\leq r\), or equivalently \(|b-b'|\leq r\). In this way the infinite \(r\)-Bishop graph has two components, each isomorphic to the infinite \(r\)-Rook graph.

Theorem 21. The odd density \(\varrho_\mathrm{od}\) of the infinite \(r\)-Bishop graph satisfies

\[\frac{1}{2r+1} \leq \varrho_\mathrm{od}\leq \frac{3}{4r+3} \,.\]

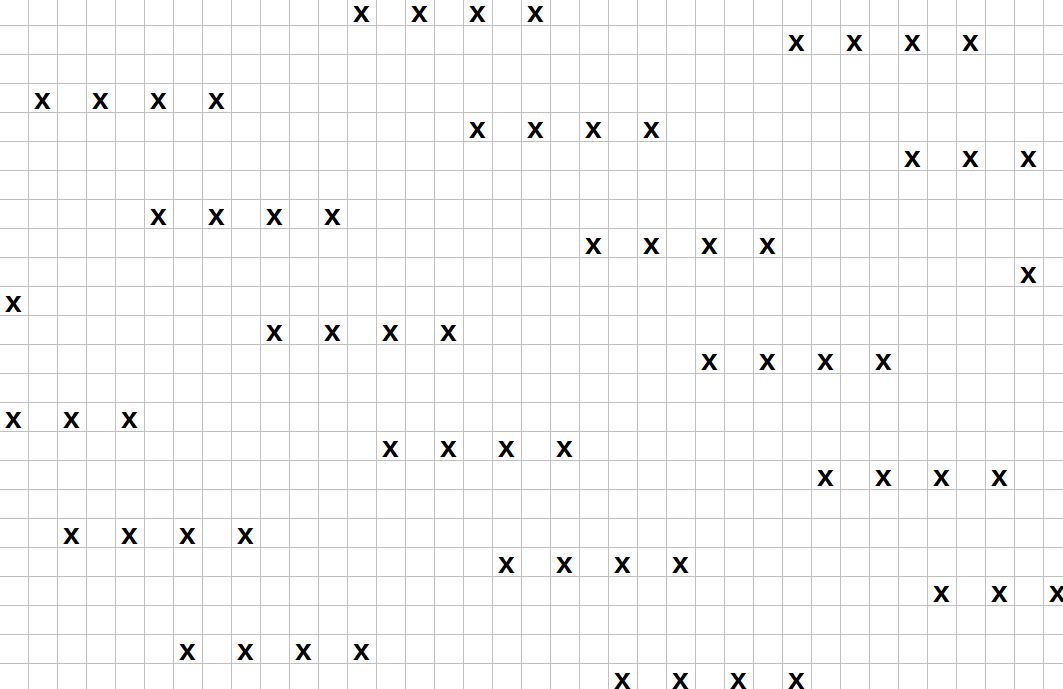

Figure 11: Odd-independent set of density 1/7 in one component of the infinite 3-Bishop graph..

Proof. Since each connected component (black or white) is isomorphic to the \(r\)-Rook graph, the inequalities follow by Theorem 19. Illustration for \(r=3\) is given in Figure 11. The easiest way to check density is to observe that each up-diagonal line of the component in question contains exactly six gaps between any two selected cells. An analogous selection can be done in the other component, too; but there are several ways to combine the two selections. ◻

4.0.0.4 Queen.

The edge set of the Queen graph is the union of those of the Rook and Bishop graphs. It has diameter 2, and every vertex is in the intersection of at most four cliques, hence it is \(K_{1,5}\)-free.

Proposition 22. Every Queen graph of size \(n\leq 10\) has \(\alpha_\mathrm{od}=1\), and consequently also \(\chi_\mathrm{so}=n^2\).

Proof. This has been checked by running a computer code. ◻

Proposition 23. The infinite Queen graph has either \(\alpha_\mathrm{od}=\infty\) or \(\alpha_\mathrm{od}=1\) but no other finite value is possible.

Proof. Suppose for a contradiction that \(\alpha_\mathrm{od}=k\), where \(1<k<\infty\), and consider an odd independent set\(S\) of \(k\) vertices. Let \((a_1,b_1), (a_2,b_2) \in S\) be the two vertices such that \(a_1\) is the largest first coordinate and \(|b_1-b_2|\) is the maximum difference from \(b_1\) in \(S\). We consider the vertex \(v=(a,b)\) where \(b=b_2\) and

\((a_1+b_1+b_2,b_2)\) if \(b_2>b_1\), hence \(b-a = b_1-a_1\);
\(a=a_1+b_1-b_2\) if \(b_2<b_1\), hence \(a+b = a_1+b_1\).

This \(v\) has precisely two neighbors in \(S\), namely \((a_2,b_2)\) horizontally and \((a_1,b_1)\) diagonally, because the vertical line and the other diagonal passing through \(v\) is disjoint from \(S\). This contradicts the assumption that \(S\) is an odd independent set. ◻

Clearly, the infinite Queen graph has \(\chi_\mathrm{so}= \infty\), but this does not allow any conclusion concerning its \(\alpha_\mathrm{od}\) whether it is 1 or \(\infty\).

4.0.0.5 Knight.

A general vertex (at distance at least 2 from the edge) of the Knight graph, say \((a,b)\), has eight neighbors:

\((a-2,b+1)\), \((a-2,b-1)\), \((a+2,b+1)\), \((a+2,b-1)\),

\((a-1,b+2)\), \((a-1,b-2)\), \((a+1,b+2)\), \((a+1,b-2)\).

Proposition 24. As \(n\to\infty\), the Knight graph of size \(n\) has \(\frac{7}{16}\,n^2 - O(n) \leq \alpha_\mathrm{od}\leq \frac{7}{15}\,n^2 + O(n)\).

Proof. The asymptotic upper bound follows as the particular case \(\Delta=8\) of Proposition 3 \((i)\). The error term can be obtained by observing that the vertices of degree less than 8 are located in the first and last two rows and columns, hence \(z_j = 4\cdot (2n-4) = O(n)\) using the notation introduced in the proof of that proposition.

We prove the lower bound by construction; an illustrative example with \(n=43\) is exhibited in Figure 12, where again the cells of the board represent the \(n^2\) vertices of the graph. Recall that the number of both the black and white cells is essentially the same, namely \(\lfloor n^2\!/2 \rfloor\) and \(\lceil n^2\!/2 \rceil\).

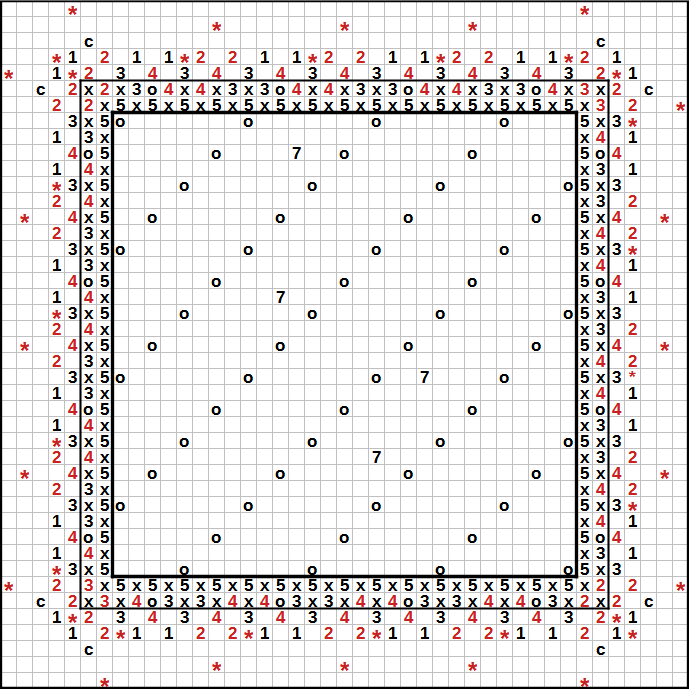

Figure 12: Knight graph, odd independent density \(7/16-o(1)\)..

The construction begins with selecting approximately \(7/8\) of black vertices. The pattern of non-selected cells is indicated with o in the big central area. In rows of odd index all black cells are selected, in rows of even index one black is skipped after three black ones; and this is shifted diagonally as shown in the figure. As a result, every white cell of the central area is knight-connected to precisely one non-selected black cell, hence dominated by exactly seven selected cells. Four white cells labeled 7 intend to express this fact. One can observe that from each of them the closest o —and only that one—is reached by an L-shape move of the knight.

The second step is to remove all selections from the first and last five rows and columns. In rows/columns of indices 6, 7, \(n-6\), \(n-5\) the selections are kept and are indicated with x in the figure. The numbers in rows/columns from 4 to 7 and from \(n-6\) to \(n-3\) indicate how many selected black cells dominate the white cell in question. Many of them are odd (1, 3, 5) but some are even (2, 4), written in red.

The third step is to select further black cells in the rows and columns of indices from 2 to 5 and from \(n-4\) to \(n-1\), as indicated by the \(\star\) signs. Each red even number is dominated by ecactly one newly selected cell, hence its domination is increased from 2 to 3 or from 4 to 5. In addition, near some cells, some 3-labeled cells get dominated by precisely two newly selected cells, hence their domination is increased from 3 to 5; these labels 3 are written in red.

As a side effect, two cells near each corner (in row/column 3 and \(n-2\)) were not dominated before, but now have exactly two newly selected neighbors in the Knight graph. These are indicated with c. In the last (fourth) step we give them just one further domination in row/column 1 or \(n\), indicated by the \(\star\) sign, increasing its selected neighbors to 3.

In this way an odd independent setof cardinality at least \(\frac{7}{16}(n-10)^2 = \frac{7}{16}\cdot n^2 - O(n)\) has been selected, yielding the claimed lower bound. ◻

5 Other types of grids↩︎

The two propositions of this short section open a beautiful area on the border of discrete geometry and graph theory, namely independence and odd independent density in tilings of the plane, and even more generally on surfaces. We now determine the odd independence ratio in the infinite triangular and hexagonal grids. As above, also here the odd independence ratio is denoted by \(\varrho_\mathrm{od}\).

Proposition 25. The infinite triangular grid has \(\varrho_\mathrm{od}= 1/3\) and \(\chi_\mathrm{so}= 3\).

Proof. The triangular grid is a 6-regular graph whose chromatic number is 3. Take a proper 3-coloring \(\varphi\), and let \(S\) be any one of its color classes. Consider any \(v\notin S\). Then \(N(v)\) induces a 6-cycle, which is properly colored with the two colors distinct from \(\varphi(v)\), one of them being the color of \(S\). Hence, \(v\) has precisely three neighbors in \(S\), therefore \(S\) is an odd independent setof density 1/3, and \(\varphi\) is a strong odd coloring.

Denser odd independent sets—and also denser independent sets—cannot exist, because the grid obviously admits a vertex partition into triangles (e.g., the grid can be split into parallel stripes each of which induces a subgraph isomorphic to \((P_\infty)^2\)), and any independent set can contain at most one vertex from each triangle. ◻

We note that the maximum density of odd subgraphs is 6/7, hence much larger than \(\varrho_\mathrm{od}\).

Proposition 26. The infinite hexagonal grid has \(\varrho_\mathrm{od}= 1/2\) and \(\chi_\mathrm{so}= 2\).

Proof. The hexagonal grid is a 3-regular bipartite graph, thus both of its vertex classes are odd independent. Moreover, the graph admits a perfect matching, hence independent sets cannot be denser than 1/2, also if the parity constraint of odd indepence is dropped. ◻

6 Concluding remarks and open problems↩︎

In this section we offer a list of open problems for future research.

6.1 Grids↩︎

Problem 27. Determine \(\alpha_\mathrm{od}\) and \(\chi_\mathrm{so}\) for the various types of \(d\)-dimensional grid graphs (Cartesian products of \(d\) paths and/or cycles) for \(d\geq 2\), or improve upon the bounds obtained in this research.

In view of Theorem 14 we offer the following problem.

Conjecture 28. The odd independence density of the \(d\)-dimensional grid \(G_{d\,;\,\infty}= P_\infty \,\Box\,\cdots \Box P_\infty\) satisfies \(\displaystyle \lim_{d\to\infty} \varrho_\mathrm{od}(G_{d\,;\,\infty}) = 1/3\).

In the planar grid we constructed an odd-independent set of density 3/8, in which every vertex has 0 or 1 or 3 neighbors. Perhaps this is essentially tight even if vertices with exactly two neighbors in the set are not excluded.

Problem 29. Does there exist a sequence \(\epsilon_n\) with \(\lim_{n\to\infty} \epsilon_n = 0\), such that any \((\frac{3}{8}+\epsilon_n)\,n^2\) independent vertices of \(P_n \,\Box\,P_n\) contain all the four neighbors of some vertex?

If the answer is affirmative, then this would solve the odd-independence number problem of the infinite grid directly.

There does not exist an analogue of triangular and hexagonal grids for regular pentagons. On the other hand, regular tilings of the plane with pentagons have been widely investigated, as surveyed nicely on the web page [7]. For instance, it is known that there exist 15 types of convex pentagons which can tile the Euclidean plane in a periodic way. There also exist monohedral pentagonal tilings with rotational symmetry.

Problem 30. Analyze \(\varrho_\mathrm{od}\) and \(\chi_\mathrm{so}\) of the graphs of the various pentagonal tilings of the plane.

Some of those tiligs are 3-regular, others also contain vertices of higher degree. For example, in the “Floret pentagonal tiling” (an instance of types 1, 5 and 6, with a 6-tile primitive unit) the density of vertices of degree 6 is 1/9, and the density of degree-3 vertices all of whose neighbors have degree 3 is 2/3. We can observe that its graph has \(\varrho_\mathrm{od}\geq 1/3\), but we do not know how tight this estimate is.

6.2 Chessboards↩︎

Contrary to variants of the Rook graph, an extension of Proposition 20 to non-square Bishop graphs seems to be more complicated.

Problem 31. Determine \(\alpha_\mathrm{od}\) and \(\chi_\mathrm{so}\) in the \(p\times q\) analogue of the Bishop graph.

In view of Proposition 24 the following problem arises.

Problem 32. Determine \(\alpha_\mathrm{od}\) and \(\chi_\mathrm{so}\) of the Knight graph of size \(n\), and more generally on the \(p\times q\) board.

With regard to Propositions 22 and 23 on the Queen graphs, we pose the following conjecture and open problem.

Conjecture 33. The Queen graph of any finite size has \(\alpha_\mathrm{od}=1\).

Problem 34. Decide whether the infinite Queen graph has \(\alpha_\mathrm{od}=\infty\) or \(\alpha_\mathrm{od}=1\)

It is clear that any proper coloring of the infinite Queen graph (henc also a strong odd coloring) requires an infinite number of colors, as every line (horizontal, vertical, or diagonal) induces an infinite clique. Yet it is not excluded—although very hard to believe—that there exists an infinite odd independent set.

For a detailed study of (standard) domination and independence in Bishop chessboard graphs in the plane and on surfaces we refer to the thesis [8].

6.2.0.1 Acknowledgement.

This research was supported in part by the Slovenian Research Agency ARRS program P1-0383, projects J1-3002 and J1-4351, and the annual work program of Rudolfovo (R. Š.) and by the ERC Advanced Grant “ERMiD” (Zs. T.).

7 Appendix: Small grids↩︎

In the first three subsections below, we list odd independent sets of sizes given in Table 1, hence verifying that the values of the table are lower bounds on \(\alpha_\mathrm{od}\). As already mentioned in the text, it has been checked by a computer code that no larger odd independent sets exist. In the last subsection largest internally odd-independent sets are presented, with sizes given in Table [tab:intern-odd], that are relevant with respect to the infinite planar grid.

Throughout, the vertices of the grids are represented as ordered pairs \((i,j)\) of integers, \(0\leq i,j\leq k-1\). In particular, in internally odd-independent sets the odd neighborhood condition with respect to \(S\) means a restriction on the vertices \((i,j)\) with \(1\leq i,j\leq k-2\).

7.1 Planar grids↩︎

\(k=3\) :\(\max |S| = 5\) ;\(\max |S| /k^2 \approx 0.555556\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (1, 1) (2, 0) (2, 2) \(\}\)

\(k=4\) :\(\max |S| = 5\) ;\(\max |S| /k^2 = 0.3125\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (1, 2) (2, 1) (2, 3) \(\}\)

\(k=5\) :\(\max |S| = 12\) ;\(\max |S| /k^2 = 0.48\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (1, 1) (1, 3) (2, 0) (2, 4) (3, 1) (3, 3) (4, 0) (4, 2) (4, 4) \(\}\)

\(k=6\) :\(\max |S| = 12\) ;\(\max |S| /k^2 \approx 0.333333\) ;

\(S\) = \(\{\) (1, 1) (1, 3) (1, 5) (2, 2) (2, 4) (3, 1) (3, 5) (4, 2) (4, 4) (5, 1) (5, 3) (5, 5) \(\}\)

\(k=7\) :\(\max |S| = 20\) ;\(\max |S| /k^2 \approx 0.408163\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (1, 1) (1, 3) (1, 5) (2, 0) (2, 6) (3, 1) (3, 5) (4, 0) (4, 6) (5, 1) (5, 3) (5, 5) (6, 0) (6, 2) (6, 4) (6, 6) \(\}\)

\(k=8\) :\(\max |S| = 21\) ;\(\max |S| /k^2 = 0.328125\) ;

\(S\) = \(\{\) (0, 7) (1, 1) (1, 3) (1, 5) (2, 2) (2, 4) (3, 1) (3, 5) (3, 7) (4, 2) (4, 4) (4, 6) (5, 1) (5, 3) (5, 7) (6, 4) (6, 6) (7, 0) (7, 3) (7, 5) (7, 7) \(\}\)

\(k=9\) :\(\max |S| = 29\) ;\(\max |S| /k^2 \approx 0.358025\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (1, 1) (1, 3) (1, 5) (1, 7) (2, 0) (2, 8) (3, 1) (3, 4) (3, 7) (4, 0) (4, 8) (5, 1) (5, 5) (5, 7) (6, 0) (6, 6) (6, 8) (7, 1) (7, 3) (7, 5) (8, 0) (8, 2) (8, 4) (8, 6) \(\}\)

\(k=10\) :\(\max |S| = 33\) ;\(\max |S| /k^2 = 0.33\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 7) (0, 9) (1, 1) (1, 3) (1, 8) (2, 0) (2, 4) (2, 7) (2, 9) (3, 1) (3, 3) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (5, 5) (5, 7) (6, 4) (6, 8) (7, 0) (7, 2) (7, 5) (7, 7) (8, 1) (8, 4) (8, 6) (8, 8) (9, 0) (9, 2) \(\}\)

\(k=11\) :\(\max |S| = 42\) ;\(\max |S| /k^2 \approx 0.347107\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 6) (0, 8) (0, 10) (1, 1) (1, 7) (1, 9) (2, 0) (2, 2) (2, 4) (2, 6) (2, 10) (3, 3) (3, 5) (3, 7) (3, 9) (4, 2) (4, 8) (4, 10) (5, 3) (5, 7) (6, 0) (6, 2) (6, 8) (7, 1) (7, 3) (7, 5) (7, 7) (8, 0) (8, 4) (8, 6) (8, 8) (8, 10) (9, 1) (9, 3) (9, 9) (10, 0) (10, 2) (10, 4) (10, 8) \(\}\)

\(k=12\) :\(\max |S| = 48\) ;\(\max |S| /k^2 \approx 0.333333\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 7) (0, 9) (0, 11) (1, 1) (1, 3) (1, 8) (1, 10) (2, 0) (2, 4) (2, 7) (2, 11) (3, 1) (3, 3) (3, 8) (3, 10) (4, 0) (4, 2) (4, 4) (4, 7) (4, 9) (4, 11) (6, 6) (6, 8) (6, 10) (7, 0) (7, 2) (7, 4) (7, 7) (7, 9) (8, 1) (8, 3) (8, 6) (8, 10) (9, 0) (9, 4) (9, 7) (9, 9) (10, 1) (10, 3) (10, 6) (10, 8) (10, 10) (11, 0) (11, 2) (11, 4) \(\}\)

\(k=13\) :\(\max |S| = 60\) ;\(\max |S| /k^2 \approx 0.35503\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 8) (0, 10) (0, 12) (1, 1) (1, 3) (1, 6) (1, 9) (1, 11) (2, 0) (2, 4) (2, 8) (2, 12) (3, 1) (3, 3) (3, 9) (3, 11) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 12) (5, 5) (5, 7) (6, 1) (6, 4) (6, 8) (6, 11) (7, 5) (7, 7) (8, 0) (8, 2) (8, 4) (8, 6) (8, 8) (8, 10) (8, 12) (9, 1) (9, 3) (9, 9) (9, 11) (10, 0) (10, 4) (10, 8) (10, 12) (11, 1) (11, 3) (11, 6) (11, 9) (11, 11) (12, 0) (12, 2) (12, 4) (12, 8) (12, 10) (12, 12) \(\}\)

\(k=14\) :\(\max |S| = 64\) ;\(\max |S| /k^2 \approx 0.326531\) ;

\(S\) = \(\{\) (0, 6) (0, 8) (0, 10) (0, 13) (1, 0) (1, 2) (1, 4) (1, 7) (1, 9) (2, 1) (2, 3) (2, 6) (2, 10) (2, 12) (3, 0) (3, 4) (3, 7) (3, 9) (3, 11) (4, 1) (4, 3) (4, 6) (4, 8) (4, 12) (5, 0) (5, 2) (5, 4) (5, 9) (5, 11) (6, 8) (6, 10) (6, 12) (7, 1) (7, 3) (7, 5) (8, 2) (8, 4) (8, 9) (8, 11) (8, 13) (9, 1) (9, 5) (9, 7) (9, 10) (9, 12) (10, 2) (10, 4) (10, 6) (10, 9) (10, 13) (11, 1) (11, 3) (11, 7) (11, 10) (11, 12) (12, 4) (12, 6) (12, 9) (12, 11) (12, 13) (13, 0) (13, 3) (13, 5) (13, 7) \(\}\)

\(k=15\) :\(\max |S| = 79\) ;\(\max |S| /k^2 \approx 0.351111\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 8) (0, 10) (0, 12) (1, 1) (1, 3) (1, 6) (1, 9) (1, 11) (2, 0) (2, 4) (2, 8) (2, 12) (2, 14) (3, 1) (3, 3) (3, 9) (3, 11) (3, 13) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 14) (5, 5) (5, 7) (5, 11) (5, 13) (6, 1) (6, 4) (6, 8) (6, 10) (6, 12) (6, 14) (7, 5) (7, 7) (7, 9) (8, 0) (8, 2) (8, 4) (8, 6) (8, 10) (8, 13) (9, 1) (9, 3) (9, 7) (9, 9) (10, 0) (10, 4) (10, 6) (10, 8) (10, 10) (10, 12) (10, 14) (11, 1) (11, 3) (11, 5) (11, 11) (11, 13) (12, 0) (12, 2) (12, 6) (12, 10) (12, 14) (13, 3) (13, 5) (13, 8) (13, 11) (13, 13) (14, 2) (14, 4) (14, 6) (14, 10) (14, 12) (14, 14) \(\}\)

7.2 Cylindric grids↩︎

Here we imagine the path \(P_k\) horizontally and the cycle \(C_k\) vertically. That is, \((i,0)\) and \((i,k-1)\) are adjacent, while \((0,j)\) and \((k-1,j)\) are nonadjacent for all \(0\leq i,j\leq k-1\).

\(k=3\) :\(\max |S| = 2\) ;\(\max |S| /k^2 \approx 0.222222\) ;

\(S\) = \(\{\) (0, 0) (2, 1) \(\}\)

\(k=4\) :\(\max |S| = 5\) ;\(\max |S| /k^2 = 0.3125\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (1, 0) (1, 2) (3, 1) \(\}\)

\(k=5\) :\(\max |S| = 6\) ;\(\max |S| /k^2 = 0.24\) ;

\(S\) = \(\{\) (0, 0) (0, 3) (1, 4) (2, 0) (2, 3) (4, 1) \(\}\)

\(k=6\) :\(\max |S| = 12\) ;\(\max |S| /k^2 \approx 0.333333\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (1, 1) (1, 3) (1, 5) (4, 0) (4, 2) (4, 4) (5, 1) (5, 3) (5, 5) \(\}\)

\(k=7\) :\(\max |S| = 14\) ;\(\max |S| /k^2 \approx 0.285714\) ;

\(S\) = \(\{\) (0, 0) (0, 3) (0, 5) (1, 4) (1, 6) (2, 0) (2, 3) (3, 4) (3, 6) (4, 0) (4, 3) (4, 5) (6, 1) (6, 4) \(\}\)

\(k=8\) :\(\max |S| = 24\) ;\(\max |S| /k^2 = 0.375\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (0, 5) (0, 7) (1, 0) (1, 2) (1, 4) (1, 6) (3, 1) (3, 3) (3, 5) (3, 7) (4, 0) (4, 2) (4, 4) (4, 6) (6, 1) (6, 3) (6, 5) (6, 7) (7, 0) (7, 2) (7, 4) (7, 6) \(\}\)

\(k=9\) :\(\max |S| = 25\) ;\(\max |S| /k^2 \approx 0.308642\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (0, 6) (0, 8) (1, 0) (1, 2) (1, 7) (2, 3) (2, 6) (3, 2) (3, 7) (4, 0) (4, 3) (4, 6) (5, 2) (5, 7) (6, 3) (6, 6) (7, 0) (7, 2) (7, 7) (8, 1) (8, 3) (8, 6) (8, 8) \(\}\)

\(k=10\) :\(\max |S| = 34\) ;\(\max |S| /k^2 = 0.34\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (1, 1) (1, 3) (1, 5) (1, 7) (1, 9) (3, 0) (3, 2) (3, 4) (3, 6) (3, 8) (4, 1) (4, 3) (4, 5) (4, 7) (4, 9) (6, 0) (6, 2) (6, 6) (6, 8) (7, 1) (7, 7) (7, 9) (8, 2) (8, 4) (8, 6) (9, 1) (9, 3) (9, 5) (9, 7) \(\}\)

\(k=11\) :\(\max |S| = 37\) ;\(\max |S| /k^2 \approx 0.305785\) ;

\(S\) = \(\{\) (0, 1) (0, 4) (0, 6) (0, 8) (1, 5) (1, 7) (1, 10) (2, 2) (2, 4) (2, 8) (3, 3) (3, 5) (3, 7) (4, 0) (4, 2) (4, 6) (4, 8) (5, 1) (5, 3) (5, 5) (6, 0) (6, 4) (6,p 6) (6, 9) (7, 1) (7, 3) (7, 10) (8, 2) (8, 4) (8, 9) (9, 1) (9, 7) (9, 10) (10, 0) (10, 2) (10, 5) (10, 9) \(\}\)

\(k=12\) :\(\max |S| = 48\) ;\(\max |S| /k^2 \approx 0.333333\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (1, 1) (1, 3) (1, 5) (1, 7) (1, 9) (1, 11) (3, 0) (3, 2) (3, 4) (3, 6) (3, 8) (3, 10) (4, 1) (4, 3) (4, 5) (4, 7) (4, 9) (4, 11) (6, 6) (6, 8) (6, 10) (7, 0) (7, 2) (7, 4) (7, 7) (7, 9) (8, 1) (8, 3) (8, 6) (8, 10) (9, 0) (9, 4) (9, 7) (9, 9) (10, 1) (10, 3) (10, 6) (10, 8) (10, 10) (11, 0) (11, 2) (11, 4) \(\}\)

\(k=13\) :\(\max |S| = 52\) ;\(\max |S| /k^2 \approx 0.307692\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (1, 1) (1, 3) (1, 5) (1, 7) (1, 9) (2, 0) (2, 10) (3, 1) (3, 9) (4, 0) (4, 3) (4, 5) (4, 7) (4, 10) (5, 1) (5, 4) (5, 6) (5, 9) (6, 0) (6, 3) (6, 7) (6, 10) (7, 1) (7, 4) (7, 6) (7, 9) (8, 0) (8, 3) (8, 5) (8, 7) (8, 10) (9, 1) (9, 9) (10, 0) (10, 10) (11, 1) (11, 3) (11, 5) (11, 7) (11, 9) (12, 0) (12, 2) (12, 4) (12, 6) (12, 8) (12, 10) \(\}\)

\(k=14\) :\(\max |S| = 70\) ;\(\max |S| /k^2 \approx 0.357143\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (0, 5) (0, 7) (0, 9) (0, 11) (0, 13) (1, 0) (1, 2) (1, 4) (1, 6) (1, 8) (1, 10) (1, 12) (3, 1) (3, 3) (3, 5) (3, 7) (3, 9) (3, 11) (3, 13) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 12) (6, 1) (6, 3) (6, 5) (6, 7) (6, 9) (6, 11) (6, 13) (7, 0) (7, 2) (7, 4) (7, 6) (7, 8) (7, 10) (7, 12) (9, 1) (9, 3) (9, 5) (9, 7) (9, 9) (9, 11) (9, 13) (10, 0) (10, 2) (10, 4) (10, 6) (10, 8) (10, 10) (10, 12) (12, 1) (12, 3) (12, 5) (12, 7) (12, 9) (12, 11) (12, 13) (13, 0) (13, 2) (13, 4) (13, 6) (13, 8) (13, 10) (13, 12) \(\}\)

7.3 Toroidal grids↩︎

\(k=3\) :\(\max |S| = 1\) ;\(\max |S| /k^2 \approx 0.111111\) ;

\(S\) = \(\{\) (1, 2) \(\}\)

\(k=4\) :\(\max |S| = 6\) ;\(\max |S| /k^2 = 0.375\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (1, 2) (2, 1) (2, 3) (3, 0) \(\}\)

\(k=5\) :\(\max |S| = 5\) ;\(\max |S| /k^2 = 0.2\) ;

\(S\) = \(\{\) (2, 1) (2, 3) (3, 2) (4, 1) (4, 3) \(\}\)

\(k=6\) :\(\max |S| = 12\) ;\(\max |S| /k^2 \approx 0.333333\) ;

\(S\) = \(\{\) (0, 2) (0, 5) (1, 0) (1, 3) (2, 2) (2, 5) (3, 0) (3, 3) (4, 2) (4, 5) (5, 0) (5, 3) \(\}\)

\(k=7\) :\(\max |S| = 12\) ;\(\max |S| /k^2 \approx 0.244898\) ;

\(S\) = \(\{\) (0, 0) (0, 3) (0, 5) (3, 0) (3, 3) (3, 5) (4, 4) (4, 6) (5, 0) (5, 3) (6, 4) (6, 6) \(\}\)

\(k=8\) :\(\max |S| = 24\) ;\(\max |S| /k^2 = 0.375\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (1, 3) (1, 7) (2, 0) (2, 2) (2, 4) (2, 6) (3, 1) (3, 5) (4, 0) (4, 2) (4, 4) (4, 6) (5, 3) (5, 7) (6, 0) (6, 2) (6, 4) (6, 6) (7, 1) (7, 5) \(\}\)

\(k=9\) :\(\max |S| = 21\) ;\(\max |S| /k^2 \approx 0.259259\) ;

\(S\) = \(\{\) (0, 2) (0, 4) (1, 6) (2, 1) (2, 8) (3, 0) (3, 3) (3, 5) (4, 1) (4, 4) (4, 8) (5, 3) (5, 5) (6, 0) (6, 7) (7, 2) (7, 4) (7, 8) (8, 0) (8, 3) (8, 7) \(\}\)

\(k=10\) :\(\max |S| = 30\) ;\(\max |S| /k^2 = 0.3\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (0, 5) (0, 7) (0, 9) (1, 0) (1, 8) (2, 1) (2, 4) (2, 7) (3, 0) (3, 8) (4, 1) (4, 3) (4, 5) (4, 7) (4, 9) (5, 2) (5, 4) (5, 6) (6, 1) (6, 7) (7, 2) (7, 6) (7, 9) (8, 1) (8, 7) (9, 2) (9, 4) (9, 6) \(\}\)

\(k=11\) :\(\max |S| = 34\) ;\(\max |S| /k^2 \approx 0.280992\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (1, 1) (1, 5) (1, 8) (1, 10) (2, 2) (2, 4) (2, 9) (3, 1) (3, 3) (3, 5) (3, 8) (3, 10) (4, 0) (5, 1) (5, 10) (6, 3) (6, 5) (6, 8) (7, 4) (8, 1) (8, 3) (8, 5) (8, 7) (8, 10) (9, 0) (9, 2) (9, 6) (10, 3) (10, 5) (10, 7) (10, 10) \(\}\)

\(k=12\) :\(\max |S| = 54\) ;\(\max |S| /k^2 = 0.375\) ;

\(S\) = \(\{\) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (1, 1) (1, 5) (1, 9) (1, 11) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (3, 3) (3, 7) (3, 9) (3, 11) (4, 0) (4, 2) (4, 4) (4, 6) (4, 10) (5, 1) (5, 5) (5, 7) (5, 9) (6, 0) (6, 2) (6, 4) (6, 8) (6, 10) (7, 3) (7, 5) (7, 7) (7, 11) (8, 0) (8, 2) (8, 6) (8, 8) (8, 10) (9, 1) (9, 3) (9, 5) (9, 9) (10, 0) (10, 4) (10, 6) (10, 8) (10, 10) (11, 1) (11, 3) (11, 7) (11, 11) \(\}\)

\(k=13\) :\(\max |S| = 49\) ;\(\max |S| /k^2 \approx 0.289941\) ;

\(S\) = \(\{\) (0, 2) (0, 4) (0, 8) (0, 10) (0, 12) (1, 1) (1, 3) (1, 5) (2, 7) (2, 9) (2, 11) (3, 0) (3, 2) (3, 4) (3, 8) (3, 10) (4, 1) (4, 3) (4, 7) (4, 11) (5, 0) (5, 4) (5, 8) (5, 10) (6, 1) (6, 3) (6, 7) (6, 9) (6, 11) (7, 0) (7, 2) (7, 4) (8, 6) (9, 8) (9, 10) (9, 12) (10, 1) (10, 3) (10, 5) (10, 9) (10, 11) (11, 2) (11, 4) (11, 8) (11, 12) (12, 1) (12, 5) (12, 9) (12, 11) \(\}\)

\(k=14\) :\(\max |S| = 62\) ;\(\max |S| /k^2 \approx 0.316327\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (0, 5) (0, 8) (0, 10) (1, 2) (1, 4) (1, 7) (1, 11) (1, 13) (2, 1) (2, 5) (2, 8) (2, 10) (2, 12) (3, 2) (3, 4) (3, 7) (3, 9) (3, 13) (4, 1) (4, 3) (4, 5) (4, 10) (4, 12) (5, 9) (5, 11) (5, 13) (6, 2) (6, 4) (6, 6) (7, 3) (7, 5) (7, 8) (7, 10) (7, 12) (8, 0) (8, 2) (8, 6) (8, 9) (8, 11) (9, 1) (9, 3) (9, 5) (9, 8) (9, 12) (10, 0) (10, 4) (10, 6) (10, 9) (10, 11) (11, 1) (11, 3) (11, 8) (11, 10) (11, 12) (12, 0) (12, 2) (12, 4) (13, 7) (13, 9) (13, 11) \(\}\)

7.4 Largest internally odd-independent sets↩︎

\(k=5\) :\(\max |S| = 12\) ;\(\max |S| /k^2 = 0.48\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (1, 1) (1, 3) (2, 0) (2, 4) (3, 1) (3, 3) (4, 0) (4, 2) (4, 4) \(\}\)

\(k=6\) :\(\max |S| = 15\) ;\(\max |S| /k^2 \approx 0.416667\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (0, 5) (1, 0) (1, 4) (2, 1) (2, 3) (2, 5) (3, 0) (3, 2) (4, 3) (4, 5) (5, 0) (5, 2) (5, 4) \(\}\)

\(k=7\) :\(\max |S| = 21\) ;\(\max |S| /k^2 \approx 0.428571\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (1, 1) (1, 5) (2, 0) (2, 2) (2, 4) (2, 6) (3, 3) (4, 0) (4, 2) (4, 4) (4, 6) (5, 1) (5, 5) (6, 0) (6, 2) (6, 4) (6, 6) \(\}\)

\(k=8\) :\(\max |S| = 26\) ;\(\max |S| /k^2 = 0.40625\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (1, 3) (1, 7) (2, 0) (2, 2) (2, 4) (2, 6) (3, 1) (3, 5) (3, 7) (4, 0) (4, 2) (4, 4) (5, 3) (5, 5) (5, 7) (6, 0) (6, 2) (6, 6) (7, 1) (7, 3) (7, 5) (7, 7) \(\}\)

\(k=9\) :\(\max |S| = 34\) ;\(\max |S| /k^2 \approx 0.419753\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (1, 1) (1, 5) (1, 7) (2, 0) (2, 2) (2, 4) (2, 8) (3, 3) (3, 5) (3, 7) (4, 0) (4, 2) (4, 6) (4, 8) (5, 1) (5, 3) (5, 5) (6, 0) (6, 4) (6, 6) (6, 8) (7, 1) (7, 3) (7, 7) (8, 0) (8, 2) (8, 4) (8, 6) (8, 8) \(\}\)

\(k=10\) :\(\max |S| = 40\) ;\(\max |S| /k^2 = 0.4\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (0, 5) (0, 7) (0, 9) (1, 0) (1, 4) (1, 8) (2, 1) (2, 3) (2, 5) (2, 7) (2, 9) (3, 0) (3, 2) (3, 6) (4, 3) (4, 5) (4, 7) (4, 9) (5, 0) (5, 2) (5, 4) (5, 8) (6, 1) (6, 5) (6, 7) (6, 9) (7, 0) (7, 2) (7, 4) (7, 6) (8, 3) (8, 7) (8, 9) (9, 0) (9, 2) (9, 4) (9, 6) (9, 8) \(\}\)

\(k=11\) :\(\max |S| = 49\) ;\(\max |S| /k^2 \approx 0.404959\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (1, 3) (1, 7) (1, 9) (2, 0) (2, 2) (2, 4) (2, 6) (2, 10) (3, 1) (3, 5) (3, 7) (3, 9) (4, 0) (4, 2) (4, 4) (4, 8) (4, 10) (5, 3) (5, 5) (5, 7) (6, 0) (6, 2) (6, 6) (6, 8) (6, 10) (7, 1) (7, 3) (7, 5) (7, 9) (8, 0) (8, 4) (8, 6) (8, 8) (8, 10) (9, 1) (9, 3) (9, 7) (10, 0) (10, 2) (10, 4) (10, 6) (10, 8) (10, 10) \(\}\)

\(k=12\) :\(\max |S| = 57\) ;\(\max |S| /k^2 \approx 0.395833\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (1, 1) (1, 5) (1, 9) (1, 11) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (3, 3) (3, 7) (3, 9) (3, 11) (4, 0) (4, 2) (4, 4) (4, 6) (4, 10) (5, 1) (5, 5) (5, 7) (5, 9) (5, 11) (6, 0) (6, 2) (6, 4) (6, 8) (7, 3) (7, 5) (7, 7) (7, 9) (7, 11) (8, 0) (8, 2) (8, 6) (8, 10) (9, 1) (9, 3) (9, 5) (9, 7) (9, 9) (9, 11) (10, 0) (10, 4) (10, 8) (11, 1) (11, 3) (11, 5) (11, 7) (11, 9) (11, 11) \(\}\)

\(k=13\) :\(\max |S| = 68\) ;\(\max |S| /k^2 \approx 0.402367\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (1, 1) (1, 5) (1, 7) (1, 11) (2, 0) (2, 2) (2, 4) (2, 8) (2, 10) (2, 12) (3, 3) (3, 5) (3, 7) (3, 9) (4, 0) (4, 2) (4, 6) (4, 10) (4, 12) (5, 1) (5, 3) (5, 5) (5, 7) (5, 9) (5, 11) (6, 0) (6, 4) (6, 8) (6, 12) (7, 1) (7, 3) (7, 5) (7, 7) (7, 9) (7, 11) (8, 0) (8, 2) (8, 6) (8, 10) (8, 12) (9, 3) (9, 5) (9, 7) (9, 9) (10, 0) (10, 2) (10, 4) (10, 8) (10, 10) (10, 12) (11, 1) (11, 5) (11, 7) (11, 11) (12, 0) (12, 2) (12, 4) (12, 6) (12, 8) (12, 10) (12, 12) \(\}\)

\(k=14\) :\(\max |S| = 77\) ;\(\max |S| /k^2 \approx 0.392857\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (1, 1) (1, 5) (1, 9) (1, 13) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (3, 3) (3, 7) (3, 11) (3, 13) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (5, 1) (5, 5) (5, 9) (5, 11) (5, 13) (6, 0) (6, 2) (6, 4) (6, 6) (6, 8) (6, 12) (7, 3) (7, 7) (7, 9) (7, 11) (7, 13) (8, 0) (8, 2) (8, 4) (8, 6) (8, 10) (9, 1) (9, 5) (9, 7) (9, 9) (9, 11) (9, 13) (10, 0) (10, 2) (10, 4) (10, 8) (10, 12) (11, 3) (11, 5) (11, 7) (11, 9) (11, 11) (11, 13) (12, 0) (12, 2) (12, 6) (12, 10) (13, 1) (13, 3) (13, 5) (13, 7) (13, 9) (13, 11) (13, 13) \(\}\)

\(k=15\) :\(\max |S| = 89\) ;\(\max |S| /k^2 \approx 0.395556\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (1, 1) (1, 5) (1, 9) (1, 13) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (2, 14) (3, 3) (3, 7) (3, 11) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 12) (4, 14) (5, 1) (5, 5) (5, 9) (5, 13) (6, 0) (6, 2) (6, 4) (6, 6) (6, 8) (6, 10) (6, 12) (6, 14) (7, 3) (7, 7) (7, 11) (8, 0) (8, 2) (8, 4) (8, 6) (8, 8) (8, 10) (8, 12) (8, 14) (9, 1) (9, 5) (9, 9) (9, 13) (10, 0) (10, 2) (10, 4) (10, 6) (10, 8) (10, 10) (10, 12) (10, 14) (11, 3) (11, 7) (11, 11) (12, 0) (12, 2) (12, 4) (12, 6) (12, 8) (12, 10) (12, 12) (12, 14) (13, 1) (13, 5) (13, 9) (13, 13) (14, 0) (14, 2) (14, 4) (14, 6) (14, 8) (14, 10) (14, 12) (14, 14) \(\}\)

\(k=16\) :\(\max |S| = 100\) ;\(\max |S| /k^2 = 0.390625\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (1, 1) (1, 5) (1, 9) (1, 13) (1, 15) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (3, 3) (3, 7) (3, 11) (3, 13) (3, 15) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 14) (5, 1) (5, 5) (5, 9) (5, 11) (5, 13) (5, 15) (6, 0) (6, 2) (6, 4) (6, 6) (6, 8) (6, 12) (7, 3) (7, 7) (7, 9) (7, 11) (7, 13) (7, 15) (8, 0) (8, 2) (8, 4) (8, 6) (8, 10) (8, 14) (9, 1) (9, 5) (9, 7) (9, 9) (9, 11) (9, 13) (9, 15) (10, 0) (10, 2) (10, 4) (10, 8) (10, 12) (11, 3) (11, 5) (11, 7) (11, 9) (11, 11) (11, 13) (11, 15) (12, 0) (12, 2) (12, 6) (12, 10) (12, 14) (13, 1) (13, 3) (13, 5) (13, 7) (13, 9) (13, 11) (13, 13) (13, 15) (14, 0) (14, 4) (14, 8) (14, 12) (15, 1) (15, 3) (15, 5) (15, 7) (15, 9) (15, 11) (15, 13) (15, 15) \(\}\)

\(k=17\) :\(\max |S| = 114\) ;\(\max |S| /k^2 \approx 0.394464\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (1, 1) (1, 3) (1, 7) (1, 11) (1, 15) (2, 0) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (2, 14) (2, 16) (3, 1) (3, 3) (3, 5) (3, 9) (3, 13) (4, 0) (4, 2) (4, 6) (4, 8) (4, 10) (4, 12) (4, 14) (4, 16) (5, 3) (5, 5) (5, 7) (5, 11) (5, 15) (6, 0) (6, 2) (6, 4) (6, 8) (6, 10) (6, 12) (6, 14) (6, 16) (7, 1) (7, 5) (7, 7) (7, 9) (7, 13) (8, 0) (8, 2) (8, 4) (8, 6) (8, 10) (8, 12) (8, 14) (8, 16) (9, 3) (9, 7) (9, 9) (9, 11) (9, 15) (10, 0) (10, 2) (10, 4) (10, 6) (10, 8) (10, 12) (10, 14) (10, 16) (11, 1) (11, 5) (11, 9) (11, 11) (11, 13) (12, 0) (12, 2) (12, 4) (12, 6) (12, 8) (12, 10) (12, 14) (12, 16) (13, 3) (13, 7) (13, 11) (13, 13) (13, 15) (14, 0) (14, 2) (14, 4) (14, 6) (14, 8) (14, 10) (14, 12) (14, 16) (15, 1) (15, 5) (15, 9) (15, 13) (15, 15) (16, 0) (16, 2) (16, 4) (16, 6) (16, 8) (16, 10) (16, 12) (16, 14) (16, 16) \(\}\)

\(k=18\) :\(\max |S| = 125\) ;\(\max |S| /k^2 \approx 0.388889\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (1, 3) (1, 7) (1, 11) (1, 15) (1, 17) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (2, 14) (3, 1) (3, 5) (3, 9) (3, 13) (3, 15) (3, 17) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 12) (4, 16) (5, 3) (5, 7) (5, 11) (5, 13) (5, 15) (5, 17) (6, 0) (6, 2) (6, 4) (6, 6) (6, 8) (6, 10) (6, 14) (7, 1) (7, 5) (7, 9) (7, 11) (7, 13) (7, 15) (7, 17) (8, 0) (8, 2) (8, 4) (8, 6) (8, 8) (8, 12) (8, 16) (9, 3) (9, 7) (9, 9) (9, 11) (9, 13) (9, 15) (9, 17) (10, 0) (10, 2) (10, 4) (10, 6) (10, 10) (10, 14) (11, 1) (11, 5) (11, 7) (11, 9) (11, 11) (11, 13) (11, 15) (11, 17) (12, 0) (12, 2) (12, 4) (12, 8) (12, 12) (12, 16) (13, 3) (13, 5) (13, 7) (13, 9) (13, 11) (13, 13) (13, 15) (13, 17) (14, 0) (14, 2) (14, 6) (14, 10) (14, 14) (15, 1) (15, 3) (15, 5) (15, 7) (15, 9) (15, 11) (15, 13) (15, 15) (15, 17) (16, 0) (16, 4) (16, 8) (16, 12) (16, 16) (17, 1) (17, 3) (17, 5) (17, 7) (17, 9) (17, 11) (17, 13) (17, 15) (17, 17) \(\}\)

\(k=19\) :\(\max |S| = 141\) ;\(\max |S| /k^2 \approx 0.390582\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (0, 18) (1, 3) (1, 7) (1, 9) (1, 13) (1, 17) (2, 0) (2, 2) (2, 4) (2, 6) (2, 10) (2, 12) (2, 14) (2, 16) (2, 18) (3, 1) (3, 5) (3, 7) (3, 9) (3, 11) (3, 15) (4, 0) (4, 2) (4, 4) (4, 8) (4, 12) (4, 14) (4, 16) (4, 18) (5, 3) (5, 5) (5, 7) (5, 9) (5, 11) (5, 13) (5, 17) (6, 0) (6, 2) (6, 6) (6, 10) (6, 14) (6, 16) (6, 18) (7, 1) (7, 3) (7, 5) (7, 7) (7, 9) (7, 11) (7, 13) (7, 15) (8, 0) (8, 4) (8, 8) (8, 12) (8, 16) (8, 18) (9, 1) (9, 3) (9, 5) (9, 7) (9, 9) (9, 11) (9, 13) (9, 15) (9, 17) (10, 0) (10, 2) (10, 6) (10, 10) (10, 14) (10, 18) (11, 3) (11, 5) (11, 7) (11, 9) (11, 11) (11, 13) (11, 15) (11, 17) (12, 0) (12, 2) (12, 4) (12, 8) (12, 12) (12, 16) (12, 18) (13, 1) (13, 5) (13, 7) (13, 9) (13, 11) (13, 13) (13, 15) (14, 0) (14, 2) (14, 4) (14, 6) (14, 10) (14, 14) (14, 16) (14, 18) (15, 3) (15, 7) (15, 9) (15, 11) (15, 13) (15, 17) (16, 0) (16, 2) (16, 4) (16, 6) (16, 8) (16, 12) (16, 14) (16, 16) (16, 18) (17, 1) (17, 5) (17, 9) (17, 11) (17, 15) (18, 0) (18, 2) (18, 4) (18, 6) (18, 8) (18, 10) (18, 12) (18, 14) (18, 16) (18, 18) \(\}\)

\(k=20\) :\(\max |S| = 155\) ;\(\max |S| /k^2 = 0.3875\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (0, 18) (1, 1) (1, 5) (1, 9) (1, 13) (1, 17) (1, 19) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (2, 14) (2, 16) (3, 3) (3, 7) (3, 11) (3, 15) (3, 17) (3, 19) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 12) (4, 14) (4, 18) (5, 1) (5, 5) (5, 9) (5, 13) (5, 15) (5, 17) (5, 19) (6, 0) (6, 2) (6, 4) (6, 6) (6, 8) (6, 10) (6, 12) (6, 16) (7, 3) (7, 7) (7, 11) (7, 13) (7, 15) (7, 17) (7, 19) (8, 0) (8, 2) (8, 4) (8, 6) (8, 8) (8, 10) (8, 14) (8, 18) (9, 1) (9, 5) (9, 9) (9, 11) (9, 13) (9, 15) (9, 17) (9, 19) (10, 0) (10, 2) (10, 4) (10, 6) (10, 8) (10, 12) (10, 16) (11, 3) (11, 7) (11, 9) (11, 11) (11, 13) (11, 15) (11, 17) (11, 19) (12, 0) (12, 2) (12, 4) (12, 6) (12, 10) (12, 14) (12, 18) (13, 1) (13, 5) (13, 7) (13, 9) (13, 11) (13, 13) (13, 15) (13, 17) (13, 19) (14, 0) (14, 2) (14, 4) (14, 8) (14, 12) (14, 16) (15, 3) (15, 5) (15, 7) (15, 9) (15, 11) (15, 13) (15, 15) (15, 17) (15, 19) (16, 0) (16, 2) (16, 6) (16, 10) (16, 14) (16, 18) (17, 1) (17, 3) (17, 5) (17, 7) (17, 9) (17, 11) (17, 13) (17, 15) (17, 17) (17, 19) (18, 0) (18, 4) (18, 8) (18, 12) (18, 16) (19, 1) (19, 3) (19, 5) (19, 7) (19, 9) (19, 11) (19, 13) (19, 15) (19, 17)(19, 19) \(\}\)

\(k=21\) :\(\max |S| = 172\) ;\(\max |S| /k^2 = 0.390023\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (0, 18) (0, 20) (1, 1) (1, 5) (1, 9) (1, 13) (1, 15) (1, 19) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (2, 16) (2, 18) (2, 20) (3, 3) (3, 7) (3, 11) (3, 13) (3, 15) (3, 17) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 14) (4, 18) (4, 20) (5, 1) (5, 5) (5, 9) (5, 11) (5, 13) (5, 15) (5, 17) (5, 19) (6, 0) (6, 2) (6, 4) (6, 6) (6, 8) (6, 12) (6, 16) (6, 20) (7, 3) (7, 7) (7, 9) (7, 11) (7, 13) (7, 15) (7, 17) (7, 19) (8, 0) (8, 2) (8, 4) (8, 6) (8, 10) (8, 14) (8, 18) (8, 20) (9, 1) (9, 5) (9, 7) (9, 9) (9, 11) (9, 13) (9, 15) (9, 17) (10, 0) (10, 2) (10, 4) (10, 8) (10, 12) (10, 16) (10, 18) (10, 20) (11, 3) (11, 5) (11, 7) (11, 9) (11, 11) (11, 13) (11, 15) (11, 19) (12, 0) (12, 2) (12, 6) (12, 10) (12, 14) (12, 16) (12, 18) (12, 20) (13, 1) (13, 3) (13, 5) (13, 7) (13, 9) (13, 11) (13, 13) (13, 17) (14, 0) (14, 4) (14, 8) (14, 12) (14, 14) (14, 16) (14, 18) (14, 20) (15, 1) (15, 3) (15, 5) (15, 7) (15, 9) (15, 11) (15, 15) (15, 19) (16, 0) (16, 2) (16, 6) (16, 10) (16, 12) (16, 14) (16, 16) (16, 18) (16, 20) (17, 3) (17, 5) (17, 7) (17, 9) (17, 13) (17, 17) (18, 0) (18, 2) (18, 4) (18, 8) (18, 10) (18, 12) (18, 14) (18, 16) (18, 18) (18, 20) (19, 1) (19, 5) (19, 7) (19, 11) (19, 15) (19, 19) (20, 0) (20, 2) (20, 4) (20, 6) (20, 8) (20, 10) (20, 12) (20, 14) (20, 16) (20, 18) (20, 20) \(\}\)

\(k=22\) :\(\max |S| = 187\) ;\(\max |S| /k^2 = 0.386364\) ;

\(S\) = \(\{\) (0, 1) (0, 3) (0, 5) (0, 7) (0, 9) (0, 11) (0, 13) (0, 15) (0, 17) (0, 19) (0, 21) (1, 0) (1, 4) (1, 8) (1, 12) (1, 16) (1, 20) (2, 1) (2, 3) (2, 5) (2, 7) (2, 9) (2, 11) (2, 13) (2, 15) (2, 17) (2, 19) (2, 21) (3, 0) (3, 2) (3, 6) (3, 10) (3, 14) (3, 18) (4, 3) (4, 5) (4, 7) (4, 9) (4, 11) (4, 13) (4, 15) (4, 17) (4, 19) (4, 21) (5, 0) (5, 2) (5, 4) (5, 8) (5, 12) (5, 16) (5, 20) (6, 1) (6, 5) (6, 7) (6, 9) (6, 11) (6, 13) (6, 15) (6, 17) (6, 19) (6, 21) (7, 0) (7, 2) (7, 4) (7, 6) (7, 10) (7, 14) (7, 18) (8, 3) (8, 7) (8, 9) (8, 11) (8, 13) (8, 15) (8, 17) (8, 19) (8, 21) (9, 0) (9, 2) (9, 4) (9, 6) (9, 8) (9, 12) (9, 16) (9, 20) (10, 1) (10, 5) (10, 9) (10, 11) (10, 13) (10, 15) (10, 17) (10, 19) (10, 21) (11, 0) (11, 2) (11, 4) (11, 6) (11, 8) (11, 10) (11, 14) (11, 18) (12, 3) (12, 7) (12, 11) (12, 13) (12, 15) (12, 17) (12, 19) (12, 21) (13, 0) (13, 2) (13, 4) (13, 6) (13, 8) (13, 10) (13, 12) (13, 16) (13, 20) (14, 1) (14, 5) (14, 9) (14, 13) (14, 15) (14, 17) (14, 19) (14, 21) (15, 0) (15, 2) (15, 4) (15, 6) (15, 8) (15, 10) (15, 12) (15, 14) (15, 18) (16, 3) (16, 7) (16, 11) (16, 15) (16, 17) (16, 19) (16, 21) (17, 0) (17, 2) (17, 4) (17, 6) (17, 8) (17, 10) (17, 12) (17, 14) (17, 16) (17, 20) (18, 1) (18, 5) (18, 9) (18, 13) (18, 17) (18, 19) (18, 21) (19, 0) (19, 2) (19, 4) (19, 6) (19, 8) (19, 10) (19, 12) (19, 14) (19, 16) (19, 18) (20, 3) (20, 7) (20, 11) (20, 15) (20, 19) (20, 21) (21, 0) (21, 2) (21, 4) (21, 6) (21, 8) (21, 10) (21, 12) (21, 14) (21, 16) (21, 18) (21, 20) \(\}\)

\(k=23\) :\(\max |S| = 204\) ;\(\max |S| /k^2 = 0.3875236294896006\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (0, 18) (0, 20) (0, 22) (1, 1) (1, 5) (1, 9) (1, 11) (1, 15) (1, 19) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 12) (2, 14) (2, 16) (2, 18) (2, 20) (2, 22) (3, 3) (3, 7) (3, 9) (3, 11) (3, 13) (3, 17) (3, 21) (4, 0) (4, 2) (4, 4) (4, 6) (4, 10) (4, 14) (4, 16) (4, 18) (4, 20) (4, 22) (5, 1) (5, 5) (5, 7) (5, 9) (5, 11) (5, 13) (5, 15) (5, 19) (6, 0) (6, 2) (6, 4) (6, 8) (6, 12) (6, 16) (6, 18) (6, 20) (6, 22) (7, 3) (7, 5) (7, 7) (7, 9) (7, 11) (7, 13) (7, 15) (7, 17) (7, 21) (8, 0) (8, 2) (8, 6) (8, 10) (8, 14) (8, 18) (8, 20) (8, 22) (9, 1) (9, 3) (9, 5) (9, 7) (9, 9) (9, 11) (9, 13) (9, 15) (9, 17) (9, 19) (10, 0) (10, 4) (10, 8) (10, 12) (10, 16) (10, 20) (10, 22) (11, 1) (11, 3) (11, 5) (11, 7) (11, 9) (11, 11) (11, 13) (11, 15) (11, 17) (11, 19) (11, 21) (12, 0) (12, 2) (12, 6) (12, 10) (12, 14) (12, 18) (12, 22) (13, 3) (13, 5) (13, 7) (13, 9) (13, 11) (13, 13) (13, 15) (13, 17) (13, 19) (13, 21) (14, 0) (14, 2) (14, 4) (14, 8) (14, 12) (14, 16) (14, 20) (14, 22) (15, 1) (15, 5) (15, 7) (15, 9) (15, 11) (15, 13) (15, 15) (15, 17) (15, 19) (16, 0) (16, 2) (16, 4) (16, 6) (16, 10) (16, 14) (16, 18) (16, 20) (16, 22) (17, 3) (17, 7) (17, 9) (17, 11) (17, 13) (17, 15) (17, 17) (17, 21) (18, 0) (18, 2) (18, 4) (18, 6) (18, 8) (18, 12) (18, 16) (18, 18) (18, 20) (18, 22) (19, 1) (19, 5) (19, 9) (19, 11) (19, 13) (19, 15) (19, 19) (20, 0) (20, 2) (20, 4) (20, 6) (20, 8) (20, 10) (20, 14) (20, 16) (20, 18) (20, 20) (20, 22) (21, 3) (21, 7) (21, 11) (21, 13) (21, 17) (21, 21) (22, 0) (22, 2) (22, 4) (22, 6) (22, 8) (22, 10) (22, 12) (22, 14) (22, 16) (22, 18) (22, 20) (22, 22) \(\}\)

\(k=24\) :\(\max |S| = 222\) ;\(\max |S| /k^2 = 0.385417\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (0, 18) (0, 20) (0, 22) (1, 3) (1, 7) (1, 11) (1, 15) (1, 19) (1, 23) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (2, 14) (2, 16) (2, 18) (2, 20) (2, 22) (3, 1) (3, 5) (3, 9) (3, 13) (3, 17) (3, 21) (3, 23) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 12) (4, 14) (4, 16) (4, 18) (4, 20) (5, 3) (5, 7) (5, 11) (5, 15) (5, 19) (5, 21) (5, 23) (6, 0) (6, 2) (6, 4) (6, 6) (6, 8) (6, 10) (6, 12) (6, 14) (6, 16) (6, 18) (6, 22) (7, 1) (7, 5) (7, 9) (7, 13) (7, 17) (7, 19) (7, 21) (7, 23) (8, 0) (8, 2) (8, 4) (8, 6) (8, 8) (8, 10) (8, 12) (8, 14) (8, 16) (8, 20) (9, 3) (9, 7) (9, 11) (9, 15) (9, 17) (9, 19) (9, 21) (9, 23) (10, 0) (10, 2) (10, 4) (10, 6) (10, 8) (10, 10) (10, 12) (10, 14) (10, 18) (10, 22) (11, 1) (11, 5) (11, 9) (11, 13) (11, 15) (11, 17) (11, 19) (11, 21) (11, 23) (12, 0) (12, 2) (12, 4) (12, 6) (12, 8) (12, 10) (12, 12) (12, 16) (12, 20) (13, 3) (13, 7) (13, 11) (13, 13) (13, 15) (13, 17) (13, 19) (13, 21) (13, 23) (14, 0) (14, 2) (14, 4) (14, 6) (14, 8) (14, 10) (14, 14) (14, 18) (14, 22) (15, 1) (15, 5) (15, 9) (15, 11) (15, 13) (15, 15) (15, 17) (15, 19) (15, 21) (15, 23) (16, 0) (16, 2) (16, 4) (16, 6) (16, 8) (16, 12) (16, 16) (16, 20) (17, 3) (17, 7) (17, 9) (17, 11) (17, 13) (17, 15) (17, 17) (17, 19) (17, 21) (17, 23) (18, 0) (18, 2) (18, 4) (18, 6) (18, 10) (18, 14) (18, 18) (18, 22) (19, 1) (19, 5) (19, 7) (19, 9) (19, 11) (19, 13) (19, 15) (19, 17) (19, 19) (19, 21) (19, 23) (20, 0) (20, 2) (20, 4) (20, 8) (20, 12) (20, 16) (20, 20) (21, 3) (21, 5) (21, 7) (21, 9) (21, 11) (21, 13) (21, 15) (21, 17) (21, 19) (21, 21) (21, 23) (22, 0) (22, 2) (22, 6) (22, 10) (22, 14) (22, 18) (22, 22) (23, 1) (23, 3) (23, 5) (23, 7) (23, 9) (23, 11) (23, 13) (23, 15) (23, 17) (23, 19) (23, 21) (23, 23) \(\}\)

\(k=25\) :\(\max |S| = 242\) ;\(\max |S| /k^2 = 0.3872\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (0, 18) (0, 20) (0, 22) (0, 24) (1, 1) (1, 5) (1, 9) (1, 11) (1, 15) (1, 19) (1, 23) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 12) (2, 14) (2, 16) (2, 18) (2, 20) (2, 22) (2, 24) (3, 3) (3, 7) (3, 9) (3, 11) (3, 13) (3, 17) (3, 21) (4, 0) (4, 2) (4, 4) (4, 6) (4, 10) (4, 14) (4, 16) (4, 18) (4, 20) (4, 22) (4, 24) (5, 1) (5, 5) (5, 7) (5, 9) (5, 11) (5, 13) (5, 15) (5, 19) (5, 23) (6, 0) (6, 2) (6, 4) (6, 8) (6, 12) (6, 16) (6, 18) (6, 20) (6, 22) (6, 24) (7, 3) (7, 5) (7, 7) (7, 9) (7, 11) (7, 13) (7, 15) (7, 17) (7, 21) (8, 0) (8, 2) (8, 6) (8, 10) (8, 14) (8, 18) (8, 20) (8, 22) (8, 24) (9, 1) (9, 3) (9, 5) (9, 7) (9, 9) (9, 11) (9, 13) (9, 15) (9, 17) (9, 19) (9, 23) (10, 0) (10, 4) (10, 8) (10, 12) (10, 16) (10, 20) (10, 22) (10, 24) (11, 1) (11, 3) (11, 5) (11, 7) (11, 9) (11, 11) (11, 13) (11, 15) (11, 17) (11, 19) (11, 21) (12, 0) (12, 2) (12, 6) (12, 10) (12, 14) (12, 18) (12, 22) (12, 24) (13, 3) (13, 5) (13, 7) (13, 9) (13, 11) (13, 13) (13, 15) (13, 17) (13, 19) (13, 21) (13, 23) (14, 0) (14, 2) (14, 4) (14, 8) (14, 12) (14, 16) (14, 20) (14, 24) (15, 1) (15, 5) (15, 7) (15, 9) (15, 11) (15, 13) (15, 15) (15, 17) (15, 19) (15, 21) (15, 23) (16, 0) (16, 2) (16, 4) (16, 6) (16, 10) (16, 14) (16, 18) (16, 22) (16, 24) (17, 3) (17, 7) (17, 9) (17, 11) (17, 13) (17, 15) (17, 17) (17, 19) (17, 21) (18, 0) (18, 2) (18, 4) (18, 6) (18, 8) (18, 12) (18, 16) (18, 20) (18, 22) (18, 24) (19, 1) (19, 5) (19, 9) (19, 11) (19, 13) (19, 15) (19, 17) (19, 19) (19, 23) (20, 0) (20, 2) (20, 4) (20, 6) (20, 8) (20, 10) (20, 14) (20, 18) (20, 20) (20, 22) (20, 24) (21, 3) (21, 7) (21, 11) (21, 13) (21, 15) (21, 17) (21, 21) (22, 0) (22, 2) (22, 4) (22, 6) (22, 8) (22, 10) (22, 12) (22, 16) (22, 18) (22, 20) (22, 22) (22, 24) (23, 1) (23, 5) (23, 9) (23, 13) (23, 15) (23, 19) (23, 23) (24, 0) (24, 2) (24, 4) (24, 6) (24, 8) (24, 10) (24, 12) (24, 14) (24, 16) (24, 18) (24, 20) (24, 22) (24, 24) \(\}\)

\(k=26\) :\(\max |S| = 260\) ;\(\max |S| /k^2 = 0.38461538461538464\) ;

\(S\) = \(\{\) (0, 0) (0, 2) (0, 4) (0, 6) (0, 8) (0, 10) (0, 12) (0, 14) (0, 16) (0, 18) (0, 20) (0, 22) (0, 24) (1, 1) (1, 5) (1, 9) (1, 13) (1, 17) (1, 21) (1, 25) (2, 0) (2, 2) (2, 4) (2, 6) (2, 8) (2, 10) (2, 12) (2, 14) (2, 16) (2, 18) (2, 20) (2, 22) (2, 24) (3, 3) (3, 7) (3, 11) (3, 15) (3, 19) (3, 23) (3, 25) (4, 0) (4, 2) (4, 4) (4, 6) (4, 8) (4, 10) (4, 12) (4, 14) (4, 16) (4, 18) (4, 20) (4, 22) (5, 1) (5, 5) (5, 9) (5, 13) (5, 17) (5, 21) (5, 23) (5, 25) (6, 0) (6, 2) (6, 4) (6, 6) (6, 8) (6, 10) (6, 12) (6, 14) (6, 16) (6, 18) (6, 20) (6, 24) (7, 3) (7, 7) (7, 11) (7, 15) (7, 19) (7, 21) (7, 23) (7, 25) (8, 0) (8, 2) (8, 4) (8, 6) (8, 8) (8, 10) (8, 12) (8, 14) (8, 16) (8, 18) (8, 22) (9, 1) (9, 5) (9, 9) (9, 13) (9, 17) (9, 19) (9, 21) (9, 23) (9, 25) (10, 0) (10, 2) (10, 4) (10, 6) (10, 8) (10, 10) (10, 12) (10, 14) (10, 16) (10, 20) (10, 24) (11, 3) (11, 7) (11, 11) (11, 15) (11, 17) (11, 19) (11, 21) (11, 23) (11, 25) (12, 0) (12, 2) (12, 4) (12, 6) (12, 8) (12, 10) (12, 12) (12, 14) (12, 18) (12, 22) (13, 1) (13, 5) (13, 9) (13, 13) (13, 15) (13, 17) (13, 19) (13, 21) (13, 23) (13, 25) (14, 0) (14, 2) (14, 4) (14, 6) (14, 8) (14, 10) (14, 12) (14, 16) (14, 20) (14, 24) (15, 3) (15, 7) (15, 11) (15, 13) (15, 15) (15, 17) (15, 19) (15, 21) (15, 23) (15, 25) (16, 0) (16, 2) (16, 4) (16, 6) (16, 8) (16, 10) (16, 14) (16, 18) (16, 22) (17, 1) (17, 5) (17, 9) (17, 11) (17, 13) (17, 15) (17, 17) (17, 19) (17, 21) (17, 23) (17, 25) (18, 0) (18, 2) (18, 4) (18, 6) (18, 8) (18, 12) (18, 16) (18, 20) (18, 24) (19, 3) (19, 7) (19, 9) (19, 11) (19, 13) (19, 15) (19, 17) (19, 19) (19, 21) (19, 23) (19, 25) (20, 0) (20, 2) (20, 4) (20, 6) (20, 10) (20, 14) (20, 18) (20, 22) (21, 1) (2, 5) (21, 7) (21, 9) (21, 11) (21, 13) (21, 15) (21, 17) (21, 19) (21, 21) (21, 23) (21, 25) (22, 0) (22, 2) (22, 4) (22, 8) (22, 12) (22, 16) (22, 20) (22, 24) (23, 3) (23, 5) (23, 7) (23, 9) (23, 11) (23, 13) (23, 15) (23, 17) (23, 19) (23, 21) (23, 23) (23, 25) (24, 0) (24, 2) (24, 6) (24, 10) (24, 14) (24, 18) (24, 22) (25, 1) (25, 3) (25, 5) (25, 7) (25, 9) (25, 11) (25, 13) (25, 15) (25, 17) (25, 19) (25, 21) (25, 23) (25, 25) \(\}\)

References↩︎

[1]

Y. Caro, M. Petruševski, R. Škrekovski, Zs. Tuza: On strong odd colorings of graphs. Discrete Math. online first, doi: 10.1007/s10479-025-06633-5.

[2]

M. Goetze, K. Knauer, F. Klute, I. Parada, J. P. Peña, T. Ueckerdt: Strong odd coloring in minor-closed classes. arXiv: 2505.02736.

[3]

H. Kwon, B. Park: Strong odd coloring of sparse graphs. arXiv: 2401.11653.

[4]

Jing-Ru Pang, Lian-Ying Miao, Yi-Zheng Fan: On odd and strong odd colorings of graphs. Discrete Mathematics Volume 349, Issue 1, January 2026, 114683.

[5]

M. Pilipczuk: Strong odd colorings in graph classes of bounded expansion. arXiv: 2505.15288.

[6]

Y. Caro, M. Petruševski, R. Škrekovski, Zs. Tuza: The odd independence number of graphs, I: Foundations and classical classes.

[7]

Pentagonal tiling. Wikipedia, https://en.wikipedia.org/wiki/Pentagonal_tiling(accessed on July 21, 2025.).

[8]

L. H. Harris: Combinatorial Problems on the Chessboard. Thesis, University of South Wales, 2019. https://pure.southwales.ac.uk/ws/portalfiles/portal/30748392/LHarris_Thesis_Main.pdf (accessed on October 1, 2025).

Department of Mathematics, University of Haifa-Oranim, Tivon 36006, Israel↩︎
Faculty of Mechanical Engineering, Ss. Cyril and Methodius University in Skopje, Macedonia↩︎
Faculty of Mathematics and Physics, University of Ljubljana; Faculty of Information Studies in Novo Mesto; Rudolfovo - Science and Technology Centre Novo Mesto, FAMNIT, University of Primorska, Slovenia↩︎
Alfréd Rényi Institute of Mathematics, H-1053 Budapest, Reáltanoda u. 13–15, Hungary; and Department of Computer Science and Systems Technology, University of Pannonia, 8200 Veszprém, Egyetem u. 10, Hungary↩︎

The odd independence number of graphs, II: Finite and infinite grids and chessboard graphs

Abstract

1 Introduction↩︎

1.1 Notation↩︎

2 Some basic tools↩︎

3 Three types of square grids↩︎

3.1 Planar grids↩︎

4 Chessboard graphs↩︎

4.0.0.1 King.

4.0.0.2 Rook.

4.0.0.3 Bishop.

4.0.0.4 Queen.

4.0.0.5 Knight.

5 Other types of grids↩︎

6 Concluding remarks and open problems↩︎

6.1 Grids↩︎

6.2 Chessboards↩︎

6.2.0.1 Acknowledgement.

7 Appendix: Small grids↩︎

7.1 Planar grids↩︎

7.2 Cylindric grids↩︎

7.3 Toroidal grids↩︎

7.4 Largest internally odd-independent sets↩︎

References↩︎

Subjects

Updated on Academus
