0.0.1 Introduction↩︎

Many problems in physics are governed by partial differential equations (PDEs) where field variables exhibit complex spatiotemporal evolution. Machine learning-based surrogate models have made substantial progress in learning such spatiotemporal physical systems. Prominent standalone surrogates include neural operators such as DeepONet [1], [2], Fourier Neural Operators [3], the U-shaped Neural Operator [4] and transformer-based models [5], [6]. Inspired by the success of foundation models in natural language processing, recent research directions in scientific machine learning is transitioning from task-specific to task-agnostic modeling. We use the term “PDE foundation model” to denote a universal PDE surrogate or a universal PDE operator pretrained on large, diverse datasets spanning multiple physics. With task-specific fine-tuning, such models can outperform standalone surrogates and demonstrate utility in data- and compute-scarce scenarios.

Partial observability of physics is a bottleneck in learning a PDE foundation model. Two forces collide in practice. Physics: dynamical systems couple nonlinear, multiscale interactions across scalar and vector fields evolving in four-dimensional continuous space-time, often with widely separated characteristic scales. Data: unlike web-scale text or images, pretraining corpora for PDEs are scarce, costly to curate, and frequently provide only partial observability. The existing benchmark spatiotemporal PDE datasets [7]–[9] contain varying data dimensionality (1D–3D) including trajectories, fields, components and resolutions curated through computationally costly simulations. The datasets are generated under restricted parameter settings with limited variation in initial and boundary conditions. In addition, such datasets can be terabytes in size, making naive homogenization or padding prohibitive. On the experimental side, measuring such fields demands substantial investment and dedicated facilities (e.g., wind tunnels for fluid-dynamics experiments). Most measurement modalities also provide partial observability: seismometers, for instance, yield 1D time series on sparse spatial grids, whereas seismic waves propagate as a \((3{+}1)\)-D disturbance through Earth’s crust. Similarly, pressure probes and velocimetry typically provide 1D or 2D temporal observations at limited spatial locations, even though the underlying fluid physics exhibits full spatiotemporal fluctuations in the medium. These practical constraints of simulations and measurements motivate a design that can learn effectively from partial information and generalize across data heterogeneity.

A modeling challenge under partial observations. A foundation model with a transformer backbone provides flexibility in learning from partial physical information. Recent PDE foundation models have made substantial progress toward a task-agnostic universal surrogate. However, most of the works [9]–[11] assume largely homogeneous data dimensionality, with predominantly 2D Cartesian grids, fixed scalar or vector components of field variables, and limited multiphysics coverage. The architectural choices are not designed for data heterogeneity and scale unfavorably as dimensionality and resolution increase often causing memory/compute blow-ups while requiring task-specific reconfiguration during fine-tuning. In particular, their pretraining sets exclude 3D datasets because patching volumetric data expands the token sequence length, driving quadratic self-attention cost \(\mathcal{O}(L_{\text{seq}}^{2})\). The same scaling bottleneck discourages inclusion of higher-resolution 2D datasets. Conversely, 1D problems are often excluded because 2D-centric pipelines enforce padding or tiling up to a 2D layout, wasting memory and compute without adding information. Since many experimental measurements are practically 1D (e.g., point probes, line scans, seismometer traces) and provide the most accurate observation of the underlying physics, we regard 1D as a crucial modality. We therefore treat heterogeneity and multimodality as first-class design requirements for a PDE foundation model. Concurrent works like [10], [12] explicitly highlight the open challenge of supporting more complex domains and extending beyond 2D, underscoring a persistent heterogeneity gap. We identify this as a key bottleneck in current PDE foundation model research. In short, there is a growing need for a flexible and scalable foundation model that can learn from diverse forms of partially observed scientific data.

0.0.1.0.0.1 Our Approach.

We introduce MORPH, a PDE foundation model designed to accommodate heterogeneous data across diverse physical phenomenon. MORPH is shape-agnostic, with physics-aware channel handling of PDE datasets. The architecture combines three mechanisms: (a) component-wise convolutions to capture local interactions while jointly processing scalar and vector channels; (b) inter-field cross-attention that models and selectively propagates information across physical fields while condensing them into a single fused representation; and (c) axial attention that factorizes full spatiotemporal self-attention along spatial and temporal axes, reducing compute while retaining expressivity. We define a Unified Physics Tensor Format (UPTF-7) for mini-batches that generalizes across PDE datasets while preserving the semantics of the physical observations. We pretrain MORPH on six heterogeneous spatiotemporal datasets spanning 1D–3D spatial domains with multiple field compositions. We perform full finetuning and parameter-efficient finetuning with low rank adapters (LoRA) on seven additional heterogeneous datasets for downstream prediction tasks. Beyond standard vision transformer hyperparameters, the convolutional and cross-attention modules of the model provide more favorable parameter scaling. We release four model variants—MORPH-Ti (7M), MORPH-S (30M), MORPH-M (126M), and MORPH-L (480M).

Our specific contributions are:

• Shape-agnostic universality. We introduce a shape-agnostic model that operates across arbitrary spatiotemporal PDE dataset dimensionalities (1D–3D), resolutions and mixed scalar/vector fields without task-specific reconfiguration.

• Expanded context via attention chaos. MORPH employs a larger transformer architecture with one cross-attention and four axial attention modules that attend over a multi-fold increase in spatiotemporal patches (i.e., a larger context window).

• Diverse pretraining and transfer. We pretrain and fine-tune on a broad (3 benchmarks) heterogeneous suite including multi-physics datasets like magnetohydrodynamics (MHD), turbulent self-gravitating flows with cooling (TGC), high-resolution 2D compressible and incompressible Navier–Stokes and large-scale 3D datasets.

• Parameter-efficient adaptation. We adapt LoRA for fine-tuning our largest model (MORPH-L), showing that low-rank adapters recover most of the gains of full fine-tuning with substantially fewer trainable parameters.

0.0.2 Related Work↩︎

0.0.2.0.0.1 Standalone PDE surrogate models.

A wide range of ML-based standalone surrogate models are deployed for solving PDEs. Some of these methods are 3D-CNN [13], ConvLSTM [14], DCGAN [15] and GNNs [16]. Beyond purely data-driven surrogates, physics-informed neural networks (PINNs) has been applied to spatiotemporal problems [17]. Recently, neural operators like DeepONet [18], Fourier Neural Operators (FNOs) [3], wavelet neural operators (WNOs) [19], Laplace neural operators [20] and physics-informed neural operators (PINOs) [21] have gained attention for solving spatiotemporal problems. Another line of methods uses generative models to capture spatiotemporal data distributions. Generative Adversarial Networks (GANs) have been explored to reconstruct or super-resolve turbulent flow fields from partial observations [22]. More recently, diffusion models with spatial cross-attention (score-based generative models) have gained traction due to their stability and high fidelity in representing complex distributions [23]–[25]. Researchers have investigated latent evolution models where spatial learning is performed through autoencoders [2], [26], [26]–[28] and variational autoencoders [5], [29]. Temporal dynamics in the latent space have been modeled with recurrent neural networks including LSTMs [27]–[30], Koopman with non-linear forcing [31], DeepONets [2], [26], ODE-Nets [32] and transformers with self-attention and easy-attention [5], [33].

0.0.2.0.0.2 PDE foundation models.

Standalone PDE surrogates are typically specialized to one equation or parameterized family, which means they must be retrained from scratch whenever the PDE form or conditions change. This lack of generality leads to significant computational overhead without knowledge transfer across PDEs. Some initial works have successfully demonstrated the capability of transfer learning for PDEs [18], [34]. Foundation models for PDEs have emerged to overcome these limitations by capturing the common patterns underlying many different PDE systems. A PDE foundation model is a task-agnostic generalist model pretrained on diverse data followed with minimal task-specific finetuning. Recent works [9], [11], [12], [32], [35], [36] demonstrated that a PDE foundation model can outperform standalone models. The advantages in generality, data efficiency, transferability, and versatility motivate the development of foundation PDE models over traditional one-off surrogates [37].

Despite rapid progress, building general-purpose PDE foundation models remains a formidable challenge. PDEs capture complex physics with non-linear interactions, multi-scale spatiotemporal evolutions, discontinuities in the medium (e.g., shocks), and initial and boundary-dependent constraints across multiple fields and physics. The datasets representing such complex spatiotemporal behavior involve several human experts and many compute hours. Public benchmarks remain scarce and frequently provide only partial observability of the underlying physics [7]–[9]. It becomes absolutely necessary to build a PDE foundation model with data heterogeneity and modalities in mind [10], [12]. The architectural design should support learning from partial experimental/simulation data and accommodate 1D–3D domains, low to high resolutions, and mixed scalar and vector fields in single and multiphysics settings. However, most of the current PDE foundation models lack this ability.

0.0.3 Proposed Method↩︎

0.0.3.1 Architecture

0.0.3.1.0.1 Unified Physics Tensor Format (UPTF-7).

The most direct way to handle data heterogeneity is to pad the datasets to a common shape. However, raw PDE datasets can occupy gigabytes to terabytes of storage. For instance, The Well alone contains \(\sim\)​15 TB of physics simulations [8]. This makes naive padding both compute and storage-wise inefficient. We therefore seek a unified dataset format that generalizes across PDE datasets while preserving the semantics of the physical observations. We observe that popular benchmarks like PDEBench [7], The Well [8], pdegym [9], PDEArena [38], and CFDBench [39] can be represented with a generic 7D data shape. We denote it as \((N,T,F,C,D,H,W)\), where \(N\) denotes the number of trajectories, \(T\) are the number of time steps, \(N \times T\) are the number of snapshots, \(F\) are the number of field variables, \(C\) are the associated scalar/vector components per field, and \((D,H,W)\) are the spatial depth, height, and width. We retain each benchmark’s native on-disk format and convert mini-batches on the fly to our Unified Physics Tensor Format (UPTF-7) when loading to GPUs. For instance, the 2D compressible CFD data in PDEBench contains velocity, pressure, and density fields where velocity is vector-valued while the other two are scalar. Under our convention, scalars are special cases of vectors. Therefore, we broadcast each scalar component to the maximum vector components count when a batch contains mixed scalar–vector fields. Under this convention, the 2D compressible CFD batch has a UPTF-7 layout \((Batch,T,F{=}3,C{=}2,D{=}1,H,W)\). Similarly, a 1D Diffusion–Reaction batch with native \((B,T,W)\) layout maps to UPTF-7 as \((B,T,F{=}1,C{=}1,D{=}1,H{=}1,W)\), and a 3D MHD batch in The Well maps to \((B,T,F{=}3,C{=}3,D,H,W)\). We defer more dataset-specific details to Appendix 0.0.7.2.1.

0.0.3.1.0.2 Overview of MORPH.

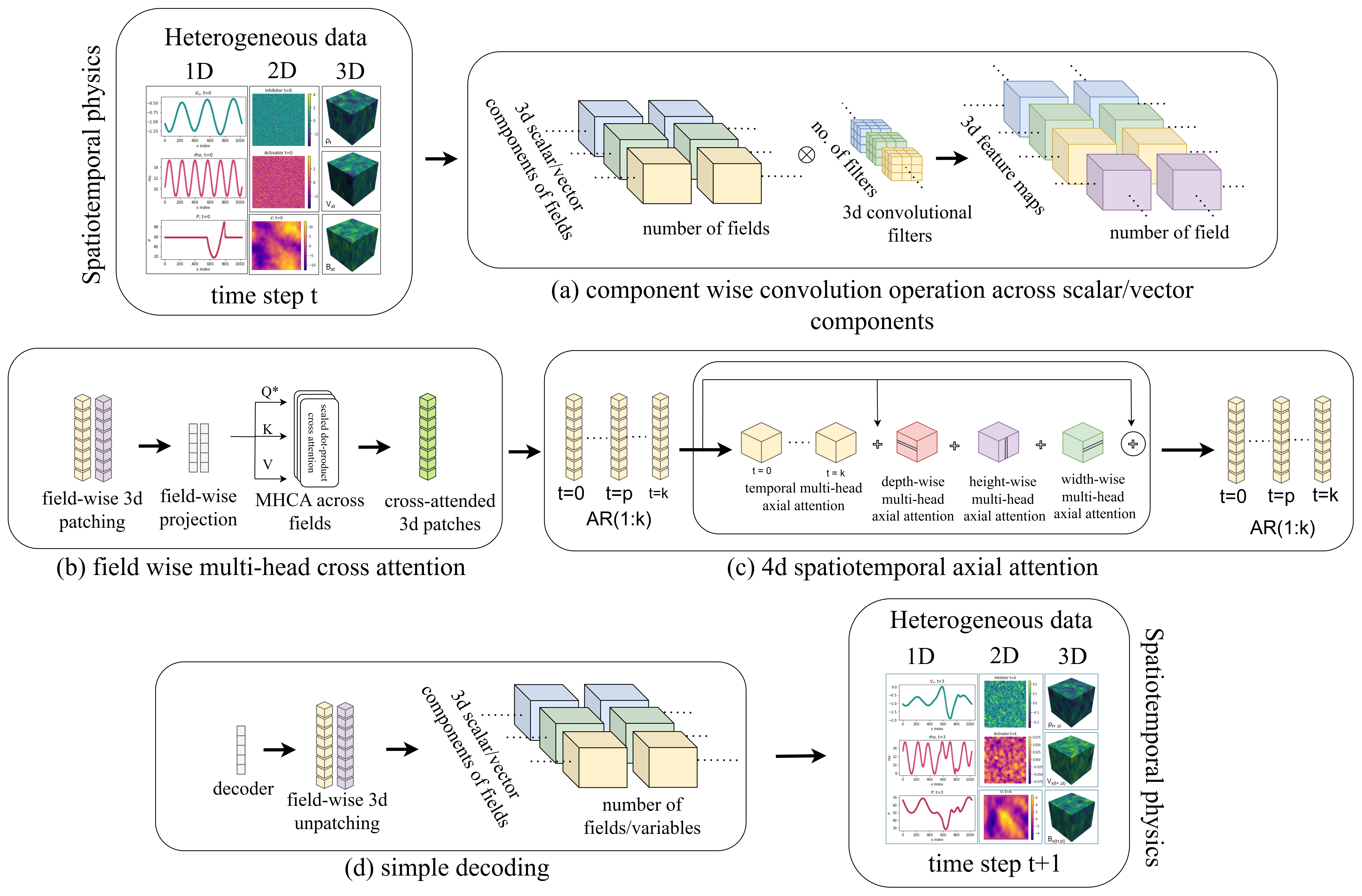

A schematic of the model is shown in Fig. 1. The shape-agnostic design of MORPH handles data heterogeneity via data-channel-specific operators. The architecture comprises three key mechanisms: (a) component-wise convolutions, which jointly process scalar and vector channels to capture local interactions; (b) inter-field multi-head cross-attention, which models and selectively propagates information across physical fields; and (c) 4D axial attentions, which factorize full spatiotemporal self-attention along individual spatial and temporal axes to reduce computational burden while retaining expressivity.

The convolutional operator acts on the component channel(s), producing a set of feature maps determined by the number of filters. Adding convolutional inductive bias helps vision transformers capture locality and improves sample efficiency [40]. We can scale feature maps and ultimately MORPH via the number of convolutional filters (default: 8). We partition feature maps into patches of size 8. Across pretraining and fine-tuning datasets, we use at most 4,096 patches, yielding a 32,768-dimensional feature vector, which we linearly project to an embedding whose dimensionality ranges from 256 to 1,024 depending on the model variant.

In most PDE datasets, multiple fields with different spatial scales evolve at various temporal rates. Field-wise multi-head cross-attention prioritizes relevant inter-field interactions and selectively propagates information, enabling careful feature fusion while suppressing spurious activations arising from scale mismatches among coupled fields. The cross-attention operator outputs a single fused field, significantly reducing computational cost [41]. We scale MORPH further via the cross-attention dimension, which by default matches those of axial self-attention.

We factorize full 4D spatiotemporal attention for a (3+1)D dynamical system into time-wise, depth-wise, height-wise, and width-wise axial attentions. For high-dimensional datasets, this limits the computational cost to \(O(T^2 + D^2 + H^2 + W^2)\), in contrast to full spatiotemporal attention with cost \(O((TDHW)^2)\) [42]. Time-wise axial attention supports flexible temporal context allowing fixed or variable order autoregression (default: 1 step). More details on modeling aspects are deferred to Appendix 0.0.7.1.

0.0.3.2 Data preprocessing

0.0.3.2.0.1 Normalization.

We use Reversible Instance Normalization (ReVIN) to counter covariate shift across heterogeneous datasets and training regimes. It was first proposed for time-series forecasting and validated to mitigate distribution shift [43]. We normalize the data and cache the corresponding means and standard deviations, then use these statistics to exactly denormalize model outputs. Unlike [10], which normalizes on-the-fly, we pre-normalize the entire dataset and train on normalized batches, reducing the normalization overhead incurred during training and fine-tuning.

0.0.3.2.0.2 Data streaming and sharding setup.

MORPH is designed to handle data heterogeneity and diversity, which introduces system-level challenges. To utilize CPU, GPU, and RAM efficiently, we make several non-traditional choices. One issue is that computing cluster resources impose RAM limits, making it difficult to load all datasets into memory simultaneously. As PDE benchmarks continue to grow, streaming becomes essential for building large PDE foundation models. Accordingly, we stream datasets from storage in chunks, which uses RAM efficiently and scales with the number and size of datasets. Another issue is the wide range of token lengths (128–4096) across pretraining datasets, which leads to varying computational burdens in parallel processing across batches. Instead of a single PyTorch DataLoader for all datasets, we use one dataloader per dataset. With six pretraining datasets, we run six DataLoaders. This enables dataset-specific choices of batch sizes and number of workers. Given this multi-dataloader setup, data sharding under DistributedDataParallel(DDP) is nontrivial, so we implement custom sharding across workers and ranks. We defer more details to Appendix 0.0.7.2.2.

0.0.4 Experiments↩︎

0.0.4.1 Datasets

We select datasets from three publicly available PDE benchmarks i.e., PDEBENCH [7], pdegym [9] and The Well [8]. They cover a wide variety of PDEs, the latter, however, focuses on more complex multiphysics problems. Because MORPH accommodates data heterogeneity, we demonstrate versatility in our dataset selection for both pretraining and fine-tuning. The datasets and their shapes are listed in Table [tab:pt95ft95datasets]. In the table, we display all fields in their inflated shapes separately if the dataset contains both scalar and vector fields. The six pretraining datasets are 1D Compressible Navier–Stokes (1D-CFD), 2D Incompressible Navier–Stokes (2D-CFD-IC), 2D Diffusion–Reaction (2D-DR), 2D Shallow-Water equations (2D-SW), 3D Compressible Navier–Stokes (3D-CFD) and 3D MagnetoHydroDynamics (3D-MHD). The seven fine-tuning datasets are 1D Diffusion–Reaction, 1D Burgers’ Equation (1D-BE), 2D Compressible Navier–Stokes (2D-CFD), 2D Gray–Scott Diffusion–Reaction, 2D Kolmogorov Flow (2D-FNS-KF), 3D Turbulent Gravity Cooling (3D-TGC), and 3D Compressible Navier–Stokes with Turbulence (3D-CFD-Turb). Compared to existing PDE foundation models, our pretraining and fine-tuning sets are larger and more diverse. We defer more dataset-specific details to Appendix 0.0.6.

0.0.4.2 Pretraining Setup

0.0.4.2.0.1 Balanced task sampling.

We train MORPH on multiple pretraining datasets with varying numbers of trajectories per dataset. We perform balanced task sampling to avoid imbalanced learning and catastrophic forgetting. Each dataset is assigned a sampling weight inversely proportional to its number of trajectories, so datasets with fewer trajectories are randomly sampled more frequently. In our corpus, the 3D-MHD dataset has the fewest trajectories and is therefore sampled more often than the remaining five. The resulting empirical per-batch sampling probabilities are approximately: 3D-MHD: 0.31, 2D-CFD-IC: 0.19, 3D-CFD: 0.18, 2D-DR: 0.12, 2D-SW: 0.12, and 1D-CFD: 0.08.

0.0.4.2.0.2 LoRA layers.

Low-Rank Adaptation (LoRA) is used for fine-tuning LLMs where the pretrained model weights are frozen while introducing trainable rank decomposition matrices into the transformer layers, dramatically reducing task-specific parameters during finetuning [44]. The motivation is supported by evidence that over-parameterized networks possess low intrinsic dimensionality, suggesting that task-specific updates lie in a low-rank subspace [45]. Mathematically, for a frozen weight \(W_0 \in \mathbb{R}^{d\times k}\), LoRA parameterizes the update as \[\Delta W = B A,\qquad B \in \mathbb{R}^{d\times r},\; A \in \mathbb{R}^{r\times k},\; r \ll \min(d,k),\] yielding the adapted weight \[W' = W_0 + \frac{\alpha}{r}\, B A,\] where \(\alpha\) is a scaling factor. Only \(A\) and \(B\) are trained while \(W_0\) remains fixed. We apply LoRA to the dense projections in attention and MLP blocks of the large model, with default ranks \(r_{\text{attn}}=16\) and \(r_{\text{mlp}}=12\), respectively.

0.0.4.2.0.3 Compute infrastructure.

We ran experiments across multiple GPU configurations, depending on availability and the computational requirements of each job. The model was executed on personal workstations as well as on cluster configurations consisting of multiple nodes and GPUs. This also demonstrates that the model scales from a single GPU to distributed settings with minimal configuration changes.

1. Standalone surrogates. All 12 MORPH standalone models were trained on either \(2\times\) A100 GPUs (40 GB each) or \(2\times\) A6000 GPUs (48 GB each).

2. Small foundation models. MORPH-FM-Ti (7M) and MORPH-FM-S (30M) were trained on a single node with \(4\times\) A100 GPUs (40 GB each).

3. Medium/Large foundation models. MORPH-FM-M (126M) and MORPH-FM-L (480M) were trained on two nodes, each equipped with \(8\times\) H100 GPUs (80 GB each).

4. Fine-tuning. Fine-tuning was performed on either \(1\times\) H100 (MORPH-FM-M and MORPH-FM-L) or \(2\times\) A100/A6000 (MORPH-FM-Ti and MORPH-FM-S).

5. Comparisons. MPP, DPOT, and Poseidon were fine-tuned on \(1\times\) H100.

0.0.4.2.0.4 Pretraining and finetuning settings.

Our model accommodates both fixed–order autoregressions, \(AR(p)\), and time-varying orders, \(AR(p_{1:T})\), where \(p\) (or \(p_t\)) denotes the autoregressive order. In this paper, we train MORPH in a self-supervised \(AR(1)\) setting where we learn a map \(F_\theta:\mathcal{X}\to\mathcal{X}\) such that for all \(t\ge 0\), \(X_{t+1}\approx F_\theta(X_t)\) by minimizing the mean-squared error. High–order fixed AR models (e.g., \(AR(16)\) in [10] and \(AR(10)\) in [46]) often yield stronger long-horizon rollouts by reducing exposure bias via a longer receptive field. However, this design departs from the initial-value-problem (IVP) semantics that PDE foundation models aim to respect. For these reasons we adopt a one-step (\(AR(1)\)) formulation aligned with IVP semantics and preserves the compositional structure fundamental to PDE time evolution. Nevertheless, MORPH remains flexible and supports multi-order (fixed or varying) autoregression to improve rollout quality. Full pretraining and finetuning settings are documented in Appendix 0.0.7.3,0.0.7.4.

0.0.4.3 Baselines

0.0.4.3.0.1 Models.

We evaluate MORPH against established baselines like Fourier Neural Operator (FNO) [3] and U-Net [47] as well as recent state-of-the-art foundation models: MPP [10], DPOT [46], and Poseidon [9]. FNO is a parameter-efficient neural operator that learns mappings between function spaces by approximating integral operators in Fourier space. It has become a popular choice for spatiotemporal surrogate modeling in fluid dynamics [3]. U-Net, originally proposed for biomedical image segmentation, is an encoder–decoder convolutional architecture with skip connections. Its strong multiscale feature extraction has led to widespread adoption in PDE surrogate modeling and operator learning [4]. MPP [10] is among the first foundation models for PDEs, systematically demonstrating that multi-physics pretraining can outperform training from scratch on fine-tuned downstream tasks. DPOT [46] is a denoising pretraining operator transformer built around a Fourier-attention mixer and a temporal aggregation layer, trained with an autoregressive denoising objective. Poseidon [9] is an efficient multiscale operator transformer trained with an all-to-all scheme. It employs the scOT, a hierarchical multiscale transformer with shifted-window (Swin) attention and a lead-time–conditioned LayerNorm to support queries at continuous times.

0.0.4.3.0.2 Evaluation Metrics.

We follow the conventions of PDEBench (PB) and The Well (TW) when reporting errors on spatiotemporal PDE datasets. The Normalized Root Mean Squared Error (NRMSE) is the RMSE normalized by the \(\ell_2\) norm of the ground truth, making it a scale-independent (dimensionless) measure and the default metric in PDEBench [7]. In contrast, the Variance-Scaled RMSE (VRMSE) normalizes the RMSE by the target’s per-snapshot standard deviation (i.e., the square root of its variance), thereby comparing errors to the intrinsic variability of the field. The Well adopts VRMSE as a primary metric. By construction, \(\mathrm{VRMSE}(\bar{u},u)=1\), so values \(>1\) indicate doing worse than predicting the per-snapshot spatial mean, while values \(<1\) indicate improvement over that baseline [8].

A principal challenge in comparing MORPH to prior foundation models is data dimensionality. The existing models are trained on 2D benchmarks and are consequently constrained to 2D inputs, whereas MORPH is shape-agnostic. MORPH gives a single architecture that handles \(1\)D, \(2\)D, and \(3\)D spatiotemporal fields without re-architecting. To ensure fairness, we report head-to-head results only where the data dimensionality aligns with a given baseline i.e., table entries are marked “-” when a model cannot be evaluated due to such shape constraints.

A further challenge for fair comparison is the input context window employed by prior foundation models. MPP is trained with a \(16\)-step context, while DPOT uses a \(10\)-step context. In line with numerical solvers, we posit that PDE foundation models should initialize from an initial condition (or initial time step) and advance the state autoregressively into the future. Accordingly, we train with a single-step context, \(\mathrm{AR}(1)\), for all models. Naturally, models trained with longer autoregressive contexts than \(\mathrm{AR}(1)\) may enjoy an advantage on standard error metrics and better performance on rollouts. We therefore interpret cross-model comparisons with this caveat in mind and present the main results in the next subsection.

0.0.4.4 Main results

Our primary experiments are organized in two parts or four sections in Table 1. We compare baseline and SOTA models using NRMSE and VRMSE as evaluation metrics. The top section reports standalone surrogate (SS) models (Ti, \(\approx 7\)M parameters; S, \(\approx 30\)M parameters) evaluated on both the pretraining and fine-tuning datasets. The bottom section reports foundation model (FM) results under zero-shot and full-shot fine-tuning settings. In the top section, we evaluate MORPH on standalone pretraining and finetuning sets. Our MORPH-SS-Ti and S models outperform baseline and SOTA models on standalone datasets and remain competitive across the rest. Practically, this makes MORPH a viable standalone surrogate when the target application focuses on a single PDE family. In the bottom section, we evaluate zero-shot performance on the pretrained sets and full-shot on finetuning sets against SOTA models. Zero-shot results assess cross-physics generalization and retention after multi-dataset pretraining. Deviations on pretrained datasets from standalone baselines indicate interference (e.g., gradual forgetting of task-specific biases). On the other hand, full-shot results quantify adaptation-efficiency gains over standalone surrogates on finetuning datasets.

0.0.4.4.0.1 MORPH Standalone vs foundation models.

We compare our standalone and foundation models under both zero-shot (pretraining-only evaluation) and full-shot (fine-tuning) regimes. MORPH-FM outperforms MORPH-SS on 3 out of 4 zero-shot tests and on 5 out of 6 fine-tuned benchmarks. Across these settings, our models also surpass strong baselines and existing models. The autoregressive rollout results for both standalone and fine-tuned models are deferred to Appendix 0.0.8.2. On the FNS-KF prediction task (See Figs. 7 and 8), MORPH-FM-S achieves better rollouts than MORPH-FM-Ti, which is reflected in lower MSE as well (0.00089 for S vs. for Ti).

0.0.4.4.0.2 Parameter-efficient finetuning with LoRA.

We investigate fine-tuning the MORPH-FM-L model using low-rank adapters (LoRA). In our setup, only 77M of the 480M parameters comprising LoRA adapters on attention and MLP blocks, positional encodings and layer norms are fine-tuned, which is fewer trainable parameters than in the M model (126M). Notably, MORPH-FM-L matches or outperforms the M model across zero-shot evaluations and full-shot fine-tuning. To our knowledge, this is the first study to apply LoRA to PDE foundation models, and our results indicate that LoRA-based fine-tuning is a promising direction given the expanding PDE datasets and increasing model sizes. Future work will examine LoRA-based fine-tuning more extensively, including the effect of adapter rank across different datasets.

0.0.4.4.0.3 Data and compute-scarce finetuning.

In Figs. 3 and 4 (Appendix 0.0.8.1), we evaluate the data- and compute-scarce fine-tuning performance of MORPH-FM on two downstream tasks: 1D-DR and 2D-FNS-KF. For 1D-DR, Fig. 3 reports RMSE as a function of the fraction of trajectories used to fine-tune MORPH-FM-Ti relative to the standalone MORPH-SS-Ti trained on \(100\%\) of the trajectories. Fine-tuning is restricted to a fixed budget of 100 epochs. The pretrained model already outperforms the standalone when fine-tuned with only \(25\%\) of the data. For 2D-FNS-KF, Fig. 4 shows RMSE versus the number of fine-tuning trajectories for MORPH-FM-S, which likewise surpasses the standalone MORPH-SS-S trained on the full dataset. We further assess data- and compute-scarce fine-tuning for MORPH-FM-S against larger models (DPOT-FM-M and Poseidon-FM-B) in Table 3 (See Appendix 0.0.8.1). MORPH-FM-S has approximately 0.25\(\times\) the size of DPOT-FM-M and 0.18\(\times\) the size of Poseidon-FM-B. On the FNS-KF dataset, we fine-tune DPOT-FM-M and Poseidon-FM-B with only 128 (\(\le 1\%\)) finetuning trajectories for 200 epochs. More details on the hyperparameter settings for DPOT and Poseidon are provided in Appendix 0.0.7.4.2. As summarized in Table 3, our models outperform prior PDE foundation models under this data- and compute-scarce regime. Additional experimental details are provided in Appendix 0.0.7.4.

0.0.5 Conclusion↩︎

We introduced MORPH, a shape-agnostic foundation model for PDEs that unifies heterogeneous spatiotemporal data across 1D–3D domains, scalar/vector fields, and mixed resolutions within a single convolutional vision transformer backbone. Our Unified Physics Tensor Format (UPTF-7) standardizes layout across PDE datasets while preserving physical semantics of the observations. By combining component-wise convolutions, inter-field cross-attention, and 4D axial attention, MORPH learns locality, cross-physics dependencies, and long-range spatiotemporal structure in a compute-aware way, and scales across multiple model variants. These design choices, together with parameter-efficient LoRA adapters for finetuning, enable effective transfer from diverse pretraining corpora to downstream tasks. We evaluated MORPH against its standalone version, task-specific baselines and recent PDE foundation models. Beyond prediction accuracy, MORPH highlights pathways toward flexible and scalable PDE foundation models for scientific machine learning.

Reproducibility statement↩︎

We are committed to ensuring the reproducibility of our results. All pretraining, finetuning, evaluation, visualization, and normalization code, together with pretrained model checkpoints, are publicly released on GitHub and Hugging Face. The datasets used in this work are sourced from PDEgym, PDEBench, and The Well.

Acknowledgments↩︎

Research presented in this article was supported by the Laboratory Directed Research and Development program of Los Alamos National Laboratory under project number 20250637DI. This research used resources provided by the Los Alamos National Laboratory Institutional Computing Program, which is supported by the U.S. Department of Energy National Nuclear Security Administration under Contract No. 89233218CNA000001.

Appendices↩︎

0.0.6 Data Details↩︎

0.0.6.1 PDEBench

0.0.6.1.1 1D Burgers’ equation

Description: It is a canonical nonlinear advection–diffusion PDE that interpolates between smooth diffusion and shock-forming hyperbolic flow as viscosity decreases. By varying \(\nu\), it effectively sweeps a Reynolds-like number and reveals steepening, shock formation, and dissipation—making it a clean test for nonlinearity and shock handling.

PDE: \(\partial_t u(t,x) + \partial_x\!\left(\tfrac12 u^2(t,x)\right) = \tfrac{\nu}{\pi}\,\partial_{xx}u(t,x)\).

Domain:\(x\in(0,1),\; t\in(0,2]\).

BCs & ICs. Periodic BCs on \((0,1)\). Initial condition is a random superposition of sines \(u_0(x)=\sum_i A_i \sin(k_i x+\phi_i)\) with uniformly sampled amplitudes/phases/wavenumbers.

Numerical scheme: 2nd-order upwind finite difference scheme in space and time. Data specifications: \(N = 10{,}000\) trajectories, \(T = 201\) time steps, \(W = 1024\) spatial points, one scalar field variable \(u\). We use dataset corresponding to \(\nu = 0.001\).

Category: Finetuning

0.0.6.1.2 1D Diffusion-reaction

Description: It combines linear diffusion with a local, potentially rapid (nearly exponential) source term, yielding stiff transients and front-like dynamics. It stresses models’ ability to handle disparate time scales and locally amplified errors.

PDE: \(\partial_t u - \nu\,\partial_{xx}u - \rho\,u(1-u)=0\).

Domain: \(x\in(0,1),\; t\in(0,1]\).

BCs & ICs. Periodic BCs. ICs drawn from the same random sinusoidal family as Burgers with rectification/normalization for well-posedness.

Numerical scheme Finite-difference time–space solver with the piecewise-exact solution (PES) method for the source term part.

Data specifications: \(N = 10{,}000\) trajectories, \(T = 101\) time steps, \(W = 1024\) spatial points, one scalar field variable \(u\). We use dataset corresponding to \(\nu = 0.5 ,\rho = 1.0\).

Category: Finetuning

0.0.6.1.3 2D Diffusion-reaction

Description: The FitzHugh–Nagumo (FHN) system is a prototypical reaction–diffusion equation with applications to modeling biological pattern phenomenon. It consists of two nonlinearly coupled scalar fields i.e., activator and inhibitor.

PDE: \(\partial_t u = D\nabla^2 u + R(u), \text{where ,} R_u = u-u^3-k-v, R_v = u-v\)

Domain: \((x,y)\in(-1,1)^2,\; t\in(0,5]\).

BCs & ICs. No–flux (Neumann) BCs. ICs are standard normal random noise.

Constants: \(k = 5 \times 10^{-3}, D_u = 1 \times 10^{-3}, D_v = 5 \times 10^{-3}\).

Numerical scheme Finite-volume in space and classical RK4 in time.

Data specifications: \(N = 1{,}000\) trajectories, \(T = 101\) time steps, \(H \times W = 128 \times 128\) spatial points, two scalar field variables \((u, v)\). We use dataset corresponding to \(\nu = 0.5 ,\rho = 1.0\)

Category: Pretraining

0.0.6.1.4 Compressible Navier-Stokes (CNS) system

Description: The CNS equations describe the motion of Newtonian fluids in regimes where density variations due to pressure are significant. This setting is fundamental in aerodynamics, gas dynamics, aeroacoustics, astrophysical flows, weather and climate dynamics etc. The governing PDEs are conservation laws for mass, momentum, and energy. The CNS solutions may exhibit discontinuities/shocks and turbulent cascades a larger range of multiscale behavior.

PDE: \[\begin{align} \partial_t\rho + \nabla\!\cdot(\rho \mathbf{v}) &= 0,\\ \rho(\partial_t\mathbf{v}+\mathbf{v}\!\cdot\!\nabla \mathbf{v}) &= -\nabla p + \eta \Delta \mathbf{v} + (\zeta+\eta/3)\nabla(\nabla\!\cdot\!\mathbf{v}),\\ \partial_t\!\left(\epsilon+\tfrac12\rho\|\mathbf{v}\|^2\right) &+ \nabla\!\cdot\!\left[(\epsilon+p+\tfrac12\rho\|\mathbf{v}\|^2)\mathbf{v}-\mathbf{v}\!\cdot\!\sigma'\right]=0. \end{align}\] where \(\rho\) is the density, \(\mathbf{u}\) the velocity field, \(p\) the pressure, \(\epsilon\) the internal energy, \(\eta\) the shear viscosity, \(\zeta\) the bulk viscosity, and \(\sigma'\) the viscous stress tensor.

BCs & ICs: Periodic BCs, Random ICs.

Numerical scheme: For advection/shock terms: HLLC + MUSCL (robust, shock-capturing, 2nd order). For viscous/diffusion terms: central differencing (smooth, consistent with Navier–Stokes viscosity). More details on the solver [48], [49].

Data specifications and category:

1. 1d CNS (Pretraining): \(N = 10{,}000\) trajectories, \(T = 100\) time steps, \(W = 1024\) spatial points, one vector field (\(v\)), two scalar fields \((\rho, P)\). We use dataset corresponding to \(\eta = 10^{-2} ,\zeta = 10^{-2}\).

2. 2d CNS (Finetuning): \(N = 10{,}000\) trajectories, \(T = 21\) time steps, \(H \times W = 512 \times 512\) spatial points, one vector field (\(v\)), two scalar fields \((\rho, P)\). We use dataset corresponding to \(\eta = 10^{-8} ,\zeta = 10^{-8}, M = 0.1\).

3. 3d CNS (Pretraining): \(N = 200\) trajectories, \(T = 21\) time steps, \(D \times H \times W = 128 \times 128 \times 128\) spatial points, one vector field (\(v\)), two scalar fields \((\rho, P)\). We use dataset corresponding to \((\eta,\zeta,M)\) \(=\) \((10^{-8},10^{-8},0.1)\) and \((10^{-8},10^{-8},1.0)\).

4. 3d CNS-Turbulent (Finetuning): \(N = 500\) trajectories, \(T = 21\) time steps, \(D \times H \times W = 64 \times 64 \times 64\) spatial points, one vector field (\(v\)), two scalar fields \((\rho, P)\). We use dataset corresponding to \((\eta,\zeta,M)=(10^{-8},10^{-8},1.0)\).

0.0.6.1.5 2D inhomogeneous, incompressible Navier-Stokes

Description: The inhomogeneous, forced incompressible Navier–Stokes (INS) system models Newtonian fluids in the low–Mach regime where density is effectively constant. It underpins a wide range of applications, including hydromechanics, environmental and geophysical flows, weather and climate components at resolved scales, and engineered processes such as mixing and cooling.

PDE: \(\nabla\!\cdot\!\mathbf{v}=0, \rho(\partial_t\mathbf{v}+\mathbf{v}\!\cdot\!\nabla\mathbf{v})=-\nabla p+\eta\Delta\mathbf{v}+\mathbf{u}\,,\) where \(\mathbf{v}=(v_x,v_y)\) is velocity, \(p\) pressure, \(\eta\) the (shear) viscosity, and \(\mathbf{u}\) the inhomogeneous forcing.

Domain: \(\Omega\in[0,1]^2\).

BCs & ICs: Non-periodic Dirichlet (no-slip) boundaries BCs. Initial conditions \(v_0\) and inhomogeneous forcing parameters \(u\) are independently sampled from isotropic Gaussian random fields with truncated power-law power spectra.

Constants: Viscosity \(\nu=\eta/\rho=0.01\). Density is treated as constant.

Numerical scheme: Finite-difference simulations implemented in PhiFlow [50].

Data specifications: \(N = 80\) trajectories, \(T = 1000\) time steps, \(H \times W = 512 \times 512\) spatial points, one vector field (\(v\)), one static vector field \((F)\) (not used). We use 4 dataset files.

Category: Pretraining

0.0.6.2 The Well

0.0.6.2.1 2D Gray-Scott diffusion reaction

Description: Two-species reaction–diffusion model whose scalar concentrations vary in space and time. It exhibits rich pattern formations and is used as a canonical test for nonlinear spatiotemporal dynamics and biological morphogenesis [51].

PDE: \(\partial_t u=D_u\nabla^2 u - uv^2 + F(1-u) ; \partial_t v=D_v\nabla^2 v + uv^2 - (F+k)v.\)

Domain: \(\Omega\in[-1,1]^2\).

BCs & ICs: Doubly periodic BCs

Constants: \(\delta_A=2\times10^{-5}\), \(\delta_B=1\times10^{-5}\).

Numerical scheme: Implicit-explicit exponential time-differencing RK4 in time and Fourier spectral method in space.

Data specifications: \(N = 200\) trajectories, \(T = 1001\) time steps, \(H \times W = 128 \times 128\) spatial points, two scalar field variables \((u, v)\). We use dataset corresponding to "Bubbles" pattern with \(f = 0.098, k = 0.057\).

Category: Finetuning.

0.0.6.2.2 3D Magnetohydrodynamics

Description: A multiphysics dataset coupling fluid dynamics and electromagnetism. MHD is a strongly nonlinear system in which coupled fluid–magnetic dynamics generate broadband turbulence, shocks and compressions, intermittent current sheets, and reconnection, yielding larger dynamics range of spatial and temporal scales. MHD modeling finds applications in understanding solar winds, interstellar medium, magnetospheres, fusion energy devices like tokamaks [52].

PDE: Ideal MHD with isothermal EOS \(p=c_s^2\rho\): \[\partial_t\rho+\nabla\!\cdot(\rho\mathbf{v})=0,\quad \partial_t(\rho\mathbf{v})+\nabla\!\cdot\!\Big[\rho\mathbf{v}\mathbf{v}+\Big(p+\tfrac{B^2}{8\pi}\Big)\mathbf{I}-\tfrac{1}{4\pi}\mathbf{B}\mathbf{B}\Big]=\mathbf{f},\quad \partial_t\mathbf{B}-\nabla\times(\mathbf{v}\times\mathbf{B})=0.\]

Domain: Periodic cube.

BCs & ICs: Periodic BCs, continuous large-scale solenoidal forcing at \(k\!\approx\!2.5\) (box units).

Constants: Isothermal sound speed \(c_s\). Parameter sweeps over sonic Mach number \(M_s\in\{0.5,0.7,1.5,2.0,7.0\}\) and Alfvénic Mach number \(M_A\in\{0.7,2.0\}\).

Numerical scheme: Third-order hybrid ENO shock-capturing scheme [53], isothermal EOS and forced turbulence. The high-res data were generated at \(256^3\) and anti-aliased downsampled to \(64^3\) for the MHD_64 split.

Data specifications: \(N = 97\) trajectories, \(T = 101\) time steps, \(D \times H \times W = 64 \times 64 \times 64\) spatial points, two vector field variables \((v, B)\) and one scalar field \((\rho)\). We use all the files present on the repository.

Category: Finetuning.

0.0.6.2.3 3D Turbulent cooling gravity

Description: Self-gravitating, compressible gas with radiative cooling/heating. It is used to model turbulent molecular clouds and multiphase interstellar medium where cooling drives filament formation and collapse.

PDE: Compressible hydrodynamics with gravity and energy source terms (monatomic gas \(\gamma=5/3\)): \[\frac{d\rho}{dt}=-\rho\nabla\!\cdot\mathbf{v},\quad \frac{d\mathbf{v}}{dt}=-\frac{\nabla P}{\rho}-\nabla\Phi+\mathbf{a}_{\rm visc},\quad \frac{du}{dt}=-\frac{P}{\rho}\nabla\!\cdot\mathbf{v}+\frac{\Gamma-\Lambda}{\rho},\] with Poisson gravity through \(\Phi\); cooling/heating via metallicity-dependent \(\Lambda,\Gamma\).

Domain: 3D volume.

BCs & ICs: Isolated self-gravitating gas sphere (\(10^6\,M_\odot\)) with turbulent velocity spectrum \(\propto k^{-4}\);

Constants: Adiabatic index \(\gamma=5/3\).

Numerical scheme: Density-Independent SPH (DISPH) in ASURA-FDPS; radiative processes via tabulated cooling/heating [54].

Data specifications: \(N = 20{,}000\) trajectories, \(T = 21\) time steps, \(D \times H \times W = 12 \times 64 \times 64\) spatial points, one vector field variables \((v)\) and three scalar field \((\rho,P,T)\). Out of 4 fields, we only take 3 independent fields \((v,P,T)\). We use single dataset file corresponding to \(T_0 = 10, \rho_0 = 0.445, Z = 0.1\).

Category: Finetuning

0.0.6.3 PDEGYM

0.0.6.3.1 FNS-KF

Description: Two-dimensional Kolmogorov flow: an incompressible fluid driven by a steady sinusoidal body force.

PDE: Forced incompressible Navier–Stokes: \[\partial_t \mathbf{u} + (\mathbf{u}\!\cdot\!\nabla)\mathbf{u} + \nabla p - \nu\,\Delta \mathbf{u} = \mathbf{f}, \qquad \nabla\!\cdot\!\mathbf{u} = 0,\]

with time-independent forcing \[f(x,y) = 0.1\,\sin\!\big(2\pi(x+y)\big), \qquad \partial_t f \equiv 0.\]

Domain: \(D=[0,1]^2\).

BCs & ICs: Periodic boundary conditions. Initial velocity is set exactly as in NS-PwC [9] by prescribing a piecewise-constant vorticity \(\omega_0\) on a \(p \times p\) uniform partition (with \(p=10\)) and recovering a divergence-free velocity: \[\omega_0(x,y)=c_{ij}\quad\text{for }(x,y)\in [x_{i-1},x_i]\times [y_{j-1},y_j],\qquad x_i=y_i=\frac{i}{p},\quad c_{ij}\sim\mathcal{U}[-1,1].\] The velocity \(\mathbf{u}_0\) is obtained from \(\omega_0\) under \(\nabla\!\cdot\!\mathbf{u}_0=0\).

Constants: Small effective viscosity from the spectral–hyperviscosity setup, \(\nu = 4 \times 10^{-4}\), forcing amplitude 0.1 and wavenumber \(2 \pi\) along diagonal.

Numerical scheme: Pseudospectral Fourier method with artificial (hyper)viscosity and projection to the first N modes using AZEBAN spectral hyperviscosity code.

Data specifications: \(N = 20{,}000\) trajectories, \(T = 21\) time steps, \(H \times W = 128 \times 128\), one vector field variables \((v)\). We assemble all the ‘.nc’ files in the data directory into a single combined file [9].

Category: Finetuning

0.0.7 Experiment Details↩︎

0.0.7.1 Model details

Model Variants: We introduce four different variants of MORPH presented in Table 2, based on the number of convolutional filters, dimensions of attention layers, number of attention heads and depth of the transformer.

Convolutional operator: The 3D convolutional operator works on the component dimension of the UPTF-7. By default, we use 8 filters and a 2-layer network with LeakyReLU activations. Inputs with up to max_in_ch channels are zero-padded (if needed) and projected to \(h{=}8\) channels by a \(1{\times}1{\times}1\) convolution (bias-free). We then apply \(L\) blocks of \(3{\times}3{\times}3\) convolution followed by LeakyReLU (\(\alpha{=}0.2\)), doubling the channel width each block until reaching \(F\) output channels: \(h \rightarrow \min(2h,F) \rightarrow \cdots \rightarrow F\). All \(3{\times}3{\times}3\) layers use padding \(=1\) to preserve spatial size. Unless noted, \(F{=}8\), yielding two convolutional layers in total (the \(1{\times}1{\times}1\) projection and one \(3{\times}3{\times}3\) layer).

Patching: We partition each sample into non-overlapping patches with patch size \(8\) along the spatial axes of the tensor \((D,H,W)\). Accordingly, the per-patch shapes are \(1\times 8\times 8\) for 2D data, \(1\times 1\times 8\) for 1D data, and \(8\times 8\times 8\) for 3D data. In our pretraining corpus, the 2D-CFD-IC and 3D-CFD datasets yield the largest number of spatial patches per batch, i.e., max_patches = 4096. Practically, the choice of patch size is constrained by available compute. Reducing the patch size increases the sequence length and thus raises memory and runtime costs during training and inference.

Field-wise cross-attention (field fusion). After projecting each field patch to a common embedding size (\(\texttt{model\_dim}\)), we form a length-\(F\) sequence \(\mathbf{X}\in\mathbb{R}^{F\times E}\) per patch and apply a single-layer, \(H\)-head cross-attention (default \(H\)=32) in which the query is a learned (\(\mathbf{q}\in\mathbb{R}^{E}\)), while \(\mathbf{X}\) provides both keys and values. The cross-attention operation performs content-based pooling across the \(F\) field variables via a learned query. The time complexity scales linearly with \(F\) (a single query attends over \(F\) keys). The module naturally accommodates a variable number of fields F at runtime and inference time. We intentionally omit field-wise positional encodings, making the field-fusion module permutation-invariant to the ordering of fields.

Concretely, with head dimension \(d_h=E/H\) and per-head projections \(W_Q^{(h)},W_K^{(h)},W_V^{(h)}\in\mathbb{R}^{E\times d_h}\), \[\alpha^{(h)}=\operatorname{softmax}\!\Big(\tfrac{(\mathbf{q}W_Q^{(h)})(\mathbf{X}W_K^{(h)})^\top}{\sqrt{d_h}}\Big)\in\mathbb{R}^{1\times F},\qquad \mathbf{z}^{(h)}=\alpha^{(h)}(\mathbf{X}W_V^{(h)})\in\mathbb{R}^{1\times d_h},\] and the fused representation is \[\mathbf{z}=\operatorname{Concat}_h(\mathbf{z}^{(h)})\,W_O\in\mathbb{R}^{1\times E},\]

Axial attention (factorized 4D space–time). Given patch embeddings \(x \in \mathbb{R}^{B \times t \times N \times E}\) with \(N{=}DHW\), we reshape to \(x \in \mathbb{R}^{B \times t \times D \times H \times W \times E}\) and replace full space–time self-attention over \(L{=}tDHW\) tokens with four 1D multi-head attention (MHA) operations applied along each axis i.e., time \((t)\), depth \((D)\), height \((H)\), and width \((W)\). For each axis we fold the remaining axes into the batch, attend along the axis length, invert the reshape, and use a residual sum: \[\begin{align} \tilde{x}^{(t)}_{b,d,h,w} &= \mathrm{MHA}_t\!\big(x_{b,\cdot,d,h,w}\big) \in \mathbb{R}^{t \times E},\\ \tilde{x}^{(D)}_{b,t,h,w} &= \mathrm{MHA}_D\!\big(x_{b,t,\cdot,h,w}\big) \in \mathbb{R}^{D \times E},\\ \tilde{x}^{(H)}_{b,t,d,w} &= \mathrm{MHA}_H\!\big(x_{b,t,d,\cdot,w}\big) \in \mathbb{R}^{H \times E},\\ \tilde{x}^{(W)}_{b,t,d,h} &= \mathrm{MHA}_W\!\big(x_{b,t,d,h,\cdot}\big) \in \mathbb{R}^{W \times E},\\ y &= x \;+\; \tilde{x}^{(t)} \;+\; \tilde{x}^{(D)} \;+\; \tilde{x}^{(H)} \;+\; \tilde{x}^{(W)}, \end{align}\] followed by flattening back to \(\mathbb{R}^{B \times t \times N \times E}\). We adopt a pre-norm Transformer block: \(\mathrm{LN} \rightarrow\) axial attention \(\rightarrow\) residual, then \(\mathrm{LN} \rightarrow\) MLP (GELU, Dropout) \(\rightarrow\) residual. The temporal branch is enabled only when \(t{>}1\), which supports an autoregressive curriculum (stage 1 uses spatial-only AR(1); stage 2 enables AR(\(2{:}k\))).

LoRA parameterization. All attention projections (Q, K, V, O) and the two MLP linear layers are equipped with low-rank adapters; when rank \(r{=}0\) they reduce to plain linear maps. For input \(x\) and base weight \(W_0\), a LoRA-enhanced linear layer produces \[y \;=\; x W_0^\top \;+\; \tfrac{\alpha}{r}\,\big(x A^\top\big) B^\top \;+\; b,\] with \(A \in \mathbb{R}^{r \times \text{in}},\; B \in \mathbb{R}^{\text{out} \times r}\), scaling \(\alpha/r\), and optional dropout \(p\) on the LoRA path. This adds \(r(\text{in}+\text{out})\) parameters per linear while leaving the base weights reusable/freezable.

Complexity. Full space–time attention costs \(\mathcal{O}\!\big((tDHW)^2\big)\) in sequence length. Axial factorization reduces this to \[\mathcal{O}\!\big(tDHW\,(t + D + H + W)\big),\] since each axis attends over its own length while other dimensions are folded into the batch, yielding substantial savings in compute and memory without sacrificing global receptive field.

Defaults. We use same attention heads (Table 2) across axes, dropout \(p\) inside attention and MLP, and LoRA rank \(r\) with scaling \(\alpha\) (LoRA inactive when \(r{=}0\)).

Positional encodings: Let a learned absolute table \(\mathbf{P}\in\mathbb{R}^{\texttt{max\_ar}\times \texttt{max\_patches}\times E}\) provide time–patch embeddings, and let token tensors be \(x\in\mathbb{R}^{B\times t\times n\times E}\). At run time we construct \(\widehat{\mathbf{P}}\in\mathbb{R}^{t\times n\times E}\) to match the current autoregressive context \(t\) and patch count \(n\), and add it to \(x\) (broadcast over the batch). We use two different types of positional encoding.

ST-Bilinear: We resample \(\mathbf{P}\) jointly over time and patches using bilinear interpolation: \[\widehat{\mathbf{P}}_{\tau,\pi} \;=\; \sum_{i=1}^{\texttt{max\_ar}} \sum_{j=1}^{\texttt{max\_patches}} w^{(t)}_{\tau,i}\; w^{(n)}_{\pi,j}\; \mathbf{P}_{i,j}, \qquad \widehat{\mathbf{P}}\in\mathbb{R}^{t\times n\times E},\] with interpolation weights \(w^{(t)}\) and \(w^{(n)}\) derived from the continuous reindexing of \([1,\texttt{max\_ar}]\to[1,t]\) and \([1,\texttt{max\_patches}]\to[1,n]\) (no temporal slicing). This preserves smooth variation across both axes and supports arbitrary \((t,n)\) without changing parameter count. We employ this variant for the L model with \(\texttt{max\_ar}=16\).

S-Linear & T-Slice: We slice the first \(t\) time steps and linearly resample only along the patch axis: \[\widehat{\mathbf{P}}_{\tau,\pi} \;=\; \sum_{j=1}^{\texttt{max\_patches}} w^{(n)}_{\pi,j}\; \mathbf{P}_{\tau,j}, \qquad \tau\in\{1,\dots,t\},\;\; t\le \texttt{max\_ar},\] yielding \(\widehat{\mathbf{P}}\in\mathbb{R}^{t\times n\times E}\). This avoids temporal smoothing, preserves the semantics of discrete AR time steps, and is lighter-weight computationally. We use this variant for the Ti/S/M models with \(\texttt{max\_ar}=1\).

Both encodings are absolute and enable variable \((t,n)\) by resampling, with an \(\mathcal{O}(t\,n\,E)\) application cost. ST-Bilinear provides smooth extrapolation in time and space—beneficial for long AR horizons (L model). S-Linear/T-Slice enforces a strict AR horizon (\(t\le\texttt{max\_ar}\)) and avoids temporal aliasing—well-suited to short-context regimes (Ti/S/M). We apply dropout after constructing \(\widehat{\mathbf{P}}\) and then add it to token embeddings prior to attention.

0.0.7.2 Data Processing

0.0.7.2.1 Unified Physics Tensor Format (UPTF-7)

We convert batches into the UPTF-7 format while loading them on-the-fly onto the GPUs. The UPTF-7 layout is defined as \((b, t, F, C, D, H, W) = (\text{batches}, \text{time-steps}, \text{fields}, \text{components}, \text{depth}, \text{height}, \text{width})\), and is used for both the pretraining and fine-tuned datasets. \[\begin{align}\mathrm{\small 1D-CFD}&=(b,t,3,1,1,1,1024),\quad \mathrm{\small 2D-DR}=(b,t,2,1,1,128,128),\\ \mathrm{\small 2D-CFD-IC}&=(b,t,1,2,1,512,512),\quad \mathrm{\small 2D-SW}=(b,t,1,1,1,128,128), \\ \mathrm{\small 3D-MHD}&=(b,t,3,3,64,64,64),\quad \mathrm{\small 3D-CFD}=(b,t,3,3,128,128,128),\\ \mathrm{\small 1D-DR}&=(b,t,1,1,1,1,1024),\quad \mathrm{\small 1D-BE}=(b,t,1,1,1,1,1024),\\ \mathrm{\small 2D-FNS-KF}&=(b,t,1,2,1,128,128), \quad \mathrm{\small 2D-CFD}=(b,t,3,2,1,512,512),\\ \mathrm{\small 2D-GSDR}&=(b,t,2,1,1,128,128),\quad \mathrm{\small 3D-CFD-Turb}=(b,t,3,3,64,64,64),\\ \mathrm{\small 3D-TGC}&=(b,t,3,3,64,64,64). \end{align}\]

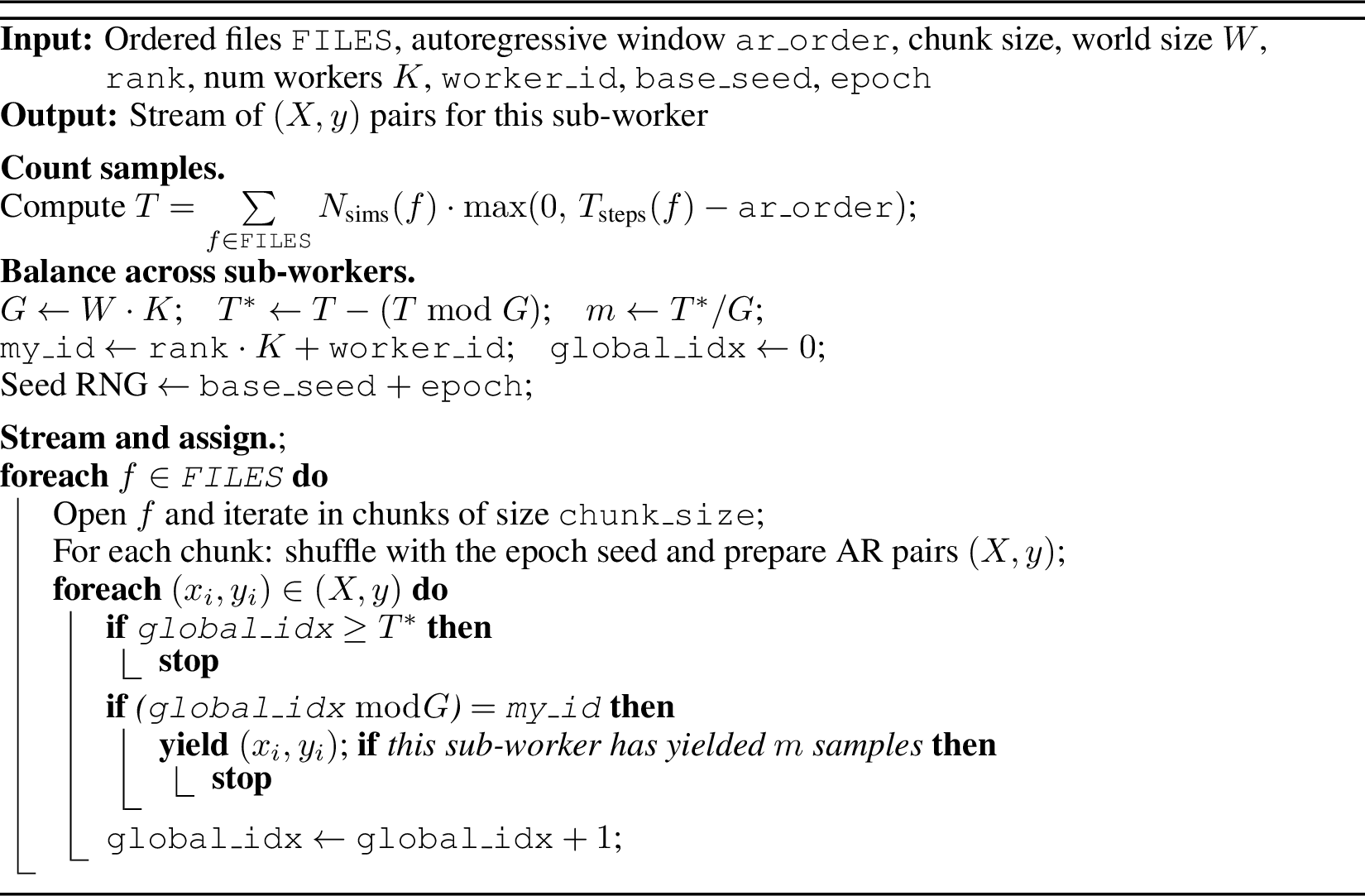

0.0.7.2.2 Custom data sharding logic.

We deploy six PyTorch DataLoader instances and use DistributedDataParallel (DDP) to shard data across ranks and workers while streaming. The data chunks are loaded from storage into RAM, locally shuffled, and converted into AR pairs. We first count the total number of autoregressive (AR) samples \(T\) across all HDF5 files, then balance the workload across \(W\) ranks and \(K\) DataLoader workers by setting \(G = W \cdot K\) and dropping any remainder so \(T^\ast\) is divisible by \(G\). Each sub-worker receives exactly \(m = T^\ast/G\) samples and is identified by \(\texttt{my\_id} = \texttt{rank}\cdot K + \texttt{worker\_id}\). As we stream the data in chunks, we maintain a running global index \(g\) for every candidate sample; a sub-worker processes a sample iff \(g \% G = \texttt{my\_id}\). We reseed the RNG each epoch with base_seed\(+\)epoch and only shuffle within each chunk before forming AR pairs, yielding a single-pass, low-memory pipeline with no duplicate samples and balanced work across all ranks and workers.

0.0.7.3 Pretraining settings

• Normalization: We adopt Reversible Instance Normalization (RevIN) [43]. For each dataset used in pretraining and fine-tuning, we compute and cache dataset-level normalization statistics (e.g., mean and standard deviation), and at evaluation time we invert the transformation by denormalizing model outputs with the same constants. This strategy eliminates the need to normalize every batch on-the-fly, thereby reducing computational overhead during pretraining, finetuning and inference.

• Data splits: Train/Val/Test: 0.8/0.1/0.1

• Balanced task sampling: For multi-dataset training, each dataset \(i\) is assigned a sampling weight inversely proportional to its number of trajectories \(N_i\), i.e., \(w_i \propto 1/N_i\), and the weights are normalized so that \(\sum_i w_i = 1\).

• Data pipeline: Custom chunked streaming with deterministic sharding across workers.

• Parallelization: Single-GPU, multi-GPU on a single node via DataParallel, and multi-node, multi-GPU via DistributedDataParallel.

• Training duration: Standalone and fine-tuned models are trained for approximately \(100\)–\(150\) true epochs. For foundation models, we pretrain for \(200\mathrm{K}\) gradient steps for the Ti and S configurations, and \(100\mathrm{K}\) steps for the M and \(125\mathrm{K}\) steps for the L variants.

• Batch size: Dataset heterogeneity necessitates dataset-specific batch sizes, implemented via per-dataset DataLoader. Accounting for our continuous data-streaming pipeline and targeting high GPU utilization on a \(2\times\) A100/A6000 setup, we use the following per-GPU batch sizes: \[\begin{align} \mathrm{\small 1D-CFD}&=128,\quad \mathrm{\small 2D-DR}=64,\quad \mathrm{\small 2D-CFD-IC}=16,\quad \mathrm{\small 2D-SW}=64\\ \mathrm{\small 3D-MHD}&=16,\; \mathrm{\small 3D-CFD}=4,\; \mathrm{\small 1D-DR}=384,\; \mathrm{\small 1D-BE}=384, \; \mathrm{\small 2D-FNS-KF}=64\\ \mathrm{\small 2D-CFD}&=8,\quad \mathrm{\small 2D-GSDR}=64,\quad \mathrm{\small 3D-CFD-Turb}=16,\quad \mathrm{\small 3D-TGC}=16. \end{align}\] When training with more than two GPUs or L model, we scale these per-GPU batch sizes by \(0.25\times\).

• Optimizer: We use AdamW [55] with a learning rate of \(10^{-3}\) and weight decay \(10^{-2}\). For standalone CFD datasets, we use \(10^{-4}\). The learning-rate schedule is ReduceLROnPlateau with a decay factor of \(0.5\) and a patience of \(5\) epochs, applied after a \(20\)-epoch warmup.

• Early stopping: We trigger early stopping if the validation loss fails to improve for more than \(10\) epochs. In practice, early stopping never activates when pretraining the foundation models.

0.0.7.4 Finetuning settings

0.0.7.4.1 MORPH Models

0.0.7.4.1.1 Hyperparameters.

We use the same normalization and effective batch size as above. Fine-tuning runs for 100–150 true epochs with early stopping, and the learning rate is scheduled with ReduceLROnPlateau. We optimize with AdamW. We use a single PyTorch DataLoader per dataset. We support both single- and multi-GPU training via DataParallel.

0.0.7.4.1.2 Fine-tuning levels.

MORPH supports four levels of fine-tuning (level-1 through level-4). Level-1 applies LoRA-based fine-tuning for the MORPH-FM-L model. We set the LoRA ranks on the linear layers in the axial-attention and MLP blocks via arguments. In level-2, we additionally unfreeze the encoder (convolutional, projection, and cross-attention layers). In level-3, we also unfreeze the decoder’s projection layer. Level-4 fine-tunes all parameters. For the Ti, S, and M models, we use level-4. For level-1 LoRA layers, we use a learning rate of \(1\mathrm{e}{-3}\) and weight decay \(0.0\). For level-4, we use a default learning rate of \(1\mathrm{e}{-4}\) and weight decay \(0.0\).

0.0.7.4.2 Existing SOTA Models

To contextualize MORPH against recent PDE foundation models, we fine-tune two Poseidon variants (Poseidon-T (21M) and Poseidon-B (158M) [9]) and two DPOT variants (DPOT-S (30M) and DPOT-M (122M) [46]). Results appear in the lowest block of Table 1 and in Table 3.

We use the official repositories: Poseidon camlab-ethz/poseidon at commit b8fa28f (retrieved 2025-08-01), and DPOT HaoZhongkai/DPOT at commit dcd2f9a (retrieved 2025-08-04), with default settings unless noted.

For single-step prediction, we initialize from the released pretrained weights and fine-tune for 100 epochs on the full training split before evaluating on the entire test split (Table 3). The full-shot setting in Table 1 evaluates single-step prediction \(t\!\rightarrow\! t{+}1\) given only the state at \(t\).

For the rollout experiment (Table 3), we fine-tune on the first 128 trajectories for 200 epochs and evaluate on the last 240 trajectories of the FNS-KF subset of PDEBench, reporting average MSE and RMSE over 20-step rollouts [7]. Throughout, all inputs are at \(128{\times}128\) spatial resolution per channel, and we apply the data normalization procedures specified by each repository.

0.0.7.4.2.1 DPOT.

DPOT is pretrained with a 10-step temporal context at \(128{\times}128\) resolution. To adapt DPOT for single-step \(t\!\rightarrow\! t{+}1\) prediction (Table 1), we follow the input-padding strategy analogous to [9], feeding 10 copies of the state at time \(t\) to satisfy the context window: \[[\underbrace{x_t,\ldots,x_t}_{10\;\text{copies}}] \longmapsto \widehat{x}_{t+1}.\] For rollouts (Table 3), when predicting early steps \(k{+}1\le 10\), we left-pad the available prefix \([x_0,\ldots,x_k]\) with \(x_0\) to length 10; e.g., to predict \(x_4\), \[[\text{ts}_0, \text{ts}_0, \text{ts}_0, \text{ts}_0, \text{ts}_0, \text{ts}_0, \text{ts}_0, \text{ts}_1, \text{ts}_2, \text{ts}_3] \longmapsto \widehat{\text{ts}}_4.\] For \(k{+}1>10\), DPOT consumes the most recent 10 ground-truth states during fine-tuning and the most recent 10 predicted states during rollout evaluation. We use DPOT’s repository defaults (AdamW with a One-Cycle learning-rate schedule; no input normalization), and fine-tune with base learning rate \(1\times10^{-3}\) and batch size 32.

0.0.7.4.2.2 Poseidon.

Poseidon takes a single input frame and a selectable \(\Delta t\) and predicts \(t{+}\Delta t\). For the single-step experiments (Table 1), we fine-tune Poseidon with \(\Delta t{=}1\) on all \(t\!\rightarrow\! t{+}1\) pairs in the training set. For full-trajectory prediction (Table 3), we adopt the repository’s default \(\Delta t\) fine-tuning schedule with max_num_time_steps \(=7\) and time_step_size \(=2\), which enables multi-step forecasting. Results shown for Poseidon in Table 3 are that of Poseidon’s direct (non-autoregressive) prediction, where the model directly predicts every time-step in the trajectory without feeding any predictions back into the model. 2D-CFD data in Table 1 is of (\(512\times512\)) resolution. To align with Poseidon’s pretrained weights, we downsample these images to \(128\times128\) with area averaging, run inference/training at \(128\times128\), then upsample back to (\(512\times512\)) with bilinear interpolation for evaluation against ground truth. All Poseidon models were fine-tuned with AdamW (LR \(1\times10^{-4}\)), batch size 40, cosine LR schedule, and gradient clipping (max grad norm \(=5.0\)).

0.0.8 Additional and Extended Results↩︎

0.0.8.1 Data and compute-scarce finetuning

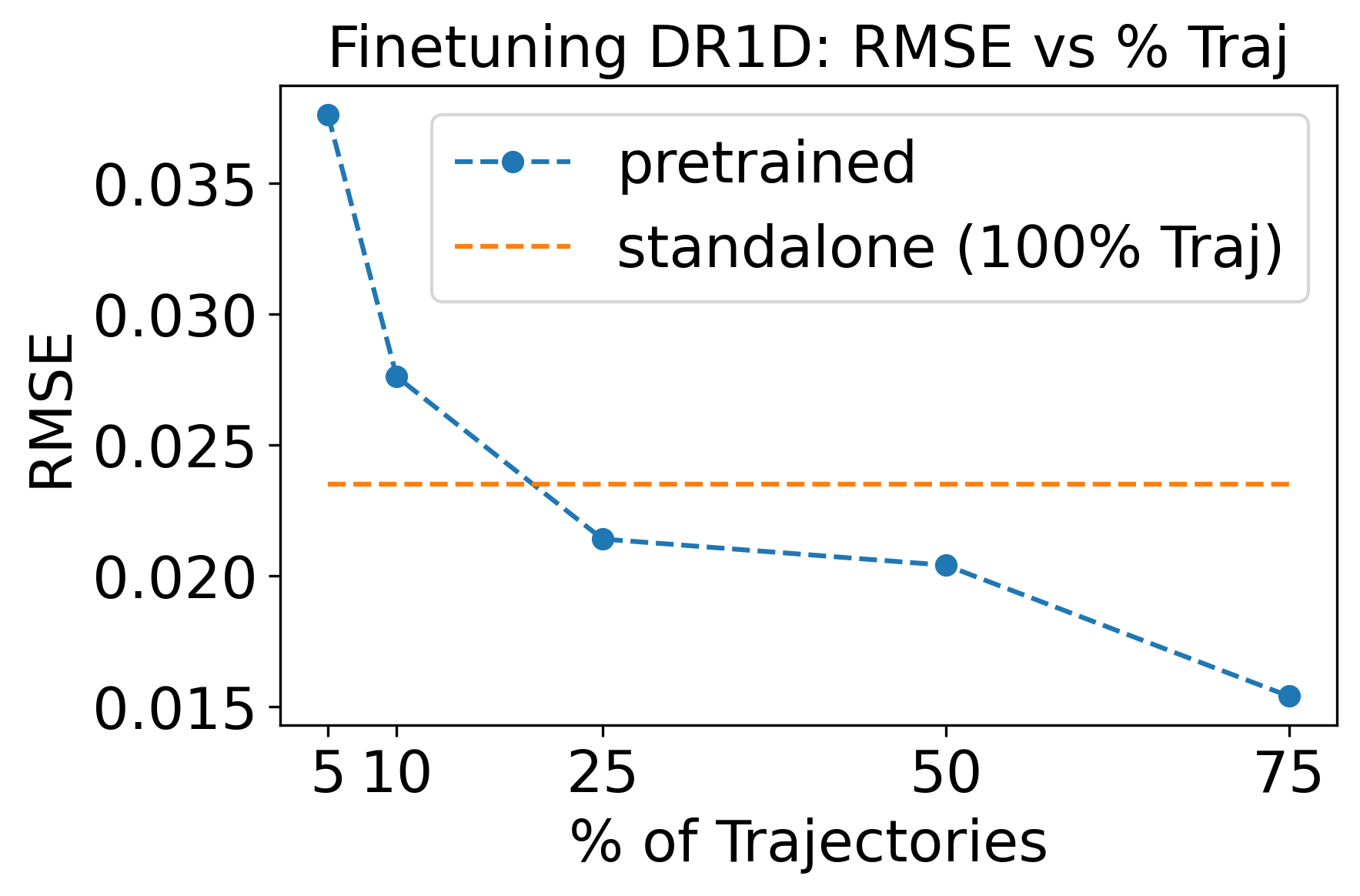

The data and compute-scarce fine-tuning results for MORPH-FM-Ti on the 1D-DR dataset as shown in Fig. 3. The Fig. 3 reports RMSE as a function of the percentage of fine-tuning trajectories for the 1D-DR prediction task. We compare against the standalone MORPH-SS-Ti model trained on the full set of trajectories. Notably, the pretrained model outperforms the standalone model even when fine-tuned with only 25% of the trajectories.

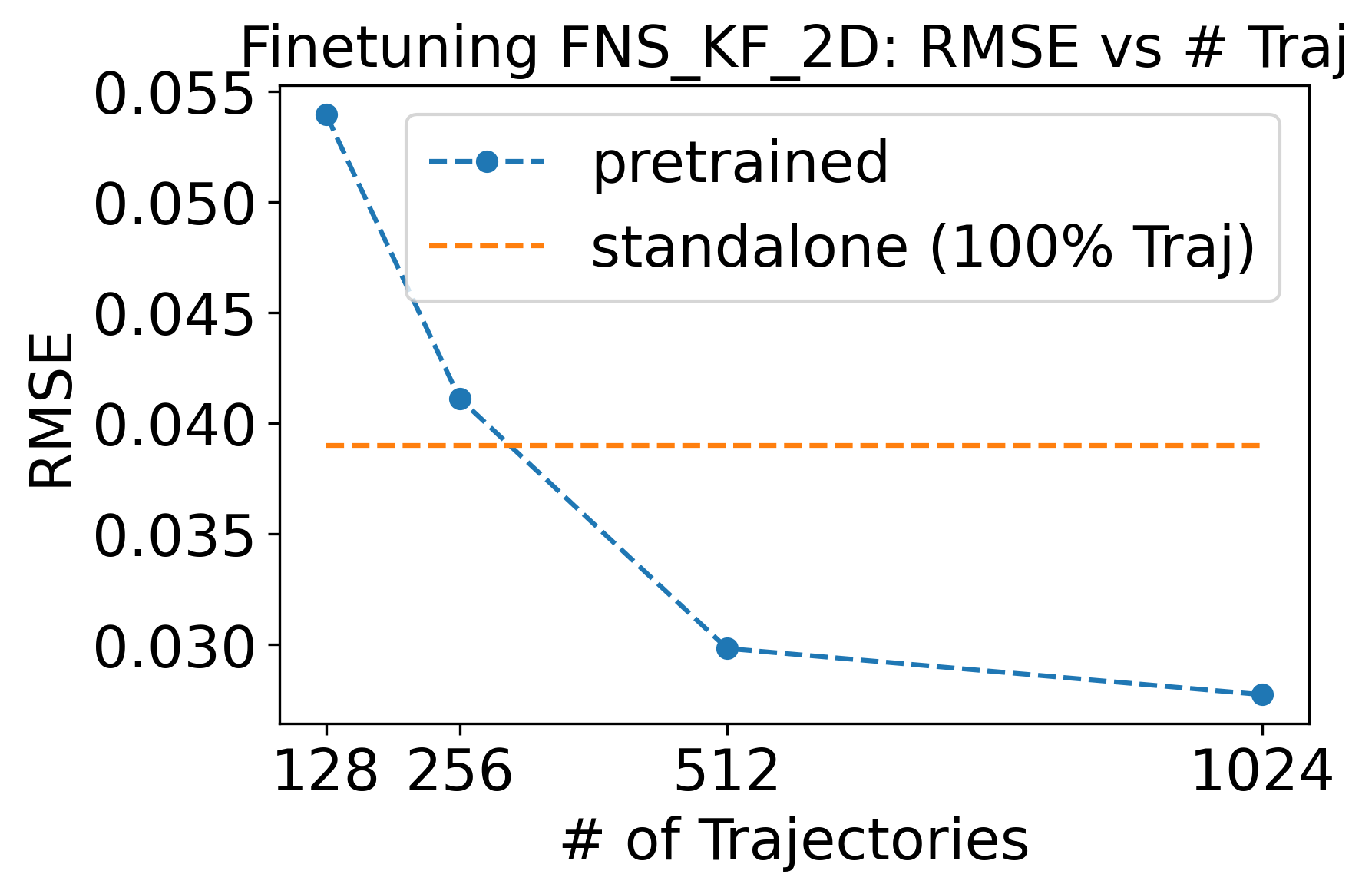

In Fig. 4, we conduct an additional data- and compute-scarce study by fine-tuning MORPH-FM-S on the 2D-FNS-KF dataset. We report RMSE as a function of the number of fine-tuning trajectories. With just \(\sim\) 256 trajectories (less than 1% of the full set) and only 100 fine-tuning epochs, the fine-tuned MORPH-FM-S already surpasses the standalone MORPH-SS-S trained on all trajectories.

We study data and compute-scarce finetuning ability of MORPH-FM-S against bigger parameter models like DPOT-FM-M and Poseidon-FM-B. MORPH-FM-S is a 0.25\(\times\) the size of DPOT-FM-M and 0.18\(\times\) the size of Poseidon-FM-B. We choose FNS-KF dataset for this and fine-tune DPOT-FM-M and Poseidon-FM-B with only 128 (\(< 1\%\)) finetuning trajectories for 200 epochs. We use the default batch-sizes and learning rates for DPOT-FM-M (i.e., BS = 16, LR = 1e-3) and Poseidon-FM-B (i.e., BS = 40, LR = 1e-4). We compare them against MORPH-FM-S with the same batch size and learning rate as Poseidon-FM-B.

0.0.8.2 Autoregressive rollouts

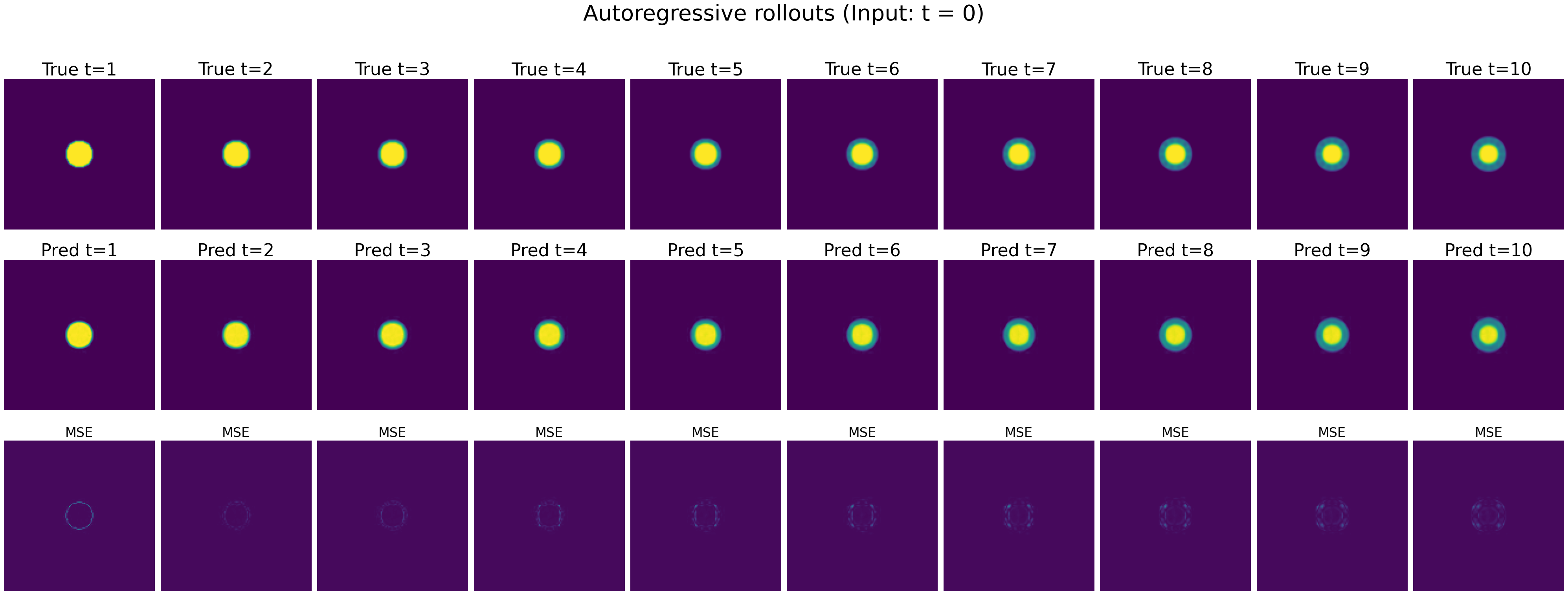

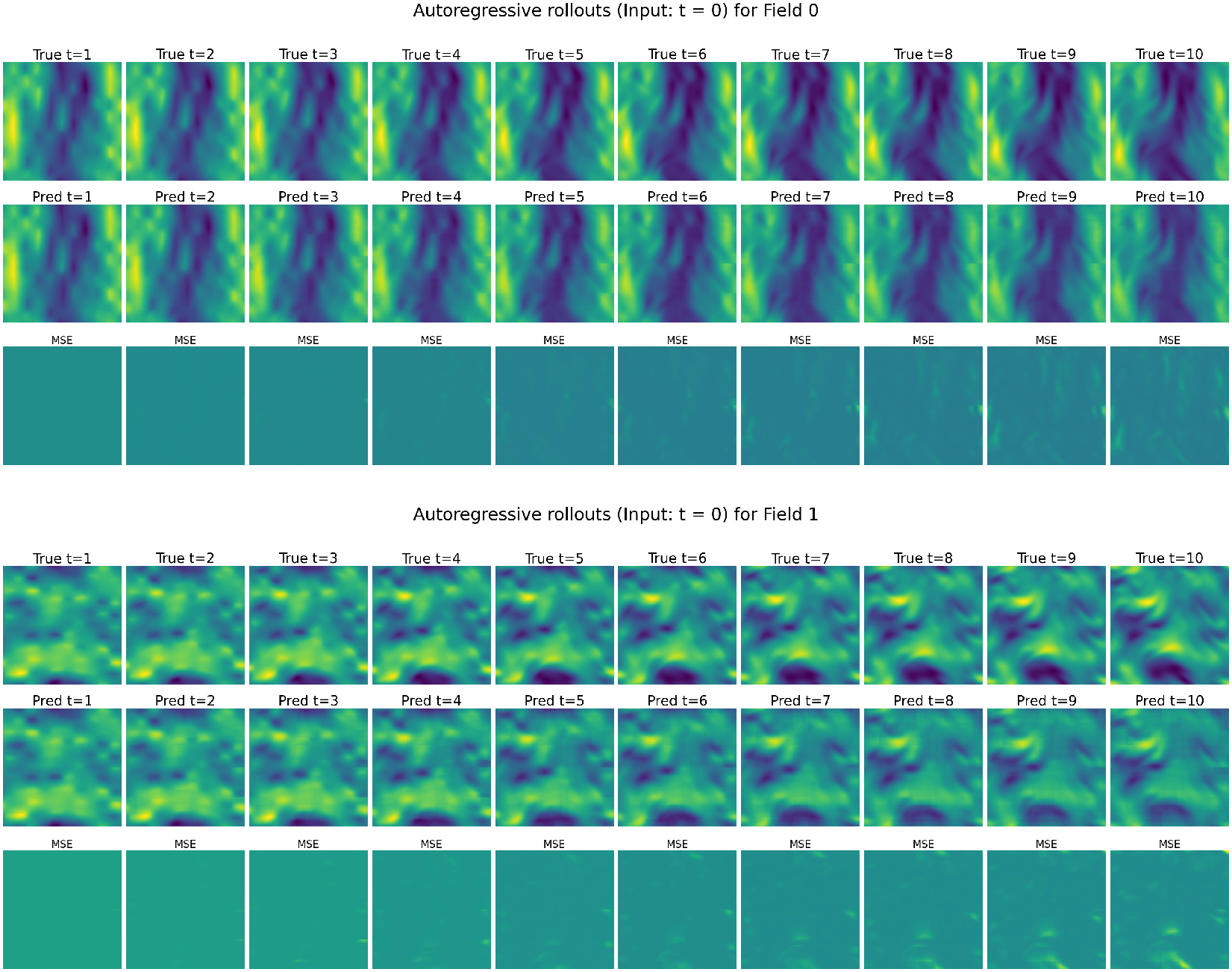

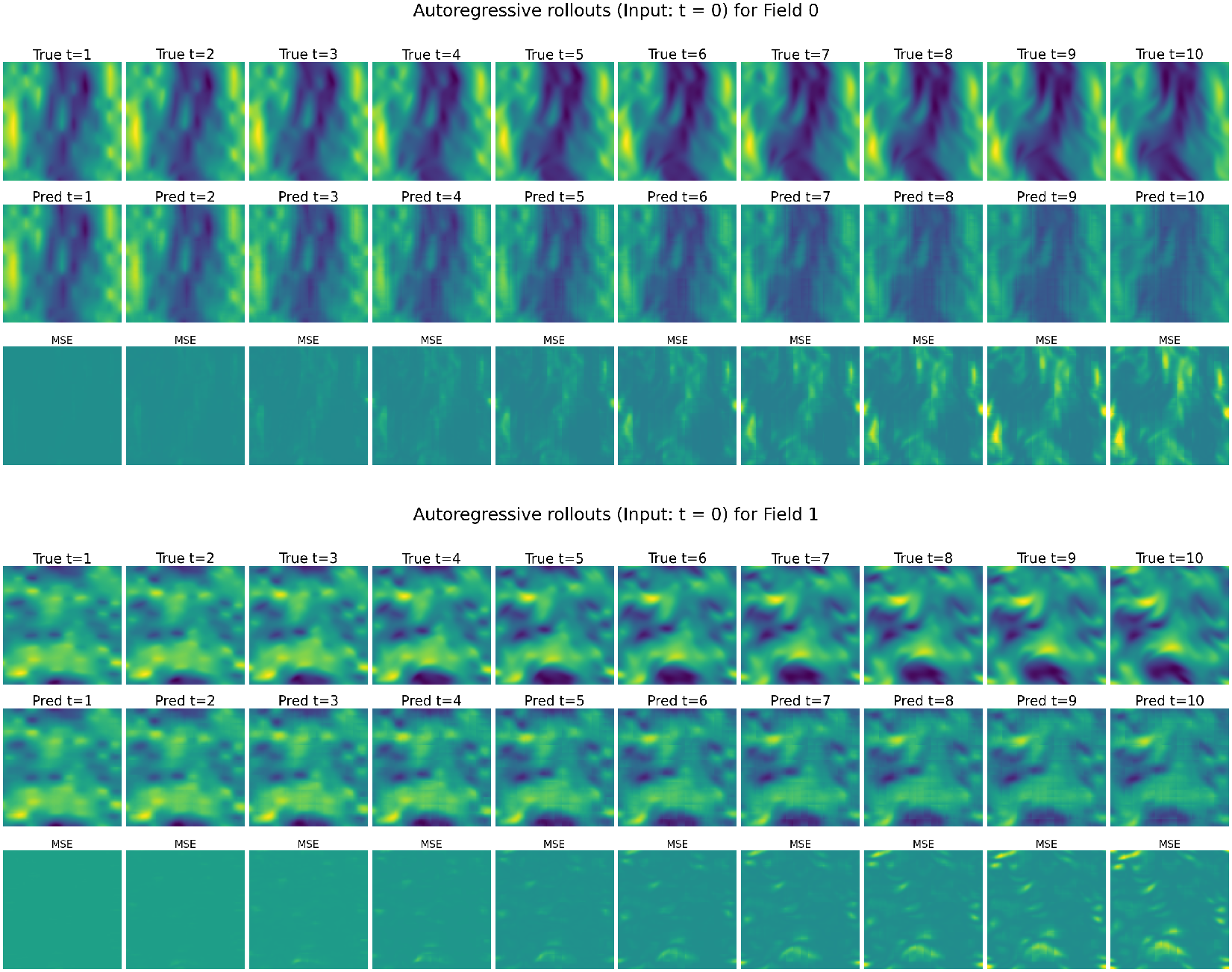

Figs. 5 and 6 show 10-step autoregressive rollouts for MORPH-SS-Ti and MORPH-SS-S on the Shallow Water Equations (SWE) dataset, using the \(t{=}0\) snapshot as input. Across the rollout horizon, MORPH-SS-S exhibits lower error than MORPH-SS-Ti, consistent with the NRMSE reported in Table 1. Both models produce stable multi-step forecasts, exhibiting limited error accumulation and no blow-up for the 10-step horizon.

Figs. 7 and 8 present 10-step autoregressive (AR) rollouts for MORPH-FM-Ti and MORPH-FM-S fine-tuned on the forced incompressible Navier–Stokes with Kolmogorov forcing (FNS-KF) dataset, initialized from the t=0 snapshot. Over the 10-step horizon, MORPH-FM-S achieves consistently lower error than MORPH-FM-Ti. Both models remain stable under rollouts with limited error accumulation and no concerning instability across the rollout.

References↩︎
