Introduction

As autoregressive generative models continue to scale and are increasingly deployed in real-world applications, the question of how Transformer models [1] function internally becomes pressing. Yet the inherent complexity of natural language hinders the ability to fully comprehend how these models make decisions and work internally. To address this challenge, many recent works have attempted to formulate synthetic frameworks that simplify the problem and enable theoretical analysis while still capturing the remarkable properties and phenomena observed in large language models, such as in-context learning [2]–[7]. Mechanistic interpretability [8] emerges as a line of research focused on reverse-engineering the complex computations performed inside a transformer in order to understand how a certain output is produced for a given input. This research has uncovered the formation of induction heads [8] i.e., interpretable circuits embedded within the transformer’s weights, capable of simple operations such as copying tokens. By examining such circuits and their combinations, one can understand the algorithms that transformers implement to solve a given task. For instance, [9]–[11] demonstrated that induction heads enable transformers to implement in-context bigrams for next-token predictions in Markov Chains. Such mechanisms are not limited to simplified models: [12] showed that transformers may rely on N-gram rules even in natural language processing. Yet the process by which transformers select between such learned rules remains poorly understood. While in-context learning studies how transformers solve tasks from demonstrations in the prompt, in-context selection focuses on how transformers select the most suitable approach to solve a given task from those encountered during training, using instances present in the context. For example, [4] examines how transformers perform in-context algorithm selection when pre-trained on mixtures of linear and logistic regression with different noise. Similarly, [13] studied the ability of transformers to perform model selection between different function class families. Our work takes another step toward understanding this selection process, leveraging Markov chains with different causal structures.

In-context causal structure selection.

Recently, Markov chains have been employed to formulate interesting sequence-to-sequence tasks that can be solved by transformers with interpretable solutions [9], [11], [14], [15]. In particular, [9] show that transformers trained on Markov Chain sequences learn circuits that capture the causal structure, i.e., the set of parent tokens for each token in the sequence and estimate transition probabilities in-context. The existing works relying on Markov chains fail to model the nuanced relationships typical of natural language. The same word pair can have different causal relationships depending on the surrounding context. While an effective model should recognize these contextual dependencies, previous research has overlooked this consideration by adopting fixed causal structures. To address this limitation, we propose a new synthetic task designed to mimic different causal dependencies (Sec. [sec:sec:task]). We consider Interleaved Markov Chains, with fixed transition probabilities between states but different underlying causal structures (Fig. 1), and theoretically study how 3-layer attention-only transformers learn to correctly predict the next token in a sequence.

Selective induction heads. To solve the task at hand—correctly predicting the next token in-context in a sequence generated within this setup (middle of Fig. 1)—transformers need to learn a circuit that adapts to the given context to select the correct causal structure among those seen during training. We call this circuit a selective induction head, as it differs fundamentally from the induction heads introduced so far in the literature, where the circuit learns either to copy a token from a certain position fixed by the unique structure of the data or by comparing its semantics. In our task, the transformer (with attention maps depicted in Fig. 1) needs to learn to aggregate all past information to determine from which past position the corresponding token should be copied in order to predict the next token.

A transformer construction for in-context selection. To understand and formalize the selective heads, we provide an interpretable construction of the self-attention layer weights in a 3-layer attention-only disentangled transformer [16] that implements this mechanism (Sec. [sec:sec:theoretical95transformer]). We empirically demonstrate that the constructed transformer matches the performance of both disentangled and standard transformers trained from scratch (Sec. [sec:sec:experiments]) and that 2-layer attention-only transformers cannot solve the task. Moreover, we observe that the attention maps of the trained and constructed transformers present the same patterns, further supporting the validity of our algorithm. Finally, we theoretically analyze the predictor implemented by this construction (Sec. [sec:sec:statistical95analysis]) showing that, in certain cases, it asymptotically converges to the maximum likelihood solution. Our findings provide valuable insights into the mechanisms by which transformers perform model selection.

Additional theoretical analyses, omitted proofs (App. [sec:sec:extended95statistical95analysis]), extra experiments (Apps. [sec:app:additional95plots], [sec:app:emp95val95claim], [sec:app:scaling95heads95layers]), and generalizations of our transformer construction (Apps. [sec:App:alternative95third], [sec:App:costr95any95order], [sec:App:two95orders95constr]) are deferred to the appendix.

-3.5ex 2.3ex

Related Work Following the initial empirical observations of the emergent in-context learning capabilities of transformers [2], several works have attempted to understand this phenomenon. [17] sought to formulate in-context learning as Bayesian inference, while [3] studied the ability of transformers to learn simple functions, such as linear models or multilayer perceptrons, in context. A subsequent line of work [4], [5], [18]–[20] shows that transformer layers might implement gradient descent to solve in-context linear regression. [21] extends this idea to higher-order algorithms. Importantly, [8] postulates that in-context learning is tied to the emergence of induction heads. [10], subsequently extended this idea, showing the development of induction heads to learn bigrams in-context and showcasing a connection with associative memories. More closely related to our work is the literature analyzing transformers through the lens of Markov chains. In particular, [9] shows how transformers trained on sequences generated by Markov chains on a graph learn simple circuits to capture the underlying causal structure and implement the Bayes-optimal solution by estimating transition probabilities in context. Similarly, [11] illustrate the formation of statistical induction heads that accurately compute posterior probabilities based on bigram statistics. [15] used Markov chains to study the loss landscape of transformers, while [22] show that a constant depth is sufficient to learn k-th order Markov chains. [23] demonstrate that transformers with hard or sparse attention can exactly represent any n-gram model. [24] highlights the limitations of transformers in learning HMMs compared to RNNs. [12] recently studied how rules formed out of simple N-gram statistics can approximate transformer predictions; however, the mechanism through which such rules are selected remains unexplained. On the problem of in-context selection, [25] demonstrates that a single transformer can adaptively select between different base algorithms—or even qualitatively different tasks like regression and classification—based on the context provided. Similarly, [13] studied the ability of transformers to perform model selection between different function class families.

-3.5ex 2.3ex

(Disentangled) Transformer Models

In the following we introduce the necessary background and notation about the models we use later.

Transformers. The architecture of decoder-only transformers is built on two fundamental components, the attention mechanism and the multi-layer perceptron (MLP). Given a finite alphabet \(\mathcal{S}\), transformers map an input sequence \(s = s_{1:T} =(s_1,\dots,s_T) \in \mathcal{S}^T\) to a sequence of vectors \(z=(z_1,\dots,z_T)\) where \(z_i \in \mathbb{R}^{d}\). Each element of the input sequence \(s_i\) is first encoded using its corresponding one-hot vector, \(e_{s_i} \in \{0, 1\}^{|\mathcal{S}|}\). These one-hot representations are then mapped to \(d\)-dimensional vectors via an embedding matrix \(E \in \mathbb{R}^{d \times |\mathcal{S}|}\). To incorporate positional information, a positional embedding matrix \(F \in \mathbb{R}^{d \times T}\) is added. With a slight abuse of notation, let \(e_i\) denote the \(i\)-th element of the canonical basis of \(\mathbb{R}^T\) such that each input element \(s_i\) is mapped to a vector \(x_i \in \mathbb{R}^d\) via \(x_i = E e_{s_i} + F e_i\). The information of the different tokens is then mixed by the causal self-attention heads: denoting the key, query and value matrices \(K, Q \in \mathbb{R}^{d \times d_{QK}}\), \(V \in \mathbb{R}^{d\times d}\), and given an input \(h \in \mathbb{R}^{d\times T}\), one gets \[\begin{align} &\text{Attn}(h; Q, K) \coloneq \mathcal{A}(h; Q, K) h^\top, \quad \textrm{with} \quad \mathcal{A}(h; Q, K) \coloneq \textrm{Softmax}\left(\mathcal{M}(h^\top Q K^\top h);\alpha\right), \end{align}\] where \(\textrm{Softmax}(v;\alpha)_i \coloneq \frac{\exp{(v_i/\alpha)}}{\sum_{j} \exp{(v_j/\alpha)}}\) is applied row-wise and \(\alpha > 0\) is a temperature parameter. In the following, we call \(A = QK^\top \in \mathbb{R}^{d\times d}\) the attention matrix, \(\mathcal{A} \in \mathbb{R}^{T \times T}\) the attention, and \(\textrm{Attn}:\mathbb{R}^{d\times T}\rightarrow \mathbb{R}^{d\times T}\) the attention layer. The causality of the self-attention is enforced by a mask \(\mathcal{M}\), to prevent the model from attending to future tokens i.e., \(\mathcal{M}(A)_{ij} = A_{ij}\) if \(i \geq j\), \(-\infty\) otherwise. For a model with \(L\) layers and \(\{H_l\}_{l \in [L]}\) attentions heads per layer, we denote by \(Q^{(l,h)}, K^{(l,h)}, V^{(l,h)}\) the attention parameters for the \(i\)-th head in the \(l\)-th layer, \(W_1^{(l)}, W_2^{(l)} \in \mathbb{R}^{d \times d_\textrm{FF}}\) the parameters of the MLP at layer \(l\), and \(W_O \in \mathbb{R}^{|\mathcal{S}| \times d}\) the parameters of the output linear layer. Then, with \(h^{(0)} = (x_1, \ldots, x_T) \in \mathbb{R}^{d \times T}\) as computed above, the decoder transformer \(\mathcal{T}(s_{1:T})\) can be written for \(l = 1,\dots,L\), as \[\tilde{h}^{(l)} = h^{(l-1)} + \sum_{h=1}^{H_{l}} \text{Attn}(h^{(l-1)}; Q^{(l,h)},K^{(l,h)})V^{(l,h)}, \quad h^{(l)} = \tilde{h}^{(l)} + W_2^{(l)} \sigma\left(W_1^{(l)\top}\tilde{h}^{(l)} \right)\] where the output is given by \(W_O h^{(L)} \in \mathbb{R}^{|\mathcal{S}|\times T}\).

Disentangled Transformers. To improve the interpretability of the operations implemented by the models, [16] propose a transformer architecture in which each layer’s output is concatenated, rather than added, to its input. This construction makes the residual stream explicitly disentangled, but increases the embedding dimension (constant for standard transformers) with depth. Additionally, in such disentangled transformers the MLP layers are removed, the attention heads are parameterized by a single matrix \(\tilde{A} \coloneq QK^\top \in \mathbb{R}^{d_\ell \times d_\ell}\), and the value matrices are absorbed into the output layer \(\widetilde{W}_O\). Both the token and positional embedding are one-hot encoding, i.e., \(E\) and \(F\) are identity matrices, and we encode the input \(s_i\) as \([e_{s_i}, e_i]\) via concatenation rather than addition. Altogether, the disentangled transformer \(\widetilde{\mathcal{T}}(s_{1:T})\) is formalized for \(l = 1,\dots,L\) as \[\begin{align} &\hat{h}^{(l,h)} = \text{Attn}(h^{(l-1)}; \tilde{A}^{(l,h)}) \quad \text{for} \quad h = 1,\dots, H_l, \quad \text{and} \quad {h}^{(l)} = [h^{(l-1)}, \hat{h}^{(l, 1)}, \ldots, \hat{h}^{(l, H_l)}], \end{align}\] where the output is \(\widetilde{W}_O h^{(L)}\). Due to the concatenation, the embedding dimension grows over layers as \(d_l = (1 + H_l) \cdot d_{l-1}\) with \(d_0 = |\mathcal{S}| + T\). Importantly, [9] demonstrate that disentangled transformers are equivalent to standard transformers using only attention layers.

-3.5ex 2.3ex

Markov Chains and Causal Structure Selection

To address the limitations of existing synthetic settings based on Markov chains and better capture the complexity of natural language, we propose a novel framework. In this framework, the model must learn to select the correct causal structure in-context in order to solve the task and generate the input sequence. In the following, we describe this task in detail and outline its solution.

Interleaved Markov Chains. The framework consists of sequences of length \(T\) on a finite alphabet of tokens \(\mathcal{S}\), generated by \(K\) distinct sources. Let \(\mathcal{U} = \{U_1, \dots, U_K\}\) be the set of sources and \(\mathcal{K} = \{k_1,\dots, k_K \}\) a set of positive integers; each source \(U_j\) consists of \(k_j\) interleaved and identical irreducible aperiodic Markov chains [26], [27]. All the sources are defined by the same transition matrix \(P^\star \in \mathcal{P}^{|\mathcal{S}| \times |\mathcal{S}|}\), where \(\mathcal{P}\) is the set of row-stochastic matrices. This model is equivalent to a time-homogeneous Markov chain \((X^{(j)}_t)_{t \geq 0}\) of order \(k_j\) , whose transition probabilities depend only on a single state \(k_j\) steps back: \[\mathbb{P}(X_{t} = s_{t} \mid X_{t-1} = s_{t-1}, \dots, X_{1} = s_{1}) = \mathbb{P}(X_{t} = s_{t} \mid X_{t-k_j} = s_{t-k_j}) = s_{t-k_j}^\top P^\star s_{t} \, .\] Here, we call \(k_j \in \mathcal{K}\) the lag parameter, as defined by [28], where \(\mathcal{K} \subseteq \llbracket 1,T \rrbracket\) is the set of possible lags. The lag, represented by the edges in Fig. 1, encodes the causal structure by explicitly representing the causal relationship between the variables in the Markov chain.

Data. Given \(P^\star\) and \(\mathcal{K}\), a lag is uniformly sampled from \(\mathcal{K}\) for each sequence. Denoting the maximum lag by \(\hat{k} = \max(\mathcal{K})\), the first \(\hat{k}\) elements of each sequence are sampled from the stationary distribution \(\pi\) of \(P^\star\), ensuring a constant number of independent variables for all sources. The likelihood of a sequence of lag \(k\) is \(\mathbb{P}(X_1, \dots, X_T \mid k) = \prod_{i=1}^{\hat{k}} \pi(X_i) \prod_{j = \hat{k}+1}^T \mathbb{P}(X_j \mid X_{j-k}).\)

Task. In this setting, the task is to predict the next state \(s_{T+1}\) given an input sequence \(s_{1:T}\) generated from one of the sources, sampled at random. However, the identity of the source, and therefore the lag, is unknown. This task amounts to solving the following minimization problem: \[f^\star = \inf_f \, \mathbb{E}_{\substack{k \sim \text{Unif}[1, \dots, \hat{k}] \\ (X_{1:T}) \sim \mathbb{P}(X_1, \dots, X_T \mid k)}} \mathcal{D}_{KL} \left( \mathbb{P}(X_{T+1} \mid X_{T-k+1}) \, \middle\lVert \, f(X_1, \dots, X_T) \right) \, , \label{eqn:task95min95problem}\tag{1}\] where \(\mathcal{D}_{KL}\) is the Kullback–Leibler divergence. Eq. eq. ¿eq:eqn:task95min95problem? admits a closed form solution which is the Bayesian model average (BMA), defined as the average of the transition probabilities for each lag, weighted by their posterior probabilities: \[\mathbb{P}(X_{T+1} \mid X_{1:T}) = \sum_{k \in \mathcal{K}} w_k(X_{1:T}) \mathbb{P}(X_{T+1} \mid X_{T-k+1}) \; \text{with} \; w_k(X_{1:T}) = \frac{\mathbb{P}(X_{1:T} \mid k ) \mathbb{P}(k)}{ \sum_{j \in \mathcal{K}} \mathbb{P}(X_{1:T} \mid j) \mathbb{P}(j)} \, .\] Asymptotically, the posterior distribution concentrates around the maximum likelihood estimate (MLE) [29]. Let \(k^*\) be the lag that maximizes the likelihood for a sequence \((s_1, \dots, s_T)\), i.e., \(k^* = \mathop{\rm arg\,max}_{k \in \mathcal{K}}\, \mathbb{P}(X_1 = s_1, \dots, X_T = s_T \mid k)\). As \(T \to \infty\), the posterior probability \(w_k\) converges to 1 for \(k^*\) and to 0 for the other lags, i.e., \(w_k \to \mathbb{1}[k = k^*]\) where \(\mathbb{1}\) is the indicator function. Then, BMA reduces to selecting the lag with the highest likelihood: \[\mathbb{Q}(X_{T+1} \mid X_1, \dots, X_T) = \sum_{k \in \mathcal{K}} \mathbb{1}[k = k^*] \mathbb{P}(X_{T+1} \mid X_{T-k+1}) \, . \label{eqn:MLE}\tag{2}\] It is important to note that an interleaved Markov chain of lag \(k\) is mathematically equivalent to a \(k\)-th order Markov chain with a specific transition structure. Thus, given a set of orders \(\mathcal{K}\) and a sequence generated according to one such order, one could theoretically solve the task by learning in-context the corresponding \((\hat{k}+1)\)-gram transition probabilities [9], [11]. However, such an approach fails to leverage the low-dimensional structure of the problem, resulting in a suboptimal sample complexity of \(\mathcal{O}(|\mathcal{S}|^{\hat{k}+1})\).

-3.5ex 2.3ex

How Can Transformer Do In-Context Selection?

We now want to understand which algorithm transformers learn during training. We focus on disentangled transformers as defined in Sec. [sec:sec:models], which allow for a more interpretable analysis of the model internal computations. The following proposition, which is the main result of the paper, shows how a disentangled transformer can implement a predictor to solve the in-context selection task.

The predictor implemented by the transformer in Eq. eq. 1 resembles BMA but differs in how it aggregates past information. Instead of using the posterior of each model as in BMA, our method employs weights proportional to the exponential of the average of normalized transition probabilities. We analyze this predictor in Sec. [sec:sec:statistical95analysis], and discuss its convergence to ML. Proposition ?? illustrates how transformers can implement selective induction heads, a mechanism that adapts to the input sequence by copying the token correspondent to the lag that maximizes the average normalized transition probabilities.

The proof of Proposition 1, in Sec. [sec:sec:proof95contiguous95orders] below, involves an explicit construction for the weights of the disentangled transformer implementing the solution in Eq. eq. 1 (an alternative construction for the third layer is in App. [sec:App:alternative95third]). Notably, this construction produces attention maps similar to those in standard transformers (see Fig. 1), suggesting our algorithm closely aligns with trained transformer implementations. Moreover, we discuss in Sec. [sec:sec:single-head] different generalizations, including the construction for non-contiguous lags. The same construction using a single head implements the same algorithm but results in worse sample complexity. However, in the specific case where \(|\mathcal{K}|=2\), we provide a different single-head construction that recovers the sample complexity of the multi-head version.

-3.25ex 1.5ex

Proof of Proposition 1: Construction for Contiguous Lags

To aid intuition, we use a running example with visual illustrations for \(T = 10\), \(\mathcal{K} = \{1, 2, 3\}\). We recall that each input element \(s_i\) is encoded as \(h^{(0)}_i = [e_{s_i}, e_i] \in \{0, 1\}^{|\mathcal{S}| + T}\).

First layer: extraction of transition probabilities. The first attention matrix, \(\tilde{A}^{(1)}\), consists of two blocks: the first block operates on the semantic component of the input tokens, learning the transpose of the logarithm of the transition matrix¹. The second block \(A^{(1)}\) learns the causal relationships induced by each possible lag \(s_{i-k} \to s_i\) for \(k \in \mathcal{K}\): \[\begin{align} \begin{aligned} &\widetilde{A}^{(1)} = \begin{pNiceMatrix}[margin, cell-space-limits=1pt] \Block[fill=mgold!80,rounded-corners]{1-1}{}\log P^{\star \top} & 0 \\ 0 & \Block[fill=mlightblue!40,rounded-corners]{1-1}{}A^{(1)} \end{pNiceMatrix} \\ &A^{(1)}_{ij} = \begin{cases} + \lambda \quad \text{if} \quad i-j \in \mathcal{K} \\ - \lambda \quad \text{if} \quad i-j \not\in \mathcal{K} \, . \end{cases} \end{aligned} \begin{adjustbox}{angle=0,origin=c,scale=1} \qquad A^{(1)} = \end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=0.58} \;\; \begin{pNiceMatrix}[name=Aone] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox} \end{align}\] We can compute the first layer’s attention as: \[[e_{s_i},e_i]^\top \tilde{A}^{(1)} [e_{s_j},e_j] = (\log P)_{s_j,s_i} + \lambda \text{sign}(A^{(1)}_{ij})\] and applying the softmax: \[\mathcal{A}^{(1)}(h^{(0)}_{1:T};\tilde{A}^{(1)})_{ij} = \frac{e^{(\log P)_{s_j,s_i} + \lambda \text{sign}(A^{(1)}_{i,j})}}{\sum_{r=1}^i e^{(\log P)_{s_r,s_i} + \lambda \text{sign}(A^{(1)}_{i,r})}} = \frac{e^{(\log P)_{s_j,s_i} + \lambda \text{sign}(A^{(1)}_{ij})}}{\sum_{r \in \mathcal{K}} e^{(\log P)_{s_r,s_i} + \lambda} + \sum_{r \not\in \mathcal{K}} e^{(\log P)_{s_r,s_i} - \lambda}} \, .\] For \(\lambda \to \infty\) (in practice, for \(\lambda\) large enough) and having denoted \(\tilde{p}_{i,k} \coloneq \frac{ P_{s_{i-k},s_i}}{ \sum_{r \in \mathcal{K}, r < i } P_{s_{i-r},s_i}}\) for \(i>1\), \[\lim_{\lambda \to \infty } \mathcal{A}^{(1)}(h^{(0)}_{1:T};\tilde{A}^{(1)})_{ij} = \left\{ \begin{array}{cl} \tilde{p}_{i,i-j} & \text{if} \; i-j \in \mathcal{K} \\ 1 & \text{if} \; i=j=1 \\ 0 & \text{elsewhere} \end{array}. \right.\] Therefore, the output at index \(i\) after the first layer corresponds to a weighted average of the past tokens \(h^{(0)}_{i-k}\) for \(k \in \mathcal{K}\) where the weights are given by the normalized probabilities \(\tilde{p}_{i,k}\): \[\hat{h}^{(1)}_i=\text{Attn}(h^{(0)}_{1:T};\tilde{A}^{(1)})_i = \left\{ \begin{array}{cl}\sum_{j=1}^i \mathbb{1}\left[i-j \in \mathcal{K} \right] \frac{ P_{s_j,s_i}}{ \sum_{r \in \mathcal{K}} P_{s_r,s_i}} h^{(0)}_j & \text{if} \; i>1 \\ h_1^{(0)} & \text{if} \; i=1 \end{array} \right. = \left\{ \begin{array}{cl} \sum\limits_{k \in \mathcal{K}, k < i} \tilde{p}_{i,k} h^{(0)}_{i-k} & \text{if} \; i>1 \\ h_1^{(0)} & \text{if} \; i=1 \end{array} \right.\] With the input vectors \(h^{(0)}_i\) being the concatenation of the one-hot encoding of the state and position \([e_{s_i},e_i]\), the first \(|\mathcal{S}|\) entries of \(\hat{h}^{(1)}_i\) correspond to \(\tilde{s}_i = \sum_{k \in \mathcal{K}, k < i } \tilde{p}_{i,k} e_{s_{i-k}}\) for \(i>1\) and \(\tilde{s}_1 = e_{s_1}\). The remaining entries, due to the one-hot positional encoding, directly copy the normalized transition probabilities for the transition \(s_{i-k} \to s_i\) into the \(|\mathcal{S}|+ (i-k)\)-th element of \(\hat{h}^{(1)}_i\). To build intuition, we refer to the example in Eq. eq. ¿eq:eqn:attn951? where the colors highlight transition probabilities of the same lag: \[\mathcal{A}^{(1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \begin{pNiceMatrix}[name=calAone] \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{3,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{2,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} & \textcolor{gray!90}{0}\\ \end{pNiceMatrix}\end{adjustbox} \; \hat{h}^{(1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \begin{pNiceMatrix}[name=hathOne] \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_1 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_2 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_3 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_4 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_5 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_6& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_7& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_8& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_9& \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_{10}\\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{3,2} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{3,1} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,2} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,2} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,2} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,2} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} \\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \end{pNiceMatrix}\end{adjustbox}\label{eqn:attn951}\tag{3}\] The operation of the first layer is now explicit: for each token \(h^{(0)}_i\), it extracts the normalized transition probabilities \(\tilde{p}_{i,k}\) for each possible lag and stores them in the element \(\hat{h}^{(1)}_{i,S+T-k}\). The resulting vector is subsequently concatenated to the residual stream to be fed to the second layer \(h^{(1)}_i = [[e_{s_i},e_i],\hat{h}^{(1)}_i]\).

Second layer: aggregation of transition probabilities. To predict the next token, the model needs to determine which lag generated the sequence based on the past transitions. This selection requires aggregating the normalized transition probabilities from the past, and storing them in the embedding of the current token. However, since consecutive tokens store transition probabilities in overlapping positions, the attention needs to learn a convex combination of tokens that avoid mixing information from different transitions while maximizing the number of \(\tilde{p}\) stored (to not discard useful information). For instance, when aggregating the past for the token at \(i=10\) in Eq. eq. ¿eq:eqn:attn951?, summing \(\hat{h}^{(1)}_9\) and \(\hat{h}^{(1)}_{10}\) would mix \(\tilde{p}_{10,2}\) and \(\tilde{p}_{9,1}\) together. This mixing can be avoided, for example, by only selecting tokens every 3 steps (\(\hat{h}^{(1)}_4,\hat{h}^{(1)}_7,\hat{h}^{(1)}_{10}\)) copying transitions without blending information. More generally, the attention \(\mathcal{A}^{(2, 1)}\) should attend to every \(K\)-th token from the current one, which is equivalent to having non-zero entries along the diagonals at positions \(nK\) for \(n \in \mathbb{N}\) and \(nK < T\). This structure can be enforced by constructing the attention matrix \(\tilde{A}^{(2,1)}\) with a single non-zero block operating on the tokens’ positional encoding, as follows: \[\begin{align} \tilde{A}^{(2,1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix}[margin] 0 & 0 & \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} \\ 0 &\Block[fill=mred!40,rounded-corners]{1-1}{}A^{(2,1)} & \\ \Block[borders={top,right,tikz={dashed}}]{2-2}{0} & & \Block[]{2-2}{0} \\ & & & \\ \end{pNiceMatrix}\end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=1} \, A^{(2, 1)}= \end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=0.6} \begin{pNiceMatrix}[name=Atwoone] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox} \, \mathcal{A}^{(2, 1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \begin{pNiceMatrix}[name=calATwoOne] \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{2}} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{2}} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{2}} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{2}} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{2}} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{2}} & \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTranskk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{3}} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTranskk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{3}} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mredTranskk,rounded-corners]{1-1}{}\scalebox{0.8}{\frac{1}{3}} \\ \end{pNiceMatrix}\end{adjustbox} \end{align}\] where the first \(\hat{k}\) rows and columns are empty because the first \(\hat{k}\) elements of the sequence are sampled independently from the stationary distribution and therefore not informative.

This construction resolves the issue of overlapping transitions, but copying only a subset of tokens implies losing information from the excluded \(\hat{h}_i\). Introducing additional attention heads \(\tilde{A}^{(2, 2)}, \ldots, \tilde{A}^{(2, H_2)}\) with the same form as \(\tilde{A}^{(2, 1)}\) above overcomes this limitation. The resulting attentions \(\mathcal{A}^{(2, 2)}, \ldots \mathcal{A}^{(2, H_2)}\) still follow a diagonal structure as \(\mathcal{A}^{(2, 1)}\) to avoid overlapping transitions, but they are shifted to copy different tokens. For the given example, we can design \(A^{(2,2)}\) as in Eq. eq. ¿eq:eqn:A95295sum? to attend \(\hat{h}^{(1)}_9\) and \(\hat{h}^{(1)}_6\), and similarly, construct \(A^{(2,3)}\) for \(\hat{h}^{(1)}_8\) and \(\hat{h}^{(1)}_5\) when computing the output at \(i=10\). \[A^{(2, 2)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \;\; \begin{pNiceMatrix}[name=Atwotwo] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox} \qquad A^{(2, 3)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \;\; \begin{pNiceMatrix}[name=Atwothree] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgoldTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgoldTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgoldTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgoldTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgoldTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgoldTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgoldTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox} \label{eqn:A95295sum}\tag{4}\] Each head has a diagonal structure with non-zero entries along the diagonals at position \(nK+h-1\) for \(n \geq0\) and \(h \in \{1,\dots,H_2\}\), the attention matrices can be formalized as: \[A_{ij}^{(2,h)} = \lambda \begin{cases} +1, & \text{if } i \geq j > \hat{k} \text{ and } (i - j) \mod K = h - 1 \\ -1, & \text{otherwise}, \end{cases}\] where the condition \(i \geq j \geq \hat{k}\) ensures that all entries in the first \(\hat{k}\) rows and columns are set to \(-\lambda\) and imposes a lower triangular structure due to causal masking. The modulo operation instead assigns each diagonal multiple of \(K\) to \(+\lambda\) (allowing attention) and the remaining diagonals to \(-\lambda\) (masking attention), while \(h\) determines the shift of the the first positive diagonal to ensure the heads do not overlap. The output of each head in the second layer is given by computing: \[[[e_{s_i},e_i],\hat{h}^{(1)}_i]^\top \tilde{A}^{(2,h)} [[e_{s_j},e_j],\hat{h}^{(1)}_j] \, = \, A^{(2,h)}_{i,j} \, = \, \lambda \text{sign}(A^{(2,h)}_{i,j}) \, ,\] and applying softmax and in the limit as \(\lambda \to \infty\), the rows of the attention become uniform for positive entries and zero otherwise: \[\mathcal{A}^{(2,h)}_{ij} = \textrm{Softmax}(A^{(2, h)})_{ij} = \frac{\mathbb{1}\left[ A^{(2,h)}_{ij} = \lambda \right]}{\sum_{m=1}^{i}\mathbb{1}\left[ A^{(2,h)}_{im} = \lambda \right]} \, .\] The output \(\hat{h}_i^{(2, h)}\) of each head is then concatenated into the residual stream. Fig. 2 shows the output for the \(10\)th token² for each attention head \(\hat{h}^{(2,1)}_{10},\hat{h}^{(2,2)}_{10}\) and \(\hat{h}^{(2,3)}_{10}\) to visualize the mechanism of the second layer. The arrows of different colors represent how each head aggregates transition probabilities by attending to non-overlapping past tokens and averaging them with uniform weights. When concatenating the output of the different heads \(h^{(2)}_i = [h^{(0)}_i,\hat{h}^{(1)}_i,\hat{h}^{(2,1)}_i,\dots,\hat{h}^{(2,H_2)}_i]\), we can see how the \(10\)th token stores the transition probabilities of its entire past for each lag.

Third layer: average of transition probabilities and lag selection. To build some intuition, suppose the current token is at position \(i=10\), and we are predicting the token in the sequence. Given a set of possible lags \(\{1, 2, 3\}\), the third attention mechanism must concentrate around one of the tokens at positions \(8\), \(9\), or \(10\). This ensures that transitions for all possible lags are considered: If the sequence was generated from the source of lag 1, the token at position \(10\) needs to be copied to predict the transition probabilities for the token. For lag \(2\), the token at position \(9\) is copied, and so on. To determine the correct lag based on the sequence’s history, our construction relies on the sum of past transitions up to the current token, \(\sum_{j<i} \tilde{p}_{j,k}\). Therefore, the third attention is constructed such that the entries corresponding to the transitions of possible lags are proportional to the respective cumulative sums. For example, to select which token among the ones in position \(8,9,10\) should be copied to predict \(11\), the third attention must be such that \(\mathcal{A}^{(3)}_{10,10}\) is proportional exclusively to the sum of transitions of lag 1, i.e., \(\sum_{j\leq10} \tilde{p}_{j,1}\) while \(\mathcal{A}^{(3)}_{10,9}\) is exclusively proportional to \(\sum_{j\leq10} \tilde{p}_{j,2}\) and \(\mathcal{A}^{(3)}_{10,8} \propto \sum_{j\leq10} \tilde{p}_{j,3}\). Then, in the limit of the softmax converging to the hardmax, the attention collapses to the entry corresponding to the larger sum and selects the correspondent lag by copying the associated token. More generally, for this to apply to all rows, the third attention matrix must be constructed such that \(\mathcal{A}^{(3)}_{i,i} \propto \sum_{j\leq i} \tilde{p}_{j,1}\), while \(\mathcal{A}^{(3)}_{i,i-1} \propto \sum_{j \leq i} \tilde{p}_{j,2}\), and \(\mathcal{A}^{(3)}_{i,i-2}\) to \(\sum_{j\leq i} \tilde{p}_{j,3}\), with all remaining entries set to zero.

This selection mechanism is implemented through the combination of multiple blocks within the third attention matrix, \(\tilde{A}^{(3)}\), which acts on the concatenated tokens \(h^{(2)}_i = [h^{(0)}_i,\hat{h}^{(1)}_i,\hat{h}^{(2,1)}_i,\dots,\hat{h}^{(2,H_2)}_i]\) and is structured as follows: \[\begin{align} \tilde{A}^{(3)} &= \begin{adjustbox}{angle=0,origin=c,scale=0.49} \begin{pNiceMatrix} & \Block[fill=mpale!80,rounded-corners]{2-2}{} 0 & 0 & \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0}&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} \\ & 0 & A^{(3)}&&&&&&&&&&&&&&&\\ & \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={top,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0}\\ &&&&&&&&&&&&&&&& \\ &\Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={right,bottom,top,left,tikz={line width=1pt}}]{4-4}{} \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={top,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0}\\ &&&&&&&&&&&&&&&& \\ &\Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[fill=teal!40,rounded-corners]{2-2}{} 0 & 0 & \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0}\\ &&&&&0&B^{(3)}&&&&&&&&\\ &\Block[borders={top,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={left,top,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={top,bottom,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ddots} &&&& \Block[borders={bottom,left,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={bottom,left,tikz={dashed}}]{2-2}{\vdots}\\ &&&&&&&&&&&&&&&& \\ &\Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={right,bottom,top,left,tikz={line width=1pt}}]{4-4}{} \Block[borders={left,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0}\\ &&&&&&&&&&&&&&&& \\ & \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[fill=teal!40,rounded-corners]{2-2}{} 0 & 0 & \Block[borders={left,top,tikz={dashed}}]{2-2}{0}\\ &&&&&&&&&&&&&0&B^{(3)}&&\\ \end{pNiceMatrix}\end{adjustbox} \;\; A^{(3)} = \begin{adjustbox}{angle=0,origin=c,scale=0.47}\begin{pNiceMatrix}[name=AThree] \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox} \;\; B^{(3)} = \beta \begin{adjustbox}{angle=0,origin=c,scale=0.47} \begin{pNiceMatrix}[name=BOne] \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \end{pNiceMatrix}\end{adjustbox} \end{align}\] with the general formulation of the two matrices \(A^{(3)}\) and \(B^{(3)}\) given by: \[\begin{align} A^{(3)}_{ij} = \lambda \begin{cases} +1 & \text{if } i-j+1 \in \mathcal{K} \\ -1 & \text{if } i-j+1 \not\in \mathcal{K} \\ \end{cases}, \qquad B^{(3)}_{ij} = \beta \begin{cases} +1, & \text{if } \;(i-j) \mod K = K-1\\ 0, & \text{otherwise} \, . \end{cases} \end{align}\] The matrix \(A^{(3)}\) acts on the positional embedding of the input, similarly to the matrix \(A^{(1)}\) in the first layer. The difference is that the position of the diagonals is now shifted by one. This shift ensures that the only non-zero entries after softmax are the ones on the diagonals corresponding to \(k-1\) for \(k \in \mathcal{K}\). The matrix \(B^{(3)}\) is instead responsible for the sum of the normalized transitions. Each block operates on the output of a corresponding head in the second layer. To understand how, consider the following tokens in output of the first head in the second layer, \[\begin{adjustbox}{angle=0,origin=c,scale=0.65}\begin{NiceMatrix}[] \hat{h}^{(2,1)}_{10} = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{3} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{} \scalebox{0.8}{\sum\limits_{i= 4,7,10}} e_{s_i} & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=grayTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\sum\limits_{i= 4,7,10}} \tilde{s}_i & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} & 0 {\Big)}\\[-3mm] \\ \hat{h}^{(2,1)}_9 = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{2} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{}e_{s_6} + e_{s_9} & 0 & 0 & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_6 + \tilde{s}_9 & 0 & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & 0 & 0 {\Big)}\\[-3mm] \\ \hat{h}^{(2,1)}_8 = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{2} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{}e_{s_5} + e_{s_8} & 0 & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_5 + \tilde{s}_8 & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & 0 & 0 & 0 {\Big)} \\ & & & & & \Block[]{1-8}{\underbrace{\phantom{}}_{\textstyle \hat{m}^{(2,1)}_{8}}} &&&&&&&&&&& \Block[]{1-8}{\underbrace{\phantom{}}_{ \textstyle \hat{p}^{(2,1)}_{8} }} &&&&&&&& \end{NiceMatrix} \end{adjustbox}\] where we define \(\hat{p}^{(2,h)}_i \in \mathbb{R}^T\) as the block of \(\hat{h}^{(2,h)}_i\) which contains the normalized transition probabilities and \(\hat{m}^{(2,h)}_i \in \mathbb{R}^T\) contains a copy of the second attention. With the structure of \(\tilde{A}^{(3)}\), we can see how \(B^{(3)}\) acts on these two blocks such that: \(h_i^{(2)\top} \tilde{A}^{(3)} h^{(2)}_j = \sum_{h=1}^K p_i^{(2,h)\top} B^{(3)} m_{j}^{(2,h)} + e_i A^{(3)} e_j\). This operation selectively sums the normalized transition probabilities such that the entry of the attention in the third layer corresponding to the transition with lag \(k\) for the next token contains only the sum of the transitions with the same lag: \(h^{(2)\top}_i \tilde{A}^{(3)} h^{(2)}_{i-k+1} \propto \sum_{j \leq i} \tilde{p}_{j,k}\). This process is illustrated in the following:

\[\hat{p}^{(2,1)\top}_{10} B^{(3)} \hat{m}^{(2,1)}_8 = \frac{\beta}{3}\begin{adjustbox}{angle=0,origin=c,scale=0.65}\begin{pNiceMatrix}[] \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[name=BOne] \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \end{pNiceMatrix} \begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} \\ 0 \\ 0 \\ \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} \\ 0 \\ 0 \end{pNiceMatrix} \end{adjustbox} = \frac{\beta}{3}\begin{adjustbox}{angle=0,origin=c,scale=0.65}\begin{pNiceMatrix}[] \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[] \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ 0 \end{pNiceMatrix}\end{adjustbox} = \frac{\beta}{3} \begin{adjustbox}{angle=0,origin=c,scale=0.65}(\begin{NiceMatrix}[] \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \end{NiceMatrix}).\end{adjustbox} \label{eqn:mask95example951}\tag{5}\]

Notably, this mechanism allows the transformer to average the transition probabilities in the past of each lag independently. The key idea behind it is that \(B^{(3)} m_{i-k+1}^{(2,h)}\) is a boolean vector, such that when multiplied by \(\hat{p}^{(2,h)}_i\), it sums only the entries that correspond to transitions of lag \(k\). For instance the product \(\hat{p}^{(2,1)}_{10} B^{(3)} \hat{m}^{(2,1)}_8\) in Eq. eq. ¿eq:eqn:mask95example951?, it should sum the transitions of lag \(3\) stored in \(\hat{h}^{(2,1)}\) to give \(\mathcal{A}_{10,8}\) such that the token can be copied to predict the if the lag of the sequence is \(3\). However, we can notice how simply taking the inner product \({\hat{p}^{(2,1)\top}_{10}} \hat{m}^{(2,h)}_8\) would lead to the wrong computations summing over the transitions of lag \(2\) instead of \(3\) and excluding the transition correspondent to \(\tilde{p}_{4,2}\). This happens because all the transitions are stored starting from the element \(i-1\) of \(\hat{p}^{(2,1)}_{i}\) and not \(i\). To account for this, the matrix \(B^{(3)}\) performs a permutation such that the mask is shifted by one position. Along with permuting the mask, the matrix \(B^{(3)}\) also removes the normalization factor (\(\frac{1}{2}\)) and adds the missing entries in the mask due to \(j<i\). To achieve this, each column of \(B^{(3)}\) follows a pattern in which the entries are spaced at intervals of \(K\), and the pattern shifts by one position between successive columns such that all possible sequences are present, allowing to sum over all possible lags. This shift creates a cyclic arrangement where the columns repeat every \(K\) as the transitions within the vector \(\hat{p}^{(2,h)}_i\).

The additional blocks containing \(B^{(3)}\) act on the outputs of the other heads, performing the same operation by selectively summing the transitions of the same lag stored in the respective outputs. Considering all heads and only the non-zero entries after softmax, occurring at \(j = i - k + 1\) due to \(A^{(3)}\), we get \[h^{(2)\top}_i \tilde{A}^{(3)} h^{(2)}_{i-k+1} = \sum_{h=1}^K p_i^{(2,h)\top} B^{(3)} m_{i-k+1}^{(2,h)} + \lambda = \sum_{h=1}^{K} \frac{\beta}{\tau_{h,i} + 1}\sum_{n=0}^{\tau_{h,i}} \tilde{p}_{\hat{k} + h + nK,k} + \lambda,\] where \(\tau_{h,i} = \lfloor \frac{i - \hat{k} - h}{K}\rfloor\). Applying the softmax, taking the limit \(\lambda \to \infty\) results in non-zero entries of the attention only where \(A^{(3)}_{i,j} = +\lambda\) similarly to the first layer. Moreover, for large \(i\) for which \(\tau_{h,i} +1 \approx \frac{i-\hat{k}}{K}\) and absorbing \(K\) inside the temperature \(\beta\), considering the last token \(T\) we can see how the attention weights for the final token \(T\) recover the weights \(\tilde{w}_k(X_{1:T})\) from Eq. eq. 1 in Proposition 1:

\[\mathcal{A}^{(3)}(h^{(2)}_{1:T};\tilde{A}^{(3)})_{T,j} = \begin{cases} \frac{\exp \left(\frac{\beta}{(T-\hat{k})}\sum\limits_{n=\hat{k}+1}^T \tilde{p}_{n,k} \right)}{\sum\limits_{r \in \mathcal{K}} \exp \left( \frac{\beta}{(T-\hat{k})} \sum\limits_{n=\hat{k}+1}^T \tilde{p}_{n,r} \right) } \quad &\text{if} \quad T-j+1 = k \quad \text{for} \quad k \in \mathcal{K} \\ \qquad 0 \quad & \text{elsewhere} \end{cases} \label{eqn:Att953}\tag{6}\] The third attention layer, \(\mathcal{A}^{(3)}(h^{(2)}_{1:T};\tilde{A}^{(3)})\), is non-zero only at positions \(j\) where the position \(k=T-j+1\) corresponds to a valid lag in the set \(\mathcal{K}\). At these positions, the attention value is precisely the weight \(\tilde{w}_k\): \(\tilde{w}_k(X_{1:T}) = \mathcal{A}^{(3)}(h^{(2)}_{1:T};\tilde{A}^{(3)})_{T, j=T-k+1}\) for \(k \in \mathcal{K}\). The output of the third attention has the following form: \[\hat{h}^{(3)}_i = \bigg[ \begin{adjustbox}{angle=0,origin=c,scale=1.0}\begin{NiceMatrix} \Block[fill=mlightblue!70,rounded-corners]{1-1}{} \sum_k \tilde{w}_k e_{s_{i-k+1}} & ,\sum_k \tilde{w}_k e_{i-k^\star+1}, & \sum_k \tilde{w}_k \hat{h}^{(1)}_{i-k^\star+1}, & \sum_k \tilde{w}_k \hat{h}^{(2,1)}_{i-k^\star+1}, & \ldots & \sum_k \tilde{w}_k \hat{h}^{(2,H_2)}_{i-k^\star+1} \end{NiceMatrix}\bigg] \end{adjustbox} \label{eqn:output95third95att}\tag{7}\] which is then concatenated to the residual stream: \[h^{(3)}_i = \begin{adjustbox}{angle=0,origin=c,scale=1.0}\begin{bNiceMatrix} e_{s_i},&e_i,& \hat{h}^{(1)}_i,&\hat{h}^{(2, 1)}_i,&\ldots & \hat{h}^{(2, H_2)}_i, & \hat{h}^{(3)}_i \end{bNiceMatrix} \, .\end{adjustbox}\]

Output layer: Finally, the output layer \(\widetilde{W}_O\in \mathbb{R}^{S \times \sum_l d_l}\) contains all zero blocks, except for the one acting on the semantics of the token copied by the third attention (blue block in Eq.@eq:eqn:output95third95att ). This block learns the transition matrix \(P^\star\): \[\widetilde{W}_O = \begin{adjustbox}{angle=0,origin=c,scale=1.0}\begin{pNiceMatrix}[] \Block[borders={right,tikz={dashed}}]{1-1}{} 0_{S \times S} & \Block[borders={right,tikz={dashed}}]{1-1}{} 0_{S \times T} & \Block[borders={right,tikz={dashed}}]{1-1}{} 0_{S \times d_0} & \Block[borders={right,tikz={dashed}}]{1-1}{} 0_{S \times 2d_0} & \Block[borders={right,tikz={dashed}}]{1-1}{} \dots & \Block[borders={right,tikz={dashed}}]{1-1}{} 0_{S \times 2d_0} & \Block[fill=mgold!70, rounded-corners]{1-1}{} P^{\star\top} & \Block[borders={left,right,tikz={dashed}}]{1-1}{} 0_{S \times T} & \Block[borders={right,tikz={dashed}}]{1-1}{} 0_{S \times d_0} & \Block[borders={right,tikz={dashed}}]{1-1}{} 0_{S \times 2d_0} & \Block[borders={right,tikz={dashed}}]{1-1}{} \dots & 0_{S \times 2d_0} \end{pNiceMatrix}.\end{adjustbox}\] Therefore, the output of the disentangled transformer for the last token becomes: \[\widetilde{\mathcal{T}}(X_{1:T})_T =\widetilde{W}_O h^{(3)}_T = \sum_k \tilde{w}_kP^{\star\top} e_{s_{T-k+1}} = \sum_k \tilde{w}_k P^\star_{s_{T-k+1}}\] which concludes the constructive proof of Proposition 1. -3.25ex 1.5ex

Selective induction head and next token prediction We have shown in Eq. eq. ¿eq:eqn:output95third95att? how the last attention layer computes a weighted average of the tokens at a distance \(k\) from the next one, with weights proportional to the average of the normalized transition probabilities of lag \(k\). However, we observe empirically (see Fig. 5) that trained models learn large values of \(\beta\) for which the softmax converges to the hardmax, effectively concentrating attention on the single token with the largest average normalized transition probability. This observation motivates our analysis of the limiting case as \(\beta \to \infty\): \[\mathcal{A}^{(3)}_{i,j} = \tilde{w}_k = \mathbb{1}\left[ i-j+1=k^\star\right] \quad \text{with} \quad k^\star = \text{argmax}_k \sum_{n=\hat{k}+1}^i\tilde{p}_{n,k}.\] Here, the transformer selects the causal structure (i.e., the lag) corresponding to the largest \(\sum_{n=\hat{k}+1}^i \tilde{p}_{n,k}\). Given the current token \(i\), the third layer then copies the token from the position \(i-k^\star +1\), i.e., \(\hat{h}_i^{(3)} = \sum_{j=\hat{k}}^{i} \mathbb{1}\left[ i-j+1=k^\star\right] h^{(2)}_j = h^{(2)}_{i-k^\star+1}\). After concatenation to the residual stream, the tokens are of the following form: \[h^{(3)}_i = \begin{adjustbox}{angle=0,origin=c,scale=1.0}\begin{bNiceMatrix} e_{s_i}, & e_i, & \hat{h}^{(1)}_i, & \hat{h}^{(2, 1)}_i, & \ldots & \hat{h}^{(2, H_2)}_i, & \Block[fill=mlightblue!70,rounded-corners]{1-1}{} e_{s_{i-k^\star+1}} &, e_{i-k^\star+1}, & \hat{h}^{(1)}_{i-k^\star+1}, & \hat{h}^{(2,1)}_{i-k^\star+1}, & \ldots & \hat{h}^{(2,H_2)}_{i-k^\star+1} \end{bNiceMatrix}\end{adjustbox}\] The output³ of the disentangled transformer becomes the transition probability corresponding to \(k^\star\): \[\widetilde{\mathcal{T}}(X_{1:T})_T =\widetilde{W}_O h^{(3)}_T = P^\star_{s_{T-k^\star+1}} \, .\]

-3.25ex 1.5ex

Equivalence with Maximum Likelihood The disentangled transformer we propose does not rely on likelihood nor computes the BMA. Due to the normalization applied by the softmax function, the model infers the lag of the sequence using the sum of normalized probabilities \(\tilde{p}\). For the inference to be accurate, the cumulative sum corresponding to the correct lag \(\sum_{n=\hat{k}+1}^i \tilde{p}_{n,k^\star}\) must be larger than that of any other lag. This fact is formalized in terms of expected values in the following claim:

While simpler cases (e.g., two lags, no normalization, or independent lags) are proven in App. [sec:sec:extended95statistical95analysis], we leave the complete proof of Claim 1 for future work. However, we provide empirical validation of this claim in Fig. 3 (left); more details and additional experiments are reported in App [sec:app:emp95val95claim]. Due to ergodicity, the average \(\frac{1}{T}\sum_{i=1}^T \tilde{p}_{i,r}\) converges to its expected value, and for large enough \(T\) it is higher for the correct lag. Therefore, applying the exponential and scaling the temperature \(\beta\) leads to the same result as MLE in the asymptotic limit, as shown in Fig. 3 (right).

-3.25ex 1.5ex

Generalizations and special cases

Single-head transformers. The construction above allows the model to store all the past transition probabilities in the embedding of the current token by scaling the number of heads with the total number of lags \(K\). Since all heads perform the same operation, reducing the number of heads implements an equivalent algorithm but with worse sample complexity, as some past transitions are discarded. Thus, a 3-layer single-head transformer still solves the task by implementing the algorithm in Proposition 1, but it only uses \(\frac{T-\hat{k}-1}{K}+1\) samples to estimate the correct lag.

Non-contiguous lags. In App. [sec:App:costr95any95order], we provide examples of constructions to handle non-contiguous lags, where the core approach remains similar to that in Sec. [sec:sec:proof95contiguous95orders]. Depending on the specific case, the number of heads needed ranges between the number of lags and \(\hat{k} - \min (\mathcal{K}) + 1\).

Two lags. By the construction in Sec. [sec:sec:proof95contiguous95orders], handling two contiguous lags requires two attention heads in the second layer for optimal sample complexity. However, we provide in App. [sec:App:two95orders95constr] an alternative construction for the third layer which enables a single-head model to match the performance of the two-head model for any two lags, whether contiguous or not (see empirical results below).

-3.5ex 2.3ex

Experiments and Discussion

We conduct a series of experiments to empirically validate our construction and determine whether transformers trained via gradient descent learn it.

Setup. We train \(3\)-layer disentangled transformers (\(\tilde{\mathcal{T}}\)) and \(3\)-layer standard transformers (\(\mathcal{T}\)) with learned positional and semantic embeddings both with \(\alpha = \sqrt{d_{QK}}\) using cross-entropy loss. At each step, we generate a fresh batch (size \(256\)) of sequences (length \(128\)) via Alg. 15, and train using Adam optimizer with fixed learning rate \(0.001\) and no weight decay. For the standard transformer, we tested embedding sizes of \(64\) and \(128\), and \(d_{QK}=32\). For the constructions, we fix \(\beta = 100\) and \(\lambda = 500\). We report \(\mathcal{D}_{KL}\) between the true and predicted next-token distribution along the sequence. We generate different tasks with alphabet size \(|\mathcal{S}|=5\) (no differences are observed for other sizes) varying the number and values of lags: \(\mathcal{K}=\{1, 2, 3\}\) (our example) and \(\mathcal{K}=\{1, 2, 3, 4, 5\}\) for the case of contiguous lags (optimal number of heads \(3\) and \(5\) according to Proposition 1), \(\mathcal{K}=\{1, 3, 4\}\) to show non-contiguous lags (\(4\) heads needed, see App. [sec:App:costr95any95order]), and \(\mathcal{K}=\{1, 3\}\) for the special case of two lags.

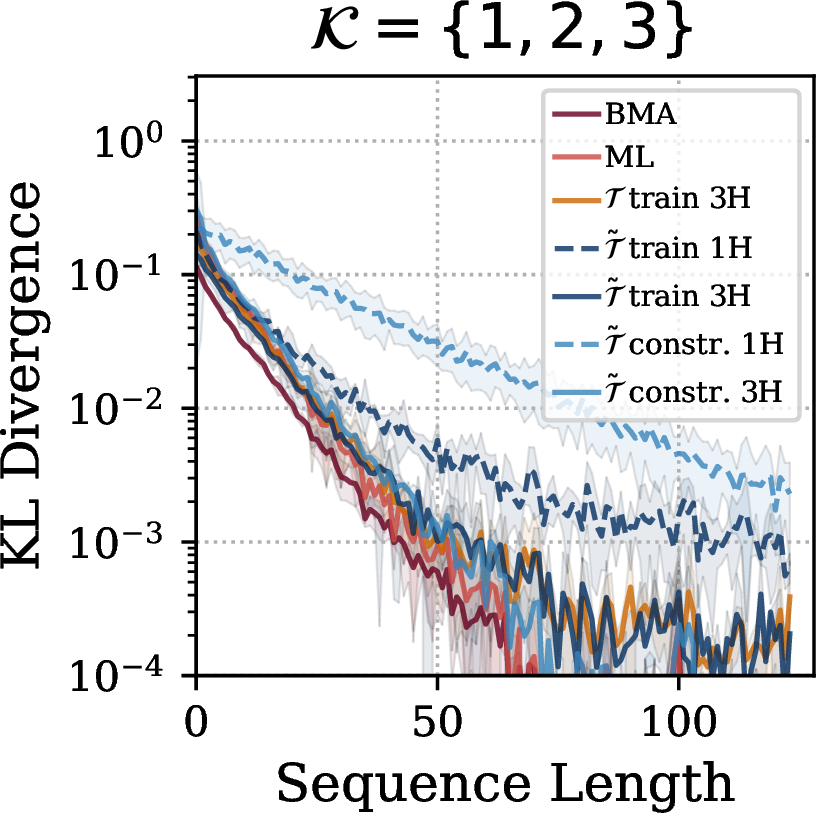

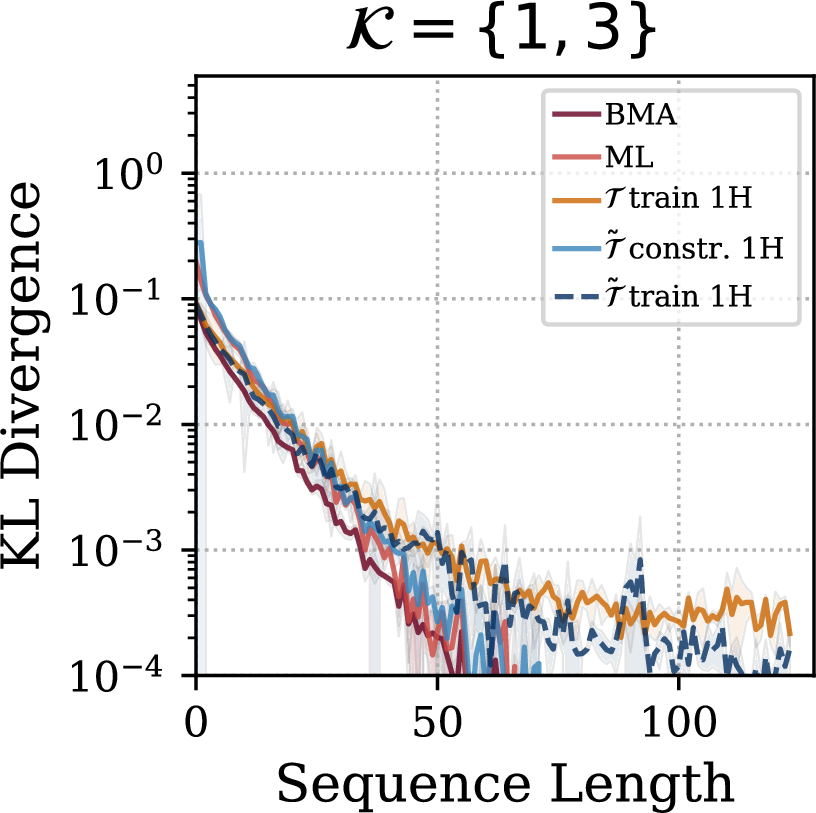

Main results. We observe in Fig. 4 how the construction with optimal number of heads, indicated as \(\tilde{\mathcal{T}}\) constr. in the plots, matches the performance of the maximum likelihood. Moreover, both the disentangled transformers trained from scratch (\(\tilde{\mathcal{T}}\) train) and the standard one (\(\mathcal{T}\) train) match the performance of the theoretical construction. Interestingly, we instead observe that when the number of heads is fixed to \(1\) the trained transformers can find solutions which perform better than the construction: this indicates the existence of more efficient, yet elusive and non-interpretable, ways of aggregating the transition probabilities, and that gradient descent can find them. Finally, we illustrate how for the simple case of two lags (last plot in Fig. 4) our construction with single head (detailed in App [sec:App:two95orders95constr]) attains the optimal sample complexity, while the construction in App. [sec:App:costr95any95order] would assume using more heads. Moreover, in this case, it appears that the trained transformers can obtain performances closer to the BMA rather than the ML for small sequence lengths.

Trained vs constructed attention maps.

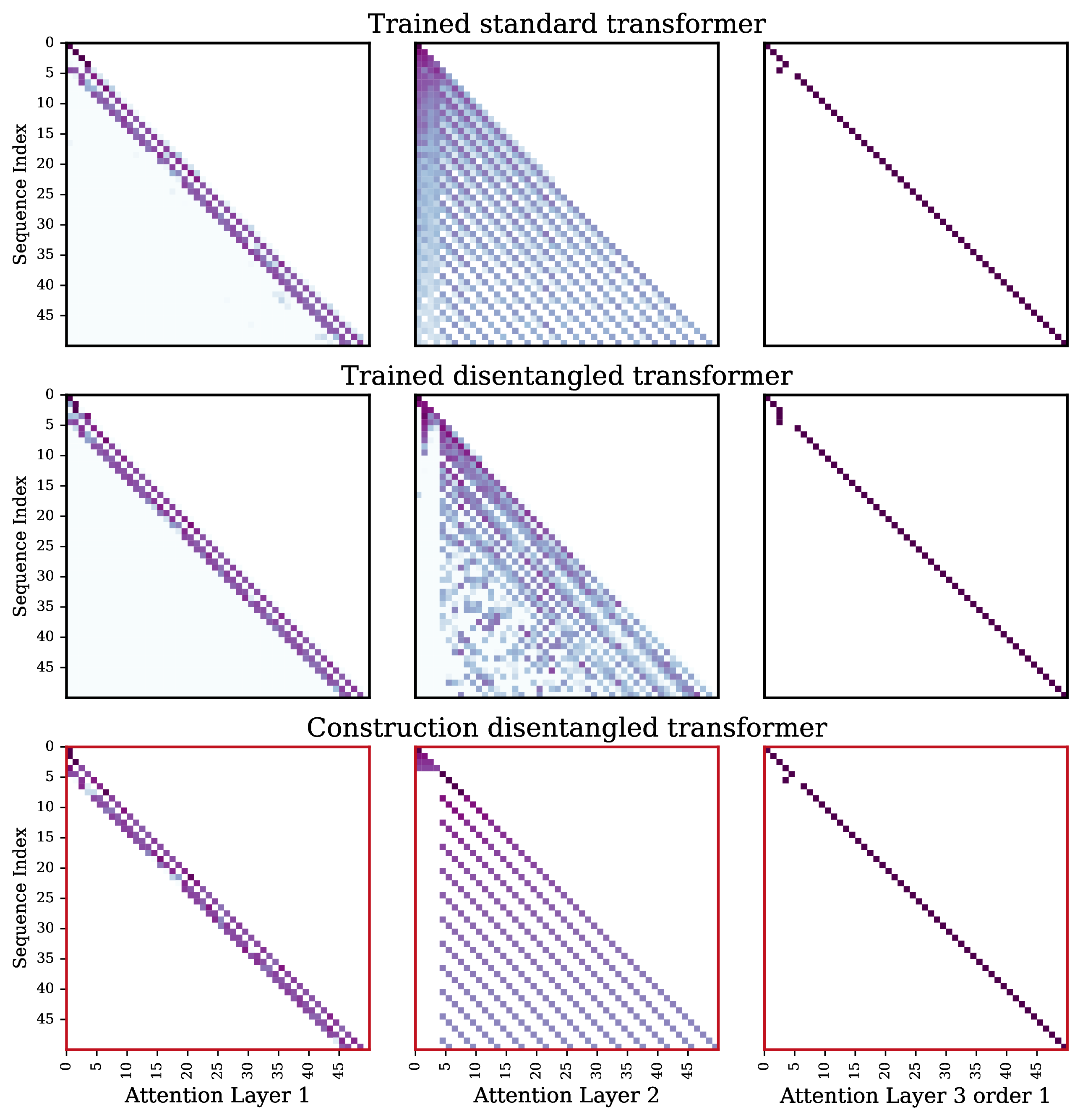

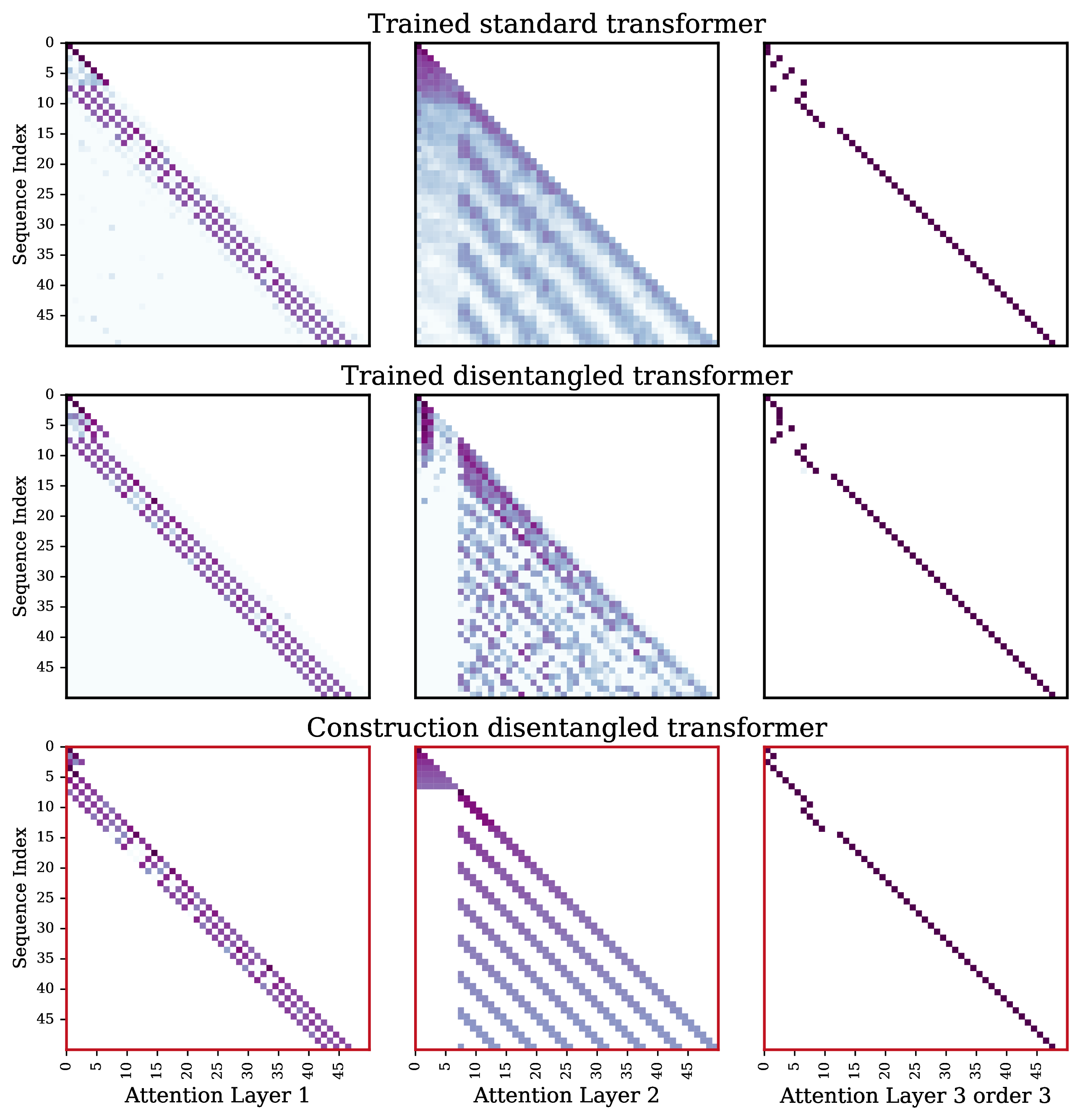

In Fig. 5 we report the attention maps for the three layers for the case \(\mathcal{K} = \{3,5, 7\}\) for the trained standard transformer (top row), the trained disentangled transformer (middle row) and our construction (see construction in App. [sec:App:costr95any95order]) (bottom row).We observe that the attention maps of the first and third layers are nearly identical between the trained and theoretical models, with these layers functioning precisely as expected from the theoretical construction. Notably, the attention entries of the first layer are proportional to \(\log P^\star\), even when the model is trained from scratch and for both the disentangled and standard cases. For the second layer (aggregation), the trained transformers converge to a slightly different structure, likely because aggregation is a combinatorial problem with multiple valid implementations. Despite this variability, a clear diagonal pattern emerges, closely resembling that in our theoretical construction. Furthermore, as demonstrated in Fig. 4, all models achieve comparable performance on the task. These findings strongly suggest that the trained transformer finds a solution that aligns closely with our construction. Remarkably, we also show that standard transformers trained with learned positional and semantic embeddings and attention parameterized by \(Q, K, V\) produce attention maps in agreement with our construction. This provides compelling evidence that our construction is not merely a byproduct of the disentangled transformer’s architecture but can also be implemented by standard transformers. Moreover, we observe that even when the embedding dimension (\(64\)) is smaller than the sequence length (\(128\)), standard transformers are still capable of matching the optimal performances, therefore finding more efficient ways to store and use all the transitions in the past.

-3.5ex 2.3ex

Conclusion We introduced a novel synthetic task based on interleaved Markov chains to study how attention-only transformers perform in-context causal structure selection. Our findings demonstrated that a 3-layer transformer can solve this task with near-optimal sample complexity, effectively showcasing the emergence of selective induction heads, attention circuits that aggregate past information, and select the correct causal structure. Moreover, we provided a fully interpretable construction of a disentangled transformer implementing these circuits to solve the task and empirically verified that both disentangled and standard transformers trained with Adam closely align with this construction. Finally, we theoretically analyze the algorithm implemented by this construction, showing that, in certain cases, it asymptotically converges to maximum likelihood. We believe that the fundamental mechanism behind the formation of these simple circuits is the same as that underlying the emergence of more complex reasoning capabilities recently observed in larger models. Understanding this mechanism is crucial for enhancing these capabilities by developing better training strategies and architectures.

Organization of the Appendix. The Appendix is organized as follows. App. [sec:sec:extended95statistical95analysis] extends the statistical analysis of the estimator implemented by the transformer in Prop. 1 and includes omitted proofs. App. [sec:app:scaling95heads95layers] reports additional experiments and discussions about using more than \(3\) layers and varying the number of heads in the second layer. Additional attention maps for different tasks and both disentangled and trained transformers as well as the construction are provided in App. [sec:app:additional95plots]. App. [sec:app:emp95val95claim] includes several experiments to validate Claim 1. App. [sec:App:taskdetail] details the algorithm used to generate the interleaved Markov chains. App. [sec:App:alternative95third] discusses an alternative third layer construction using positional embedding. The construction for non-contiguous lags is presented in App. [sec:App:costr95any95order]. Finally, App. [sec:App:two95orders95constr] explains the single-head construction for the case of two lags.

-3.5ex 2.3ex

Statistical Analysis of the transformer estimator

For the transformer estimator to accurately select the correct lag, the following inequalities (claim 1) must hold for a lag \(k\) and a sequence of length \(T\) generated accordingly: \[\sum_{i=1}^T \tilde{p}_{i,k} > \sum_{j=1}^T \tilde{p}_{j,r} \quad \forall , r \neq k ; \text{and} ; r \in \mathcal{K}.\] These results enable us to recover the MLE estimator in the high-temperature limit and approximate the BMA at finite temperatures. Assuming the process is ergodic, and by taking the limit of the inequality above, we require the following condition: \[\mathbb{E} \Big[\frac{X_{i-r}^\top P^\star X_{i}}{\sum_{l\in \mathcal{K}} X_{i-l}^\top P^\star X_{i}}\Big] \leq \mathbb{E} \Big[\frac{X_{i-k}^\top P^\star X_{i}}{\sum_{l\in \mathcal{K}} X_{i-l}^\top P^\star X_{i}}\Big] \quad \text{ for } \; r\in \mathcal{K} \text{ and } i \geq \max (\mathcal{K}),\] as formalized in Claim 1.

We leave the complete proof of this result as future work, but we have fully validated it empirically in Section [sec:app:emp95val95claim]. We provide here the proofs of Claim 1 for three specific cases.

Two-lag case. In the case of two lags, we can show the following general result for any two distributions, \(P\) and \(Q\), over \({1, \dots, k}\) for \(k \geq 0\).

The result in the two-lag case follows directly. Let \(\mu\) denote the distribution of the lag-\(k\) interleaved process \(X_t\), (i.e, \(\mu(s_i,s_j,s_k)=\mathbb{P}( X_i=s_i, X_j = s_j,X_k=s_k )\)) . For any lag \(\{r\}\) we have \[\begin{align} \mathbb{E} \Big[\frac{X_{i-r}^\top P^\star X_{i}}{X_{i-r}^\top P^\star X_{i} + X_{i-k}^\top P^\star X_{i}}\Big] &= \sum_{s_{i-k},s_{i-r},s_i} \mu(s_{i-k}, s_{i-r},s_{i}) \frac{P_{s_{i-k},s_i} P_{s_{i-r},s_i}}{ P_{s_{i-k},s_i}+ P_{s_{i-r},s_i}} \\ &= \sum_{s_{i-k},s_{i-r}} \mu(s_{i-k}, s_{i-r}) \sum_{s_i} \frac{P_{s_{i-k},s_i} P_{s_{i-r},s_i}}{ P_{s_{i-k},s_i}+ P_{s_{i-r},s_i}} \end{align}\] By applying Lemma 1, we directly obtain \[\begin{align} \mathbb{E} \Big[\frac{X_{i-r}^\top P^\star X_{i}}{X_{i-r}^\top P^\star X_{i} + X_{i-k}^\top P^\star X_{i}}\Big] \leq \mathbb{E} \Big[\frac{X_{i-k}^\top P^\star X_{i}}{X_{i-r}^\top P^\star X_{i} + X_{i-k}^\top P^\star X_{i}}\Big] \end{align}\] which proves Claim 1 in the case of two lags.

Independent lags. In the case where all lags in \(\mathcal{K}\) are such that \((X_{i-l})_{l\in \mathcal{K}}\) are independent, we can prove Claim 1. Indeed, in this case, the distribution of the observed lags can be factorized as \(\mu((s_{i-l})_{l\in \mathcal{K}}) = \prod_{l\in \mathcal{K}}\mu(s_{i-l})\). Thus we have \[\begin{align} \mathbb{E} \Big[\frac{X_{i-r}^\top P^\star X_{i}-X_{i-k}^\top P^\star X_{i}}{\sum_{l\in \mathcal{K}} X_{i-l}^\top P^\star X_{i}}\Big] &= \sum_{s_i,(s_{i-l})_{l\in \mathcal{K}}} \mu((s_{i-l})_{l\in \mathcal{K}}) \frac{P_{s_{i-k},s_i}(P_{s_{i-r},s_i}-P_{s_{i-k},s_i})}{\sum_{l\in \mathcal{K}} P_{s_{i-l},s_i}} \\ &= \sum_{s_i,(s_{i-l})_{l\in \mathcal{K}}} \mu({(s_{i-l})}_{l\in \mathcal{K}, l\neq k, r}) \mu({s_{i-k}})\mu({s_{i-r}}) \frac{P_{s_{i-k},s_i}(P_{s_{i-r},s_i}-P_{s_{i-k},s_i})}{\sum_{l\in \mathcal{K}} P_{s_{i-l},s_i}} \end{align}\] Then, by observing that \(a(a-b) + b(b-a) = (a-b)^2\geq 0\), the result follows from: \[\begin{align} 2\sum_{s_{i-r},s_{i-l}} \mu({s_{i-k}})&\mu({s_{i-r}}) \frac{P_{s_{i-k},s_i}(P_{s_{i-r},s_i}-P_{s_{i-k},s_i})}{\sum_{l\in \mathcal{K}} P_{s_{i-l},s_i}}\\ =&\sum_{s_{i-r},s_{i-l}} \mu({s_{i-k}})\mu({s_{i-r}}) \frac{P_{s_{i-k},s_i}(P_{s_{i-r},s_i}-P_{s_{i-k},s_i})+P_{s_{i-r},s_i}(P_{s_{i-k},s_i}-P_{s_{i-r},s_i})}{\sum_{l\in \mathcal{K}} P_{s_{i-l},s_i}}\\ =&\sum_{s_{i-r},s_{i-l}} \mu({s_{i-k}})\mu({s_{i-r}}) \frac{(P_{s_{i-r},s_i}-P_{s_{i-k},s_i})^2}{\sum_{l\in \mathcal{K}} P_{s_{i-l},s_i}}\geq 0 \end{align}\] We observe that similar techniques can be applied to prove Claim 1 in the case of a symmetric Markov kernel \(P^\star\).

No normalization case. Our estimator’s score is computed by aggregating the normalized probabilities \(\tilde{p}_{i,k}\), a necessity imposed by mechanisms such as the softmax normalization in the attention layer. If we were to use the unnormalized probabilities, we could rely on the following result, which simplifies Claim 1 by excluding the normalization step.

-3.5ex 2.3ex

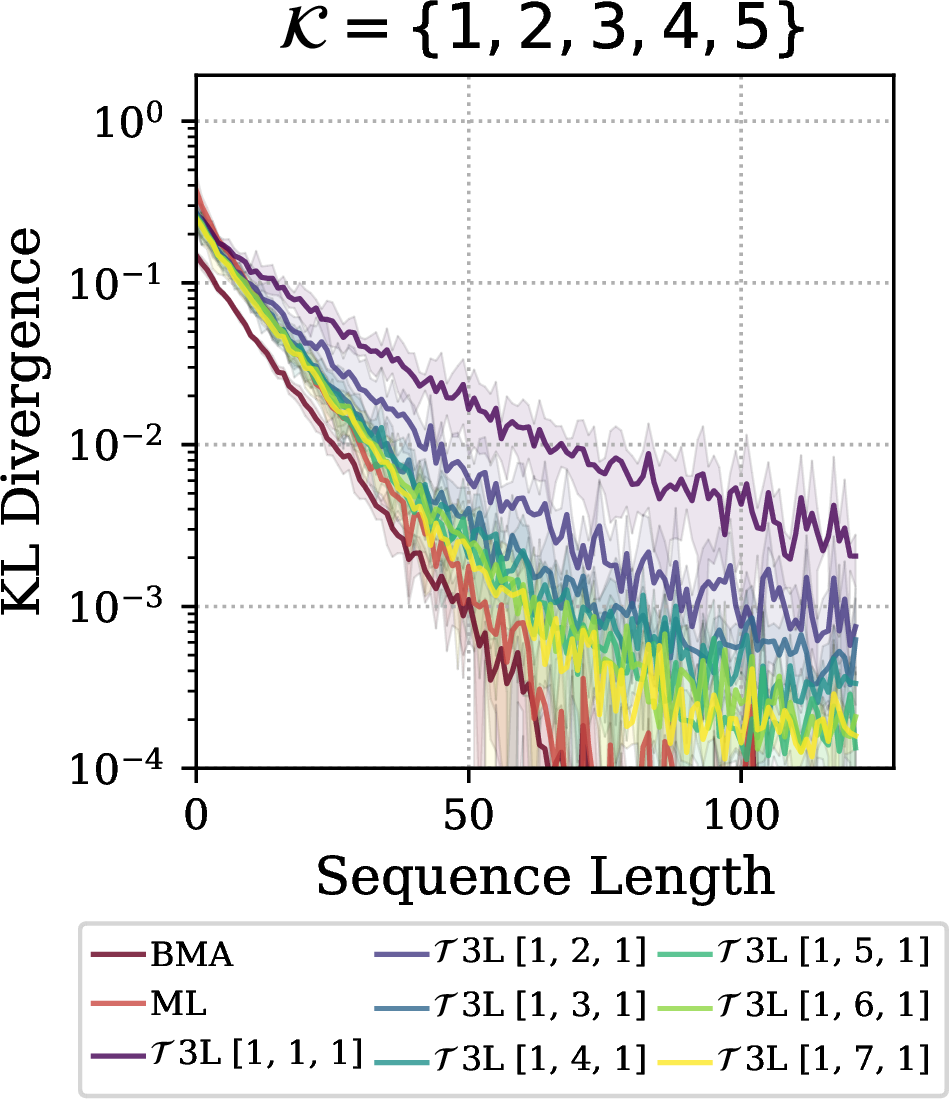

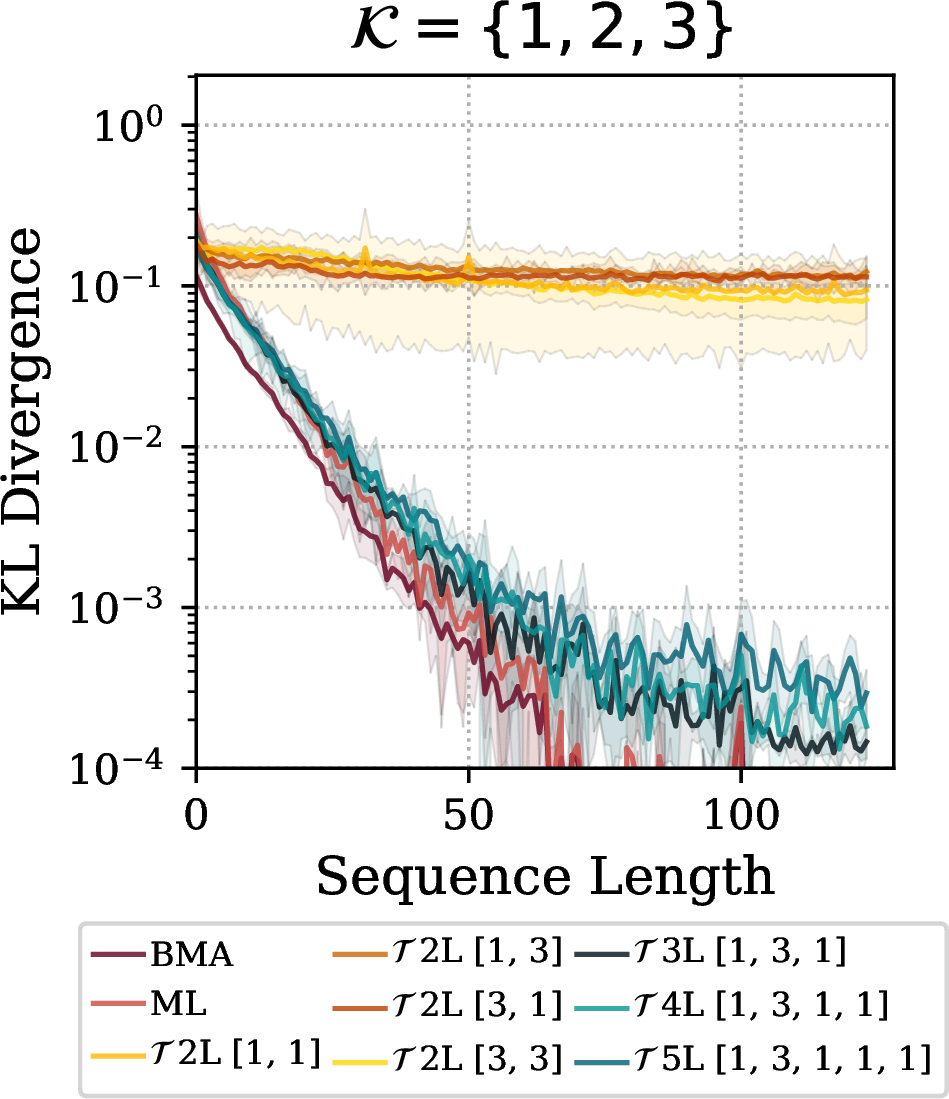

Scaling heads and layers In this section, we investigate how varying the number of heads in the second layer and the number of layers affects the model’s performance. We train standard transformers with learned positional and semantic embeddings in the same setup as reported in Section [sec:sec:experiments]. In Figure 6 (left) we consider the task given by \(\mathcal{K} = \{1,2,3\}\) and first show the behavior of the model with 2 layers and different combinations of heads \([1,1],[3,1],[1,3],[3,3]\)⁴, the results show that transformers with \(2\) layers can’t solve the task. Second, we show that increasing the number of layers beyond \(3\) does not change the performance. In Figure 6 (right) instead we consider the task defined by \(\mathcal{K} = \{1,2,3,4,5\}\) and train transformers with fewer, equal to, or more than \(K\) heads. As predicted by our construction increasing the number of heads leads to performances that get closer to the maximum likelihood up to having the number of heads equal to the number of lags in the set \(K\). Beyond this point adding more heads does not improve performance, this is expected as ML is optimal. Figures 7 (a),7 (b),7 (c) illustrates the attention maps for a \(3\)-layer transformer with only \(1,2,3\) heads respectively in the second layer, despite the task having \(5\) lags. Remarkably, even with fewer than K heads, the layers remain consistent with our theoretical construction, displaying analogous patterns: the first layer extracts transition probabilities, the second aggregates them, and the third implements the selective head. However, in the case of fewer heads, the second layer appears to find an efficient way to superpose information—a mechanism we could not yet interpret. Understanding this behaviour in the second layer remains an open question for future work.

-3.5ex 2.3ex

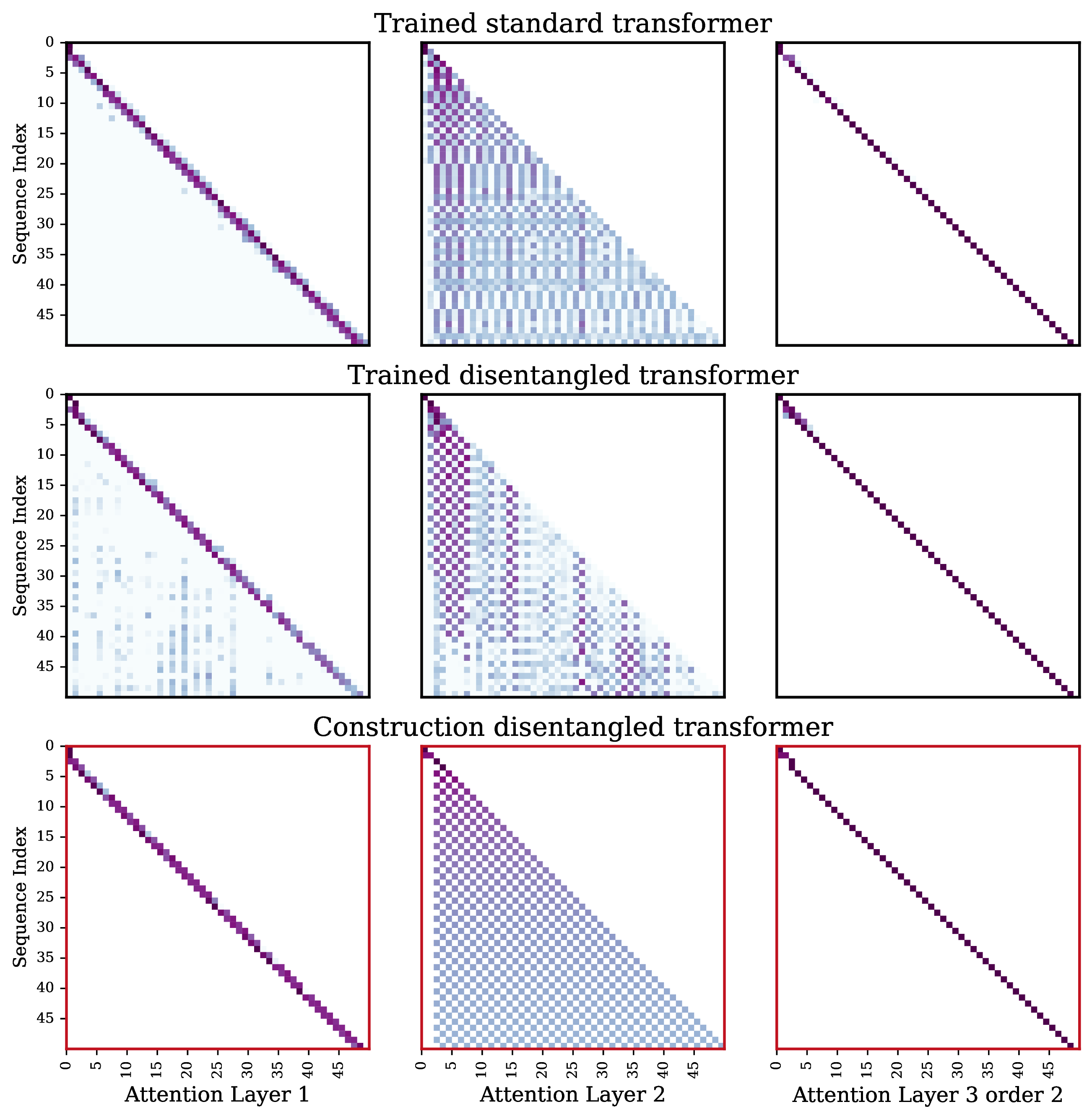

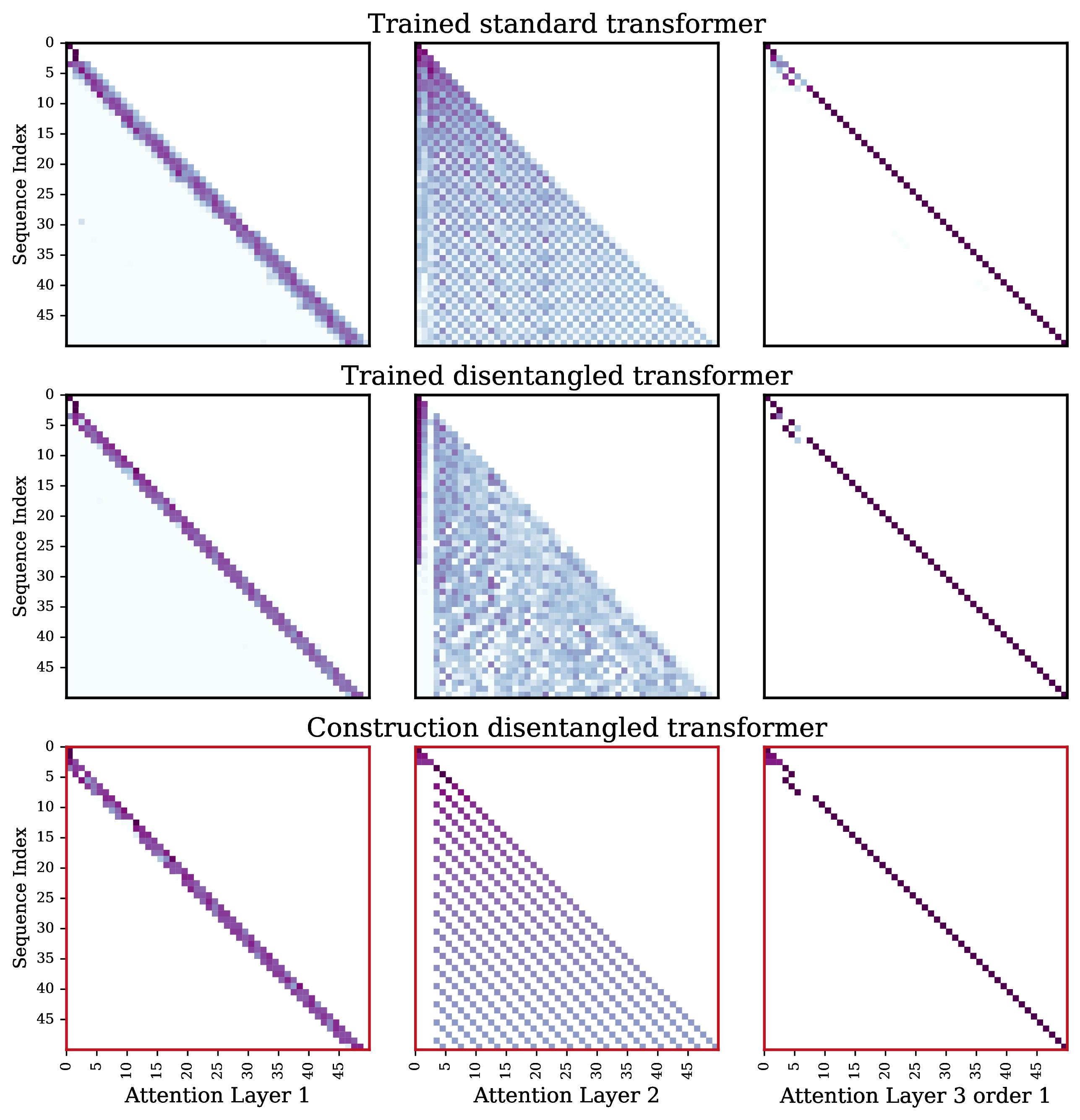

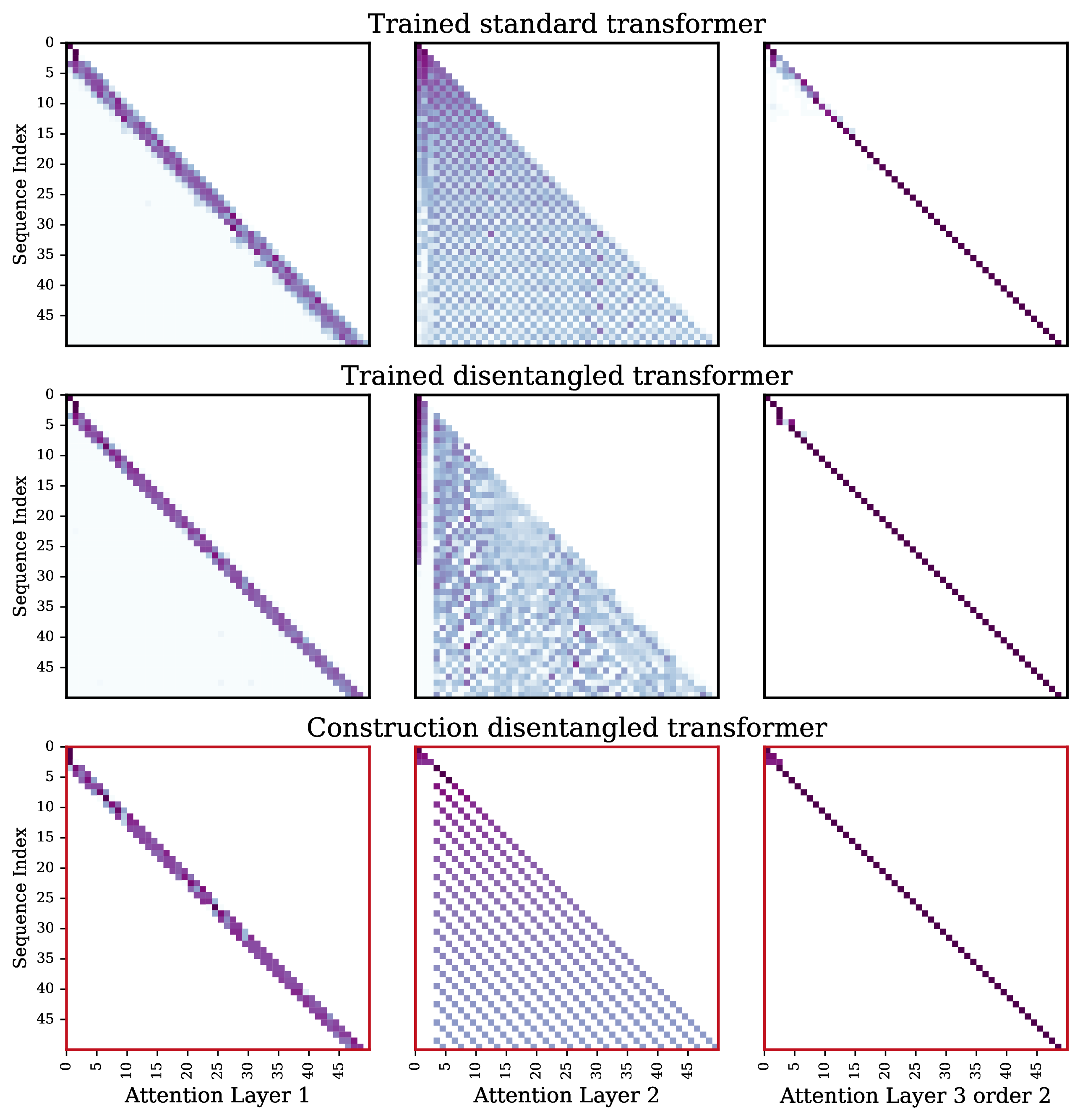

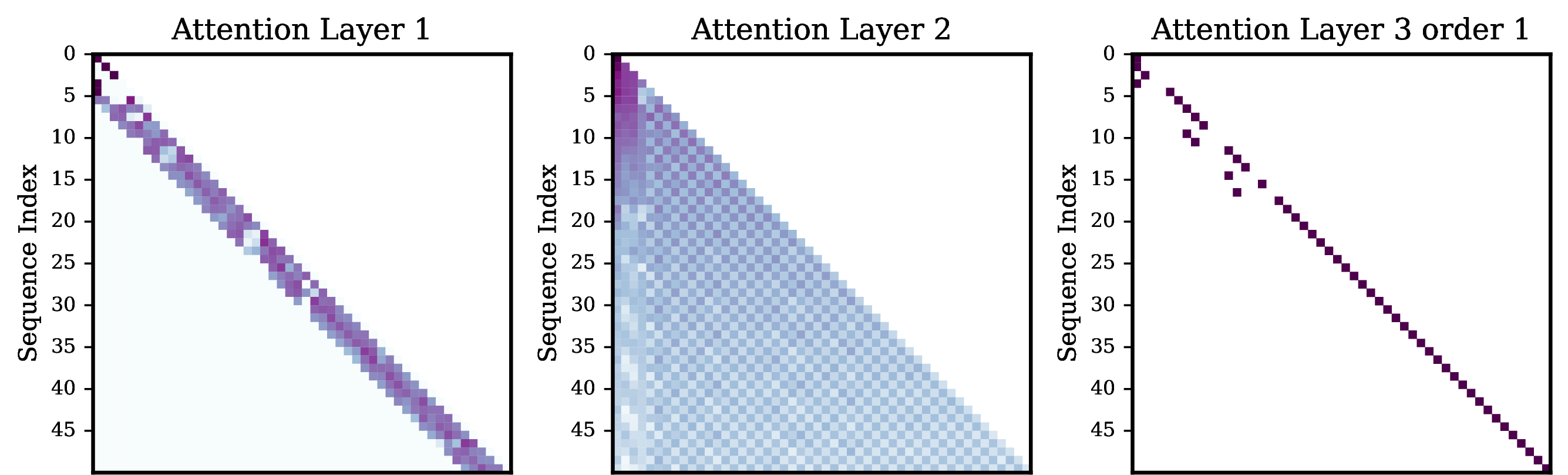

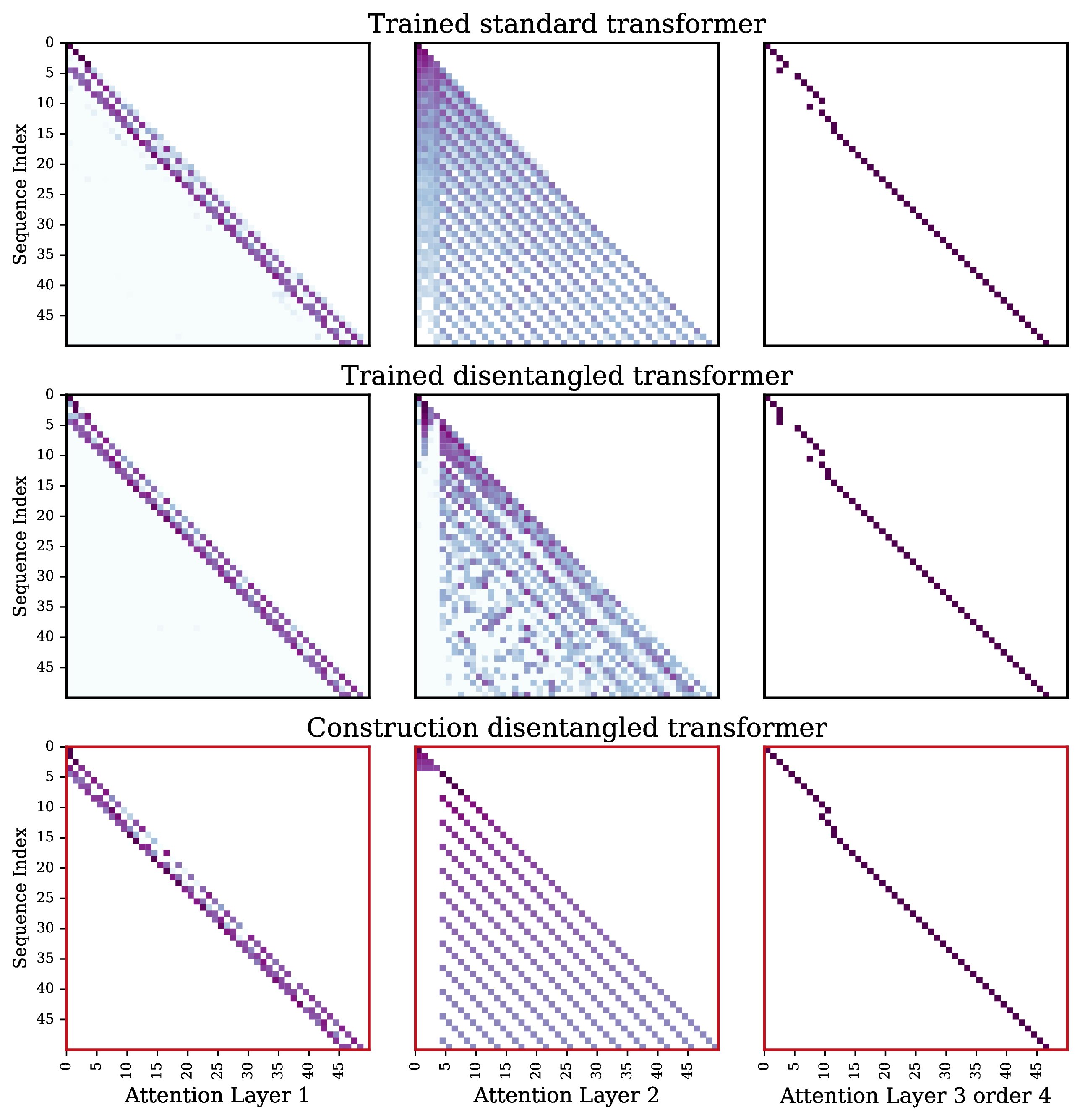

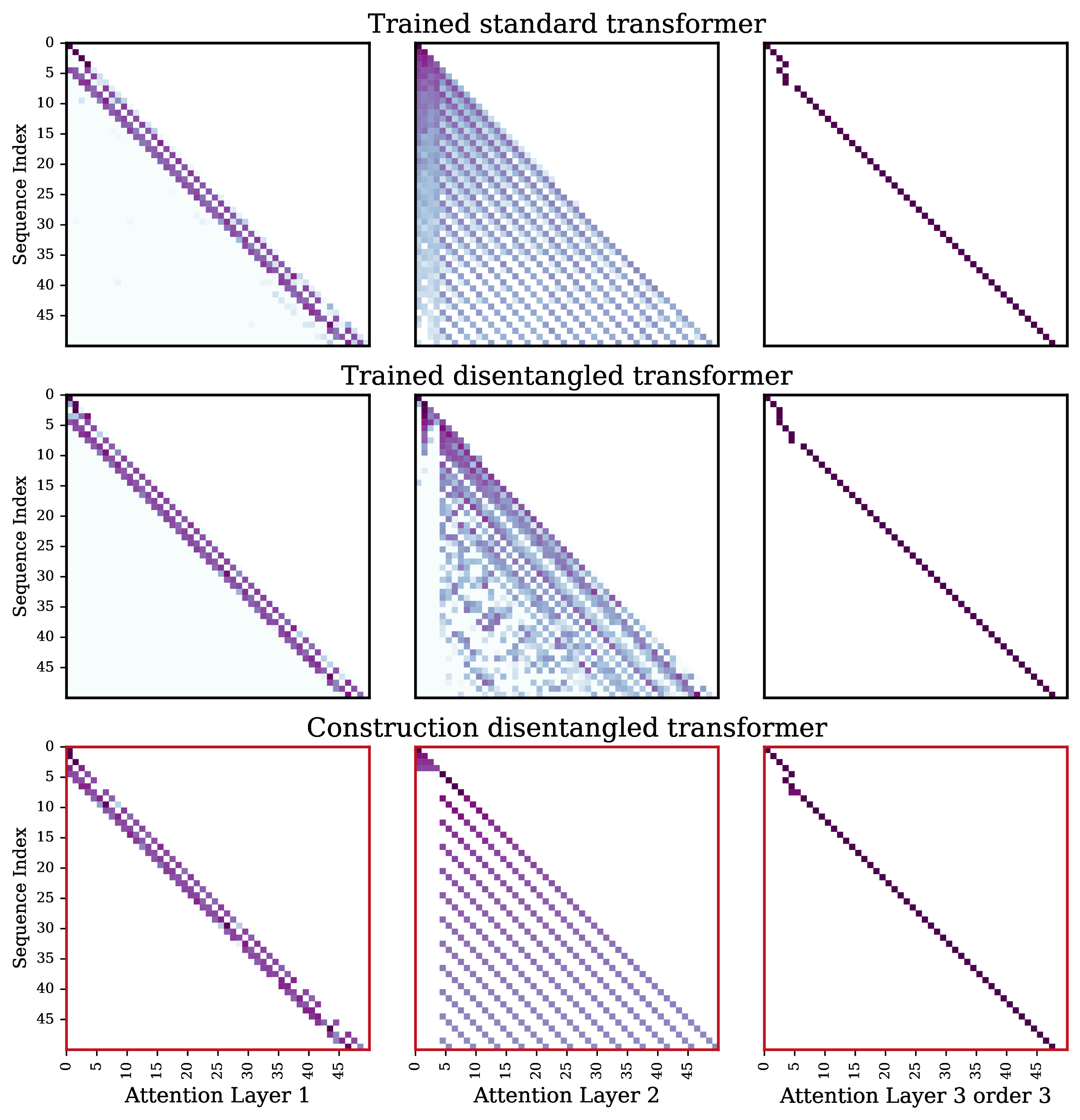

Additional Attention Maps plots As an additional confirmation for our construction, we report here comparison of the attention maps after softmax for the task introduced in Figure 1. We compare, trained standard 3-layer attention-only transformer with learned positional encoding and one attention head per layer, trained disentangled transformer and our construction. The standard transformer was trained in the same setup already introduced in Section [sec:sec:experiments]. In Figure 8 we train on data with \(\mathcal{K}={1,2}\), we observe a remarkable similarity between the attention maps of our construction and the trained transformer. This further confirms that the disentangled transformer is a good proxy to study the residual stream and the flow of information inside the transformer in a more interpretable way. Moreover, it confirms that our construction is realistic and aligns with what transformers learn in practice by gradient descent. Moreover, In order to showcase the adaptivity in-context of the selective induction head depending on the true lag of the input sequence, in Figures 9, 10, 11 we train on lags \(\mathcal{K} = \{1,2,3\}\) and test on sequences generated with each one of the training lags, similarly in Figures 12, 13, 14 we train on lags \(\mathcal{K} = \{1,2,3\}\) and test on each. As expected, the third layer adapts to the input sequence selecting the correct lag and copying the correspondent token via the selective induction head.

-3.5ex 2.3ex

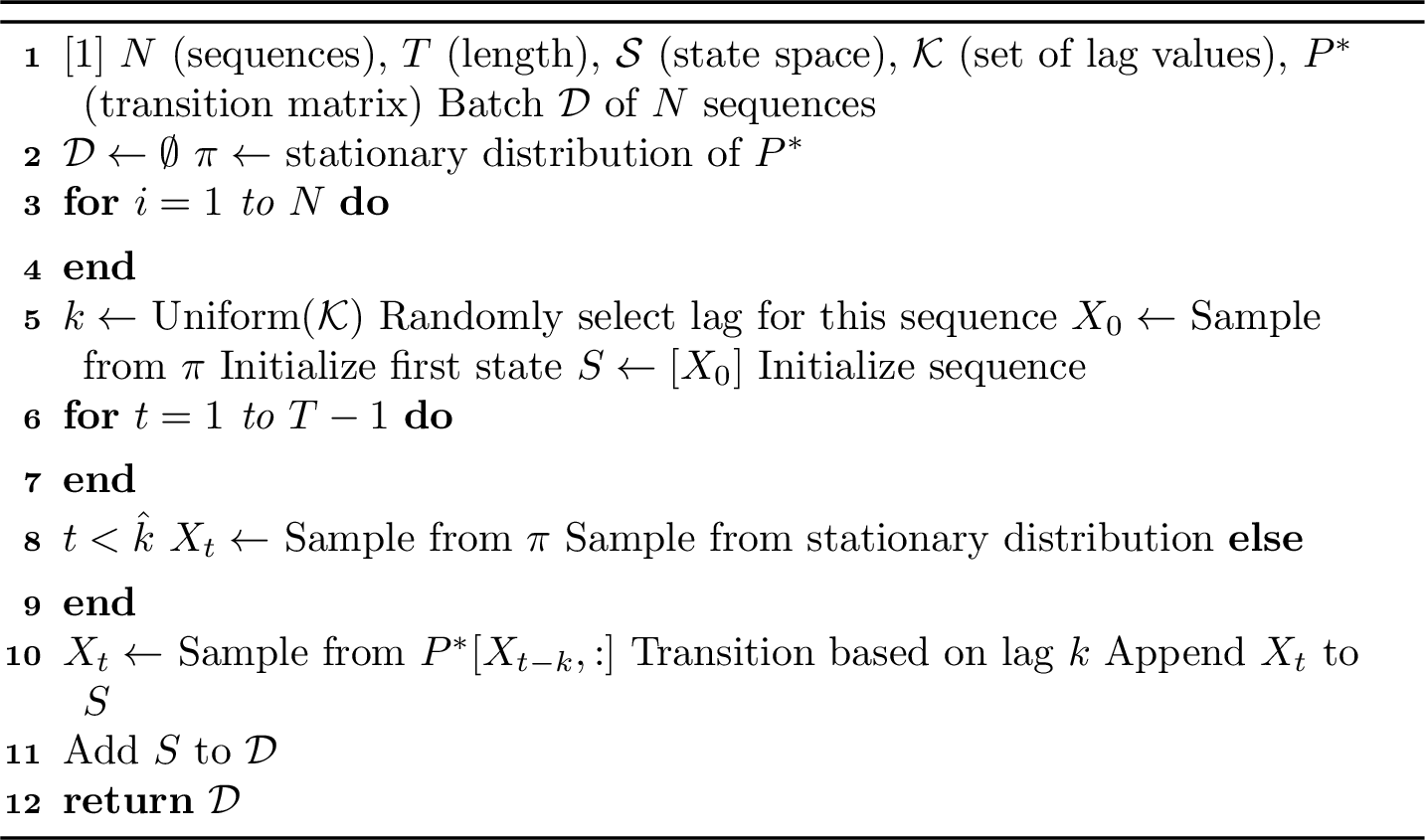

Task Details In this section, we illustrate the algorithm we used to generate batches of new samples at each iteration.

-3.5ex 2.3ex

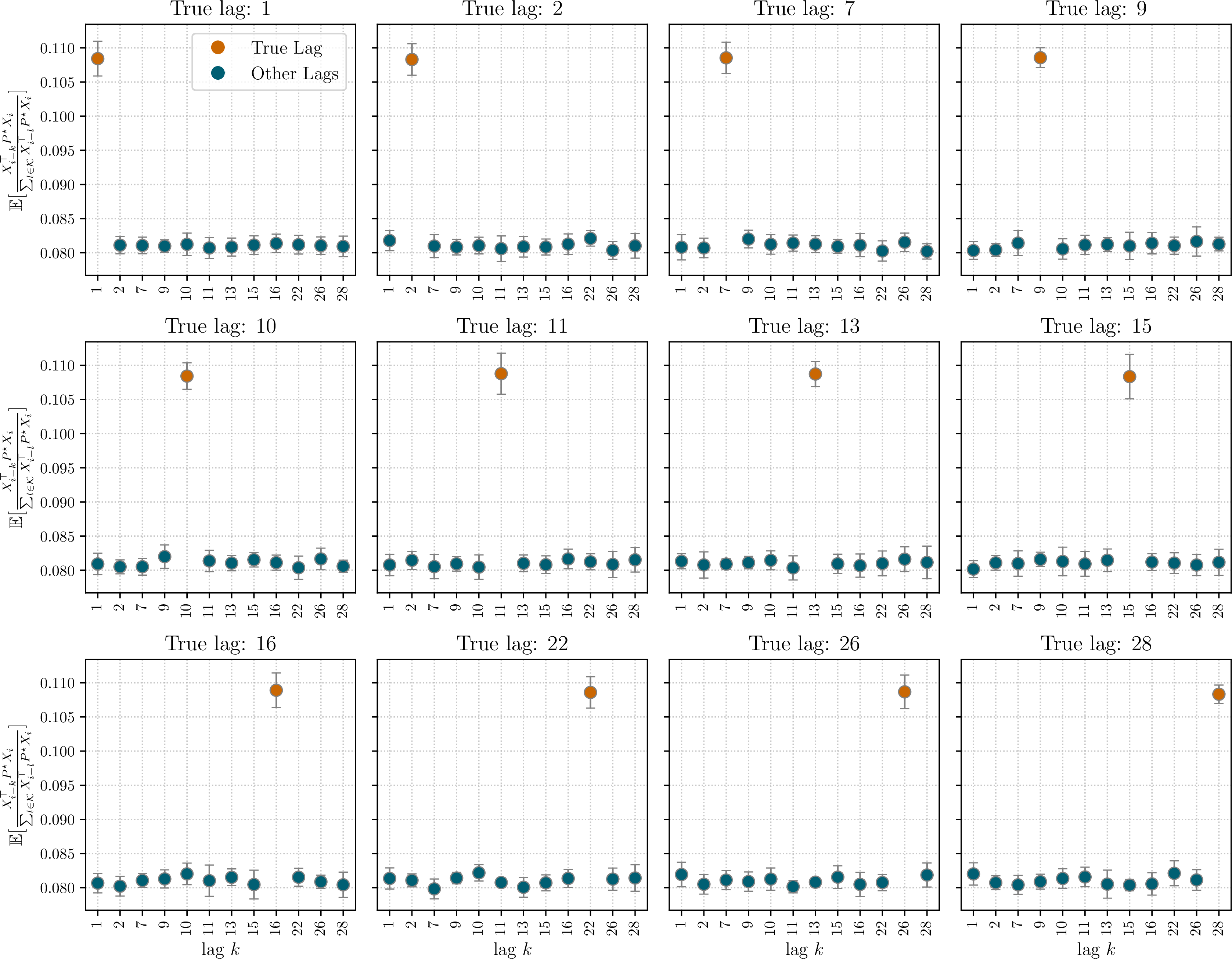

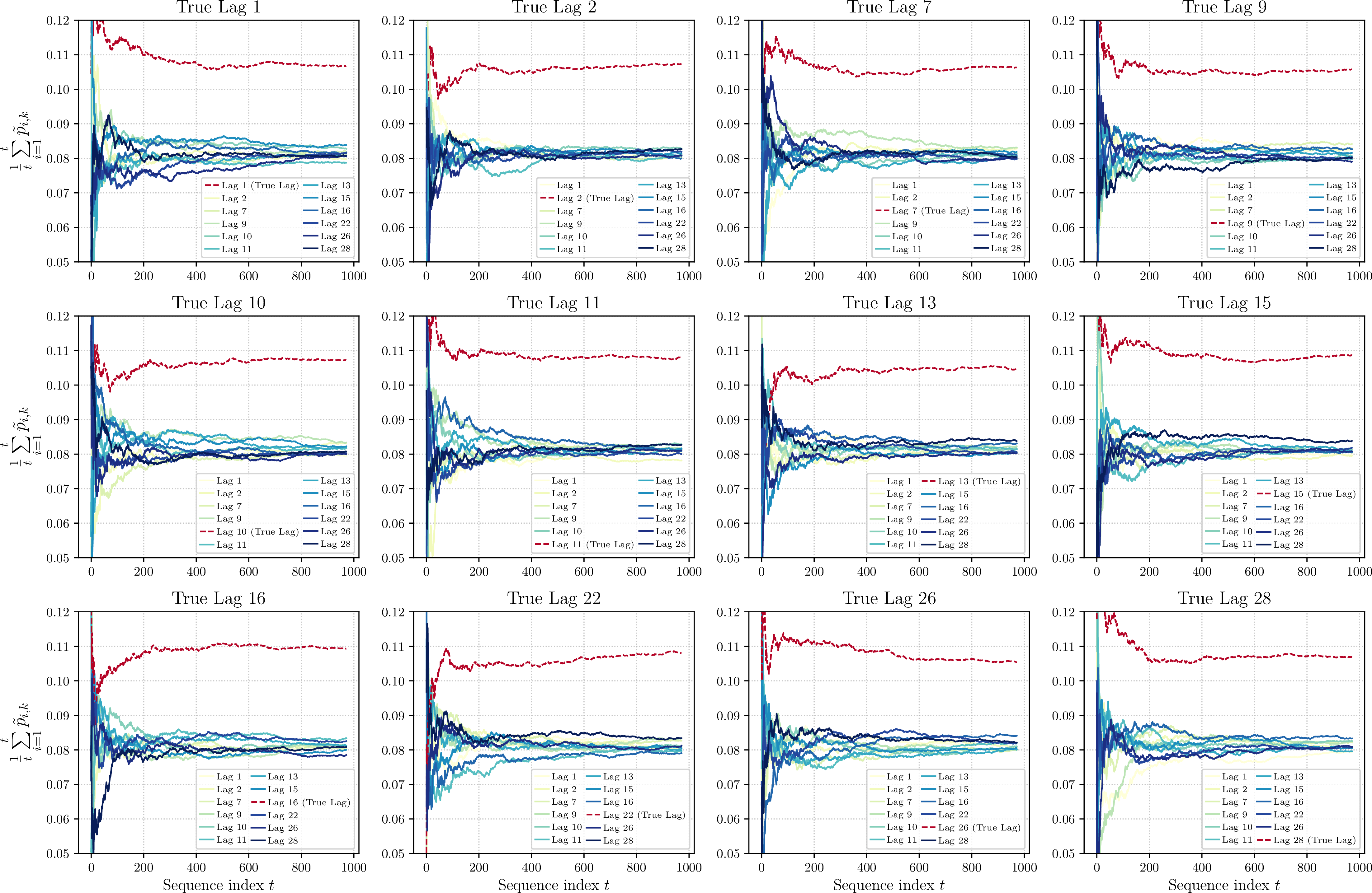

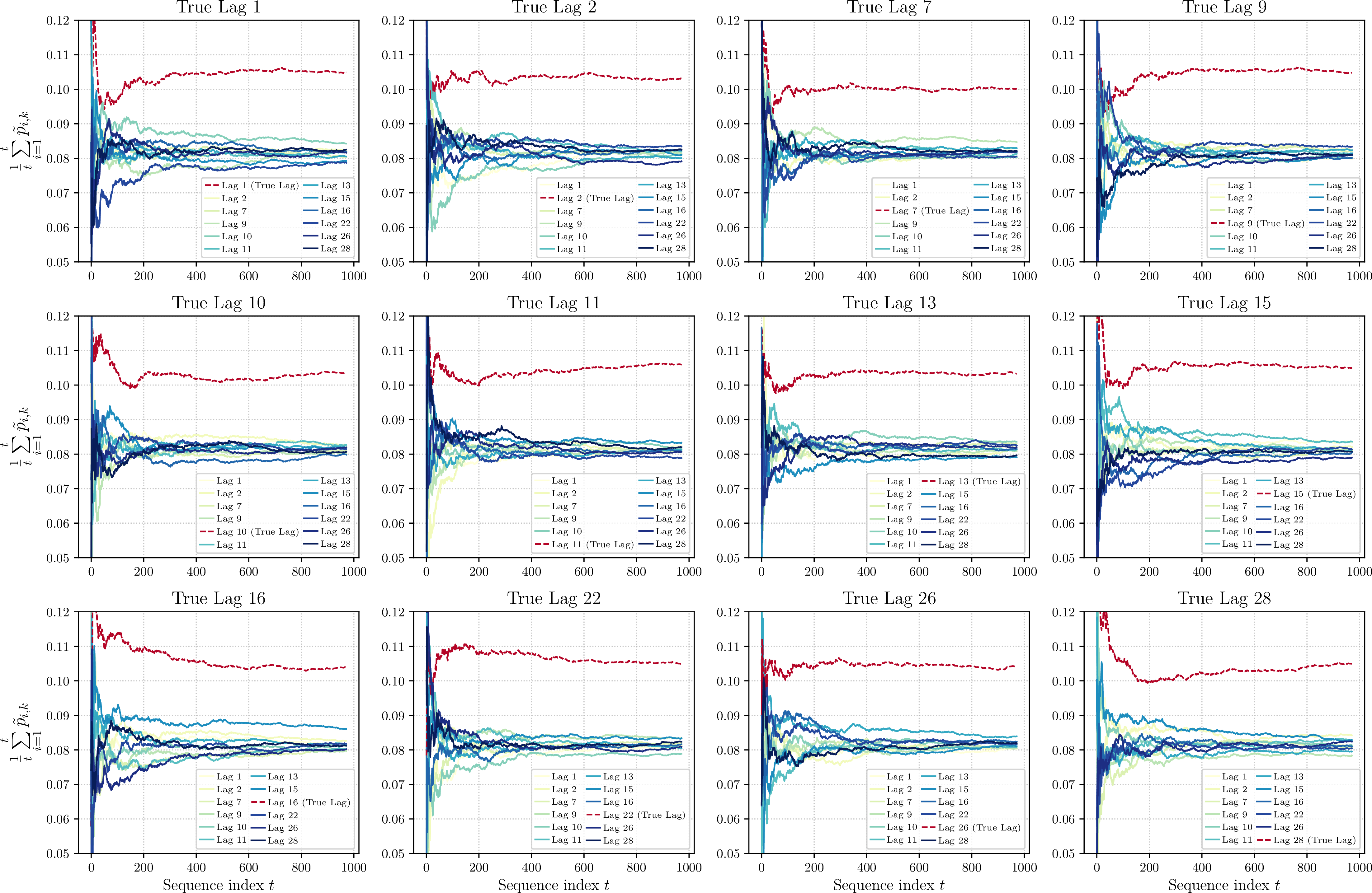

Empirical validation of Claim 1 To empirically validate Claim 1 we first sample a set of \(12\) lags uniformly between \(1\) and \(30\); we then sample \(1000\) different transition matrices and for each matrix and each lag \(1000\) sequences of length \(1000\) according to the respective Interleaved Markov chain. For each lag and each set of sequences, we then compute the expectation in Claim 1 by averaging the last transition in each sampled sequence. We then compute the following quantity: \[\mathbb{E}[\frac{X_{i-k}^\top P^\star X_{i}}{\sum_{l\in \mathcal{K}} X_{i-l}^\top P^\star X_{i}}] - \max_{\substack{r \neq k \\ r \in \mathcal{K}}} \mathbb{E}[\frac{X_{i-r}^\top P^\star X_{i}}{\sum_{l\in \mathcal{K}} X_{i-l}^\top P^\star X_{i}}] \label{eqn:histogram}\tag{8}\] and report it in the histogram in Fig.3. We can see that all values in the histogram are positive therefore confirming our claim. Similarly, the results in Fig.16 report the quantity in the claim for each single lag. As per our claim, the expected normalized transition probabilities of the true lag is always larger than the same quantity for any other lag. As a further confirmation of the claim, in Fig.18 and Fig.19 we report the cumulative average of the normalized transition probabilities along the sequence for a single sequence. We observe that even with few samples (small \(t\)) the cumulative average for the true order is always larger than the same quantity for the other lags.

-3.5ex 2.3ex

Alternative Third layer construction using positional embedding In this section, we illustrate an alternative but equivalent construction that implements the same predictor as in Proposition 1. The first and second layers remain identical, the only difference is in the third layer which implements the selective sum of the normalized transition probabilities. This selection mechanism is implemented through the combination of multiple blocks within the third attention matrix, \(\tilde{A}^{(3)}\), which, in this alternative construction is structured as follows: \[\tilde{A}^{(3)} = \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix} & \Block[fill=mpale!40,rounded-corners]{2-2}{} 0 & 0 & \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0}&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} \\ & 0 & A^{(3)}&&&&&&&&&&&&&&&\\ & \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={top,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0}\\ &&&&&&&&&&&&&&&& \\ & \Block[borders={right,bottom,top,left,tikz={line width=1pt}}]{4-4}{} \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={top,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0}\\ &&&&&&&&&&&&&&&& \\ &\Block[fill=teal!40,rounded-corners]{2-2}{} 0 & 0 & \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} & & \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0}\\ &0&B^{(3,1)}&&&&&&&&&&&&\\ &\Block[borders={top,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={left,top,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={top,bottom,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={left,bottom,tikz={dashed}}]{2-4}{\ddots} &&&& \Block[borders={bottom,left,tikz={dashed}}]{2-2}{\vdots} && \Block[borders={bottom,left,tikz={dashed}}]{2-2}{\vdots}\\ &&&&&&&&&&&&&&&& \\ &\Block[borders={right,bottom,top,left,tikz={line width=1pt}}]{4-4}{} \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0}\\ &&&&&&&&&&&&&&&& \\ &\Block[fill=teal!40,rounded-corners]{2-2}{}0 & 0 & \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} & & \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-4}{\ldots} &&&& \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0}\\ &0&B^{(3,H_2)}&&&&&&&&&&&&\\ \end{pNiceMatrix}\end{adjustbox} \label{eqn:Atilde95395alt}\tag{9}\] We can notice how, compared to the construction in Section [sec:sec:theoretical95transformer], the blocks \(B^{(3,1)}, \dots, B^{(3,H_2)}\) are now positioned all in the first column. Moreover, they are not parameterized by the same matrix contrary to the other construction. The matrix \(A^{(3)}\) acts on the positional embedding of the input similarly to the matrix \(A^{(1)}\) in the first layer as in the previous construction: \[A^{(3)}_{ij} = \lambda_1 \begin{cases} +1 \quad \text{if} \quad j-i+1 \in \mathcal{K} \\ -1 \quad \text{if} \quad j-i+1 \not\in \mathcal{K} \\ \end{cases} A^{(3)} = \begin{adjustbox}{angle=0,origin=c,scale=0.65}\begin{pNiceMatrix}[name=AThree] \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox}\] This ensures that the only non-zero entries after softmax will be the ones on the diagonals corresponding to the lags seen during training. The matrices \(B^{(3,1)}, \dots, B^{(3,H_2)}\) are again responsible for the summation; each matrix operates on the output of a corresponding head in the second layer. To understand how this selective sum is implemented, let us consider the output of the first head in the second layer \(h^{(2)} = [[e_{s_i},e_i],\hat{h}^{(1)}_i,\hat{h}^{(2,1)}_i,\dots,\hat{h}^{(2,H_2)}_i]\) in our example for the tokens 8,9 and 10: \[\begin{adjustbox}{angle=0,origin=c,scale=0.65}\begin{NiceMatrix}[] \hat{h}^{(2,1)}_{10} = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{3} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{} \scalebox{0.8}{\sum\limits_{i= 4,7,10}} e_{s_i} & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=grayTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\sum\limits_{i= 4,7,10}} \tilde{s}_i & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} & 0 {\Big)}\\[-3mm] \\ \hat{h}^{(2,1)}_9 = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{2} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{}e_{s_6} + e_{s_9} & 0 & 0 & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_6 + \tilde{s}_9 & 0 & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & 0 & 0 {\Big)}\\[-3mm] \\ \hat{h}^{(2,1)}_8 = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{2} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{}e_{s_5} + e_{s_8} & 0 & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_5 + \tilde{s}_8 & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,2} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & 0 & 0 & 0 {\Big)} \\ & & & & & \Block[]{1-8}{\underbrace{\phantom{}}_{\textstyle \hat{m}^{(2,1)}_{8}}} &&&&&&&&&&& \Block[]{1-8}{\underbrace{\phantom{}}_{ \textstyle \hat{p}^{(2,1)}_{8} }} &&&&&&&& \end{NiceMatrix} \end{adjustbox}\] and define \(\hat{p}^{(2,h)}_i \in \mathbb{R}^T\) as the block of \(\hat{h}^{(2,h)}_i\) which contains the normalized transition probabilities. By the structure in Eq. eq. ¿eq:eqn:Atilde95395alt? we can see how, when computing the attention, the matrices \(B^{(3,h)}\) act on these two blocks: \[h^{(2)\top}_i \tilde{A}^{(3)} h^{(2)}_j = \sum_{h=1}^K p_i^{(2,h)\top} B^{(3,h)} e_j + e_iA^{(3)}e_j\] Here we notice how the difference compared to the construction in Section [sec:sec:theoretical95transformer] lies in the fact that, due to the position, we are not using the copy of the attention to construct the boolean vector but directly the one-hot encoding of the position. Each operation involving \(B^{(3,h)}\) is still selectively summing the transition probabilities from the corresponding head, but with a slightly different mechanism. Let us consider the product \(h^{(2)\top}_i \tilde{A}^{(3)} h^{(2)}_{i-k}\) which will be the only non zero entries after softmax, and show how it only sums the transitions of lag \(k\). The main idea is that \(B^{(3,h)}\) a boolean matrix such that each column sums only the entries containing the transitions for one of the lags. To achieve this, each column in the matrix follows a pattern in which the entries are spaced at intervals of \(K\), and the pattern shifts by one position between successive columns. This shift creates a cyclic arrangement across the columns, which repeats with frequency \(K\). For each head \(h\), the matrix \(B^{(3,h)}\) is structured such that the product \(\hat{p}^{(2,h)}_i B^{(3,h)}\) results in a vector where each element is the sum of the transitions for a given \(k\).In particular, the first element of the vector corresponds to the sum of \(k_{\text{min}}\), the \(K\)-th element corresponds to the sum of \(k_{\text{max}}\), and this pattern repeats cyclically for subsequent elements. To give an example, consider the product \(\hat{p}^{(2,1)}_{10} B^{(3,1)} e_8\) in Eq. eq. ¿eq:eqn:mask95example95alter?, which sums the transitions stored in \(\hat{h}^{(2,1)}\). Notice the structure of \(B^{(3,1)}\); the first column aligns with the transitions of lag \(1\) in \(\hat{p}^{(2,1)}_{10}\). Given that the index of \(\hat{p}^{(2,1)}_i\) is \(10\) and the index of \(e_j\) is 8, the sum constructs \(\mathcal{A}^{(3)}_{(10,8)}\), which is used to copy the token to predict the if the lag of the sequence is \(3\). Hence, \(\hat{p}^{(2,1)}_{10} B^{(3,1)} e_8\) has to sum the transitions of lag \(3\):

\[\begin{align} \hat{p}^{(2,1)\top}_{10} B^{(3,1)} e_8 &= \frac{\beta}{3}\begin{adjustbox}{angle=0,origin=c,scale=0.7}{\begin{pNiceMatrix}[] \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 \end{pNiceMatrix}}^{\textstyle\top} \begin{pNiceMatrix}[name=BOne] \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \end{pNiceMatrix} \begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ \end{pNiceMatrix}\end{adjustbox} = \frac{\beta}{3}\begin{adjustbox}{angle=0,origin=c,scale=0.7}{\begin{pNiceMatrix}[] \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & + & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & + & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & + & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & + & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3}\\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} & + & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} & + & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & + & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & + & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & + & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & + & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3}\\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} & + & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} & + & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & + & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & + & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & + & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & + & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,2} & + & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,2} & + & \Block[fill=red!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,2} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & + & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & + & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ \end{pNiceMatrix}}^{\textstyle\top} \begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ \end{pNiceMatrix}\end{adjustbox} \\ &= \frac{\beta}{3} \begin{pNiceMatrix}[] &\Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} \end{pNiceMatrix} \label{eqn:mask95example95alter} \end{align}\tag{10}\]

We can see how the operation implemented by this different parameterization is the same then in the other construction. Therefore the overall predictor remains unchanged. The additional matrices \(B^{(3,h)}\), which act on the outputs of the other heads \(\hat{h}^{(2,h)}\), perform the same operation by summing the transitions stored in the outputs of the respective heads. The difference in the construction of the matrix \(B^{(3,h)}\) for \(h \neq 1\) is that the columns are shifted by \(h\) positions relative to \(h = 1\). Specifically, for each \(h\), the columns are shifted by \(h\) positions compared to the matrix \(B^{(3,1)}\). In more generality, the matrix \(B^{(3,h)}\) is constructed as follows: \[B^{(3,h)}_{ij} = \beta \begin{cases} +1, & \text{if} \; \left((i-j-h+1) \, \mod \, K = 0 \right) \\ 0, & \text{otherwise} \end{cases}\] where \(h\) takes into account for the shift.

-3.5ex 2.3ex

Construction for any set of lags The construction illustrated in Section [sec:sec:theoretical95transformer] considers only contiguous lags, i.e. set of lags that are intervals of the positive integers. However, both our interleaved Markov chain framework and the Transformer construction can be extended to any set of lags. The implemented algorithm is the same, but the structure of the weights in the different layers becomes more complex because the mechanism with which the transition probabilities are aggregated depends on the relative distance between the lags in the set. Due to the difficulties in finding a general formulation of the matrices involved for any set of lags as well as the optimal number of heads which depends now not only on the number of lags but on the relative distance between them, we limit this section into illustrate two example with \(T=10\) and \(\mathcal{K} = \{1,3\}\) and \(T=12\) \(\mathcal{K} = \{1,3,4\}\) for which we will visualize the matrices and operations involved.

-3.25ex 1.5ex

Example for \(\mathcal{K} = \{1,3\}\) First layer: The structure of the first layer remains unchanged from Section [sec:sec:theoretical95transformer]. The important difference is that now the diagonals in the matrix \(A^{(1)}\) with positive entries are only and : \[\begin{align} \begin{aligned} &\widetilde{A}^{(1)} = \begin{pNiceMatrix}[margin, cell-space-limits=1pt] \Block[fill=mgold!80,rounded-corners]{1-1}{}\log P^{\star \top} & 0 \\ 0 & \Block[fill=mlightblue!40,rounded-corners]{1-1}{}A^{(1)} \end{pNiceMatrix} \\ \\ &A^{(1)}_{ij} = \begin{cases} + \lambda \quad \text{if} \quad j-i \in \mathcal{K} \\ - \lambda \quad \text{if} \quad j-i \not\in \mathcal{K} \, . \end{cases} \end{aligned} \begin{adjustbox}{angle=0,origin=c,scale=1} \qquad A^{(1)} = \end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=0.7} \;\; \begin{pNiceMatrix}[name=Aoneany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox} \label{eqn:A951} \end{align}\tag{11}\] The output token at index \(i\) after the first layer still corresponds to a weighted average of the past tokens \(h^{(0)}_{i-k}\) for \(k \in \mathcal{K}\) where the weights are given by the normalized probabilities \(\tilde{p}_{i,k}\):

\[\hat{h}^{(1)}_i=\text{Attn}(h^{(0)}_{1:T};\tilde{A}^{(1)})_i = \left\{ \begin{array}{cl}\sum_{j=1}^i \mathbb{1}\left[i-j \in \mathcal{K} \right] \frac{ P_{s_j,s_i}}{ \sum_{r \in \mathcal{K}} P_{s_r,s_i}} h^{(0)}_j & \text{if} \; i>1 \\ h_1^{(0)} & \text{if} \; i=1 \end{array} \right. = \left\{ \begin{array}{cl} \sum\limits_{k \in \mathcal{K}, k < i} \tilde{p}_{i,k} h^{(0)}_{i-k} & \text{if} \; i>1 \\ h_1^{(0)} & \text{if} \; i=1 \end{array} \right.\] Due to the lack of the entries on the diagonal, both the attention and the output token will change accordingly: \[\mathcal{A}^{(1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \begin{pNiceMatrix}[name=calAoneAny] \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{1\textcolor{gray!90}{0},3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{1\textcolor{gray!90}{0},1} & \textcolor{gray!90}{0}\\ \end{pNiceMatrix}\end{adjustbox} \; \hat{h}^{(1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \begin{pNiceMatrix}[name=hathOneAny] \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_1 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_2 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_3 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_4 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_5 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_6& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_7& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_8& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_9& \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_{10}\\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ \end{pNiceMatrix}\end{adjustbox} \label{eqn:attn95195any}\tag{12}\]

Second layer. Similarly to the construction for contiguous lags, the second layer is responsible for aggregating the normalized transition probabilities such that they are stored in the embedding of the current vector for its entire history. The second attention needs to learn an effective way of doing a convex combination of the input tokens such that the overlap is minimized and all the transitions are stored without mixing them. Consider the token at \(i=10\) in Eq. eq. ¿eq:eqn:attn95195any?, summing two consecutive tokens such as \(\hat{h}^{(1)}_9\) and \(\hat{h}^{(2)}_{10}\) ,contrary to the contiguous case in Eq. eq. ¿eq:eqn:attn951?, does not lead to any mixing due to the absence of transitions of lag \(2\). Therefore, \(2\) attention heads are still sufficient to copy all the transitions in the past as long as they learn to attend two consecutive tokens each.

Therefore, the optimal way to combine past tokens strictly depends on the number of tokens and the relative distance between them. Hence, finding a general formula for the positions at which the second attention \(\mathcal{A}^{(2)}\) should be attended to minimize overlap, is challenging and beyond the scope of this work. Similar considerations apply to the optimal number of heads required, which depends on the solution of the previous problem. However, the task for arbitrary sets of lags, can always be solved by consider the correspondent contiguous problem with \(\hat{k}-\min(\mathcal{K}+1)\) heads. However there are cases in which we can leverage the structure given by the distance between the lags to use fewer heads. One example is the one considered in this section with \(\mathcal{K} = \{1,3\}\) we only need two heads to achieve optimal sample complexity. The form of the matrix \(\tilde{A}^{(2,h)}\) remains unchanged: \[\tilde{A}^{(2,h)} = \begin{adjustbox}{angle=0,origin=c,scale=1.0} \begin{pNiceMatrix}[margin] 0 & 0 & \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} \\ 0 &\Block[fill=mred!40,rounded-corners]{1-1}{}A^{(2,1)} & \\ \Block[borders={top,right,tikz={dashed}}]{2-2}{0} & & \Block[]{2-2}{0} \\ & & & \\ \end{pNiceMatrix}\end{adjustbox}\] Considering the case illustrated in Eq. eq. ¿eq:eqn:attn95195any?, in order for the two heads to copy all the tokens without overlap, it is sufficient to sum two consecutive tokens and skip two. Therefore, the first attention has the pattern : \((0,0,1,1)\) while the second one \((1,1,0,0)\) as illustrated in the following: \[\begin{align} \begin{adjustbox}{angle=0,origin=c,scale=1} \, A^{(2, 1)}= \end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix}[name=Atwooneany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox} \, \mathcal{A}^{(2, 2)} = \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix}[name=Atwotwoany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox} \label{eqn:A952195any} \end{align}\tag{13}\]

where the first \(\hat{k}\) rows and columns are empty because the first \(\hat{k}\) elements of the sequence are sampled independently from the stationary distribution and therefore no transitions are present.

The attention computes the same operation as before: \[\hat{h}_i^{(2)} = \text{Attn}(h^{(1)}_{1:T}; \tilde{A}^{(2,h)})_i = \sum_{j=\hat{k}}^{i} \frac{\mathbb{1}\left[ A^{(2,h)}_{ij} = +\lambda \right]}{\sum_{m=1}^{i}\mathbb{1}\left[ A^{(2,h)}_{im} = +\lambda \right]} h^{(1)}_j \, .\] The output of each head is then concatenated into the residual stream. The structure of the third layer for the general case of any set of lags, also needs some modifications to take into account the particular structure that was enforced in the second layer. We extend the construction introduced in Section [sec:App:alternative95third] using the positional embeddings. First of all, the matrix \(A^{(3)}\) remains unchanged compared to the previous constructions, it has positive values along the diagonals correspondent to the lags shifted by one position to take into account the fact that we are predicting the next token in the sequence: \[A^{(3)}_{ij} = \begin{cases} +\lambda \quad \text{if} \quad j-i+1 \in \mathcal{K} \\ -\lambda \quad \text{if} \quad j-i+1 \not\in \mathcal{K} \\ \end{cases} A^{(3)} = \begin{adjustbox}{angle=0,origin=c,scale=0.65} \begin{pNiceMatrix}[name=AThreeany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox}\]

The matrix \(B^{(3)}\) is responsible for the sum of the normalized transitions; each block operates on the output of a corresponding head in the second layer. To understand how, consider the following tokens in output of the first head in the second layer:

\[\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{NiceMatrix}[] \hat{h}^{(2)}_{10} = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{4} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{} \scalebox{0.8}{\sum\limits_{i= 5,6,9,10}} e_{s_i} & 0 & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=grayTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\sum\limits_{i= 5,6,9,10}} \tilde{s}_i & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} & 0 {\Big)}\\[-3mm] \\ \hat{h}^{(2)}_9 = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{4} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{} \scalebox{0.8}{\sum\limits_{i= 4,5,8,9}} e_{s_i} & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\sum\limits_{i= 4,5,8,9}} \tilde{s}_i & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & 0 & 0 {\Big)}\\[-3mm] \\ \hat{h}^{(2)}_8 = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{3} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{} \scalebox{0.8}{\sum\limits_{i= 4,7,8}} e_{s_i} & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\sum\limits_{i= 4,7,8}} \tilde{s}_i & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & 0 & 0 & 0 {\Big)}\\ &&&&&&&&&&&&&&& \Block[]{1-9}{\underbrace{\phantom{}}_{ \textstyle \hat{p}^{(2)}_{8} }} &&&&&&& \end{NiceMatrix} \end{adjustbox} \label{eqn:token951095h95hat95295any}\tag{14}\] By the structure of \(\tilde{A}^{(3)}\) we can see how, when computing the attention, the matrices \(B^{(3,h)}\) are applied on the positional encoding \(e_j\) and the result is multiplied by \(\hat{p}^{(2,h)}_i\): \[h^{(2)\top}_i \tilde{A}^{(3)} h^{(2)\top}_j = \sum_{h=1}^K p_i^{(2,h)\top} B^{(3,h)} e_j + e_iA^{(3)}e_j\] where \(B^{(3,h)}\) is selectively summing the transition probabilities from the corresponding head. As for the simpler case of contiguous lags, for the sum to be selective it must hold that \(h^{(2)\top}_i \tilde{A}^{(3)} h^{(2)}_{i-k+1} \propto \sum_{j \leq i} \tilde{p}_{j,k}\), where \(i-k+1\) are the only non-zero entries due to \(A^{(3)}\) after applying softmax. As before, \(B^{(3,h)}\) is a boolean matrix such that each column sums only the entries containing the transitions for one of the lags. To achieve this, the matrix needs to learn the same pattern as in the attention of the second layer \(\mathcal{A}^{(2)}\), which was used to sum the vectors and create the current inputs. Each column is shifted by one position, and they cyclically repeat with frequency \(K\). In the following example, we consider \(\hat{p}^{(2,1)}_{10} B^{(3,1)} e_8\) in Eq. eq. ¿eq:eqn:mask95example95195any?, which sums the transitions stored in \(\hat{h}^{(2,1)}\) in the entry \(\mathcal{A}^{(3)}_{10,8}\):

\[\begin{align} \hat{p}^{(2,1)\top}_{10} B^{(3,1)} e_8 &= \frac{\beta}{4}\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{pNiceMatrix}[] 0 \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[name=BOneany] \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \end{pNiceMatrix} \begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ \end{pNiceMatrix}\end{adjustbox} = \frac{\beta}{4}\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{pNiceMatrix}[] 0 \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[] 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0\\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ 0 \\ \end{pNiceMatrix}\end{adjustbox}\\ &= \frac{\beta}{4} \begin{pNiceMatrix}[] &\Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} \end{pNiceMatrix} \end{align} \label{eqn:mask95example95195any}\tag{15}\]

Notice how the matrix \(B^{(3,1)}\) has the same pattern as \(A^{(2,1)}\) in Eq. eq. ¿eq:eqn:A952195any? but along the columns instead of the rows. Intuitively, it makes sense since we need to sum the same entries resulting from the sum in the previous attention. The matrix \(B^{(3,2)}\) acting on the second head will have the same pattern but shifted by two positions in order to have the same pattern as \(A^{(2,2)}\). -3.25ex 1.5ex

Example with \(\mathcal{K} = \{1,3,4\}\) The case of two lags \(\mathcal{K} = \{1,3\}\), despite not being contiguou,s does not adequately represent the general case. Indeed due to the structure, we could always sum two consecutive tokens and therefore recover optimal performance using \(2\) heads. It is helpful to also consider a case where the lags do not form a structure that allows for fewer heads in the construction. For example the case of three lags \(\mathcal{K} = \{1,3,4\}\) and \(T=12\): First layer: The main structure of the first layer remains unchanged, the diagonals in the matrix \(A^{(1)}\) with positive entries are , and : \[\begin{align} \begin{aligned} &\widetilde{A}^{(1)} = \begin{pNiceMatrix}[margin, cell-space-limits=1pt] \Block[fill=mgold!80,rounded-corners]{1-1}{}\log P^{\star \top} & 0 \\ 0 & \Block[fill=mlightblue!40,rounded-corners]{1-1}{}A^{(1)} \end{pNiceMatrix} \\ \\ &A^{(1)}_{ij} = \begin{cases} + \lambda \quad \text{if} \quad j-i \in \mathcal{K} \\ - \lambda \quad \text{if} \quad j-i \not\in \mathcal{K} \, . \end{cases} \end{aligned} \begin{adjustbox}{angle=0,origin=c,scale=1} \qquad A^{(1)} = \end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=0.7} \;\; \begin{pNiceMatrix}[name=Aoneaany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox} \label{abjmrheq} \end{align}\tag{16}\] The output token at index \(i\) after the first layer still corresponds to a weighted average of the past tokens \(h^{(0)}_{i-k}\) for \(k \in \mathcal{K}\) where the weights are given by the normalized probabilities \(\tilde{p}_{i,k}\): \[\mathcal{A}^{(1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.5} \begin{pNiceMatrix}[name=calAoneAAny] \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{4} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{4} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{4} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{4} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{1\textcolor{gray!90}{0},4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{1\textcolor{gray!90}{0},3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{1\textcolor{gray!90}{0},1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{11,4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{11,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{11,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{11,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{11,1} & \textcolor{gray!90}{0}\\ \end{pNiceMatrix}\end{adjustbox} \; \hat{h}^{(1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.5} \begin{pNiceMatrix}[name=hathOneAAny] \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_1 & \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_2 & \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_3 & \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_4 & \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_5 & \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_6& \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_7& \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_8& \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_9& \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_{10} & \Block[borders={right,tikz={dashed}}]{13-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_{11}& \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_{12}\\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{4} & \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,4} & 0 & 0 & 0 & 0 & 0 \\ 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{4} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,4} & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{4} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,4} & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{4} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,4} & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,4} & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,4} & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} & \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{11,4} & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{11,3} & \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,4} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,3} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{11,1} & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,1} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ \end{pNiceMatrix}\end{adjustbox} \label{eqn:attn95195aany}\tag{17}\] Second layer, aggregation of transition probabilities: In this case, we can’t use the fact that 2 consecutive tokens can be summed without mixing the information. In fact, summing the last tow tokens \(\hat{h}^{(1)}_{11}\) and \(\hat{h}^{(2)}_{12}\) would now result in the mixing of \(\tilde{p}_{11,3}\) and \(\tilde{p}_{12,4}\). In order to avoid this, the only possibility is to sum one token every \(4\), similar to the case where we would have \(4\) contiguous lags. This solution is less efficient because summing each \(4\) tokens while having the missing transition corresponding to lag \(2\) leaves an empty element in the embedding of the token and adds an additional head, increasing both the dimension and the number of parameters. This means that even if we only have 3 lags, in order to not have any overlap, we still need 4 attention heads for our construction to not mix the information. Each head has the pattern \((0,0,0,1)\) shifted by one position as if the lags would be 1,2,3,4: \[\begin{align} \begin{adjustbox}{angle=0,origin=c,scale=1} \, A^{(2, 1)}= \end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix}[name=Atwooneaany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox} \, \mathcal{A}^{(2, 2)} = \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix}[name=Atwotwoaany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mgreenTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox} \end{align}\] \[\begin{align} \begin{adjustbox}{angle=0,origin=c,scale=1} \, A^{(2, 3)}= \end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix}[name=Atwothraany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox} \, \mathcal{A}^{(2, 4)} = \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix}[name=Atwofouraany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox} \end{align}\]

Third layer For the third layer we use again the construction with the positional encoding that was introduced in App [sec:App:alternative95third]: \[A^{(3)}_{ij} = \lambda_1 \begin{cases} +1 \quad \text{if} \quad j-i+1 \in \mathcal{K} \\ -1 \quad \text{if} \quad j-i+1 \not\in \mathcal{K} \\ \end{cases} A^{(3)} = \begin{adjustbox}{angle=0,origin=c,scale=0.65} \begin{pNiceMatrix}[name=AThreeaany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox}\] For the selective sum, the matrices \(B^{(3,1)}, \dots, B^{(3,4)}\) have the same form as before but considering now the fact that even if we only have 3 lags in the set, we still need \(4\) heads: \[B^{(3,h)}_{ij} = \beta \begin{cases} +1, & \text{if} \; \left((i-j-h+1) \, \mod \, \hat{k}- \min(\mathcal{K}) +1 = 0 \right) \\ 0, & \text{otherwise} \end{cases}\] The computation related to the matrix \(B^{(3,1)}\) in the attention are reported in the following: \[\begin{align} \hat{p}^{(2,1)\top}_{12} B^{(3,1)} e_{10} &= \frac{\beta}{2}\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,4} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} \\ 0 \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} \\ \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,4} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,3} \\ 0 \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,1} \\ 0 \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[name=BOne] \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \end{pNiceMatrix} \begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ \end{pNiceMatrix}\end{adjustbox} = \frac{\beta}{2}\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,4} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} \\ 0 \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} \\ \Block[fill=mgreen!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,4} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,3} \\ 0 \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,1} \\ 0 \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ 0 \\ 0 \\ 0 \\ \end{pNiceMatrix}\end{adjustbox} \\ &= \frac{\beta}{2} \begin{pNiceMatrix}[] &\Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{12,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} \end{pNiceMatrix} \end{align}\]

-3.5ex 2.3ex

Construction for two lags and Single head In the constructions illustrated so far, in order to store all the transitions in the history of the current token and not lose any information, we had to scale the number of heads at least as the number of lags in the task \(K\). This allows to achieve optimal sample complexity. However, driven by experimental evidence, we observed that scaling the number of heads as the number of lags is not necessary in the special case of \(|\mathcal{K}|=2\). In this case indeed, there exists a solution, which transformers can learn, that achieves optimal sample complexity using only one head in the second layer. In the following we will report the construction that proves the previous statement while illustrating it for the case of \(\mathcal{K} = \{1,3\}\) analogous to Section [sec:App:costr95any95order]. First layer: The structure of the first layer remains unchanged from Section [sec:sec:theoretical95transformer]. The important difference is that now the diagonals in the matrix \(A^{(1)}\) with positive entries are only and : \[\begin{align} \begin{aligned} &\widetilde{A}^{(1)} = \begin{pNiceMatrix}[margin, cell-space-limits=1pt] \Block[fill=mgold!80,rounded-corners]{1-1}{}\log P^{\star \top} & 0 \\ 0 & \Block[fill=mlightblue!40,rounded-corners]{1-1}{}A^{(1)} \end{pNiceMatrix} \\ \\ &A^{(1)}_{ij} = \begin{cases} + \lambda \quad \text{if} \quad j-i \in \mathcal{K} \\ - \lambda \quad \text{if} \quad j-i \not\in \mathcal{K} \, . \end{cases} \end{aligned} \begin{adjustbox}{angle=0,origin=c,scale=1} \qquad A^{(1)} = \end{adjustbox} \begin{adjustbox}{angle=0,origin=c,scale=0.7} \;\; \begin{pNiceMatrix}[name=Aoneany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mlightblueTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \end{pNiceMatrix}\end{adjustbox} \label{khamierf} \end{align}\tag{18}\] Remarking that each input element \(s_i\) is encoded as \(h^{(0)}_i = [e_{s_i}, e_i] \in \{0, 1\}^{|\mathcal{S}| + T}\), the output token at index \(i\) after the first layer still corresponds to a weighted average of the past tokens \(h^{(0)}_{i-k}\) for \(k \in \mathcal{K}\) where the weights are given by the normalized probabilities \(\tilde{p}_{i,k}\): \[\hat{h}^{(1)}_i=\text{Attn}(h^{(0)}_{1:T};\tilde{A}^{(1)})_i = \left\{ \begin{array}{cl}\sum_{j=1}^i \mathbb{1}\left[i-j \in \mathcal{K} \right] \frac{ P_{s_j,s_i}}{ \sum_{r \in \mathcal{K}} P_{s_r,s_i}} h^{(0)}_j & \text{if} \; i>1 \\ h_1^{(0)} & \text{if} \; i=1 \end{array} \right. = \left\{ \begin{array}{cl} \sum\limits_{k \in \mathcal{K}, k < i} \tilde{p}_{i,k} h^{(0)}_{i-k} & \text{if} \; i>1 \\ h_1^{(0)} & \text{if} \; i=1 \end{array} \right.\] Due to the lack of the entries on the diagonal, both the attention and the output token will change accordingly: \[\mathcal{A}^{(1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \begin{pNiceMatrix}[name=calAoneAny] \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{1\textcolor{gray!90}{0},3} & \textcolor{gray!90}{0}& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{1\textcolor{gray!90}{0},1} & \textcolor{gray!90}{0}\\ \end{pNiceMatrix}\end{adjustbox} \; \hat{h}^{(1)} = \begin{adjustbox}{angle=0,origin=c,scale=0.6} \begin{pNiceMatrix}[name=hathOneAny] \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_1 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_2 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_3 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_4 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_5 & \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_6& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_7& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTrans,rounded-corners]{1-1}{}\tilde{s}_8& \Block[borders={right,tikz={dashed}}]{11-1}{} \Block[fill=grayTransk,rounded-corners]{1-1}{}\tilde{s}_9& \Block[fill=grayTranskk,rounded-corners]{1-1}{}\tilde{s}_{10}\\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\frac{1}{2} & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & \Block[fill=grayTranskk,rounded-corners]{1-1}{}\frac{1}{3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ \end{pNiceMatrix}\end{adjustbox} \label{eqn:attn95195any952}\tag{19}\] Second Layer: the second layer uses only the first head \(\tilde{A}^{(2)} = \tilde{A}^{(2,1)}\) compared to the construction illustrated in Section [sec:App:costr95any95order] and the matrix \(A^{(2)} = A^{(2,1)}\) remains identical. \[\tilde{A}^{(2)} = \begin{adjustbox}{angle=0,origin=c,scale=1.0} \begin{pNiceMatrix}[margin] 0 & 0 & \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} \\ 0 &\Block[fill=mred!40,rounded-corners]{1-1}{}A^{(2)} & \\ \Block[borders={top,right,tikz={dashed}}]{2-2}{0} & & \Block[]{2-2}{0} \\ & & & \\ \end{pNiceMatrix} \end{adjustbox} \; \; A^{(2)} = \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix}[name=Atwooneany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \Block[fill=mredTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox}\] For the case of two lags examined here, we can derive a mathematical expression for the matrix \(A^{(2)}\) which is valid for any set of lags. For convenience we introduce \(\bar{k} = \min \mathcal{K}\): \[A^{(2)}_{i,j} = \begin{cases} 0, & \text{if } i < \hat{k} \text{ or } j < \hat{k}, \\ \lambda, & \text{if } j \leq i \text{ and } \left( |i - j| \mod 2(\hat{k} - \bar{k}) \right) < (\hat{k} - \bar{k}), \\ 0, & \text{otherwise} \end{cases}\] where the first condition ensures that all elements in the first \(\hat{k}\) rows and the first \(\hat{k}\) columns of the matrix are zero. The condition \(j \leq i\) ensures that only the lower triangular part of the matrix (including the diagonal). Finally, the condition \(\left( |i - j| \mod 2d \right) < d\) introduces a periodic pattern within the lower triangular part of the matrix. The modulo operation creates a repeating cycle of length \(2(\hat{k}-\bar{k})\), and the condition \(< (\hat{k}-\bar{k})\) determines whether to place a one or a zero within each cycle segment.

Third layer: the third layer instead has a different structure. As before, there are only two non-zero blocks \(A^{(3)}\) and \(B^{(3)}\), but the latter appears in the transpose position compared to the previous constructions: \[\tilde{A}^{(3)} = \begin{adjustbox}{angle=0,origin=c,scale=0.7} \begin{pNiceMatrix} & \Block[fill=mpale!40,rounded-corners]{2-2}{} 0 & 0 & \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={left,bottom,tikz={dashed}}]{2-2}{0} && \Block[fill=teal!40,rounded-corners]{2-2}{} 0&0 & \\ & 0 & A^{(3)}&&&&&0&B^{(3)} & \\ & \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={top,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={top,bottom,tikz={dashed}}]{2-1}{0} \\ &&&&&&&&&\\ & \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={top,bottom,tikz={dashed}}]{2-2}{0} && \Block[borders={top,bottom,tikz={dashed}}]{2-1}{0} \\ &&&&&&&&&\\ & \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,tikz={dashed}}]{2-2}{0} && \Block[borders={left,top,right,tikz={dashed}}]{2-2}{0} && \Block[borders={top,tikz={dashed}}]{2-2}{0} && \Block[borders={top,tikz={dashed}}]{2-1}{0} \\ &&&&&&&&&\\ \end{pNiceMatrix}\end{adjustbox} \; \; A^{(3)} = \begin{adjustbox}{angle=0,origin=c,scale=0.5} \begin{pNiceMatrix}[name=AThreeany] \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}\\ \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda& \textcolor{gray!90}{\scalebox{0.8}{-}\lambda}& \Block[fill=mpaleTrans,rounded-corners]{1-1}{}\scalebox{0.8}{+}\lambda\\ \end{pNiceMatrix}\end{adjustbox} \; \; B^{(3)} = \beta \begin{adjustbox}{angle=0,origin=c,scale=0.5} \begin{pNiceMatrix}[name=BOneTwo] \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \end{pNiceMatrix}\end{adjustbox} \label{eqn:Atilde95395two95orders}\tag{20}\] The matrix \(A^{(3)}\) remains unchanged and has positive entries along the diagonals, corresponding to the lags shifted by one position. The main difference lies in the matrix \(B^{(3)}\), which now includes negative entries in positions that previously contained zeros. The general formulation of this matrix is the following: \[A^{(3)}_{ij} = \begin{cases} +\lambda \quad \text{if} \quad j-i+1 \in \mathcal{K} \\ -\lambda \quad \text{if} \quad j-i+1 \not\in \mathcal{K} \\ \end{cases} \qquad B^{(3)}_{i,j} = \begin{cases} \phantom{+}0, & \text{if } j \geq i, \\ +\beta, & \text{if } \left( (i - j - 1) \mod 2(\hat{k} - \bar{k}) \right) < (\hat{k} - \bar{k}), \\ -\beta, & \text{otherwise}. \end{cases}\] So far the matrix \(B^{(3)}\) has been structured such that it would compute the selective sum of the normalized transition of the lag of the corresponding entry in the attention: \(\tilde{A}^{(3)}_{ij} \propto h^{(2)\top}_i \tilde{A}^{(3)} h^{(2)}_{i-k+1} \propto \sum_{j \leq i} \tilde{p}_{j,k}\), where \(i-k+1\) are the only non-zero entries due to \(A^{(3)}\) after applying softmax. To understand the impact of having negative entries, let us consider the previous example for the case of \(\mathcal{K} = \{1,3\}\) and the output of the second attention for the , and token: \[\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{NiceMatrix}[] \hat{h}^{(2)}_{10} = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{4} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{} \scalebox{0.8}{\sum\limits_{i= 5,6,9,10}} e_{s_i} & 0 & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=grayTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\sum\limits_{i= 5,6,9,10}} \tilde{s}_i & 0 & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} & 0 {\Big)}\\[-3mm] \\ \hat{h}^{(2)}_9 = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{4} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{} \scalebox{0.8}{\sum\limits_{i= 4,5,8,9}} e_{s_i} & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\sum\limits_{i= 4,5,8,9}} \tilde{s}_i & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} & 0 & 0 {\Big)}\\[-3mm] \\ \hat{h}^{(2)}_8 = & \Block[fill=mred!35 ,rounded-corners]{1-1}{}\frac{1}{3} & \cdot {\Big(} & \Block[fill=grayTransk,rounded-corners]{1-1}{} \scalebox{0.8}{\sum\limits_{i= 4,7,8}} e_{s_i} & 0 & 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& \Block[fill=teal!35 ,rounded-corners]{1-1}{}1& 0 & 0 & \Block[fill=grayTransk,rounded-corners]{1-1}{}\scalebox{0.8}{\sum\limits_{i= 4,7,8}} \tilde{s}_i & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} & 0 & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} & \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} & 0 & 0 & 0 {\Big)}\\ &&&&&&&&&&&&&&& \Block[]{1-9}{\underbrace{\phantom{}}_{ \textstyle \hat{p}^{(2)}_{8} }} &&&&&&& \end{NiceMatrix} \end{adjustbox}\] and define \(\hat{p}^{(2)}_i \in \mathbb{R}^T\) as the block of \(\hat{h}^{(2)}_i\) which contains the normalized transition probabilities such that \(\hat{h}^{(2)}_i = [\sum_{j \in N_i} e_{s_j}, \hat{m}^{(2)}_i, \sum_{j \in N_i} \tilde{s}_j, \hat{p}^{(2)}_i]\). By the different structure in Eq. eq. ¿eq:eqn:Atilde95395two95orders? we can see how, when computing the attention for the concatenated tokens \(h^{(2)}_i = [[e_{s_i},e_i],\hat{h}^{(1)}_i,\hat{h}^{(2)}_i]\), the order of the multiplication has been reversed (\(e_i\) is now on the left) and the matrix \(B^{(3)}\) is applied to \(\hat{p}^{(2)}_j\): \[h^{(2)\top }_i\tilde{A}^{(3)} h^{(2)}_j = e_i^\top B^{(3)} \hat{p}_j^{(2)} + e_iA^{(3)}e_j \,.\]

To better understand the implications of the reverse order in the multiplication and the presence of negative entries, consider the product \(e_{10}^\top B^{(3,1)} \hat{p}^{(2)}_{8}\) in Eq. eq. ¿eq:eqn:mask95example95195two?, which sums the transitions stored in \(\hat{h}^{(2,1)}\) which, after softmax, will correspond to \(\mathcal{A}^{(3)}_{10,8}\): \[\begin{align} e_{10}^\top B^{(3)} \hat{p}^{(2)\top}_{8} &= \frac{\beta}{3}\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[name=BOneTwo] \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \end{pNiceMatrix} \begin{pNiceMatrix}[] \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} \\ 0 \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} \\ 0 \\ 0 \\ 0 \end{pNiceMatrix}\end{adjustbox} = \frac{\beta}{3}\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{pNiceMatrix}[] \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 \\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 \\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ 0 \\ \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[] \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} \\ 0 \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} \\ 0 \\ 0 \\ 0 \end{pNiceMatrix}\end{adjustbox}\\ &= \frac{\beta}{3} \begin{pNiceMatrix}[] &\Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,3} &+& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,3} &-& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{8,1} &-& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{7,1} &-& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{4,1} \end{pNiceMatrix} \end{align} \label{eqn:mask95example95195two}\tag{21}\] where we observe how, the product involving \(B^{(3)}\), is now not only computing the sum of transitions for the lag \(3\) as for the previous constructions to copy the to predict the , it is also subtracting all the transitions of lag \(3\). To fully understand the implications, we also consider the entry of the attention correspondent to the other lag in the set, \(1\) and the relative product \(e_{10}^\top B^{(3,1)} \hat{p}^{(2)}_{10}\):

\[\begin{align} e_{10}^\top B^{(4)} \hat{p}^{(2)\top}_{10} &= \frac{\beta}{3}\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{pNiceMatrix}[] 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \Block[fill=grayTrans,rounded-corners]{1-1}{}1 \\ \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[name=BOneTwo] \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}& \textcolor{gray!90}{0}\\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 &\Block[fill=mredTrans,rounded-corners]{1-1}{}-1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \Block[fill=tealTrans,rounded-corners]{1-1}{}1 & \textcolor{gray!90}{0}\\ \end{pNiceMatrix} \begin{pNiceMatrix}[] 0 \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 \end{pNiceMatrix}\end{adjustbox} = \frac{\beta}{4}\begin{adjustbox}{angle=0,origin=c,scale=0.7}\begin{pNiceMatrix}[] \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 \\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 \\ \Block[fill=mredTrans,rounded-corners]{1-1}{}-1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ \Block[fill=tealTrans,rounded-corners]{1-1}{}1 \\ 0 \\ \end{pNiceMatrix}^{\textstyle\top} \begin{pNiceMatrix}[] 0 \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} \\ \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} \\ \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} \\ 0 \end{pNiceMatrix}\end{adjustbox}\\ &= \frac{\beta}{4} \begin{pNiceMatrix}[] & \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,1} &+& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,1} &+& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,1} &+& \Block[fill=orange!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,1} &-& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{10,3} &-& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{9,3} &-& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{6,3} &-& \Block[fill=blue!35 ,rounded-corners]{1-1}{}\tilde{p}_{5,3} \end{pNiceMatrix} \end{align} \label{eqn:mask95example95195two95alt}\tag{22}\]

Therefore, both products contain the sum of the transitions for the respective lags and the negative sum of the other lag, and notice how they are all computed on different elements of the past. The first one contains the transitions for the tokens 8,7,4, whereas the second one contains the remaining ones 10,9,6,5. If we now compute the softmax: \[\begin{align} \mathcal{A}_{10,10} &= \frac{\exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{10} +\lambda \bigg)}{ \sum_{\substack{i=1 \\ i \neq 8}}^{9} \exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{j} -\lambda \bigg) + \exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{8} +\lambda \bigg) + \exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{10} +\lambda \bigg) } \\ &=\frac{\exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{10}\bigg)}{ \sum_{\substack{i=1 \\ i \neq 8}}^{9} \exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{j} -2\lambda \bigg) + \exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{8} \bigg) + \exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{10} \bigg) } \end{align}\] Considering the limit of \(\lambda \to \infty\): \[\begin{align} \lim_{\lambda \to \infty} \mathcal{A}_{10,10} &= \frac{\exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{10} \bigg)}{\exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{8} \bigg) + \exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{10} \bigg) } \\ & = \frac{1}{\exp \bigg( e_{10}^\top B^{(3)} \hat{p}^{(2)}_{8} - e_{10}^\top B^{(3)} \hat{p}^{(2)}_{10} \bigg) + 1 } \\ & = \frac{1}{\exp \bigg(+\frac{\beta}{3} \sum_{i \in \{8,7,4\}} \tilde{p}_{i,3} -\frac{\beta}{3} \sum_{i \in \{8,7,4\}} \tilde{p}_{i,1} -\frac{\beta}{4} \sum_{i \in \{10,9,6,5\}} \tilde{p}_{i,1} + \sum_{i \in \{10,9,6,5\}} \tilde{p}_{i,3} \bigg) + 1 } \end{align}\] which is considering all the possible transitions as in the case of two heads, therefore achieving optimal sample complexity.
