1 Introduction↩︎

Intrusion tolerance is an active area of research that aims to extend proven solutions in the fields of fault-tolerance and dependability to address growing concerns about weaknesses of modern-day information security systems [1], [2]. The key assumption is that, even when state-of-the-art intrusion prevention and detection techniques are in place, a security breach will occur eventually. An intrusion tolerant system (see Fig. 1) is therefore also equipped with mechanisms for reacting in real-time to an ongoing intrusion, striving not just to better detect its occurrence but also to diagnose or predict its evolution so that defensive countermeasures can be invoked timely enough to delay, frustrate or altogether thwart the attacker’s ultimate intentions. Successful realization of this vision introduces numerous technical challenges, including the embedded design of real-time sensing/response devices as well as the automatic control of these devices to favorably influence the system’s security status over its operational lifetime.

This paper analyzes the problem of intrusion tolerance within the formalism of Markov Decision Processes (MDPs) [3]. MDPs are related to the types of stochastic models already popular in contemporary dependability/security research [4]–[8]. Their focus is to assume that the model parameters (e.g., state transition probabilities & costs) in each decision stage depend explicitly on the control action taken in that stage. For example, an MDP can capture the reinstatement of security (and the possible cost of disrupting all normal services, or loss of availability) upon taking a cleansing "reset" action (e.g., initiating a server rotation [9] or perhaps a more elaborate recovery sequence [10]); as another example, an MDP can capture the possible prevention of a security failure from a well-timed "defend" action (e.g., killing a process that is critical to the intrusion’s continuation [11]). In any case, the expected performance (e.g., mean-time-to-failure) is dependent on the policy, or rule that dictates how control actions are selected, and the optimal policy is one that achieves the best performance for a given model.

Section [sec:MainModel] presents a simplest MDP model for intrusion tolerance problems. Though the model assumes only three system states and only three candidate controls for ease of analysis, it is sufficiently rich to expose a number of important policy considerations for intrusion tolerant systems. Even in the ideal case of perfect detectors (Section [sec:PerDet]), it is sometimes sub-optimal in the long run to employ a policy that invokes defensive responses during the intermediate stages of an intrusion; more specifically, depending on attack dynamics and response effectiveness, policies involving only occasional reset actions may provide a better tradeoff between the total overhead of ongoing security maintenance and the total risk of potential security failures. The model also includes the possibility of employing reset actions preemptively, capturing in fundamental terms the long-appreciated tradeoff between availability loss and risk reduction [12], [13] as well as isolating key factors that determine whether system recovery is best initiated reactively or proactively [14]; interestingly, whether a security failure is equated with catastrophic consequences is just one of several factors, another being e.g., whether the reset action is sufficiently reliable in comparison to attack dynamics (frequency, speed, etc.). Possible model extensions (and related work) are suggested in Section [sec:ModExt], looking towards intrusion tolerance applications with (i) imperfect or controllable detectors, (ii) multiple types of attacks, (iii) continuous-time dynamics or (iv) strategic attackers. We conclude in Section [sec:Conclu].

2 Main Model↩︎

This section abstracts the problem of intrusion tolerance within the modeling formalism of a stationary, discrete-time, finite-state, finite-action Markov Decision Process (MDP) [3]. Underlying such a model is (i) a finite collection of finite-state Markov chains, one per candidate control action, and (ii) the assumption that decisions are made in discrete stages: each stage begins in a particular state and, upon taking a control action, the process probabilistically transitions to a new state (or self-transitions to the same state), simultaneously ending the current stage and beginning the next. Thus, the outcome of each decision stage is defined by the selected control and the realized state transition. In turn, an MDP model associates both a probability and a cost to every such outcome.

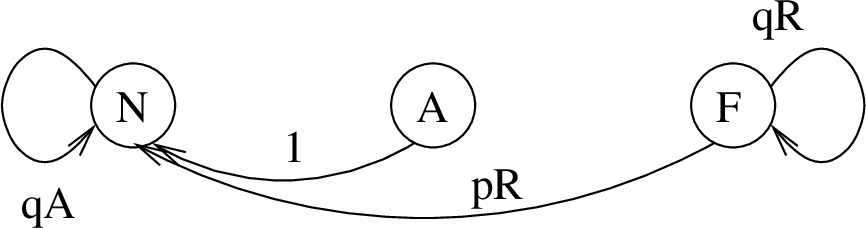

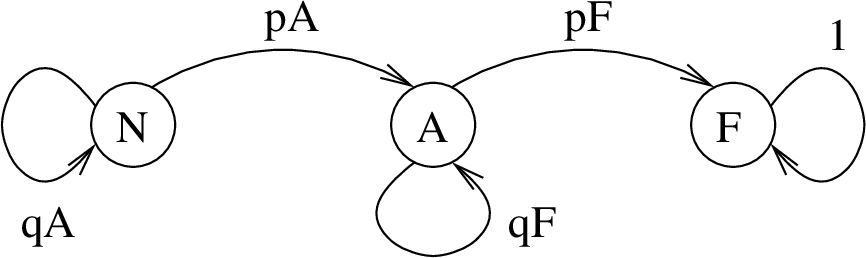

We categorize the security environment into only three states, labeled \(N\), \(A\) and \(F\) to denote “operating normally,” “under attack” and "security failure,” respectively; there are similarly only three candidate controls, labeled \(W\), \(D\) and \(R\) to denote a “wait” action, a “defend” action, and a “reset” action, respectively. The three diagrams in Fig. 2 summarize the single-stage transition probabilities/costs under each control action. For example, under the “wait” action (control \(W\)), self-transitions in state \(N\) represent secure, normal operation of the information system; however, a transition from state \(N\) to \(A\) occurs with per-stage probability \(p_A\), representing the beginning of an intrusion attempt. Thereafter, self-transitions in state \(A\) represent a secure system being under attack; eventually, a transition from state \(A\) to \(F\) occurs with per-stage probability \(p_F\), representing the beginning of a security failure that persists indefinitely. Stages that begin in state \(N\) are cost-free, whereas stages that begin in state \(A\) incur a cost of \(c_A\) and self-transitions in state \(F\) incur a cost of \(c_F\). These same probability/cost parameters apply under the “defend” action (control \(D\)), but with two differences: firstly, the possible transition from state \(A\) back to \(N\) (occurring with per-stage probability \(p_D\)) represents the successful disruption of the intrusion attempt; secondly, a cost of \(c_D\) is incurred in addition to the transition cost under control \(W\). Finally, under the “reset” action (control \(R\)), the system always returns to normal operation unless already in the failure state, in which case the return to normal operation occurs with probability \(p_R\); a cost of \(c_R\) is incurred in addition to the transition cost under control \(W\).

Summarizing, our simplest MDP model is described by four probability parameters and four cost parameters. All probability parameters may take values strictly between zero and unity; in particular, no value of one probability restricts the value of another. This reflects the fact that each probability parameter abstracts a different characteristic of the intrusion tolerance problem. More specifically, probability \(p_A\) relates to the frequency with which intrusion attempts are initiated, where larger values pertain to more aggressive attackers. Probability \(p_F\) relates to the rate at which an initiated intrusion will penetrate the security system, where larger values pertain to more vulnerable systems (or perhaps just shorter-duration exploits). Probability \(p_D\) relates to the success rate of a well-timed defensive countermeasure in preventing an otherwise inevitable security failure, where larger values pertain to more effective response devices. Probability \(p_R\) relates to the success rate of the reset action when reacting to a security failure, where larger values pertain to a more reliable recovery procedure. Our analysis will at times also be interested in the special cases where (i) probability \(p_D\) is exactly zero, corresponding to a completely useless defend action, and (ii) probability \(p_R\) is exactly unity, corresponding to a fully reliable reset action.

The four cost parameters may take any set of non-negative values that satisfy the following inequalities:

• \(c_A < c_F\), or one stage of a security failure incurs more cost (e.g., risk of exfiltration) than one stage of an intrusion attempt;

• \(c_D < c_R\), or a reset action incurs more cost (e.g., loss of availability) than a defend action; and

• \(c_R \leq c_F\), or one stage of a security failure is at least as costly as invoking the reset action.

Note that, because costs \(c_A\) or \(c_D\) are always non-negative, these conditions imply that costs \(c_F\) and \(c_R\) are always strictly positive.

Subject to design in a MDP model is the policy by which, in each stage, all available information maps into each selected control, typically seeking to minimize the total cost accrued over a large number of stages. Under such a penalty function, the above restrictions on cost parameters are quite natural, reflecting an intuition that it be preferable to take actions \(W\), \(D\) or \(R\) when in states \(N\), \(A\) or \(F\), respectively. We will see (in Section [sec:PerDet]) that this natural policy is not necessarily the best choice—the uncertainty (expressed via the probability parameters) must also be accounted for. Furthermore, upon moving to the realism of imperfect detectors (in Section [sec:ModExt]), we may never be certain about the true system state and must instead drive the decision process with a (sometimes incorrect) state estimate. Regardless of detector assumptions, design of the control policy must manage inherent tradeoffs between total overhead due to defensive countermeasures or system resets (with per-stage costs \(c_D\) and \(c_R\), respectively) and total risks due to ongoing intrusions or security failures (with per-stage costs \(c_A\) or \(c_F\), respectively); moreover, polices that fail to account for all of the underlying uncertainty, in both state evolution and state estimation, are also unlikely to achieve the best long-term balance between these two types of penalties.

3 Analysis: Perfect Detectors↩︎

We now proceed to analyze the main MDP model described in Section [sec:MainModel] under the assumption of perfect detectors, in which case the optimal policy admits an analytical solution. It is shown to always be one of only three alternative policies, and which of the three is characterized as the solution to a particular system of inequalities. The dependence on model parameters is complicated, so we develop an understanding of these inequalities in a piece-meal fashion. In particular, we first examine a series of special cases of the main model (e.g., fully reliable reset actions, cost-free intrusion attempts), reaching the most general understanding in the final subsection. Removing the unrealistic assumption of perfect detectors requires the extended modeling formalism of a partially-observable Markov decision process (POMDP), which is discussed (among other extensions) in Section [sec:ModExt].

3.1 Characterization of the Optimal Policy↩︎

Mathematically, perfect detection means that, in each stage \(k = 0, 1, \ldots\), the current state \(x_k \in \{ N,A,F\}\) is revealed before the control decision \(u_k\in\{ W,D,R\}\) must be made. Of course, the next state \(x_{k+1}\) remains uncertain until action \(u_k\) is applied and the process proceeds to the subsequent decision stage. Let \(g(x_k,u_k,x_{k+1})\) denote the cost associated with the outcome of stage \(k\) e.g., in our model, it may be any one of the different transition costs provided in Fig. 2. We desire a control policy that minimizes the infinite-horizon average-cost-per-stage \[\label{equ:optCrit} \lambda = \lim_{T\rightarrow \infty}\left( \frac{1}{T}\sum_{k=0}^T g(x_k,u_k,x_{k+1}) \right),\tag{1}\] which under certain technical conditions (satisfied by our model) is known to be achievable with a stationary, or stage-invariant, policy [3]. This means, in our model, that the optimal policy is one of the twenty-seven functions of the form \(\mu:\{N,A,F\} \rightarrow \{W,D,R\}\), each a different mapping from the state space to the control space by which every single-stage decision \(u_k = \mu(x_k)\) is to be made.

Given a particular policy \(\mu\), equations are provided in [3] (c.f., Proposition 4.1(c) in Chapter 7) to derive the associated average-cost-per-stage \(\lambda^\mu\) in terms of the given model parameters. However, under the assumptions on cost parameters stated in Section [sec:MainModel], it is easily seen that most of the twenty-seven candidate policies may be quickly dismissed. Firstly, because the only hope of exiting the failure state is by invoking the reset action (and \(c_R \leq c_F\)), we need only consider policies that map state \(F\) to action \(R\). Secondly, because the defend action has no bearing on transitions out of normal operation (and \(c_D \geq 0\)), we need not consider policies that map state \(N\) to action \(D\). This leaves only six candidate policies, three mapping state \(N\) to the wait action \(W\) and three mapping state \(N\) to the reset action \(R\)—let us first evaluate the former three policies, mapping state \(A\) to different actions.

1. Wait-upon-attack \(\mu^W\), or taking action \(W\) when in state \(A\) and incurring cost \(c_A\) per stage until the transition to state \(F\) occurs, achieving \[\label{equ:lambdaW} \lambda^W = \frac{p_A\left[p_Rc_A + p_F(1-p_R)c_F+ p_Fc_R\right]}{p_Ap_F + p_R(p_A+p_F)}.\tag{2}\]

2. Defend-upon-attack \(\mu^D\), or taking action \(D\) when in state \(A\) and incurring cost \(c_A + c_D\) per stage until the transition to state \(N\) or to state \(F\) occurs, achieving \[\label{equ:lambdaD} \lambda^D = \frac{G^W(1-p_D) + p_Ap_Rc_D}{Q^W + p_D \left[ p_R(1-p_F)-p_Fp_A\right]}\tag{3}\] with \(G^W\) and \(Q^W\) denoting the numerator and denominator, respectively, of \(\lambda^W\) in (2 ).

3. Reset-upon-attack \(\mu^R\), or taking action \(R\) immediately upon exiting state \(N\), achieving \[\label{equ:lambdaR} \lambda^R = \frac{p_Ac_R}{1+p_A}.\tag{4}\]

The remaining policies, namely those mapping state \(N\) to action \(R\), each achieve an average-cost-per-stage of \(c_R\) and can thus be dismissed by virtue of (4 ).

In summary, the optimal policy for the MDP model of Section [sec:MainModel] is one of only three candidate policies, each mapping the normal state \(N\) to the wait action \(W\) and the failure state \(F\) to the reset action \(R\) but differing in the action taken when in the attack state \(A\). Observe that policies \(\mu^W\) or \(\mu^D\), employing the reset action only after the system enters the failure state \(F\), represent favoring a reactive recovery strategy whereas policy \(\mu^R\), employing the reset action immediately after the system exits the normal state \(N\), represents favoring a proactive recovery strategy. The average-cost-per-stage performance of these three policies are given by (2 )-(4 ), each a closed-from expression in terms of the model parameters. Thus, our characterization of the optimal policy boils down to making just three direct comparisons i.e., the “wait-under-attack” policy \(\mu^W\) is optimal if and only if \(\lambda^W < \lambda^R\) and \(\lambda^W < \lambda^D\); otherwise, the “defend-under-attack” policy \(\mu^D\) is optimal if and only if \(\lambda^D < \lambda^R\); otherwise, the “reset-under-attack” policy \(\mu^R\) is optimal. The following inequalities express these comparisons in terms of the model parameters.

\(\bullet\) Comparison \(\lambda^W < \lambda^R\) holds if and only if \[\label{equ:CompWtoR} \begin{array}{l} (1+p_A)\left[ p_Rc_A + p_F(1-p_R)c_F\right] < \\[0.05in] \qquad \qquad \qquad \quad \qquad \qquad \qquad \left[ p_R(p_A + p_F)-p_F\right] c_R. \end{array}\tag{5}\]

\(\bullet\) Comparison \(\lambda^W < \lambda^D\) holds if and only if \[\label{equ:CompWtoD} \begin{array}{l} (1+p_A)p_D\left[ p_Rc_A + p_F(1-p_R)c_F+p_Fc_R\right] < \\[0.05in] \qquad \qquad \qquad \qquad \qquad \quad \:\:\: \left[ p_Ap_F + p_R(p_A+p_F)\right] c_D. \end{array}\tag{6}\]

\(\bullet\) Comparison \(\lambda^D < \lambda^R\) holds if and only if \[\label{equ:CompDtoR} \begin{array}{l} (1+p_A)\left[ (1-p_D)\left[ p_Rc_A + p_F(1-p_R)c_F\right] + p_Rc_D\right] < \\[0.05in] \qquad \qquad \quad \:\:\: \left[ p_R(p_A+p_D) - p_F(1-p_D)(1-p_R) \right] c_R. \end{array}\tag{7}\]

3.2 Some First Insights↩︎

Notice that comparing policies (2 )-(4 ) in terms of the Mean-Time-To-Failure (MTTF) or Mean-Time-To-Repair (MTTR) would not fully capture the long-term cost tradeoffs. This is easiest to see in the special case of a fully reliable reset action, or when probability \(p_R\) is unity. In this case, a failure (followed by an immediate reset) occurs on-average once every \(1 + 1/p_A + 1/p_F\) stages under policy \(\mu^W\) and once every \(1 + 1/p_A + (p_A + p_D)/[p_Ap_F(1-p_D)]\) stages under policy \(\mu^D\). Moreover, under policy \(\mu^R\), the MTTF is technically infinite but, proactively, the reset action is invoked on-average once every \(1 + 1/p_A\) stages. So, regardless of the values of the remaining three probability parameters, policy \(\mu^D\) results in the longest MTTF. (Here, for ease of exposition, each discrete stage is assumed to consume the same duration of time; extension to non-uniform time discretization will be discussed in Section [sec:ModExt].) In contrast, it is readily seen that the ordering of (2 )-(4 ) also depends on the values for cost parameters \(c_A\), \(c_D\) and \(c_R\) (as well as cost parameter \(c_F\) if the reset action is unreliable, or if probability \(p_R\) is strictly less than unity).

Next, consider the limiting case in which the per-stage failure cost \(c_F\) approaches infinity e.g., a security failure translates into loss-of-reputation or loss-of-life and is, in turn, orders of magnitude more costly than any other event. Then, any policy with which there is even the smallest yet non-zero chance of incurring cost \(c_F\) is infinitely penalized. Equations (2 )-(4 ) show that \(\mu^R\) is the only policy with zero such chance unless probability \(p_R\) is unity (i.e., unless the reset action is fully reliable), in which case all three policies remain on the table. Thus, we have just deduced the obvious conclusion that a proactive recovery strategy (represented in our model by policy \(\mu^R\)) is best if (i) a security failure is equated with catastrophic consequences and (ii) reset actions do not always recover from a security failure. However, despite the infinite failure cost, a proactive recovery strategy is not necessarily preferable if the reset action is fully reliable. Now, these conclusions are also premised on the idealization that we can perfectly (and immediately) detect the onset and completion of each intrusion attempt; as will be discussed in Section [sec:ModExt], the choice between reactive versus proactive recovery gets clouded by the reality of imperfect detectors.

The comparisons via (2 )-(4 ) capture subtleties beyond just explicit dependence on the cost parameters. Consider, for example, the special case in which probability parameter \(p_D\) is near-unity and cost parameter \(c_D\) is exactly zero (i.e., the defensive action is both highly effective and incurs no costly overhead). Is policy \(\mu^D\) then necessarily optimal? Notice that parameters \(p_D\) and \(c_D\) appear only in the expression for \(\lambda^D\) in (3 ). While the numerator certainly decreases as probability \(p_D\) increases, the same cannot be said for penalty \(\lambda^D\) on the whole. In particular, if probability \(p_R\) is less than \(p_Ap_F/(1-p_F)\), the denominator of \(\lambda^D\) also decreases as \(p_D\) increases. Thus, it need not be the case that a cost-free, highly-effective defensive action should always be employed: the optimality of policy \(\mu^D\) may somehow also depend on the reliability of the reset action in comparison to attack dynamics.

Indeed, the ordering of (2 )-(4 ) generally depends on all model parameters, the probabilities as well as the costs. This general dependence is captured most succinctly by (5 )-(7 ), or the system of inequalities expressed in terms of the model parameters. These will be examined from different viewpoints in the following subsections. For now, we will introduce the notion of “sufficiently reliable” reset actions by focusing on the inequalities (5 ) and (7 ) that involve the policy \(\mu^R\). Notice that the right-hand-sides of these two inequalities are the only two terms in all of (5 )-(7 ) that may take negative values. Because the associated left-hand-sides cannot be negative, the comparisons become moot when these terms are in fact negative. Specifically, regardless of the values taken by the four cost parameters, it follows from (5 ) that \[\label{equ:strongNotion} ifp_R < \frac{p_F}{p_F + p_A}, \quad then\lambda^R < \lambda^W\tag{8}\] and from (7 ) that \[\label{equ:weakNotion} ifp_R < \frac{p_F(1-p_D)}{p_F(1-p_D) + p_A + p_D}, \quad then\lambda^R < \lambda^D.\tag{9}\] Also recognizing that the right-hand-side of (8 ) is greater than or equal to the right-hand-side of (9 ) for any value of probability \(p_D\), we can identify two distinct notions of “sufficiently reliable” reset actions. As Fig. 3 illustrates, the strong notion is when probability \(p_R\) exceeds the threshold in (8 ), in which case all three policies remain on the table until the cost parameters enter the picture; otherwise, the weak notion is when probability \(p_R\) exceeds the threshold in (9 ), in which case only policies \(\mu^D\) and \(\mu^R\) remain; and otherwise only policy \(\mu^R\) remains and is thus optimal, rendering the cost parameters entirely irrelevant.

It is not surprising that the reliability of the reset action is another key factor in deciding between a reactive or proactive recovery strategy. Far from obvious, however, is the manner in which the other probability parameters influence the decision through their impact on the notions of “sufficiently reliable” reset actions. In particular, we see that sufficiency is more difficult to obtain, in the sense of requiring reset actions to have a higher probability \(p_R\), in scenarios with probability \(p_A\) much smaller than probability \(p_F\) i.e., infrequent and/or fast attacks. Moreover, the region of weak sufficiency diminishes with decreasing probability \(p_D\) i.e., less effective defend actions; in the limit of a useless defend action (when \(p_D\) is zero), not only does the region of weak sufficiency disappear entirely but we also see from inequality (6 ) that policy \(\mu^D\) can be dismissed even under strong sufficiency. Altogether, when facing infrequent and/or fast attacks (and especially when armed only with defend actions of lesser effectiveness), the region of insufficiency is likely to dominate and, in turn, proactive recovery is likely the better strategy.

3.3 The Special Case of Reliable Reset (\(p_R = 1\))↩︎

This subsection will examine the inequalities (5 )-(7 ) in the special case of a fully reliable reset action, or when probability \(p_R\) is exactly unity. As discussed in the preceding subsection, this guarantees a policy selection problem that is both in the region of strong sufficiency (see Fig. 3) and independent of cost parameter \(c_F\); however, values for the three other cost parameters do enter into the considerations.

Consider first the comparison between \(\lambda^W\) and \(\lambda^R\) in (5 ), which in this subsection specializes to the inequality \((1+p_A)c_A < p_Ac_R\). That is, \(\lambda^W\) is less than \(\lambda^R\) if and only if the cost ratio \(c_A/c_R\) is less than the fraction \(p_A/(1+p_A)\). This is arguably surprising: despite its appearance in (2 ) (even with \(p_R = 1\)), probability \(p_F\) turns out to have no bearing on the comparison between policy \(\mu^W\) and policy \(\mu^R\). In particular, the ordering of \(\lambda^W\) and \(\lambda^R\) is unchanged even as \(p_F\) is near-unity, or the case where each intrusion attempt almost immediately results in a security failure (e.g., a flash worm [15]). An equivalent interpretation, but from the perspective of holding cost parameters fixed, is that policy \(\mu^W\) is preferable to policy \(\mu^R\) only in the case of sufficiently frequent attacks (i.e., only for large enough \(p_A\) such that \(p_A/(1+p_A)\) exceeds the ratio \(c_A/c_R\))—in the case of less frequent attacks or simply when \(c_A/c_R\) exceeds \(1/2\), policy \(\mu^R\) is preferable.

The preceding comparison between \(\lambda^W\) and \(\lambda^R\) can be expressed concisely by the inequalities \[\label{equ:ruleWvsR} \lambda^R \begin{array}{c} \small choose \mu^W \\[-0.1cm] > \\ < \\[-0.1cm] \small choose \mu^R \end{array} \lambda^W \quad \Longleftrightarrow \quad \frac{p_A}{1+p_A} \begin{array}{c} \small choose \mu^W \\[-0.1cm] > \\ < \\[-0.1cm] \small choose \mu^R \end{array} \frac{c_A}{c_R} \quad .\tag{10}\] Similarly, the comparison between \(\lambda^W\) and \(\lambda^D\) in (6 ) specializes to the inequalities \[\label{equ:ruleWvsD} \frac{c_D}{c_R} \begin{array}{c} \small choose \mu^W \\[-0.1cm] > \\ < \\[-0.1cm] \small choose \mu^D \end{array} \left( \frac{p_D(1+p_A)}{p_A+p_F(1+p_A)} \right) \frac{c_A}{c_R} + y_0\tag{11}\] with \[y_0 = \frac{(1+p_A)p_Fp_D}{p_A+p_F(1+p_A)}.\] Finally, the comparison in (7 ) specializes to \[\label{equ:ruleDvsR} \frac{c_D}{c_R} \begin{array}{c} \small choose \mu^R \\[-0.1cm] > \\ < \\[-0.1cm] \small choose \mu^D \end{array} -(1-p_D)\frac{c_A}{c_R} + \frac{p_A+p_D}{1+p_A} \quad .\tag{12}\]

Observe that probability \(p_A\) affects all three pairwise comparisons, probability \(p_D\) affects only comparisons (11 ) and (12 ), while probability \(p_F\) affects only comparison (11 ). Viewing the (normalized) costs \(c_A/c_R\) and \(c_D/c_R\) as degrees-of-freedom, (10 )-(12 ) form a system of linear inequalities with coefficients depending on the values of probabilities \(p_A\), \(p_F\) and \(p_D\). In particular, these normalized costs comprise a two-dimensional design space, and each inequality alone defines a partition of this space in accordance with which of the two associated policies is preferable. In turn, all inequalities together define the partition in accordance with which of the three policies is optimal.

Fig. [fig:relResetPartitions] summarizes the optimal partition graphically, where we define \(y_0\) as in (11 ). Consistent with intuition, the optimal policy is (i) to reset-under-attack \(\mu^R\) when both the attack cost \(c_A\) and the defend cost \(c_D\) are large, (ii) to defend-under-attack \(\mu^D\) when both \(c_A\) and \(c_D\) are small and (iii) to wait-under-attack \(\mu^W\) when \(c_A\) is small but \(c_D\) is large. Less intuitive is what the optimal policy is when the costs take mid-range values and how the probability parameters influence the matter. Notice first that the three regions always meet at the point where \(c_A/c_R = p_A/(1+p_A)\) and \(c_D/c_R = p_D\). It’s also seen that policy \(\mu^W\) cannot be optimal if \(c_A/c_R\) exceeds \(p_A/(1+p_A)\) or \(c_D/c_R\) is below \(y_0\), while policy \(\mu^D\) cannot be optimal if \(c_A/c_R\) exceeds \((p_A + p_D)/[(1-p_D)(1+p_A)]\) or \(c_D/c_R\) exceeds \(p_D\). As probability \(p_F\) increases (i.e., as attacks more quickly bring about failure), the boundary between policies \(\mu^W\) and \(\mu^D\) pivots clockwise about the central meeting point. Finally, the sensitivity of the optimal partition to such changes in probabilities \(p_D\) or \(p_F\) is also a function of probability \(p_A\) (i.e., of the frequency with which attacks occur).

It is also instructive to consider the limiting cases of probability \(p_D\) approaching zero and unity, which correspond to the useless and the perfect defend action, respectively. Notice that the region for policy \(\mu^D\) reduces (expands) in size as \(p_D\) decreases (increases), vanishing entirely as \(p_D\) approaches zero (replacing entirely the region for policy \(\mu^R\) as \(p_D\) approaches unity)—this is not surprising, considering that a useless (perfect) defend action is essentially equivalent to an expensive wait (a cheap preemptive reset) action. However, even as \(p_D\) approaches unity, the region of policy \(\mu^W\) does not entirely vanish because the point \(y_0\) approaches the value \(p_F(1+p_A)/(p_F(1+p_A) + p_A)\), which is strictly less than unity by an amount that grows with increasing probability \(p_A\). Thus, even when the defend action is extremely effective and especially against higher-frequency attacks, it is possible (e.g., when \(c_D/c_R\) exceeds \(y_0\) and \(c_A/c_R\) is zero) that policy \(\mu^W\) remains preferable to policy \(\mu^D\) i.e., that a reactive recovery strategy without the use of the near-perfect defend action is best.

Fig. [fig:relResetPerformance](a) plots the achieved average-cost-per-stage \(\lambda^*\) (normalized by the reset cost \(c_R\)). It is seen to increase linearly as either \(c_A\) or \(c_D\) increases unless these costs are such that policy \(\mu^R\) is optimal, in which case \(\lambda^*\) plateaus at \(\lambda^R\). Fig. [fig:relResetPerformance](b) and Fig. [fig:relResetPerformance](c) illustrate that \(\lambda^*\) is, in general, the sum of two types of security-related penalties. Here, we have denoted the maintenance overhead by \(\lambda_M^*\), which is the sum of terms involving costs \(c_D\) or \(c_R\), and the failure risk by \(\lambda_F^*\), which is the sum of terms involving costs \(c_A\) or \(c_F\). For example, \(\lambda^W\) decomposes into the sum of \[\lambda^W_M = \frac{p_Ap_Fc_R}{p_A + p_F(1+p_A)}and\lambda^W_F = \frac{p_Ac_A}{p_A + p_F(1+p_A)},\] whereas \(\lambda^R\) decomposes into \(\lambda^R_M = \lambda^R\) and \(\lambda^R_F = 0\).

3.4 The Special Case of Cost-Free Attack (\(c_A = 0\))↩︎

This subsection will examine the inequalities (5 )-(7 ) in the special case of cost-free attacks, or when the per-stage cost \(c_A\) associated with intrusion attempts is exactly zero. Recall that, in our model, the per-stage failure cost \(c_F\) associated with allowing an intrusion to complete is always nonzero and greater than the two control-related costs, namely \(c_D\) and \(c_R\). As in the preceding subsection, we begin by specializing the inequalities (5 )-(7 ) into a more concise form in terms of two normalized costs. However, now that probability \(p_R\) need not be unity and thus cost \(c_F\) is pertinent, the normalized costs are \(c_D/c_F\) and \(c_R/c_F\), each quantifying the expense of the different control actions relative to each stage of security failure. We will again view these normalized costs as a two-dimensional design space and express the optimal policy as a specific partition that depends on the probability parameters \(p_A\), \(p_F\), \(p_D\) and \(p_R\). What will also emerge, however, are refined notions of “sufficiently reliable” reset actions (in comparison to Fig. 3). In particular, recognizing that \(c_R\) is never greater than \(c_F\), we obtain tighter conditions on the probability parameters for which policies \(\mu^W\) or \(\mu^D\) can be dismissed without consideration of the costs.

We begin by substituting \(c_A = 0\) into the inequalities (5 )-(7 ) and rearranging terms. Under the assumption of strong efficiency, the comparison between \(\lambda^W\) and \(\lambda^R\) specializes to the inequalities \[\label{equ:ruleWvsR2} \frac{c_R}{c_F} \begin{array}{c} \small choose \mu^W \\[-0.1cm] > \\ < \\[-0.1cm] \small choose \mu^R \end{array} \frac{(1+p_A)p_F(1-p_R)}{p_R(p_A+p_F) - p_F} \quad .\tag{13}\] Similarly, the comparison between \(\lambda^W\) and \(\lambda^D\) in (6 ) specializes to the inequalities \[\label{equ:ruleWvsD2} \frac{c_D}{c_F} \begin{array}{c} \small choose \mu^W \\[-0.1cm] > \\ < \\[-0.1cm] \small choose \mu^D \end{array} \left( \frac{p_D(1+p_A)p_F}{p_Ap_F+p_R(p_A+p_F)} \right) \frac{c_R}{c_F} + y_1\tag{14}\] with \[y_1 = \frac{(1+p_A)p_Fp_D(1-p_R)}{p_Ap_F+p_R(p_A+p_F)}.\] Finally, the comparison in (7 ) specializes to \[\label{equ:ruleDvsR2} \frac{c_D}{c_F} \begin{array}{c} \small choose \mu^R \\[-0.1cm] > \\ < \\[-0.1cm] \small choose \mu^D \end{array} m_1 \frac{c_R}{c_F} - \frac{p_F(1-p_D)(1-p_R)}{p_R}\tag{15}\] with \[m_1 =\frac{p_R(p_A+p_D) - p_F(1-p_D)(1-p_R)}{(1+p_A)p_R} .\] Recall that, under the assumption of weak sufficiency, policy \(\mu^W\) can be immediately dismissed and thus only comparison (15 ) remains relevant.

Fig. [fig:freeAttackPartitions] summarizes the optimal partition graphically, where we define \(y_1\) as in (14 ), \[y_2 = \frac{(1+p_A)p_Fp_D(2-p_R)}{p_Ap_F + p_R(p_A+p_F)},\] \[y_3 = \frac{p_R(p_A+p_D) - p_F(2+p_A)(1-p_D)(1-p_R)}{(1+p_A)p_R},\] \[x_1 = \frac{(1+p_A)p_F(1-p_D)(1-p_R)}{p_R(p_A+p_D) - p_F(1-p_D)(1-p_R)}\] and \[x_2 = \frac{(1+p_A)p_F(1-p_R)}{p_R(p_A+p_F)-p_F}\] as well as assume that the latter two quantities take positive values less than unity. (The portion of the design space with \(c_D/c_F\) greater than \(c_R/c_F\) can be ignored by virtue of the model assumption that \(c_D < c_R\).) Under strong sufficiency in Fig. [fig:freeAttackPartitions](a), the optimal policy is to (i) reset-under-attack \(\mu^R\) when the reset cost \(c_R\) is small, (ii) defend-under-attack \(\mu^D\) when \(c_R\) is large but the defend cost \(c_D\) is small and (iii) wait-under-attack \(\mu^W\) when both \(c_R\) and \(c_D\) are large. The three regions always meet at the point where \(c_R/c_F = x_2\) and \(c_D/c_F = p_Dx_2\). It’s also seen that policy \(\mu^W\) cannot be optimal if \(c_R/c_F\) is below \(x_2\) or \(c_D/c_F\) is below \(p_Dx_2\), while policy \(\mu^D\) cannot be optimal if \(c_R/c_F\) is below \(x_1\). In fact, notice that, as probability \(p_F\) approaches zero (i.e., as attacks become very slow), parameters \(x_2\) and \(y_2\) both approach zero at a rate inversely related to probability \(p_R\), while the rate for \(y_2\) is directly related to probability \(p_D\). This implies that, unless the defend action is highly effective or the reset action is highly unreliable, policy \(\mu^W\) is likely to be optimal—that is, armed with a reliable reset action against slow and cost-free attacks, a simplest reactive recovery strategy is preferable to exercising costly defenses or initiating preemptive resets. Also notice that \(x_1\) is strictly greater than zero if probabilities \(p_D\) and \(p_R\) are strictly within the unit interval. This implies that when both the defend and reset actions are only sometimes successful, and even if the defend action is cost-free (i.e., even if \(c_D/c_F\) is zero), there are small enough (nonzero) values of the ratio \(c_R/c_F\) to render initiating preemptive resets (i.e., policy \(\mu^R\)) favorable to employing defensive countermeasures (i.e., policy \(\mu^D\)). The story under weak sufficiency is similar, except that the optimal partition involves only the inequality comparing policies \(\mu^D\) and \(\mu^R\); note that \(x_2\) is now negative-valued and thus absent from Fig. [fig:freeAttackPartitions](b). Finally, Fig. [fig:freeAttackPerformance] plots the achieved average-cost-per-stage \(\lambda^*\) (still normalized by the reset cost \(c_R\)), showing its decomposition into maintenance overhead and failure risk as was discussed for Fig. [fig:relResetPerformance] in the preceding subsection.

It is readily shown under strong sufficiency that, no matter the probability parameters, the above quantities satisfy \(x_1 < x_2\), as sketched in Fig. [fig:freeAttackPartitions](a). However, the assumption that both \(x_1\) and \(x_2\) are less than unity need not be the case—in fact, we have \(x_1 < 1\) (as well as \(0 < y_3 < p_D\)) if and only if \[p_R > \frac{p_F(2+p_A)(1-p_D)}{p_F(2+p_A)(1-p_D) + p_A + p_D}\] and \(x_2 < 1\) (as well as \(y_1 < p_Dx_2 < y_2 < p_D < y_3\)) if and only if \[p_R > \frac{p_F(2+p_A)}{p_F(2+p_A) + p_A}.\] Whether \(x_1\) or \(x_2\) exceed unity is significant because, in our model, the cost ratio \(c_R/c_F\) is itself never greater than unity. Thus, regardless of the costs, policy \(\mu^W\) can be dismissed when given probability parameters such that \(x_1 > 1\), while policy \(\mu^D\) can also be dismissed when given probability parameters such that \(x_2 > 1\). It is also readily shown that, in relation to the two thresholds shown in Fig. 3, we have \[\frac{p_F(2+p_A)}{p_F(2+p_A) + p_A} > \frac{p_F}{p_F + p_A}\] and \[\begin{array}{l} \displaystyle \frac{p_F(2+p_A)(1-p_D)}{p_F(2+p_A)(1-p_D) + p_A + p_D} > \\ \displaystyle \qquad \qquad \qquad \qquad \qquad \qquad \frac{p_F(1-p_D)}{p_F(1-p_D) + p_A+p_D} \end{array} ,\] while the remaining order relation depends on probabilities \(p_D\) and \(p_A\); specifically, we have \[\frac{p_F(2+p_A)(1-p_D)}{p_F(2+p_A)(1-p_D) + p_A + p_D} > \frac{p_F}{p_F + p_A}\] if and only if \(p_D\) is less than \(p_A/(1+p_A)\).

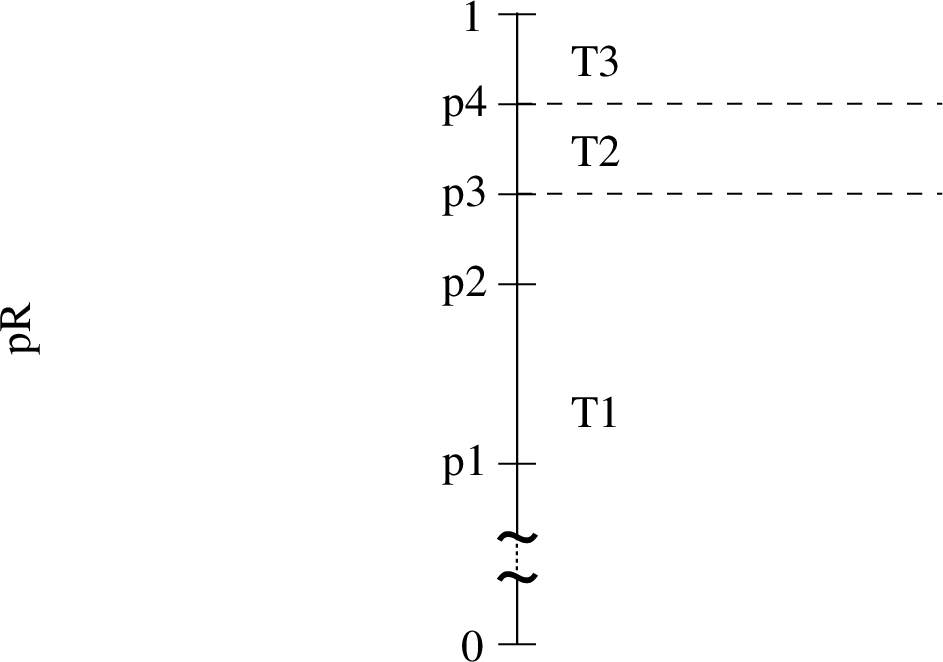

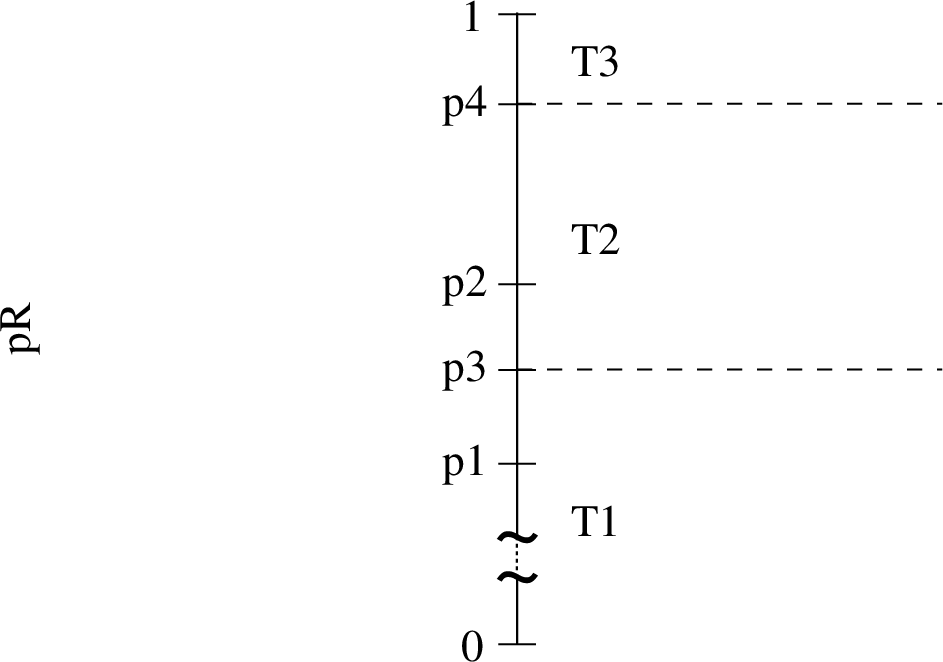

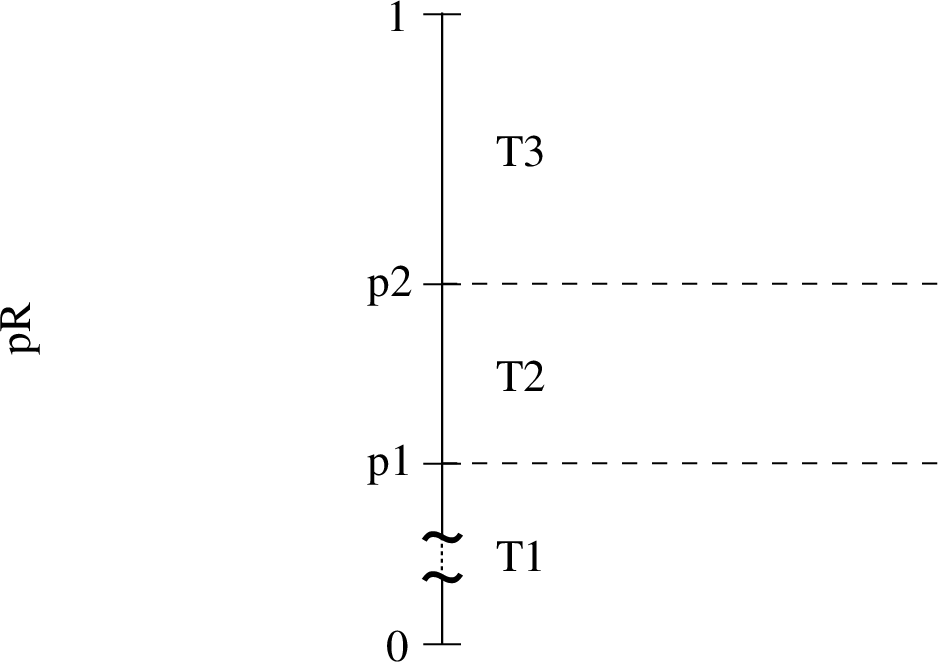

Fig. 7 illustrates the refined notions of “sufficiently reliable” reset actions implied by the possibilities that \(x_1\) or \(x_2\) exceed unity. It may at first seem counter-intuitive that, in comparison to Fig. 3, higher thresholds on probability \(p_R\) are required to achieve the different notions of sufficiency; stated another way, the region of insufficiency in which a proactive recovery strategy is preferable appears to be more dominant than was the case in Fig. 3. Yet, in the special case that \(c_A\) is zero, or the case of no penalty associated with allowing an intrusion attempt to proceed, intuition suggests that reactive recovery strategies should become only more favorable, all other things equal (i.e., the thresholds in Fig. 7 should be smaller than those of Fig. 3). What is confounding here is that all other things are not equal, in the sense that the conditions leading to the thresholds of Fig. 3 were highly conservative – for ease of exposition, they only examined whether a couple of terms in the inequalities (5 )-(7 ) were negative. The conditions leading to the thresholds of Fig. 7 go several levels deeper, examining terms in (5 )-(7 ) while also accounting for the fact that, in our model, the reset cost \(c_R\) cannot exceed the failure cost \(c_F\). As a result, Fig. 3 and Fig. 7 should not be compared too directly: for example, it is easily seen that policies \(\mu^W\) and \(\mu^D\) are more favorable when \(c_A\) is zero, all other things equal, by simply referring back to their penalties \(\lambda^W\) and \(\lambda^D\) in (2 ) and (3 ), respectively.

3.5 The General Case↩︎

This subsection builds upon the understanding gained from examining the previous special cases to characterize inequalities (5 )-(7 ) in full generality (but, of course, still under the idealization of perfect detection). The design space is now in three dimensions, involving cost ratios \(c_R/c_F\), \(c_D/c_F\) and \(c_A/c_F\) (on the \(x\)-axis, \(y\)-axis and \(z\)-axis, respectively), and each inequality now defines a planar partition of this space according to which of the two associated policies is preferable. In turn, all inequalities together partition the three-dimensional volume into components in accordance with which of the three policies is optimal.

Fig. [fig:generalPartitions] summarizes the optimal partition graphically, where we define \(x_1\), \(x_2\), \(y_2\) and \(y_3\) as in Fig. [fig:freeAttackPartitions], \[z_1 = \frac{p_Ap_R - p_F(2+p_A)(1-p_R)}{(1+p_A)p_R}\] and \[z_2 = \frac{p_R(p_A+p_D) - p_F(2+p_A)(1-p_D)(1-p_R)}{(1+p_A)(1-p_D)p_R}\] as well as assume that the latter quantity takes a positive value less than unity. Under strong sufficiency, the three planes always intersect at two points, specifically \((x_2, p_Dx_2,0)\) and \((1, p_D,z_1)\). The optimal policy is to (i) wait-under-attack \(\mu^W\) when, relative to cost \(c_F\), both \(c_R\) and \(c_D\) are high but \(c_A\) is low (the dark-shaded volume), (ii) defend-under-attack \(\mu^D\) when \(c_R\) is high but both \(c_D\) and \(c_A\) are low (the light-shaded volume) and (iii) reset-under-attack when \(c_R\) is low or \(c_A\) is high (the unshaded volume). The story under weak sufficiency is similar, except involving only the boundary defined by inequality (7 ).

Notice that the partition of Fig. [fig:freeAttackPartitions] corresponds to the \(xy\)-slice with ratio \(c_A/c_F\) equal to zero, while the partition of Fig. [fig:relResetPartitions] corresponds to the \(zy\)-slice with ratio \(c_R/c_F\) and probability \(p_R\) both equal to unity. The previous subsections on these special cases discussed in detail how the probability parameters affect the shape of the optimal partition and, in turn, how the cost parameters affect the choice of the optimal policy. These discussions, suitably generalized, continue to be relevant here e.g., consider Fig. [fig:generalPartitions] in the limiting case of a perfect defend action, or when probability \(p_D\) approaches unity. Observe that parameters \(x_1\), \(y_3\) and \(z_2\) approach zero, unity and infinity, respectively, implying that the boundary between the unshaded and lightly-shaded regions is approaching the \(x=y\) plane; that is, the region for which policy \(\mu^R\) is optimal is being entirely replaced by the region for which policy \(\mu^D\) is optimal. Meanwhile, observe that parameter \(z_1\) is constant while parameter \(y_2\) approaches a value strictly less than unity (under strong sufficiency), implying that the darkly-shaded region pertaining to policy \(\mu^W\), though certainly diminished, is not entirely replaced in the limit of a perfect defend action. In the limiting case of a useless defend action, where probability \(p_D\) is near zero, we have \(x_1\) near \(x_2\) and \(z_1\) near \(z_2\) so that the lightly-shaded volume corresponding to policy \(\mu^D\) essentially disappears.

There is one aspect of Fig. [fig:generalPartitions] that was not apparent in either of the special cases discussed in previous subsections, which relates to whether parameter \(z_2\) is in fact below or above unity. In particular, it is always true as sketched that \(z_1 < 1\) and \(z_1 < z_2\) (and, under strong sufficiency, that \(z_1 > 0\)), but the assumption that \(z_2 < 1\) need not be the case. This is significant because, in our model, the cost ratio \(c_A/c_F\) is always less than unity. This implies that, if the probability parameters are such that \(z_2 < 1\) and if cost \(c_A\) is such that \(c_A/c_F > z_2\), then policy \(\mu^R\) is optimal regardless of the other costs. On the other hand, if \(z_2\) is greater than unity, then even if \(c_A\) is equal to its upper bound of \(c_F\), it remains possible (e.g., if \(c_R/c_F\) is above \(x_2\) and \(c_D/c_F\) is below \(p_Dx_2\)) for policy \(\mu^D\) to be optimal. Now, it is readily shown that \(z_2 > 1\) if and only if \[p_R > \frac{p_F(2+p_A)(1-p_D)}{p_F(2+p_A)(1-p_D) + \left[ p_D(2+p_A)-1\right] },\] where the right-hand-side is always greater than the threshold of weak sufficiency in Fig. 7 but its relation to the strong sufficiency region depends on probability \(p_D\); specifically, we have that \[\begin{array}{l} \displaystyle \frac{p_F(2+p_A)(1-p_D)}{p_F(2+p_A)(1-p_D) + \left[ p_D(2+p_A)-1\right] } > \\ \displaystyle \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \frac{p_F(2+p_A)}{p_F(2+p_A) + p_A} \end{array}\] if and only if \(p_D\) is less than \(1/2\) as well as \[\frac{p_F(2+p_A)(1-p_D)}{p_F(2+p_A)(1-p_D) + \left[ p_D(2+p_A)-1\right] } > 1\] if and only if \(p_D\) is less than \(1/(2+p_A)\).

To summarize the preceding paragraph, in the case of “lowly-effective” defend actions in the sense that \(p_D < 1/(2+p_A)\), parameter \(z_2\) is always less than unity; in the case of “nominally-effective” defend actions in the sense that \(1/(2+p_A) < p_D < 1/2\), parameter \(z_2\) is always less than unity under weak sufficiency and transitions above unity within the strong sufficiency region of Fig. 7; in the case of “highly-effective” defend actions in the sense that \(p_D > 1/2\), parameter \(z_2\) is always greater than unity under strong sufficiency and transitions below unity within the weak sufficiency region of Fig. 7. Altogether, it follows that even in cases where an ongoing attack may be viewed nearly as costly as a security failure (i.e., where \(c_A\) approaches \(c_F\)), the choice between reactive or proactive recovery still depends on the probability parameters and, in general, also the other cost parameters; however, if armed with (i) only a “lowly-effective” defend action or (ii) only a “nominally-effective” defend action alongside a “weakly-sufficient” reset action, then a proactive recovery strategy is best as \(c_A\) approaches \(c_F\) regardless of the other costs \(c_D\) and \(c_R\).

4 Extensions and Related Work↩︎

The simplest model presented in Section [sec:MainModel] and analyzed in Section [sec:PerDet] can be extended in many ways. This section suggests a number of such extensions, also discussing the implications on the associated analyses and providing relevant references. The discussion specifically looks towards intrusion tolerance applications with (i) imperfect or controllable detectors, (ii) multiple types of attacks, (iii) continuous-time dynamics or (iv) strategic attackers.

4.1 Imperfect or Controllable Detectors↩︎

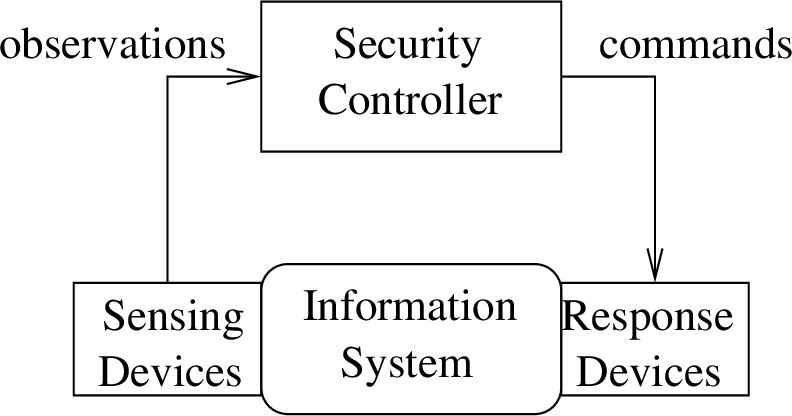

The analysis of Section [sec:PerDet] assumes that each control decision has access to perfect state information: the detectors never generate a false-positive nor a false-negative (i.e., never indicate state \(A\) if state \(N\) is true nor state \(N\) if state \(A\) is true, respectively) and, similarly, the presence or absence of a security failure is never in question (i.e., state \(F\) is indicated if and only if state \(F\) is true). To extend the analysis to the realistic case of imperfect state information, the more general formalism of a Partially Observable Markov Decision Process (POMDP) [16] is required. In addition to parameters of the MDP, a POMDP model assumes that each observation takes one of a finite set of values and then includes probability parameters that relate to the underlying sensor uncertainty. Moreover, much like the state transition probabilities, these sensor observation probabilities may also depend on the most-recently selected control action.

In our simplest three-state model, for instance, imperfect detection of the attack state \(A\) could be described by the additional parameters of a false-positive probability \(q_{A|N}\) and a false-negative probability \(q_{N|A}\), the ideal case recovered when these probabilities are both zero. (See [17] for a preliminary simulation-based analysis of this particular POMDP under the reliable reset assumption, focusing on the extent to which increasing sensor uncertainty monotonically degrades achievable performance and the loss from optimum performance of two popular rule-based policies for response selection.) Incorporating an additional sensing service (e.g., a disk scan) into a defensive countermeasure is captured by associating smaller error probabilities \(q^\prime_{N|A} < q_{N|A}\) or \(q^\prime_{A|N} < q_{A|N}\) to each observation that follows the application of control \(D\). A similar addition of probability parameters can capture errors about the presence or absence of a security failure. With multiple detectors in play, the aggregate observation model will also include probabilities to describe (perhaps control-dependent) correlations among the different sensor outputs.

Regardless of the details of the observation model, the advent of imperfect state information has dramatic ramifications on the structure of the optimal policy and, in turn, the complexity of its analysis and computation. This stems from the fact that, in each stage \(k = 0,1,\ldots\), it is no longer true that state \(x_k\) is revealed before the control decision \(u_k\) is made; rather, only an observation \(z_k\) is revealed and it must be properly interpreted within the context established from all previously revealed information i.e., the observation history \(\mathbb{Z}_{k-1} = (z_0,z_1,\ldots, z_{k-1})\) as well as the control history \(\mathbb{U}_{k-1} = (u_0, u_1, \ldots, u_{k-1})\). Under certain technical conditions (satisfied by POMDPs), this interpretation is provided by the conditional probability distribution \(P(x_k|\mathbb{Z}_k,\mathbb{U}_{k-1})\), or the belief state—that is, for the purposes of optimal control, the belief state is known to be a sufficient statistic, essentially a lossless compression of the entire history of previously revealed information [3].

A POMDP model features properties that greatly simplify the computation of successive belief states. Firstly, because the (hidden) state takes only finitely-many values, say \(n\), the distribution \(P(x_k|\mathbb{Z}_k,\mathbb{U}_{k-1})\) is expressed by a length-\(n\) probability vector \(b_k \in [0,1]^n\), whose components sum to unity with the \(i\)th component, \(b_k[i]\), denoting the probability that state \(x_k\) is of its \(i\)th value. Secondly, by virtue of the Markov properties, implying in each stage \(k\) that (i) every state transition probability satisfies \[p_{x_k|x_{k-1}}(u_{k-1}) = P(x_k|x_{k-1},\mathbb{Z}_{k-1},\mathbb{U}_{k-1})\] and (ii) every sensor observation probability satisfies \[q_{z_k|x_k}(u_{k-1}) = P(z_k|x_{k},x_{k-1},\mathbb{Z}_{k-1},\mathbb{U}_{k-1}),\] the sequence of belief states can be computed recursively [3]: given the preceding belief vector \(b_{k-1}\) and with the most recent control \(u_{k-1}\) and observation \(z_k\) both revealed, compute \[\label{equ:recEst} \bar{b}[i] := q_{z_k|i}(u_{k-1}) \sum_{j=1}^n p_{i|j}(u_{k-1}) b_{k-1}[j]\tag{16}\] for every \(i = 1,2,\ldots n\) and then normalize the vector \(\bar{b}\) i.e., then compute \(b_k[i] := \bar{b}[i] / \left( \sum_{j=1}^n \bar{b}[j]\right)\) for each \(i\). The initial belief vector \(b_0\) is similarly computed: given initial state distribution \(P(x_0)\) and with observation \(z_0\) revealed, normalize the vector \[\bar{b}[i] := q_{z_0|i}P(x_0 = i), \quad i = 1,2,\ldots, n.\]

The question that remains, of course, is how to design the policy that in each stage \(k\) maps a belief vector \(b_k\) into the control \(u_k\). Decades of theoretical research has revealed interesting structure in the optimal policy, but also characterized the (worst case) complexity of its computation to be prohibitive [18]. On the upside, a number of approximate solution algorithms have been developed that suitably exploit the problem structure and exhibit acceptable (average-case) complexity [19]. (The solution utilized in the simulation-based analysis of [17], for example, is Cassandra’s publicly available implementation of the iterative “witness” algorithm; see http://www.pomdp.org.) It is similarly more challenging, compared to the MDP counterpart, to evaluate the average-cost-per-stage performance of any given policy, which is typically accomplished via Monte-Carlo simulation methods [20].

4.2 Multiple Types of Attacks↩︎

The model of Section [sec:MainModel] captures attacks at the highest level of abstraction, including only two non-normal states \(A\) and \(F\) pertaining to whether an intrusion is ongoing or complete, respectively. The associated controls, defend \(D\) and reset \(R\), respectively, are formulated at a comparable level of abstraction. While different types of attacks and responses can be represented to some extent by varying probability parameters (e.g., slow versus fast attacks by varying probability \(p_F\), reliable versus unreliable reset by varying probability \(p_R\)), any single instance of our simplest model can not capture possibilities that any particular attack is one of many types nor that any particular response may exhibit different degrees of effectiveness across these types. It is clear that different types of attacks will merit different control policies, but proper adaptation of the policy can only be accomplished if the underlying model affords the ability to discriminate between the attack types. Even within each individual type of attack, similar performance gains can be realized by an ability to track finer-grained intrusion steps or to diagnose more-detailed failure modes that merit, respectively, different defensive countermeasures or alternative recovery sequences

The (PO)MDP formalism extends to these more detailed representations of attacks or failures, and the associated alternative responses, by the introduction of additional system states and control actions. For example, the attack state \(A\) in our simplest model could be refined into a series of states \(A_1,A_2,\ldots\), each in correspondence with a step in the intrusion within which a different defensive countermeasure \(D_1,D_2,\ldots\) is appropriate. This modeling approach has been successfully applied to the problem of defending a web-server against automated Internet worm attack [11], with states pertaining to the “bypass,” “download” and “install” steps of a worm and with controls including “kill-process” and “block-port.” Similarly, the failure state \(F\) in our model could be refined into a set of states \(F_1,F_2,\ldots\), each a different failure mode of the system for which a different recovery action \(R_1, R_2, \ldots\) is appropriate. This modeling approach has been successfully applied to the problem of maintaining a three-tier enterprise messaging platform in the face of imprecise fault diagnosis [10], with states pertaining to “component-crash” and “host-crash” and with controls including “restart-component” and “reboot-host.” Other examples of computer security models compatible with the formalism of MDPs appear in [4], [6], [7].

The introduction of additional states and controls can also capture the possibility of multiple types of attack, each represented by its own series of attack steps and set of failure modes. In such models, the transition probabilities out of the normal state \(N\) and into the first step of each type of attack reflect the relative frequencies they are encountered (akin to probability \(p_A\) in our model) e.g., probability \(p_{A_1|N}\) is greater than probability \(p_{B_1|N}\) if attack type \(A\) is more common than attack type \(B\). The aggregate MDP will also depend on whether different types of attacks can occur simultaneously, in which case there will be states corresponding to the cross-product of those defined for each individual attack type. Regardless of the granularity of states, the transition probabilities serve to express different controllability properties of each attack type i.e., the effectiveness of different defensive countermeasures and the reliability of alternative recovery options (akin to probabilities \(p_D\) and \(p_R\), respectively, in our model). Similarly, the observation probabilities capture potentially different observability properties of each attack type e.g., whether an available detector is essentially blind to certain steps (or even an entire type) of attack.

Of course, adding states and controls to an MDP model not only increases the number of parameters to be specified, but also increases the complexity of policy optimization and analysis. In general, given \(n\) distinct states and \(m\) distinct controls, an MDP model consists of \(mn(n-1)\) transition probabilities and \(mn^2\) transition costs; in the case of imperfect state information, given \(o\) distinct observations, there are also \(mn(o-1)\) observation probabilities. It is common to store the model parameters as a set of \(3m\) matrices, or three matrices per control action \(u\): an \(n\)-by-\(n\) matrix \(\mathbf{G}(u)\) with transition cost \(g(i,u,j)\) in row \(i\) and column \(j\), an \(n\)-by-\(n\) matrix \(\mathbf{F}(u)\) with transition probability \(p_{j|i}(u)\) in row \(i\) and column \(j\), and an \(n\)-by-\(o\) matrix \(\mathbf{H}(u)\) with observation probability \(q_{z|i}(u)\) in row \(i\) and column \(z\). The latter two matrices, having elements that lie in the unit interval and rows that sum to unity, are called stochastic matrices and feature many interesting properties [21]. Even so, for larger models, an analysis analogous to that carried out in Section [sec:PerDet] would yield optimal partitions in higher dimensions and, in the case of imperfect detectors, present a larger parameter space over which numerical methods must be employed. Such concerns are attenuated for models in which many of the probability/cost parameters are zero, which is fortunately often the case in practical applications e.g., each attack state typically permits transition to only a small subset of the full state space. Exploiting this model sparsity for the purpose of compact representation, efficient computation and tractable analysis connects to the rich fields of probabilistic graphical models [22], [23] and approximate dynamic programming [24], [25].

4.3 Continuous-Time Dynamics↩︎

The models discussed thus far assume that the state of the system evolves in discrete stages, neglecting the possibility that the time duration between successive stages can itself be informative to the decision process. Consider, for example, a staging scheme in which control decisions are made in an event-driven manner based on reports from the detector(s) (e.g., act upon every tenth report) and a type of attack in which certain steps typically cause the reports to be burstier than normal e.g., [11]. As another example, historical data from which certain attack characteristics (frequency, speed, etc.) can be estimated may be in terms of absolute time (e.g., on-average, attack type \(A\) is attempted every half-hour, attack type \(B\) is attempted every five minutes, etc.). Endowing an automatic controller with a notion of absolute time may also facilitate human-computer interaction with security administrators. For example, commanded recovery sequences are often generated via a real-time scheduling algorithm whose parameters include time bounds on the involved operations [13], [14], [26], [27].

Generalizing the MDP formalism to account for continuous-time dynamics leads to the so-called semi-Markov decision process [21], [28], which assumes that the time durations between successive state transitions are themselves random. One way to understand a semi-Markov process is as follows: as in an ordinary Markov chain, it begins at time \(t_0 = 0\) with a realization of state \(x_0\) according to a given initial state distribution \(P(x_0)\); then, control \(u_0\) is selected and the subsequent state \(x_1\) is realized according to specified transition probabilities \(p_{x_1|x_0}(u_0)\); next, time duration \(\tau_1\) is realized according to a specified distribution \(P(\tau_1 \leq \tau \mid x_0, u_0, x_1)\) conditioned on the realizations of \(x_0\), \(u_0\) and \(x_1\), implying that state \(x_1\) is entered at time \(t_1 = \tau_1\) with an accrued cost of \(\tau_1g(x_0,u_0,x_1)\); the next control \(u_1\) as well as the subsequent state \(x_2\) and duration \(\tau_2\) are realized analogously, implying state \(x_2\) is entered at time \(t_2 = \tau_1 + \tau_2\) with an additional cost of \(\tau_2g(x_1,u_1,x_2)\); and so on such that, with \(t_k = \sum_{s=1}^k \tau_s\) denoting the time of the \(k\)th state transition, the process holds each state \(x_k\) and control \(u_k\) through the time interval \([t_k,t_{k+1})\) at an additional cost of \(\tau_kg(x_k,u_k,x_{k+1})\).

More precisely, given that the process enters state \(x_k = i\) at time \(t_k\) and assuming that control \(u_k = u\) is constant from time \(t_k\) onward, the next transition into state \(x_{k+1} = j\) at time \(t_{k+1} = t_k + \tau_{k+1}\) is characterized by a distribution function \[Q_{j|i}(\tau|u) = P(\tau_{k+1} \leq \tau, x_{k+1} = j \mid x_k = i, u_k = u )\] for all \(\tau > 0\). Moreover, for every stage \(k = 1,2,\ldots\), each such distribution satisfies the Markov properties \[\begin{array}{l} \!\!\! Q_{j|i}(\tau|u) = \\[0.05in] \!\! P(\tau_{k+1} \leq \tau, x_{k+1} = j \mid \mathbb{X}_{k-1},\mathbb{U}_{k-1},\mathbb{T}_k,x_k=i,u_k=u) \end{array}\] with \(\mathbb{X}_k\) and \(\mathbb{T}_k\) denoting the analogous sequences of random variables as those denoted by \(\mathbb{U}_k\) (and \(\mathbb{Z}_k\)) in Subsection [ssec:ImpDet]. In other words, the random duration \(\tau_k\) between the \((k-1)\)th and \(k\)th transitions, conditioned on the involved state transition \(i \rightarrow j\) and the constant control \(u_{k-1} = u\), is independent of the states, controls and durations of all preceding stages. These so-called transition distributions \(Q_{j|i}(\tau|u)\) of a semi-Markov process can be viewed as analogs to the state transition probabilities \(p_{j|i}(u)\) of an ordinary Markov chain; indeed, the former implies the latter, \[p_{j|i}(u) = \lim_{\tau \rightarrow \infty} Q_{j|i}(\tau|u),\] which are said to comprise the embedded Markov chain of the semi-Markov process. The model further assumes that each distribution \(Q_{j|i}(u)\) is such that the mean transition duration conditioned on next entering state \(j\), given by \[d_{i,j}(u) = \int_{0}^\infty 1 - \frac{Q_{j|i}(\tau|u)}{p_{j|i}(u)} d\tau,\] is finite. The transition costs of the MDP model and, in turn, the average-cost-per-stage in (1 ) also experience slight alteration. In particular, the real-valued function \(g(i,u,j)\) now represents the rate at which cost is accrued over each time interval in which (i) both the current state \(i\) and applied control \(u\) remain unchanged and (ii) the next transition will enter state \(j\). That is, the total cost grows as a piece-wise linear function of continuous time \(t\), the slope in each interval \([t_{k-1},t_k)\) taking the value \(g(x_{k-1},u_{k-1},x_k)\). It follows that, letting \(N(t)\) denote the number of stages completed by time \(t\), the continuous-time counterpart to (1 ) is given by \[\lim_{T \rightarrow \infty} \left( \frac{1}{T} \sum_{k=0}^{N(T)} \tau_{k+1}g(x_k,u_k,x_{k+1}) \right).\]

The above continuous-time problems are not pure Markov processes because, even though at each instant of transition \(t_k\) the future of the system statistically depends only on the current state \(x_k\) (assuming a fixed state-feedback policy \(u_k = \mu(x_k)\)), at other times it depends in addition on the time \(t - t_k\) elapsed since the preceding transition. Even so, the analysis of finite-state/finite-action semi-Markov processes under infinite-horizon optimization criteria proceeds surprisingly similar to the ordinary MDP counterpart. In particular, under rather mild technical conditions as explained in [28] (c.f., Proposition 3.2 in Chapter 5), it is known that (i) the optimal policy takes the form \(\mu:\{ 1,2,\ldots n\} \rightarrow \{ 1,2,\ldots,m\}\) and (ii) the average-cost-per-stage \(\lambda^u\) achieved by a candidate policy \(\mu\) can be derived by essentially the same equations used to obtain (2 )-(4 ) in Section [sec:PerDet]. Moreover, these equations (as well as optimality) depend on the transition distributions \(Q_{j|i}(u)\) only to first-order i.e., only on the (up to) \(mn(n-1)\) embedded chain probabilities \(p_{j|i}(u)\) and the (up to) \(mn^2\) average transition durations \(d_{i,j}(u)\).

Unfortunately, in the realistic case of imperfect detectors, the generalization to continuous-time dynamics is not as readily addressed. This stems from the fact that it is typically impossible to ensure that decision points align exactly with state transition times, in which case the semi-Markov nature of the state process gives rise to violations of the Markov properties belying the belief state recursion of (16 ). One exception is the special case that each transition duration \(\tau_k\), conditioned on the triplet \((x_{k-1},u_{k-1},x_k)\), is characterized by an exponential distribution that is independent of the next state \(x_k\) i.e., \[Q_{j|i}(\tau|u) = p_{j|i}(u)\left[ 1 - \exp\left( -\frac{\tau}{d_i(u)}\right)\right], \quad \tau > 0\] with \(d_i(u)\) now interpreted as the mean transition duration out of state \(i\) while under control \(u\). That the state now evolves in continuous-time as a true Markov process is a consequence of the well-known memoryless property of the exponential distribution [21]. In turn, the belief state computation of (16 ) applies after appropriate modification of the embedded chain probabilities \(p_{j|i}(u)\) to account for these mean transition durations \(d_i(u)\) relative to the actual time \(\tau\) elapsed since the preceding calculation. Specifically, suppose we wish to update the belief state upon receiving observation \(z_k\) given that the preceding belief vector \(b_{k-1}\) was computed (and the preceding control \(u_{k-1} = u\) was selected) \(\tau\) time units ago; then, we may still employ (16 ) but only after modifying the transition probability matrix to \[\mathbf{F}(u;\tau) = \sum_{\ell=0}^\infty \bar{\mathbf{F}}(u)^\ell \left[\frac{\exp\left( -\tau/\bar{d}\right)\left(\tau/\bar{d}\right)^\ell}{\ell!}\right],\] where \(\bar{d}\) and \(\bar{\mathbf{F}}(u)\) denote the mean transition duration and the transition probability matrix, respectively, of the so-called uniformized process [21] i.e., let \(\bar{d} = \min_{i,u} d_i(u)\) and the elements of matrix \(\bar{\mathbf{F}}(u)\) equal \[\bar{p}_{j|i}(u) = \left\{ \begin{array}{lcl} \frac{\bar{d}}{d_i(u)} p_{j|i}(u) & , & if i \neq j \\[0.1in] \frac{\bar{d}}{d_i(u)} p_{i|i}(u) + 1 - \frac{\bar{d}}{d_i(u)} & , & if i = j \end{array} \right. .\] Of course, designing the policy that in each stage \(k\) maps the resulting belief vector \(b_k\) into the next control \(u_k\) remains (at least) as complicated as was discussed for ordinary POMDPs in Subsection [ssec:ImpDet].

4.4 Strategic Attackers↩︎

The models considered thus far assume that attackers are, in essence, naive and static (in the sense of stationary statistics) over the time horizon that any optimized defense policy will be employed. That is, while per-attack variation is anticipated to the extent that characteristics (frequency, speed, type, etc.) are modeled statistically, there is no representation of the possibility that successive intrusion attempts are in fact under the control of an intelligent entity. Such a strategic attacker is likely to be motivated by objectives beyond just causing a security failure (e.g., espionage, data exfiltration), employing its own optimized control policy to select each next action as a function of the observed or inferred responses of the information system against its past actions. An advanced persistent threat, for example, may strategically suppress or delay attack activity when defensive monitoring is expecting to be most intense. From the defender’s point-of-view, a number of new questions arise: can we discriminate a strategic attacker from a naive one and, if so, then deduce the end objective to better defend against the strategic attacker’s next move(s)?

Decision problems with two opposing controllers, or agents, is the subject of game theory and its application to network security is a very active area of research e.g., [8], [29]–[31]. Solutions are premised upon the foundational game-theoretic concept of equilibrium strategies e.g., in place of the one-player notion of an optimal policy, the idea is rather that both players adopt policies whereby each player, subject to the other player holding its policy fixed, sees no incentive to alter its adopted policy. The special case of MDPs with two opposing controllers are called competitive MDPs (CMDPs), where a (Nash) equilibrium is known to exist under the assumption of a finite number of states and actions. Of course, analyzing a CMDP by computing such equilibria is no less difficult than in the single-player counterparts. Altogether, extending the model and analysis of this paper to cope with strategic attackers presents a formidable research challenge. Solution algorithms for so-called “stochastic shortest path games” [32] and “partially observable stochastic games” [33] may provide appropriate starting points.

A strategic attacker in the context of an optimal stopping problem, a particulary well-studied stochastic control problem with imperfect state information [3], is formulated and analyzed in [34]. The security narrative involves a network for which a strategic defender must classify whether the attacker is a strategic spy or a naive spammer based on an observed sequence of attacks on file-servers or mail-servers: the spammer’s goal is attacking the mail-servers, while the spy’s goal is attacking the file-servers as much as possible before detection. It is empirically shown that an equilibrium strategy is unlikely to exist when the defender’s policy uses a fixed-length observation window (via the standard Likelihood-Ratio Test for binary hypothesis testing), yet an equilibrium strategy is likely to exist when the defender’s policy adapts the observation window to the observed sequence of attacks (via the well-studied Sequential Probability Ratio Test, first derived in the seminal work of Abraham Wald [35]). Later work considers different variations of this network security classification game, obtaining stronger theoretical results on the existence and structure of (pure Nash as well as Stackelberg, the latter with defender as leader) equlibrium strategies between defender and spy [36], [37].

5 Conclusion↩︎

A key challenge in the design of modern intrusion-tolerant systems concerns the inherent tradeoffs between the total risk of intermittent security failures, the total overhead of reactive defensive countermeasures and the availability loss of proactive recovery sequences. This paper examined these tradeoffs within the well-developed formalism of Markov Decision Processes (MDPs), which capture not only the costs of different alternatives but also the underlying uncertainties in attack behaviors and response outcomes. Our analysis revealed a number of important considerations for selecting appropriate response policies, including how the tradeoffs between security risk, maintenance overhead and availability loss are affected by characteristics (e.g., frequency, speed, etc.) of anticipated attacks. Our results also gave precisely-defined notions of “sufficiently-reliable” reset actions i.e., when responses intended to reinstate normal system operation upon detecting a security failure are adequate for reactive recovery schemes to remain worthwhile, as well as “sufficiently-effective” defend actions i.e., when responses intended to prevent attack completion upon detecting an intrusion attempt are adequate for reactive defense schemes to remain worthwhile. Of course, our results were derived using a small and idealized model, characterizing intrusion tolerance problems at a highest level of abstraction—the extent to which our analyses extend, and our conclusions extrapolate, to intrusion tolerance problems of more realistic size and character remains to be determined by future work and, ultimately, validated by experimentation with prototype security controllers for information systems under real-world attacks.
