1 Introduction↩︎

The stable motivic homotopy groups of spheres are among the most important invariants in stable motivic homotopy theory. For \(F\) a field, the bigraded ring \(\pi_{*,*}^F(\mathbb{S})\) has many connections with both topological and arithmetic information regarding \(F\). For example, it is a theorem of Morel [1] that there is an isomorphism \[\pi_{-n,-n}^F(\mathbb{S}) \cong \text{K}_{n}^{\text{MW}}(F),\] where \(\text{K}^{\text{MW}}_n(F)\) is the \(n^{th}\) Milnor-Witt K-theory of \(F\). As another example, take \(F\) to be algebraically closed, and let \(e = \text{char}(F)\) for \(F\) of positive characteristic and \(e=1\) for \(F\) of characteristic 0. Then there is an isomorphism after inverting the characteristic [2], [3] \[(\pi_{n,0}^F(\mathbb{S}))[e^{-1}] \cong (\pi_n(\mathbb{S}^{\mathrm{top}}))[e^{-1}],\] where the right hand side denotes the classical stable homotopy groups of spheres.

An extremely useful tool for computing stable motivic homotopy groups is the motivic Adams spectral sequence. For any motivic ring spectrum E, there is an E-based motivic Adams spectral sequence computing \(\pi_{*,*}^F(\mathbb{S})\) up to some completion. Perhaps the most well studied is the \(\text{H}\mathbb{F}_p\)-based motivic Adams spectral sequence, where \(\text{H}\mathbb{F}_p\) is the motivic ring spectrum representing motivic cohomology with mod-\(p\) coefficients. We will refer to this spectral sequence simply as the \(\boldsymbol{mASS}_p^F(\mathbb{S})\), which has signature \[\mathrm{E}^{s,f,w}_2=\text{Ext}^{s,f,w}_{\EuScript{A}^\vee_p}(\mathbb{M}_p^F, \mathbb{M}_p^F) \implies \pi_{s, w}^F(\mathbb{S}_{p,\eta}^\wedge).\] This spectral sequence has been well studied over algebraically closed fields [4], [5], the real numbers [6], and, following the computation of the dual Steenrod algebra \(\EuScript{A}^\vee_p\) in positive characteristic [7], over finite fields [3].

Another perspective which one can take to gain insight into \(\pi_{*,*}^F(\mathbb{S})\) is by organizing its elements into periodic families. This is the heart of the chromatic approach to motivic homotopy theory. Instead of using the \(\boldsymbol{mASS}^F_p(\mathbb{S})\) to compute the motivic stable stems one stem degree at a time, one can use different E-based motivic Adams spectral sequences to localize attention to particular infinite periodic families in \(\pi^F_{*,*}(\mathbb{S})\). One downside to this philosophy is that often these spectral sequences are less computable at the onset, and some amount of genuine work must be put into computing the \(\mathrm{E}_1\)-page. These spectral sequences take the form \[\mathrm{E}_1 = \pi_{s+f, w}^F(\text{E} \otimes \overline{\text{E}}^{\otimes f}) \implies \pi^F_{s,w}(\mathbb{S}_\mathrm{E}^\wedge),\] where \(\overline{\text{E}}\) is the cofiber of the unit map \(\mathbb{S} \to \text{E}\) and \(\mathbb{S}_\mathrm{E}^\wedge\) denotes the \(\mathrm{E}\)-nilpotent completion of \(\mathbb{S}\). In practice, it is often easier to compute \(\pi_{*,*}^F(\text{E} \otimes \text{E})\), known as the ring of cooperations, and then bootstrap up to the \(\mathrm{E}_1\)-page.

While this is common in classical stable homotopy theory (see [8]–[10]), in motivic homotopy theory this idea is rather new. For instance, the study of \(v_1\)-periodicity via these techniques is in its nascent stage (although there is work on the subject via the slice spectral sequence due to [11], [12]). Two motivic spectra which are good candidates for accessing \(v_1\)-periodicity, in that they contain some power of \(v_1\) in their homotopy, are the very effective hermitian K-theory spectrum kq [13] and the truncated motivic Brown–Peterson spectrum \(\text{BPGL} \langle 1 \rangle\) [14]. In [15], Culver and Quigley study the kq-based Adams spectral sequence, known as the kq-resolution, over \(F=\mathbb{C}\) at the prime 2. As an application, they determine the \(v_1\)-periodic elements in \(\pi_{*,*}^\mathbb{C}(\mathbb{S})\). In [16], we extend the study of the kq-resolution to \(F = \mathbb{R}\) by computing the ring of cooperations \(\pi_{*,*}^{\mathbb{R}}(\text{kq} \otimes \text{kq})\) up to \(v_1\)-torsion. In [17], joint work with of the author, Petersen, and Tatum studies the \(\text{BPGL} \langle 1 \rangle\)-based motivic Adams spectral sequence. We compute the ring of cooperations and produce spectrum-level splittings over the fields \(F=\mathbb{C}, \mathbb{R}, \mathbb{F}_q\) and at all primes \(p\) where \(\text{char}(\mathbb{F}_q) \neq p\).

1.1 Main Results↩︎

The goal of this paper is to extend the study of the kq-resolution to base fields of positive characteristic. Let \(\mathbb{F}_q\) be a finite field where \(\text{char}(\mathbb{F}_q) \neq 2\). Our first result is a computation of the ring of cooperations \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\) up to \(v_1\)-torsion.

Contrary to the classical, \(\mathbb{C}\)-motivic, and the \(\mathbb{R}\)-motivic analogues of this question, this spectral sequence does not collapse on the \(\mathrm{E}_2\)-page. Since \(B_0^{\mathbb{F}_q}(0) \cong \mathbb{M}_2^{\mathbb{F}_q}\), our description of the \(\mathrm{E}_2\)-page identifies the \(k=0\)-summand as the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\), which also does not collapse at the \(\mathrm{E}_2\)-page. We make the following observation, inspired by findings of Ormsby [18], Ormsby and Østvær [19], as well as of the author, Petersen, and Tatum [17].

The differentials in the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\) are themselves lifted from the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\) along the natural quotient map \(\text{kq} \to \text{H}\mathbb{Z}\). The above theorem implies that relative to the algebra \(\text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{F}_q}, \mathbb{M}_2^{\mathbb{F}_q})\), the only interesting part of the ring of cooperations for hermitian K-theory is determined by the integral motivic cohomology of \(\mathbb{F}_q\). We are also able to use this observation to compute \(\pi_{*,*}^{\mathbb{F}_q}(\text{ksp})\) (see [lem:kspmASSDifsEasy,lemma:kspmASSF3]) reproving a result of Friedlander [20].

As an application, we describe the \(n\)-line of the \(\mathrm{E}_1\)-page of the kq-resolution.

We view the kq-resolution as the key tool to understanding \(v_1\)-periodicity in \(\pi_{*,*}^{\mathbb{F}_q}(\mathbb{S})\), and we will use 3 in future work to analyze the kq-resolution over \(\mathbb{R}\) and \(\mathbb{F}_q\).

1.2 Organization↩︎

In 2, we introduce relevant background. We recall the stable motivic homotopy category \(\text{SH}(\mathbb{F}_q)\), the motivic Adams spectral sequence, the dual Steenrod algebra and Brown–Gitler comodules, and the algebraic Atiyah–Hirzebruch spectral sequence. In 3, we compute the ring of cooperations \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\) in the case where \(q \equiv 1 \,(4)\). In 4, we compute the ring of cooperations \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\) in the case where \(q \equiv 3 \, (4)\). Many of the arguments in 3 carry over directly to 4, but the particular details of the algebra involved are quite different. As such, we separate these cases into two sections. In 5, we apply our findings to deduce results about the kq-resolution.

1.3 Notation and Conventions↩︎

• We let \(\mathbb{F}_q\) denote the field with \(q\) elements where \(\text{char}(\mathbb{F}_q) \neq 2\).

• We work in the stable, presentably symmetric monoidal \(\infty\)-category \(\text{SH}(\mathbb{F}_q)\). We let \[\mathbb{S} := \Sigma^{\infty}_{\mathbb{P}^1}\text{Spec}(\mathbb{F}_q)_+\] denote the monoidal unit and use \(\otimes :=\otimes_{\mathbb{S}}\) for the monoidal product.

• We let \(\text{H}_{*,*}(-)\) denote mod-2 motivic homology and let \(\mathbb{M}_2^{\mathbb{F}_q}\) denote the mod-2 motivic homology of a point.

• For \(B\) any Hopf algebra over \(\mathbb{M}_2^{\mathbb{F}_q}\) and \(M\) any \(B\)-comodule, we use the common abbreviation \[\text{Ext}^{s,f,w}_B(M) := \text{Ext}^{s,f,w}_B(\mathbb{M}_2^{\mathbb{F}_q}, M)\] to denote the cohomology of \(B\) with coefficients in \(M\). Note that this Ext is taken in the category \(\text{Comod}(B)\). Typically, \(B\) will be a Hopf algebra related to the dual Steenrod algebra \(\EuScript{A}^\vee\).

• Our grading convention for Ext is \((s,f,w)\), where \(s\) is the stem (or total) degree, \(f\) is the Adams filtration, and \(w\) is the motivic weight. This implies that Adams differentials take the form \[d_r:\mathrm{E}_r^{s,f,w} \to \mathrm{E}_r^{s-1, f+r, w}.\] We also refer the the coweight, which is \(cw=s-w\). Note that Adams differentials decrease coweight by 1. We display all charts in \((s,f)\)-grading with weight suppressed.

• Throughout, all spectra are implicitly 2-complete.

1.4 Acknowledgments↩︎

The work presented here constitutes a part of the author’s thesis. The author thanks their advisors, Kyle Ormsby and John Palmieri, for their patience and guidance throughout their PhD. The author thanks J.D. Quigley for many conversation regarding kq-resolutions, and thanks Guchuan Li, Sarah Petersen, and Liz Tatum for valuable discussions influencing this project. The author also thanks Gijs Heuts for an inspirational talk at European Talbot 2025 that inspired the author to include 1 and 1. Finally, the author extends his gratitude to Madeline Borowski, Jay Reiter, and Alex Waugh for their willingness to listen to the author ramble on this topic, and thanks Cameron Winter for inspiration [21].

2 Background↩︎

Throughout, let \(\mathbb{F}_q\) be a finite field with \(\text{char}(\mathbb{F}_q) \neq 2.\) In this section, we review motivic cohomology and hermitian K-theory, the dual Steenrod algebra, and Brown–Gitler comodules. Then, we describe the \(\text{H}\mathbb{F}_2\)- and kq-based motivic Adams spectral sequences and outline our program to compute the ring of cooperations.

2.1 Motivic cohomology and hermitian K-theory↩︎

Spitzweck constructed the integral motivic cohomology spectrum \(\text{H}\mathbb{Z} \in \text{SH}(\mathbb{Z})\) representing motivic cohomology with integral coefficients [22]. The unique map \(f:\mathbb{Z} \to \mathbb{F}_q\) induces a pullback \(f^*:\text{SH}(\mathbb{F}_q) \to \text{SH}(\mathbb{Z})\); we abusively denote \(\text{H}\mathbb{Z} := f^*(\text{H}\mathbb{Z}) \in \text{SH}(\mathbb{F}_q)\) the integral motivic cohomology spectrum over \(\mathbb{F}_q\). This represents motivic cohomology in the sense that if \(X \in \text{Sm}_{\mathbb{F}_q}\), then \[[X, \Sigma^{s,w}\text{H}\mathbb{Z}] = \text{H}^{s,w}(X; \mathbb{Z}),\] where we let \(X\) also denote the motivic suspension spectrum of \(X\). Of particular interest to us is when \(X = \text{Spec}(\mathbb{F}_q)\). As we will be computing with the 2-primary motivic Adams spectral sequence, we are only concerned with the 2-completion \(\text{H}^{p,q}(\mathbb{F}_q;\mathbb{Z})_2^\wedge\). These groups were calculated by Soulé [23]: \[\label{eq:MotivicCohomology} \text{H}^{-s,-w}(\mathbb{F}_q;\mathbb{Z})_2^\wedge = \left\{\begin{array}{rl} \mathbb{Z}_2 & s=w=0 \\ \mathbb{Z}/(q^{-w}-1)_2 & s=-1, w \leq 1\\ 0 & \text{else}. \end{array}\right.\tag{1}\] Notice that \(\text{H}^{-s,-w}(\mathbb{F}_q;\mathbb{Z}) = \pi_{s, w}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\), so this also calculates the homotopy groups of the integral motivic cohomology spectrum.

There is also a mod-2 motivic cohomology spectrum \(\text{H}\mathbb{F}_2\). By [24], we have that \[\text{H}^{-s,-w}(\mathbb{F}_q;\mathbb{Z}/2) = \pi_{s, w}^{\mathbb{F}_q}(\text{H}\mathbb{F}_2) :=\mathbb{M}_2^{\mathbb{F}_q} = (\text{K}_*^{\text{M}}(\mathbb{F}_q)/2)[\tau],\] where \(\text{K}^\text{M}_*(\mathbb{F}_q)\) denotes the Milnor K-theory of \(\mathbb{F}_q\), and where \(|\tau|= (0, -1)\) and \(|\text{K}^\text{M}_n(\mathbb{F}_q)| = (-n, -n)\). Recall that Milnor K-theory \(\text{K}^\text{M}_*(\mathbb{F}_q)\) is defined as the graded tensor algebra over \(\mathbb{Z}\) generated by the symbols \([a]\) in degree one for \(a \in \mathbb{F}_q^\times\), subject to the relations \([a] \otimes [1-a] = 0\) and \([a]+[b]=[ab]\). It is a routine exercise to show that \(\text{K}^{\text{M}}_n(\mathbb{F}_q)\) vanishes in degrees \(n \geq 2\). In particular, since every element of \(\mathbb{F}_q^\times\) is either a square or a non square, this implies that \[(\text{K}^\text{M}_0(\mathbb{F}_q)/2) = (\text{K}^{\text{M}}_1(\mathbb{F}_q)/2) = \mathbb{Z}/2.\] To differentiate between the cases of \(q \equiv 1 \, (4)\) and \(q \equiv 3 \, (4)\), we let \(u\) be any generator of \(\text{K}_1^\text{M}(\mathbb{F}_q)\) for \(q \equiv 1 \, (4)\), and let \(\rho = [-1]\) be a generator of \(\text{K}^{\text{M}}_1(\mathbb{F}_q)\) for \(q \equiv 3 \, (4)\). Notice that if \(q \equiv 1 \, (4)\), then \(-1\) has a square root in \(\mathbb{F}_q\), hence \([-1] = 0 \in \text{K}^\text{M}_1(\mathbb{F}_q)\), so that \(u\) is not represented by \(-1\). Then we have identifications: \[\mathbb{M}_2^{\mathbb{F}_q} = \left\{ \begin{array}{cl} \mathbb{F}_2[u, \tau]/(u^2) & q \equiv 1 \, (4)\\ \mathbb{F}_2[\rho, \tau]/(\rho^2) & q \equiv 3 \, (4), \end{array} \right.\] where \(|\tau| = (0, -1)\) and \(|u|=|\rho| = (-1, -1)\).

There is a hermitian K-theory spectrum KQ [25], [26] which is the main character of our work. The homotopy groups \(\pi_{*,*}^{\mathbb{F}_q}(\text{KQ})\) intertwine the classical stable homotopy of the orthogonal, unitary, and symplectic K-groups of \(\mathbb{F}_q\). We will only be interested in the orthogonal K-groups \(\text{KO}_*(\mathbb{F}_q):= \pi_*(\text{BO}(\mathbb{F}_q)^+)\) and the symplectic K-groups \(\text{KSp}_*(\mathbb{F}_q):=\pi_*(\text{BSp}(\mathbb{F}_q)^+)\); for more details, see [25]. These are realized by hermitian K-theory in the following way: \[\pi_{s,w}^{\mathbb{F}_q}(\text{KQ}) = \left\{\begin{array}{rl} \text{KO}_{s-2w}{(\mathbb{F}_q}) & w \equiv 0 \, (4);\\ \text{KSp}_{s-2w}(\mathbb{F}_q) & w \equiv 2 \, (4).\\ \end{array} \right.\] The hermitian K-theory spectrum is an \(\mathbb{E}_\infty\) motivic ring spectrum [26]. We let kq denote the very effective cover of KQ [13], which we call the very effective hermitian K-theory. The ring structure on KQ lifts to kq, and the unit map \(\mathbb{S} \to \text{kq}\) induces Morel’s isomorphism [27] \[\pi_{-n, -n}^{\mathbb{F}_q}(\mathbb{S}) \cong \text{K}_n^{\text{MW}}(\mathbb{F}_q).\] In particular, \(\pi_{0,0}^{\mathbb{F}_q}(\text{kq}) \cong \text{GW}(\mathbb{F}_q)\), the Grothendieck–Witt ring. We will not need all of the details of the very effective slice filtration (see recent work of Bannwart [28] for a wonderful recollection). For the purposes of our work, one should treat the very effective cover as an analogue of the connective cover. Indeed, for \(s \geq 0\) there is an isomorphism \(\pi_{s,w}^{\mathbb{F}_q}(\text{KQ}) \cong \pi_{s,w}^{\mathbb{F}_q}(\text{kq}).\) However, we will see that the homotopy groups of kq do not vanish for \(s <0\) (an interpretation of these homotopy groups in negative stem degrees is given in 1 and 1).

There are cofiber sequences of spectra: \[\Sigma^{1,1}\text{kq} \xrightarrow{\eta}\text{kq} \to \text{kgl},\] \[\Sigma^{2,1}\text{kgl} \xrightarrow{\beta}\text{kgl} \to \text{H}\mathbb{Z},\] where kgl denotes the effective algebraic K-theory spectrum, \(\eta\) is the motivic Hopf map, and \(\beta\) is the Bott periodicity class [13]. Combining the last morphism of each cofiber sequence gives a map \[\label{eq:kqToHZ} \text{kq} \to \text{H}\mathbb{Z}\tag{2}\] which will feature heavily in our arguments.

Related to hermitian K-theory is the very effective symplectic K-theory spectrum ksp, which is defined as the very effective cover of \(\Sigma^{4,2}\text{KQ}\). The homotopy groups of ksp are a shifted version of the homotopy groups of kq, which we investigate in more detail in later sections. We note that there is a cofiber sequence \[\label{cofib:kqTokspToHZ} \Sigma^{4,2}\text{kq} \to \text{ksp} \to \text{H}\mathbb{Z}\tag{3}\] coming from the very effective slice filtration on \(\Sigma^{4,2}\text{KQ}\). For more details on ksp and the very effective slice tower for KQ, see [16].

The hermitian K-theory of finite fields was calculated by Friedlander [20]. We display the relevant results in 1.

2.2 The dual Steenrod algebra and Brown–Gitler comodules↩︎

The dual Steenrod algebra \(\EuScript{A}^\vee := \pi_{*,*}^{\mathbb{F}_q}(\text{H}\mathbb{F}_2 \otimes \text{H}\mathbb{F}_2)\) was calculated in positive characteristic by Hoyois, Kelly, and Østvær [7]: \[\EuScript{A}^\vee = \mathbb{M}_2^{\mathbb{F}_q}[\overline{\tau}_0, \overline{\tau}_1, \dots, \overline{\xi}_1, \overline{\xi}_2, \dots]/T,\] where \(|\overline{\tau}_i| = (2^{i+1}-1, 2^i-1)\) and \(|\overline{\xi}_i| = (2^{i+1}-2, 2^i-1).\) The ideal \(T\) of relations is dependent on the base field \(\mathbb{F}_q\). In the cases we are concerned with, we have that \[T = \left\{\begin{array}{ll} (\overline{\tau}_i^2 = \tau \overline{\xi}_{i+1} ) & q \equiv 1 \, (4)\\ (\overline{\tau}_i^2 = \tau\overline{\xi}_{i+1} + \rho \overline{\tau}_{i+1} + \rho \overline{\tau}_0\overline{\xi}_{i+1}) & q \equiv 3 \, (4).\\ \end{array}\right.\] Note that the pair \((\mathbb{M}_2^{\mathbb{F}_q}, \EuScript{A}^\vee)\) is a Hopf algebroid rather than a Hopf algebra [29].

For \(n \geq 0\), let \(\EuScript{A}(n)^\vee\) be the quotient algebra \[\EuScript{A}(n)^\vee \cong \EuScript{A}^\vee/(\overline{\xi}_1^{2^n}, \overline{\xi}_2^{2^{n-1}}, \dots, \overline{\xi}^2_n, \overline{\xi}_{n+1}, \overline{\xi}_{n+2,} \dots, \overline{\tau}_{n+1}, \overline{\tau}_{n+2}, \dots).\] There is a sub-Hopf algebra of the motivic Steenrod algebra \[\EuScript{A}(n) = \langle \text{Sq}^1, \text{Sq}^2, \ldots, \text{Sq}^{2^n} \rangle;\] let \((\EuScript{A}\mathop{\mathrm{/\!/}}\EuScript{A}(n))^\vee\) be the subalgebra of \(\EuScript{A}^\vee\) given by \[(\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(n))^\vee = \mathbb{M}_2^{\mathbb{F}_q}[\overline{\xi}_1^{2^n}, \overline{\xi}_2^{2^{n-1}}, \ldots, \overline{\tau}_{n+1}, \ldots]/(\overline{\tau}_i^2 = \rho \overline{\tau}_{i+1}+\rho \overline{\tau_0}\overline{\xi}_{i+1} + \tau \overline{\xi}_{i+1}).\] These subalgebras naturally arise via motivic homology. One can show that there are \(\EuScript{A}^\vee\)-comodule algebra isomorphisms \[\text{H}_{*,*}(\text{H}\mathbb{Z}) \cong (\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(0))^\vee, \quad \text{H}_{*,*}(\text{kq}) \cong (\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(1))^\vee\] by using the long exact sequence in homology associated to the cofiber sequences [13] \[\text{H}\mathbb{Z} \xrightarrow{2}\text{H}\mathbb{Z} \to \text{H}\mathbb{F}_2, \quad \Sigma^{1,1}\text{kq} \xrightarrow{\eta}\text{kq} \to \text{kgl}.\]

We next introduce motivic Brown–Gitler comodules. We define the Mahowald weight filtration on \(\EuScript{A}^\vee\) by setting \[\text{wt}(\overline{\xi}_i)=\text{wt}(\overline{\tau}_i)=2^i, \quad \text{wt}(\tau)=\text{wt}(\rho)=\text{wt}(u)=0\] and letting \(\text{wt}(xy)=\text{wt}(x)+\text{wt}(y)\). This naturally extends to the subalgebras \((\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(n))^\vee\). The motivic Brown–Gitler comodule \(B_n^{\mathbb{F}_q}(k)\) is the \(\EuScript{A}(n)^\vee\)-comodule \[B_n^{\mathbb{F}_q}(k) = \langle x \in (\EuScript{A}\mathop{\mathrm{/\!/}}\EuScript{A}(n))^\vee : \text{wt}(x) \leq 2^{n+1}k\rangle.\] A key property of the Brown–Gitler comodules that we will use is the following.

The \(0^{th}\) Brown–Gitler comodule is given by \(B_0^{\mathbb{F}_q}(0) \cong\mathbb{M}_2^{\mathbb{F}_q}\), and the first Brown–Gitler comodule is given by \(B_0^{\mathbb{F}_q}(1) \cong\mathbb{M}_2^{\mathbb{F}_q}\{1, \overline{\xi}_1, \overline{\tau}_1\}\). It was shown in [15] that there is a spectrum \(\text{H}\mathbb{Z}_1^{\mathbb{F}_q}\) such that \[\text{H}_{*,*}(\text{H}\mathbb{Z}_1^{\mathbb{F}_q}) \cong B_0^{\mathbb{F}_q}(1)\] as \(\EuScript{A}^\vee\)-comodules. Additionally, there is an equivalence of spectra up to 2-completion [16]: \[\label{eq:kspSplitting} \text{ksp} \simeq \text{kq} \otimes \text{H}\mathbb{Z}_1^{\mathbb{F}_q}.\tag{4}\] In general, the question of finding a motivic spectrum realizing a Brown–Gitler comodule is not simple to answer; see [16].

There are short exact sequences of \(\EuScript{A}(1)^\vee\)-comodules relating motivic Brown–Gitler comodules. We refer the reader to [15] for a proof.

An interesting feature in the mod-2 motivic cohomology of finite fields is that, while \(\mathbb{M}_2^{\mathbb{F}_q}\) is consistent across all fields of characteristic different from 2, the Bockstein homomorphism, which is the connecting homomorphism associated to the coefficient sequence \[0 \to \mathbb{Z}/2 \to \mathbb{Z}/4 \to \mathbb{Z}/2 \to 0,\] acts differently on \(\text{H}^{s,w}(\mathbb{F}_q; \mathbb{Z}/2)\) depending on whether \(q \equiv 1 \, (4)\) or \(q \equiv 3 \, (4)\). Notice that this Bockstein is represented by \(\text{Sq}^1\) in the motivic Steenrod algebra [24]. We can phrase the action of the Bockstein in terms of the action of the motivic Steenrod algebra on \(\mathbb{M}_2^{\mathbb{F}_q}\).

This implies that \(\mathbb{M}_2^{\mathbb{F}_q}\) is central in \(\EuScript{A}^\vee\) when \(q \equiv 1 \, (4)\), meaning that \(\EuScript{A}^\vee\) is a Hopf algebra over \(\mathbb{M}_2^{\mathbb{F}_q}\). We will often refer to the case of \(q \equiv 1 \, (4)\) as the trivial Bockstein action and the case of \(q \equiv 3 \, (4)\) as the nontrivial Bockstein action. This subtle difference makes a noticeable impact on computation and is the reason we separate our work into distinct sections.

2.3 Motivic Adams spectral sequence↩︎

Let \(\text{E} \in \text{SH}(\mathbb{F}_q)\) be a motivic ring spectrum. There is a canonical Adams tower associated to the unit map \(\mathbb{S} \to \text{E}\) taking the form \[\begin{tikzcd} {\mathbb{S}} & {\Sigma^{-1, 0}\overline{\text{E}}} & {\Sigma^{-2, 0}\overline{\text{E}} \otimes \overline{\text{E}}} & \cdots \\ {\text{E}} & {\Sigma^{-1, 0}\overline{\text{E}} \otimes \text{E}} & {\Sigma^{-2, 0}\overline{\text{E}} \otimes \overline{\text{E}} \otimes \text{E}} \arrow[from=1-1, to=2-1] \arrow[from=1-2, to=1-1] \arrow[from=1-2, to=2-2] \arrow[from=1-3, to=1-2] \arrow[from=1-3, to=2-3] \arrow[from=1-4, to=1-3] \end{tikzcd}\] where \(\overline{\text{E}}\) is the cofiber of the unit map \(\mathbb{S} \to \text{E}\). For any motivic spectrum \(\mathrm{X}\), we can apply the functor \(\pi_{*,*}^{\mathbb{F}_q}(\mathrm{X} \otimes-)\). This yields the E-based motivic Adams spectral sequence for \(X\). By construction, the \(\mathrm{E}_1\)-page of this spectral sequence has signature \[\mathrm{E}^{s,f,w}_1 = \pi_{s+f, w}^{\mathbb{F}_q}(\text{E} \otimes \overline{\text{E}}^{\otimes f} \otimes \mathrm{X}) \implies \pi_{s, f}^{\mathbb{F}_q}(\mathrm{X}_\text{E}), \quad d_r:\mathrm{E}_r^{s,f,w} \to \mathrm{E}_r^{s-1, f+r, w}\] where \(\mathrm{X}_\text{E}\) denotes the E-nilpotent completion of X [30]. Convergence is in general not immediate, but we will only be interested in particular cases that are well-understood.

For \(\text{E}=\text{kq}\), the resulting motivic Adams spectral sequence is called the kq-resolution. This has signature \[\mathrm{E}^{s,f,w}_1 = \pi_{s+f, w}^{\mathbb{F}_q}(\text{kq} \otimes \overline{\text{kq}}^{\otimes f} \otimes \mathrm{X}) \implies \pi_{s, f}^{\mathbb{F}_q}(\mathrm{X}).\] Convergence of the kq-resolution was proven for \(X=\mathbb{S}\) in [15] over any base field of characteristic different than 2. Culver–Quigley use the \(\mathbb{C}\)-motivic kq-resolution for the sphere to compute the \(v_1\)-periodic stable stems. We computed the \(\text{E}_1\)-page of the kq-resolution in \(\mathbb{R}\)-motivic homotopy theory in [16]. The primary aim of this paper is to compute the \(\mathrm{E}_1\)-page of the kq-resolution in \(\mathbb{F}_q\)-motivic homotopy theory.

For \(\text{E} = \text{H}\mathbb{F}_2\), the resulting motivic Adams spectral sequence will be referred to as the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\mathrm{X})\). In this case, since \(\EuScript{A}^\vee = \pi_{*,*}^{\mathbb{F}_q}(\text{H}\mathbb{F}_2 \otimes \text{H}\mathbb{F}_2)\) is flat as a module over \(\mathbb{M}_2^{\mathbb{F}_q}\), we are able to pass directly to the \(\mathrm{E}_2\)-page. The \(\boldsymbol{mASS}^{\mathbb{F}_q}(\mathrm{X})\) has signature \[\mathrm{E}^{s,f,w}_2 = \text{Ext}^{s,f,w}_{\EuScript{A}^\vee}(\text{H}_{*,*}(\mathrm{X})) \implies \pi_{s,f}^{\mathbb{F}_q}(\mathrm{X}).\] Convergence for this motivic Adams spectral sequence was first studied by [4], [5]. We will study the ring of cooperations for kq, and hence determine the \(\text{E}_1\)-page of the kq-resolution, by computing the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq}).\)

2.4 The inductive process to calculate the ring of cooperations↩︎

In this section, we describe an inductive process to compute the \(\text{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\). This involves a delicate analysis of many algebraic Atiyah–Hirzebruch spectral sequences. We refer the reader to [16] for more details.

Observe that the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\) has signature \[\mathrm{E}_2^{s,f,w} = \text{Ext}^{s,f,w}_{\EuScript{A}^\vee}(\mathrm{H}_{*,*}(\mathrm{kq} \otimes \mathrm{kq})) \implies \pi_{s,w}^{\mathbb{F}_q}(\mathrm{kq} \otimes \mathrm{kq}).\] The Künneth spectral sequence \[\mathrm{E}_2 = \text{Tor}^{\mathbb{M}_2^{\mathbb{F}_q}}(\text{H}_{*,*}(\text{kq}), \text{H}_{*,*}(\text{kq})) \implies \text{H}_{*,*}(\text{kq} \otimes \text{kq})\] collapses on the \(\mathrm{E}_2\)-page [16], giving an isomorphism \[\text{H}_{*,*}(\text{kq} \otimes \text{kq}) \cong \text{H}_{*,*}(\text{kq}) \otimes\text{H}_{*,*}(\text{kq}).\] Combining this with the change of rings isomorphism [29] coming from the \(\EuScript{A}^\vee\)-comodule algebra isomorphism \[\text{H}_{*,*}(\text{kq}) \cong (\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(1))^\vee\] and the Brown–Gitler decomposition of 1, we obtain the following.

This decomposition, combined with the short exact sequences of 1, allows us to compute the \(\mathrm{E}_2\)-page inductively. For \(k=0\), we have that \(B_0^{\mathbb{F}_q}(0) = \mathbb{M}_2^{\mathbb{F}_q},\) and so the relevant summand of the \(\mathrm{E}_2\)-page is \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\mathbb{M}_2^{\mathbb{F}_q}).\) We will review these Ext groups in the coming sections.

For \(k=1\), we have that \(B_0^{\mathbb{F}_q}(1) \cong \mathbb{M}_2^{\mathbb{F}_q}\{1, \overline{\xi}_1, \overline{\tau}_1\}\). The relevant summand of the \(\mathrm{E}_2\)-page may be calculated using an algebraic Atiyah–Hirzebruch spectral sequence, denoted \(\boldsymbol{aAHSS}(B_0^{\mathbb{F}_q}(1))\). Filtering \(B_0^{\mathbb{F}_q}(1)\) by topological degree and letting \(\text{F}_iB_0^{\mathbb{F}_q}(1)\) denote the subspace spanned by generators of degree \(\leq i\) gives a finite filtration of the form \[\begin{tikzcd} 0 & {\text{F}_0B_0^{\mathbb{F}_q}(1)} & {\text{F}_1B_0^{\mathbb{F}_q}(1)} & {\text{F}_2B_0^{\mathbb{F}_q}(1)} & {\text{F}_3B_0^{\mathbb{F}_q}(1) = B_0^F(1)} \\ & {\mathbb{M}_2^{\mathbb{F}_q}\{[1]\}} & 0 & {\mathbb{M}_2^{\mathbb{F}_q}\{[\overline{\xi}_1]\}} & {\mathbb{M}_2^{\mathbb{F}_q}\{[\overline{\tau}_1]\}} \arrow[from=1-1, to=1-2] \arrow[from=1-2, to=1-3] \arrow[from=1-2, to=2-2] \arrow[from=1-3, to=1-4] \arrow[from=1-3, to=2-3] \arrow[from=1-4, to=1-5] \arrow[from=1-4, to=2-4] \arrow[from=1-5, to=2-5] \end{tikzcd}\] The \(\boldsymbol{aAHSS}(B_0^{\mathbb{F}_q}(1))\) comes from applying the functor \(\text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(-)\) to this filtration. This spectral sequence has signature \[\mathrm{E}_1^{s,f,w,a} = \text{Ext}^{s,f,w}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{F}_q}) \otimes \mathbb{M}^{\mathbb{F}_q}_2\{[1], [\overline{\xi}_1], [\overline{\tau}_1]\}\implies \text{Ext}^{s,f,w}_{\EuScript{A}(1)^\vee}(B_0^{\mathbb{F}_q}(1)),\] where \(a\) denotes the Atiyah–Hirzebruch filtration degree. We let \(\alpha[i]\) denote the copy of the class \(\alpha \in \text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{F}_q})\) in Atiyah–Hirzebruch filtration \(i\). The differentials in the \(\boldsymbol{aAHSS}(B_0^{\mathbb{F}_q}(1))\) are of the form \[d_r:\mathrm{E}_r^{s,f,w,a} \to \mathrm{E}_r^{s-1, f+1,w, a-r}.\] Thus the \(d_r\)-differential lowers Atiyah–Hirzebruch filtration by \(r\). In particular, the structure of \(B_0^{\mathbb{F}_q}(1)\) ensures that each differential only takes nonzero value on one Atiyah–Hirzebruch filtration piece. By inspection of the length of the cellular filtration on \(B_0^{\mathbb{F}_q}(1)\), we have the following.

The differentials in the \(\boldsymbol{aAHSS}(B_0^{\mathbb{F}_q}(1))\) are determined by the cobar complex; see [16]. We recall the behavior of the \(d_1\) and \(d_2\)-differentials.

Since the differentials in the \(\boldsymbol{aAHSS}(B^{\mathbb{F}_q}_0(1))\) are linear over \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\mathbb{M}_2^{\mathbb{F}_q})\), these formulae completely determine the \(d_1\) and \(d_2\)-differentials. By inspection, the only possible nonzero \(d_3\)-differential is between Atiyah–Hirzebruch filtrations 3 and 0, and will be given by the Massey product \[d_3(\alpha[3]) = \langle\alpha, h_0, h_1 \rangle[0].\] We will see that the nontriviality of this differential depends on whether or not \(q \equiv 1 \, (4)\) or \(q \equiv 3 \, (4)\).

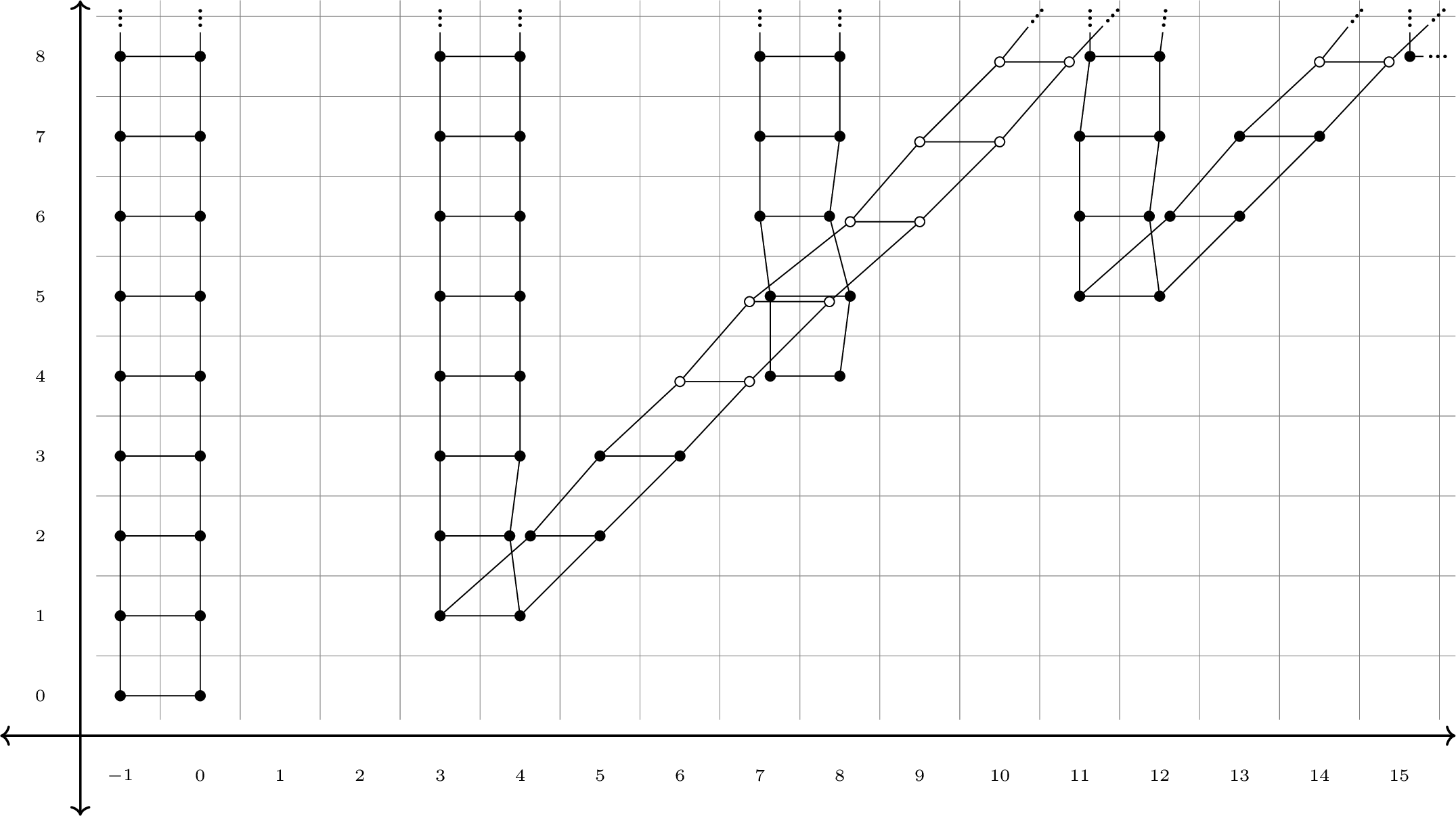

With the computation of \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(B_0^{\mathbb{F}_q}(1))\), we may proceed to calculate the rest of the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\) by using the short exact sequences of 1. Since we are primarily interested in using the kq-resolution to determine the \(v_1\)-periodic elements in \(\pi_{*,*}^{\mathbb{F}_q}(\mathbb{S})\), we will compute the \(\mathrm{E}_2\)-page modulo \(v_1\)-torsion, which makes the presentation of our computations significantly more concise.

Following these calculations, we will be prepared to compute the ring of cooperations. First, using 1 , we will compute the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\). Using the quotient map \(\text{kq} \to \text{H}\mathbb{Z}\), we will lift the differentials to the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\), where we are aided by Friedlander’s calculations of the hermitian K-theory of finite fields. Then, using the kq-module structure on \(\text{kq} \otimes \text{kq}\), we will be able to determine the differentials in the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq}).\)

3 Trivial Bockstein action↩︎

In this section, we compute the ring of cooperations \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\) in the case where there is a trivial Bockstein action on \(\mathbb{F}_q\), that is, when \(q \equiv 1 \, (4)\). We first describe the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\), then show that the differentials lift to the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\), completely determining the behavior of the spectral sequence. After calculating the structure of the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\) as a module over the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\), we are able to lift differentials again, determining the spectral sequence and the ring of cooperations.

3.1 Integral homology↩︎

We begin by computing the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\). This spectral sequence has signature \[\mathrm{E}_2^{s,f,w} = \text{Ext}^{s,f,w}_{\EuScript{A}^\vee}(\text{H}_{*,*}(\text{H}\mathbb{Z})) \implies \pi_{s,w}^{\mathbb{F}_q}(\text{H}\mathbb{Z}).\] Recall that there is an isomorphism of \(\EuScript{A}^\vee\)-comodule algebras \(\text{H}_{*,*}(\text{H}\mathbb{Z}) \cong (\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(0))^\vee.\) This allows us to rewrite the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\mathrm{H}\mathbb{Z})\) using a change of rings isomorphism as \[\text{Ext}_{\EuScript{A}^\vee}^{s,f,w}((\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(0))^\vee) \cong \text{Ext}^{s,f,w}_{\EuScript{A}(0)^\vee}(\mathbb{M}_2^{\mathbb{F}_q}).\] This Ext group was calculated by Kylling to be [35] \[\text{Ext}^{*,*,*}_{\EuScript{A}(0)^\vee}(\mathbb{M}_2^{\mathbb{F}_q}) \cong \mathbb{F}_2[u,\tau, h_0]/(u^2),\] where \(|h_0| = (1,0,0).\)

We depict this \(\mathrm{E}_2\)-page in 1. Note that all charts are depicted in \((s,f)\)-grading, and that motivic weight is suppressed.

We now determine all of the differentials in the spectral sequence.

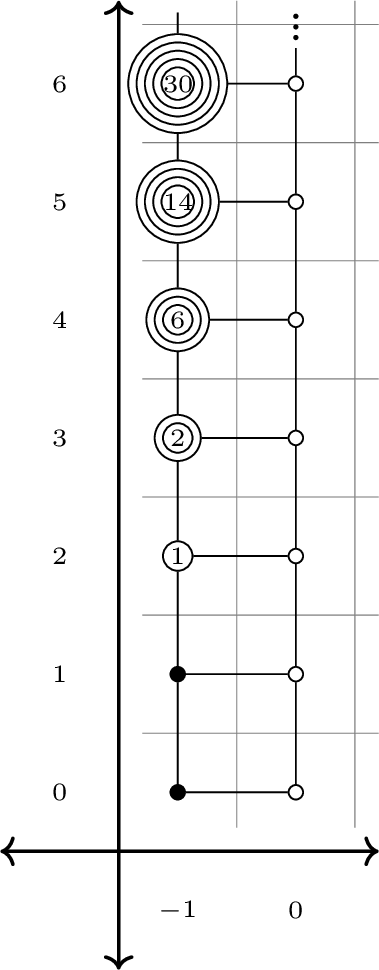

To illustrate the behavior of the differentials in the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\), we give an example.

3.2 Hermitian K-theory↩︎

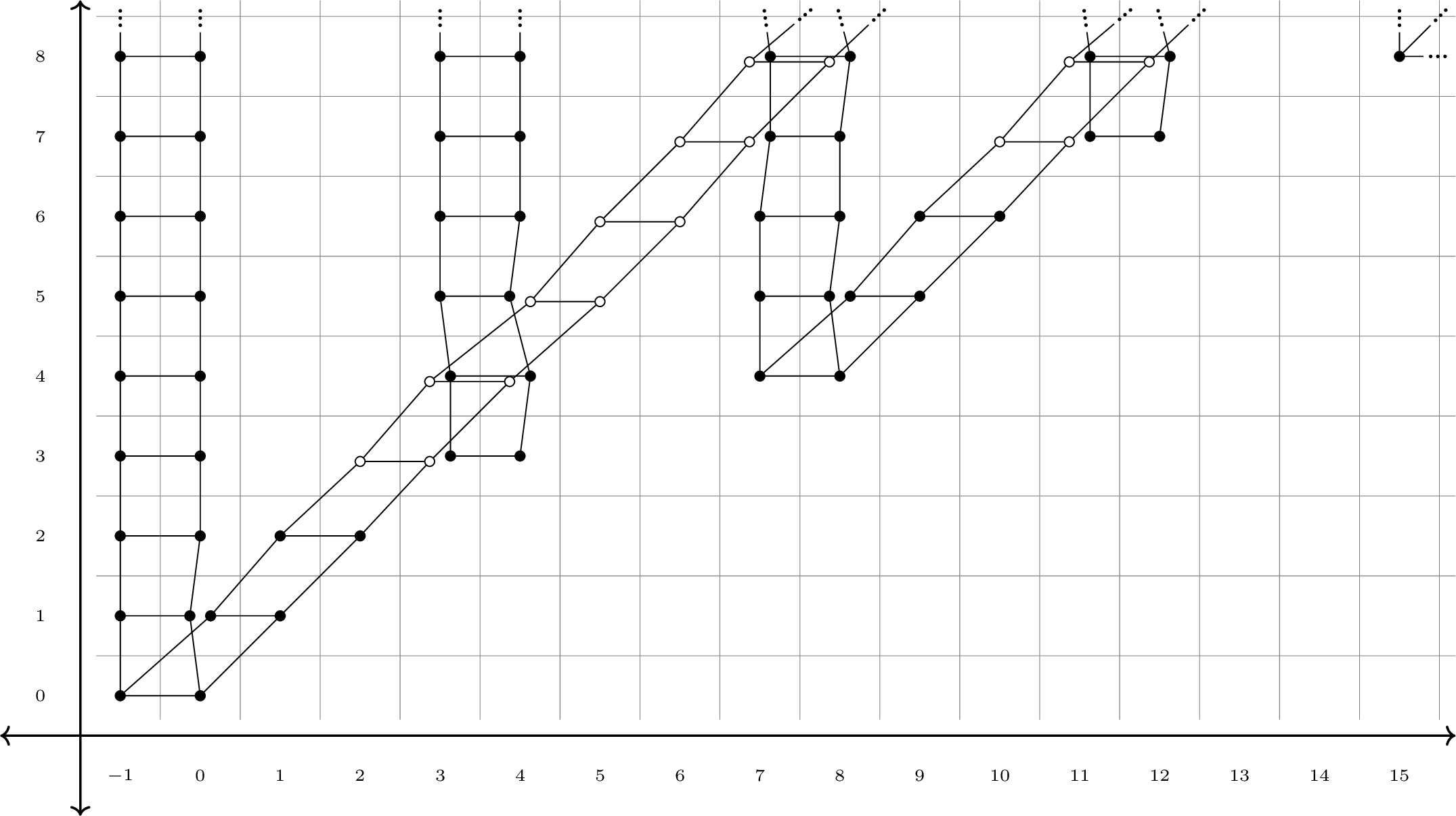

We now compute the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq}).\) This spectral sequence has signature \[\mathrm{E}^{s,f,w}_2 = \text{Ext}^{s,f,w}_{\EuScript{A}^\vee}(\text{H}_{*,*}(\text{kq})) \implies \pi_{s,w}^{\mathbb{F}_q}(\text{kq}).\] Recall that there is an isomorphism of \(\EuScript{A}^\vee\)-comodule algebras \(\text{H}_{*,*}(\text{kq}) \cong (\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(1))^\vee.\) This allows us to rewrite the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\mathrm{kq})\) using a change of rings isomorphism as \[\text{Ext}_{\EuScript{A}^\vee}^{s,f,w}((\EuScript{A}\mathop{\mathrm{/\!/}}\EuScript{A}(1))^\vee) \cong \text{Ext}_{\EuScript{A}(1)^\vee}^{s,f,w}(\mathbb{M}_2^{\mathbb{F}_q}).\] This Ext group was calculated by Kylling to be [35]: \[\label{Ext95A4014195m295easy} \text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{F}_q}) = \frac{\mathbb{F}_2[u, \tau, h_0, h_1, a, b]}{(u^2,h_0h_1, \tau h_1^3, h_1 a, a^2=h_0^2b)},\tag{5}\] where \(|h_0| = (1,0,0)\), \(|h_1|=(1,1,1)\), \(|a| = (4,3, 2)\), and \(|b| = (8,4,4)\). We note that this bears similarity to the \(\mathbb{C}\)-motivic analogue [36]: \[\text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{C}}) = \frac{\mathbb{F}_2[ \tau, h_0, h_1, a, b]}{(h_0h_1, \tau h_1^3, h_1 a, a^2=h_0^2b)},\] with generators in the same tridegree as in 5 . Indeed, there is an abstract isomorphism \[\label{eq:ExtA1F5} \text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{F}_q}) \cong \text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\mathbb{M}_2^\mathbb{C})\otimes \mathbb{M}_2^{\mathbb{F}_q}.\tag{6}\] We depict this Ext group in 3.

We will now show that we can lift the differentials from the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\) to the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\); see also [35].

Running the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\), we see that \[\pi_{s,w}^{\mathbb{F}_q}(\text{kq}) \cong\left\{\begin{array}{rl} \text{KO}_{s-2w}(\mathbb{F}_q) & w \equiv 0 \, (4) \\ \text{KSp}_{s-2w}(\mathbb{F}_q) & w \equiv 2 \;(4) \end{array} \right.\] for \(s \geq 0\), agreeing with Friedlander’s calculations given in 1.

3.3 Brown–Gitler comodules↩︎

We begin the inductive of computing the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\). To start, we will compute \(\text{Ext}_{\EuScript{A}(1)^\vee}^{s,f,w}(B_0^{\mathbb{F}_q}(1))\) by the \(\boldsymbol{aAHSS}^{\mathbb{F}_q}(B_0^{\mathbb{F}_q}(1))\). This spectral sequence has signature \[\mathrm{E}_1^{s,f,w,a} = \text{Ext}^{s,f,w}_{\EuScript{A}(1)}(\mathbb{M}_2^{\mathbb{F}_q}) \otimes \mathbb{M}^{\mathbb{F}_q}_2\{[1], [\overline{\xi}_1], [\overline{\tau}_1]\}\implies \text{Ext}^{s,f,w}_{\EuScript{A}(1)}(B_0^{\mathbb{F}_q}(1))\] with differentials taking the form \[d_r:\mathrm{E}_r^{s,f,w,a} \to \mathrm{E}_r^{s-1, f+1,w, a-r}.\] We have discussed the differentials in this spectral sequence in 2.4. In particular, for any \(\alpha \in \text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\mathbb{M}_2^{\mathbb{F}_q})\), we have that \[d_1(\alpha[3]) = h_0\alpha[2],\] and \[d_2(\alpha[2]) = h_1\alpha[0].\] There is a potential third differential between Atiyah–Hirzebruch filtrations 3 and 0, but we see that for degree reasons this is not possible. Since the differentials are module maps over \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\mathbb{M}_2^{\mathbb{F}_q})\), this determines the spectral sequence. Hidden extensions lift in the same way as in the \(\mathbb{C}\)-motivic case; see [15]. We depict the \(\mathrm{E}_\infty\)-page in 4.

The equivalence of motivic spectra \(\text{ksp} \simeq \text{H}\mathbb{Z}_1^{\mathbb{F}_q} \otimes \text{kq}\) from 4 implies that the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{ksp})\) is given by \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(B_0^{\mathbb{F}_q}(1)).\) The Künneth spectral sequence computing \(\text{H}_{*,*}(\text{ksp})\) collapses, and so the change of rings isomorphism implies that the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{ksp})\) is isomorphic to \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(B_0^{\mathbb{F}_q}(1)).\) However, there are differentials in this spectral sequence.

By running the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{ksp})\) and comparing with 1, we recover the expected isomorphism for \(s \geq 4\) \[\pi_{s,w}^{\mathbb{F}_q}(\text{ksp}) \cong\left\{\begin{array}{rl} \text{KSp}_{s-2w}(\mathbb{F}_q) & w \equiv 0 \, (4); \\ \text{KO}_{s-2w}(\mathbb{F}_q) & w \equiv 2 \;(4). \end{array} \right.\]

The following is immediate from our description.

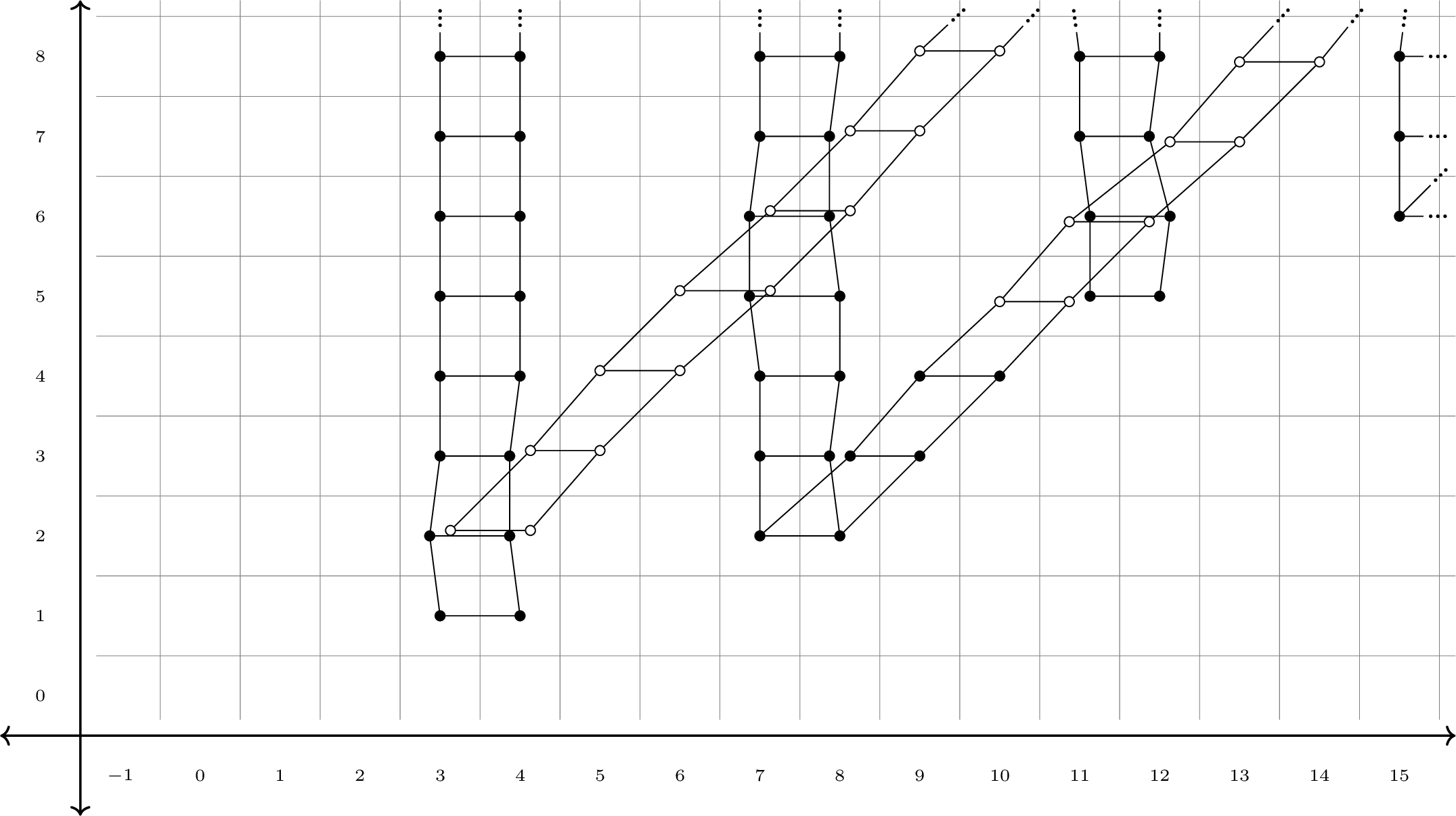

We can be more descriptive, but we must introduce some notation. For \(M\) an \((s,f,w)\)-trigraded module (such as an Ext group over the dual Steenrod algebra), let \(\tau_{\geq n}M\) denote the truncation in the \(s\)-degree, so that \[\tau_{\geq n}M \cong \left\{\begin{array}{lr} M & s \geq n\\ 0 & \text{else}. \end{array} \right.\] Let \(\text{E} \in \text{SH}(\mathbb{F}_q)\) be any motivic spectrum. Whenever E has a factor of \((\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(1))^\vee\) in its mod-2 homology, we will use the notation \(\text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\text{E})\) for the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{E}).\) Let \(\text{E}^{\langle n \rangle}\) denote the \(n^{th}\) Adams cover of E, which is the \(n^{th}\) term in a minimal \(\text{H}\mathbb{F}_2\)-Adams resolution for E. Recall that a minimal Adams resolution is a diagram of the form [29] \[\begin{tikzcd} {\text{E}^{\langle 0 \rangle} :=\text{E}} & {\text{E}^{\langle 1 \rangle}} & {\text{E}^{\langle 2 \rangle}} & \cdots \\ {\text{K}_0} & {\text{K}_1} & {\text{K}_2} \arrow[from=1-1, to=2-1] \arrow[from=1-2, to=1-1] \arrow[from=1-2, to=2-2] \arrow[from=1-3, to=1-2] \arrow[from=1-3, to=2-3] \arrow[from=1-4, to=1-3] \arrow[dashed, from=2-1, to=1-2] \arrow[dashed, from=2-2, to=1-3] \arrow[dashed, from=2-3, to=1-4] \end{tikzcd}\] and applying homotopy groups to this diagram gives the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{E})\). Here \(\text{K}_n := \bigoplus_B\text{H}\mathbb{F}_2\) for a basis \(B\) of the homology group \(\text{H}_{*,*}(\text{E}^{\langle n \rangle})\), and \(\text{E}^{\langle n\rangle}\) is the fiber of the map \(\text{E}^{\langle n-1\rangle} \to \text{K}_{n-1}\), defined inductively by taking \(\text{E}^{\langle 0 \rangle} := \text{E}\). The group \(\text{Ext}^{*,*,*}_{\EuScript{A}^\vee}(\text{E}^{\langle n \rangle})\) can be described as \[\text{Ext}_{\EuScript{A}^\vee}^{s,f,w}({\text{E}^{\langle n \rangle})) \cong \left\{\begin{array}{rl} \text{Ext}_{\EuScript{A}^\vee}^{s,f+n, w}(\text{E)} & f \geq 0 \\ 0 & f<0. \end{array} \right.}\] One may interpret this Ext group in charts by taking the charts for \(\text{Ext}_{\EuScript{A}^\vee}^{*,*,*}(\text{E})\), relabeling the filtration \(f=n\)-line as \(f=0\), and then omitting anything below this new filtration \(f=0\) line. In other words, one slides the \(s\)-axis up to filtration \(f=n\), relabels, and truncates all information in lower filtration.

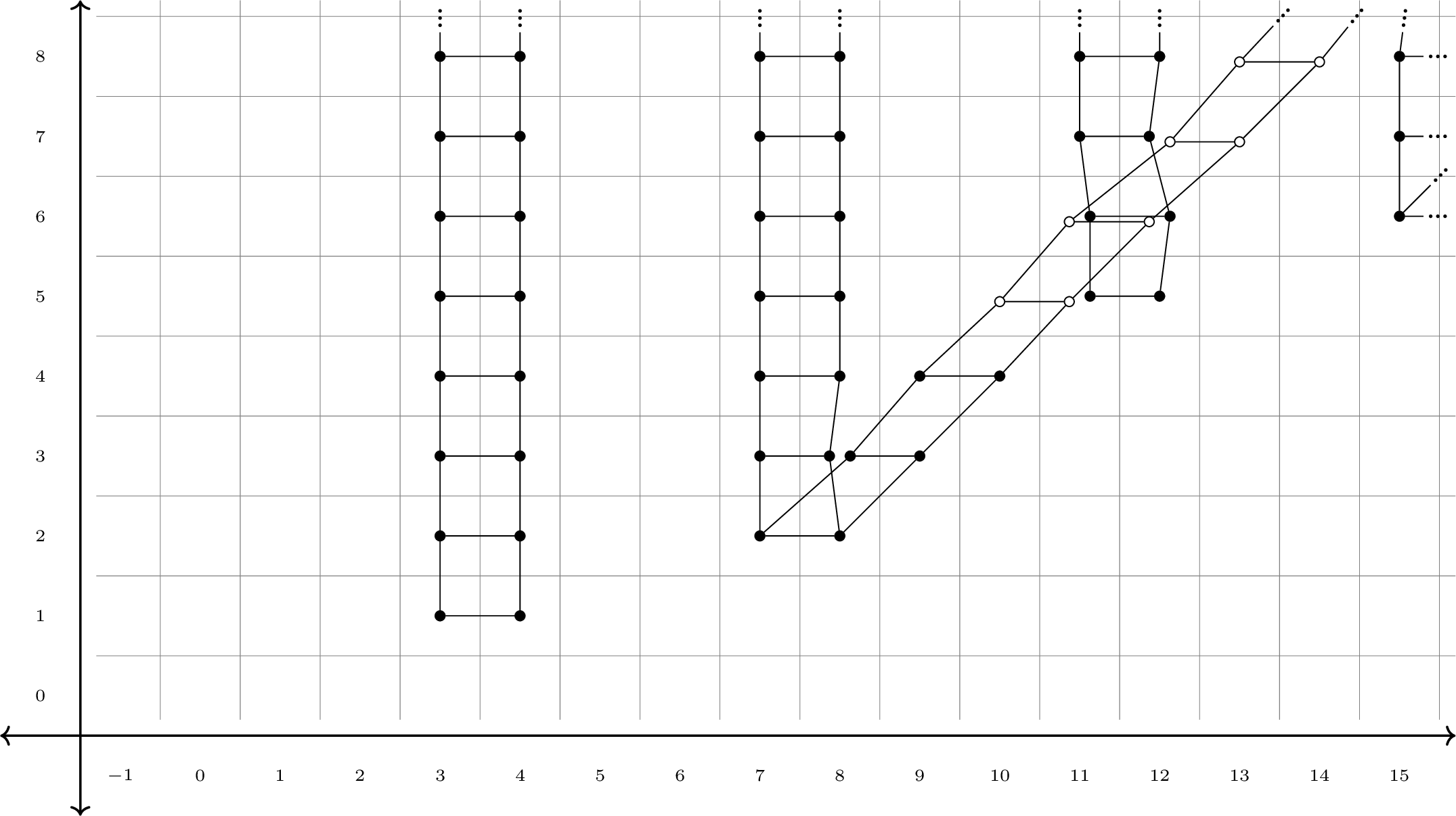

Notice that \(\tau_{\geq n}(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\text{kq}^{\langle n\rangle}))\) and \(\tau_{\geq n}(\text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\text{ksp}^{\langle n \rangle}))\) have isolated non-nilpotent \(h_1\)-towers which are not connected to an \(h_0\)-tower. In these cases, we will use the modified truncation \(\tau_{\geq n}^{h_1}(-)\) to indicate taking the truncation and then omitting out these isolated \(h_1\)-towers. As an example, we depict \(\tau_{\geq 4}(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\text{kq}^{\langle 2 \rangle}))\) in 5 and \(\tau_{\geq 4}^{h_1}(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\text{kq}^{\langle 2 \rangle}))\) in 6.

3.4 The ring of cooperations↩︎

We now assemble our findings to compute \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\). First, we describe the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\).

Notice that this description of the \(\text{E}_2\)-page is as a module over the \(\text{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\), that is, as a module over the algebra \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\mathbb{M}_2^{\mathbb{F}_q})\). We leverage this to determine the differentials in our spectral sequence.

7 depicts a chart for the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\), which may interpreted as either the \(\mathrm{E}_2\) or \(\mathrm{E}_\infty\)-page. Different colors correspond to different summands of the \(\text{E}_2\)-page. For example, the \(k=0\) summand is given by \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\text{kq})\). This is depicted in black, and starts in bidegree \((0,0)\). The \(k=1\) summand is given by \(\Sigma^{4,2}\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\text{ksp})\). This is depicted in blue, and starts in bidegree \((4,0)\). For the \(\text{E}_2\)-page, let a \(\blacksquare\) of any color represent \(\mathbb{F}_2[u, \tau, h_0]/(u^2)\), let a \(\bullet\) of any color denote \(\mathbb{F}_2[\tau, u]/(u^2)\), and let a \(\circ\) of any color denote \(\mathbb{F}_2[u]/(u^2)\). For the \(\text{E}_\infty\)-page, let a \(\blacksquare\) of any color represent \(\text{Ext}_{\EuScript{A}(0)^\vee}^{*,*,*}(\mathbb{M}_2^{\mathbb{F}_q})\) (i.e. the \(\mathrm{E}_\infty\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\mathrm{H}\mathbb{Z})\)), and let a \(\bullet\) or \(\circ\) of any color be the same as on the \(\mathrm{E}_2\)-page. A line of slope 1 indicates \(h_1\)-multiplication.

4 Nontrivial Bockstein action↩︎

In this section, we compute the ring of cooperations \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\) in the case where there is a nontrivial Bockstein action, that is, when \(q \equiv 3 \, (4)\). We follow the same process as was done in the previous section, and often refer to the previous section when we encounter identical proofs, but the Bockstein action makes the particular computations in Ext more complicated in this case. In particular, when computing over \(\EuScript{A}(1)^\vee\), we display our data in multiple charts organized by coweight.

4.1 Integral homology↩︎

We begin by computing the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\). This spectral sequence has signature \[\mathrm{E}^{s,f,w}_2 = \text{Ext}^{s,f,w}_{\EuScript{A}^\vee}(\text{H}_{*,*}(\text{H}\mathbb{Z})) \implies \pi_{s,w}^{\mathbb{F}_q}(\text{H}\mathbb{Z}).\] Recall that there is an isomorphism of \(\EuScript{A}^\vee\)-comodules \(\text{H}_{*,*}(\text{H}\mathbb{Z}) \cong (\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(0))^\vee\). This allows us to rewrite the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\mathrm{H}\mathbb{Z})\) using a change of rings isomorphism as \[\text{Ext}_{\EuScript{A}^\vee}^{s,f,w}((\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(0))^\vee) \cong \text{Ext}_{\EuScript{A}(0)^\vee}^{s,f,w}(\mathbb{M}_2^{\mathbb{F}_q}).\] This Ext group was calculated by Kylling to be [35] \[\label{eq:ExtA0-F3} \text{Ext}^{*,*,*}_{\EuScript{A}(0)^\vee}(\mathbb{M}_2^{\mathbb{F}_q}) \cong \mathbb{F}_2[\rho, \tau^2, h_0, \rho\tau]/(\rho^2, \rho h_0,\rho(\rho\tau), (\rho\tau)^2),\tag{7}\] where \(|h_0| = (1,0,0)\) and \(\rho\tau\) is an indecomposable element.

We depict this \(\mathrm{E}_2\)-page in 8.

We now determine all of the differentials in the spectral sequence.

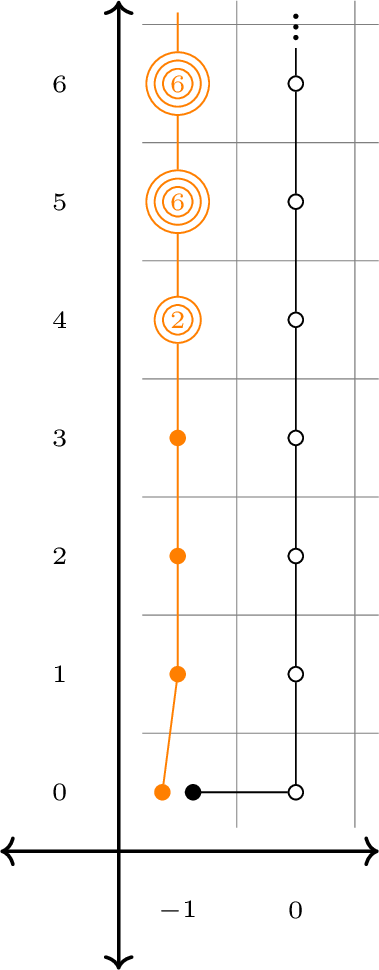

We depict the \(\mathrm{E}_\infty\)-page in the case of \(q=3\) in 9, which can be deduced using the same techniques as in 1. An empty \(\circ\) denotes \(\mathbb{F}_2\). A class labeled with \(n\) indicates the first nonzero power of \(\tau\) which exists in that particular bidegree. An empty class with \(k\) circles around it indicates \(\tau^{2^k}\)-periodicity.

4.2 Hermitian K-theory↩︎

We now compute the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\). This spectral sequence has signature \[\mathrm{E}^{s,f,w}_2=\text{Ext}^{s,f,w}_{\EuScript{A}^\vee}(\text{H}_{*,*}(\text{kq})) \implies \pi_{s,w}^{\mathbb{F}_q}(\text{kq}).\] Recall that there is an isomorphism of \(\EuScript{A}^\vee\)-comodules \(\text{H}_{*,*}(\text{kq}) \cong (\EuScript{A} \mathop{\mathrm{/\!/}}\EuScript{A}(1))^\vee\). This allows us to rewrite the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\mathrm{kq})\) using a change of rings isomorphism as \[\text{Ext}^{s,f,w}_{\EuScript{A}^\vee}((\EuScript{A}\mathop{\mathrm{/\!/}}\EuScript{A}(1))^\vee) \cong \text{Ext}^{s,f,w}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{F}_q}).\] This Ext group was calculated by Kylling to be [35]: \[\label{eq:F3-E2-kq} \mathrm{Ext}^{s,f,w}_{\EuScript{A}(1)^\vee}( \mathbb{M}_2^{\mathbb{F}_3}) \cong \mathbb{F}_2[\rho, \tau^2, h_0, h_1, a, b, \tau h_1, \rho \tau ]/I.\tag{8}\] The degrees and coweights of the generators are listed in ¿tbl:table:F3-ExtA40141-generators?, where coweight refers to the difference between stem and weight. The ideal of relations \(I\) is described in ¿tbl:table:F3-ExtA40141-relations?.

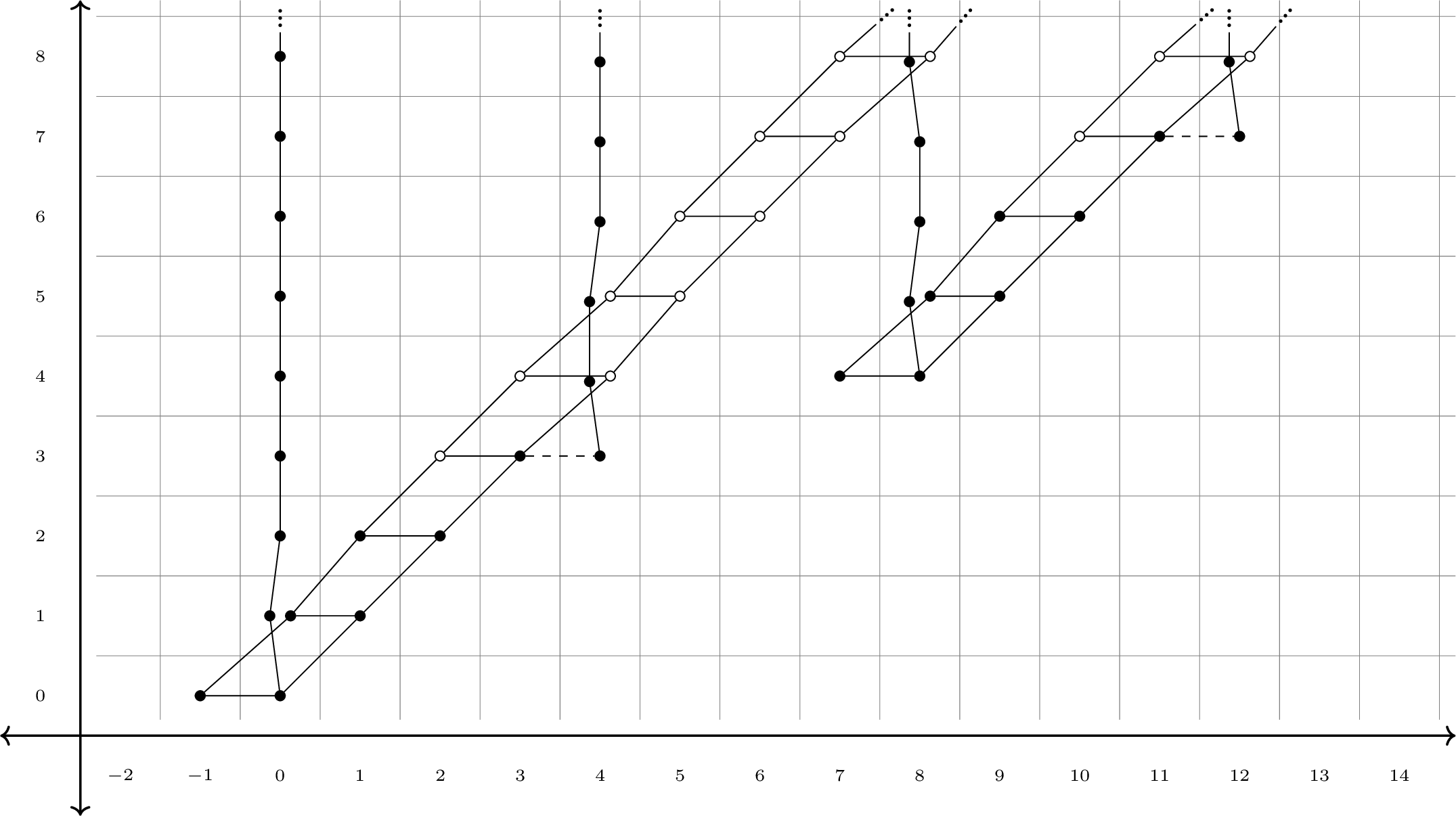

To clearly present the data of 8 , we give individual charts for each coweight modulo 2. Note that the element \(\tau^2\) gives a coweight periodicity operator of degree 2. 10 depicts the coweight \(cw \equiv 0 \, (2)\) piece. 11 depicts the coweight \(cw \equiv 1 \, (2)\) piece. The notation agrees with the notation used earlier in this section.

As in the case of a trivial Bockstein action, we can lift the differentials from the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{H}\mathbb{Z})\) to completely determine the behavior of this spectral sequence. The proof follows from the same argument given in 1

As in the previous section, by running the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\) we see that \[\pi_{s,w}^{\mathbb{F}_q}(\text{kq}) \cong\left\{\begin{array}{rl} \text{KO}_{s-2w}(\mathbb{F}_q) & w \equiv 0 \, (4) \\ \text{KSp}_{s-2w}(\mathbb{F}_q) & w \equiv 2 \;(4) \end{array} \right.\] for \(s \geq 0\), agreeing with Friedlander’s calculations given in 1.

4.3 Brown–Gitler comodules↩︎

We begin the process of computing the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\). To start, we will compute \(\text{Ext}_{\EuScript{A}(1)^\vee}^{s,f,w}(B_0^{\mathbb{F}_q}(1))\) by the \(\boldsymbol{aAHSS}^{\mathbb{F}_q}(B_0^{\mathbb{F}_q}(1))\). This spectral sequence has signature \[\mathrm{E}_1^{s,f,w,a} = \text{Ext}^{s,f,w}_{\EuScript{A}(1)}(\mathbb{M}_2^{\mathbb{F}_q}) \otimes \mathbb{M}^{\mathbb{F}_q}_2\{[1], [\overline{\xi}_1], [\overline{\tau}_1]\}\implies \text{Ext}^{s,f,w}_{\EuScript{A}(1)}(B_0^{\mathbb{F}_q}(1))\] with differentials taking the form \[d_r:\mathrm{E}_r^{s,f,w,a} \to \mathrm{E}_r^{s-1, f+1,w, a-r}.\] We have discussed the differentials in this spectral sequence in 2.4. In particular, for any \(\alpha \in \text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\mathbb{M}_2^{\mathbb{F}_q})\), we have that \[d_1(\alpha[3]) = h_0\alpha[2],\] and \[d_2(\alpha[2]) = h_1\alpha[0].\] There is a potential third differential between Atiyah-Hirzebruch filtrations 3 and 0, which we saw did not exist for degree reasons in the case of a trivial Bockstein action on \(\mathbb{F}_q\). However, this is not the case here.

Since the differentials in the \(\boldsymbol{aAHSS}(B_0^{\mathbb{F}_q}(1))\) are module maps over \(\text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{F}_q})\), this determines the spectral sequence. Hidden extensions lift as in the previous section. Note that the \(d_1\) and \(d_2\)-differentials are given by multiplication with an element of coweight 0, while the \(d_3\)-differential is given by multiplication with an element of coweight 1.

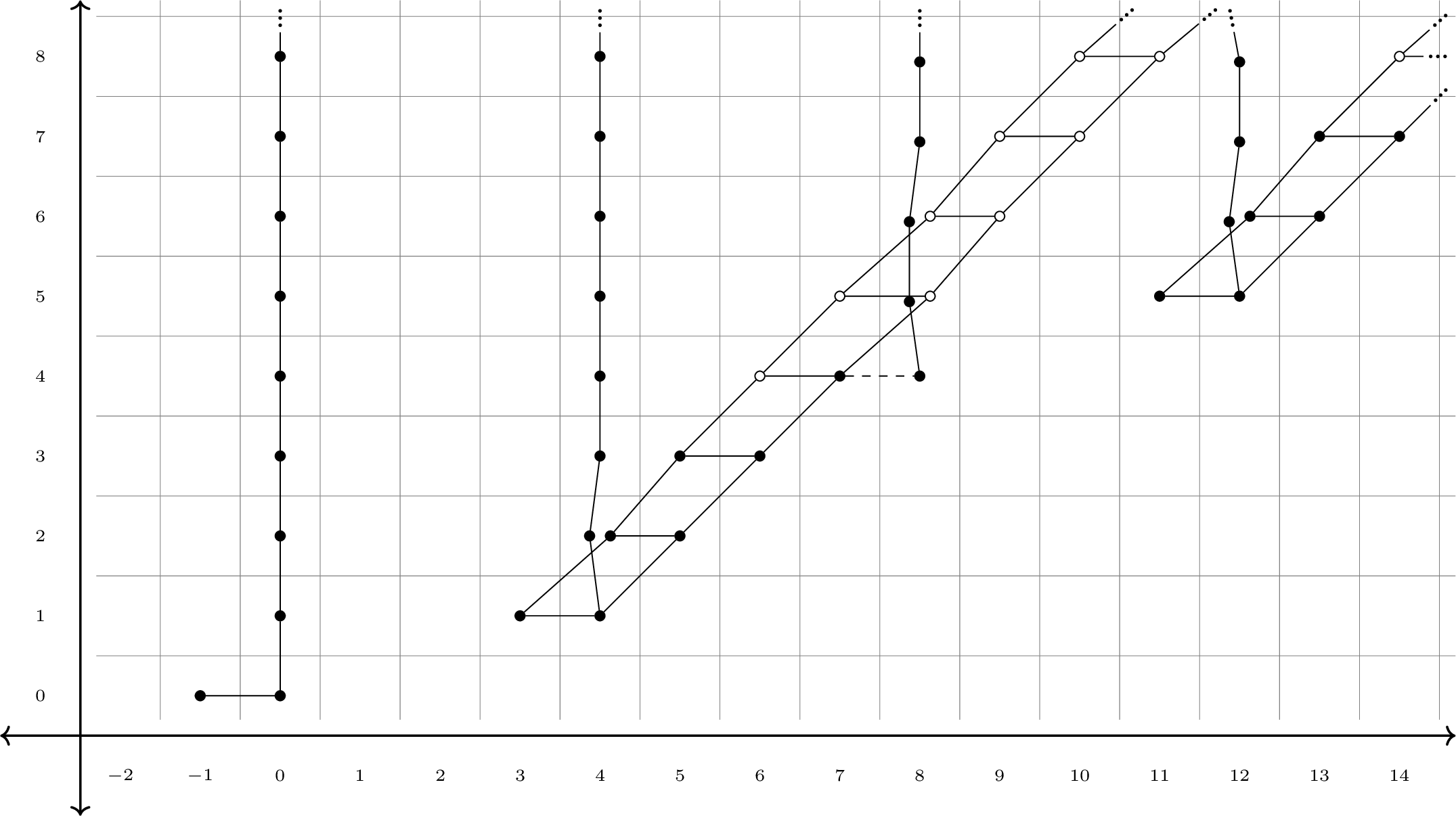

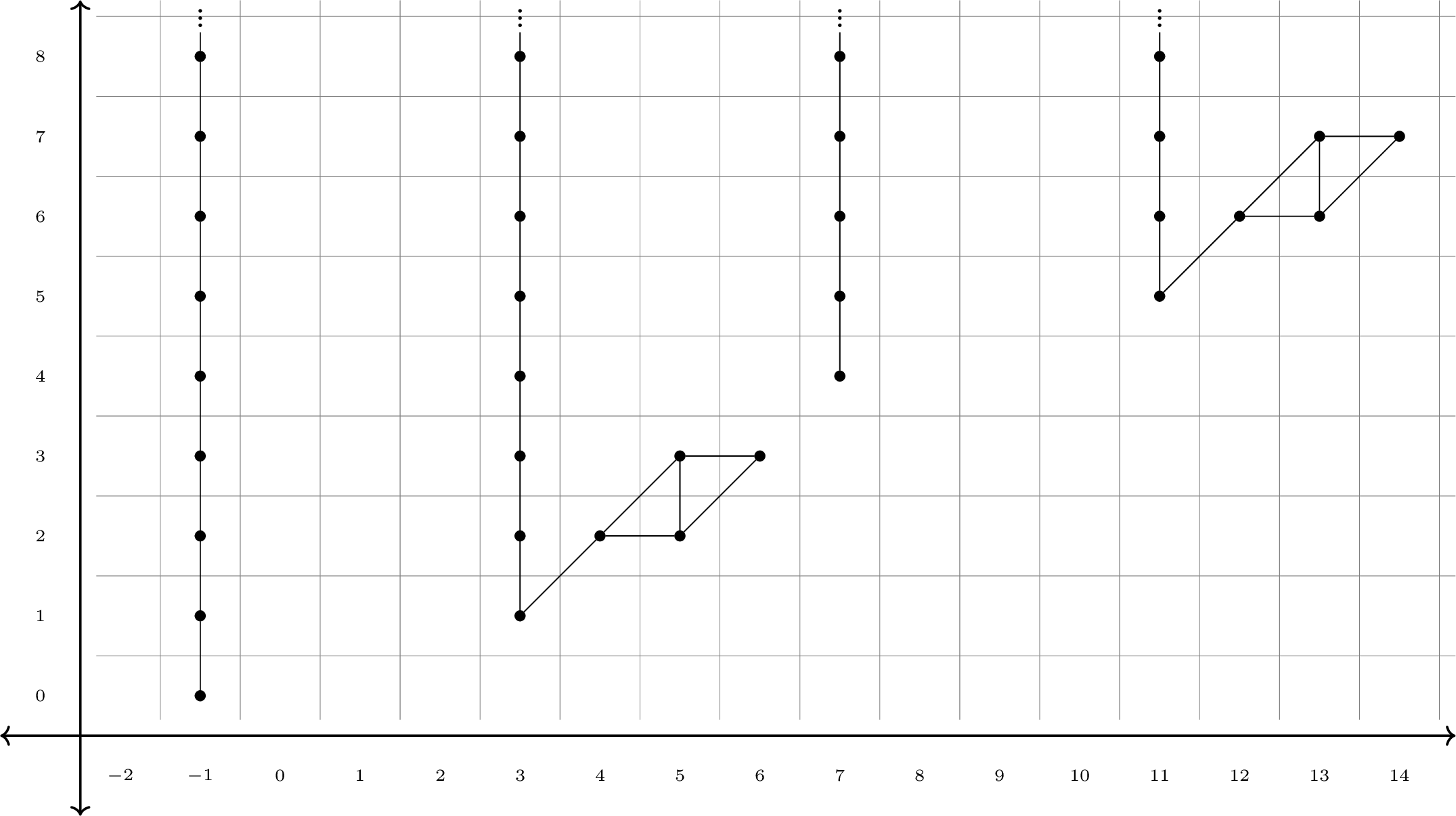

We now provide charts for the \(\mathrm{E}_\infty\)-page. 12 depicts the coweight \(cw\equiv 0 \,(2)\) piece. 13 depicts the coweight \(cw \equiv 1 \, (2)\) piece.

The equivalence of motivic spectra \(\text{ksp} \simeq \text{H}\mathbb{Z}_1^{\mathbb{F}_q} \otimes \text{kq}\) from 4 implies that the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{ksp})\) is given by \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(B_0^{\mathbb{F}_q}(1)).\) Our computations with the \(\boldsymbol{aAHSS}^{\mathbb{F}_q}(B_0^{\mathbb{F}_q}(1))\) show that \[\text{Ext}_{\EuScript{A}(1)^\vee}^{s,f,w}(B_0^{\mathbb{F}_q}(1)) \cong \Sigma^{4,2}\text{Ext}_{\EuScript{A}(1)^\vee}^{s,f,w}(\mathbb{M}_2^{\mathbb{F}_q})\langle 1 \rangle \oplus \text{Ext}_{\EuScript{A}(0)^\vee}^{s,f,w}(\mathbb{M}_2^{\mathbb{F}_q}).\] The same argument as in 2 gives the following.

By running the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{ksp})\) and comparing with 1, we recover the expected isomorphism for \(s \geq 4\) \[\pi_{s,w}^{\mathbb{F}_q}(\text{ksp}) \cong\left\{\begin{array}{rl} \text{KSp}_{s-2w}(\mathbb{F}_q) & w \equiv 0 \, (4); \\ \text{KO}_{s-2w}(\mathbb{F}_q) & w \equiv 2 \;(4). \end{array} \right.\]

We now compute the group \(\text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(B_0^{\mathbb{F}_q}(1)^{\otimes i}).\) To do this, we introduce a family of trigraded groups and use the notation described in the paragraphs preceding 1.

Before computing the groups \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(B_0^{\mathbb{F}_q}(k))\), we make a preliminary calculation.

4.4 The ring of cooperations↩︎

We now assemble our findings to compute \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\). First, we describe the \(\mathrm{E}_2\)-page of the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq}).\)

14 depicts a chart for the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq})\), which may be interpreted as either the \(\mathrm{E}_2\) or \(\mathrm{E}_\infty\)-page. For the \(\mathrm{E}_2\)-page, let a \(\blacksquare\) represent \(\mathbb{F}_2[\rho,\tau^2, \rho\tau, h_0]/(\rho^2, \rho(\rho\tau), (\rho\tau)^2, \rho h_0)\), let a \(\bullet\) represent \(\mathbb{F}_2[\rho,\tau^2]/(\rho^2)\) let a \(\circ\) represent \(\mathbb{F}_2[\rho]/(\rho^2)\), and let a \(\blacklozenge\) represents \(\rho\tau \mathbb{F}_2[\rho, \tau^2]/(\rho^2).\) Note that an \(h_0\)-tower supports \(\rho\tau\)-multiplication even though \(\rho h_0 =0\). Be aware that to be concise in our notation, we have suppressed some multiplicative data. For the \(\mathrm{E}_\infty\)-page, as in 7, one simply replaces any \(\blacksquare\) with a copy of \(\pi_{*,*}^{\mathbb{F}_q}(\mathrm{H}\mathbb{Z})\).

5 Application to the kq-resolution↩︎

We conclude by examining the \(\mathrm{E}_1\)-page of the kq-resolution. In this section, we do not distinguish between the cases of a trivial or nontrivial Bockstein action on \(\mathbb{F}_q\).

Recall that the kq-resolution for the sphere has signature \[\mathrm{E}^{s,f,w}_1 = \pi_{s+f, w}^{\mathbb{F}_q}(\text{kq} \otimes \overline{\text{kq}}^{\otimes f}) \implies \pi_{s,w}^{\mathbb{F}_q}(\mathbb{S}).\] We can determine each filtration \(f=n\)-line of the \(\mathrm{E}_1\)-page by an extension of the techniques used for the computation of \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq} \otimes \text{kq}).\) For each \(n\geq 0\), there is a motivic Adams spectral sequence of the form \[\mathrm{E}^{s,f,w}_2 = \text{Ext}^{s,f,w}_{\EuScript{A}^\vee}(\text{H}_{*,*}(\text{kq} \otimes \overline{\text{kq}}^{\otimes n})) \implies \pi_{s,w}^{\mathbb{F}_q}(\text{kq} \otimes \overline{\text{kq}}^{\otimes n}).\] We begin by decomposing the \(\mathrm{E}_2\)-page.

One may easily alter the charts given in 7 and 14 to illustrate the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \overline{\text{kq}})\), i.e. the 1-line of the kq-resolution, by omiting the black \(\text{Ext}^{*,*,*}_{\EuScript{A}(1)^\vee}(\mathbb{M}_2^{\mathbb{F}_q})\) summand originating in stem \(s=0\). For higher Adams filtration, one may compute \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(B_0^{\mathbb{F}_q}(K))\) by an analysis akin to the one we give in this paper, using a combination of the short exact sequences of Brown–Gitler comodules and algebraic Atiyah–Hirzebruch spectral sequences. In particular, while the Ext group is substantially larger, we can still decompose it, modulo \(v_1\)-torsion, into:

• shifts of \(h_1\)-truncations \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\text{kq}^{\langle n \rangle})\) and \(\text{Ext}_{\EuScript{A}(1)^\vee}^{*,*,*}(\text{ksp}^{\langle n \rangle})\),

• \(\text{Ext}_{\EuScript{A}(0)^\vee}^{*,*,*}(\text{H}\mathbb{Z})\)-summands, and

• summands of the form \((\text{Ext}_{\EuScript{A}(0)^\vee}^{*,*,*}(\text{H}\mathbb{Z}))[h_1]/(h_0, h_1^2)\).

As the 0-line of the kq-resolution is \(\pi_{*,*}^{\mathbb{F}_q}(\text{kq})\), we have described the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq} \otimes \overline{\text{kq}}^{\otimes n})\) as a module over the \(\boldsymbol{mASS}^{\mathbb{F}_q}(\text{kq})\).

This gives an additive description of the \(n\)-line \(\mathrm{E}_1\)-page of the kq-resolution, modulo \(v_1\)-torsion, in terms of \(h_1\)-truncated Adams covers of kq and ksp, summands of \(\text{H}\mathbb{Z}\), and stunted \(\eta\)-towers. Moreover, we have described the module structure of the \(n\)-line over the 0-line. We expect these observations to be useful in future work on the kq-resolution.
