1 Introduction↩︎

Modern attention-based architectures enable substantially larger-scale processing, thereby making it possible to leverage significantly more data within recommendation systems. By learning from considerably larger volumes of user impressions and interactions across various product surfaces, these models achieve deeper personalization and more accurate recommendations than previously possible [1]–[3]. To effectively learn from longer user interaction history sequences, previous research introduced a novel attention-based encoder design, known as hierarchical sequential transducers (HSTU) [4]. To efficiently process the variable-length user sequence input commonly seen in recommender sequence learning, the encoder adopts a jagged tensor implementation optimized with specialized Triton kernels.

Using this effective architecture, we identify a clear path to scale the model with model quality measured by normalized entropy (NE) improvements. Scaling the model includes learning from longer sequence length; however, this scaling is constrained by substantial activation memory requirements. To overcome this limitation, we explore context-parallelism (CP) [5]: a parallel computing technique that partitions long sequences across multiple GPUs, reducing per-device activation memory requirements, and thereby enabling greater scalability. Nonetheless, context-parallelism methods designed for standard transformer-based large language models (LLMs) cannot be directly applied due to fundamental differences in how jagged tensor inputs are represented and processed within the HSTU framework. In this paper, we introduce jagged tensor context-parallelism, an adaptation specifically designed for the HSTU architecture, serving as our primary technical contribution to efficiently scale sequence lengths and enable further improvements in recommendation system performance.

2 Methodology↩︎

In this section, we present the main components of the generative recommender encoder, including the HSTU architecture and the jagged tensor representation. We outline how these elements differ from traditional transformer-based LLM architectures, and discuss our approach to efficiently implementing context-parallelism tailored specifically to the unique characteristics of our system.

2.1 Sequential Transducer Attention↩︎

The formulation of the HSTU encoder is defined by the following equation:

\[\text{HSTUAttention}(Q,K,V) = \text{Mask}\left(\text{SiLu}\left(\frac{QK^T + \text{Bias}}{\sqrt{d_k}}\right)\right)V\]

We highlight that a critical component is the customized timestamp bias, which is generated based on the timestamps with learnable weights. It first computes the differences between consecutive elements in ts, then performs the transformation followed by the grouping. These bucket indices are then used to select weights from ts_weights, which is a learnable parameter tensor initialized with values drawn from a normal distribution.

2.2 Jagged Tensors↩︎

Unlike dense features, which typically have fixed sizes, sparse features frequently observed in training examples exhibit high sparsity and variable sequence lengths. To efficiently represent these sparse features, we preprocess them into jagged tensors containing both feature values and metadata, such as offsets and max_lengths. These jagged tensors are subsequently provided as inputs to the attention operations. We use the TorchRec [6] implementation of the jagged tensor.

2.3 Context-Parallelism Implementation↩︎

The key idea of Context Parallelism (CP) is to leverage the block-wise computation of self-attention to distribute long sequences across multiple devices to reduce memory usage. A typical workflow includes sharding Q, K, V on sequence length dimension so each device only holds 1/N of the data; each device then independently performs local attention computations before exchanging intermediate results in a block-wise manner to obtain the final attention outputs. To achieve efficient processing, ring-based gathering is utilized, with the intention to fully overlap communication with computation.

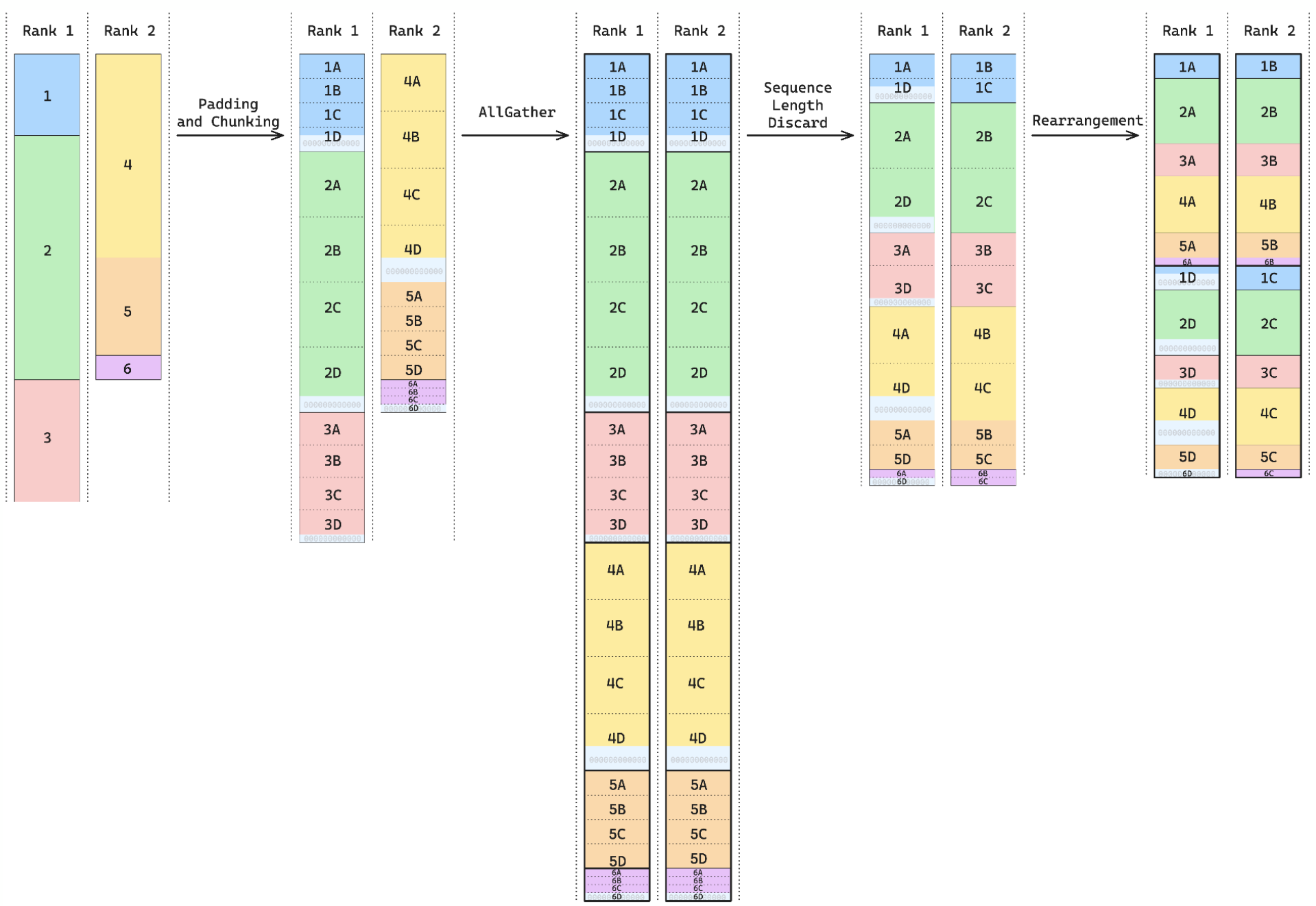

In our implementation, we focus on scenarios where CP is introduced as an additional dimension of parallelism alongside DDP. A standard pre-processing interation with DDP is to AllGather along the batch dimension, followed by an even split along the sequence dimension. However, the inherently dynamic nature of jagged tensors — characterized by highly variable sequence lengths, common in recommendation system training — introduces significant challenges in efficiently implementing the communication required for this AllGather operation. As can be seen in Figure 1, both the communication volume and peak memory usage at the intermediate stage are dominated by the total concatenated sequence length.

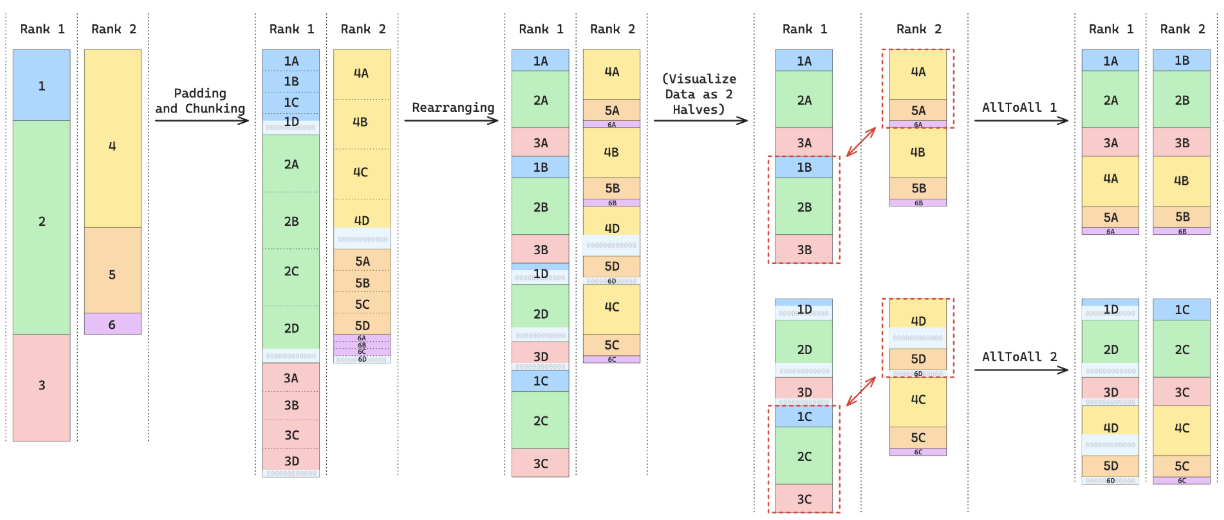

In order to improve communication and memory efficiency, we replaced the AllGather with AllToAll to directly send relevant chunks from each sample to each rank, thereby saving memory by avoiding full copy of data on each rank. This is illustrated in Figure 2. With this technique, we are able to significantly reduce the peak memory compared to the AllGather method by >60% and improve the training throughput measured by examples per-second by >2x.

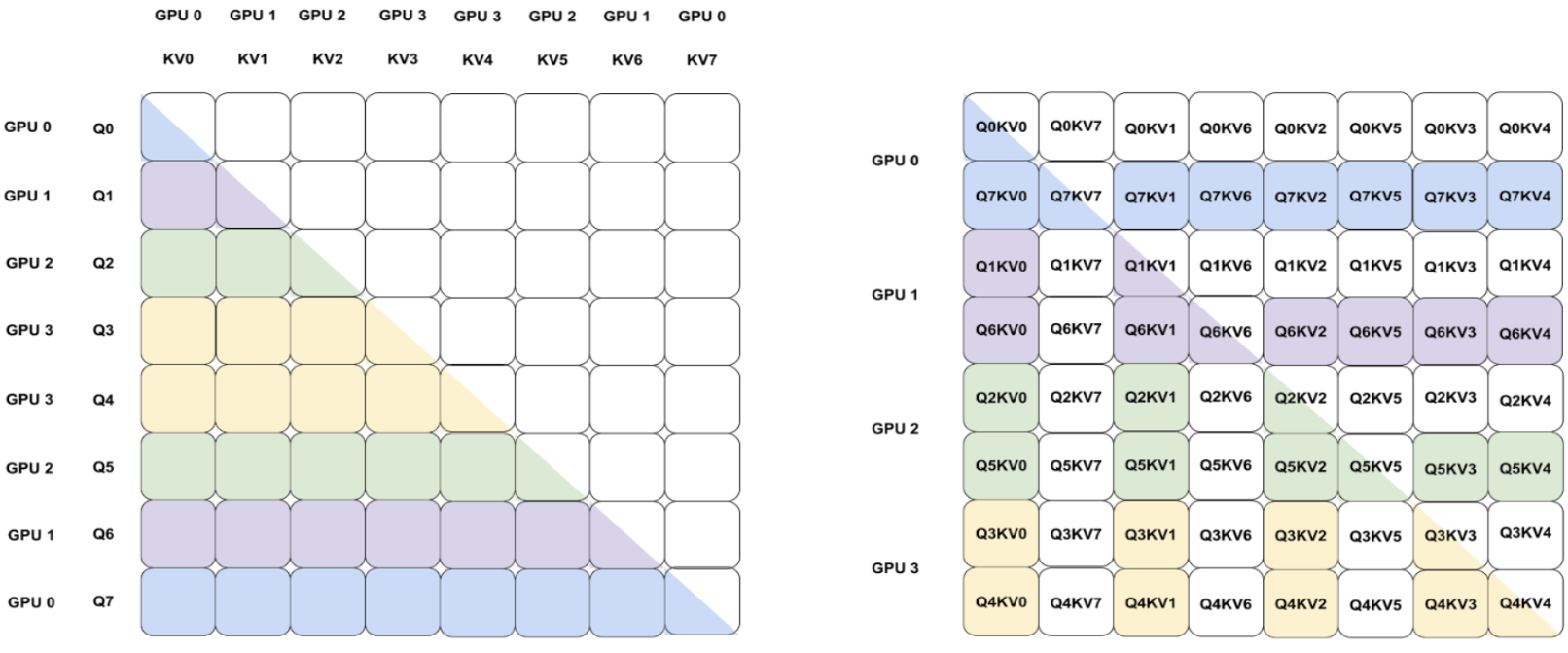

Another common challenge encountered in CP is load balancing. In both standard transformer-based LLM attention and HSTU attention, a mask is typically applied to restrict which positions in the input sequence can attend to each other during self-attention, thus preventing information leakage from future positions. The most frequently used mask is the “causal” (or “lower-triangular”) mask. However, using a triangular mask inherently leads to computational imbalance across different GPU ranks. Several strategies [7], [8] have been proposed to mitigate this load imbalance. We adopt an approach similar to that used in TransformerEngine [8]. For each chunk, we further partition into 2 mini-CP chunks along sequence-length dimension, and assign chunks (i, 2xCP - 1 - i) to rank i. This ensures balanced computational loads across GPU ranks, as illustrated in Figure 3. To effectively implement this approach, we employ efficient data shuffling with custom Triton kernels designed for memory reordering, thereby avoiding significant overhead from chunking and concatenation operations. This technique further enhances overall training throughput by 37%.

3 Experiments and Conclusions↩︎

We conducted experiments on Jagged CP with HSTU, running on NVidia H100 GPUs with 80GB HBM. The baseline model was executed using DDP without activation checkpointing, achieving a maximum sequence length of 3K (utilizing 89% of available memory). Scaling beyond this point resulted in out-of-memory (OOM) errors. With the adoption of CP, we successfully scaled to significantly longer sequence lengths proportional to the CP size, as illustrated in Table 1.

We also evaluate the scaling efficiency by measuring the achieved scaling factor. Ideally, the scaling factor should increase linearly with the number of GPUs. In our experiments, we observed scaling efficiency ranging between 1.33× and 1.55×.

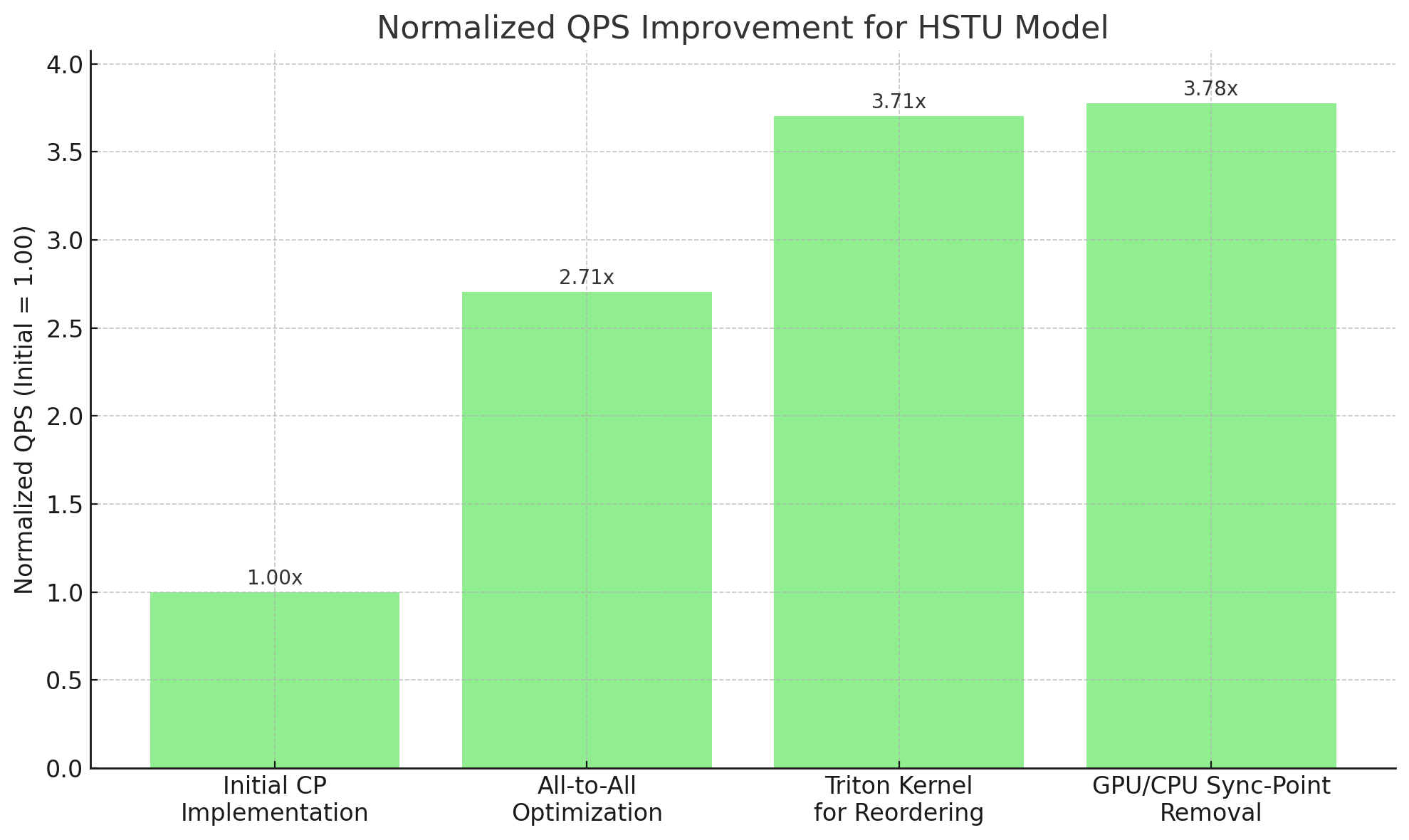

We break down how each performance optimization technique described above contributes to improving training throughput, measured in queries (examples) per second (QPS). First, replacing AllGather with AllToAll eliminated redundant memory usage and communication overhead, resulting in a 2.7× increase in QPS. Next, the custom Triton kernels for memory reordering—an essential step for load balancing—which avoided costly chunking and concatenation, provides additional 37% improvement. Finally, we addressed GPU/CPU synchronization overhead introduced by jagged tensor communication. Specifically, to compute sequence lengths for collective communication, we previously relied on .item() calls that triggered device-host sync. By asynchronously copying the offset tensor to the CPU and delaying synchronization until absolutely necessary, we achieved a further  2% QPS gain.

We have also identified additional opportunities to further enhance scaling efficiency. Currently, the performance bottleneck lies in the attention kernel, which was optimized for shorter sequences. A promising opportunity involves fusing these segmented kernels into larger, consolidated kernels. Our preliminary headroom study indicates that implementing this fusion can increase the scaling factor at the same batch size from 1.33× to approximately 1.5×–1.6×.

In summary, our work on jagged tensor context-parallelism (CP) for HSTU enables efficient scaling of generative recommender models to process significantly longer feature sequences, thereby enhancing the overall quality and effectiveness of recommendation systems.
