Abstract

We present the structural, magnetic, and magnetocaloric properties of thin films with stoichiometry Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) deposited on naturally oxidized silicon Si (100) substrates. Samples with a thickness \(d=50\) nm covered with a protective Au overlayer with a thickness \(d_{\rm Au} =5\) nm were produced using the pulsed laser deposition technique. X-ray diffraction analysis indicated the presence of crystallized Laves phases and amorphous phases in the prepared materials. Magnetization measurements as a function of temperature revealed ferrimagnetic behavior in both samples. We estimated the compensation temperature \(T_{\rm comp}\) of the amorphous phase for Tb\(_{31}\)Co\(_{69}\) at 81.5 K and for Dy\(_{31}\)Co\(_{69}\) at 88.5 K, while we found the Curie temperature \(T_{\rm C,\ Laves}\) of the crystallized Laves phases at 204.5 K and at 117 K, respectively. We investigated the magnetocaloric effect in a wide temperature range, covering \(T_{\rm comp}\) of amorphous phases and \(T_{\rm C,\ Laves}\) of crystallized Laves phases. The analysis for the magnetic field change of \(\Delta \mu_0H=5\) T showed values of the magnetic entropy change of \(-\Delta S_{\rm M}=4.9\) mJ cm\(^{-3}\) K\(^{-1}\) at \(T_{\rm comp}\) and \(-\Delta S_{\rm M}=6.6\) mJ cm\(^{-3}\) K\(^{-1}\) at \(T_{\rm C,\ Laves}\) for Tb\(_{31}\)Co\(_{69}\), while for Dy\(_{31}\)Co\(_{69}\), we determined the values of \(-\Delta S_{\rm M}=35\) mJ cm\(^{-3}\) K\(^{-1}\) at \(T_{\rm comp}\) and \(-\Delta S_{\rm M}=28\) mJ cm\(^{-3}\) K\(^{-1}\) at \(T_{\rm C,\ Laves}\).

Laves phase ,rare-earth thin films ,magnetocaloric effect

1 Introduction↩︎

Scientific investigation of materials involving rare-earth elements provided an opportunity to discover numerous physical phenomena, such as the Kondo effect, the heavy fermion state, unconventional superconductivity, or topological phases [1]–[3]. The realization of thin films of rare-earth alloys or multilayers utilizes the ferrimagnetic properties of the prepared materials. One of the widely studied systems is Tb-Co, which may find application by involving all-optical switching, movement of domain walls, current-induced magnetization switching, or the creation of skyrmions [4]–[7]. Dy-Co systems have been studied in the context of magnetic memories in DyCo\(_5\) or also skyrmions creation in DyCo\(_3\) thin films [8]–[10]. The search for new applications for thin films containing rare-earth elements is especially promising for systems where various physical phenomena occur.

Magnetic materials containing rare-earth elements have been widely studied for magnetocaloric applications. Although multiple promising bulk materials have been discovered, other forms of materials are being investigated. Most known magnetocaloric materials, such as Gd, Gd\(_5\)(Si, Ge)\(_4\), amorphous GdFeCo, or perovskites, have been verified in the form of thin films [11]–[16]. The results indicate that further studies may improve the magnetocaloric properties of some materials.

One of the groups of intermetallic compounds with various magnetic properties is the Laves phase \(R\)Co\(_2\) (\(R-\) rare earth element) [17]–[20]. Within this group, the order of phase transitions changes from second-order type (SOT) for lighter rare-earth elements to first-order type (FOT) for heavier elements [21]. The phase transition type for TbCo\(_2\) is still discussed as FOT instead of SOT, as recent reports show [22]–[24], while for DyCo\(_2\), it is reported to exhibit FOT [25]. The \(R\)Co\(_2\) Laves phase is known for interesting properties connected with a magnetocaloric effect (MCE) [18]. Manipulation of the chemical composition of both compounds leads to modification of their magnetocaloric properties, for example, in TbCo\(_{2-x}\)Fe\(_x\) [26]–[28], Dy\(_{1-x}\)Er\(_x\)Co\(_2\) [29], [30], and in many other systems based on \(R\)Co\(_2\) Laves phases, see references [31]–[38]. These two compounds have also been prepared in non-bulk forms, exemplary, such as TbCo\(_2\) as thin films in the form of multilayer [39]–[42], or DyCo\(_2\) as nanoparticles [43]. The amorphous \(R\)Co\(_2\) phases were realized in the hydrogenation process [44].

In this article, we present magnetic and magnetocaloric studies of thin films with stoichiometry Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) deposited using the pulsed laser deposition (PLD) technique. The thickness of the thin films studied was \(d=50\) nm for both materials. The films were prepared on naturally oxidized silicon Si (100) substrates. X-ray diffraction (XRD) measurements revealed the presence of crystallized \(R\)Co\(_2\) Laves phases and amorphous phases. The magnetic properties of samples were investigated in the form of magnetization measurements as a function of temperature and magnetic field. For both samples, the analysis of the first derivative revealed compensation temperatures \(T_{\rm comp}\) below 100 K of the amorphous phase and Curie temperatures \(T_{\rm C,\ Laves}\) of the crystallized \(R\)Co\(_2\) Laves phases. As the magnetocaloric effect of the TbCo\(_2\) and DyCo\(_2\) Laves phase presents promising magnetocaloric parameters, the samples were studied in a wide range of temperatures to cover \(T_{\rm comp}\) of the amorphous phases and also \(T_{\rm C,\ Laves}\) of the corresponding bulk compounds [18]. On this basis, the magnetocaloric parameters were determined: magnetic entropy change \(\Delta S_{\rm M}\) and temperature-averaged entropy change \((TEC)\).

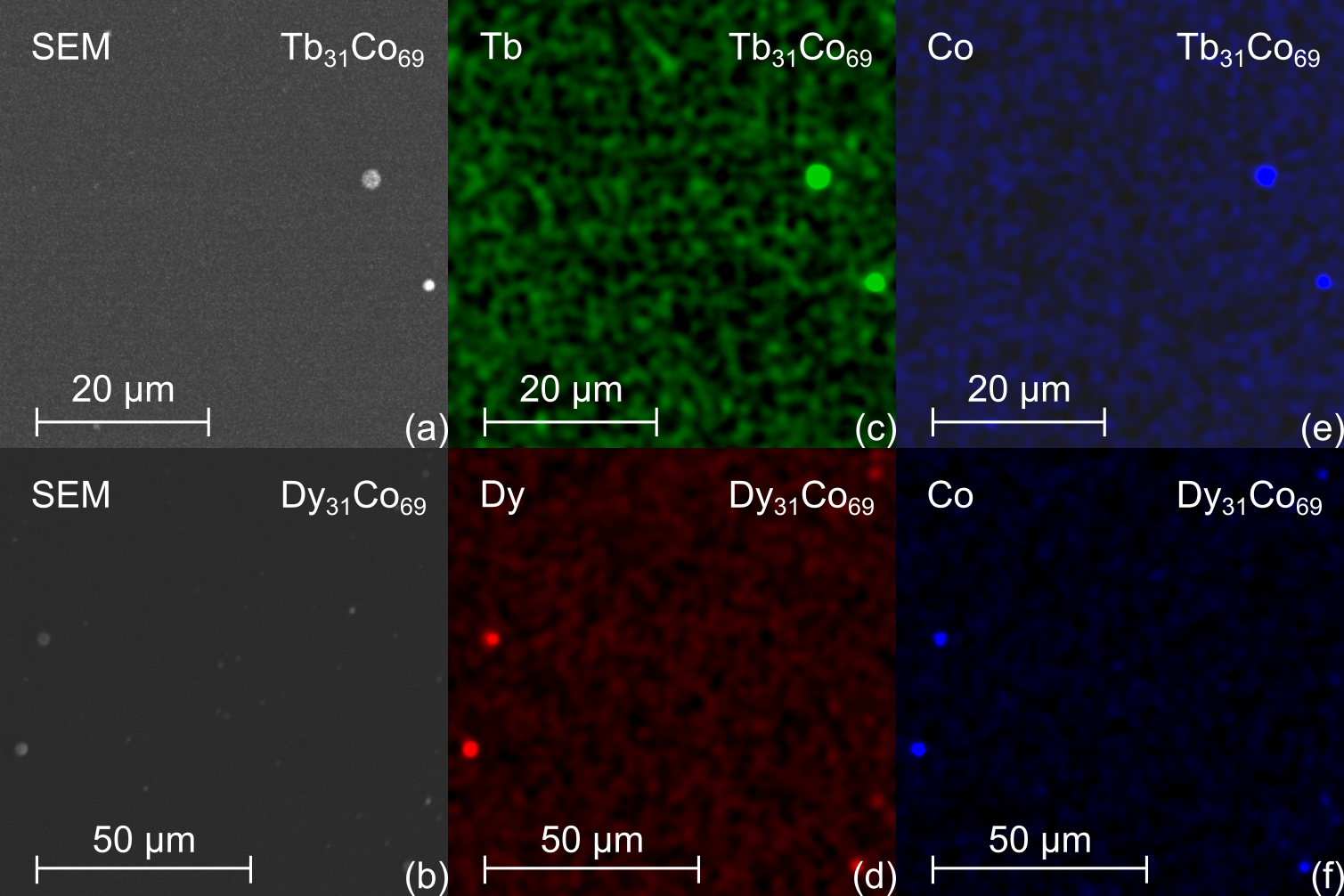

Figure 1: (a) and (b) Topography of the Tb_{31}Co_{69} and Dy_{31}Co_{69} layers. (c-f) Chemical maps of specific elements for the samples with the Tb_{31}Co_{69} and Dy_{31}Co_{69} layers. — Figure 1: (a) and (b) Topography of the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers. (c-f) Chemical maps of specific elements for the samples with the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.

2 Experimental↩︎

The layers were deposited from commercially produced targets (Kurt Lesker) with a nominal stoichiometry of 1:2 of Tb and Dy to Co using the PLD technique (Nd:YAG laser). The laser wavelength was \(\lambda = 532\) nm with a frequency of 2 Hz. The chamber pressure was about \(8\times10^{-8}\) mbar. Thin films were deposited on naturally oxidized Si (100) substrates. The nominal thickness of the Tb-Co and Dy-Co layers was \(d=50\) nm. The layers were covered with an Au layer \(d_{\rm Au}=5\) nm deposited using the same PLD parameters to protect against oxidation.

The stoichiometry of the prepared samples and their topography were studied by scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS). The device used for this purpose was a FEI Nova NanoSEM 650 equipped with an EDS Bruker detector.

The crystal structure of the prepared samples was examined by XRD measurements at room temperature using the X’pert Pro PANalytical device with a Cu \(K \alpha\) radiation source.

Magnetic properties investigation was performed on the Quantum Design Physical Property Measurement System (QD PPMS) in DC magnetization mode using a vibrating sample magnetometer (VSM). Measurements of magnetization were collected as a function of temperature in zero-field cooling (ZFC) and field cooling (FC) modes. The experiments were carried out in the temperature range of 10-380 K with a magnetic field of 0.1 T. The isothermal magnetization was measured as a function of the applied magnetic field at magnetic field values up to 5 T in various temperature ranges.

3 Results↩︎

3.1 Microstructure investigation↩︎

The first step was the verification of the chemical composition of the samples using EDS. The atomic percentage results showed that the stoichiometry of all samples was close to the nominal stoichiometry. For the Tb-Co layer, the atomic percentage content was 30.8(1.4)% of Tb and 69.2(1.4)% of Co, while for the Dy-Co layer, it was 30.9(0.7)% of Dy and 69.1(0.7)% of Co. The nominal atomic percentage content is expected to be 33% of Tb or Dy and 67% of Co. Due to stoichiometry, the samples are labeled Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\). For both samples, the SEM images presented droplets of material on the surface of the layers, which is characteristic of the PLD method, see Figures 1 (a) and (b). Chemical maps shown in Figures 1 (c-f) indicated the uniform distribution of all elements on the sample surface.

3.2 X-ray diffraction↩︎

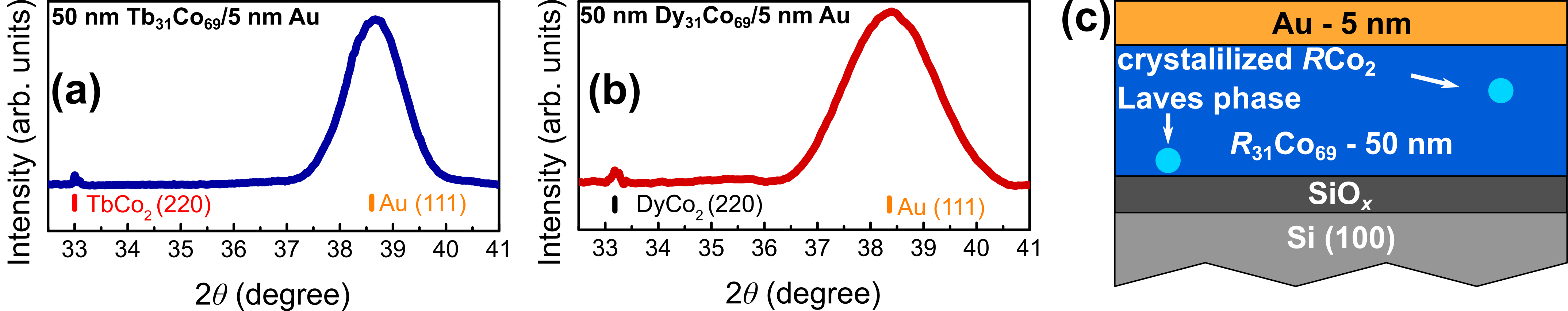

Figure 2: (a) and (b) X-ray diffraction patterns of the Tb_{31}Co_{69} and Dy_{31}Co_{69} layers.Wide maxima at 2\theta = 38.3^{\circ} are related to the Au (111) peak, small maxima at 2\theta = 33.1^{\circ} are related to the TbCo_2 and DyCo_2 (220) peaks.(c) Schematic illustration of the samples studied.Small light blue balls indicate crystals of the RCo_2 Laves phase. — Figure 2: (a) and (b) X-ray diffraction patterns of the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.Wide maxima at \(2\theta = 38.3^{\circ}\) are related to the Au (111) peak, small maxima at \(2\theta = 33.1^{\circ}\) are related to the TbCo\(_2\) and DyCo\(_2\) (220) peaks.(c) Schematic illustration of the samples studied.Small light blue balls indicate crystals of the \(R\)Co\(_2\) Laves phase.

The XRD results for the samples with the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers are shown in Figures 2 (a) and (b). The results for the entire \(2\theta\) range for both samples (not shown) revealed two major maxima, one at \(2\theta =69.3^{\circ}\), which is related to the Si (400) peak, and the other allocated at \(2\theta = 38.3^{\circ}\), which is related to the Au (111) peak. For both samples, in the vicinity of the Au (111) peak, small peaks are observed around \(2\theta = 33.1^{\circ}\). These reflections were assigned to a close approximation of the position of the (220)peak of the MgCu\(_2\)-type structure of TbCo\(_2\) and DyCo\(_2\) Laves phases [21], [45]. The peak position is comparable for both compounds, suggesting that the values of the lattice parameters \(a\) are very similar, although slight differences in the crystal lattice parameters of bulk TbCo\(_2\) and DyCo\(_2\) were observed [21], [45]. Although the presence of Laves phases is noted, the low intensities of the peaks of the (220) peaks suggest that the crystallized volume is small. However, significant widening of the Au (111) peaks may suggest that these protective layers grew mainly on the amorphous Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers, even if their amorphous halos are not visible. Therefore, the results should be interpreted as evidence of the presence of crystallized Laves phases in the majority of the amorphous layers. The schematic composition of the samples is presented in Figure 2 (c).

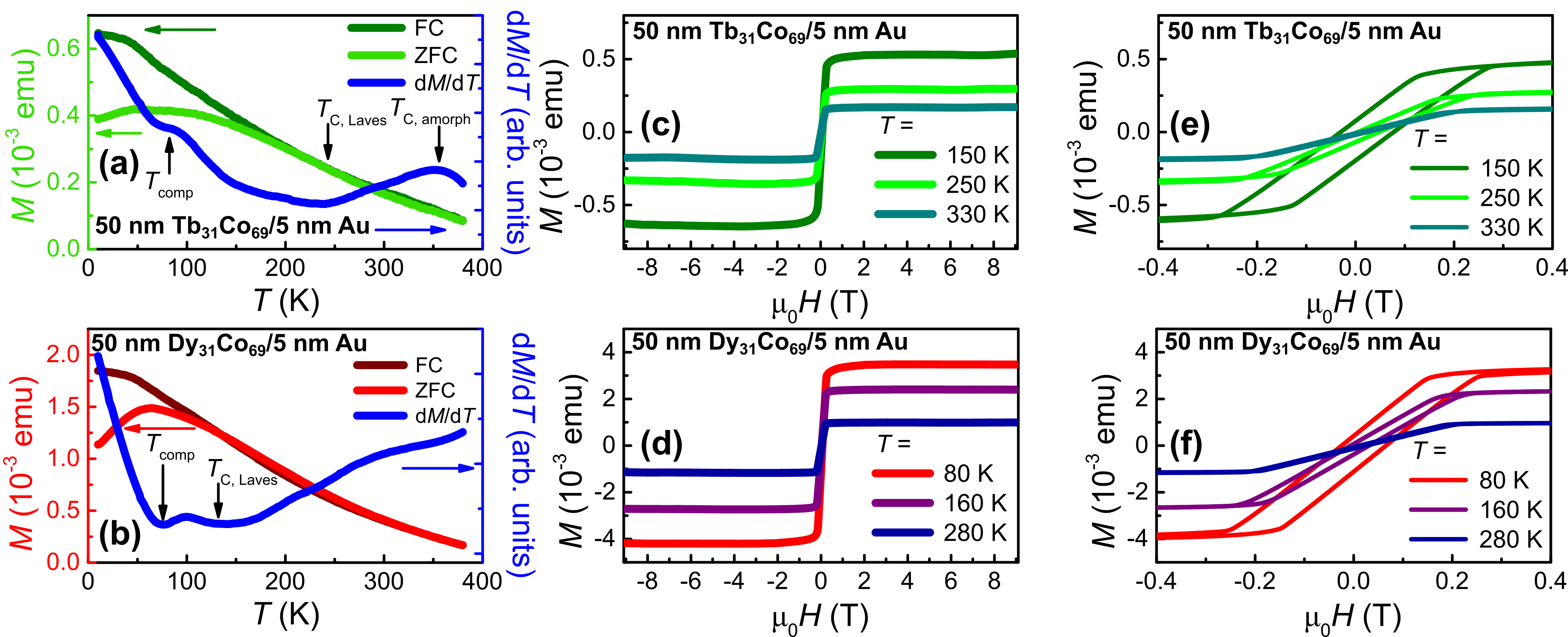

Figure 3: Magnetic properties of the samples with the Tb_{31}Co_{69} and Dy_{31}Co_{69} layers.(a) and (b) Magnetization as a function of temperature measured in a magnetic field value of 0.1 T for for the Tb_{31}Co_{69} and Dy_{31}Co_{69} layers.The right blue axis is assigned to the derivative of the FC magnetization.The amorphous phase compensation temperatures are denoted as T_{\rm comp}.The Curie temperatures of crystallized Laves phases are denoted as T_{\rm C,\ Laves}.For Tb_{31}Co_{69} at around 350 K T_{\rm C,\;amorph} of the amorphous phase is noted.(c) and (d) Magnetization isotherms as a function of an applied magnetic field for the Tb_{31}Co_{69} and Dy_{31}Co_{69} layers.(e) and (f) Close up on the hysteresis of the magnetization isotherms as a function of an applied magnetic field for the Tb_{31}Co_{69} and Dy_{31}Co_{69} layers. — Figure 3: Magnetic properties of the samples with the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.(a) and (b) Magnetization as a function of temperature measured in a magnetic field value of 0.1 T for for the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.The right blue axis is assigned to the derivative of the FC magnetization.The amorphous phase compensation temperatures are denoted as \(T_{\rm comp}\).The Curie temperatures of crystallized Laves phases are denoted as \(T_{\rm C,\ Laves}\).For Tb\(_{31}\)Co\(_{69}\) at around 350 K \(T_{\rm C,\;amorph}\) of the amorphous phase is noted.(c) and (d) Magnetization isotherms as a function of an applied magnetic field for the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.(e) and (f) Close up on the hysteresis of the magnetization isotherms as a function of an applied magnetic field for the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.

3.3 Magnetic properties↩︎

Magnetization as a function of temperature is presented in Figure 3 (a) and (b) for samples with Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers. The ZFC and FC curves show no distinct magnetic phase transitions for both samples. The main visible feature of the results obtained is a bifurcation of these curves, observed at 200 K for the sample with the Tb\(_{31}\)Co\(_{69}\) layer and at 120 K for the sample with the Dy\(_{31}\)Co\(_{69}\) layer. The first derivative was used to verify the presence of phase transitions. Several local extrema are registered for both samples. The first local extrema are detectable in the temperature range of 100 K for both layers. This observation is in good approximation with the results for the amorphous \(R\)Co\(_2\) obtained in the hydrogenation process, with \(T_{\rm comp}=98\) K for the TbCo\(_2\) stoichiometry and \(T_{\rm comp}=93\) K for the DyCo\(_2\) stoichiometry [44]. The second local extrema are observed around 230 K and 130 K for the samples with Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers, respectively. These temperatures correspond to \(T_{\rm C,\ Laves}\) of the TbCo\(_2\) (\(T_{\rm C,\;bulk}=230\) K) and DyCo\(_2\) (\(T_{\rm C,\;bulk}=135\) K) Laves phases. However, in the ZFC and FC curves, the transitions are barely visible as an inflection point, which confirms the minimal contribution of the crystallized Laves phases. Furthermore, for the sample with the Tb\(_{31}\)Co\(_{69}\) layer, a local maximum of the derivative around 350 K was registered. The maximum is related to \(T_{\rm C,\;amorph}\) of the amorphous phase [46]. Notably, the magnetization results also confirm the presence of crystallized Laves phases in the majority of the amorphous layers indicated in the XRD analysis.

Magnetization as a function of the magnetic field was examined at different temperatures for both samples. The results are presented in Figures 3 (c) and (d). The magnetization curves show ferrimagnetic behavior for all tested temperatures for both layers. The magnetization values increase with decreasing temperature. The close-up of the hysteresis is shown in Figures 3 (e) and (f). In both cases, the hysteresis is not noticeable at the highest measured temperatures. The hysteresis increases with decreasing temperatures with coercivity up to 0.1 T at 150 K for the Tb\(_{31}\)Co\(_{69}\) layer and up to 0.09 T at 80 K for the Dy\(_{31}\)Co\(_{69}\) layer.

3.4 Magnetocaloric properties↩︎

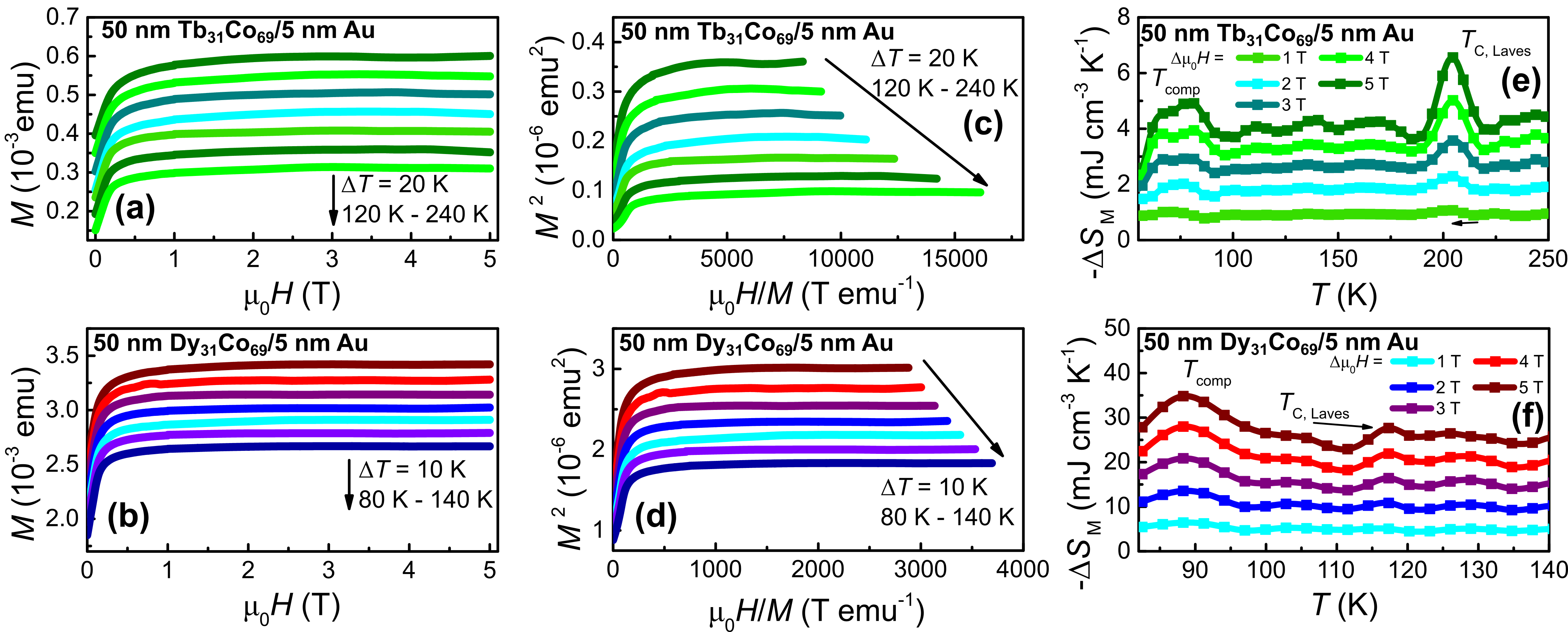

Figure 4: (a) and (b) Magnetization isotherms as a function of magnetic field measured at exemplary temperatures for the samples with Tb_{31}Co_{69} and Dy_{31}Co_{69} layers.(c) and (d) Arrott plots for the samples with Tb_{31}Co_{69} and Dy_{31}Co_{69} layers.(e) and (f) Magnetic entropy change \Delta S_{\rm M} for the Tb_{31}Co_{69} and Dy_{31}Co_{69} layers for various magnetic field values. — Figure 4: (a) and (b) Magnetization isotherms as a function of magnetic field measured at exemplary temperatures for the samples with Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.(c) and (d) Arrott plots for the samples with Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.(e) and (f) Magnetic entropy change \(\Delta S_{\rm M}\) for the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers for various magnetic field values.

The magnetocaloric effect was determined for the samples studied in the temperature range, which includes \(T_{\rm comp}\) of the amorphous majority of the samples and \(T_{\rm C,\ Laves}\) of the small contribution of the Laves phases. The first quarters of the magnetization isotherms as a function of the magnetic field collected at exemplary temperatures for samples with Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers are presented in Figure 3.4 (a) and (b). Figure 3.4 (c) and (d) show Arrott plots in the form of \(M^2\) as a function of \(\mu_0H/M\). The samples do not exhibit negative curvature, indicating the second-order type phase transition [47]. For bulk TbCo\(_2\) and DyCo\(_2\) Laves phases, the first-order type phase transition is expected [22]–[25].

After collecting the experimental results of the magnetization isothermal measurements, the magnetic entropy change \(\Delta S_{\rm M}\) could be calculated according to the formula [48]: \[\begin{align} \Delta S_{\rm M} &\approx \frac{\mu_{0}}{\Delta T}\Big[\int_0^{H_{\max}} M(T+\Delta T, H)\mathrm{d}H \\ &- \int_0^{H_{\max}}M(T,H)\mathrm{d}H\Big], \end{align}\] where: \(\mu_0\) – the magnetic permeability of the vacuum, \(H_{\max}\) – the maximum magnetic field value to calculate the specific \(\Delta S_{\rm M}(T, H_{\max})\), \(\Delta T\) – the temperature difference between two closest magnetization isotherms, \(M(T, H)\) – magnetization for the specific magnetic field value and temperature \(T\), \(M(T + \Delta T, H)\) – magnetization for specific magnetic field value and temperature \(T + \Delta T\). To describe how the \(\Delta S_{\rm M}\) peak spans over a temperature range, the temperature-averaged entropy change \(TEC\) was calculated for lift temperatures of \(\Delta T_{\rm lift}=3\) K and 10 K. The value of this parameter is calculated using the following formula [49]: \[\begin{align} TEC(\Delta T_{\rm lift}) =\frac{1}{\Delta T_{\rm lift}} \max\displaylimits_{T_{\rm mid}} \left\{ \int\displaylimits_{T_{\rm mid}-\frac{\Delta T_{\rm lift}}{2}}^{T_{\rm mid}+\frac{\Delta T_{\rm lift}}{2}}\Delta S_{\rm M}(T)_{\mu_0H}\mathrm{d}T \right\}, {\label{eqTEC}} \end{align}\tag{1}\] where: \(\Delta T_{\rm lift}\) – the desired lift temperature, \(T_{\rm mid}\) – the temperature of the center of the TEC calculated to maximize the TEC value. Another magnetocaloric parameter, the relative cooling power \(RCP\), was not determined because, in the samples studied, the full width at half the maxima of the peaks could not be found in the measured temperature range.

In order to evaluate the \(\Delta S_{\rm M}\) values in mJ cm\(^{-3}\) K\(^{-1}\) units for the deposited \(R\)-Co layers, it was necessary to determine the volume of the layers. The volume of the deposited layers was assumed to be the area of the samples multiplied by the thickness of the layers. The \(\Delta S_{\rm M}\) results obtained for the deposited \(R\)-Co layers are shown in Figures 3.4 (e) and (f), while the values of all magnetocaloric parameters are gathered in Table 1. For both samples, two maxima connected to the amorphous \(T_{\rm comp}\) and to the \(T_{\rm C,\ Laves}\) of the Laves phases are observed. In the case of the Tb\(_{31}\)Co\(_{69}\) sample, the TbCo\(_2\) Laves phase-related peak is more pronounced and is at 204.5 K, shifted towards lower temperatures compared to the bulk crystallized TbCo\(_2\) sample. The amorphous \(T_{\rm comp}\)-related maximum is at 81.5 K. The maximum values for both maxima are very low, below 7 mJ cm\(^{-3}\) K\(^{-1}\) for the magnetic field change of \(\mu_0H= 5\) T, see Table 1. The width of the \(\Delta S_{\rm M}\) maxima described by \(TEC\) indicates that for both peaks, the \(\Delta S_{\rm M}\) values do not change significantly, even for \(TEC(10)\). For the Dy\(_{31}\)Co\(_{69}\) layer, the \(\Delta S_{\rm M}\) maximum related to the amorphous \(T_{\rm comp}\) is at a temperature 88.5 K, and another less pronounced maximum is probably related to the DyCo\(_2\) Laves phase at 117 K. The values of the obtained \(\Delta S_{\rm M}\) at \(T_{\rm comp}\) is 35 mJ cm\(^{-3}\) K\(^{-1}\), while at \(T_{\rm C,\ Laves}\) of the Laves phase is 28 mJ cm\(^{-3}\) K\(^{-1}\). \(TEC(3)\) and \(TEC(10)\) values for this sample also indicate small changes of \(\Delta S_{\rm M}\) over the specific temperature range.

It is important to note that both samples are in a ferrimagnetic state in the temperature range studied, since the \(T_{\rm C,\;amorph}\) of the amorphous \(R\)Co\(_2\) alloys is over 300 K [46], [50]. Therefore, the values of magnetocaloric parameters are relatively low. However, the contribution to \(\Delta S_{\rm M}\) of \(T_{\rm comp}\) is noticeable even in the ferrimagnetic state. While for the sample with Dy\(_{31}\)Co\(_{69}\) layer, \(\Delta S_{\rm M}\) has higher values at \(T_{\rm comp}\), for the sample with Tb\(_{31}\)Co\(_{69}\) layer, \(\Delta S_{\rm M}\) at \(T_{\rm C,\ Laves}\) of the crystallized Laves phase has higher values. Although the Laves phase contribution is observed, the content of this phase in the sample volume is low, resulting in a low contribution to the \(\Delta S_{\rm M}\) values.

Table 1: Maximum value of magnetic entropy change \(\Delta S_{\rm M}\)\(^{\max}\), temperature of maximum \(\Delta S_{\rm M}\)\(^{\max}\) value \(T_{max}\) and temperature averaged entropy change \(TEC(3)\) and \(TEC(10)\) for the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.The parameter values were obtained for the magnetic field change of \(\Delta \mu_0H=5\) T.For both samples the determined values refer to maxima related to the \(T_{\rm comp}\) of amorphous phase and to the \(T_{\rm C,\ Laves}\) of the crystallized Laves phase.
Parameters	Tb\(_{31}\)Co\(_{69}\), \(T_{\rm comp}\)	Tb\(_{31}\)Co\(_{69}\), \(T_{\rm C,\ Laves}\)	Dy\(_{31}\)Co\(_{69}\), \(T_{\rm comp}\)	Dy\(_{31}\)Co\(_{69}\), \(T_{\rm C,\ Laves}\)
\(\Delta S_{\rm M}\)\(^{\max}\) (mJ cm\(^{-3}\) K\(^{-1}\))	4.9	6.6	35	28
\(T_{max}\) (K)	81.5	204.5	88.5	117
\(TEC(3)\) (mJ cm\(^{-3}\) K\(^{-1}\))	4.8	6.4	34	27
\(TEC(10)\) (mJ cm\(^{-3}\) K\(^{-1}\))	4.7	6.2	33	26

4 Summary↩︎

Thin films of Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) were prepared and deposited on a naturally oxidized Si (100) substrate. The thickness of the layers was \(d = 50\) nm covered with an Au overlayer with a thickness of \(d_{\rm Au} = 5\) nm. Scanning electron microscopy and energy dispersive spectroscopy showed a homogeneous chemical distribution with atomic stoichiometry of Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\). The presence of crystallized Laves phases in the layers was verified by X-ray diffraction, which revealed low-intensity maxima associated with the (220) peak for both thin films. The widening of the Au (111) peaks indicated that the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers are mainly amorphous. Analysis of the magnetization results as a function of temperature for both samples revealed the compensation temperature of the amorphous phases and the Curie temperature of the corresponding Laves phase compounds. The magnetization as a function of the magnetic field indicated ferrimagnetism for both samples at all measured temperatures.

The magnetocaloric effect was investigated in a wide temperature range. The obtained results of the magnetic entropy change \(\Delta S_{\rm M}\) revealed maxima connected with the compensation temperature \(T_{\rm comp}\) of the amorphous phase and with phase transitions connected with the presence of crystallized Laves phases. These contributions to \(\Delta S_{\rm M}\) are visible in the ferrimagnetic state of the Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) layers.

Acknowledgments↩︎

PS acknowledges the financial support of the National Science Centre Poland under the decision 2021/05/X/ST5/ 00763. The authors would like to thank Piotr Kuświk from the Department of Thin Films and Nanostructures IMP PAS for the discussion and helpful comments.

References↩︎

[1]

D. Li, K. Lee, B. Y. Wang, M. Osada, S. Crossley, H. R. Lee, Y. Cui, Y. Hikita, H. Y. Hwang, Superconductivity in an infinite-layer nickelate, Nature 572 (2019) 624–627.

[2]

M. Smidman, O. Stockert, E. M. Nica, Y. Liu, H. Yuan, Q. Si, F. Steglich, Colloquium: Unconventional fully gapped superconductivity in the heavy-fermion metal CeCu\(_2\)Si\(_2\), Rev. Mod. Phys. 95 (2023) 031002.

[3]

X. Xu, J.-X. Yin, Z. Qu, S. Jia, Quantum interactions in topological r166 kagome magnet, Rep. Prog. Phys. 86 (2023) 114502.

[4]

L. Caretta, M. Mann, F. Büttner, K. Ueda, B. Pfau, C. M. Günther, P. Hessing, A. Churikova, C. Klose, M. Schneider, et al., Fast current-driven domain walls and small skyrmions in a compensated ferrimagnet, Nat. Nanotechnol. 13 (2018) 1154–1160.

[5]

Ł. Frąckowiak, P. Kuświk, G. D. Chaves-O’Flynn, M. Urbaniak, M. Matczak, P. P. Michałowski, A. Maziewski, M. Reginka, A. Ehresmann, F. Stobiecki, Magnetic domains without domain walls: A unique effect of he+ ion bombardment in ferrimagnetic Tb/Co films, Phys. Rev. Lett. 124 (2020) 047203.

[6]

L. Avilés-Félix, A. Olivier, G. Li, C. S. Davies, L. Álvaro-Gómez, M. Rubio-Roy, S. Auffret, A. Kirilyuk, A. Kimel, T. Rasing, et al., Single-shot all-optical switching of magnetization in Tb/Co multilayer-based electrodes, Sci. Rep. 10 (2020) 5211.

[7]

Y. Guo, Y. Wu, Y. Cao, X. Zeng, B. Wang, D. Yang, X. Fan, J. Cao, The deterministic field-free magnetization switching of perpendicular ferrimagnetic Tb-Co alloy film induced by interfacial spin current, Appl. Phys. Lett. 119.

[8]

A. Ünal, S. Valencia, F. Radu, D. Marchenko, K. Merazzo, M. Vázquez, J. Sánchez-Barriga, Ferrimagnetic DyCo\(_5\) nanostructures for bits in heat-assisted magnetic recording, Phys. Rev. Appl. 5 (2016) 064007.

[9]

K. Chen, D. Lott, A. Philippi-Kobs, M. Weigand, C. Luo, F. Radu, Observation of compact ferrimagnetic skyrmions in DyCo\(_3\) film, Nanoscale 12 (2020) 18137–18143.

[10]

C. Luo, K. Chen, V. Ukleev, S. Wintz, M. Weigand, R.-M. Abrudan, K. Prokeš, F. Radu, Direct observation of Néel-type skyrmions and domain walls in a ferrimagnetic DyCo\(_3\) thin film, Commun. Phys. 6 (2023) 218.

[11]

H. F. Kirby, D. D. Belyea, J. T. Willman, C. W. Miller, Effects of preparation conditions on the magnetocaloric properties of Gd thin films, J. Vac. Sci. Technol. A 31.

[12]

C. W. Miller, D. D. Belyea, B. J. Kirby, Magnetocaloric effect in nanoscale thin films and heterostructures, J. Vac. Sci. Technol. A 32.

[13]

R. L. Hadimani, J. H. Silva, A. M. Pereira, D. L. Schlagel, T. A. Lograsso, Y. Ren, X. Zhang, D. C. Jiles, J. P. Araújo, Gd\(_5\)(Si, Ge)\(_4\) thin film displaying large magnetocaloric and strain effects due to magnetostructural transition, Appl. Phys. Lett. 106.

[14]

D. Matte, M. De Lafontaine, A. Ouellet, M. Balli, P. Fournier, Tailoring the magnetocaloric effect in La\(_2\)NiMnO\(_6\) thin films, Phys. Rev. Appl. 9 (2018) 054042.

[15]

H. Bouhani, A. Endichi, D. Kumar, O. Copie, H. Zaari, A. David, A. Fouchet, W. Prellier, O. Mounkachi, M. Balli, et al., Engineering the magnetocaloric properties of PrVO\(_3\) epitaxial oxide thin films by strain effects, Appl. Phys. Lett. 117.

[16]

G. J. Kumar, Z. Guo, L. Gu, J. Feng, K. Kamala Bharathi, K. Wang, Broad table-like magnetocaloric effect in GdFeCo thin-films for room temperature Ericsson-cycle magnetic refrigeration, J. Appl. Phys. 135.

[17]

N. Duc, D. K. Anh, P. Brommer, Metamagnetism, giant magnetoresistance and magnetocaloric effects in \(R\)Co\(_2\)-based compounds in the vicinity of the Curie temperature, Physica B 319 (2002) 1–8.

[18]

N. K. Singh, K. Suresh, A. Nigam, S. Malik, A. Coelho, S. Gama, Itinerant electron metamagnetism and magnetocaloric effect in \(R\)Co\(_2\)-based Laves phase compounds, J. Magn. Magn. Mater. 317 (2007) 68–79.

[19]

C. M. Bonilla, J. Herrero-Albillos, F. Bartolomé, L. M. Garcı́a, M. Parra-Borderı́as, V. Franco, Universal behavior for magnetic entropy change in magnetocaloric materials: An analysis on the nature of phase transitions, Phys. Rev. B 81 (2010) 224424.

[20]

M. Balli, D. Fruchart, D. Gignoux, Magnetic behaviour and experimental study of the magnetocaloric effect in the pseudobinary Laves phase Er\(_{1-x}\)Dy\(_x\)Co\(_2\), J. Alloy. Compd. 509 (2011) 3907–3912.

[21]

S. Khmelevskyi, P. Mohn, The order of the magnetic phase transitions in \(R\)Co\(_2\) (\(R=\) rare earth) intermetallic compounds, J. Phys.: Condens. Mat. 12 (2000) 9453.

[22]

D. Huang, J. Gao, S. H. Lapidus, D. E. Brown, Y. Ren, Exotic hysteresis of ferrimagnetic transition in Laves compound TbCo\(_2\), Mater. Res. Lett. 8 (2020) 97–102.

[23]

B. Ahuja, H. Mund, J. Sahariya, A. Dashora, M. Halder, S. Yusuf, M. Itou, Y. Sakurai, Temperature dependent spin and orbital magnetization in TbCo\(_2\): Magnetic Compton scattering and first-principles investigations, J. Alloy. Compd. 633 (2015) 430–434.

[24]

C. Zhou, T. Chang, Z. Dai, Y. Chen, C. Guo, Y. Matsushita, X. Ke, A. Murtaza, Y. Zhang, F. Tian, et al., Unified understanding of the first-order nature of the transition in TbCo\(_2\), Phys. Rev. B 106 (2022) 064409.

[25]

K. Morrison, A. Dupas, Y. Mudryk, V. Pecharsky, K. Gschneidner, A. Caplin, L. Cohen, Identifying the critical point of the weakly first-order itinerant magnet DyCo\(_2\) with complementary magnetization and calorimetric measurements, Phys. Rev. B 87 (2013) 134421.

[26]

Z. Jun-Ding, S. Bao-Gen, S. Ji-Rong, Magnetic properties and magnetocaloric effect in TbCo\(_{2-x}\)Fe\(_x\) compounds, Chinese Phys. 16 (2007) 3843.

[27]

M. Halder, S. Yusuf, M. Mukadam, K. Shashikala, Magnetocaloric effect and critical behavior near the paramagnetic to ferrimagnetic phase transition temperature in TbCo\(_{2-x}\)Fe\(_x\), Phys. Rev. B 81 (2010) 174402.

[28]

M. Halder, S. Yusuf, Second Order Magnetic Phase Transition in TbCo\(_{2-x}\)Fe\(_x\), in: AIP Conf. Proc., Vol. 1347, American Institute of Physics, 2011, pp. 67–70.

[29]

J. Ćwik, T. Palewski, K. Nenkov, O. Gutfleisch, J. Klamut, The influence of Er substitution on magnetic and magnetocaloric properties of Dy\(_{1-x}\)Er\(_x\)Co\(_2\) solid solutions, Intermetallics 19 (2011) 1656–1660.

[30]

J. Ćwik, Experimental study of the magnetocaloric effect in Dy\(_{1-x}\)Er\(_x\)Co\(_2\) solid solutions doped with Gd, J. Alloy. Compd. 580 (2013) 341–347.

[31]

E. Gratz, R. Hauser, A. Lindbaum, M. Maikis, R. Resel, G. Schaudy, R. Levitin, A. Markosyan, I. Dubenko, A. Y. Sokolov, et al., Gd substitutions in the TmCo\(_2\) Laves phase: the onset of long-range magnetic order in the itinerant subsystem, J. Phys.: Condensed Mat. 7 (1995) 597.

[32]

W. Ao, J. Li, F. Liu, Y. Jian, Magnetocaloric properties of DyCo\(_{2-x}\)Ga\(_x\) alloys, Solid State Commun. 141 (2007) 219–222.

[33]

K. Zhou, Y. Zhuang, J. Li, J. Deng, Q. Zhu, Magnetocaloric effects in (Gd\(_{1-x}\)Tb\(_x\))Co\(_2\), Solid State Commun. 137 (2006) 275–277.

[34]

L. Burrola-Gándara, M. Grijalva-Castillo, C. Santillán-Rodrı́guez, J. Matutes-Aquino, Magnetocaloric effect in SmCo\(_{2-x}\)Fe\(_x\) alloys, J. Appl. Phys. 111.

[35]

J. Ćwik, K. Nenkov, I. Tereshina, T. Palewski, The influence of Er substitution on magnetic and magnetocaloric properties of Ho\(_{1-x}\)Er\(_x\)Co\(_2\) solid solution, Mater. Chem. Phys. 136 (2012) 492–497.

[36]

W. Zheng, Y. Cui, F. Chen, Y. Shi, D. Shi, Magnetocaloric effect in Nd(Co\(_{0.8}\)Fe\(_{0.2}\))\(_2\) Laves compound with wide operating temperature, J. Magn. Magn. Mater. 460 (2018) 137–140.

[37]

C. L. Wang, J. Liu, Y. Mudryk, Y. Zhu, B. Fu, Y. Long, V. Pecharsky, Magnetic and magnetocaloric properties of DyCo\(_2\)C\(_x\) alloys, J. Alloy. Compd. 777 (2019) 152–156.

[38]

A. Murtaza, W. Zuo, M. Yaseen, A. Ghani, A. Saeed, C. Hao, J. Mi, Y. Li, T. Chang, L. Wang, et al., Magnetocaloric effect in the vicinity of the magnetic phase transition in NdCo\(_{2-x}\)Fe\(_x\) compounds, Phys. Rev. B 101 (2020) 214427.

[39]

F. Robaut, S. Jaren, N. Cherief-Benbrahim, C. Meyer, Epitaxial growth of cubic Laves phase intermetallic compounds (YCo\(_2\), TbCo\(_2\)) and new epitaxial relationship between fcc (111) and bcc (110), Appl. Phys. Lett. 69 (1996) 1643–1645.

[40]

S. Jaren, E. D. T. De Lacheisserie, D. Givord, C. Meyer, Pulsed laser deposition epitaxial growth and magnetic properties of TbCo\(_2\) and TbFe\(_2\) ultra-thin films, J. Magn. Magn. Mater. 165 (1997) 172–175.

[41]

A. Grenier, R. Lardé, E. Cadel, J. Le Breton, J. Juraszek, F. Vurpillot, N. Tiercelin, P. Pernod, J. Teillet, Structural investigation of TbCo\(_2\)/Fe magnetostrictive thin films by tomographic atom probe and Mössbauer spectrometry, J. Magn. Magn. Mater. 310 (2007) 2215–2216.

[42]

S. Ovcharenko, M. Gaponov, A. Klimov, N. Tiercelin, P. Pernod, E. Mishina, A. Sigov, V. Preobrazhensky, Ultrafast manipulation of magnetic anisotropy in a uniaxial intermetallic heterostructure TbCo\(_2\)/FeCo, J. Phys. D Appl. Phys. 55 (2022) 175001.

[43]

S. Ma, W. Cui, D. Li, N. Sun, D. Geng, X. Jiang, Z. Zhang, Large cryogenic magnetocaloric effect of DyCo\(_2\) nanoparticles without encapsulation, Appl. Phys. Lett. 92.

[44]

N. Mushnikov, V. Gaviko, T. Goto, Magnetic properties of hydrogen-amorphized \(R\)Co\(_2\)H\(_x\) (\(R=\) Gd, Tb, Dy, Ho, Er, Tm and Y) alloys, J. Alloy. Compd. 398 (2005) 36–41.

[45]

T. Chang, C. Zhou, J. Mi, K. Chen, F. Tian, Y.-S. Chen, S. G. Wang, Y. Ren, D. E. Brown, X. Song, et al., Crystal structures and phase relationships in magnetostrictive Tb\(_{1-x}\)Dy\(_x\)Co\(_2\) system, J. Phys.: Condens. Mat. 32 (2019) 135802.

[46]

M. Soltani, N. Chakri, M. Lahoubi, Composition and annealing dependence of magnetic properties in amorphous Tb–Co based alloys, J. Alloy. Compd. 323 (2001) 422–426.

[47]

A. Arrott, Criterion for ferromagnetism from observations of magnetic isotherms, Phys. Rev. 108 (1957) 1394.

[48]

K. A. Gschneidner, V. Pecharsky, A. Tsokol, Recent developments in magnetocaloric materials, Rep. Prog. Phys. 68 (2005) 1479.

[49]

L. Griffith, Y. Mudryk, J. Slaughter, V. Pecharsky, Material-based figure of merit for caloric materials, J. Appl. Phys. 123 (2018) 034902.

[50]

M. Takahashi, T. Shimamori, T. Miyazaki, T. Wakiyama, A. Yoshihara, Perpendicular magnetic anisotropy and magnetostriction of evaporated Co-(Pr, Nd, Gd, Dy, Er) amorphous binary alloy films, IEEE Transl. J. Magn. Jpn. 4 (1989) 666–672.

Magnetocaloric effect in Tb\(_{31}\)Co\(_{69}\) and Dy\(_{31}\)Co\(_{69}\) thin films deposited on Si substrates
