1 Introduction↩︎

Black holes are considered as the most mysterious object of celestial bodies obtained from general relativity. It is believed that supermassive black holes founded at the center of galaxies have played the important role in galaxy formation and galaxy evolution. The images of the M87\(^*\) black hole (BH) [1]–[3] have inspired enormous studies on the BH. Recently, the EHT observation has focussed on the center of our galaxy and delivered promising images of the SgrA\(^*\) BH [4]–[6].

No-hair theorem states that the BH is completely described by the mass, charge, and rotation parameter [7], but the scalar hair would be an emergent hair [8]. The shadow of BH with scalar hair was used to test the EHT results [9], whereas the shadows of other BHs, wormholes, and naked singularities obtained from various modified gravity theories have been employed to constrain their hair parameters [10].

Other BH solutions with magnetic/elelctric charges, differing from Reissner-Nordström black hole (RNBH) were found from the Einstein-Euler-Heisenberg-nonlinear electrodynamics (NED) theory [11]–[14]. Recently, these BHs were studied for thermodynamics [15]–[17], weak deflection angle [18], optical appearance [19], and thermodynamic and shadow radius analysis [20]. Also, the dyonic BH solution was obtained from Einstein-Maxwell theory with a quasi-topological term [21], [22] and its scalarized black holes were extensively investigated in [23].

In this work, we wish to obtain a newly charged black hole with magnetic charge \(q\) and coupling constant \(\mu\) from the Einstein-NED theory inspired by quasi-topological terms. We will perform shadow radius and geometric scattering analysis of this black hole. Our analysis depends critically on the coupling constant \(\mu\). For \(\mu=0.01<0.021\), we have four solution branches of the horizon including \(2\pm\), 3, and 4-branches. There is the naked singularity (NS) arisen from the charge extension of the photon spheres for the 3, 4-branches. It is interesting to note that for \(\mu=0.1>0.021\), there is no limitation on the magnetic charge \(q\) for its horizon, photon sphere, and shadow radius. Therefore, there is no NS arisen from the charge extension of the photon sphere for \(\mu=0.1\). The shadow radii for the 2-branch with \(\mu\)=0.01 and 0.1 are the same as that for the RNBH, while the \(q>1\) 3-branch is constrained by the recent EHT observation. We would like to mention that the analysis of shadow radius was discussed by including the magnetically charged BH [10], [14]. Finally, we perform the geometric scattering analysis to understand the peculiar forms of the critical impact factors \(b_3(m=1,q,\mu=0.01)\) and \(b_{2+}(1,q+,0.01)\).

2 A newly charged BH solution↩︎

The quasi-topological term has no effect on the purely electric or magnetic RNBH solution, but the dyonic solution is completely modified. As was shown in [21], a few of low lying quasi-topological terms are given by \[\begin{align} &&U^{(1)}=-\mathcal{F}, \tag{1} \\ &&U^{(2)}=-2F^{(4)}+\mathcal{F}^2, \tag{2} \\ &&U^{(3)}=-8F^{(6)}-6\mathcal{F}F^{(4)}+\mathcal{F}^3 \tag{3} \end{align}\] with \[\mathcal{F}=F^{\mu\nu}F_{\mu\nu}\quad F^{(4)}=F^\mu_\nu F^\nu_\rho F^\rho_\sigma F^\sigma_\mu,\quad F^{(6)}=F^\mu_\nu F^\nu_\rho F^\rho_\sigma F^\sigma_\kappa F^\kappa_\eta F^\eta_\mu.\] For a dyonic solution, \(U^{(2)}\) is non-vanishing but it vanishes for each electrically (magnetically) charged RNBH solution. In this study, we would like to choose a single term \(\mathcal{F}^3\) of \(U^{(3)}\) to find a new magnetically charged BH solution. The other choice of \(F^{(6)}\) or \(\mathcal{F}F^{(4)}\) will provide the same result with a different coefficient in front of \(q^6/r^{10}\). If one chooses \(\mathcal{F}^2\) in \(U^{(2)}\), it gave us a magnetically charged BH solution (9 ) [11].

We introduce the Einstein-NED (ENED) theory inspired by quasi-topological terms \[{\cal L}_{\rm ENED}=\frac{1}{16\pi}\Big[R-(\mathcal{F}-\mu\mathcal{F}^3)\Big],\label{EEH-a}\tag{4}\] with a coupling constant \(\mu\). Two equations are derived from the above action as \[\begin{align} &&G_{\mu\nu}=2\Big(F_{\mu\rho}F_\nu~^\rho-\frac{\mathcal{F}}{4}g_{\mu\nu}-3\mu\mathcal{F}^2F_{\mu\rho}F_\nu~^\rho+\frac{\mu \mathcal{F}^3}{4}g_{\mu\nu}\Big), \tag{5} \\ &&\nabla_\mu(F^{\mu\nu}-3\mu \mathcal{F}^2F^{\mu\nu})=0.\tag{6} \end{align}\]

To find a newly magnetically charged black hole (NMBH) solution, we consider a spherically symmetric spacetime with the gauge potential \(A_{\varphi}=-q \cos \theta\) as \[\label{metric-ansatz} ds^2_{\rm NMBH}=-f(r)dt^2+\frac{dr^2}{f(r)}+r^2(d\theta^2+\sin^2\theta d\phi^2),\quad \mathcal{F}=\frac{2q^2}{r^4}.\tag{7}\] Introducing a mass function \(M(r)\), the Einstein equation (5 ) reduces to \[M'(r)=\frac{q^2}{2r^2}-2\mu \frac{q^6}{r^{10}}\] which is easily integrated to give a newly metric function \[\label{m-func} f(r)\equiv 1-\frac{2M(r)}{r}=1-\frac{2m}{r}+\frac{q^2}{r^2}-\frac{4\mu}{9} \frac{q^6}{r^{10}}.\tag{8}\] One recovers the RNBH solution in the limit of \(\mu\to 0\). If one includes \(\mathcal{F}^2\), instead of \(\mathcal{F}^3\), its metric function takes the known form [11] \[\label{g-func} g(r)=1-\frac{2m}{r}+\frac{q^2}{r^2}-\frac{2\mu}{5} \frac{q^4}{r^{6}}.\tag{9}\]

Requiring \(f(r)=0\), ten roots are expressed in terms of Mathematica’s notation as \[r_i(m,q,\mu)={\rm Root}(-4\mu q^6+9q^2 \sharp 1^8-18m \sharp 1^9+9 \sharp 1^{10}\&,i),\quad i=1,2,\cdots,10.\] For \(\mu=0.01\) and \(m=1\), one finds that there are four branches (positive roots) of the horizon \[r_{2-}(1,q-,0.01),\quad r_{3}(1,q,0.01),\quad r_{4}(1,q,0.01),\quad r_{2+}(1,q+,0.01)\] and for \(\mu=0\), two of \(r_6(1,q,0)\) and \(r_9(1,q,0)\) describe the outer/inner horizons of the RNBH. Here, \(q-(q+)\) represent \(q\in[0,0.989](q\in[0.989,\) ]). Remaining five roots are not positive functions. We note that for \(\mu=0.1\), there exists the single branch of \(r_2(1,q,0.1)\). It is important to clarify the \(\mu\) and \(q\)-regions for the existence of \(r_3(1,q,\mu)\) and \(r_4(1,q,\mu)\). We compute them numerically because there is no analytic result. In Table 1, we display the coupling parameter \(\mu\)-region for the existence of \(r_3(1,q,\mu)\) and \(r_4(1,q,\mu)\), depending on the magnetic charge \(q\). For \(q=0.6\), its allowed \(\mu\)-range is very tiny like as \((0,1.73\times 10^{-6}]\). As \(q\) increases from \(q=0.6\), the \(\mu\)-range increases. As \(q\) increases from \(q=1\), the \(\mu\)-range becomes smaller and smaller. Its \(q\)-upper limit is \(q=1.0062\) and the corresponding \(\mu\)-region is very small like as [0.02093,0.02094] which is less than 0.021 for a given \(m=1\). This is why we choose \(\mu=0.01\) for realizing four solution branches of the horizon. It is worth noting that \(\mu\) does not exist beyond \(q=1.0062\). For \(q\in[0.989,1.00245]\), \(\mu=0.01\) is the upper and lower bounds, guaranteeing the existence of \(r_3(1,q,0.01)\) and \(r_4(1,q,0.01)\) as is shown in Fig. 1.

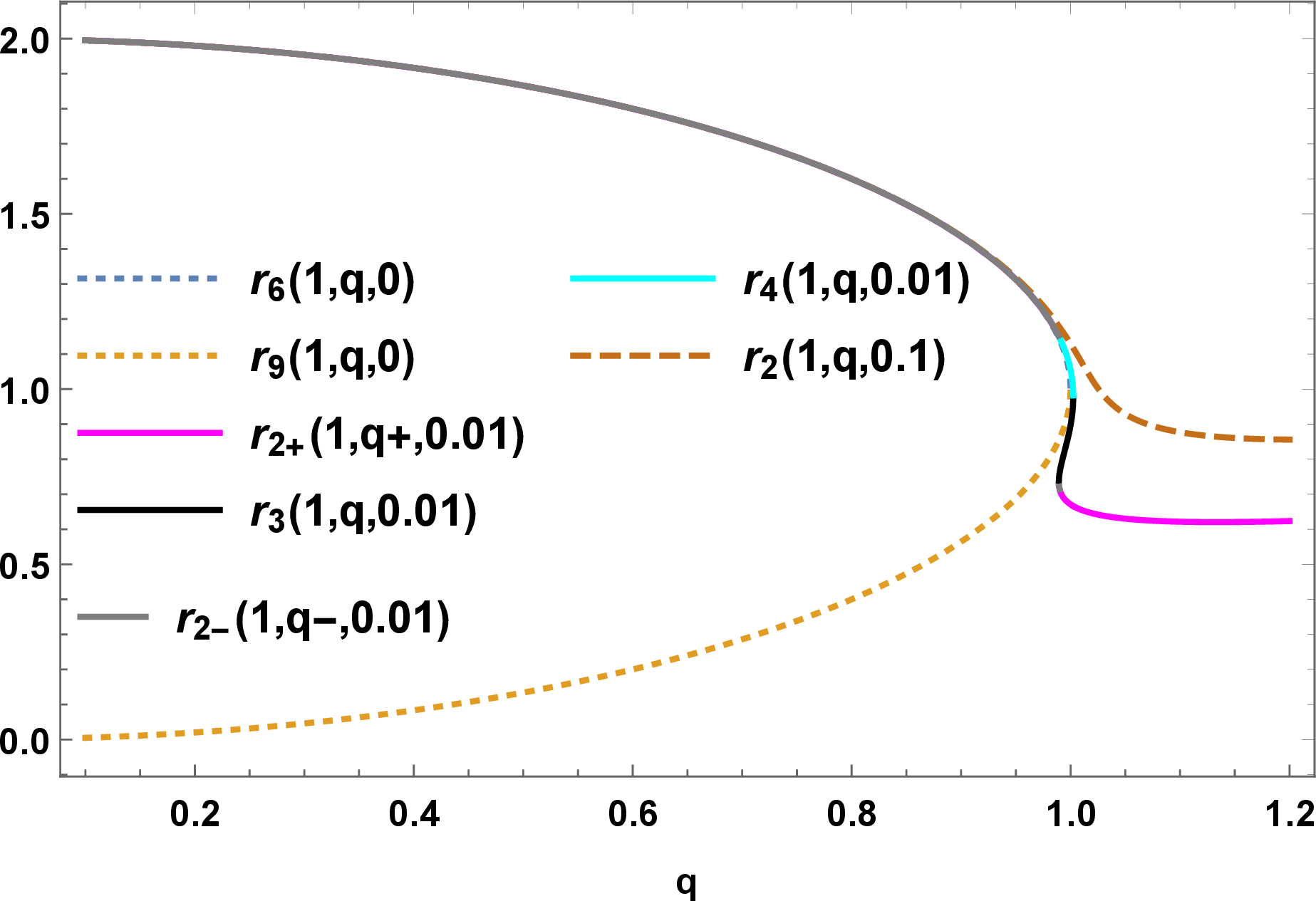

From Fig. 1, one finds that \(r_{2}(1,q,0.1)\) has a single horizons without limitation of \(q\). An important point is that there is no theoretical constraint on restricting the magnetic charge \(q\) in the ENED theory.

3 Photon spheres and shadow radii↩︎

The BH images indicated that there is a dark central region surrounded by a bright ring, which are called shadow and photon ring (light ring) of the BH, respectively. Strong deflection lensing can generate a shadow and relativistic images caused by photons winding several loops around a BH [24], [25]. The photon sphere of a BH plays an important role in the strong deflection. We introduce the Lagrangian of the photon to find the photon spheres around the NMBH \[{\cal L}_{\rm LR}=\frac{1}{2}g_{\mu\nu}\dot{x}^\mu\dot{x}^\nu=\frac{1}{2}\Big[-f(r)\dot{t}^2+\frac{\dot{r}^2}{f(r)}+r^2(\dot{\theta}^2+\sin^2\theta \dot{\phi}^2)\Big].\] Taking the light traveling on the equational plane of the NMBH (\(\theta=\pi/2\) and \(\dot{\theta}=0\)) described by a spherically symmetric and static metric Eq.(7 ), two conserved quantities of photon (energy and angular momentum) are given by \[E=-\frac{\partial {\cal L}_{LR}}{\partial \dot{t}}=f(r)\dot{t},\quad \tilde{\ell}=\frac{\partial {\cal L}_{LR}}{\partial \dot{\phi}}=r^2\dot{\phi}.\] Choosing the null geodesic for the photon (\(ds^2=0\)) with the affine parameter \(\tilde{\lambda}=\lambda \tilde{\ell}\) and impact parameter \(\tilde{b}=\tilde{\ell}/E\), its radial equation of motion is given by \[\frac{dr}{d\tilde{\lambda}}=\sqrt{\frac{1}{\tilde{b}^2}-\frac{f(r)}{r^2}}.\] Here, the effective potential for a photon takes the form \[V(r)=\frac{f(r)}{r^2}.\] Requiring the photon sphere (\(\dot{r}=0,~\ddot{r}=0\)), one finds two conditions \[\label{cond-LR} V(r=L)=\frac{1}{2b^2}, \quad V'(r=L)=0,\tag{10}\] where \(b\) is the critical impact parameter and \(L\) represents the radius of unstable photon sphere.

Eq.(10 ) implies two relations \[L_i^2=f(L_i)b_i^2,\quad 2f(L_i)-L_if'(L_i)=0.\] Here, four photon sphere radii and their critical impact parameters (\(i=2-,3,4,2+\)) are given by \[\begin{align} &&L_{i}(m,q,\mu), \tag{11} \\ &&b_{i}(m,q,\mu),\tag{12} \end{align}\] whose explicit forms are too complicated to write down here.

(Left) Fig. 2 shows the photon sphere radii and (Right) Fig. 2 represents shadow radii. We note that \(L_{3}(1,q,0.01)\) and \(L_{4}(1,q,0.01)\) are present as connectors appearing between \(L_{2-}(1,q-,0.01)\) and \(L_{2+}(1,q+,0.01)\), while \(L_{2}(1,q,0.1)\) is the single function of \(q\). \(L_3(1,q,0.01)\) and \(L_4(1,q,0.01)\) are extended to enter their NS branches (3-NS, 4-NS) into this column with \(q\in[1.00245,1.006]\). Importantly, the dotted lines in (Right) Fig. 2 indicate the blow-up points for \(b_{2+}(1,q+,0.01)\) and \(b_3(1,q,0.01)\) and a shaded column (\(q\in[1.00245,1.06]\)) includes their 3, 4-NS branches. However, \(L_6(1,q,0)\) and \(b_6(1,q,0)\) are not realized into the figure, unlike \(L_{RN}(1,q\in[0,1])\) and \(b_{RN}(1,q\in[0,1])\) for the RNBH defined as \[L_{RN}(m,q)=\frac{3m}{2}\Big[1+\sqrt{1-\frac{8q^2}{9m^2}}\Big],\quad b_{RN}(m,q)=\frac{3m(1+\sqrt{1-8q^2/9m^2})}{\sqrt{2+\frac{3m^2(1+\sqrt{1-8q^2/9m^2})}{2q^2}}}.\]

4 Test with EHT results↩︎

Consulting the EHT observation (Keck- and VLTI-based estimates for SgrA\(*\) [4]–[6]), the \(1\sigma\) constraint on the shadow radius \(r_{\rm sh}=b_i\) indicates  [10] \[4.55\lesssim r_{\rm sh} \lesssim 5.22 \label{KV1}\tag{13}\] and the \(2\sigma\) constraint shows \[4.21 \lesssim r_{\rm sh} \lesssim 5.56. \label{KV2}\tag{14}\] Let us see (Left) Fig. 3 for an explicit picture to test with the EHT observation. For the \(2-\)-branch and 2-branch with \(\mu=0.1\), one has two constraints of the upper limits on its magnetic charge \(q\): \(q\lesssim 0.798 (1\sigma)\) and 0.939 \((2\sigma)\), which is the same as \(q\lesssim 0.798 (1\sigma)\) and \(0.939(2\sigma)\) for the RNBH with magnetic (electric) charge \(q\in[0,1]\). From (Right) Fig. 3, one observes that two narrow ranges of \(1.022\lesssim q \lesssim 1.03 (1\sigma)\) and \(1.02\lesssim q \lesssim 1.038 (2\sigma)\) exist for the 3-NS branch. We find that two very narrow ranges of \(0.996\lesssim q \lesssim 0.998 (1\sigma)\) and \(0.995\lesssim q \lesssim 0.999(2\sigma)\) exist for the 2+-branch. We note that the 4-NS branch is ruled out by the \(2\sigma\). Also, it is worth noting that there is no \(q>1\) range which constrains its magnetic charge for \(\mu=0.1\) because its critical impact parameter \(b_2(1,q,0.1)\) is a monotonically decreasing functions of \(q\).

5 Geometric scattering analysis↩︎

Previously, it is known that the critical impact parameters \(b_3(1,q,0.01)\) and \(b_{2+}(1,q+,0.01)\) take peculiar forms, compared with other smooth functions including a continuously decreasing function of \(b_{2}(1,q,0.1)\). These came from the 3-NS and 2+-branches. To understand them, we need to introduce the scattering picture. Scattering of a scalar field off a BH is an interesting topic to understand the BH [26]. Scattering and absorption of scalar fields by various BHs have been studied for Schwarzschild BH [27], RNBH [28], Kerr BH [29], regular BH [30], and Einstein-Euler-Heisenberg BH [31]. In the classical (high-frequency) approach, absorption (geometric) cross section of a scalar field is replaced by the critical impact parameter as \[\sigma_{ci}(m,q,\mu)=\pi b^2_i(m,q,\mu),\quad {\rm for}~i=2-,3,4,2+.\] This means that we may infer their property by considering the geodesic scattering. An improvement of the high-frequency cross section was proposed with an inclusion of the oscillatory part in the eikonal limit [32]. There was a recently geometric scattering study focused on the magnetically charged BH [33].

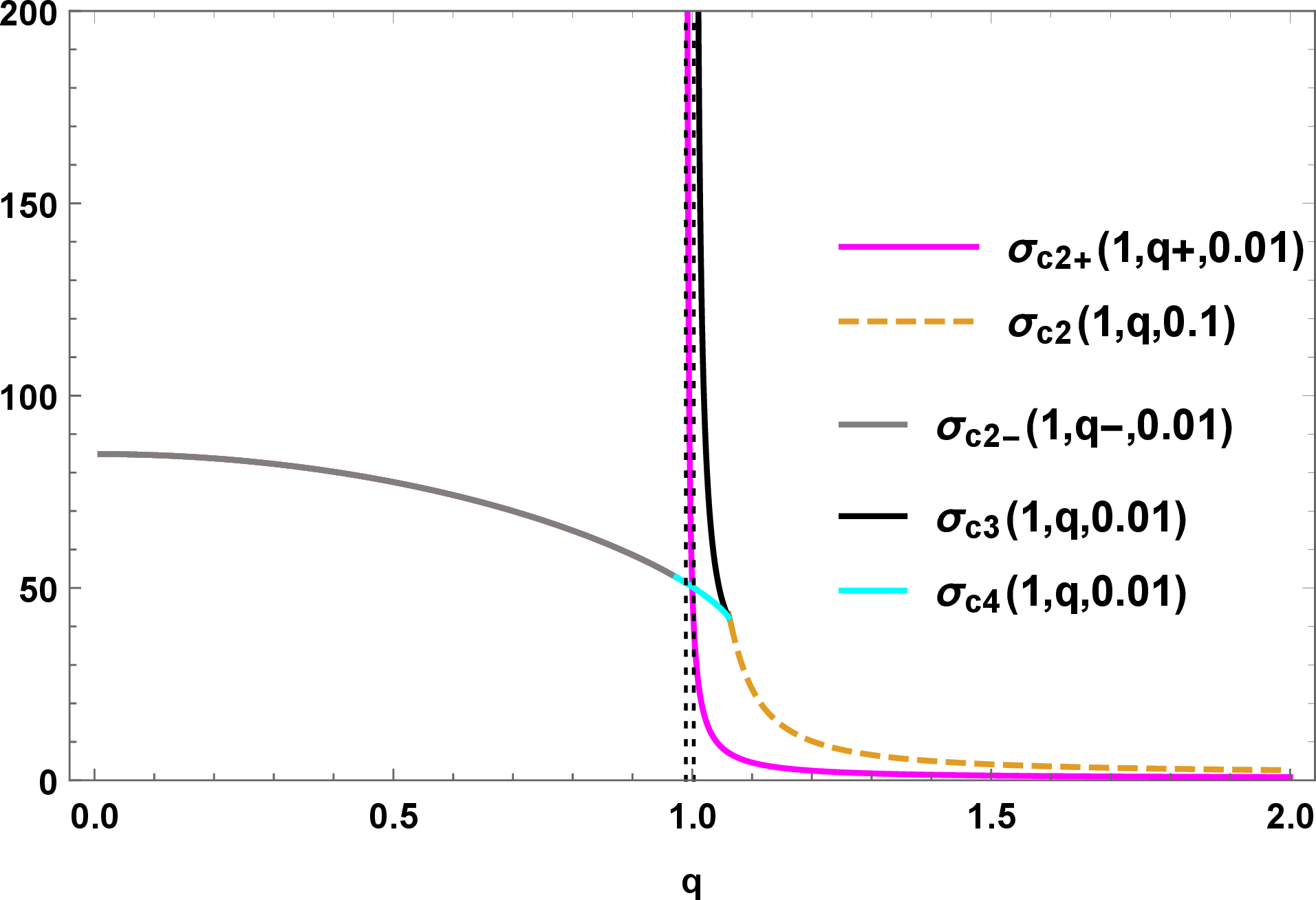

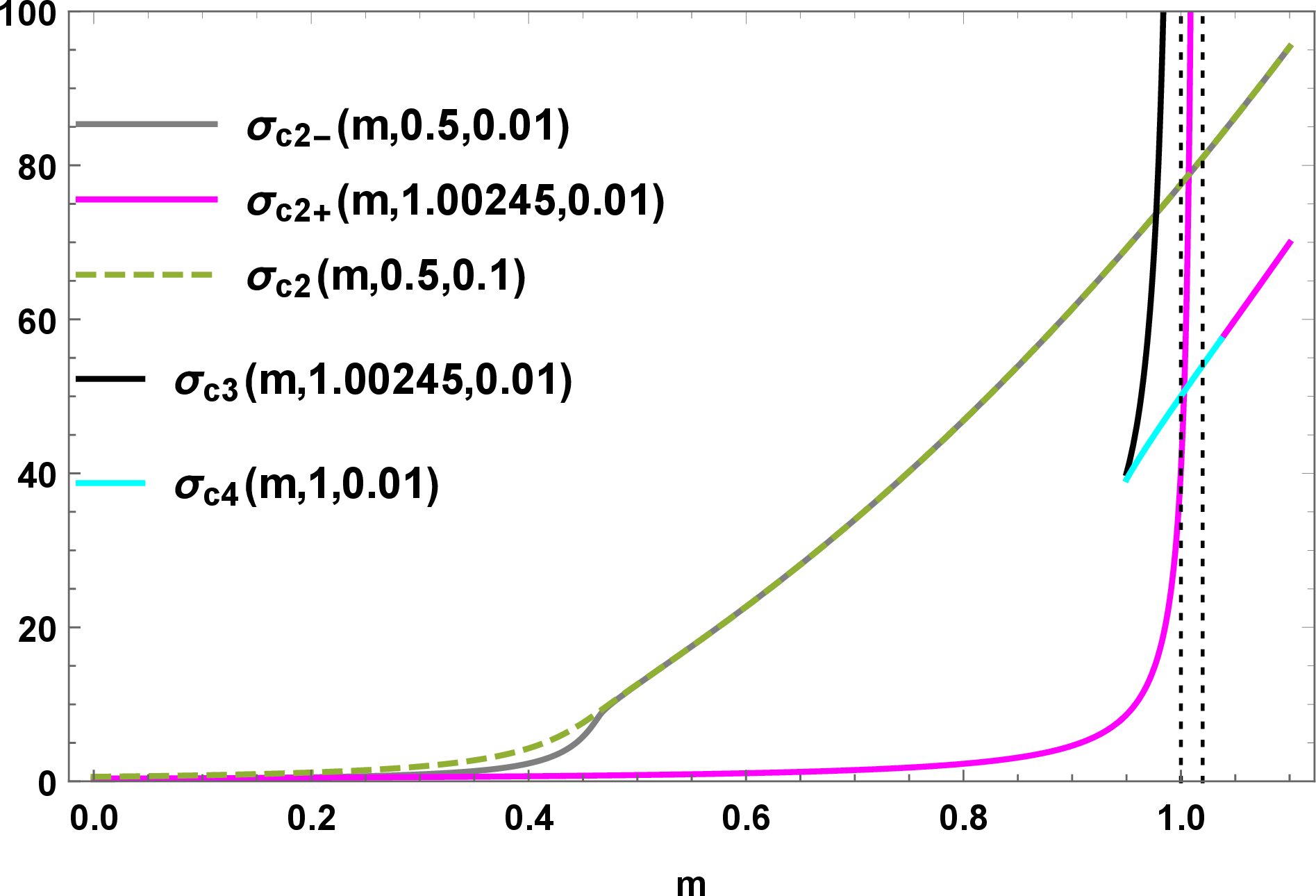

As was shown in Fig. 4, one finds that \(\sigma_{c2-}(m=1,q-,0.01) \simeq \sigma_{c2}(1,q,0.1)\), implying decreasing functions of \(q\) [30], while \(\sigma_{c2-}(m,q=0.5,0.01) \simeq \sigma_{c2}(m,0.5,0.1)\), indicating increasing functions of \(m\in [0,1.1]\). \(\sigma_{c4}(1,q,0.01)\) is a decreasing function in \(q\in[0.974,1.06]\) whereas \(\sigma_{c4}(m,1,0.01)\) is an increasing function in \(m\in[0.943,1.032]\). This indicates a promising behavior of geometric cross sections for the BH with singularity.

However, one finds that \(\sigma_{c2+}(1,q+,0.01)\) and \(\sigma_{c3}(1,q,0.01)\) blow up at \(q=0.989,1.00245\), and \(\sigma_{c3}(m,q=1.00245,0.01)\) and \(\sigma_{c2+}(m,q=1.00245,0.01)\) are divergent at \(m=1.0, 1.012\). This may show an interesting hint of scattering behavior when waves (lights) are scattered off the 3-NS and 2+-branches. In the case of \(b>b_i\) for \(i=2-,4\), the particles scatter off the center and the gravitational captures do not happen. For two cases of \(q=1.00245\) and \(m=1.012\), however, all particles pass into the 3-NS and 2+ and thus, they all are captured by 3-NS and 2+. To understand their properties deeply, one needs to compute absorption and scattering of waves with different spins off the 3-NS and 2+.

Finally, we wish to mention two limiting cases of \(q\). They include \(\sigma_{c2+}(1,q\to\infty,0.01)=0.54\) and \(\sigma_{c2}(1,q\to\infty,0.1)=1.72\), which means that most particles are scattered off the center (point) and the gravitational captures never happen. The other limit is given by \(\sigma_{c2-}(1,q\to0,0.01)=\sigma_{c2}(1,q\to0,0.1)=84.823\), leading to the geometric cross section for the Schwarzschild BH.

6 Discussions↩︎

The shadow radii of various BH and NS found from modified gravity theories were extensively used to test the EHT results for SgrA\(^*\) BH [4]–[6] and thus, to constrain their hair parameters [10]. The magnetically charged BH (9 ) was employed to investigating shadow radii [10], [14].

In this study, we have obtained a newly charged black hole with magnetic charge (NMBH), differing from the known BH solutions. We tested the NMBH for two coupling constants (\(\mu=0.01,0.1\)) with the EHT observation for SgrA\(^*\) by computing their shadow radii. For \(\mu=0.01\), we have four branches of \(2-,3,4,2+\), while the single branch is allowed for \(\mu=0.1\). In this case, the shadow radius for the \(2-\)-branch is the same as that of the RNBH, while the 3-NS branch could be constrained by the EHT observation. Two narrow allowed ranges of \(1.022\lesssim q \lesssim 1.03 (1\sigma)\) and \(1.02\lesssim q \lesssim 1.038 (2\sigma)\) exist for the 3-NS branch. Also, two very narrow ranges of \(0.996\lesssim q \lesssim 0.998 (1\sigma)\) and \(0.995\lesssim q \lesssim 0.999(2\sigma)\) are allowed for the 2+-branch. For \(\mu=0.1\), there exist one single branch without limitation on magnetic charge \(q\) whose shadow radius is a monotonically decreasing functions of \(q\). This indicates no extremal points. Its shadow radius is the same as that of the \(2-\)-branch for \(q<1\), but there is no constraints for \(q>1\) because \(b_2(1,q,0.1)\) is a monotonically decreasing function of \(q\). However, we mention that even though the 6-branch with \(\mu=0\) represents the outer horizon of the RNBH, its photon sphere and critical impact parameter are not realized into the picture.

From the geometric scattering analysis, we found that \(\sigma_{c2-}(m=1,q-,0.01) \simeq \sigma_{c2}(1,q,0.1)\), implying decreasing functions of \(q\) [30] while \(\sigma_{c2-}(m,q=0.5,0.01) \simeq \sigma_{c2}(m,0.5,0.1)\), indicating increasing functions of \(m\in [0,1.1]\). \(\sigma_{c4}(1,q,0.01)\) is a decreasing function in \(q\in[0.974,1.06]\), while \(\sigma_{c4}(m,1,0.01)\) is an increasing function in \(m\in[0.943,1.032]\). This indicates a promising behavior of geometric cross sections for BH with singularity. However, we realized that \(\sigma_{c2+}(1,q+,0.01)\) and \(\sigma_{c3}(1,q,0.01)\) blow up at \(q=0.989,1.00245\), whereas \(\sigma_{c3}(m,q=1.00245,0.01)\) and \(\sigma_{c2+}(m,q=1.00245,0.01)\) are divergent at \(m=1.0, 1.012\). This may indicate an interesting hint of scattering behavior when waves (lights) are scattered off the 3-NS and 2+-branches.
