1 Introduction↩︎

The evolution of mobile networks has experienced exponential growth in recent times, driven by the increasing demand for connectivity and technological innovation. The 5G generation is already changing the way society and machines communicate and interact with the digital and industrial environment, as shown by [1] or [2]. In fact, work has already begun on defining the next 6G generation. In [3], the expectations of this new generation are outlined by promoting human-machine communication and strengthening the security of previous standards. Both 5G and on the horizon 6G, are technologies characterized by ultra-fast speeds, low latency and higher connection capacity that are fundamental to enable a wide spectrum of applications, from autonomous vehicles [4]), IoT networks [5], and smart cities [6] to Industry 4.0 [7] and immersive virtual reality [8]).

However, one of the main problems with the traditional 5G architecture is the vendor lock-in that hinders interoperability between different manufacturers, increasing the cost of developing a 5G network in the conventional way [9]. Furthermore, the European Union concluded in its 2022 analysis [10] on 5G networks that a vendor lock-in approach increases the threat surface with respect to an open architecture. Both studies promote as a solution the implementation of Open RAN (Open Radio Access Network) as a standard for the open development of traditional 5G networks. It should be noted that Open RAN is not only a 5G architecture-dependent solution; it is also applicable to 6G [11], and thus avoids a hypothetical future vendor lock-in in the sixth generation of mobile technology.

Nevertheless, despite the remarkable progress made in creating Open RAN, there is no security standard for the new open interfaces that emerge along with the new framework. Currently, different suites of conventional security protocols are used to protect this kind of interfaces such as MACsec [12], IPsec [13] or TLS [14], [15], each with its advantages and drawbacks. MACsec, at the data link layer, encrypts packets before they leave the device, ideal for local networks. IPsec, at the network layer, encrypts each packet individually end-to-end, offering greater flexibility for larger networks. TLS, at the transport layer, encrypts communication between specific applications, such as web browsers and servers, as part of HTTPs (Hyper Text Transport Protocol Secure).

When analyzing security in 5G networks, advances in quantum computing [16] should not be overlooked. Quantum computing represents an imminent threat to nowadays cybersecurity. Its exponential ability to perform complex computations puts at risk the robustness of traditional cryptographic algorithms that protect digital communications. Faced with this risk, the scientific community is working on the development of new cryptographic algorithms resistant to quantum attacks, following two complementary approaches: Post-Quantum Cryptography (PQC) and Quantum Key Distribution (QKD). PQC focuses on designing resilient algorithms, but implementable in classical systems. These algorithms are usually based on mathematical problems that are not vulnerable to known quantum attacks. e.g., Lattice-Based Cryptography [17]; with some examples like Frodo, Kyber or Dilithium, which are based on Learning With Errors (LWE) and Shortest Vector Problem (SVP). The two last ones have been selected in the NIST standard of post-quantum algorithms [18]. Code-Based Cryptography [19]; algorithms like Classic McEliece, BIKE or HQC based on error-correcting codes have also been selected for round 4 of the above-mentioned NIST competition, although they have not been chosen for standardization. Isogeny-Based Cryptography [20]; the best exponent is SIKE whose security comes from the isogeny-path problem, which involves finding a path between two related elliptic curves by means of an isogeny. SIKE has also been selected for the fourth round of the competition. Finally, Hash-based cryptography [21] used by signature schemes that use hash functions in their procedure. The only algorithm of this family selected by NIST to be standardized is SPHINCS+ a stateless signature scheme.

There are already studies on how quantum resilient solutions could be integrated into 5G networks. Going back to [16]; apart from mentioning the advances in quantum computing it is also assured that QKD systems are suitable for protecting static segments of 5G networks where it is feasible to connect QKD nodes over a dark optical fiber, while PQC mechanisms are envisioned for mobile and dynamic segments. In addition, it is also mentioned that PQC is expected to be used temporarily to protect certificates and establish connections that can then be secured with QKD-generated keys, ensuring that the available methods are already mature enough and their development and adoption is expected to accelerate with further investments. On the other hand, more practical studies are also found in the literature, for example [22] that shows how to implement KEM (Key Encapsulation Mechanism) algorithms together with TLS to secure gNB connections to the 5G core. In the tests performed, it was observed that the integration of KEM maintains a proper QoS (Quality of Service) improving security compared to its conventional alternative.

In this paper, we propose a cryptographic solution resistant to quantum computing attacks to protect Open RAN open interfaces. This is achieved by integrating post- quantum cryptography (PQC) into established security protocols such as IPsec, using a hybrid approach that combines traditional methods, such as Diffie-Hellman, with post- quantum key encapsulation mechanisms (KEM). The paper implements and evaluates four KEM algorithms (CRYSTALS-Kyber, BIKE, HQC and Frodo) in a simulated Open RAN environment, measuring parameters such as througput, jitter, encryption time and memory usage. In addition, a test environment based on open source tools such as srsRAN and Open5GS is designed to evaluate the protection of the Open Fronthaul interface with IPsec-PQC, emulating key Open RAN components such as the Central Unit (CU), Distributed Unit (DU) and Radio Unit (RU). The study identifies that Frodo and BIKE algorithms offer a better balance between performance and security, while Kyber shows a competitive but variable behavior and HQC stands out in encryption speed but with greater temporal stability problems.

The rest of the paper is organizaed as follows. Section 2 describes the principles of Open RAN, highlighting its modular architecture, main components and advantages such as interoperability, along with the security risks involved. Current security solutions are analyzed in Section 3, including protocols such as MACsec, IPsec and TLS, and their limitations in the face of future threats are discussed. The integration of post-quantum key encapsulation (KEM) algorithms into IPsec to protect Open RAN interfaces is presented in Section 4. The testbed implementation is presented in Section 5 and the experimental performance metrics such as throughput, latency and resource usage are analyzed in Section 6, identifying advantages and disadvantages of each KEM. The article concludes in Section 7 with the feasibility of the proposed solutions and proposes lines of future work, such as exploring the use of quantum key distribution (QKD) and the integration of PQC in other protocols.

2 Principles of Open RAN↩︎

2.1 Background↩︎

In order to comprehend Open RAN, it is helpful to first have a general understanding of how mobile networks work. The Radio Access Network (RAN) and the Core Network (Core) are the two domains that form the mobile, or cellular/wireless, network. The RAN is the last connection between a cellular device and the network, it consists in a base station, also called Base Band Unit (BBU) and an antenna. The antenna sends and receives signals to and from the devices that are after digitized in the BBU who transmits it into the Core. While operators have long been able to use one vendor for their core network and another for the RAN, interoperability between RAN equipment from different vendors was often overlooked in favor of maximizing overall functionality . Consequently, with current solutions, it is challenging to mix vendors for the radio and BBU, which are typically sourced from the same supplier. The main purpose of Open RAN is to change the current scenario and enable operators to create their networks and choose the manufacturers and hardware at their convenience avoiding the current vendor lock-in.

2.2 Key Open RAN principles↩︎

Keeping in mind the motivation behind the Open RAN proposal, in this section we briefly review the main features implemented by this new standard to open and enhance the traditional RAN.

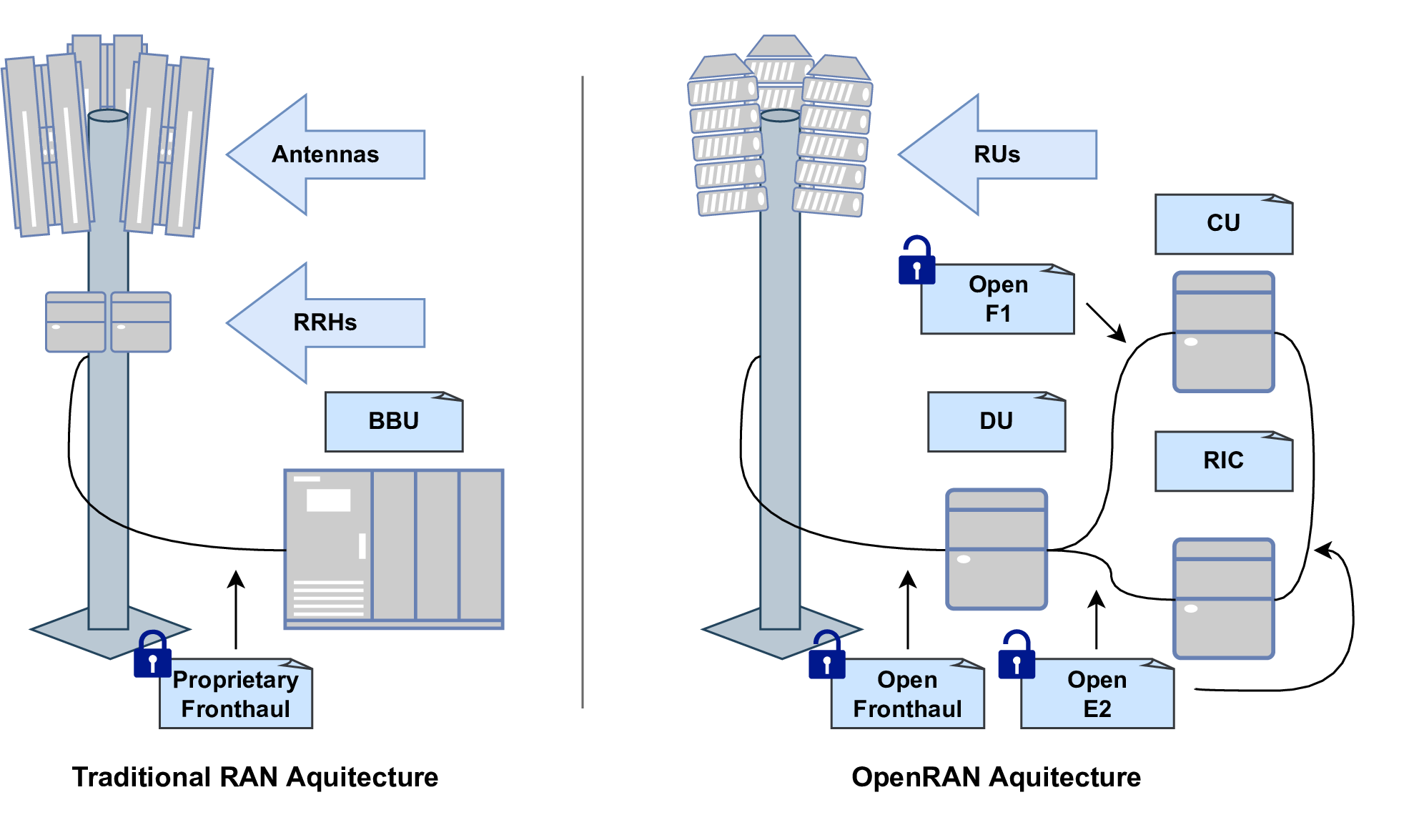

• Disaggregation: The Base Band Unit in traditional RAN is the equipment in charge of most part of data and signal processing in 5G communication, which makes it an expensive and crucial element in the architecture. For this reason, the 3GPP defines a split of the BBU into a Central Unit (CU) and Distributed Units (DU) to make the RAN management more efficient. A visual representation of this change can be seen in Figure 1.

• Intelligence and Automated Control: Open RAN incorporates near-real-time RAN Intelligent Controllers (RICs) and non-real-time RICs to optimize network performance across different timescales. These controllers utilize xApps and rApps, which, through AI and machine learning algorithms, autonomously manage resources and optimize policies.

• Virtualization: RAN functions and even elements, as for example the RICs, can be implemented as software services on cloud platforms, reducing dependence on proprietary hardware. This approach facilitates the adoption of innovative solutions and enables faster deployment of applications and services.

• Open and Standardized Interfaces: Having a defined method of communication among the elements in the RAN, let manufacturers create their own components ensuring that they will be able of integrate into any topology that follows the open standard.

2.3 Main components of Open RAN↩︎

In the Open RAN framework new components appeared as a result of the disaggregation, which are interconnected using open interfaces. The most relevant ones are explained in this section:

• Radio Unit (RU): Is the corresponding element of the Raidio Head (RU) or Remote Radio Unit (RRU) in traditional RAN. RU is responsible for transmitting and receiving radio frequency signals and handles the conversion between the digital to the analog domain.

• Central Unit (CU): Is a virtualized network component responsible for higher-layer processing functions. Specifically, the CU handles non-real-time, packet-based functions such as user plane and control plane protocols.

• Distributed Unit (DU): It works in layers 1 and 2 of the OSI model, among its duties are found error correction and packet scheduling being the intermediate point between the RU and the CU.

• RAN Intelligent Controller (RIC): A logical component that optimizes the network in real-time using data and AI algorithms. It is divided into the near-RT RIC for millisecond-scale optimization and the non-RT RIC for longer-term adjustments within the Service Management and Orchestration (SMO) platform.

2.4 Interfaces in Open RAN↩︎

The interfaces in Open RAN facilitate the interaction and control among units shown in the last Section, for example:

• Open Fronthaul Interface (O-FH): This interface connects the DU to one or more RUs, handling data flows necessary for RF processing. It is divided into four planes: Control, User, Synchronization, and Management.

• F1 interface:In Open RAN is a crucial link connecting the CU and DUs within the network. This interface is key to the disaggregated architecture, allowing the CU and DU to operate independently and be sourced from different vendors, promoting interoperability and flexibility.

• O1 Interface: This interface connects the SMO system to network components, specifically enabling operations and maintenance functions.

• O2 Interface: Connecting the SMO to the O-Cloud (virtualization infrastructure supporting Open RAN), the O2 interface allows for resource provisioning and workflow management across virtualized network components.

• A1 Interface: This interface links the non-RT RIC and near-RT RIC to exchange policyguidance and strategic control information. Through A1, operators can set policies that influence near-real-time optimization functions, making the network more adaptive to real-time demands.

• E2 Interface: The E2 interface connects the near-RT RIC to other RAN elements, like the CU and DUs.

3 Security Challenges and Current Solutions for Open RAN Interfaces↩︎

The open and modular nature of OpenRAN, while providing significant advantages in terms of interoperability and flexibility over vendors, introduces potential security challenges that are either not present in traditional RAN architectures, or are significantly less risky. As discussed in [23], these challenges arise primarily from the disaggregation of network components and the use of open interfaces, leading to a larger attack surface and increasing the complexity of the system.

The disaggregation of the Base Band Unit (BBU), into a Distributed Unit (DUs) and a Central Unit (CUs), and the addition of elements such as de RIC results in a greater number of interconnected components that can be used as potential entry point for attackers. A breach in one component could jeopardize the security of the entire network. For instance, attackers could perform Man-in-the-Middle (MitM) attacks by intercepting communications between the DU and CU; allowing them to eavesdrop on sensitive data, alter communications, or redirect traffic. Furthermore, vulnerabilities in individual units may lead to device hijacking, where attackers take control of the unit disrupting network operations or facilitating new attacks on connected systems.

Open RAN encourages the incorporation of new vendors and the combination of the different units they offer with those of other suppliers. However, the integration of components from different vendors, as long as there is no proven communication standard in the open interfaces, can lead to security breaches when transmitting data between the different units. Attackers can exploit these inconsistencies to exploit interoperability attacks, in which weaknesses in inter-vendor communication protocols are used to inject malicious traffic or to interrupt services. In addition, reliance on third-party hardware and software increases the risk of supply chain attacks, where compromised components or backdoors are introduced during manufacturing or integration, leading to long-term security vulnerabilities.

The adoption of open interfaces also presents significant risks compared to proprietary interfaces. Unlike proprietary protocols, which often require specialized knowledge or can only be configured by employess from the manufacturer, communication over open interfaces is public and documented. This scenario makes malicious actors more interested in exploiting this type of systems because it is easier to identify weak points. Common attacks on open networks include the forwarding of previously captured data packets to bypass authentication or disrupt system functionality, or packet injection attacks, in which malicious packets are manipulated to alter control signals or introduce false information into the network. Open interfaces also make Open RAN systems particularly susceptible to denial-of-service (DoS) attacks, in which attackers flood the interfaces with traffic to degrade or completely disrupt network operation.

It is also worth remembering that within Open RAN the integration of Artificial Intelligence (AI) and Machine Learning (ML) is being developed and implemented in Open RAN components, most notably in the RAN Intelligent Controller (RIC). These systems, designed to optimize network performance, can be targeted by adversarial AI attacks. For example, attackers could poison network data used to train AI/ML models, resulting in incorrect decisions that would degrade quality of service (QoS), misallocate resources, or even cause hardware or software failures.

To address these challenges, Open RAN frameworks currently rely on a range of established security suites of protocol, including MACsec, IPsec, and TLS. Each of these suites offers specific advantages and limitations, making them suitable for different types of Open RAN interfaces depending on the performance and security requirements.

MACsec operates at the data link layer, is highly effective for protecting local, high-speed connections such as the Open Fronthaul (O-FH) interface, which connects the DU and the RU. Its lightweight encryption ensures minimal impact on latency, making it ideal for real-time communication. Nonetheless, its scope is limited to localized networks and does not provide end-to-end encryption, making it unsuitable for broader protection needs.

IPsec, on the other hand, provides robust end-to-end encryption at the network layer. Its flexibility and configurability make it well-suited for securing interfaces like E2, which handles critical control data between the near-real-time RIC and other components. Despite its strengths, IPsec introduces additional overhead due to the extra headers required for its encryption protocols, which can impact efficiency in bandwidth-constrained scenarios.

Finally, TLS, a widely adopted transport-layer protocol, is used primarily to secure application-level communications and management data. Its streamlined handshake process, particularly in TLS 1.3, ensures fast and efficient secure connection establishment. While it is effective for interfaces such as O1, O2, and A1, which handle less latency-sensitive management and policy data, TLS is less suitable for real-time applications and lacks the multi-layer security coverage of protocols like IPsec.

Although these protocols provide a strong foundation for securing Open RAN, no single solution is universally optimal. The selection of a security protocol depends on the specific interface and its requirements in terms of latency, throughput, and scope of encryption. Furthermore, as quantum computing progresses, it is critical to explore cryptographic solutions that are resistant to quantum-based attacks, which threaten to undermine many of the encryption methods used today. This ongoing need for evolution in security mechanisms highlights the importance of developing future-proof protocols for Open RAN systems.

4 Integrating PQC into the open interfaces of Open RAN↩︎

Traditional cryptography is responsible for ensuring secure communication and data protection across different information channels; providing confidentiality, integrity, and non-repudiation. However, with the constant progress in quantum computing (QC), security in classical cryptography can be compromised in the near future. QC was first conceptualized in [24]; it leverages principles of quantum mechanics, such as superposition and entanglement, to achieve computational capabilities beyond classical systems.

Classic cryptography is usually split in two kind of encryption: symmetric and asymmetric encryption. Symmetric encryption algorithms, such as AES (Advanced Encryption Standard), use a shared secret key for encryption and decryption. The security of these systems depends on the size of the key space, making brute-force attacks computationally infeasible for sufficiently large keys. Nevertheless, Grover’s algorithm [25], a quantum search algorithm, reduces the effective key space exponentially by half, significantly weakening their security. I.e., when an encryption scheme use AES-128 as its encryption algorithm in a quantum system, the real security achieved will be equivalent as the one in AES-64 in a classic system [26].

Regarding asymmetric cryptography, it relies on one-way mathematical functions, such as integer factorization (RSA) or the discrete logarithm problem (Diffie-Hellman and Elliptic Curve Cryptography, ECC). These algorithms are the base of secure communications and digital signatures in the current information systems. The main thread of asymmetric encryption is Shor’s quantum algorithm that can efficiently solve these problems, rendering such cryptosystems insecure.

Currently, the research community is developing quantum and post-quantum cryptographic solutions to face the hazards of algorithms such as Shor’s and Grover’s. On the one hand, Quantum Key Distribution (QKD) protocols are a secure communication method that leverages quantum mechanics to distribute quantum-safe encryption keys between parties. Protocols such as BB84 or COW [27] are examples of QKD implementations. On the other hand, post-quantum cryptography (PQC) can be developed in traditional computers and still be resistant to quantum attacks. An example of PQC algorithms are the Key Encapsulation Mechanisms (KEM) [28], they are cryptographic primitives that enables a sender to securely generate and transmit a short, random secret key to a receiver, without revealing the key to an eavesdropping adversary.

Since the Open RAN framework is emerging as the standard model for the future of communication networks, it is of vital importance to formalize the security of its open interfaces, as detailed in Section 2. This approach seeks to ensure that the interoperability promoted by Open RAN does not compromise the robustness of communications in the face of modern and emerging threats. However, the security protocol suites currently employed base their reliability on classical algorithms, which are vulnerable to quantum computing attacks already identified (see previous section).

In this context, the present work aims to propose a quantum computing resistant solution to protect some of the Open RAN open interfaces. The cryptography selected for implementation is post-quantum, due to its ease of integration in conventional computers, allowing a more accessible transition to network operators. At the same time, quantum cryptography based on key distribution (QKD) is left for future research, since its deployment requires additional infrastructure and currently presents significant practical barriers.

4.1 Implementing PQC in IPsec↩︎

IPsec has been chosen as the base protocol suite for protecting open interfaces due to its maturity, flexibility and wide adoption in secure networks. It should be noted that in the absence of a universal standard for Open RAN interface protection, no protocol suite is optimal for all scenarios, highlighting the need for research such as the present one.

One of the strategies proposed to ensure the security of communications when integrating post-quantum cryptography (PQC) into IPsec is to adopt a hybrid approach. This approach combines classic key exchange like Diffie-Hellman (DH) or Eliptic Curve Diffie-Hellman (ECDH), used in the IKEv2 phase of IPsec, with one or more PQC algorithms of Key Encapsulation Mechanisms (KEMs). The implementation of multiple key exchange in IKEv2 is described in RFC 9370 [29]. Basically, when the initiator sends the ike_sa_init adds a notification payload intermediate_exchange_supported indicating the possibility of using multiple key exchanges and one Additional Key Exchange Transform Type (addke) for each proposed KEM. Then, when the receptor responds to the ike_sa_init with the selected proposals, the initiator starts the message exchange for each KEM using the ike_intermediate messages as can be shown in Figure 2. All the shared keys from the different algorithms selected will be a combine as a input to a pseudo-random function that will compute the shared secret used as seed for the encryption process.

At the time of writing this article, post-quantum key exchange algorithm implementations are not yet widespread in real cryptographic applications comparing it with classic cryptographic solutions such as DH or Elliptic Curve DH. It is also claimed that pre-quantum algorithms are extensively studied and have proof of their security properties [30]. Post-quantum security, on the other hand, is still under scrutiny. Thus, it is not unreasonable to think of scenarios where a flaw in a post-quantum algorithm is discovered. A hybrid post- quantum/conventional approach can overcome this challenge, as it ensures the system is at least as robust as the security provided by the individual primitives remaining safe against classical attackers.

Furthermore, using a hybrid approach allows current networks to adopt post-quantum technologies gradually, providing a safe transition period while definitive standards and best practices are developed.

4.2 Selection of KEMs for testing↩︎

The National Institute of Standard and Technology (NIST) organized a post-quantum algorithm standardization process, similar to the one carried out between 1997 and 2000 to standardize the AES symmetric encryption algorithm or between 2007 and 2012 for the SHA-3 hash algorithm. In this case, NIST effort sought to identify algorithms that are not only resistant to quantum attacks but also have adequate performance in real-world environments, considering both latency and resource consumption.

The round 4 of the process concluded in 2022 [18], selecting CRYSTAL-kyber as public-key encryption and CRYSTALS–Dilithium, FALCON, and SPHINCS+ as digital signatures standards. There are already projects such as Open Quantum Safe [31] (OQS) that implement the participating algorithms, not only the selected for standardization, allowing their evaluation in practical scenarios. These developments are essential to identify compatibility, scalability and performance issues in real environments before mass adoption.

For the integration of PQC into IPsec in the context of this paper, it has been used the implementations of KEM algorithms available in the open source library liboqs, developed by OQS. The algorithms selected for testing have been: CRYSTALS-Kyber, BIKE, HQC and FRODO. The first three participated in the fourth round of the NIST standardization process, while FRODO was eliminated after the third round [32]. However, the early elimination of FRODO by NIST in the process does not imply that it is an unsafe algorithm; indeed is one of the two post-quantum algorithms recommended by the German Federal Office for Information Security (BSI) as cryptographically suitable for long-term confidentiality along with Classic McEliece.

5 Testing Scenario↩︎

The incorporation of post-quantum cryptographic algorithms into IPsec introduces important considerations for compatibility, migration, and future enhancements. Compatibility is largely achieved through hybrid key exchange mechanisms, combining classical methods such as ECDH with post-quantum KEMs. This approach guarantees that updated systems can interoperate with legacy ones during a gradual transition to fully post-quantum deployments. Nonetheless, the message overhead of post-quantum algorithms during key exchanges, may impact latency- sensitive applications or low-power devices, requiring careful optimization.

Concurrently, integrating post-quantum cryptography with modern protocols like QUIC presents a promising opportunity for enhancing security in latency-sensitive applications. The low-latency design of QUIC, combined with the robust encryption provided by PQC algorithms, could potentially offer a future-proof solution for securing modern communications.

In order to evaluate the performance of the proposed solution, a simple testbed of an Open RAN environment was designed using different open-source tools implemented on Linux operating system machines with Ubuntu 22.04 operating system.

5.1 Test Scenario Topology↩︎

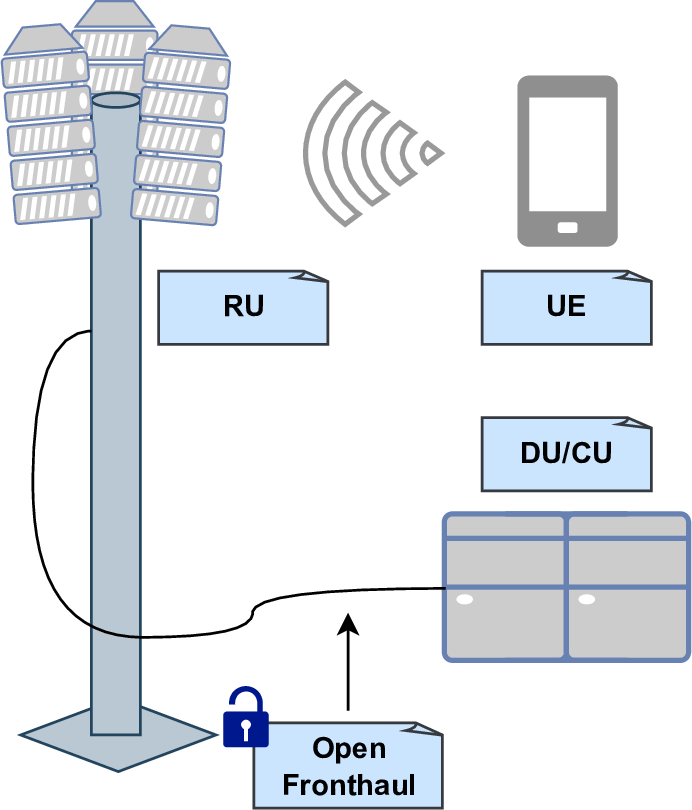

Figure 3 illustrates the components that comprise the testbed, which are emulated on different machines:

• User Equipment (UE): It represents the connections that a terminal would have with a 5G network.

• Radio Unit (RU): It will work as the RAN connection point for the UE.

• Central Unit (CU) and Distributed Unit (DU): In this scenario, both are implemented on the same machine to simplify the topology.

To provide Open RAN and Core 5G functionality, the open source projects srsRAN [33] and Open5GS [34] were used as main developing sources. As detailed in the Figure, the interface selected for testing is the Open Fronthaul (O-FH). Although in real environments it is preferred to protect the O-FH using MACsec due to its fast implementation, scientific literature [[35]][36] has shown that it is feasible to use IPsec to protect the O-FH interface without compromising the QoS. In this work, the latter solution was chosen to evaluate its feasibility in terms of performance².

5.2 IPsec Implementation↩︎

Regarding IPsec implementation between RU and DU, the open source library strongSwan [37] has been chosen as a widely used implementation to develop IPsec tunnels that guarantees compliance with IETF standards for IPsec (RFC 6071 [13]) and IKEv2 (RFC 7296 [38]), ensuring interoperability with different systems and devices. In addition, it offers support for advanced encryption algorithms, including KEM in beta version 6.0.0 integrated with the liboqs library following RFC 9370 [29].

5.3 Tests Performed↩︎

The objective of the tests is to assess the performance of communication in the event that PQC-IPsec protects the O-FH interface. Specifically, the following parameters were evaluated:

• Throughput: Evaluates the ability of the network to transmit data efficiently. This indicator is crucial to analyze the maximum achievable throughput in the O-FH interface.

• Delay: Measures the latency time between sending and receiving data, thereby providing valuable information regarding the capacity of the network to operate in real time.

• Jitter: Determines the variation of the delay,, a critical factor for delay-sensitive applications.

• Memory Usage: Analyzes the impact of IPsec encryption with PQC implementation on system memory resources.

• Encryption Time: Measures the time required to encrypt packets during communication. This parameter provides insight into the computational overhead introduced by the hybrid approach.

6 Performance Results↩︎

This section provides a detailed analysis of the results obtained from measuring the performance variables outlined in the previous section

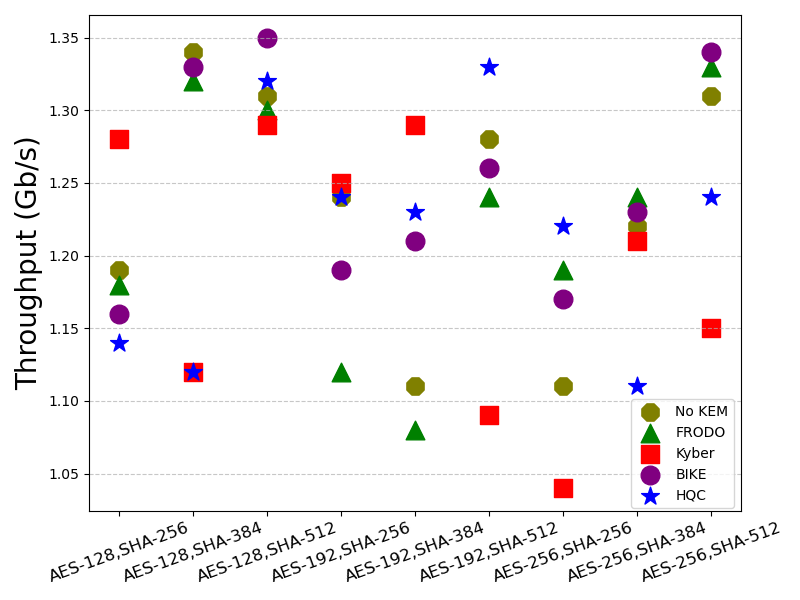

Figure 4 reflects the throughput, whereby higher values indicate better performance. In this context, the incorporation of KEM into the IKEv2 protocol has a different impact depending on the scheme used. Frodo maintains a throughput very close to the case without KEM, which makes it an efficient and stable option. BIKE also shows consistent behavior, while HQC achieves good results in specific configurations but introduces more variability. Kyber, while showing competitive values in some cases, has more erratic behavior. Configurations with AES-128 tend to maintain a high and stable throughput, while AES-192 and AES-256 show greater fluctuations. KEM selection should consider not only security, but also its impact on throughput, with Frodo and BIKE being the options with best performance in this test. The jitter results, also in Figure 4, reflect that the addition of KEM to the IKEv2 protocol significantly affects the temporal stability of transmissions. Without KEM, the values are moderately low but variable depending on the configuration. Frodo improves jitter slightly in several configurations, such as AES-128/192,SHA-256 (20 \(\mu\)s/ 15 \(\mu\)s, although in others, such as AES-256,SHA-512 (89 \(\mu\)s), it introduces more jitter. Kyber also achieves good performance in general, standing out in configurations such as AES-128/256,SHA-256 (16 \(\mu\)s, 17 \(\mu\)s), with less consistent values in configurations such as AES-192,SHA-384 (44 \(\mu\)s). On the other hand, BIKE and HQC generate consistently high jitter (range between 167 and 199 \(\mu\)s), making them less suitable for time-stability sensitive applications. Frodo and Kyber are the most favorable choices, especially in configurations optimized for real-time application like VoIP or video calls.

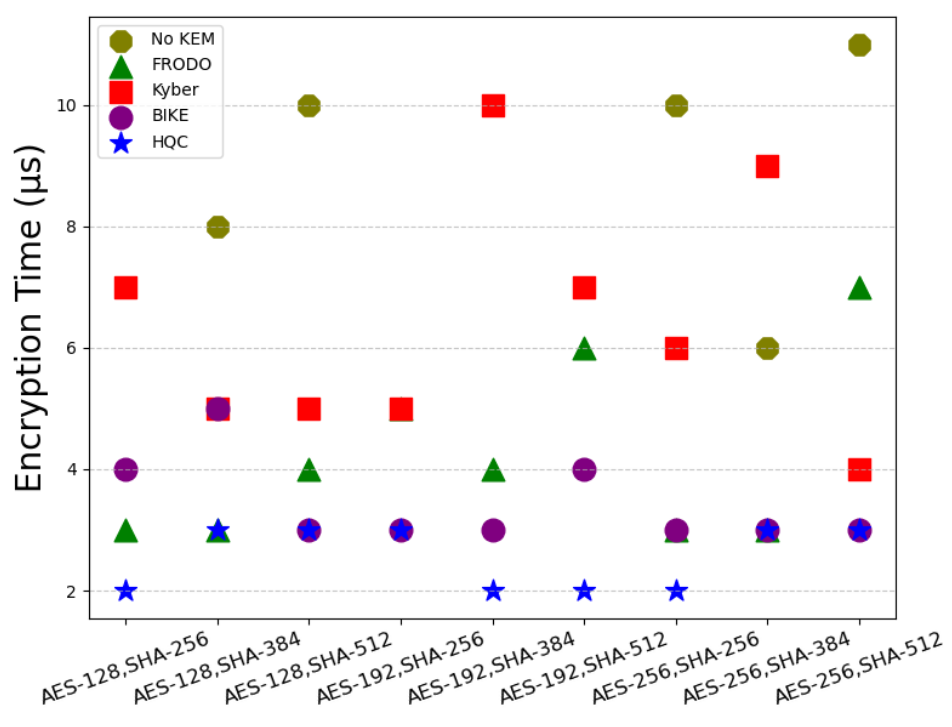

Concerning the results regarding encryption time of the packets, it is shown that without KEM the times vary between 5 and 11 \(\mu\)s. Frodo significantly improves performance, with lower times (3 to 6 \(\mu\)s) in most configurations. Kyber has mixed performance, improving in some configurations (e.g., 4 \(\mu\)s on AES-256,SHA-512), but getting worse in others (10 \(\mu\)s on AES-192,SHA-384). BIKE and HQC are the fastest, with very low times (2 to 4 \(\mu\)s), standing out especially in configurations such as AES-256,SHA-256. In summary, BIKE and HQC offer the best speed, followed by Frodo, while Kyber has more variable performance.

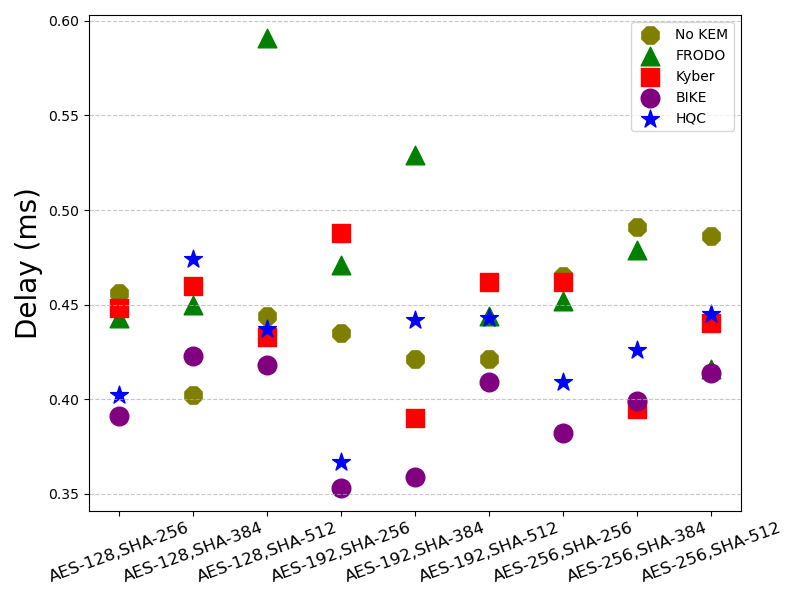

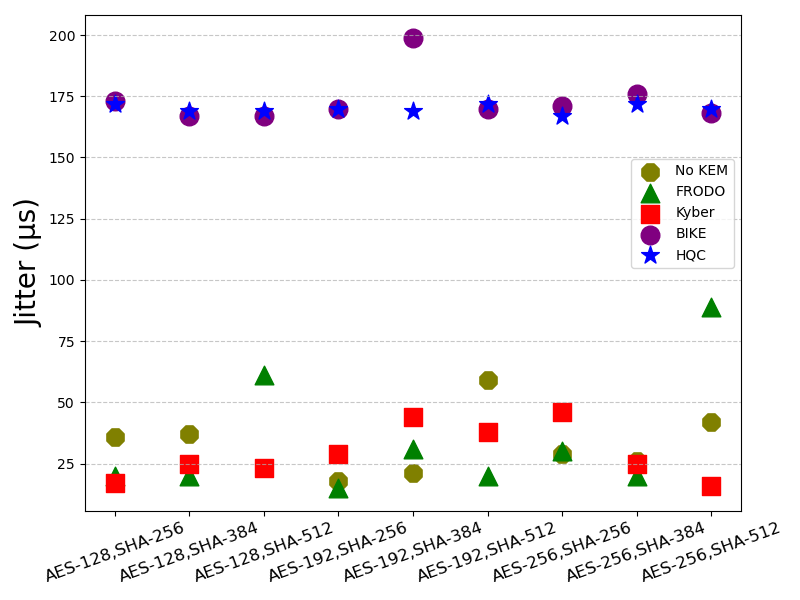

As for the delay, it shows how the incorporation of KEM affects the latency in sending and receiving packets. Without KEM, the delay values are relatively low, varying between \(0.402\) and \(0.491\) ms. Frodo, while improving in some cases such as AES-128,SHA-256 (\(0.443\) ms) and AES-256,SHA-512 (0.416 ms), introduces a noticeable increase in configurations such as AES-128,SHA-512 (0.591 ms). Kyber presents a more stable performance, with values between \(0.39\) and \(0.488\) seconds, showing a moderate but consistent delay in all configurations. BIKE has the best results, with the lowest delay in several configurations, standing out in AES-192,SHA-256 (\(0.353\)) and AES-192,SHA-384 (\(0.359\)). HQC, on the other hand, maintains relatively low delay values, but not as optimized as BIKE, with a range of \(0.367\) to \(0.474\) ms. That is, BIKE presents the lowest delay, followed by Kyber and Frodo, while HQC remains competitive, but with slightly more latency in comparison.

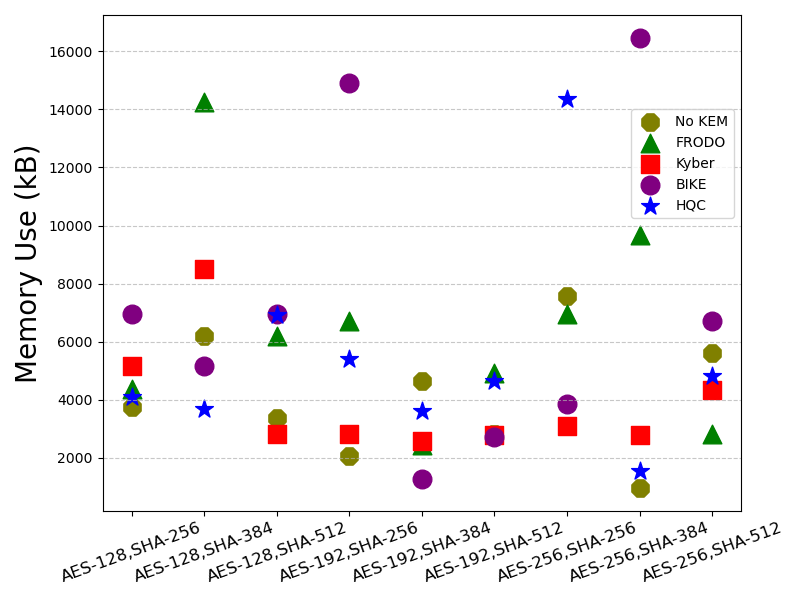

The memory usage results, Figure 6 reveals distinct differences among the KEM schemes. Without KEM, memory usage is relatively low, ranging from 950 kB to 3,750 kB. Frodo introduces significant memory overhead, especially in configurations like AES-128,SHA-384 (14,250 kB) and AES-256,SHA-512 (9,675 kB). Kyber shows more moderate memory increases, ranging from 2,820 kB to 5,160 kB. BIKE also results in higher memory usage, especially in AES-128,SHA-512 (14,900 kB) and AES-256,SHA-384 (16,475 kB). HQC presents a more consistent memory demand, ranging from 3,600.384 kB to 6,925 kB. Overall; Kyber, followed by HQC, has the best performance in terms of memory usage efficiency compared to the KEM-less version.

7 Conclusions↩︎

This article has highlighted the importance of protecting the open interfaces of Open RAN even in the case of the imminent threats of quantum computing. As possible solutions within the study conducted, we have proposed the implementation of IPsec together with post-quantum key encapsulation algorithms such as Kyber, Frodo, HQC or BIKE.

In order to demonstrate the feasibility of the proposed solution, a testbed scenario has been designed based on open-source projects, mainly srsRAN and Open5GS. Within this setting, we measured Throughput, Delay, Jitter, Encryption Time and Memory Usage for different KEMs in combination with different encryption and integrity algorithms in IPsec. No single combination has been found to be clearly advantageous in all areas compared to the others. Frodo and BIKE stand out as the most balanced options. Frodo maintains a high and stable throughput, comparable to the case without KEM, and offers moderate improvements in jitter and encryption time, making it ideal for applications requiring stability. BIKE excels in encryption speed and delay, consistently achieving the fastest times and lowest latency compared to other KEMs, making it optimal for time-sensitive applications. Kyber obtains competitive performance in some configurations, but has shown great variability in the results obtained being more unstable in the tests. HQC, while achieving excellent encryption speeds and competitive delays, has higher jitter and variability in throughput, making it less suitable for applications that require temporal stability. Configurations with AES-128 offer greater stability in general, while AES-192 and AES-256 tend to generate more jitter. Again, in the tests performed there is no clearly better combination, the results are indicative and could differ in a real non-simulated scenario.

A natural, clear extension to this work is the operational integration of IPsec-QKD in the Open RAN framework using keys generated with real quantum devices. Our study will probably focus on the E2 interface, since it is considered a more realistic use case than O-FH, after the results obtained in this article. Besides, there are other protection mechanisms that can be used to protect Open RAN open interfaces: MACsec and TLS. We are currently working on the implementation of PQC and QKD to the mentioned protocol suites to see their viability in the different Open RAN interfaces.
