1 Introduction↩︎

Electromagnetic (EM) transitions provide important means to unravel the internal structure of quarkonium and search for the new quarkonium states [1], [2]. From the experimental perspective, many EM transition channels of charmonia and bottomonia have been precisely measured in BES, \(B\) factories, and CLEO experiments [3]. From the theoretical standpoint, the standard approach to tackle the EM transition between quarkonium is based on the multipole expansion, essentially identical to the well-known methodology in dealing with the atomic EM transition. The dominant transition mode is the electric dipole (\(E1\)) transition, where the orbital angular momentum of heavy quarks is changed by one unit while the spin is conserved. The subleading transition mode is the magnetic dipole (\(M1\)) transition, where the orbital angular momentum does not change but the spin is flipped.

In the standard picture of multipole expansion, the radiated photon is assumed to carry a very small (ultrasoft) momentum, \(k \sim mv^2\), where \(m\) denotes the heavy quark mass, and \(v\) signifies the typical velocity of the quark within the quarkonium. Consequently, the wavelength of the emitted photon is much longer than the size of the quarkonium, so that the transition amplitude can be expressed as an overlap integral between the wave functions of the initial-state and final-state quarkonia. The leading \(E1\) transition formula has long been known in the spontaneous radiation of atoms about one century ago, as one of the triumphs of the quantum theory of electromagnetic fields [4]. The corresponding \(E1\) transition formula for quarkonium is essentially the same. The modern treatment of EM transitions of quarkonia is expedited by invoking the machinery of nonrelativistic effective field theory (EFT) approach, the so-called potential NRQCD (pNRQCD), where the relativistic corrections can be systematically accounted [5], [6].

Since the binding force for an atom in QED is Coulombic, it is appropriate to assume the energy difference between any two atomic levels is of order \(mv^2\). However, the story is quite different for heavy quarkonium. The interquark potential is Coulombic only at short distance and becomes linearly rising confinement potential at long distance. As a consequence, the mass difference between the highly-excited quarkonium and the lowest-lying state could be rather large, actually could be arbitrarily large in the \(N_c\to\infty\) limit or if neglecting the string breaking effect. For example, the mass difference between \(\Upsilon(3S)\) and \(\eta_b\) is as large as 1 GeV. In such a case, it is obviously inappropriate to regard the photon as ultrasoft, and the standard multipole expansion doctrine simply breaks down.

In fact, for the \(M1\) transition process \(\Upsilon(3S)\to\eta_b+\gamma\), it is more appropriate to regard the photon to be semi-hard (\(k\sim mv\)) rather than ultrasoft. Assuming that perturbative QCD is still applicable at the scale \(mv\sim 1\) GeV, the “hard-scattering" approach has been developed to tackle a class of strongly hindered \(M1\) transitions exemplified by \(\Upsilon(3S)\to\eta_b+\gamma\) in 2009 [7]. The key idea is that a semi-hard gluon has to be exchanged between heavy quark and antiquark in such a process, so that the transition amplitude can be expressed as the convolution between the radial wave functions of the parent and daughter quarkonia and the perturbatively calculable hard-scattering kernel. Without adjustable parameters, the predictions made in [7] are found in decent agreement with the measurements.

The goal of this paper is to extend the theoretical framework in [7] to the case of the strongly hindered \(E1\) transitions between heavy quarkonia. For concreteness, we concentrate on the \(E1\) transitions between \(P\)-wave and \(S\)-wave quarkonium states. We derive the corresponding factorization formula in the context of nonrelativistic QCD (NRQCD), and infer the “hard-scattering" kernel at the leading order in \(v\) and \(\alpha_s\). We also numerically compare the predictions from this new formalism with those from the conventional multipole formula.

The rest of the paper is organized as follows. In Section 2, we introduce our theoretical framework to deal with \(E1\) transition, the nonrelativistic EFT with \(SU(3)_c \times\,U(1)_{\rm em}\) gauge group. In Section 3, we recap the standard \(E1\) transition formula from the conventional multipole expansion context. Section 4 is the main body of the paper. Starting from the NREFT, we apply the hard-scattering mechanism to derive the formula for strongly hindered \(E1\) transition, taking the \(P\)- to \(S\)-wave quarkonium transition as an explicit example. In Section 5, we present the numerical predictions for various \(E1\) transition processes in bottomonium and charmonium family, comparing the predictions from the new mechanism with the conventional one. We finally summarize in Section 6. In Appendix we illustrate that identical formula for strongly hindered \(E1\) transition can also be derived in the underlying relativistic field theory.

2 Theoretical setup: nonrelativistic effective field theory↩︎

A heavy quarkonium is a nonrelativistic bound state that contains towers of distinct scales: the heavy quark mass \(m\), its typical momentum \(mv\), and its typical kinetic energy \(m v^2\), obeying the hierarchy \(m\gg mv\gg mv^2\). Needlessly to say, there also exists the characteristic QCD scale \(\Lambda_{\rm QCD}\). From phenomenological potential models, one empirically accepts that \(v^2\approx 0.3\) for charomonium, and \(v^2\approx 0.1\) for bottomonium. The momentum scale \(mv\sim 0.9\) GeV for charmonium and \(mv\sim 1.2\) GeV for bottomonium. The typical binding energy \(m v^2\sim \Lambda_{\rm QCD}\approx 0.5\) GeV for both charmonium and bottomonia.

The field-theoretical tool to tackle heavy quarkonium is an effective field theory dubbed nonrelativistic QCD (NRQCD) [8], which describes slowly-moving heavy quark and heavy antiquark to interact with the soft gluons. The predictions for a physical observable can be organized in velocity expansion. In order to describe the electromagnetic transition between heavy quarkonium, it is convenient to enlarge NRQCD by including the low-energy photon as the explicit degree of freedom. For this purpose, we promote the NRQCD to a nonrelativistic EFT (NREFT) with gauge group \(SU(3)_c \times\,U(1)_{\rm em}\). Since the \(E1\) transition does not flip the heavy quark/antiquark spin, suffices it to retain only the lowest-order NREFT Lagrangian: \[\mathcal{L}_\text{NREFT} = \psi^\dagger \left( iD_0+\frac{\boldsymbol{D}^2}{2m} \right)\psi + \chi^\dagger \left( iD_0+\frac{\boldsymbol{D}^2}{2m} \right)\chi + {\cal L}_{\rm light}+ \cdots, \label{NREFT:lagrangian}\tag{1}\] where \(\psi\) (\(\chi^\dagger\)) denotes the Pauli spinor fields that annihilate a heavy quark (antiquark), \(m\) signifies the heavy quark mass, \({\cal L}_{\rm light}+\) refers to the standard QCD Lagrangian for gluons and light quarks. The covariant derivatives \(iD_0=i\partial_0-g t^a A_0^a - e e_q A^{\rm em}_0\), \(i\boldsymbol{D}=i\nabla+g T^a \boldsymbol{A}^a + e e_Q \boldsymbol{A}^{\rm em}\), with \(t^a\) (\(a=1,\cdots,8\)) denoting the \(SU(3)_c\) generators in fundamental representation, and \(e e_Q\) denoting the electric charge of the heavy quark. For simplicity, we have neglected all the higher-order terms in heavy quark velocity expansion. Note the NREFT at lowest order in \(v\) emerges a rigorous heavy quark spin symmetry, which is manifest in the fact that 1 does not explicitly entail Pauli matrices.

One obtains the NRQCD Lagrangian by integrating out the relativistic quantum fluctuation (greater or equal to \(m\)) from QCD. As elucidated by Beneke and Smirnov [9], three distinct dynamical low-energy modes are present in NRQCD, with the dispersive scaling behaviors specified by ⁶ \[\begin{align} \text{semi-hard mode}:& \quad k^0\sim|\boldsymbol{k}|\sim m v;\\ \text{potential mode}:& \quad k^0\sim mv^2,\qquad |\boldsymbol{k}|\sim m v;\\ \text{ultrasoft mode}:& \quad k^0\sim|\boldsymbol{k}|\sim m v^2. \end{align}\]

3 Review of conventional \(E1\) transition formula↩︎

It is the \(e e_Q \boldsymbol{A}^{\rm em}\cdot \boldsymbol{\nabla}\) term in the NREFT Lagrangian 1 that mediates the \(E1\) transition. In the standard textbook treatment, the emitted photon is assumed to be ultrasoft (\(|\boldsymbol{k}|\sim m v^2\)), whose wavelength is much longer than the typical quarkonium size (\(\sim 1/mv\)). Thus it is legitimate to carry out the multipole expansion and the leading EM transition is dominated by the \(E1\) transition. In such case, the semi-hard quanta are irrelevant and can be integrated out, so that one descends from NRQCD to potential NRQCD (pNRQCD), which turns out to be the appropriate EFT to describe the electromagnetic transition between quarkonia.

The spin-averaged quarkonium \(E1\) transition rate in the traditional multipole expansion framework reads [1] \[\Gamma({}^{2S+1} L_J \to {}^{2S^\prime+1} L^\prime_{J^\prime} + \gamma) = \frac{4\alpha e_Q^2}{3} \left(2J^\prime+1\right) S_{if}^E k^3 \left|\varepsilon_{if}\right|^2, \label{conventional:E1:width32formula}\tag{2}\] where a quarkonium state is characterized by the principle quantum number \(n\), the total angular momentum \(J\), the orbital angular momentum \(L\) and total spin \(S\). The statistical factor \(S_{if}^E=S_{fi}^E\) is \[S_{if}^E = \text{max}\left(L,L^\prime\right) \begin{Bmatrix} J & 1 & J^\prime\\ L^\prime & S & L\\ \end{Bmatrix}^2,\] where the last term in the brackets denotes the 6-\(j\) symbol. The QCD dynamics is encapsulated in the overlap integral \(\varepsilon_{if}\), which at the lowest order in \(v\) is given by \[\varepsilon_{if} = \int_0^\infty\!\! dr \, r^3\, R_{nL}(r) R_{n^\prime L^\prime}(r), \label{conventional:E1:overlap:integral}\tag{3}\] where \(R_{nL}(r)\) denotes the radial wave function with principle quantum number \(n\) and orbital angular momentum \(L\). For the \({\cal O}(v^2)\) corrections to the quarkonium \(E1\) transition processes in the framework of pNRQCD, we refer the interested readers to [6].

4 strongly hindered \(E1\) transition between \(P\)-wave and \(S\)-wave quarkonia↩︎

In contrast to the atomic systems, the mass difference between highly excited quarkonium and the lowest-lying quarkonium state could be as large as 1 GeV (imagine the mass difference between \(\chi_{bJ}(3P)\) and \(\Upsilon(1S)\)). In such a situation, it is much more appropriate to regard the emitted photon as semi-hard rather than ultrasoft, and one definitely ought to give up the traditional multipole expansion approach. Upon emitting a semi-hard photon, an almost on-shell (potential) heavy quark will inevitably become semi-hard, which bears a virtuality of order-\((m v)^2\) and can only survive in a relatively short time (\(~1/mv\)) according to the uncertainty principle. In order to bring this virtual heavy quark back to almost on-shell (potential), one semi-hard gluon must be exchanged between it and the spectator heavy anti-quark. This is the essential physical consideration that leads to the “hard-scattering" mechanism [7]. This new mechanism has been first applied to predict the strongly hindered \(M1\) transition process \(\Upsilon(3S)\to \eta_b\gamma\), and found notable phenomenological success. It is the major goal of this work to apply this”hard-scattering" mechanism to tackle the strongly hindered \(E1\) transition between heavy quarkonia.

4.1 Spin-conserving quark amplitude from “hard-scattering" mechanism↩︎

Let us first consider the on-shell amplitude for \(Q(p, s_1)\overline{Q}(\bar{p},s_2)\to Q(p^\prime,s_1^\prime)\overline{Q}(\bar{p}^\prime,s_2^\prime)+\gamma(k)\), where all the incoming and outgoing quarks and antiquarks move nonrelativistically. For simplicity, we choose to work in the rest frame of the parent quarkonium, and assume the photon moves along the \(\hat{\boldsymbol{z}}\) axis. \(s_1\), \(s_2\) refer to the magnetic quantum number of the incoming \(Q\) and \(\overline{Q}\), and \(s^\prime_1\), \(s^\prime_2\) refer to the magnetic quantum number of the outgoing \(Q\) and \(\overline{Q}\). For our interest, we are only concerned in the case where the final-state \(Q\overline{Q}\) pair inherits the same total spin from the initial-state \(Q\overline{Q}\) pair. Denoting the total and relative momenta of the incoming (outgoing) heavy quark-antiquark pair by \(P\) and \(q\) (\(P^\prime\) and \(q^\prime\)), respectively, we then have \[\begin{eqnarray} & & p=\frac{P}{2}+q,\qquad \bar{p}=\frac{P}{2}-q; \\ && p' =\frac{P^{\prime}}{2}+q^{\prime},\qquad \bar{p}^\prime=\frac{P^{\prime}}{2}-q^{\prime}. \end{eqnarray} \label{quark:antiquark:momentum:kinematics}\tag{4}\] The on-shell condition demands that \(P\cdot q=0\) and \(P^\prime\cdot q^\prime=0\). For the incoming quark-antiquark pair, we have \(P^\mu = (M_i,{\boldsymbol{0}})\) and \(q^\mu=(0, {\boldsymbol{q}})\), with \(M_i\approx 2 m\) signifying the mass of the parent quarkonium. It is natural to assume \({\boldsymbol{q}}\sim {\cal O}(mv)\). We will regard the emitted photon as semi-hard, i.e., \({\boldsymbol{k}}\sim {\cal O}(mv)\). Since the daughter quarkonium recoils against the emitted photon, the daughter quarkonium acquires a nonzero yet small spatial momentum \({\boldsymbol{P}}^\prime = - {\boldsymbol{k}}\sim {\cal O}(mv)\). As a consequence of \(P^\prime\cdot q^\prime=0\), the relative momentum for the outgoing quark-antiquark pair has a typical spatial component \({\boldsymbol{q}}^\prime \sim {\cal O} (mv)\), yet acquires a strongly suppressed temporal component \(q^{\prime 0} \sim {\cal O} (mv^2)\).

The punch line of the “hard-scattering" mechanism is that a semihard gluon must be exchanged between the heavy quark and heavy antiquark. Half of the lowest-order Feynman diagrams have been depicted in Fig. 1. The Feynman rules can be straightforwardly read off from the NREFT Lagrangian 1 . Although it is a popular practice to use Coulomb gauge in computing the NRQCD diagrams, it turns out that Feynman gauge is a more convenient choice to handle the process entailing a semi-hard gluon exchange. The corresponding NREFT amplitudes affiliated with three diagrams in Fig. 1 are \[\begin{eqnarray} \tag{5} && i \mathcal{A}_a = \xi^{s'_1\dagger} \left( ie e_Q { 2 {\boldsymbol{p}}^\prime \cdot \boldsymbol{\varepsilon}_\gamma^* \over 2m}\right) {i\over l_{Q1}^0-\frac{\boldsymbol{l}_{Q1}^2}{2m}} (ig_s t^a) \xi^{s_1} \left({-i\over l_g^2+ i \epsilon} \right) \eta^{s_2^{\dagger}} (ig_s t^a) \eta^{s'_2}, \\ && i \mathcal{A}_b = \xi^{s'_1\dagger} (ig_s t^a) \frac{i}{l_{Q2}^0-\frac{\boldsymbol{l}_{Q2}^2}{2m}} \left( ie e_Q { 2 {\boldsymbol{p}} \cdot \boldsymbol{\varepsilon}_\gamma^* \over 2m}\right) \xi^{s_1} \left({-i\over l_g^2+i\epsilon} \right) \eta^{s_2^{\dagger}} (ig_s t^a) \eta^{s'_2}, \\ && i \mathcal{A}_{c} = \xi^{s'_1\dagger} \,\left( {ig_{s} e e_Q \over 2m} t^a \right)\, \xi^{s_1} \left( {i \over l_g^{2}+i\epsilon} \right) \eta^{s_2^{\dagger}} \,\left( ig_{s}{(\bar{\boldsymbol{p}}+\bar{\boldsymbol{p}}^\prime)\cdot \boldsymbol{\varepsilon}_\gamma^* \over 2m} t^{a}\right) \eta^{s'_2}, \end{eqnarray} \tag{6}\] where the transversity condition \({\boldsymbol{k}}\cdot \boldsymbol{\varepsilon}_\gamma^*=0\) has been utilized. For simplicity, we have suppressed the color indices associated with quark Pauli spinors.

The momenta carried by the quark propagators and gluon propagators in Fig. 1 are \[\begin{eqnarray} && l^0_{Q1} \equiv p^{\prime 0}+ |{\boldsymbol{k}}|-m \sim {\cal O}( m v), \qquad {\boldsymbol{l}}_{Q1}= {\boldsymbol{p}}^\prime + {\boldsymbol{k}}\sim {\cal O}( m v), \\ && l^0_{Q2} \equiv p^0 - |{\boldsymbol{k}}|-m\sim {\cal O}( m v), \qquad {\boldsymbol{l}}_{Q2}= {\boldsymbol{p}} - {\boldsymbol{k}}\sim {\cal O}( m v), \\ && l_{g}\equiv p-p^\prime -k = q- q^\prime -{k\over 2}\sim {\cal O}( m v). \end{eqnarray} \label{quark:gluon:propagators:momenta}\tag{7}\] Note we have subtracted the quark mass in the zeroth-component of the quark 4-momentum, in accordance with the nonrelativistic dispersion relation. From 7 one immediately observes that the momenta affiliated with both quark and gluon propagators belong to the semi-hard family. The gluon propagator can be simplified as \[{1\over l_g^2+i\epsilon} = {1\over (q- q^\prime -{k\over 2})^2+i\epsilon} \approx \frac{-1}{({\boldsymbol{q}}'-{\boldsymbol{q}})^2+ {\boldsymbol{k}}\cdot({\boldsymbol{q}}'-{\boldsymbol{q}})-i\boldsymbol{\epsilon}}, \label{expand:soft:gluon:propagator}\tag{8}\] which scales homogenously as \(1/(mv)^2\).

The nonrelativistic quark propagators become inhomogeneous in the soft region. The quark kinetic energy scales as \(m v^2\), which is subleading in \(v\) compared with \(l_{Q1}^0\). At the lowest order in \(v\), it is legitimate to retain only the \(l_{Q1}^0\) piece and resulting the following eikonal propagators: \[\begin{eqnarray} {1\over l_{Q1}^0-\frac{{\boldsymbol{l}}_{Q1}^2}{2m}} = {1\over l_{Q1}^0}\left(1+\frac{{\boldsymbol{l}}_{Q1}^2}{2m l_{Q1}^0}+\cdots\right) \approx {1\over l_{Q1}^0} \approx{1\over |{\boldsymbol{k}}|}, \\ {1\over l_{Q2}^0-\frac{{\boldsymbol{l}}_{Q2}^2}{2m}} = {1\over l_{Q2}^0}\left(1+\frac{{\boldsymbol{l}}_{Q2}^2}{2m l_{Q2}^0}+\cdots\right) \approx {1\over l_{Q2}^0} \approx -{1\over |{\boldsymbol{k}}|}, \end{eqnarray} \label{expand:soft:quark:propagator}\tag{9}\] which simply scales as \(1/mv\). This recipe for the soft quark propagator has been expounded in the context of strategy of region [10], [11]. To put in other word, we can obtain this result by re-interpreting 1 as the heavy quark effective theory (HQET) Lagrangian [12], [13] which contains the spin-independent \({\cal O}(1/m)\) operator. The eikonal propagators in 9 are nothing but the quark propagators given in HQET. It is interesting to note that in Fig. 1, the upper half diagrams above the horizontal cut are reminiscent of the soft Compton scattering process, in which the soft massless gauge bosons scatter off a static heavy quark. In a sense, it is more appropriate to account for such a process from the angle of HQET rather than NRQCD ⁷.

Inspecting 6 , we notice that the amplitude of Fig. 1\(c)\) (with a seagull vertex) is suppressed by a factor \(\propto |{\boldsymbol{k}}|/m\sim v\) relative to the amplitudes of Fig. 1\(a)\) and \(b)\), hence can be safely discarded.

One can also employ the equality \({\boldsymbol{p}}^\prime \cdot \boldsymbol{\varepsilon}_\gamma^*= {\boldsymbol{q}}^\prime \cdot \boldsymbol{\varepsilon}_\gamma^*\) and \({\boldsymbol{p}} \cdot \boldsymbol{\varepsilon}_\gamma^*= {\boldsymbol{q}} \cdot \boldsymbol{\varepsilon}_\gamma^*\) in 6 , since \({\boldsymbol{P}}^\prime \cdot \boldsymbol{\varepsilon}_\gamma^* = {\boldsymbol{P}} \cdot \boldsymbol{\varepsilon}_\gamma^* =0\). Further implementing the homogenized soft gluon and quark propagators given in 8 and 9 , we obtain the full quark-level amplitude at the lowest order in \(v\): \[{\cal A}[Q\overline{Q}\to Q\overline{Q}+\gamma(k)] = {e e_Q g_s^2\over 2m |{\boldsymbol{k}}|} \, \xi^{s'_1\dagger} t^a \xi^{s_1} \eta^{s_2^{\dagger}} t^a \eta^{s'_2} \, \boldsymbol{T}({\boldsymbol{q}'}-{\boldsymbol{q}}) \cdot \boldsymbol{\varepsilon}_{\gamma^*}, \label{quark:level:semi:hard:scattering:amplitude}\tag{10}\] where \[\boldsymbol{T}({\boldsymbol{w}}) = { 2 {\boldsymbol{w}} \over {\boldsymbol{w}}^2 + {\boldsymbol{w}}\cdot {\boldsymbol{k}} - i\epsilon} + ({\boldsymbol{k}}\to -{\boldsymbol{k}}). \label{kernel:T:definition}\tag{11}\] The second term originates from those mirror diagrams where the photon is emitted from the heavy antiquark.

It is worth emphasizing that, the above derivation amounts to integrating out the semi-hard quantum fluctuation in perturbative NRQCD. A tacit assumption is that the perturbation theory is still applicable, i.e., the characteristic strong coupling constant \(\alpha_s(m v)\ll 1\). This assumption is expected to be solid for bottomonia, and might be reasonable even for charmonia.

4.2 Folding hard-scattering kernel with bound-state wave functions↩︎

Having obtained the quark amplitude for \(Q\overline{Q}\to Q\overline{Q}+\gamma(k)\), we proceed to derive the corresponding \(E1\) transition rate between two physical quarkonia states. To form a bound state, the heavy quark and antiquark are assumed to be nearly on-shell (potential), exchanging infinite ladders of potential gluons. The corresponding binding dynamics are governed by nonperturbative QCD. To make a physical prediction for \(E1\) transition, we have to fold the “hard-scattering" kernel in 10 with the nonperturbative wave functions of the initial- and final-state quarkonia.

At the lowest order in \(v\), the state vector of a quarkonium \(H\) bearing the quantum number \(n{}^{2S+1}L_J\), can be explicitly constructed in terms of the nonrelativistic heavy quark-antiquark basis [14] \[\begin{align} && \left| H(n^{2S+1}L_J)({\boldsymbol{P}}, J_z) \right \rangle = \sum_{i,j,s_1, s_2, S_z, L_z} {\delta^{ij}\over \sqrt{N_c}} \left\langle {1\over 2} s_1; {1\over 2}s_2 \bigg\vert S\,S_z \right\rangle \langle S\,S_z; L\,L_z| J\,J_z \rangle \nonumber\\ & \times & \int\frac{d^3 {\boldsymbol{q}}}{(2\pi)^3} \widetilde{R}_{nL}(|{\boldsymbol{q}}|) Y_{L L_z}(\hat{{\boldsymbol{q}}}) \left \vert Q^i\left(\frac{\boldsymbol{P}}{2}+ {\boldsymbol{q}}, s_1 \right)\overline{Q}^j \left(\frac{\boldsymbol{P}}{2}-{\boldsymbol{q}},s_2\right) \right\rangle, \label{Construction:quarkonium:state} \end{align}\tag{12}\] where \(i,j=1,2,3\) denote the color indices, \(s_1\) and \(s_2\) characterize the magnetic quantum number of the quark and antiquark. \(\widetilde{R}_{nL}(|{\boldsymbol{q}}|)\) denotes the radial wave function for quarkonium in momentum space, \(Y_{L L_z}(\hat{\boldsymbol{q}})\) signifies the spherical harmonics. \(\langle \frac{1}{2} s_{1};\frac{1}{2} s_{2}|S\,S_z\,\rangle\) and \(\langle \,S\,S_z\,;L \,L_z| J\,J_z\,\rangle\) correspond to the Clebsch-Gordan coefficients affiliated with spin-spin coupling and spin-orbital coupling, where \(S_z\) and \(L_z\) signify the magnetic quantum numbers corresponding to the spin and orbital angular momentum.

One readily verifies that the quarkonium state \(H\) defined in 12 obeys the standard non-relativistic normalization: \[\langle H(n^{2S+1}L_{J})\,({\boldsymbol{P}}_1)\, |H(n^{2S+1}L_{J})\,({\boldsymbol{P}}_2) \rangle = (2\pi)^3 \,\delta^{(3)} ({\boldsymbol{P}}_1- {\boldsymbol{P}}_2),\] provided that the momentum-space quarkonium wave function is subject to the following orthogonality condition: \[\int\!\! \frac{d^3 {\boldsymbol{q}}}{(2\pi)^3} \widetilde{R}_{nL}(|{\boldsymbol{q}}|) \widetilde{R}^*_{n'L'}(|{\boldsymbol{q}}|) Y_{L L_z}(\hat{{\boldsymbol{q}}}) Y^*_{L' L'_z}(\hat{{\boldsymbol{q}}}) = \delta_{n n'} \delta_{L L^\prime} \delta_{L_z L_z'}.\]

The selection rule of the \(E1\) transition is that the orbital angular momentum changes by one unit while keeping spin unchanged. For definiteness, in this work we will concentrate on the situation where the \(P\)-wave quarkonium transitions into a \(S\)-wave quarkonium.

The \(E1\) transition amplitude becomes \[\begin{align} & & \mathcal{A}[n^{2S+1} P_J\to n'^{2S+1} S_S+\gamma ] = \int\frac{d^3 {\boldsymbol{q}}}{(2\pi)^3}\int\frac{d^3 {\boldsymbol{q}'}}{(2\pi)^3} \frac{1}{N_c} \sum_{i,s_1, s_2, S_z, L_z} \left\langle {1\over 2} s_1; {1\over 2}s_2 \bigg\vert S\,S_z \right\rangle \langle S\,S_z; 1\,L_z| J\,J_z \rangle \nonumber\\ && \times \sum_{i',s'_1, s'_2} \left\langle S' \,S'_z \bigg\vert {1\over 2} s'_1; {1\over 2}s'_2 \right\rangle \widetilde{R}_{nP}(|{\boldsymbol{q}}|) Y_{1 L_z}(\hat{{\boldsymbol{q}}}) \widetilde{R}^*_{n'S}(|{\boldsymbol{q}'}|)Y^*_{00}(\hat{{\boldsymbol{q}'}}) \label{E1:amplitude:P:wave:to:S:wave} \\ &&\times {\cal A}[Q^i (s_1) \overline{Q}^i(s_2) \to Q^{i'}(s'_1)\overline{Q}^{i'}(s'_2)+\gamma(k)], \nonumber \end{align}\tag{13}\]

The quark and anti-quark can form either spin singlet or spin triplet. It is convenient to adopt the following spin-spin coupling formula: \[\begin{eqnarray} && \sum_{s_1,s_2} \langle \frac{1}{2} s_{1};\frac{1}{2}s_{2}|0\,0 \rangle \xi^{s_{1}}\eta^{s_{2}\dagger} = {1\over \sqrt{2}}\,{\boldsymbol{1}}_{2\times 2}, \qquad \sum_{s'_1,s'_2} \langle 0 \,0 \vert {1\over 2} s'_1; {1\over 2} s'_2 \rangle \eta^{s'_2}\xi^{s'_1\dagger} =\frac{1}{\sqrt{2}}\,{\boldsymbol{1}}_{2\times 2}, \\ && \sum_{s_1,s_2} \langle \frac{1}{2} s_{1};\frac{1}{2}s_{2}|1\,S_z \rangle \xi^{s_{1}}\eta^{s_{2}\dagger} = \frac{1}{\sqrt{2}} \boldsymbol{\sigma} \cdot \boldsymbol{\varepsilon}(S_z), \qquad \sum_{s'_1,s'_2} \langle 1 \,S'_z \vert {1\over 2} s'_1; {1\over 2} s'_2 \rangle \eta^{s'_2}\xi^{s'_1\dagger} =\frac{1}{\sqrt{2}} \boldsymbol{\sigma} \cdot \boldsymbol{\varepsilon}^*(S'_z), \nonumber \\ \end{eqnarray} \label{spin:spin:coupling:relation}\tag{14}\] where \(\boldsymbol{\varepsilon}(S_z)\) refers to the polarization vector affiliated with the unit spin.

Implementing 14 into 13 , we find \[\begin{eqnarray} & & \mathcal{A}[n^{1} P_1(J_z) \to n'^{1} S_0+\gamma ] = C_F {e e_Q g_s^2\over 2m |{\boldsymbol{k}}|} \int\!\!\! \frac{d^3 {\boldsymbol{q}}}{(2\pi)^3}\int\!\!\! \frac{d^3 {\boldsymbol{q}'}}{(2\pi)^3} \left({1\over \sqrt{2}}\right)^2 {\rm Tr}[ {\boldsymbol{1}}^2_{2\times 2} ] \tag{15} \\ &\times& \widetilde{R}_{nP}(|{\boldsymbol{q}}|) Y_{1 J_z}(\hat{{\boldsymbol{q}}}) \widetilde{R}^*_{n'S}(|{\boldsymbol{q}'}|)Y^*_{00}(\hat{{\boldsymbol{q}'}}) \, \boldsymbol{T}({\boldsymbol{q}'}-{\boldsymbol{q}}) \cdot \boldsymbol{\varepsilon}_{\gamma}^*, \nonumber\\ & & \mathcal{A}[n^{3}P_J (J_z) \to n'^{3} S_1(S'_z)+\gamma ] = C_F {e e_Q g_s^2\over 2m |{\boldsymbol{k}}|} \int\!\!\! \frac{d^3 {\boldsymbol{q}}}{(2\pi)^3}\int\!\!\! \frac{d^3 {\boldsymbol{q}'}}{(2\pi)^3} \sum_{S_z, L_z} \langle 1\,S_z; 1\,L_z| J\,J_z \rangle \tag{16} \\ &\times & \widetilde{R}_{nP}(|{\boldsymbol{q}}|) Y_{1 L_z}(\hat{{\boldsymbol{q}}}) \widetilde{R}^*_{n'S}(|{\boldsymbol{q}'}|)Y^*_{00}(\hat{{\boldsymbol{q}'}})\, \left({1\over \sqrt{2}}\right)^2 {\rm Tr}[ \boldsymbol{\sigma} \cdot \boldsymbol{\varepsilon}^*(S'_z) \boldsymbol{\sigma} \cdot \boldsymbol{\varepsilon}(S_z) ] \boldsymbol{T} ({\boldsymbol{q}'}-{\boldsymbol{q}}) \cdot \boldsymbol{\varepsilon}_{\gamma}^*, \nonumber \end{eqnarray} \tag{17}\] where the hard-scattering kernel \(\boldsymbol{T}\) is given in 11 . Note we have conducted the color sum using \({\rm Tr}[t^a t^a] = C_F N_c\), with \(C_F={N_c^2-1\over 2 N_c}\).

Since the bound-state wave functions are usually solved in the coordinate space, we proceed to Fourier transforming 17 using \[\widetilde{R}_{nL}(|{\boldsymbol{q}}|) Y_{L L_z}(\hat{{\boldsymbol{q}}}) = \int\!\!\! d^{3}{\boldsymbol{r}} \, e^{-i{\boldsymbol{q}}\cdot {\boldsymbol{r}}} R_{nL}(r) Y_{L L_z}(\hat{{\boldsymbol{r}}}).\]

Since the hard-scattering kernel \(\boldsymbol{T}\) depends on the quark relative momenta \({\boldsymbol{q}}\) and \({\boldsymbol{q}'}\) only through the linear combination \({\boldsymbol{q}'}-{\boldsymbol{q}}\), one readily conducts three-fold integration and only retains the integration over \({\boldsymbol{r}}\): \[\begin{align} & & \int\!\!\! \frac{d^{3} {\boldsymbol{q}}}{(2\pi)^{3}} \int\!\!\! \frac{d^{3} {\boldsymbol{q}'}}{(2\pi)^{3}} \int\!\!\! d^{3}{\boldsymbol{r}} \int\!\!\! d^{3}{\boldsymbol{r}'} \: e^{-i {\boldsymbol{q}}\cdot {\boldsymbol{r}}}\, e^{i {\boldsymbol{q}'}\cdot {\boldsymbol{r}'}} \, f({\boldsymbol{r}})\,\boldsymbol{T}({\boldsymbol{q}'}-{\boldsymbol{q}}) g({\boldsymbol{r}'}) \nonumber\\ & =& \int\!\!\! d^{3}{\boldsymbol{r}} \, f({\boldsymbol{r}}) \int\!\!\! \frac{d^{3} {\boldsymbol{w}}}{(2\pi)^{3}} \, \boldsymbol{T}({\boldsymbol{w}}) \, \int\!\!\! d^{3}{\boldsymbol{r}'} \, g({\boldsymbol{r}'}) e^{i {\boldsymbol{w}} \cdot{\boldsymbol{r}'}} \int\!\!\! \frac{d^{3} {\boldsymbol{q}}}{(2\pi)^{3}} \: e^{-i {\boldsymbol{q}}\cdot({\boldsymbol{r}}-{\boldsymbol{r}')} } \nonumber\\ & = & \int\!\!\! d^{3}{\boldsymbol{r}}\, f({\boldsymbol{r}})\,g({\boldsymbol{r}}) \int\!\!\! \frac{d^{3} {\boldsymbol{w}}}{(2\pi)^{3}} \, e^{i {\boldsymbol{w}} \cdot{\boldsymbol{r}}} \boldsymbol{T}({\boldsymbol{w}}) \nonumber\\ \nonumber\\ &=& \int\!\!\! d^{3}{\boldsymbol{r}}\, f({\boldsymbol{r}})\, g({\boldsymbol{r}})\, {1\over 2\pi} e^{\frac{i}{2}kr}\, \left[\hat{\boldsymbol{r}} \, {2 i + k r\over r^2} \cos\left(\frac{1}{2}kr\cos\theta\right) +i\frac{\hat{\boldsymbol{k}}}{r}\sin\left(\frac{1}{2}kr\cos\theta\right) \right] \label{4:fold:integration:simplified} \end{align}\tag{18}\] where we have changed the integration variable from \({\boldsymbol{q}'}\) to \({\boldsymbol{w}}= {\boldsymbol{q}'}-{\boldsymbol{q}}\) in the second line.

It is convenient to employ the following representation of the spherical harmonics: \[Y_{00}(\hat{\boldsymbol{r}}) = \sqrt{{1\over 4\pi}}, \qquad Y_{1L_z}(\hat{\boldsymbol{r}}) = \sqrt{{3\over 4\pi}} \hat{\boldsymbol{r}}\cdot\boldsymbol{\varepsilon}(L_z), \label{spherical:harmonics}\tag{19}\] where \(\boldsymbol{\varepsilon}(L_z)\) refers to the polarization vector associated with the unit orbital angular momentum.

In light of 18 and 19 , the \(P\)-to-\(S\)-wave one-photon transition amplitudes in 17 can be reduced to \[\begin{eqnarray} & & \mathcal{A}[n^{1} P_1(J_z) \to n'^{1} S_0+\gamma ] = \sqrt{{1\over 4\pi}} \sqrt{{3\over 4\pi}} C_F {e e_Q g_s^2\over 2m |{\boldsymbol{k}}|} {\varepsilon}^i(J_z) {\varepsilon}^{j*}_{\gamma} \nonumber \\ && \times \int\!\!\! dr \,r^2\, {2 i + k r\over r^2} e^{\frac{i}{2}kr} R_{nP}(r) R^*_{n'S}(r) \, F^{ij}(kr), \tag{20}\\ & & \mathcal{A}[n^{3}P_J (J_z) \to n'^{3} S_1(S'_z)+\gamma ] = {\sqrt{3}\over 4\pi} C_F {e e_Q g_s^2\over 2m |{\boldsymbol{k}}|} \sum_{S_z, L_z} \langle 1\,S_z; 1\,L_z| J\,J_z \rangle (\boldsymbol{\varepsilon}^*(S'_z) \cdot \boldsymbol{\varepsilon}(S_z))\, {\varepsilon}^i(L_z) {\varepsilon}^{j*}_{\gamma} \nonumber \\ & & \times \int\!\!\! d r \, r^2 {2 i + k r\over r^2} e^{\frac{i}{2}kr} R_{nP}(r) R^*_{n'S}(r) \, F^{ij}(kr), \tag{21} \end{eqnarray} \tag{22}\] where the rank-2 symmetric tensor can be readily worked out upon performing the angular integration: \[F^{ij}(kr) \equiv \int\!\!\!{d\Omega\over 4\pi} \cos\left(\frac{1}{2}kr\cos\theta\right) \hat{\boldsymbol{r}}^i \hat{\boldsymbol{r}}^j = {2\over kr} j_1\left({kr\over 2}\right) \delta^{ij} + \left[j_0\left({kr\over 2}\right)- {6\over k r} j_1\left({kr\over 2}\right) \right] \hat{\boldsymbol{k}}^i \hat{\boldsymbol{k}}^j.\] Due to the transversity condition \({\boldsymbol{k}}\cdot \boldsymbol{\varepsilon}_\gamma^*=0\), the second term in the bracket in 18 as well as the \(\hat{\boldsymbol{k}}^i \hat{\boldsymbol{k}}^j\) piece in \(F^{ij}(r)\) yields a vanishing contribution in 22 , thus can be discarded.

For the spin-triplet \(P\)-wave states, there exists the following spin-orbital coupling formula [15]: \[\begin{align} \tag{23} \sum_{S_z, L_z} \langle 1\,S_z; 1\,L_z| 0\,0 \rangle {\varepsilon}^{i}(S_z) {\varepsilon}^{j}(L_z) &= -\frac{1}{\sqrt{3}}\delta^{ij}, \\ \tag{24} \sum_{S_z, L_z} \langle 1\,S_z; 1\,L_z| 1\,J_z \rangle {\varepsilon}^{i}(S_z) {\varepsilon}^{j}(L_z) &= -\frac{i}{\sqrt{2}} \epsilon_{ijk} {\varepsilon}_{^3P_1}^{k}(J_z), \\ \tag{25} \sum_{S_z, L_z} \langle 1\,S_z; 1\,L_z| 2\,J_z \rangle {\varepsilon}^{i}(S_z) {\varepsilon}^{j}(L_z) &= {\varepsilon}_{^3P_2}^{ij}(J_{z}), \end{align} \tag{26}\] where \(\boldsymbol{\varepsilon}_{^3P_1}^{k}(J_z)\) denotes the polarization vector of the \({}^3P_1\) state, and \({\varepsilon}_{^3P_2}^{ij}(J_{z})\) signifies the symmetric and traceless polarization tensor of the \({}^3P_2\) state.

With the aid of the spin-orbital coupling relation 26 , the \(P\)-to-\(S\)-wave strongly hindered \(E1\) transition amplitudes in 22 finally become \[\label{eq:P2S} \begin{align} \mathcal{A}(n^1P_1\to n^{\prime 1}S_0+\gamma)&=\frac{-\sqrt{3}ee_Qg_s^2C_F}{2m\pi}\varepsilon_{nn^\prime}(r) \,\boldsymbol{\varepsilon}_{^1P_1} \cdot\boldsymbol{\varepsilon}_\gamma^*, \\ \mathcal{A}(n^3P_0\to n^{\prime 3}S_1+\gamma)&=\frac{ee_Qg_s^2C_F}{2m\pi}\varepsilon_{nn^\prime}(r)\, \boldsymbol{\varepsilon}^{*}_{^3 S_1}\cdot \boldsymbol{\varepsilon}^*_\gamma , \\ \mathcal{A}(n^3P_1\to {n^{\prime 3}S_1}+\gamma)&=\frac{\sqrt{3}iee_Qg_s^2C_F}{2\sqrt{2}m\pi} \varepsilon_{nn^\prime}(r) \, \boldsymbol{\varepsilon}_{^3P_1} \cdot \boldsymbol{\varepsilon}_{^3S_1}^{*} \times \boldsymbol{\varepsilon}_\gamma^{*}, \\ \mathcal{A}(n^3P_2\to {n^{\prime 3}S_1}+\gamma)&=\frac{-\sqrt{3}ee_Qg_s^2C_F}{2m\pi}\varepsilon_{nn^\prime}(r)\, {\varepsilon}_{^3P_2}^{ij} \varepsilon_{^3S_1}^{i*} \varepsilon_\gamma^{j*}, . \end{align}\tag{27}\] where the overlap integral \(\varepsilon_{nn^\prime}\) is defined by \[\begin{align} \varepsilon_{nn^\prime}(r) & = \int\!\! dr\, r^2 R_{nP}(r) R_{n^\prime S}(r) e^{\frac{i}{2}kr} \frac{2-ikr}{k^2\,r^3} \, j_1(\frac{kr}{2}). \label{New:E1:overlap:integral} \end{align}\tag{28}\]

Curiously, the overlap integral for the strongly hindered \(E1\) transition looks similar to, but somewhat simpler than its counterpart in the strongly hindered \(M1\) transition formula [7]: \[\varepsilon^{M1}_{nn^\prime}(r) = \int\!\! dr\, r^2 R_{nP}(r) R_{n^\prime S}(r) e^{\frac{i}{2}kr}\frac{1}{r} \left[j_0\left(\frac{kr}{2}\right)-\frac{2-ikr}{kr} \, j_1\left(\frac{kr}{2}\right)\right].\]

Both of the overlap integrals in the strongly hindered \(E1\) and \(M1\) transitions are complex-valued. It looks a little bit unusual since we have only considered tree-level diagrams. From the calculational angle, the occurrence of the imaginary part can be attributed to the fact that the exchanged semi-hard gluon can become on-shell as \({\boldsymbol{q}}-{\boldsymbol{q}}^\prime = {\boldsymbol{k}}\). Nevertheless, numerical study reveals that the real part dominates over the imaginary part in the overlap integral for both \(E1\) and \(M1\) transition processes. In most quarkonium \(E1\) transition processes investigated in Sec. 5, we find the real part of the overlap integral is several orders of magnitude greater than the imaginary part. Therefore, one may safely discard the contribution of the imaginary part in the overlap integrals in phenomenological analysis.

It is also interesting to examine the asymptotic expression of the overlap integral in the limit \(kr\ll 1\). For the strongly hindered \(M1\) transition, one finds asymptotically \(e^{\frac{i}{2}kr}\frac{1}{r} \left[j_0\left(\frac{kr}{2}\right)-\frac{2-ikr}{kr} \, j_1\left(\frac{kr}{2}\right)\right] \to \quad\frac{2}{3r}+\frac{i k}{2}+\cdots\) [7]. For the strongly hindered \(E1\) transition, we find asymptotically \(e^{\frac{i}{2}kr} \,\frac{2-ikr}{k^2\,r^3} \, j_1(\frac{kr}{2})\to {1\over 3 kr^2} + {i k^2r\over 72}+\cdots\). At the limit \(kr\ll 1\), it appears that the suppression of the imaginary part relative to the real part in the strongly hindered \(E1\) transition is much more severe than the strongly hindered \(M1\) transition. Finally, substituting this asymptotic expression into 28 , the numerical values are very close to the rigorous results of the overlap integrals for various quarkonium \(E1\) transition processes.

4.3 Transition rates for strongly hindered \(E1\) processes↩︎

Squaring the amplitudes, summing over final-state spins and averaging upon the initial-state polarizations, and using the formula \[\Gamma({}^{2S+1} L_J \stackrel{\text{E}_1}{\longrightarrow} {}^{2S+1} L^\prime_{J^\prime} + \gamma)= {k\over 2\pi}{1\over 2J+1} \sum_{\rm Pol.}\left|{\cal A}\right|^2,\] we then obtain \[\begin{eqnarray} & & \Gamma(n^3P_{J}\to {n^{\prime 3}S_1}+\gamma) = \frac{64e_Q^2\alpha\alpha_s^2C_F^2k}{M_i^2}|\varepsilon_{nn^\prime}|^2, \\ && \Gamma(n^3S_1\to n^{\prime 3}P_{J}+\gamma) = \frac{64(2J+1)e_Q^2\alpha\alpha_s^2C_F^2k}{3M_i^2}|\varepsilon_{nn^\prime}|^2, \\ & & \Gamma(n^1P_{1}\to {n^{\prime 1}S_0}+\gamma) = \frac{64e_Q^2\alpha\alpha_s^2C_F^2k}{M_i^2}|\varepsilon_{nn^\prime}|^2, \\ && \Gamma(n^1S_0\to n^{\prime 1}P_{1}+\gamma) = \frac{192e_Q^2\alpha\alpha_s^2C_F^2k}{M_i^2}|\varepsilon_{nn^\prime}|^2, \end{eqnarray} \label{strongly:hindered:E1:width:formula}\tag{29}\] for \(J=0,1,2\). For simplicity, we have approximated the heavy quark mass \(m\) by \(M_i/2\), half of mass of the initial-state quarkonium.

Equations 29 and 28 constitute the major new results of this work.

If we neglect the fine splitting among different \(P\)-wave spin triplet members, the transition rates satisfy the relation \(\Gamma_0:\Gamma_1:\Gamma_2=1:1:1\) for \(n^3P_{0,1,2}\to\) \(n^{\prime 3}S_1+\gamma\), and \(\Gamma_0:\Gamma_1:\Gamma_2=1:3:5\) for the inverse processes \(n^3S_1\to n^{\prime 3}P_{0,1,2}+\gamma\). These patterns are identical to what are derived from the conventional \(E1\) transition formula 2 , which is a consequence of heavy quark spin symmetry [16]. This is not surprising, since our new \(E1\) transition mechanism also respects the heavy quark spin symmetry, which is a rigorous consequence of the lowest-order NRQCD Lagrangian.

Comparing 2 and 29 , we immediately notice one important difference between the “hard-scattering" mechanism and conventional formula, that the sensitivity of the \(E1\) transition rate to the photon momentum is much weaker in the former case.

5 Numerical results↩︎

In this section, we make a detailed numerical comparison between our new predictions arising from the hard-scattering mechanism and the conventional ones for \(E1\) transition processes between \(P\) and \(S\)-wave bottomonia and charmonia.

The key nonperturbative inputs are the Schrödinger wave functions for the parent and daughter quarkonium states. Assuming that color Coulomb force and linear confinement force are equally important for quarkonium dynamics, we choose to work with the Cornell potential model [17]: \[V_{\text{Cornell}}(r)=\frac{-\kappa}{r}+\frac{r}{a^2},\] where \(\kappa=0.52\) and \(a=2.34\,\text{GeV}^{-1}\). In solving for the charmonia and bottomonia energy levels and the corresponding wave functions, we also take \(m_c=1.84\;\text{GeV}\) and \(m_b= 5.18\;\text{GeV}\) [18]. The QCD coupling constant entering 29 should be evaluated at the characteristic semi-hard scale, and we take \(\alpha_s(m_c v)=0.59\) and \(\alpha_s(m_b v)=0.43\) [19].

After numerically obtaining quarkonia radial wave functions, we then use 29 and 28 to calculate the partial width from “hard-scattering" mechanism for various \(E1\) transition processes. In Table 1-4 we enumerate our predictions for various \(E1\) transition rates for bottomonia and charmonia family. For the sake of comparison, we also juxtapose the predictions from the conventional multipole expansion method, 2 , together with the measured values whenever available [3].

For \(E1\) transitions in both bottomonium and charmonium, the numerical predictions from the hard scattering mechanism are different from those obtained in the conventional \(E1\) formula ⁸ In the case of the small photon momentum, the multipole expansion picture is expected to hold, and we do not anticipate that the predictions from our new mechanism are trustworthy anymore. As a matter of fact, in most observed channels with small photon momentum, the predictions from the conventional formula are much closer to the measured values than those from the “hard-scattering" mechanism.

We certainly anticipate our predictions become more reliable than the conventional predictions when the photon momentum exceeds 800 MeV. The transition processes \(\chi_{b0,1,2}\to \Upsilon(1S)+\gamma\) are of special interest, since the photon momenta in these processes become quite close to 800 MeV. From Table 2 we observe that the predictions from the “hard-scattering" mechanism are considerably larger than those from the conventional mechanism. Similarly, the momentum of the radiated photon in the process \(h_{b}\to \eta_b(1S)+\gamma\) is greater than 800 MeV. From Table 3, one observes that the prediction from the new mechanism is slightly bigger than that from the conventional one. Hopefully, the future precise measurements of these \(E1\) transition channels will unambiguously test whether the”hard-scattering" mechanism is more successful relative to the conventional one or not.

From Table 1-4, we also numerically confirm that the predictions from the “hard-scattering" mechanism indeed have a weaker sensitivity to the photon momentum than those from the conventional mechanism. This is supported by the fact that the predictions from the new mechanism respects the pattern dictated by the heavy quark spin symmetry to a better extent.

Last but not least, it is worth mentioning a decade-long puzzle, i.e., the measured \(E1\) transition rates for \(\Upsilon(3S)\to\chi_{b0,1,2}\gamma\) processes exhibit an anomalous pattern, which badly violates the cherished heavy quark spin symmetry. Clearly this anomaly cannot be accounted by both the conventional and the new hard-scattering mechanism. There have been some efforts attempting to resolve this puzzle by including a variety of relativistic corrections in quark potential models [20]–[25]. It is difficult to conceive that the heavy quark spin symmetry can be badly violated for the bottom quark sector, especially concerning the fact \(v^2\approx 0.1\) for bottomonium. Obviously, future independent experiments will be essential to finally settle down this puzzle.

6 Summary↩︎

The electromagnetic transition between heavy quarkonia is a widely studied topic. For a very small photon momentum, the dominant \(E1\) transition is adequately described by the standard multipole expansion approach.

In sharp contrast to the atomic system, the linear confinement potential in QCD allows the mass difference between the highly excited quarkonium and the ground state to be as large as 1 GeV. In such situation, the photon can no longer be viewed as ultrasoft, and the multipole expansion doctrine ceases to work. It is more appropriate to regard the photon momentum as semihard, and adopt the hard-scattering mechanism to account for these strongly hindered EM transitions, where a semihard gluon must be exchanged between heavy quark and antiquark during the single-photon emission.

In this work, we apply the “hard-scattering” approach originally developed to tackle the strongly hindered \(M1\) transition a decade ago to deal with the strongly hindered \(E1\) transitions between quarkonia. We derive the compact formulas for the corresponding transition rates in the context of the non-relativistic EFT, at the lowest order in the strong coupling and velocity expansion. Although it is possible to deduce the identical expression from the relativistic QCD, the physics becomes much more transparent from the angle of NREFT. We have also conducted a detailed numerical study for various \(E1\) transition processes between \(P\)- and \(S\)-wave bottomonia and charmonia, and confront our new predictions with the conventional ones. Unfortunately, unlike the \(M1\) case, the emitted photon in all the observed \(E1\) transition channels in bottomonia and charmonia is not energetic enough to justify the predictions from the hard-scattering mechanism. Nevertheless, the photon energy already reaches 800 MeV in the decay channels \(\chi_{b0,1,2}\to \Upsilon(1S)+\gamma\) and \(h_{b}\to \eta_b(1S)+\gamma\), and the predictions from the “hard-scattering" mechanism are considerably larger those from the conventional approach. Therefore, we hope that the future precise measurements of these \(E1\) transition channels can examine the validity of the”hard-scattering" mechanism. In the future, we also plan to further apply this hard-scattering formalism to predict the strongly hindered \(D\)-to-\(P\)-wave quarkonia \(E1\) transition, and make some testable predictions in close contact with phenomenology.

7 strongly hindered \(E1\) transition from QCD↩︎

In this appendix, we show that our key results, 28 and 29 , can also be directly reproduced from the underlying relativistic field theory, e.g., QCD plus QED. As a matter of fact, the strongly hindered \(M1\) transition in the hard-scattering scattering has been derived from this angle [7]. At the lowest order in \(\alpha_s\), there are four Feynman diagrams for \(Q\overline{Q}\to Q\overline{Q}+\gamma\) in the hard-scattering mechanism, two of which are depicted in Fig. 2. Note the seagull vertex in Fig. 1 arising from the NREFT is absent in the underlying relativistic field theory. The kinematical setting is identical with 4 .

Let us consider the single-photon transition process \(n^{2S+1} P_J\to n'^{2S+1} S_S+\gamma\). The starting point is 13 , except the quark amplitude is now computed from underlying relativistic theory rather than from NREFT: \[\begin{align} & & \mathcal{A}[n^{2S+1} P_J\to n'^{2S+1} S_S+\gamma ] = \int\frac{d^3 {\boldsymbol{q}}}{(2\pi)^3}\int\frac{d^3 {\boldsymbol{q}'}}{(2\pi)^3} \frac{1}{N_c} \sum_{i,s_1, s_2, S_z, L_z} \left\langle {1\over 2} s_1; {1\over 2}s_2 \bigg\vert S\,S_z \right\rangle \langle S\,S_z; 1\,L_z| J\,J_z \rangle \nonumber\\ && \times \sum_{i',s'_1, s'_2} \left\langle S' \,S'_z \bigg\vert {1\over 2} s'_1; {1\over 2}s'_2 \right\rangle \widetilde{R}_{nP}(|{\boldsymbol{q}}|) Y_{1 L_z}(\hat{{\boldsymbol{q}}}) \widetilde{R}^*_{n'S}(|{\boldsymbol{q}'}|)Y^*_{00}(\hat{{\boldsymbol{q}'}}) \label{E1:amplitude:P:wave:to:S:wave:QCD43QED} \\ &&\times {\cal A}[Q^i (s_1) \overline{Q}^i(s_2) \to Q^{i'}(s'_1)\overline{Q}^{i'}(s'_2)+\gamma(k)]. \nonumber \end{align}\tag{30}\] The quark amplitude \({\cal A}={\cal A}_a+{\cal A}_b+{\rm two\;mirror\;diagrams}\), which in Feynman gauge reads \[\begin{eqnarray} {\cal A}_{a} & = & ie e_{Q} g_{s}^{2} { [\bar{u}(p') \cancel{\varepsilon}^{*}_{\gamma} (\cancel{p}'+\cancel{k} +m) t^a \gamma^{\alpha}u(p)] \, [\bar v(\bar p) t^a \gamma_{\alpha} v(\bar p')] \over ((p'+k)^{2}-m^{2} ) ((q- q^\prime -{k\over 2})^2+i\epsilon) }, \\ {\cal A}_{b} & = & i e e_{Q} g_{s}^{2} { [\bar{u}(p') t^a \gamma^\alpha (\cancel{p}-\cancel{k} +m) \cancel{\varepsilon}^{*}_{\gamma} u(p)]\,[\bar{v}(\bar p) t^a\gamma_{\alpha} v(\bar p')] \over ((p-k)^2-m^2) ((q- q^\prime -{k\over 2})^2+i\epsilon)}. \end{eqnarray} \label{QCD:amplitude:Fig:a:Fig:b}\tag{31}\]

It is convenient to employ the covariant projector technique [26] to enforce the \(Q\overline{Q}\) pair to bear the spin-singlet or spin-triplet quantum numbers. For the \(Q\overline{Q}\) pair in the initial state, one can make the following substitution in 31 : \[\begin{align} \sum_{s_1,s_2} u(p,s_1) \bar v(\bar p,s_2)\langle\frac{1}{2}s_1\frac{1}{2}s_2|00\rangle & = \frac{-1}{2\sqrt{2}E(E+m)} (\cancel{p}+m) {\cancel{P}+2E\over 4E} \gamma_{5} (\cancel{\bar{p}}-m) \otimes {\boldsymbol{1}_c\over \sqrt{N_c}}, \\ \sum_{s_1,s_2} u(p,s_1) \bar v(\bar p,s_2)\langle\frac{1}{2}s_1\frac{1}{2}s_2|1S_z\rangle & = \frac{1}{2\sqrt{2}E(E+m)} (\cancel{p}+m) {\cancel{P}+2E\over 4E} \cancel{\varepsilon}(S_z) (\cancel{\bar{p}}-m) \otimes {\boldsymbol{1}_c\over \sqrt{N_c}}, \end{align} \label{covariant:spin:projector}\tag{32}\] with \(P^2\equiv 4E^2\approx 4m^2\). \(\boldsymbol{1}_c\) signifies the \(3\times 3\) unit matrix to enforce the projection of the \(Q\overline{Q}\) pair onto the color-neutral state. \(\varepsilon(S_z)\) denotes the polarization vector for the unit spin. For the \(Q\overline{Q}\) pair in the final state, one can make the analogous substitution in 31 , by adapting 32 accordingly with the aid of the identity \(v\bar{u}=\gamma^0(u\bar{v})^{\dagger}\gamma^0\). Note that the Dirac spinors in 32 are normalized in nonrelativistic convention.

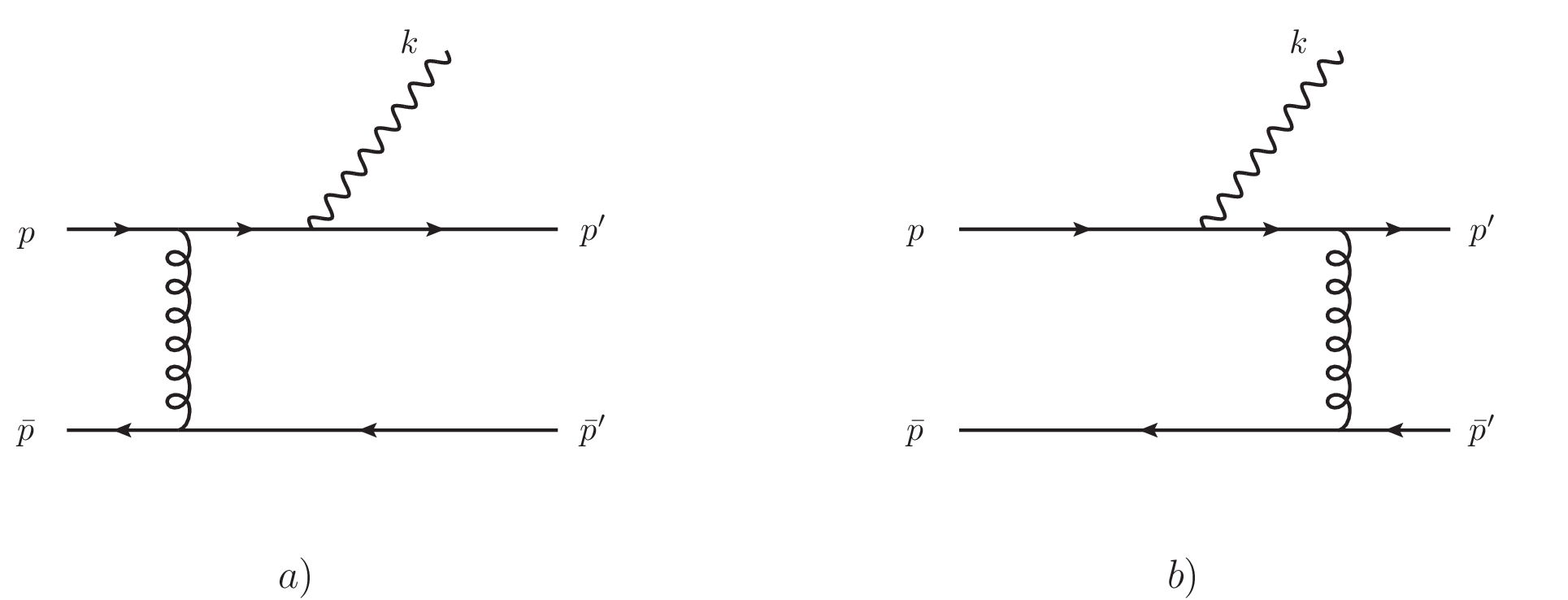

In the hard-scattering picture, both quark and gluon propagators in Fig. 2 should be viewed as semi-hard, with power counting of various momenta expounded in Sec. 4.1. Similar to the line of reasoning leading to 8 and 9 , the quark and gluons propagators in Fig. 2 can be simplified as \[\begin{eqnarray} & &\frac{1}{(p'+k)^2-m^2} = \frac{1}{k\cdot P' + 2k\cdot q'} \approx \frac{1}{k\cdot P'}\approx \frac{1}{k\cdot P}, \\ & &\frac{1}{(p-k)^2-m^2} = -\frac{1}{k\cdot P + 2k\cdot q} \approx - \frac{1}{k\cdot P}, \\ & & {1\over (q- q^\prime -{k\over 2})^2+i\epsilon} \approx \frac{-1}{ ({\boldsymbol{q}}'-{\boldsymbol{q}})^2 +{\boldsymbol{k}}\cdot({\boldsymbol{q}}'-{\boldsymbol{q}}) -i{\epsilon}}. \end{eqnarray} \label{Expansion:of:propagators:QCD}\tag{33}\]

Implementing the expanded propagators in 33 , performing the spin and color projection using 32 , retaining only the linear terms in \(\boldsymbol{q}\) and \(\boldsymbol{q'}\) in the numerators, the transition amplitude for \(n^{2S+1} P_J\to n'^{2S+1} S_S+\gamma\) in 30 can be reduced to \[\begin{eqnarray} & & \mathcal{A}[n^{1} P_1(J_z) \to n'^{1} S_0+\gamma ] = C_F {e e_Q g_s^2\over k\cdot P} \int\!\!\! \frac{d^3 {\boldsymbol{q}}}{(2\pi)^3}\int\!\!\! \frac{d^3 {\boldsymbol{q}'}}{(2\pi)^3} \\ && \times \widetilde{R}_{nP}(|{\boldsymbol{q}}|) Y_{1 J_z}(\hat{{\boldsymbol{q}}}) \widetilde{R}^*_{n'S}(|{\boldsymbol{q}'}|)Y^*_{00}(\hat{{\boldsymbol{q}'}}) \, \boldsymbol{T}({\boldsymbol{q}'}-{\boldsymbol{q}}) \cdot \boldsymbol{\varepsilon}_{\gamma}^*, \nonumber\\ & & \mathcal{A}[n^{3}P_J (J_z) \to n'^{3} S_1(S'_z)+\gamma ] = C_F {e e_Q g_s^2\over k\cdot P} \int\!\!\! \frac{d^3 {\boldsymbol{q}}}{(2\pi)^3}\int\!\!\! \frac{d^3 {\boldsymbol{q}'}}{(2\pi)^3} \sum_{S_z, L_z} \langle 1\,S_z; 1\,L_z| J\,J_z \rangle \\ && \times \widetilde{R}_{nP}(|{\boldsymbol{q}}|) Y_{1 L_z}(\hat{{\boldsymbol{q}}}) \widetilde{R}^*_{n'S}(|{\boldsymbol{q}'}|)Y^*_{00}(\hat{{\boldsymbol{q}'}})\, (\boldsymbol{\varepsilon}^*(S'_z) \cdot \boldsymbol{\varepsilon}(S_z))\,\boldsymbol{T} ({\boldsymbol{q}'}-{\boldsymbol{q}}) \cdot \boldsymbol{\varepsilon}_{\gamma}^*, \nonumber \end{eqnarray} \label{Pwave:to:Swave:E1:intermediate:formula:QCD43QED}\tag{34}\] where the hard-scattering function \(\boldsymbol{T} ({\boldsymbol{q}'}-{\boldsymbol{q}})\) has been given in 11 . Hearteningly, these equations are exactly identical to 17 derived in NREFT. Following the remaining steps as elaborated in Sec. 4, we then reproduce the key formula of this work, 28 and 29 .
