1 INTRODUCTION↩︎

The Hamiltonian formulation has been extended to distributed parameter systems in n-dimensional spaces with boundary energy flow in [1] and proofs of existence and uniqueness of solutions have been presented for the one-dimensional case in [2]. This class of systems, called Boundary-Controlled Port-Hamiltonian Systems (BC-PHSs), has shown to be well suited for the modelling of open-loop infinite-dimensional systems with actuation and sensing located at the spatial boundaries, being applicable to the control of transport phenomena, waves, beams, and chemical reactors, among others [3].

For numerical simulation of BC-PHSs, one has to discretize the infinite-dimensional part. Several techniques have been proposed using discrete exterior calculus [4], mixed finite-elements [5], finite volume [6], finite-differences methods [7], among others. Recently, the Partitioned Finite Element Method (PFEM) [8], [9], [10] has shown a wide number of applications in one-, two- and three-dimensional domains [11], [12], allowing also to be applicable for the case of mixed boundary control [13], [14]. In this paper, we particularize the PFEM to the parametrized class of one-dimensional BC-PHSs introduced in [2], covering the complete class of first-order spatial derivatives and all possible parametrizations of the boundary conditions. The matrices of the discretized model are explicitly defined in terms of the PDE matrices coefficients and the input/output parametrization matrices, being versatile to changes in the PDE structure and/or boundary conditions. Moreover, the proposed methodology guarantees that the discretized model preserves the initial energy structure of the PDE. That is, the Hamiltonian of the discretized model mimics the Hamiltonian of the initial PDE, showing that if the initial BC-PHS is passive (or Impedance Energy Preserving (IEP)), the discretized model is too.

The realization of the discretized model obtained using the PFEM contains only sparse matrices, which reduces the computational effort for time simulations. However, when the step of the spatial discretization is very small, the discretized model can contain a large number of internal variables, being expensive for numerical simulation and/or controller design. In this paper, we additionally recall the Loewner approach to find a Reduced Order Model (ROM) that captures the input/output behavior in a desired range of frequencies [15], [16]. This framework has shown to be an efficient tool for the reduction of infinite-dimensional systems [17]. Recently, it has been applied to distributed port-Hamiltonian systems [18] in 1D and [17] in 2D, and it is still a current research topic on the structure-preserving Model Order Reduction (MOR) field. In this paper, we combine the algorithms proposed in [19] [17], to guarantee that the ROM remains passive. Moreover, we build a projector that allows us to reconstruct the original state of the discretized model from the ROM state. To the best of the authors knowledge this projection has not been exploited in the Loewner framework, so far. In this paper, we show that the projector can be straightforwardly constructed using the knowledge of the discretized model.

Summary of the contribution↩︎

The PFEM is developped for the complete class of one-dimensional BC-PHSs with first-order spatial derivatives and all possible boundary inputs and outputs. The discretized model preserves the passive (or impedance energy preserving) structure. Additionally, a ROM technique is recalled using two recent algorithms in the Loewner framework. The ROM is guaranteed to be passive and a projector is obtained to reconstruct the state of the discretized model from the ROM state.

Paper oragnization↩︎

The paper is organized as follows: in Section 2, we recall the structure of BC-PHSs and we emphasize the main contributions of this article. In Section 3, the PFEM is presented. In Section 4, the reduction of the discretized model is applied using the Loewner framework and in Section 5 a summary of the complete methodology is provided. The one-dimensional wave equation is used along the paper to exemplify the procedure, and in Section 6, the Timoshenko beam is used to show the versatility of this approach. Finally, in Section 7 some conclusions are drawn and future works are discussed.

Notation and Definitions↩︎

Null square matrices of size \(n \times n\) are denoted by \(0_n\) and null rectangular matrices of size \(n \times m\) by \(0_{n \times m}\). For simplicity and when it is clear from the context, the subindex are omitted. The identity matrix of size \(n\) is denoted by \(I_n\). \(u \in L_{loc}^2((0,\infty),\mathbb{R}^n)\) means that the function \(u(t)\) is locally square-integrable, i.e., \(\int_T \lvert u(t)\rvert _{\mathbb{R}^n}^2 dt < +\infty\) for all compact subsets \(T \subset \mathbb{R}\).

2 Problem Formulation↩︎

2.1 Boundary-controlled port-Hamiltonian systems in a one-dimensional domain↩︎

Boundary-controlled port-Hamiltonian systems are systems described by PDEs in which the state variables are chosen as the energy variables and the inputs and outputs are chosen as a linear combination of the co-energy variables evaluated at the boundaries of the spatial domain. In this section, we recall the main structure of this class of systems and the parametrization of the boundary conditions that lead to a well-posed BC-PHS.

2.2 Partial Differential Equation↩︎

We consider the following one-dimensional PDE: \[\label{Eq:PDE} \begin{align} \dfrac{\partial x}{\partial t}(\zeta,t) &= P\,\dfrac{\partial e}{\partial \zeta} (\zeta,t) \,\textcolor{DM}{-}\, G\,e(\zeta,t), \quad x(\zeta,0) = x_0(\zeta), \\ e(\zeta,t) &= \mathcal{H} (\zeta)\,x(\zeta,t), \end{align}\tag{1}\] with spatial domain \(\zeta \in [a,b]\), time \(t \geq0\), energy variable \(x(\zeta,t) \in \mathbb{R}^n\), co-energy variable \(e(\zeta,t)\in \mathbb{R}^n\), initial condition \(x_0(\zeta)\), Hamiltonian density matrix \(\mathcal{H}(\zeta)\), and matrices \(P\), \(G\in \mathbb{R}^{n\times n}\). We consider the following assumtions:

• \(P\) is symmetric and invertible \(P = P^\top\),

• \(G+G^\top\geq 0\), i.e. the symmetric part of \(G\) is positive semi-definite,

• \(\mathcal{H}(\zeta)\) is a bounded and continuously differentiable symmetric matrix-valued function of size \(n \times n\) such that is positive definite for all \(\zeta \in[a,b]\).

Without loss of generality, we consider the following partitions of the matrices \(P\), \(G\) and \(\mathcal{H}(\zeta)\): \[\label{PDEMatrices} \begin{align} P &= \begin{pmatrix} P_{11} & P_{12} \\ P_{21} & P_{22} \end{pmatrix}, \,G = \begin{pmatrix} G_{11} & G_{12} \\ G_{21} & G_{22} \end{pmatrix}, \, \mathcal{H}(\zeta) = \begin{pmatrix} \mathcal{H}_1 (\zeta) & 0 \\ 0 & \mathcal{H}_2 (\zeta) \end{pmatrix}. \end{align}\tag{2}\] with \(P_{11}\), \(G_{11}\), \(\mathcal{H}_1(\zeta) \in \mathbb{R}^{n_1 \times n_1}\), \(P_{12}\), \(G_{12} \in \mathbb{R}^{n_1 \times n_2}\), \(P_{21}\), \(G_{21} \in \mathbb{R}^{n_2 \times n_1}\) and \(P_{22}\), \(G_{22}\), \(\mathcal{H}_2(\zeta) \in \mathbb{R}^{n_2 \times n_2}\). Since \(P\) is symmetric, \(P_{11} = P_{11}^\top\), \(P_{22} = P_{22}^\top\), and \(P_{21} = P_{12}^\top\), and since \(\mathcal{H}(\zeta)\) is symmetric positive definite \(\mathcal{H}_1(\zeta) = \mathcal{H}_1(\zeta)^\top >0\) and \(\mathcal{H}_2(\zeta) = \mathcal{H}_2(\zeta)^\top >0\). The previous structure suggests the following energy and co-energy variables: \[x(\zeta,t) =\begin{pmatrix} x_1(\zeta,t) \\ x_2 (\zeta,t) \end{pmatrix}, \quad e(\zeta,t) =\begin{pmatrix} e_1(\zeta,t) \\ e_2 (\zeta,t) \end{pmatrix}\] with \(x_i(\zeta,t)\) and \(e_i(\zeta,t) \in \mathbb{R}^{n_i}\) for all \(\zeta \in [a,b]\), \(t\geq 0\), \(i = \lbrace1,2\rbrace\), and \(n_1+n_2 = n\).

2.3 Hamiltonian↩︎

The Hamiltonian associated to the PDE in 1 is defined by \[\label{Eq:Hamiltonian} H(t) := \dfrac{1}{2} \int_a^b {x(\zeta,t)^\top \mathcal{H}(\zeta) x(\zeta,t)}d\zeta = \dfrac{1}{2} \int_a^b {x^\top e}d\zeta.\tag{3}\] Using the fact that \(P = P^\top\) and \(G+G^\top\geq 0\), the energy balance is obtained as follows: \[\begin{align} \dot{H}(t) &= \dfrac{1}{2} \int_a^b \left( \dot{x}^\top e + x^\top \dot{e} \right) d\zeta, \\ &= \dfrac{1}{2} \int_a^b \left( (P \tfrac{\partial e}{\partial \zeta}-Ge)^\top e + x^\top\mathcal{H}(P \tfrac{\partial e}{\partial \zeta}-Ge) \right) d\zeta, \\ &= \dfrac{1}{2} \int_a^b \left( (P \tfrac{\partial e}{\partial \zeta}-Ge)^\top e + e^\top (P \tfrac{\partial e}{\partial \zeta}-Ge) \right) d\zeta, \\ &\leq \dfrac{1}{2} \left[e^\top P e \right]_a^b. \end{align}\] In the following, we define the inputs and outputs for the PDE 1 , such that the Hamiltonian 3 qualifies as a storage function for passivity as defined in Definition 2.

2.4 Boundary inputs and outputs↩︎

In what follows we define boundary inputs and outputs, and derive the associated energy balance.

Proof. The proof follows directly from [2], considering \(W=V_\mathcal{B} \mathcal{R}^{-1}\) and \(\tilde{W}=V_\mathcal{C} \mathcal{R}^{-1}\) with \(\mathcal{R}:=\frac{1}{\sqrt{2}}\left(\begin{smallmatrix}P & -P \\ I & I\end{smallmatrix} \right)\)

Note that it has been shown in [2] that if \(G+G^\top = 0\), the differential operator in 1 -4 is the generator of a unitary semigroup on \(L^2((a,b); \mathbb{R}^n)\) and the balance equation on the energy reads \(\dot{H}(t) = u(t) ^\top y(t)\), implying an IEP structure. In what follows we recall some properties of the input and output matrices.

Proof. The proof follows directly from [21] replacing \(W\) by \(V_\mathcal{B}\mathcal{R}^{-1}\) and \(\tilde{W}\) by \(V_\mathcal{C}\mathcal{R}^{-1}\) where \(\mathcal{R}\) is defined in the proof of Theorem 1.

2.5 Proposed methodology↩︎

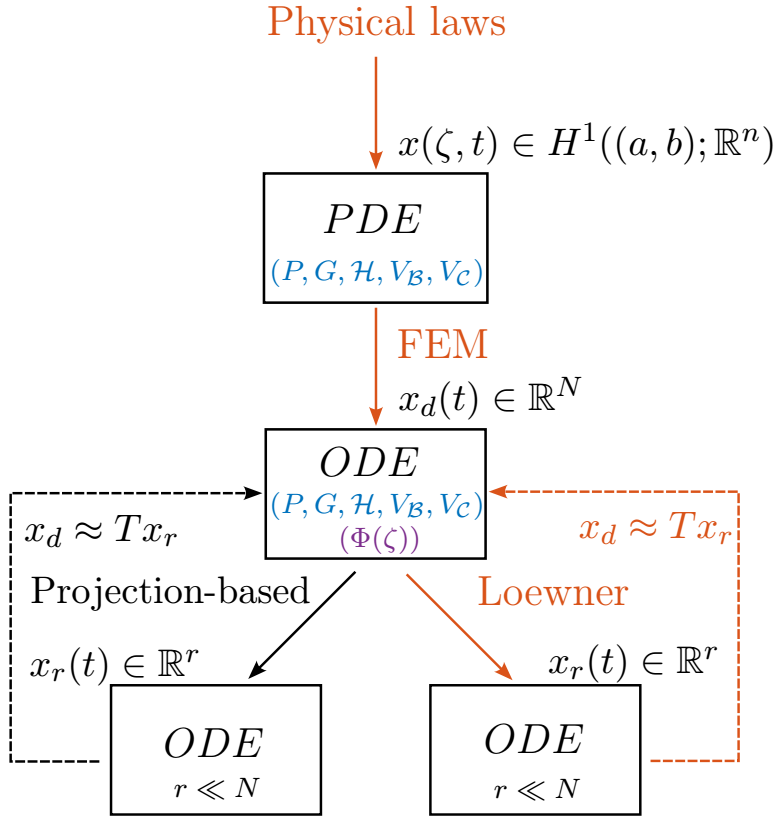

In Fig 1, we show a diagram of the methodology proposed in this paper. The main steps are described hereafter :

• The BC-PHS 1 -4 is discretized in such a way that the dynamics of the discretized model is defined as a function of the PDE matrices \((P,G,\mathcal{H},V_\mathcal{B},V_\mathcal{C})\). This means that the obtained ODE can be tuned for different types of PDEs and different types of boundary conditions.

• The passive structure of the BC-PHS 1 -4 is preserved at the approximation level (on the FOM given by the ODE), i.e., the balance equation 5 is exactly preserved, meaning that if 1 -4 is passive (or IEP), the discretized model remains passive (or IEP).

• The Loewner framework is recalled and summarized in such a way that we are able to obtain a passive ROM. Moreover, in order to preserve the physical meaning of the variables, in this paper, similar to the projection-based MOR techniques, we provide a projector \('T'\) that allows to approximate the state of the FOM from the state of the ROM.

3 Partitioned Finite Element Method↩︎

In this section, we project the PDE 1 -4{style=“color: DM”} a finite-dimensional space. Then, we show that if the BC-PHS 1 -4 is passive (or IEP), the finite-dimensional model preserves this structure with the storage energy given by the projected Hamiltonian derived from 3 . For simplicity of the explanation, in this section we develop the projected version of the weak formulation, which is developped in 8.

3.1 Spatial discretization through the projections.↩︎

The PDE 1 is written in the following form: \[\label{PDE95and95Constitutive} \begin{cases} \dot{x}_1 = P_{11}\partial_\zeta e_1 + P_{12}\partial_\zeta e_2 - G_{11} e_1 - G_{12} e_2, \\ \dot{x}_2 = P_{21}\partial_\zeta e_1 + P_{22}\partial_\zeta e_2 - G_{21} e_1 - G_{22} e_2, \\ e_1 = \mathcal{H}_1 x_1, \\ e_2 = \mathcal{H}_2 x_2, \end{cases}\tag{6}\] in which we have used the notation \(\dot{f}\) for \(\tfrac{\partial f}{\partial t}\) and \(\partial_\zeta f\) for \(\tfrac{\partial f}{\partial \zeta}\). We define the scalar spatial-dependent functions \(\phi_1^{i_1}(\zeta) \in V_1 \subset H^1(a,b)\) and \(\phi_2^{i_2}(\zeta) \in V_2 \subset H^1(a,b)\) for \(i_1 = \lbrace 1,\cdots , N_1 \rbrace\) and \(i_2 = \lbrace 1,\cdots , N_2 \rbrace\), respectively. The vector functions are defined as: \[\phi_1(\zeta)= \begin{pmatrix} \phi_1^1(\zeta) \\ \vdots \\ \phi_1^{N_1}(\zeta) \end{pmatrix}, \quad \phi_2(\zeta)= \begin{pmatrix} \phi_2^1(\zeta) \\ \vdots \\ \phi_2^{N_2}(\zeta) \end{pmatrix}.\] Then, all state variables contained in \(x_1\) and \(e_1\) are projected through \(\phi_1(\zeta)\), whereas the ones contained in \(x_2\) and \(e_2\) through \(\phi_2(\zeta)\), i.e., \[\label{ApproxVariables} \begin{align} x_i(\zeta,t)& \approx x_i^{ap}(\zeta,t) := \Phi_i(\zeta)^\top x_{id}(t),\\ e_i(\zeta,t)& \approx e_i^{ap}(\zeta,t) := \Phi_i(\zeta)^\top e_{id}(t), \end{align}\tag{7}\] with \(i = \lbrace{1,2\rbrace}\), \(x_i^{ap}\), \(e_i^{ap} \in \mathbb{R}^m\) being the approximated vector functions, \[\Phi_1= \begin{pmatrix} \phi_1 & \cdots & 0 \\ \vdots & \ddots & \vdots \\ 0 & \cdots & \phi_1 \\ \end{pmatrix}_{n_1N_1 \times n_1} , \quad \Phi_2 = \begin{pmatrix} \phi_2 & \cdots & 0 \\ \vdots & \ddots & \vdots \\ 0 & \cdots & \phi_2 \\ \end{pmatrix}_{n_2N_2 \times n_2} ,\] being the projections matrices, and \(x_{1d}\), \(e_{1d} \in \mathbb{R}^{n_1N_1}\) and \(x_{2d}\), \(e_{2d} \in \mathbb{R}^{n_2N_2}\) the time domain variables. We have omitted the spatial and temporal dependence since it is clear from the context.

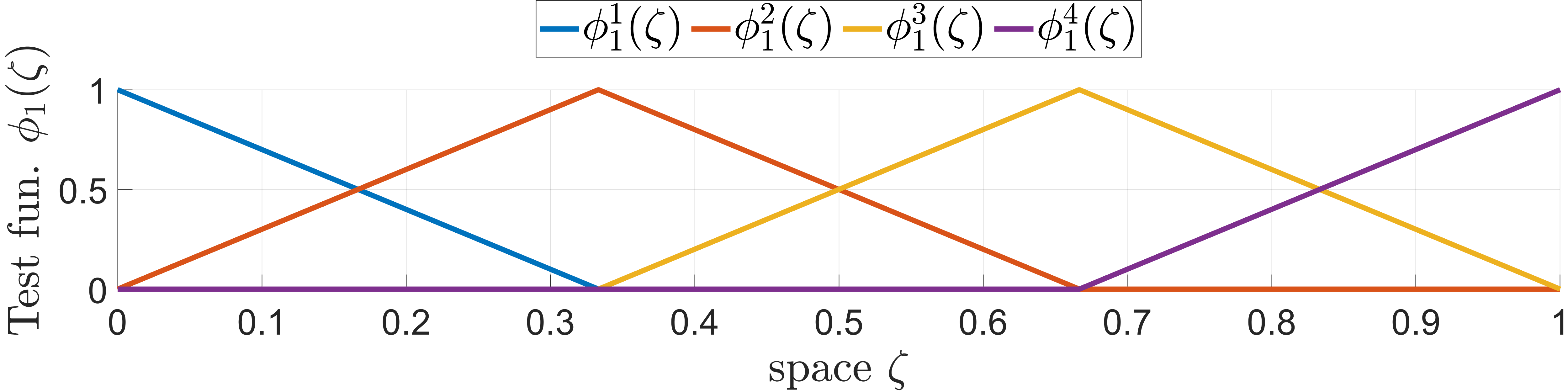

The objective is to discretize the spatial variable \(\zeta\) of all equations in 6 . To this end, from 6 , we multiply the first and third equations by \(\Phi_1\) on the left and the second and forth equations by \(\Phi_2\) on the left. Then, we integrate over the spatial domain \(\zeta \in [a,b]\) the four equations. Then, 6 becomes:

\[\label{Eq:ODE1} \begin{cases} E_1 \dot{x}_{1d} = (D_{11}^P-D_{11}^G)e_{1d} + (D_{12}^P-D_{12}^G)e_{2d}, \\ E_2 \dot{x}_{2d} = (D_{21}^P-D_{21}^G)e_{1d} + (D_{22}^P-D_{22}^G)e_{2d}, \\ E_1 e_{1d} = Q_1 x_{1d}, \\ E_2 e_{2d} = Q_2 x_{2d}, \\ \end{cases}\tag{8}\] with square matrices \[\begin{align} E_i = \int_a^b \Phi_i \Phi_i ^\top d\zeta, \quad Q_i = \int_a^b \Phi_i \mathcal{H}_i \Phi_i ^\top d\zeta, \quad i = \lbrace 1,2 \rbrace, \end{align}\] and for \(i = \lbrace 1,2 \rbrace\) and \(j = \lbrace 1,2 \rbrace\) rectangular matrices \[D_{ij}^P = \int_a^b \Phi_i {P}_{ij} (\partial_\zeta \Phi_j) ^\top d\zeta, \quad D_{ij}^G = \int_a^b \Phi_i {G}_{ij} \Phi_j ^\top d\zeta. \\\]

The equations in 8 can be compactly written as written as: \[\label{Eq:ODE2} \begin{cases} \begin{pmatrix} E_1 & 0 \\ 0 & E_2 \end{pmatrix} \begin{pmatrix} \dot{x}_{1d} \\ \dot{x}_{2d} \end{pmatrix} = \begin{pmatrix} D_{11}^P-D_{11}^G & D_{12}^P-D_{12}^G \\ D_{21}^P-D_{21}^G & D_{22}^P-D_{22}^G \end{pmatrix} \begin{pmatrix} e_{1d} \\ e_{2d} \end{pmatrix}, \\ \begin{pmatrix} E_1 & 0 \\ 0 & E_2 \end{pmatrix} \begin{pmatrix} {e}_{1d} \\ {e}_{2d} \end{pmatrix} = \begin{pmatrix} Q_1 & 0 \\ 0 & Q_2 \end{pmatrix} \begin{pmatrix} x_{1d} \\ x_{2d} \end{pmatrix}, \end{cases}\tag{9}\] Since the system under study 1 -4 is an infinite-dimensional port-Hamiltonian system, we aim to find a finite-dimensional port-Hamiltonian representation for the equations in 9 with conjugated inputs and outputs, i.e., we aim to find the following representation: \[\label{StateSpace2} \Sigma_d\begin{cases} E \dot{x}_d = (J-R) e_d + B u , \quad x_d(0) = x_{d0}, \\ E e_d = Qx_d, \\ \quad y = B^\top e_d. \end{cases}\tag{10}\] with \(x_d = (x_{1d}^\top , x_{2d}^\top)^\top\), \(e_d = (e_{1d}^\top , e_{2d}^\top)^\top\), \(E\) a mass matrix (that is symmetric and positive-definite), \(Q\) an energy matrix, \(J\) skew-symmetric, \(R\) symmetric and positive semi-definite, and \(B\) the input matrix. We can notice that in the state-space representation 9 , the input \(u(t)\) and output \(y(t)\) do not appear explicitly. Then, we define the input matrix as the power conjugated of the output matrix defined in 4 . To this end, we project the input and output as follows: \[\begin{align} u(t)&= V_\mathcal{B} \begin{pmatrix} e(b,t) \\ e(a,t) \end{pmatrix} \approx V_\mathcal{B} \begin{pmatrix} e_1^{ap}(b,t) \\ e_2^{ap}(b,t) \\ e_1^{ap}(a,t) \\ e_2^{ap}(a,t) \end{pmatrix} = V_\mathcal{B} \Omega _{ba}^\top \begin{pmatrix} e_{1d} (t) \\ e_{2d}(t) \end{pmatrix}, \\ y(t)&= V_\mathcal{C} \begin{pmatrix} e(b,t) \\ e(a,t) \end{pmatrix} \approx V_\mathcal{C} \begin{pmatrix} e_1^{ap}(b,t) \\ e_2^{ap}(b,t) \\ e_1^{ap}(a,t) \\ e_2^{ap}(a,t) \end{pmatrix} = V_\mathcal{C} \Omega _{ba}^\top \begin{pmatrix} e_{1d} (t) \\ e_{2d}(t) \end{pmatrix}, \end{align}\] with \[\Omega _ {ba} := \begin{pmatrix} \Phi_1(b) & 0_{n_1N_1 \times n_2} & \Phi_1(a) & 0_{n_1N_1 \times n_2} \\ 0_{n_2N_2 \times n_1} & \Phi_2(b) & 0_{n_2N_2 \times n_1} & \Phi_2(a) \\ \end{pmatrix}\] and then, we define the input matrix as conjugated with respect to the output one \[B = \Omega_{ba}V_\mathcal{C}^\top.\] Then, by adding and subtracting \(\pm Bu(t)\) at the right-hand side equation of the first block equation in 9 and using the input projection \(u \approx V_\mathcal{B}\Omega_{ba}^\top e_d\), we obtain the state space representation 10 with \[\label{Eq:JE} \begin{align} E &= \begin{pmatrix} {E}_1 & 0_{n_1 N_1 \times n_2 N_2} \\ 0_{n_2 N_2 \times n_1 N_1} & {E}_2 \end{pmatrix}, \\ Q &= \begin{pmatrix} {Q}_1 & 0_{n_1 N_1 \times n_2 N_2} \\ 0_{n_2 N_2 \times n_1 N_1} & {Q}_2 \end{pmatrix}, \\ J &= D^P - \dfrac{1}{2}(D^G-{D^G}^\top)- \Omega_{ba} V_\mathcal{C}^\top V_\mathcal{B} \Omega_{ba}^\top, \\ R &= \dfrac{1}{2}(D^G+{D^G}^\top), \end{align}\tag{11}\] \[D^P = \begin{pmatrix} D_{11}^P & D_{12}^P \\ D_{21}^P & D_{22}^P \end{pmatrix}, \quad D^G = \begin{pmatrix} D_{11}^G & D_{12}^G \\ D_{21}^G & D_{22}^G \end{pmatrix}\] and initial data \[x_{d0} = \begin{pmatrix} x_{1d}(0)\\ x_{2d}(0) \end{pmatrix} = \begin{pmatrix} E_1^{-1} \int_a^b \Phi_1 x_1(\zeta,0)d\zeta\\ E_2^{-1} \int_a^b \Phi_2 x_2(\zeta,0)d\zeta \end{pmatrix}.\] In order to preserve the port-Hamiltonian structure of the state-space representation 10 , we have to guarantee the skew-symmetry of the matrix \(J\) and the positive semi-definiteness of \(R\). Notice that the matrix \(J\) depends on \(P\), \(G\), \(V_\mathcal{B}\) and \(V_\mathcal{C}\) of the PDE 1 , whereas \(R\) depends on \(G\) only. We use the following properties for the main result:

Proof. Property \((a)\) writes: \[\begin{align} D_{12}^P + {D_{21}^P}^\top &= \int_a^b \Phi_1 {P}_{12} (\partial_\zeta \Phi_2) ^\top d\zeta + \int_a^b (\partial_\zeta \Phi_1) {P_{21}}^\top \Phi_2 ^\top d\zeta, \\ & = \int_a^b \frac{\partial }{\partial \zeta} \left( \Phi_1 P_{12} \Phi_2 ^\top \right)d\zeta = \left[ \Phi_1 {P_{12}} \Phi_2^\top \right]_a^b,\\ \end{align}\] where we have used the fact that \(P_{21} = P_{12}^\top\). The same line follows for \((b)\) and \((c)\) using the facts that \(P_{11} = P_{11}^\top\) and \(P_{22} = P_{22}^\top\), respectively.

Proof. The term \(-\tfrac{1}{2}(D^G-{D^G}^\top)\) from \(J\) in 11 is clearly skew-symmetric. It remains to show that the remaining part is also skew-symmetric, i.e., \(J_{P\mathcal{B}\mathcal{C}} := D^P- \Omega_{ba} V_\mathcal{C}^\top V_\mathcal{B} \Omega_{ba}^\top\) is such that \(J_{P\mathcal{B}\mathcal{C}} + J_{P\mathcal{B}\mathcal{C}}^\top = 0\). Notice that, using Proposition 1, one can obtain \[\begin{align} D^P + {D^P}^\top &= \begin{pmatrix} [\Phi_1 P_{11}\Phi_1^\top]_a^b & [\Phi_1 P_{12}\Phi_2^\top]_a^b \\ [\Phi_2 P_{21}\Phi_1^\top]_a^b & [\Phi_2 P_{22}\Phi_2^\top]_a^b \end{pmatrix}= \Omega_{ba} \begin{pmatrix} P & 0 \\ 0 & -P \end{pmatrix} \Omega_{ba}^\top. \end{align}\] Then \[J_{P\mathcal{B}\mathcal{C}} + J_{P\mathcal{B}\mathcal{C}}^\top = \Omega_{ba}\left( \begin{pmatrix} P & 0 \\ 0 & -P \end{pmatrix} - V_\mathcal{C}^\top V_\mathcal{B}- V_\mathcal{B}^\top V_\mathcal{C}\right) \Omega_{ba}^\top\] Finally, we replace \(V_\mathcal{C}^\top V_\mathcal{B}\) and \(V_\mathcal{B}^\top V_\mathcal{C}\) using Lemma 1 to obtain \[J_{P\mathcal{B}\mathcal{C}} + J_{P\mathcal{B}\mathcal{C}}^\top = \Omega_{ba}\left( \tilde{J}_\xi - \tilde{J}_\xi \right) \Omega_{ba}^\top = 0.\] Now, we show that \(R\) is positive semi definite. To this end, we compute every block element of the matrix \(R\) as follows: \[\begin{align} D_{11}^G + {D_{11}^G} ^\top & = \int_a ^b \Phi_1 \left( G_{11} + G_{11}^\top \right)\Phi_1 ^\top d\zeta, \\ D_{22}^G + {D_{22}^G} ^\top & = \int_a ^b \Phi_2 \left( G_{22} + G_{22}^\top \right)\Phi_2 ^\top d\zeta, \\ D_{12}^G + {D_{21}^G} ^\top & = \int_a ^b \Phi_1 \left( G_{12} + G_{21}^\top \right)\Phi_2 ^\top d\zeta, \\ D_{21}^G + {D_{12}^G} ^\top & = \int_a ^b \Phi_2 \left( G_{21} + G_{12}^\top \right)\Phi_1 ^\top d\zeta, \\ \end{align}\] Then \[\begin{align} R &= \frac{1}{2}\int_a ^b \begin{pmatrix} \Phi_1 & 0 \\ 0 & \Phi_2 \end{pmatrix}\begin{pmatrix} G_{11}+G_{11}^\top & G_{12}+G_{21}^\top \\ G_{21}+G_{12}^\top & G_{22}+G_{22}^\top \end{pmatrix}\begin{pmatrix} \Phi_1^\top & 0 \\ 0 & \Phi_2^\top \end{pmatrix}d\zeta, \\ &= \frac{1}{2}\int_a ^b \begin{pmatrix} \Phi_1 & 0 \\ 0 & \Phi_2 \end{pmatrix} \left(G + G^\top \right)\begin{pmatrix} \Phi_1^\top & 0 \\ 0 & \Phi_2^\top \end{pmatrix} d\zeta. \\ \end{align}\] Since by definition \(G+G^\top \geq 0\), hence \(R\geq 0\).

3.2 Structure Preservation of the Hamiltonian↩︎

We define the Hamiltonian of the discretized model replacing the approximations 7 in the Hamiltonian function 3 . The discretized Hamiltonian reads: \[\label{DiscretizedHamiltonian} H_d(t) = \frac{1}{2} x_d(t) ^\top E e_d(t) = \frac{1}{2} x_d(t) ^\top Q x_d(t).\tag{12}\]

Proof. The time derivative of the discretized Hamiltonian \(H_d\) in 12 writes: \[\label{Eq:dHddt} \begin{align} \dot{H}_d(t) &= x_d^\top Q \dot{x}_d, \\ &= x_d^\top QE^{-1} E\dot{x}_d, \\ &= e_d^\top EE^{-1} \left( (J-R)e_d + Bu \right), \\ &= e_d^\top \left( (J-R)e_d + Bu \right), \\ &= e_d^\top (J-R)e_d + e_d^\top Bu , \\ &= -e_d^\top R e_d + e_d^\top Bu , \\ &= -e_d^\top R e_d +y^\top u. \end{align}\tag{13}\] Since \(R\geq 0\) (See Proposition 2), \(\dot{H}_d\leq y^\top u\), hence \(\Sigma_d\) in 10 is passive. Now, we show that if 1 -4 is IEP, the discretized model 10 is IEP. As pointed out in subsection 2.4, if \(G+G^\top = 0\), system 1 -4 is IEP. Notice that \(R\) defined in 11 is dependent on the \(G\) matrix, only. Moreover, as it is developed in the proof of Proposition 2, the matrix \(R\) is a null matrix if \(G+G^\top\) is null, i.e., if \(G+G^\top = 0\), then \(R = 0\). Then, if 1 -4 is IEP \((G+G^\top = 0)\), then \(R = 0\) and 13 becomes \(\dot{H}_d = y ^\top u\). This concludes the proof.

4 Model Order Reduction in the Loewner Framework↩︎

In the previous section, we have presented the first approximation of the PDE 1 -4 using the FEM, leading to the discretized model 10 . For the sake of completeness of this paper and since the size of the discretized model can contain a large amount of states, in this section we recall the Loewner framework technique for the MOR. This approach has shown to be well suited both for large order systems and infinite-dimensional ones (see e.g. [17] and references therein). In this paper, we exploit the properties of this approach to generate a projector that allows to approximate the state of the discretized model in a structure preserving way.

In the following, we rewrite the discretized port-Hamiltonian system as in the standard state space representation. To do this, we define \(S = E^{-1}Q\), \(A = (J-R)S\), and \(C = B^\top S\) and the state-space representation in 10 is equivalently written as \[\label{DiscretizedModel} \Sigma_d :\begin{cases} E\dot{x}_d (t) = Ax_d(t) + Bu(t), \quad x_d(0) = x_{d0}, \\ \quad \,\, y(t) = C x_d. \end{cases}\tag{14}\] The objective of this section is to show the steps to build the matrices of a Reduced Order Model (ROM) of the following form: \[\label{Eq:ROM} \Sigma_r : \begin{cases} E_r \dot{x}_r(t) = A_r x_r(t) + B_r u(t), \quad x_r(0) = x_{r0},\\ \quad \,\, y(t) = C_r x_r(t) \end{cases}\tag{15}\] with \(E_r,A_r \in \mathbb{R}^{r\times r}\), \(B_r \in \mathbb{R}^{r \times n}\), \(C_r \in \mathbb{R}^{n \times r}\), and \(x_{r0} \in \mathbb{R}^{r}\), in which \(r\ll N\), \(n\) is the number of inputs and outputs of the initial PDE 1 -4 , and \(N = n_1N_1 + n_2N_2\) is the amount of states of the discretized model 14 . Moreover, we provide a lifting projector \(T\) that allows to approximate the state of the discretized (large-scale) model 14 as follows: \[\label{Eq:T} x_d(t)\approx Tx_r(t),\tag{16}\] recovering the physical meaning of the state variables.

4.1 Standard solution in the Loewner approach↩︎

We follow [16] (see also [15]) for the construction of the ROM. Let us define the transfer function associated to the discretized model 14 as: \[\label{Eq:Transfer} G(s) = C(sE-A)^{-1}B.\tag{17}\] This transfer function is used to generate the data used in the interpolation-based ROM construction. We define the right data as \[\label{rightData} (\lambda_j,r^\lambda_j,w_j), \quad w_j = G(\lambda_j)r_j ^\lambda, \quad j = \lbrace 1,\cdots , k \rbrace,\tag{18}\] with \(\lambda_j \in \mathbb{C}\), \(r_j^\lambda \in \mathbb{C}^{n \times 1}\), and \(w_j \in \mathbb{C}^{n \times 1}\). Similarly, we define the left data as \[\label{leftData} (\mu_i,l^\mu_i,v_i),\quad v_i = l_i^\mu G(\mu_i), \quad i = \lbrace 1,\cdots , q \rbrace,\tag{19}\] with \(\mu_i \in \mathbb{C}\), \(l_i^\mu \in \mathbb{C}^{1 \times n}\), and \(v_j \in \mathbb{C}^{1 \times n}\). The objective is to construct the matrices \((E_r,A_r,B_r,C_r)\) by only using the right and left data 18 -19 . Since the discretized model that we aim to reduce is passive, it has the same number of inputs than outputs \(n\), implying the same sizes for the vectors \(r_j^\lambda\) and \(w_j\), and similarly with \(l_i^\mu\) and \(v_i\). For simplicity of the explanation, in the following we consider the same amount of left and right data and we denote it as \(N_r = q = k\).

Using the right and left data 18 -19 , we build the Loewner (\(\mathbb{L}\)) and shifted Loewner (\(\mathbb{\sigma L}\)) matrices as follows: \[\label{Eq:Loewner} \mathbb{L}_{ij} = \frac{v_i r^\lambda_j - {l^\mu_i} w_j}{\mu_i - \lambda_j}, \quad\mathbb{\sigma L}_{ij} = \frac{\mu_i v_i r^\lambda_j - \lambda_j {l^\mu_i} w_j}{\mu_i - \lambda_j} .\tag{20}\] The main assumption concerning the right and left data 18 -19 is the following:

We arrange the right and left data 18 -19 in the following matrix form: \[\label{LaMu} \begin{align} &\Lambda = \begin{pmatrix} \lambda_1 & & 0 \\ & \ddots & \\ 0 & & \lambda_{N_r} \end{pmatrix}, W = \begin{pmatrix} w_1 & \cdots & w_{N_r}\end{pmatrix}, r = \begin{pmatrix} r_1 & \cdots & r_{N_r}\end{pmatrix} , \\ &M = \begin{pmatrix} \mu_1 & & 0 \\ & \ddots & \\ 0 & & \mu_{N_r} \end{pmatrix}, V = \begin{pmatrix} v_1 \\ \vdots \\ v_{N_r}\end{pmatrix}, \quad \quad \quad \quad l = \begin{pmatrix} l_1 \\ \vdots \\ l_{N_r}\end{pmatrix}. \end{align}\tag{21}\] Then, a minimal realization using the right and left data 18 -19 is given by: \[\label{Eq:1DWaveLoewner} \Sigma_l : \begin{cases} E_l \dot{x}_l(t) = A_l x_l(t) + B_l u(t), \quad x_l(0) = x_{l0},\\ \quad \,\, y(t) = C_l x_l(t) \end{cases}\tag{22}\] with \(E_l = -\mathbb{L}\), \(A_l = -\mathbb{\sigma L}\), \(B_l = V\), \(C_l = W\). The transfer function: \[\label{Eq:TransferComplex} G_l(s) = C_l(sE_l-A_l)^{-1}B_l.\tag{23}\] interpolates the data 18 -19 throughout the tangential directions, i.e., \(G(\lambda_j)r_j^\lambda = G_l(\lambda_i)r_j^\lambda\) and \(l_i^\mu G(\mu_j) = l_i \mu G_l(\mu_i)\) for all \(j \in \lbrace 1,\cdots , N_r \rbrace\) and \(i \in \lbrace 1,\cdots , N_r \rbrace\), respectively. Moreover, one can verify that the tangential generalized controllability (\(C_b\)) and tangential generalized observability (\(O_b\)) matrices, defined as \[\label{ObCb} \begin{align} &{O}_b = \begin{pmatrix} C(\mu_1E - A)^{-1} \\ \vdots \\ C(\mu_{N_r} E - A)^{-1} \end{pmatrix}, \\ & C_b = \begin{pmatrix} (\lambda_1E - A)^{-1}B & \cdots & (\lambda_{N_r} E - A)^{-1}B \end{pmatrix}. \end{align}\tag{24}\] satisfy \(E_l = O_b E C_b\) and \(A_l = O_b A C_b\). Then, \(\Sigma_l\) can be seen as a transformation of \(\Sigma_d\) though the tangential generalized controllability (\(C_b\)) and tangential generalized observability (\(O_b\)) matrices, i.e., if \[\label{Eq:FirstProjection} x_d = C_b x_l,\tag{25}\] one can compute the time derivative of 25 multiplied by \(E\) at the left side as follows: \[\begin{align} E\dot{x}_d(t) &= EC_b \dot{x}_l(t), \\ Ax_d(t)+B u(t) &= EC_b \dot{x}_l(t), \\ AC_bx_l(t)+B u(t) &= EC_b \dot{x}_l(t), \\ O_bAC_bx_l(t)+ O_bB u(t) &= O_bEC_b \dot{x}_l(t), \\ A_lx_l(t)+ B_l u(t) &= E_l \dot{x}_l(t), \end{align}\] where \(O_bB = B_l\) can be verified by multiplying \(O_b\) from 24 by \(B\) on the right and replacing \(B_l\) by the definition in 19 -21 -22 .

4.2 Realization with real values:↩︎

Since we aim at finding a realization with matrices containing real entries, the interpolation points have to contain pairs of conjugated complex values, i.e., the sets of right and left data 18 -19 have to be selected in such a way that: \[\label{Eq:Conjugated} \begin{align} \lambda &= \lbrace \lambda_1,\bar{\lambda}_2, \cdots,\lambda_{M_r}, \bar{\lambda}_{M_r} \rbrace, \quad \mu = \lbrace \mu_1,\bar{\mu}_2, \cdots,\mu_{M_r}, \bar{\mu}_{M_r} \rbrace, \end{align}\tag{26}\] with the ‘bar’ notation indicating the conjugated value and \(2M_r = N_r\). We notice that by incorporating the conjugated values, the amount of data is even. One could also add strictly real interpolation points, but for simplicity of the explanation, we use only complex values. The realization 22 is composed then by complex-valued matrices, i.e., \(E_l\), \(A_l \in \mathbb{C}^{N_r \times N_r}\), \(B_l \in \mathbb{C}^{N_r \times n}\), and \(C_l \in \mathbb{C}^{n \times N_r}\). Then, using the data as in 26 , 22 can be transformed into a realization with real entries using the following projection: \[\label{Eq:SecondProjection} x_l = \mathcal{J}\bar{x}_l\tag{27}\] with \(\mathcal{J} \in \mathbb{C}^{N_r \times N_r}\) such that \[\mathcal{J} = \begin{pmatrix} \mathcal{J}_i & \cdots & 0\\ \vdots & \ddots & \vdots \\ 0 & \cdots & \mathcal{J}_i \end{pmatrix}, \quad \mathcal{J}_i = \frac{1}{\sqrt{2}}\begin{pmatrix} 1 & -i \\ 1 & i \end{pmatrix}.\] Then, the realization with real matrices is written as: \[\label{Eq:1DWaveLoewner95real} \bar{\Sigma}_l : \begin{cases} \bar{E}_l \dot{\bar{x}}_l(t) = \bar{A}_l \bar{x}_l(t) + \bar{B}_l u(t), \quad \bar{x}_l(0) = \bar{x}_{l0},\\ \quad \,\, y(t) = \bar{C}_l \bar{x}_l(t) \end{cases}\tag{28}\] with \(\bar{E}_l = \mathcal{J}^* E_l \mathcal{J}\), \(\bar{A}_l = \mathcal{J}^* A_l \mathcal{J}\), \(\bar{B}_l = \mathcal{J}^* B_l\), \(\bar{C}_l = C_l \mathcal{J}\). One can guarantee that the transfer matrix \[\label{Eq:TransferReal} \bar{G}_l(s) = \bar{C}_l(s\bar{E}_l-\bar{A}_l)^{-1}\bar{B}_l,\tag{29}\] interpolates the data 18 -19 throughout the tangential directions, i.e., \(G(\lambda_j)r_j^\lambda = \bar{G}_l(\lambda_i)r_j^\lambda\) and \(l_i^\mu G(\mu_j) = l_i \mu \bar{G}_l(\mu_i)\) for all \(j \in \lbrace 1,\cdots , N_r \rbrace\) and \(i \in \lbrace 1,\cdots , N_r \rbrace\), respectively.

4.3 Order reduction via Singular Value Decomposition↩︎

One of the main properties of the Loewner framework is the ‘rank revealing’ characteristic [27]. This means that if we have enough data \(N_r\), the rank of the Loewner matrix will reveal the McMillan degree \(k\) required for the ROM among the selected data (see [15]). Since the selected data 18 -19 may contain redundant values, one can build the following short Singular Value Decompositions (SVDs): \[\begin{bmatrix} \bar{E}_l & \bar{A}_l \end{bmatrix} = Y\Sigma_l \tilde{X}^*, \quad \quad \begin{bmatrix} \bar{E}_l \\ \bar{A}_l \end{bmatrix} = \tilde{Y}\Sigma_r X^*,\] with \(Y\), \(X \in \mathbb{C} ^{N_r \times k}\), \(\Sigma_l\), \(\Sigma_r \in \mathbb{C}^{k \times k}\), and \(k\) satisfying Assumption 1. Define \(E_r =Y^*\bar{E}_l X\), \(A_r =Y^*\bar{A}_l X\), \(B_r =Y^*\bar{B}_l\), and \(C_r =\bar{C}_l X\). Then, the realization 15 with transfer function \[\label{Eq:TransferROM} {G}_r(s) = {C}_r(s{E}_r-{A}_r)^{-1}{B}_r,\tag{30}\] is a descriptor realization of an approximate interpolant of the data with McMillan degree \(k = rank(\mathbb{L})\) (see [16]). Similarly as in 25 , one can approach the state \(\bar{x}_l\) of 28 through the following projection \[\label{Eq:LastProj} \bar{x}_l(t) \approx X x_r(t).\tag{31}\] Thus, by combining the projection 25 , 27 , and 31 , one can build the projector \(T\) of 16 as follows: \[\label{Eq:TDef} T := C_b\mathcal{J}X.\tag{32}\]

4.4 Discussion about the structure-preserving ROM↩︎

Until here, the Loewner approach offers an efficient algorithm to construct a ROM for the discretized model that has been obtained using the FEM. We emphasize that the main numerical computational steps are:

• the inversion of the matrices \((sE-A)\) for all \(s \in \lbrace \lambda_j \rbrace \cup \lbrace \mu_i \rbrace\) in order to build the right and left data 18 -19 and the tangential generalized controllability (\(C_b\)) and tangential generalized observability (\(O_b\)) matrices in 24 ,

• the construction of the Loewner and shifted Loewner matrices in 20 , which after building the right and left data 18 -19 , the numerical efforts are negligible.

However, the obtained ROM 15 is not always guaranteed to be in a port-Hamiltonian form. In particular, using the classic approach [16], the interpolation points are chosen along the imaginary axis (\(s_i= \sqrt{-1} \omega _i\)) for some desired frequencies \(\omega_i\) and tangential directions \(r_i\) as unitary vectors. One could iterate the construction of the realization 15 by modifying the frequencies \(\omega_i\) until a ROM is obtained preserving the port-Hamiltonian structure.

As it is discussed in [28], by properly choosing the interpolation points \(s_i\) and tangential directions \(r_i\), one can force the passivity of the reduced-order model. In [19] and [17], the authors have proposed algorithms that lead to port-Hamiltonian realizations by selecting the frequency-domain data \(s_i\) as the spectral zeros and the tangential direction \(r_i\) as the zero directions. In [17], for the cases in which \(D=0\), the authors have proposed to shift the data with a feedthrough term \(D_r\) and shifting back the obtained realization using the same \(D_r\).

Following [19] and [17], we define the spectral zeros \(s_i\) and zero directions \(r_i\) associated to the realization 15 shifted by \(D=D_r\) with \(D_r + D_r^\top > 0\) as the solutions of the following generalized eigenvalue problem: \[\label{Eq:SpectralZeros} \begin{bmatrix} 0 & A_r & B_r \\ A_r^\top & 0 & C_r^\top \\ B_r^\top & C_r & D_r+D_r^\top \end{bmatrix}\begin{bmatrix} p_i \\ q_i \\ r_i \end{bmatrix} = s_i\begin{bmatrix} 0 & E_r & 0 \\ -E_r^\top & 0 & 0 \\ 0 & 0 & 0 \end{bmatrix}\begin{bmatrix} p_i \\ q_i \\ r_i \end{bmatrix}.\tag{33}\] From all solutions of 33 , we select all the values \((s_i,r_i)\) such that the real part of \(s_i\) is such that \(0<Re(s_i)<\infty\). Then, we re-define the right and left data as in 18 -19 , using the following values: \[\label{NewData} \begin{align} &\lambda_i = s_i, \quad \;\; r_i^\lambda = r_i, \quad w_i = \left( G_r(\lambda_i) + D_r\right)r_i ^\lambda, \\ &\mu_i = -\bar{s}_i, \quad l_i^\mu = r_i^*,\quad v_i = l_i^\mu \left( G_r(\lambda_i) + D_r\right) \\ \end{align}\tag{34}\] with \(G_r\) defined in 30 and \(D_r\) free to choose. Then, using the new data 34 , we repeat again the computations presented in Subsection 4.1 and Subsection 4.2 (the SVD of Subsection 4.3 is not required at this stage). Finally, we remark that since the Loewner matrix in 20 is positive definite, an explicit port-Hamiltonian realization can be written from the ROM. See [19] for further details.

5 Summary of the procedure↩︎

In the following, we summarize the complete procedure for the discretization and reduction of the initial PDE 1 -4 .

1. Discretize the PDE 1 -4 using the PFEM proposed in Section 3. This leads to the port-Hamiltonian realization 10 that can be equivalently written as in 14 .

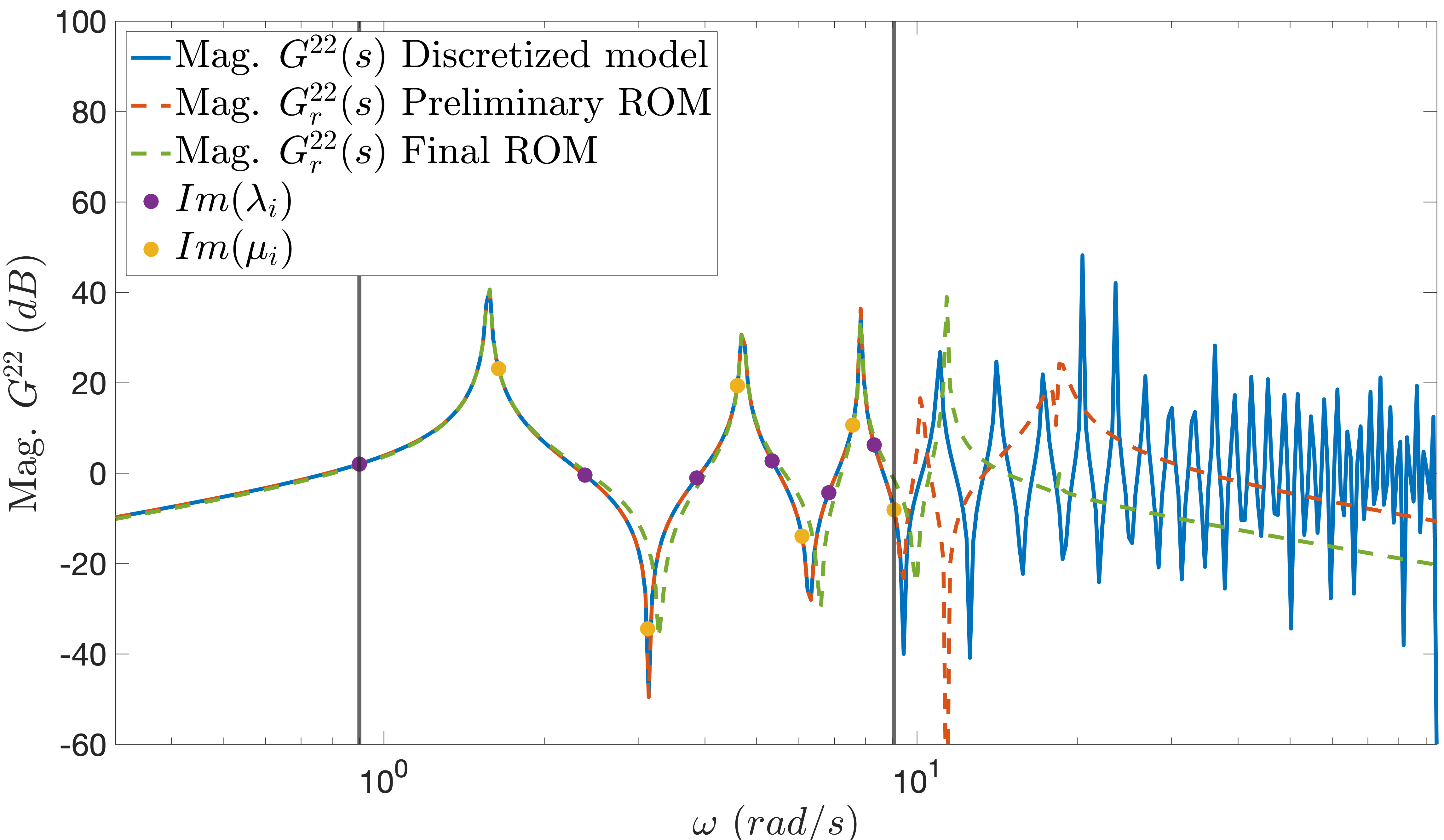

2. Follow Subsection 4.1, 4.2 and 4.3 to find a preliminary ROM 15 using the standard Loewner approach, in which the interpolation points are on the imaginary axis and satisfy Assumption 1.

3. If the obtained model 15 is passive, one can compute the projector 32 and 15 can be used to approximate the discretized model 10 using the projection 16 .

4. If the preliminary ROM 15 is not passive, then compute the spectral zeros \(s_i\) and zero directions \(r_i\) solving the generalized eigenvalue problem in 33 , using a shift term \(D_r\) such that \(D_r+D_r^\top>0\).

5. Redefine the right and left data as in 34 and repeat Subsection 4.1 and 4.2. The ROM is as the one defined in 28 and the projection is given by \(x_d(t) \approx T \bar{x}_l(t)\) with \(T =C_b \mathcal{J}\).

6 Application cases↩︎

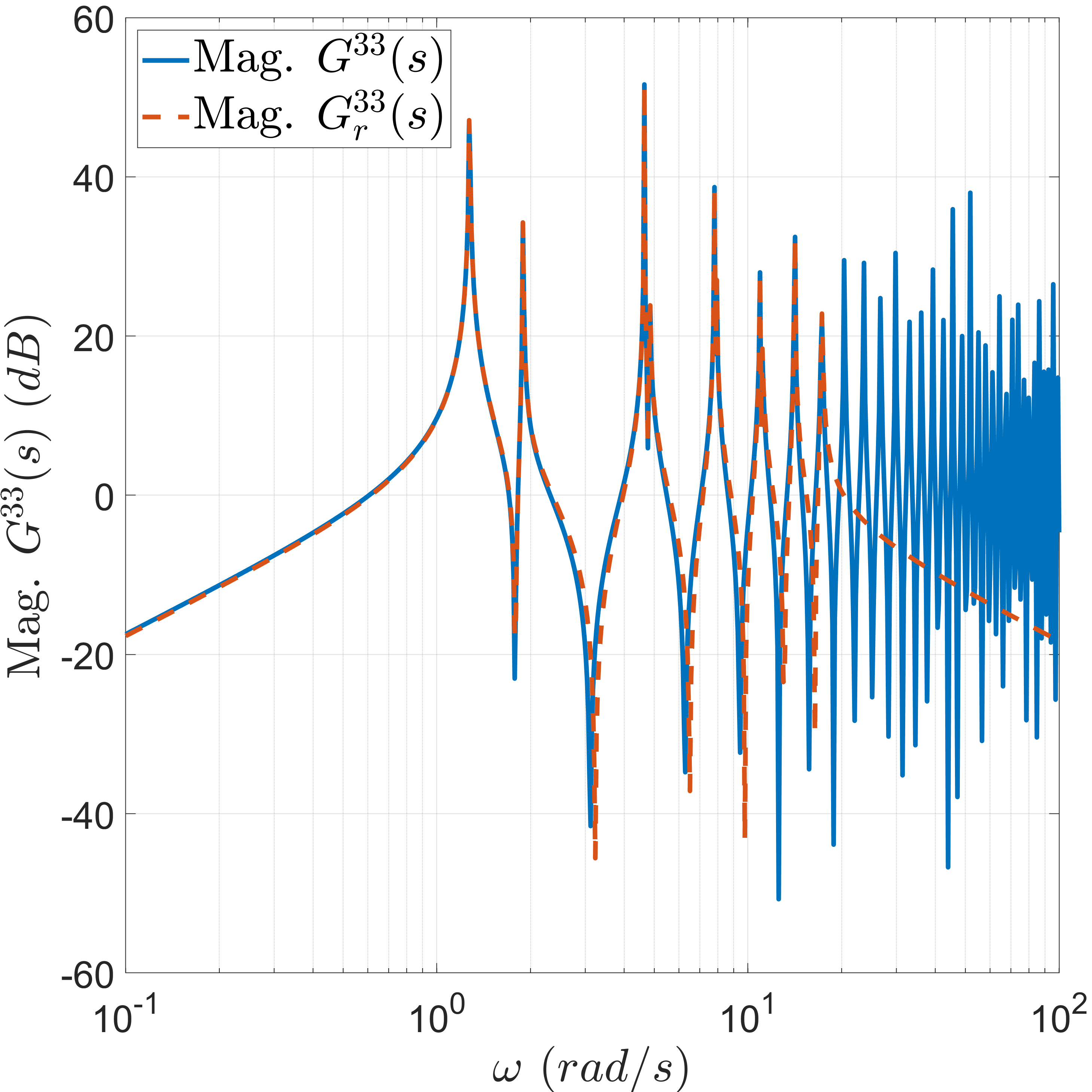

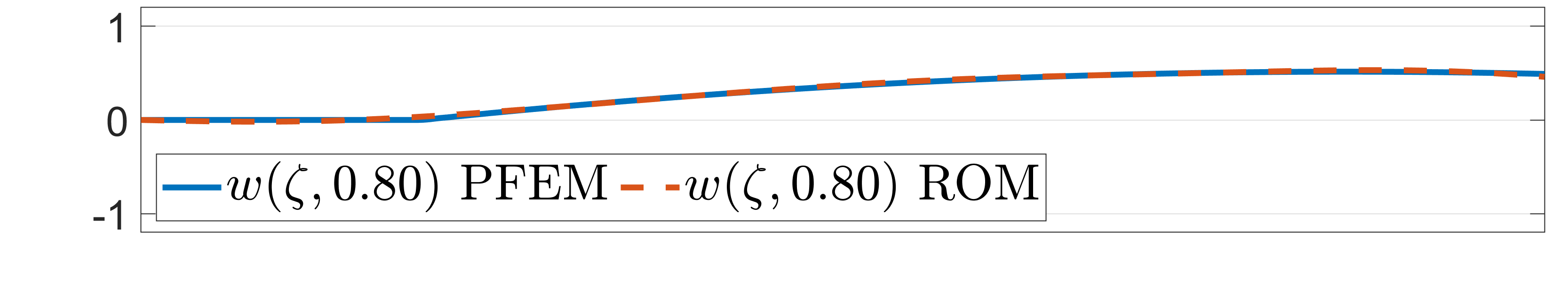

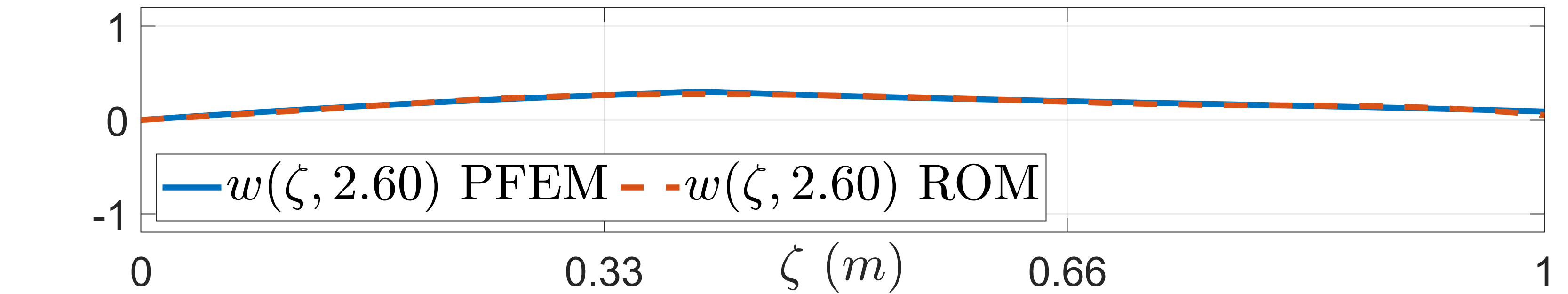

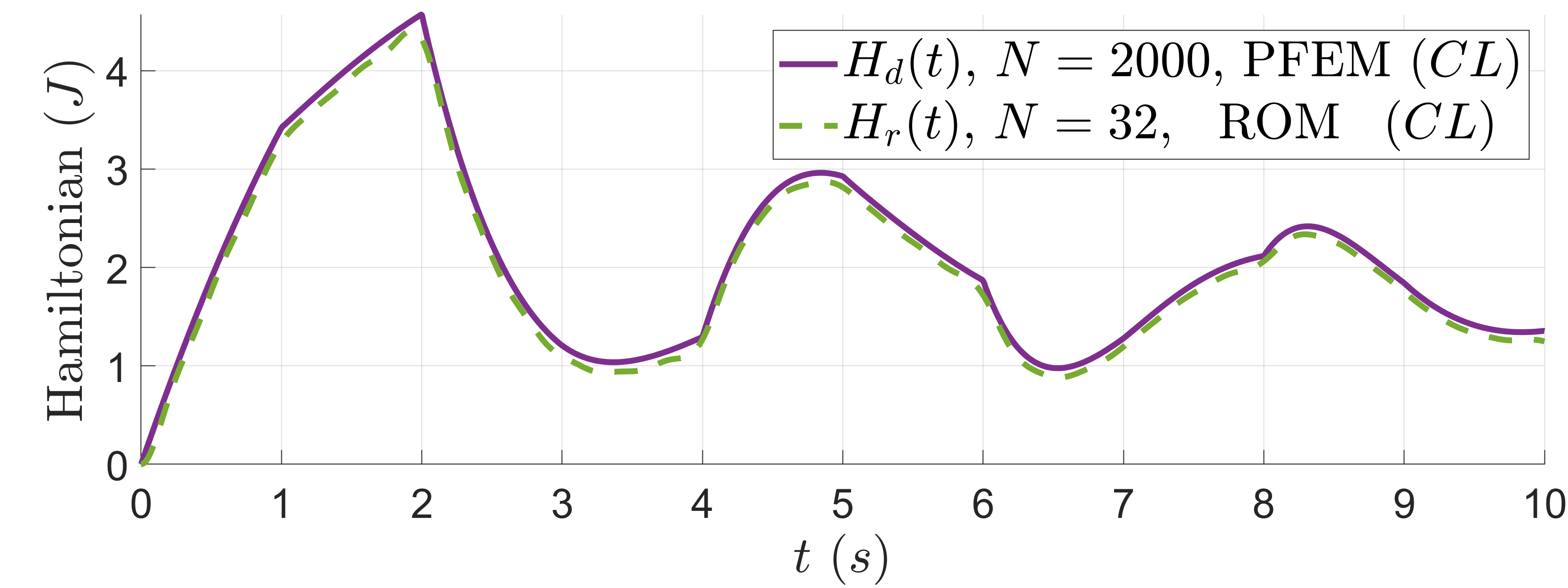

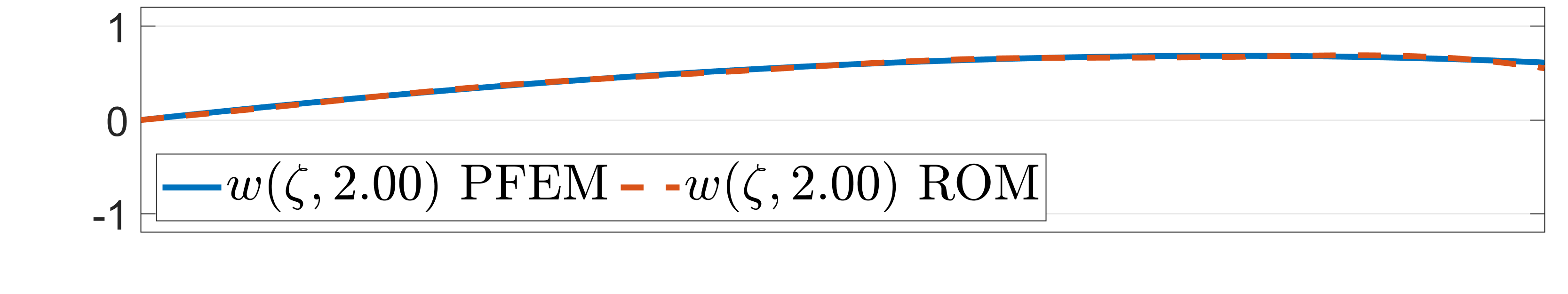

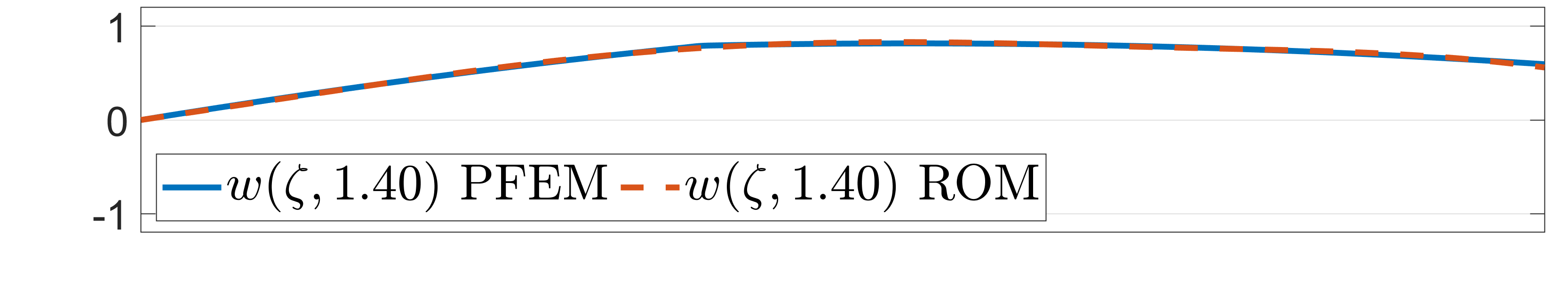

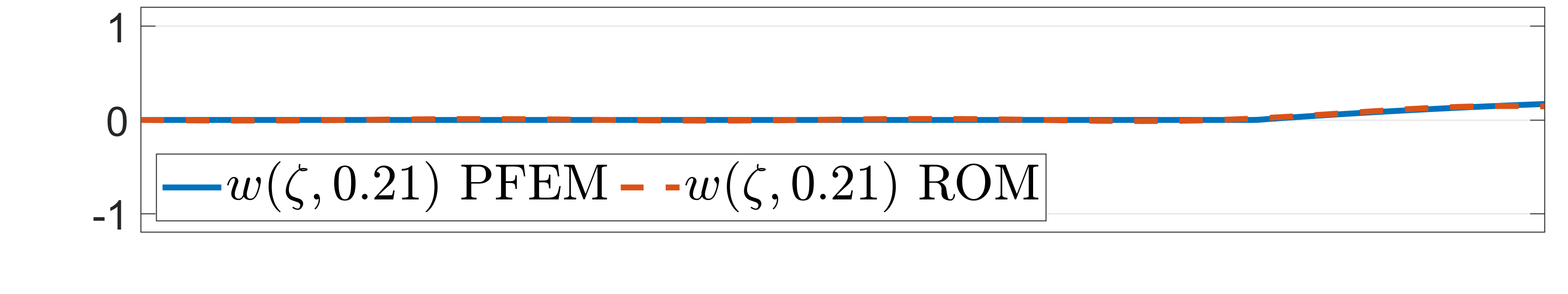

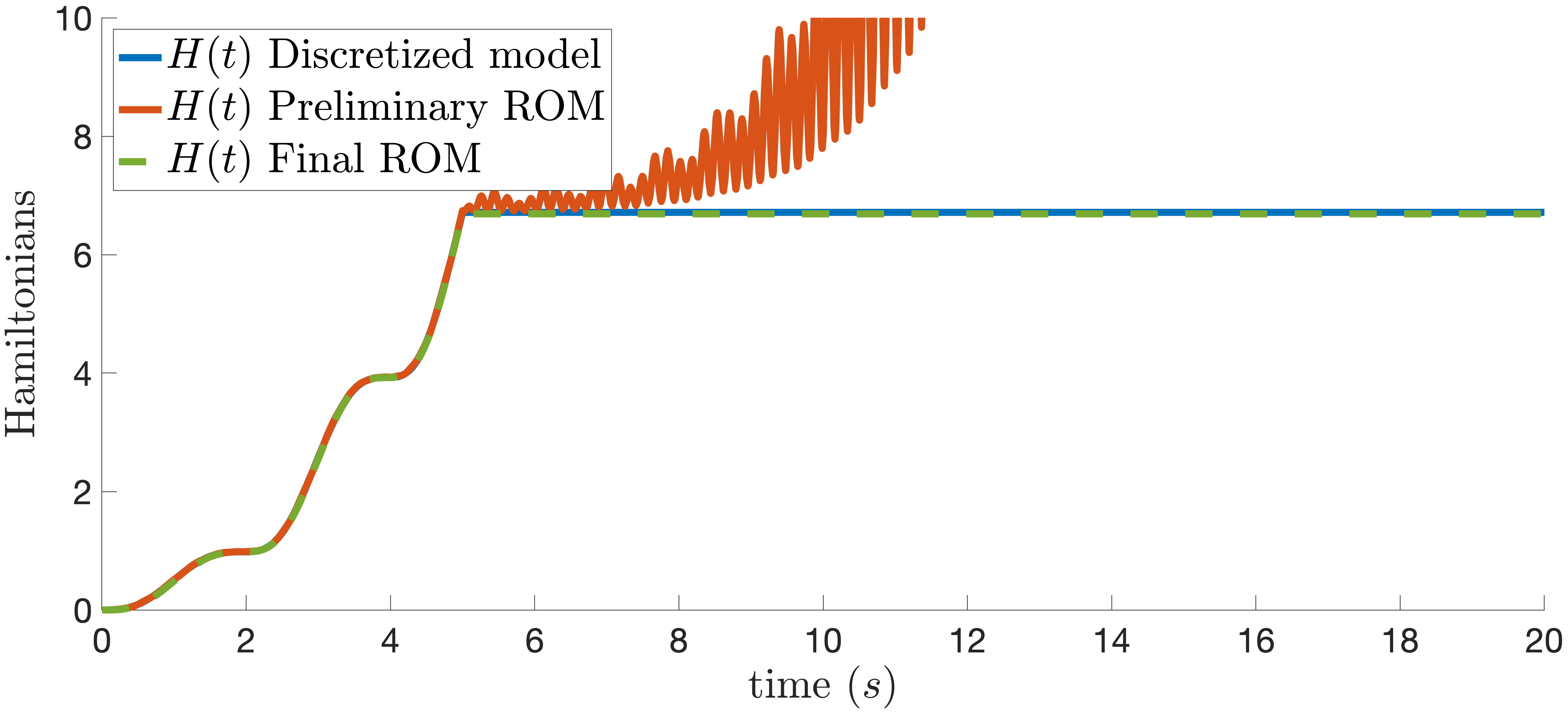

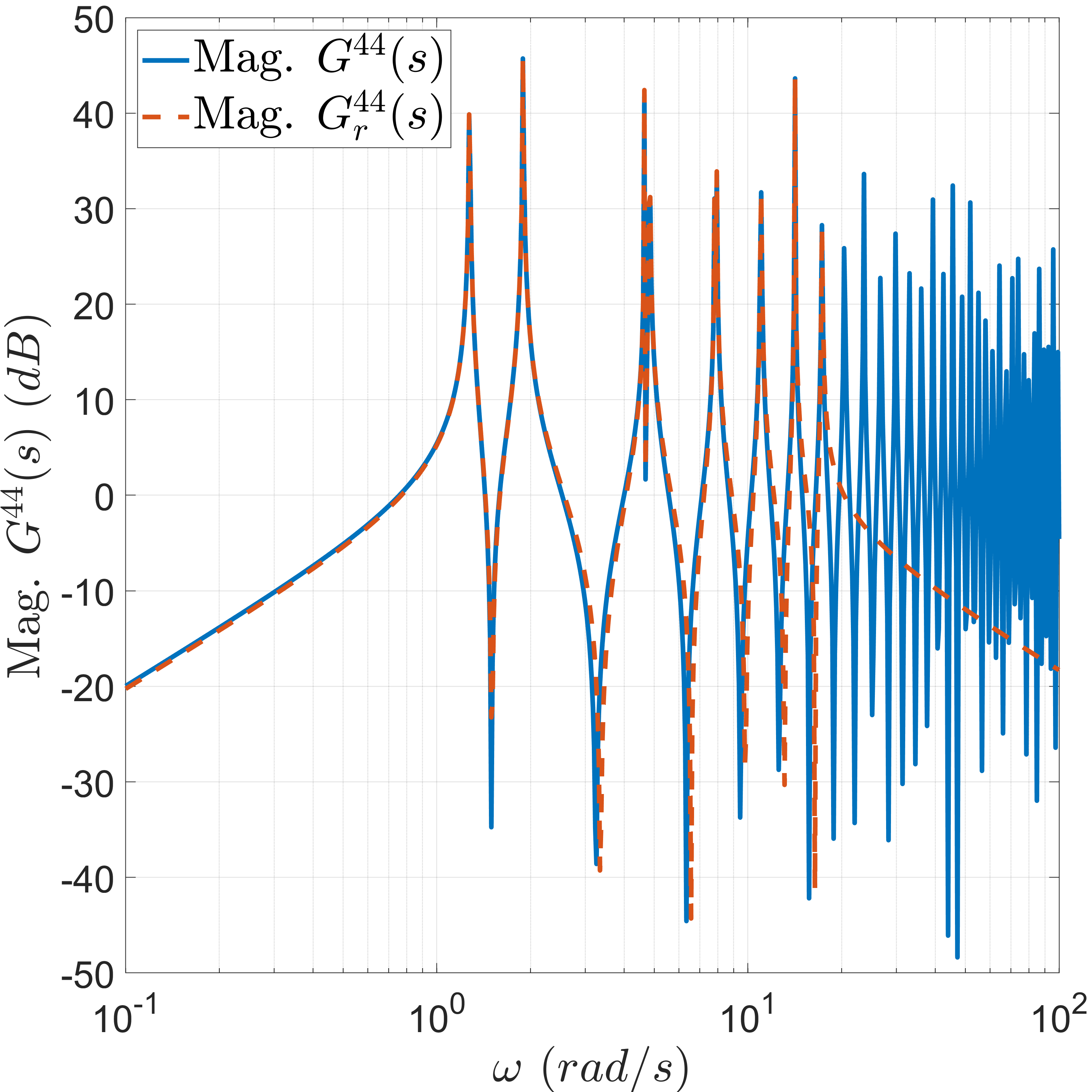

In this section, the one-dimensional wave equation is firstly used to exemplify the discretization and reduction methodology proposed in this paper. Secondly, a slightly more complex system, namely the Timoshenko beam is also used to show the versatility of the proposed approach when changing the PDE and the boundary inputs and outputs.

7 Conclusions and future work↩︎

We have presented a systematic methodology for the discretization and reduction of one-dimensional BC-PHSs with first-order spatial derivatives. We cover a wide class of hyperbolic PDEs with a large class of boundary inputs and outputs. This is, for instance, the case of waves and beams with Neumann, Dirichlet, or mixed boundary conditions. We have proposed a structure preserving discretization scheme to derive a model that remains passive (or impedance energy preserving) if the initial system is. Finally, we have recalled the Loewner framework to find a ROM that interpolates the transfer function of the discretized model in a desired range of frequencies, obtaining similar input/output behaviour than the FOM at those frequencies. Moreover, to guarantee the passivity of the ROM, the interpolation algorithm can be repeated using the spectral zeros instead of pure frequency domain data. Additionally to this algorithm, we provide a constructive way to build a rectangular projection matrix that allows to approximate the states of the FOM from the states of the ROM, recovering the physical meaning of the state variables.

Future works include the extension of the proposed approach to one-dimensional BC-PHSs with higher order spatial derivatives, including PDEs as the Euler-Bernoulli beam, which it has been already investigated for a particular case of boundary conditions in [10]. Concerning the MOR of port-Hamiltonian systems, the case of Multiple-Input Multiple-Output (MIMO) can be investigated without using the tangential direction. Finally, the structure preserving MOR for parametric models is also part of the current work of the authors.

8 Weak Formulation↩︎

8.1 Weak formulation↩︎

Let denote \(v_1(\zeta) \in H^1([a,b];\mathbb{R}^{m})\) and \(v_2(\zeta) \in H^1([a,b];\mathbb{R}^{m})\) any arbitrary column vectors functions of sizes \(m\). From 6 , we can obtain the following weak formulation multiplying by \(v_1^\top\) from the right to the left the first PDE and by \(v_2^\top\) the second one. Integrating both over the spatial domain we obtain: \[\label{WeakForm} \begin{align} \int_a^b v_1 ^\top \dot{x}_1 d\zeta &= \int_a^b v_1^\top \left[ {P}_{11} \partial_\zeta e_1 +{P}_{12} \partial_\zeta e_2 - {G}_{11} e_1- {G}_{12} e_2 \right] d\zeta , \\ \int_a^b v_2 ^\top \dot{x}_2 d\zeta &= \int_a^b v_2^\top \left[ {P}_{21} \partial_\zeta e_1 +{P}_{22} \partial_\zeta e_2 - {G}_{21} e_1- {G}_{22} e_2 \right] d\zeta , \\ \int_a^b v_1^\top e_1 d\zeta &= \int_a^b v_1^\top \mathcal{H}_1 x_1 d\zeta, \\ \int_a^b v_2^\top e_2 d\zeta &= \int_a^b v_2^\top \mathcal{H}_2 x_2 d\zeta. \end{align}\tag{35}\] Integrating by parts the first two terms of the right-hand side of the first two equations, we obtain: \[\label{WeakForm2} \begin{align} \int_a^b v_1 ^\top \dot{x}_1d\zeta &= \left[ v_1^\top {P}_{11} e_1 + v_1^\top {P}_{12} e_2 \right]_a^b - \int_a^b v_1^\top \left[ {G}_{11} e_1 + G_{12} e_2\right] d\zeta \\& \quad - \int_a^b \left( \partial_\zeta v_1 \right) ^\top {P}_{11} e_1 d\zeta - \int_a^b \left( \partial_\zeta v_1 \right) ^\top {P}_{12} e_2 d\zeta, \\ \int_a^b v_2 ^\top \dot{x}_2 d\zeta &= \left[ v_2^\top {P}_{21} e_1 + v_2^\top {P}_{22} e_2 \right]_a^b - \int_a^b v_2^\top \left[ {G}_{21} e_1 + G_{22} e_2\right] d\zeta \\& \quad - \int_a^b \left( \partial_\zeta v_2 \right) ^\top {P}_{21} e_1 d\zeta - \int_a^b \left( \partial_\zeta v_2 \right) ^\top {P}_{22} e_2 d\zeta. \\ \end{align}\tag{36}\] In particular, if \(v_1 = e_1\) and \(v_2 = e_2\), the previous equation with 4 satisfy 5 . Indeed, the balance of the Hamiltonian 3 is obtained as follows: \[\begin{align} \dot{H}(t) &= \int_a^b e ^\top \dot{x}d \zeta, \\ &= \int_a^b v_1 ^\top \dot{x}_1d \zeta + \int_a^b v_2 ^\top \dot{x}_2 d \zeta,\\ & = \left[ v^\top {P} e \right]_a^b - \int_a^b \left(\partial_\zeta v\right)^\top {P} e d\zeta - \int_a^b v^\top {G} e d\zeta, \\ & = \left[ e^\top {P} e \right]_a^b - \int_a^b \left(\partial_\zeta e\right)^\top {P} e d\zeta - \int_a^b e^\top {G} e d\zeta, \\ & =\dfrac{1}{2} \left[ e^\top {P} e \right]_a^b - \int_a^b e ^\top {G} e d\zeta, \\ & =\dfrac{1}{2} \begin{bmatrix} e(b)\\ e(a) \end{bmatrix}^\top \begin{bmatrix} P & 0 \\ 0 & -P \end{bmatrix}\begin{bmatrix} e(b)\\ e(a) \end{bmatrix} -\int_a^b e^\top {G} e d\zeta, \\ & = \begin{bmatrix} e(b)\\ e(a) \end{bmatrix}^\top V_\mathcal{C}^\top V_\mathcal{B} \begin{bmatrix} e(b)\\ e(a) \end{bmatrix} -\int_a^b e^\top {G} e d\zeta, \\ & = y(t)^\top u(t) -\int_a^b e^\top {G} e d\zeta \\ & \leq y(t)^\top u(t). \end{align}\] where we have used 36 with \(v_1 = e_1\) and \(v_2 = e_2\), then used Lemma 1 with the fact that \(\tilde{J}_\xi = -\tilde{J}_\xi^\top\). One can see that since \(G+G^\top \leq 0\), the same balance equation 5 is obtained using the weak formulation.
