1 INTRODUCTION↩︎

Nowadays, Electronically Assisted Astronomy (EAA) is widely applied by astronomers to observe deep sky objects (nebulae, galaxies, star clusters). By capturing raw images directly from a digital camera coupled to a telescope and applying lightweight image processing (fast alignment and stacking), this approach allows to generate enhanced views of deep sky targets that can be displayed in near real time on a screen (laptop, tablet, smartphone) (Figure 1).

EAA also enables observing faint deep sky targets in difficult outdoor conditions, for example in geographical zones heavily impacted by light pollution or during a night with Moon (it considerably affects the sky background, often making it difficult the observations). Celestial objects like nebulae and galaxies are almost invisible through direct observation in an urban or suburban night sky; with EAA they become impressive and detailed [1]. In practice, hundreds of targets can be imaged – they are listed in well-known astronomical catalogs (Messier, New General Catalog (NGC), Index catalog (IC), Sharpless, Barnard) and described many books and software [2].

Thus, a large quantity of images are handled by astronomers during such EAA sessions: the targets are numerous, the observation conditions variable, which means that each image is different. Quality may depend on many parameters [3], among them:

• Instrument: aperture and focal ratio, optical quality, digital camera sensitivity and read noise, tracking mount precision.

• Setup installation: balance and stability of tripod, focusing, collimation.

• Seeing conditions: light pollution weather (clouds, fog, wind), moon phase, steadiness and transparency of the atmosphere.

Some of these conditions may vary during the same night, meaning that acquired data may have very heterogeneous quality levels.

During night capture sessions, it is possible to visualize on live the target by doing a lightweight processing: on-the-fly raw frames alignment and stacking, then quick cosmetic processing (in general, histogram stretching). This type of on-the-fly processing is performed by software such as SharpCap ¹ At the beginning, the stacked image is very noisy, then with the accumulation of raw images, this image will become more qualitative.

After night capture sessions (generally days after), raw images are then heavily post-processed in dedicated editing / post-processing tools, allowing to mitigate most of the issues (noise, aberrations removal, blur) and to enhance the signal (contrast stretching, color correction) [4], [5]. The calibration images play an important role in this phase. However, all these tools are very complex, and only very experienced users can really estimate the quality of the final processed images and thus improve it in a relevant way.

In this paper, we propose to combine Image Quality Assessment (IQA) and Automated Machine Learning (AutoML) to automatically rate astronomical RGB images: it aims at guiding EAA sessions and then images post-processing.

The rest of this article is organized as follows. Firstly, related works are described (Section 2). Then, an approach with dataset preparation, model training and a prototype are detailed (Section 3). Finally, preliminary results on astronomical images are presented (Section 4) and discussed (Section 5). We conclude by opening some perspectives (Section 6).

2 RELATED WORKS↩︎

2.1 IQA↩︎

Quality of astronomical images is traditionally estimated through two methods:

• Signal-to-noise ratio (SNR): ratio of the strength of the astronomical signal to the level of the noise in an image. A higher SNR indicates that the image is of higher quality.

• Full Width at Half Maximum (FWHM): sharpness of the point sources in an image, such as stars. A smaller FWHM indicates that the image is of higher quality.

An other popular measure is the highest magnitude of the faintest star/object visible in the image: it needs precise astrometry to do the comparison between the image and the known deep sky objects and stars present in celestial catalogues [6].

Recently, numerous IQA generic approaches were developed [7]. In this paper, we focus on No-reference (NR) and Blind methods to rate single RGB images; among them we can list:

• BRISQUE, efficient on natural scenes: a score between 0 (good quality) and 100 (poor quality) is computed [8]. It works well to filter really bad images by using a fixed threshold (i.e. 70).

• Deep Learning methods like NIMA (Neural Image Assessment): technical and aesthetic scores between 0 (bad) and 10 (good) [9]. In practice, this score is not efficient on low-light images [10].

• Deep CNN-Based Blind Image Quality Predictor (DIQA) methodology: two models provide scores between 0 (bad) and 10 (good) [11].

Naively, these generic methods may be used to filter very bad astronomical images by using a value threshold, but it is not efficient in practice. Let’s take the example of two different images of the M17 nebulae [12] analyzed with two Python tools ( image-quality package ² and NIMA tensorflow model ³). In this typical case, the BRISQUE and NIMA evaluations are slightly better for the first image. However, the second image has a better overall quality, especially regarding contrast, luminance and noise.

We can note that a recent IQA method based on clustering was proposed to deal with ground-based astronomical images captured by professional surveys [13].

2.2 AUTOML↩︎

AutoML consists in generating and deploying Machine Learning models from an input dataset with little or no configuration and coding effort [14]. The growing application of Machine Learning in a wide range of fields has led to the design of frameworks facilitating the production of readily actionable models. Let us consider the traditional pipeline for traditional Machine Learning tasks:

• Data preprocessing is required to adjust raw data to the specificity of Machine Learning algorithms [15]: cleansing, feature selection, sampling, transformation, etc.

• A Machine Learning model architecture is selected and then trained by using the prepared data [16].

• Depending on the algorithm, some hyper-parameters have to be optimized to improve the accuracy of the model; in general, this is realized through heuristics requiring heavy computation [17].

• Model accuracy is evaluated by computing standard statistical tests (AUC, Precision, Recall, F1, etc.) with a given strategy (holdout or cross-validation).

In practice, all those steps are time-consuming and exposed to methodological errors. AutoML platforms aim at systematizing the whole process in order to launch it a number of times with various combinations: numerous pipelines are tested, the obtained models are evaluated and the most accurate one is finally selected [16].

3 APPROACH↩︎

Our approach consists in providing an image regressor model to rate the quality of RGB astronomical images obtained during EAA sessions. The model aims at taking into account the following criteria: contrast/luminance, noise and sharpness. To this end, we have designed a set of images associated to a defined rating, and the task consists in training a model to fit with this score definition. AutoML allows to test automatically a multitude of combinations – leading to models with various characteristics: sizes (i.e. parameters count and feature map size, etc.) and accuracies. Then, these models are tested through a process based on specific data augmentation process, in order to select the most robust model (test-time augmentation [18]).

3.1 DATA PREPARATION↩︎

We have built a dataset with deep sky images and an associated rate (between 0 and 10, from bad to good), in a similar way to what is done in the DIQA methodology [11].

As original sources, we have used:

• Galaxy10 DECals Dataset containing 17736 256x256 pixels RGB galaxy images [19].

• Nebula Dataset containing 1657 high-resolution images extracted from Wikimedia commons [20].

Then, we have prepared a set of ideal images, obtained after a long manual treatment of initial images with different editing software that are efficient to improve astronomical images: Siril, TopazLabs [3]. For each ideal image, a rating of 10 was assigned. We have produced a set of transformed images by applying random degradations to modify noise level (adding Gaussian & Poisson noise), sharpness (blurring, deforming stars) and luminance/contrast (adding background level and gradient, reducing signal, degrading color saturation).

Each transformed image is then rated using a value between 0 (bad quality) an 10 (good quality) . To determine a value, we have evaluated the impacts of distortions on contrast/luminance, noise and sharpness – by comparing the transformed image with the ideal image.

• Contrast/luminance: we used Structural Similarity Index Measure (SSIM) because it is efficient to compare difference of contrast and luminance [21]: 1 is given to a perfectly similar image and 0 indicates no similarity.

• Noise: we used the normalized Noise Variance difference between the ideal and the transformed image. Noise Variance is estimated through the Fast Estimation method.

• Sharpness: we used the normalized FWHM difference between the ideal and the transformed image. FWHM is estimated through an heuristic based on stars detection ⁴.

We have defined the final rating associated to the transformed image as:

\(10*(r_{con} - max(r_{noi},A) - max(r_{sha},B)\)

This formula ensures that each starting criterion is taken into account in the rating – the interest being to have an index to compare the images as a whole, whatever the defect. The value \(A\) and \(B\) acts as maximum malus associated to noise and lack of sharpness – in practice we have empirically used 4 as value for this two constants.

Thus, the constructed dataset contains several thousands of images of different qualities and associated ratings, for instance: good (Figure 4), medium-quality (Figure 5), very bad (Figure 6).

The image resolution (256x256) is a good compromise because it corresponds to a standard amount of data for recent Deep Learning model architectures.

In the next section, we show how this dataset is then used to train a IQA model able to rate astronomical RGB images.

3.2 TRAINING↩︎

To run AutoML, a Python prototype was implemented. Image processing is realized with well-known open-source packages like openCV ⁵ and scikit-images ⁶.

We have used AutoKeras – an open source Python package based on Bayesian optimization [22]. AutoKeras aims at building and fine-tuning Machine Learning and Deep Learning models by only defining inputs and expected outputs. Other AutoML solutions exist (like TPOT [23]), but AutoKeras provides a native support for Image Regression models.

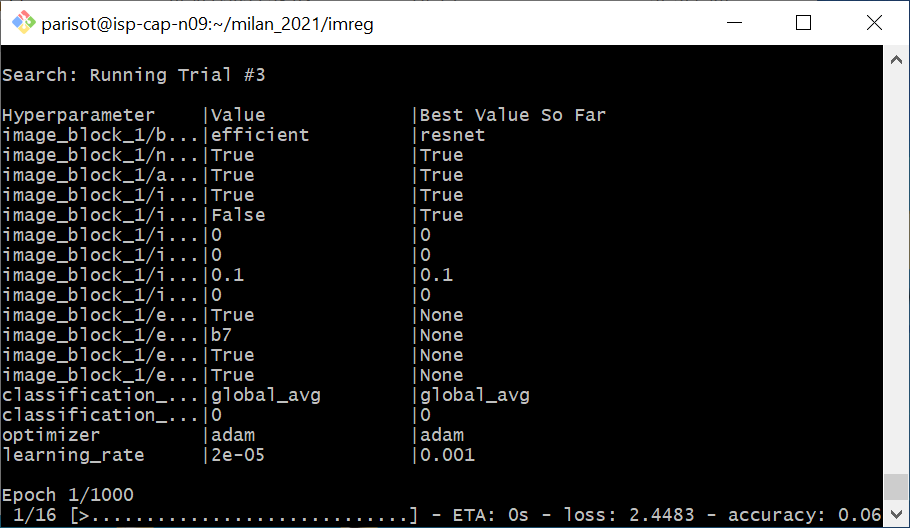

Behind the scenes, AutoKeras generates and launches numerous predefined training pipelines on-the-fly (model architecture selection, preprocessing, hyper-parameters setting, training, model evaluation and comparison). it will notably check if normalization step of the input data will allow to obtain a better model. It will also test a whole list of hyper-parameters such as drop-our rate, activation function (ex: Relu, Sigmoid), optimization algorithm (ex: ADAM, RMSprop), learning rate, etc. AutoKeras does not work randomly to find the best configuration: it tests a number of pre-defined pipelines, then refines the best configuration by making small mutations (as an evolutionary algorithm would do) [22]. Step by step, the pipeline producing the best model is thus refined up to a user-defined limit (i.e. number of trials).

The computations were executed on a computing infrastructure with the following hardware capabilities: 40 cores and 128 GB RAM (Intel(R) Xeon(R) Silver 4210 CPU @ 2.20GHz) and NVIDIA Tesla V100-PCIE-32GB. CUDA ⁷ and NUMBA ⁸ frameworks have been used in background to optimize the hardware usage during images treatment(CPUs and GPUs).

After numerous experiments, we have run thousands of different pipelines by combining variations of data preprocessing, optimizers usage, different hyper-parameters values (Figure 7).

Two models were shown to be worthy of interest after all the calculations:

• The best one leds to a model embedding a ResNet50 model [24], with 23 millions trainable parameters and 53 120 non-trainable parameters – obtained with a ADAM optimizer (learning rate of 0.01). Its accuracy is 1.19 (Mean Squared Error, MSE) on the test dataset. The R squared value is 0.4 – which is rather satisfying because we have here a regression on images.

• The smaller model is based on EfficientNetB1 with 6.589.337 parameters [25] – obtained with a ADAM optimizer (learning rate of 0.00001). The model accuracy was worse (MSE 1.25).

To observe the robustness of these two trained models on realistic data, we tested them on a augmented test dataset – on images having additional distortions – not present in the training set.

3.3 MODEL SELECTION ON AN AUGMENTED TEST SET↩︎

To obtain an additional large and realistic test dataset, we wrote several Python scripts for realistic image augmentation, i.e. to reproduce defects that are frequently found in astronomical images. For example, we have added different types of noises (Gaussian, Poisson, Salt and Pepper), we have merged the real signal with a realistic sky background [26]. We also have blurred images in a sophisticated way by using image augmentation techniques based on Deep Learning – especially for motion blur [27]. In a similar way, we generated starless versions of the images, in order to test the robustness of the model – this was realized with a dedicated Deep Learning model ⁹.

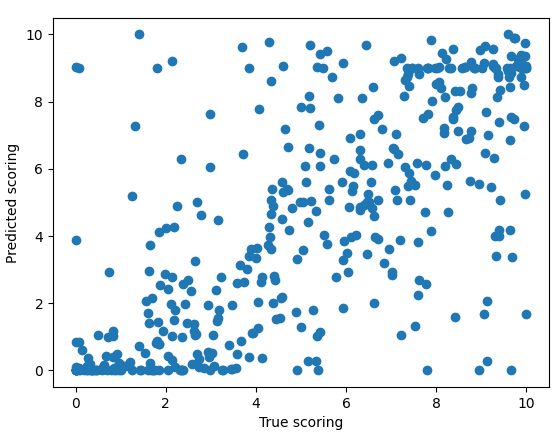

Both models are globally able to reproduce the defined rating – to make an estimation between images with and without defects. However the IQA model based on ResNet50 provides much better results, especially on the ratings of very good or very bad images (around 0 or around 10).

Certainly, there are more powerful classification architectures than ResNet50 and EfficientNet. Nevertheless, AutoML allowed us to obtain optimized models for the use-case presented in this paper.

In the next section, we detail the efficiency of the ResNet50 IQA model on live stacked images captured during EAA sessions.

4 EXPERIMENTS↩︎

The model was then tested on data captured during EAA sessions with two setups:

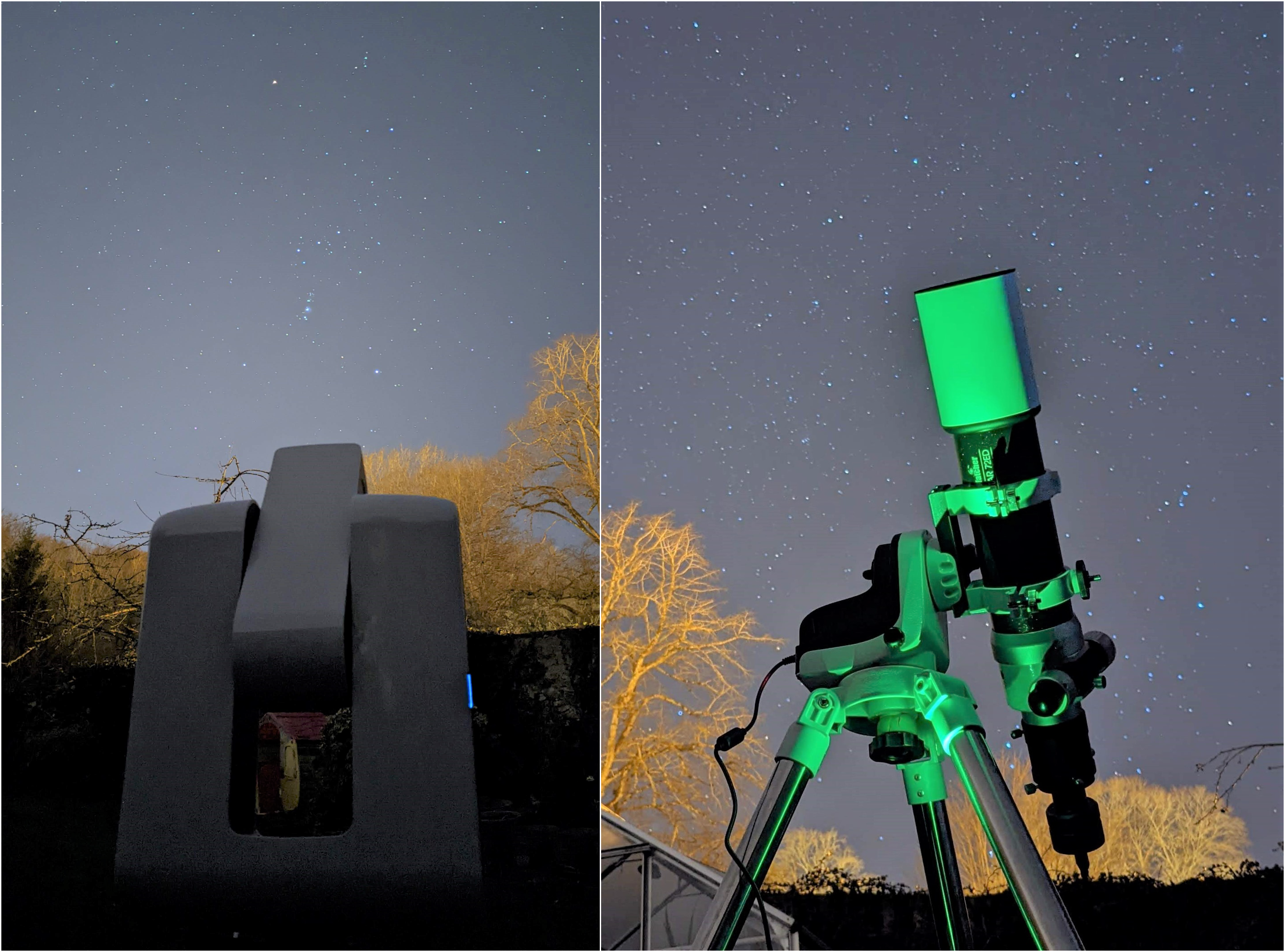

• 300 live stacked images obtained from 10 seconds sub-frames, with short total integration time (from 20 to 30 minutes) by using a Stellina observation station [12]. Images correspond to different deep sky objects (example: Messier 31, NGC4565, etc.).

• 100 live stacked images obtained from 5 seconds sub-frames, with short total integration time (from 20 to 30 minutes) by using a 72/420 refractor and a dedicated low-end astronomical digital camera(¹⁰).

All these RGB images have a high resolution (3096x2048 for the first set, 2048x2048 for the second set). As the input of our IQA model are 256x256 RGB images, all of them were split into patches and the overall IQA rating is the mean of patch ratings (no overlap).

The computed ratings are representative of the image sets: in practice, the Stellina observation station provides much better quality images than the other setup (Table 3). They are useful to compare images too: the second M17 nebula image presented in Figure 2 has a rating which is 50% higher than the rating of the first image (Figure 3).

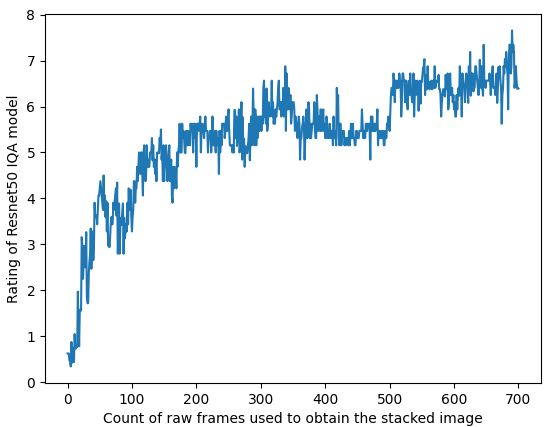

One of the interests of the approach is to measure the quality of the stacked image obtained during a EAA capture session. In theory, an astronomical image improves when accumulating integration time (i.e. by collecting as much data as possible). Capturing data is time-consuming and sometimes challenging (especially due to weather conditions), and the IQA estimation on the live stacked image may help to capture only what is necessary to have a stacked image with the desired quality (Figure 11). As the number of raw images increases, it becomes more difficult to increase the quality of the stacked image. Let’s take the example of the observation of NGC1499 with a Stellina station: 711 images of 10 seconds of exposure time each ¹¹. The graph shows that the quality increases strongly at the beginning of the capture, and less afterwards (Figure 11). The score can thus be used to determine if it is still relevant to continue data acquisition.

Out of curiosity, we have tested the IQA model on two extreme cases of well-known astronomical pictures. Although not typical use cases of our approach, it gives us an overview of what our model produces on different images:

• First Andromeda image captured by Isaac Roberts in (1899) ¹²: our IQA model provides a rating of 2.56. Even if the image is incredible for its time, it is far from the standards expected today: a poor score is logic.

• Webb’s First Deep Field – a long-exposure image of the SMACS0723 galaxy cluster captured vy the James Webb Space Telescope ¹³: our IQA model computes a rating of 7.2 for the part without the JWST’s typical diffraction spikes [28]. The rating drops to 4.9 with these spikes because the model seems to consider them as defects.

5 DISCUSSION↩︎

With our approach, we can observe that the image defects are really penalized by the IQA model as we have chosen to mix potential distortions into the training process. There is a drawback: this method is not able to list, grade and locate precisely the defects that are most present in an image, and for this we will have to go further (for instance, by combining with object detection).

Another point concerns the execution time of the IQA model on large images. Even if training is realized on a high performance computing platform, the models use should be possible on normal computers with modest capabilities – especially for on-the-fly evaluation of stacked images.

Let’s take the example of a 4096x4096 astronomical image: with no overlap, we may need to evaluate 256 256x256 patches – it may take some time depending of the hardware. To be efficient, one must try to minimize the number of calculations required. In a pragmatic way, the following strategies can be applied:

• Decrease the resolution of the image to reduce the count of patches to evaluate.

• Estimate the IQA rating of a small relevant subset of patches – for instance by ignoring dark patches or patches with low signal.

During our experiments, we have concluded that the second one provides better results. Further performance optimizations will be realized after deep analysis of model execution with dedicated tools [29].

6 CONCLUSION↩︎

This paper presented an approach to automatically estimate the quality of astronomical RGB images. A dedicated model was trained by using Automated Machine Learning, and then tested on various image sets captured during Electronically Assisted Astronomy sessions. A Python prototype was presented and preliminary results were discussed. In future works, we will extend the approach building on these current results to design and train additional models that are both more sophisticated and interpretable, by relying on eXplainable Artificial Intelligence.

Acknowledgments: This research was funded by the Luxembourg National Research Fund (FNR), grant reference 15872557. Tests were realized on the LIST AIDA platform, thanks to Raynald Jadoul and Jean-François Merche.
