1 Nomenclature↩︎

2 Introduction↩︎

Any space program’s maturity has historically hinged on their ability to perform rendezvous and docking (RVD) operations [1] which have gained significant interest due to applications like on-orbit refueling and assembly [2], [3]. Pioneering U.S. and Soviet missions, like Gemini and Soyuz, aimed to demonstrate these essential capabilities, which later facilitated constructing and servicing space stations in low Earth orbit [4]. Although the core technology has largely remained unchanged, it may not suffice for future missions [1]. The development of fully autonomous rendezvous systems for various domains, including low Earth orbit and low lunar orbit [5], is imperative to advance space exploration and address upcoming challenges. RVD missions [1]–[4] typically involve several main phases, with the final and proximity operations being crucial for mission complexity and safety. Various trajectory designs, control laws, and optimal planning schemes for these operations have been proposed in literature [6], [7]. Unlike traditional spacecraft control problems, RVD missions often require six-degree-of-freedom (6-DOF) control for the chaser spacecraft to synchronously track during critical phases. Within this context, the MarCO (Mars Cube One) mission by NASA’s Jet Propulsion Laboratory (JPL) [8] has marked a significant advancement. Launched in 2018, MarCO sent two CubeSats, small modular satellites, to Mars. Their role was to relay real-time communication during the InSight Mars lander’s entry, descent, and landing (EDL) operations. This marked the first use of CubeSats in deep space, demonstrating their potential for future interplanetary missions. In recent years, the term "proximity operations" has become prevalent to describe a variety of space missions that necessitate one spacecraft maintaining close proximity to another space object. These missions may involve tasks such as inspection, health monitoring, surveillance, servicing, and refueling of a space asset by a different spacecraft. A significant challenge in autonomous proximity operations, whether cooperative or uncooperative, is the ability to independently and precisely track the changing relative positions and attitudes, or pose references, in relation to a moving target. This is crucial in order to prevent on-orbit collisions and accomplish the overall objectives of the mission.

A common thread underlying these advancements, from rendezvous and docking operations to the deployment of CubeSats in deep space, is the need for 6-DOF control that involves the precise joint control of both rotational and translational motion. Even though there is rich literature on providing various stability guarantees independently for attitude control and for translational control, the problem of jointly controlling both the position and attitude has only recently gained attention. Spacecraft rendezvous [9]–[11], spacecraft pose estimation [12], [13], pose tracking [14], powered descent guidance [15], [16] and spacecraft formation flying [17] are some important applications that require joint control of both rotational and translational motion. Dual quaternions [18] provide a compact way of representing not only the attitude but also the position of the body, making it a great choice for applications ranging from inertial navigation, formation flying, and robot kinematic chains to computer vision and animation. The dynamics of the tracking control problem for many of the aforementioned aero-mechanical systems tend to be nonlinear, making the controller design a challenging task. Precise characterization of the stability characteristics of the controller significantly enhances the chances of its successful adoption for any particular application. Dual quaternions [18], [19] have the added advantage of allowing a combined position and attitude control law to be written in a compact single form. Further, the governing rigid body dynamics and the designed feedback control laws based on combined position and attitude (characterized by a single dual quaternion) take into account the natural coupling between the translation and rotational motion of the rigid body.

Tsiotras [20] provides asymptotic stability guarantees for attitude stabilization using quaternions and Modified Rodriges Parameters (MRPs) without angular feedback. This asymptotic stability result was extended to the attitude tracking problem in [21]. Recently, a stronger Uniform Exponential Stability (UES) result for attitude stabilization was provided using a novel Lyapunov analysis design, taking advantage of the structure of the MRP error dynamics, where the feedback controller is the MRPs based classical Proportional Derivative with feed-forward terms (PD+ controller) [22]. When using quaternions for attitude control, it is difficult to guarantee exponential convergence of the vector part of the quaternions to zero without any constraints or lower limits on the feedback gains, as is the case in [23] because this high gain feedback is necessary to dominate the nonlinear terms that show up in the error dynamics when using quaternions. In [22], the UES result based on MRPs was extended to quaternions. However, instead of using a direct Lyapunov analysis based on the quaternion kinematics, the argument was made that the vector part of the quaternion error is upper bounded by the MRP error, and hence exponentially converge when the MRPs do so. In [10], a set of artificial potential functions are constructed and leveraged to incorporate information regarding spacecraft motion constraints such as field-of-view and approach path constraints that must be followed during the proximity operations. It is shown that by combining these functions with the designed feedback controller, the leader can be steered to the follower asymptotically while respecting its motion constraints. The authors of [24] propose a dual quaternion based nonlinear feedback controller to jointly stabilize both the position and attitude of the rigid body. Further, they provide asymptotic stability guarantees for rigid body dynamics. This result was extended to the tracking control problem for a rigid body in [25].

In this work, we propose a novel feedback tracking control law and present a stronger Semi-Global Exponential Stability (SGES) guarantee for the dual quaternion-based rigid body tracking control problem where the proposed control law actually guarantees semi-global exponential convergence of both attitude and position states of the rigid body to the desired trajectories and not just asymptotic stability as known before. Moreover, no extra conditions are placed on the controller gains, implying that the controller can be designed without any prior knowledge of the bounds on the reference trajectory or body inertia. This stronger semi-global exponential convergence property of the closed loop system is a previously unknown result and therefore presents itself as the major contribution of this paper. This result reaffirms the effectiveness of the controller and provides a compelling case for its use in the 6-DOF motion control of spacecraft, air vehicles, and robotic systems. The stronger exponential stability result also allows us to provide robustness guarantees of local Input-to-State Stability to the controller in the presence of unknown additive-bounded external disturbances. Such disturbances might result from inertia uncertainties, actuators, or measurement sensors, demonstrating the reliability of the proposed model for space applications.

The rest of the paper is organized as follows. Section 3 provides a brief overview of dual quaternion algebra and the tracking error dynamics. Section 4 presents the control design and asymptotic stability analysis for the dual quaternion based tracking dynamics of the rigid body followed by our main result of semi-global exponential stability in Section 4.3. Section 5 presents the robustness properties of the proposed nonlinear feedback controller in terms of Input-to-State Stability. Section 6 presents the methodology for safe control synthesis in the presence of motion and safety constraints. Section 7 presents the results on five realistic scenarios where we verify the SGES and ISS claims followed by concluding remarks in Section 8.

3 Preliminaries↩︎

3.1 Quaternion Algebra↩︎

A quaternion \(q\) can be represented by a pair \((\Bar{q},q_4)\) where \(\Bar{q}\in\mathbb{R}^3\) is known as its vector part and \(q_4\in\mathbb{R}\) as its scalar part. The set of quaternions is denoted by \(\mathbb{Q}\). The set \(\mathbb{Q}^v = \{q \in\mathbb{Q}: q_4 = 0\}\) denotes the set of quaternions with scalar part zero and the set \(\mathbb{Q}^s = \{q \in\mathbb{Q}: \bar{q} = 0\}\) denotes the set of quaternions with zero vector part. Some of the basic operations on quaternions \(a,b\in\mathbb{Q}\) are given below \[\begin{align} &\text{Addition: } a+b=\left(\Bar{a}+\Bar{b}, a_{4}+b_{4}\right),\nonumber\\ &\text{Multiplication by a scalar: } \lambda a=\left(\lambda \Bar{a}, \lambda a_{4}\right),\nonumber\\ &\text{Multiplication: } a b=\left(a_{4} \Bar{b}+b_{4} \Bar{a}+\Bar{a} \times \Bar{b}, a_{4} b_{4}-\Bar{a} \cdot \Bar{b}\right),\nonumber \\ &\text{Conjugation: } a^{\star}=\left(-\Bar{a}, a_{4}\right),\nonumber \\ &\text{Dot product: } a \cdot b=\frac{1}{2}\left(a^{\star} b+b^{\star} a\right)=\frac{1}{2}\left(a b^{\star}+b a^{\star}\right)=\left(\Bar{0}, a_{4} b_{4}+\Bar{a} \cdot \Bar{b}\right),\nonumber \\ &\text{Cross product: } a \times b=\frac{1}{2}\left(a b-b^{\star} a^{\star}\right)=\left(b_{4} \Bar{a}+a_{4} \Bar{b}+\Bar{a} \times \Bar{b}, 0\right), \nonumber\\ &\text{Norm: }\|a\|^{2}=a a^{\star}=a^{\star} a=a \cdot a=\left(\Bar{{0}}, a_{4}^{2}+\Bar{a} \cdot \Bar{a}\right),\nonumber \\ &\text{ Scalar part: } \operatorname{sc}(a)=\left(\Bar{0}, a_{4}\right) \in \mathbb{Q}^{s}\nonumber \\ &\text{ Vector part: } \operatorname{vec}(a)=(\Bar{a}, 0) \in \mathbb{Q}^{v}\nonumber\\ &\text{Multiplication by a matrix: } M\star q=(M_{11} \bar{q} + M_{12}q_4, M_{21} \bar{q} + M_{22}q_4)\nonumber \end{align}\] where \(M= \Big[\begin{smallmatrix} M_{11} & M_{12} \\ M_{21} & M_{22} \end{smallmatrix} \Big]\in\mathbb{R}^{4\times 4}\), where \(M_{11}\in \mathbb{R}^{3 \times 3},\; M_{21}\in \mathbb{R}^{1 \times 3}, M_{12} \in \mathbb{R}^{3 \times 1}, \; M_{22} \in \mathbb{R}\).

3.2 Dual Quaternion Algebra↩︎

A dual quaternion \(\hat{q}\) can be represented by a pair \(({q}_r,{q}_d)\) where \({q}_r\in\mathbb{Q}\) and \({q}_d\in\mathbb{Q}\) are the real and dual parts of \(\hat{q}\), respectively. Let the set of dual quaternions be denoted by \(\mathbb{D}\) and let also \(\mathbb{D}^v_d = \{\hat{q} : \hat{q} = q_r + \epsilon q_d,\; q_r ,\; q_d \in \mathbb{Q}^v \}\) denote the set of dual quaternions where the scalar component of the real and dual parts of \(\hat{q}\) are zero. The set \(\mathbb{D}_d^s\) denotes the set of dual quaternions where the vector component of the real and dual parts of \(\hat{q}\) are zero. A dual quaternion \(\hat{q}\) can also be represented as \(\hat{q}=q_r+\epsilon q_d\) where \(\epsilon^2=0\) and \(\epsilon\neq0\). A list of basic operations on dual quaternions \(\hat{a},\;\hat{b}\in\mathbb{D}\) are given below [25]: \[\begin{align} &\text{Addition: } \hat{a}+\hat{b}=\left(a_{r}+b_{r}\right)+\epsilon\left(a_{d}+b_{d}\right),\nonumber\\ &\text{Multiplication by a scalar: } \lambda \hat{a}=\left(\lambda a_{r}\right)+\epsilon\left(\lambda a_{d}\right),\nonumber\\ &\text{Multiplication: } \hat{a} \hat{b}=\left(a_{r} b_{r}\right)+\epsilon\left(a_{r} b_{d}+a_{d} b_{r}\right),\nonumber \\ &\text{Conjugation: } \hat{a}^{\star}=a_{r}^{\star}+\epsilon a_{d}^{\star},\nonumber \\ &\text{Swap: } \hat{a}^{\mathrm{s}}=a_{d}+\epsilon a_{r},\nonumber \\ &\text{Dot product: } \hat{a} \cdot \hat{b}=\frac{1}{2}\left(\hat{a}^{\star} \hat{b}+\hat{b}^{\star} \hat{a}\right)=\frac{1}{2}\left(\hat{a} \hat{b}^{\star}+\hat{b} \hat{a}^{\star}\right) =a_{r} \cdot b_{r}+\epsilon\left(a_{d} \cdot b_{r}+a_{r} \cdot b_{d}\right),\nonumber\\ &\text{Cross product: } \hat{a} \times \hat{b}=\frac{1}{2}\left(\hat{a} \hat{b}-\hat{b}^{\star} \hat{a}^{\star}\right)=a_{r} \times b_{r}+\epsilon\left(a_{d} \times b_{r}+a_{r} \times b_{d}\right),\nonumber \\ &\text{Circle product: }\hat{a}\circ\hat{b}=a_r\cdot b_r+a_d\cdot b_d, \nonumber\\ &\text{Norm: }\|\hat{a}\|^{2}=a_r\cdot a_r+a_d\cdot a_d , \nonumber\\ &\text{Dual norm: }\|\hat{a}\|_{d}^{2}=\hat{a} \hat{a}^{\star}=\hat{a}^{\star} \hat{a}=\hat{a} \cdot \hat{a} \nonumber\\ &\quad\quad\quad\quad\quad\quad\quad\;\;=\left(a_{r} \cdot a_{r}\right)+\epsilon\left(2 a_{r} \cdot a_{d}\right), \nonumber\\ &\text{ Scalar part: } \operatorname{sc}(\hat{a})=\operatorname{sc}(a_r)+\epsilon\operatorname{sc}(a_d)\in\mathbb{D}_d^s\nonumber \\ &\text{ Vector part: } \operatorname{vec}(\hat{a})=\operatorname{vec}(a_r)+\epsilon\operatorname{vec}(a_d)\mathbb{D}_d^v\nonumber\\ & \text{Multiplication by matrix}: M \star \hat{q}=\left(M_{11} \star q_{r}+M_{12} \star q_{d}\right)+\epsilon\left(M_{21} \star q_{r}+M_{22} \star q_{d}\right),\nonumber \end{align}\] where \(M= \Big[\begin{smallmatrix} M_{11} & M_{12} \\ M_{21} & M_{22} \end{smallmatrix} \Big]\in\mathbb{R}^{8\times 8}\), where \(M_{11}, M_{12}, M_{21}, M_{22} \in \mathbb{R}^{4 \times 4}\).

Some other properties that follow from the dual quaternion algebra are as follows: \[\begin{equation} \hat{a} \circ(\hat{b} \hat{c})=\hat{b}^{\mathrm{s}} \circ\left(\hat{a}^{\mathrm{s}} \hat{c}^*\right)=\hat{c}^{\mathrm{s}} \circ\left(\hat{b}^* \hat{a}^{\mathrm{s}}\right) \in \mathbb{R}, \quad \hat{a}, \hat{b}, \hat{c} \in \mathbb{D}_d, \tag{1} \end{equation} \begin{equation} \hat{a} \circ(\hat{b} \times \hat{c})=\hat{b}^{\mathrm{s}} \circ\left(\hat{c} \times \hat{a}^{\mathrm{s}}\right)=\hat{c}^{\mathrm{s}} \circ\left(\hat{a}^{\mathrm{s}} \times \hat{b}\right), \quad \hat{a}, \hat{b}, \hat{c} \in \mathbb{D}_d^v, \tag{2} \end{equation} \begin{equation} (M \star \hat{a}) \circ \hat{b}=\hat{a} \circ\left(M^{\top} \star \hat{b}\right),\quad \hat{a}, \hat{b} \in \mathbb{D}_d,\quad M \in \mathbb{R}^{8 \times 8} \tag{3} \end{equation} \begin{equation} \hat{a} \times \hat{b} =-\hat{b} \times \hat{a}, \quad \hat{a}, \hat{b} \in \mathbb{D}_d . \tag{4} \end{equation}\]

3.3 Tracking error dynamics↩︎

The error dynamics for the rigid body motion expressed in terms of dual quaternions is given by [25] \[\begin{align} &{{{\dot{\hat{q}}}_{{\mathrm{B}/\mathrm{D}}}}}=\frac{1}{2}{{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}{\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}\nonumber\\ &\left(\dot{\hat{\omega}}_{\mathrm{B} / \mathrm{D}}^{\mathrm{B}}\right)^{\mathrm{s}}=\left(J\right)^{-1} \star\left(\hat{f}^{\mathrm{B}}-\left({\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}+\hat{\omega}_{\mathrm{D} / \mathrm{I}}^{\mathrm{B}}\right) \times\left(J\star\left(\left({\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}\right)^{\mathrm{s}}+\left(\hat{\omega}_{\mathrm{D} / \mathrm{I}}^{\mathrm{B}}\right)^{\mathrm{s}}\right)\right)\right)\nonumber \\ &\quad\quad\left.-J\star\left({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}^{\star} \dot{\hat{\omega}}_{\mathrm{D} / \mathrm{I}}^{\mathrm{B}} {{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}\right)^{\mathrm{s}}-J\star\left(\hat{\omega}_{\mathrm{D} / \mathrm{I}}^{\mathrm{B}}\times {\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}\right)^{\mathrm{s}}\right) \label{eqn:system95dynamics} \end{align}\tag{5}\] where \({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}={\hat{q}}_{{\mathrm{D}/\mathrm{I}}}^\star\hat{q}_{{\mathrm{B}/\mathrm{I}}},\;\hat{q}_{{\mathrm{B}/\mathrm{I}}}={q}_{{\mathrm{B}/\mathrm{I}}}+\epsilon\frac{1}{2}{q}_{{\mathrm{B}/\mathrm{I}}}{r}^\mathrm{B}_{{\mathrm{B}/\mathrm{I}}}\), \({r}^\mathrm{B}_{{\mathrm{B}/\mathrm{I}}}=(\Bar{r}^\mathrm{B}_{{\mathrm{B}/\mathrm{I}}},0)\) and \({{\hat{\omega}}^\mathrm{B}_{{\mathrm{B}/\mathrm{D}}}}=\hat{\omega}_{\text{B/I}}-\hat{\omega}_{\mathrm{D/I}}\). The rotation quaternion and the translation vector of the rigid body with respect to the inertial frame are represented by \({q}_{{\mathrm{B}/\mathrm{I}}}\) and \(\Bar{r}^\mathrm{B}_{{\mathrm{B}/\mathrm{I}}}\) respectively. The desired dual quaternion \(\hat{q}_{{\mathrm{D}/\mathrm{I}}}\) is defined similarly. Further, \({\hat{\omega}_{\mathrm{B/I}}}=\omega_\mathrm{B/I}+\epsilon v_\mathrm{B/I}\) where \(\omega_{{\mathrm{B}/\mathrm{I}}}=(\Bar{\boldsymbol{\omega}},0)\in\mathbb{Q}^v\) and \(v_{\mathrm{B}/\mathrm{I}}=(\Bar{\boldsymbol{v}},0)\in\mathbb{Q}^v\) where \(\Bar{\boldsymbol{\omega}}\in\mathbb{R}^3\) and \(\Bar{\boldsymbol{v}}\in\mathbb{R}^3\) are the angular and linear velocities of the rigid body with respect to the inertial frame respectively. The input dual force \(\hat{{f}}^\mathrm{B}:=(f^{\mathrm{B}},0)+\epsilon({\tau}^{\mathrm{B}},0)\) is the total dual input applied to the rigid body where \(f^\mathrm{B}\) and \(\tau^\mathrm{B}\) represent the force and the torque applied respectively to the rigid body. \(J\) is the dual inertia matrix defined as follows \[\begin{align} J=\begin{bmatrix} mI_3&0_{3\times 1}&0_{3\times 3}&0_{3\times 1}\\ 0_{1\times 3}&1&0_{1\times 3}&0\\ 0_{3\times 3}&0_{3\times 1}&\Bar{I}^\mathrm{B}&0_{3\times 1}\\ 0_{1\times 3}&0&0_{1\times 3}&1 \end{bmatrix}\nonumber \end{align}\] where \(\Bar{I}^\mathrm{B}\) is the moment of inertia of the rigid body with respect to its center of mass, \(m\) is the mass of the body and \(I_3\) is the identity matrix.

4 Control Design and Stability Analysis↩︎

In this section, we first propose the nonlinear feedback tracking controller and subsequently establish the asymptotic and semi-global exponential stability property of the closed-loop dynamics. Finally, we discuss the relation of the proposed nonlinear feedback control law with optimal control.

4.1 Control Design↩︎

The proposed nonlinear feedback tracking control law is given by \[\begin{align} \hat{f}^\mathrm{B} &=- k_{p}\frac{{{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}^{\star}\left({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}^{\mathrm{s}}-\mathbf{1}^{\mathrm{s}}\right)}{1+\|{{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1}\|^2}-k_{d}\left({\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}\right)^{\mathrm{s}}+J\star\left({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}^{\star} \dot{\hat{\omega}}_{\mathrm{D} / \mathrm{I}}^{\mathrm{D}} {{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}\right)^{\mathrm{s}} +\hat{\omega}_{\mathrm{D} / \mathrm{I}}^{\mathrm{B}}\times\left(J\star\left(\hat{\omega}_{\mathrm{D} / \mathrm{I}}^{\mathrm{B}}\right)^{\mathrm{s}}\right), \quad k_{p}, k_{d}>0 \label{eqn:feedback95control95law} \end{align}\tag{6}\] Note that the feedback control law proposed in [25] only guarantees asymptotic stability for the rigid body tracking error dynamics 5 . Further, the control law in [25] is different from 6 and is given by \[\begin{align} \hat{f}^\mathrm{B} &=- k_{p}\operatorname{vec}\left({{{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}^{\star}\left({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}^{\mathrm{s}}-\mathbf{1}^{\mathrm{s}}\right)}\right)-k_{d}\left({\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}\right)^{\mathrm{s}}+J\star\left({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}^{\star} \dot{\hat{\omega}}_{\mathrm{D} / \mathrm{I}}^{\mathrm{D}} {{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}\right)^{\mathrm{s}} +\hat{\omega}_{\mathrm{D} / \mathrm{I}}^{\mathrm{B}}\times\left(J\star\left(\hat{\omega}_{\mathrm{D} / \mathrm{I}}^{\mathrm{B}}\right)^{\mathrm{s}}\right), \quad k_{p}, k_{d}>0 \end{align}\] In the subsequent sections, we show that the proposed feedback control law 6 guarantees asymptotic as well as semi-global exponential stability for the dual quaternion based closed-loop tracking error dynamics of the rigid body represented by 5 . Furthermore, using the proposed Lyapunov function, we show Input to State Stability (ISS) for the rigid body dynamics in the presence of time-varying additive bounded disturbances.

4.2 Asymptotic Stability↩︎

As a first step to proving exponential stability, we leverage Lyapunov analysis to initially prove asymptotic stability. To that end, consider the following candidate Lyapunov functions \(V_0\):

\[\begin{align} V_0=&k_{p}\text{ln}\left(1+({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1})\circ({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1})\right)+\frac{1}{2}\left({\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}\right)^{\mathrm{s}} \circ\left(J\star\left({\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}\right)^{\mathrm{s}}\right) \label{eqn:V0} \end{align}\tag{7}\]

4.3 Semi-global Exponential Stability Result↩︎

In this section, we show that the feedback control law 6 renders the tracking error dynamics 5 semi-global exponential stability stable. To that end, we first state the definition of semi-global exponential stability.

For our analysis, for \(\mathcal{B}_R\), we will consider the following set \[\begin{align} \mathcal{B}_R=\left\{{\boldsymbol{x}}=({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1},{{\hat{\omega}}^\mathrm{B}_{{\mathrm{B}/\mathrm{D}}}}):\;\|{{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1}\|^2+\|{{\hat{\omega}}^\mathrm{B}_{{\mathrm{B}/\mathrm{D}}}}\|^2\leq R^2\right\} \label{eqn:ball95defn} \end{align}\tag{12}\] where \(R>0\). Note that \(({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}},{{\hat{\omega}}^\mathrm{B}_{{\mathrm{B}/\mathrm{D}}}})=(\mathbf{1},\mathbf{0})\) is the equilibrium point for 5 . Therefore, we consider \({\boldsymbol{x}}(t):=({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1},{{\hat{\omega}}^\mathrm{B}_{{\mathrm{B}/\mathrm{D}}}})=(0,0)\) to be the equilibrium point. To streamline this presentation, we drop the time indexing for the states \({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1}\) and \({\hat{\omega}^{\mathrm{B}}_{\mathrm{B/D}}}\). Without loss of generality, we assume that \(t_0=0\). Unless otherwise mentioned \({\boldsymbol{x}}(t)\) indicates the states \(({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1},{{\hat{\omega}}^\mathrm{B}_{{\mathrm{B}/\mathrm{D}}}})\) for any time instant \(t\geq 0\). Note that in practical applications, the distinction between semi-global exponential stability and global exponential stability becomes negligible. Semi-global exponential stability guarantees that for any given bounded set of initial conditions i.e. within a ball of arbitrary radius \(R>0\), the proposed feedback control law ensures the system’s exponential stability. This is sufficient in practice, where initial conditions are naturally bounded. Global exponential stability, on the other hand, extends this guarantee to all initial conditions \({\boldsymbol{x}}_0\in\mathbb{R}^n\).

The following lemma will be used in the proof of semi-global exponential stability.

We now state the first main result of this paper.

In the following section, we discuss the relation of the proposed feedback controller 6 with optimal control.

4.4 Relation of proposed feedback control law to optimal control↩︎

As a consequence of Theorem 3, we have the following result

5 Robustness analysis↩︎

In this section, we define and prove the local Input-to-State stability (ISS) for the system 5 in the presence of time-varying additive bounded external disturbances. The ISS property provides a mechanism to ensure that for any bounded input, such as external disturbances or changes in system parameters, the state of the system remains bounded, ensuring the overall system stability. This is particularly important in aerospace applications where loss of stability can have catastrophic consequences. ISS not only assures a bounded response but also provides a measure of the degree of this boundedness, thereby providing a quantifiable measure of robustness. Formally, ISS is defined as follows:

Note that, Input-to-state stability (ISS) is particularly important in the presence of time-varying additive disturbances because it provides a framework to assess how external perturbations affect the system’s state. Aerospace systems are often subjected to disturbances such as gravitational perturbations, solar radiation pressure, magnetic field interactions etc. These disturbances are inherently time-varying and can significantly impact the trajectory and attitude of the spacecraft. ISS ensures that if the disturbances are bounded, the system’s state will remain bounded and converge to an acceptable range, thus preserving the system’s functionality and preventing instability. This robustness is crucial for the design and operation of aerospace systems where maintaining performance in the face of such uncertainties is essential for safety, reliability, and effectiveness. The following theorem allows us to claim ISS using Lyapunov analysis.

We now state the second main result of this paper.

6 Motion and Safety constraints↩︎

In this section, we leverage the notion of Control Barrier Functions (CBFs) [28] to design a control framework that ensures that motion and safety constraints are satisfied for the rigid body. CBFs offer a simplified and compact method for ensuring safety and satisfying motion constraints in nonlinear controlled systems. This is particularly crucial in critical aerospace applications where safety is paramount. In such applications, even minor deviations from the desired motion trajectory or state can lead to catastrophic outcomes. The CBF based approach for synthesising control inputs basically modifies the nominal control input \({\boldsymbol{u}}_0\) (defined by 6 in our case) as necessary to enforce the motion and safety constraints, while still trying to achieve the performance objectives as closely as possible. In essence, the nominal controller sets the performance targets, and the CBF-based controller ensures safety while striving to meet these targets. We now discuss the notion of CBF.

6.1 Control Barrier Functions (CBFs)↩︎

Let \(h({\boldsymbol{x}})\) be a scalar valued continuously differentiable function that satisfies the following: \[\begin{align} h({\boldsymbol{x}})>0\;\;\;\forall\; {\boldsymbol{x}}\in\text{int}(\mathcal{S}),\quad h({\boldsymbol{x}})=0\;\;\;\forall\; {\boldsymbol{x}}\in\partial \mathcal{S},\quad h({\boldsymbol{x}})<0\;\;\;\forall \;{\boldsymbol{x}}\in\mathcal{X}\setminus\mathcal{S} \label{eqn:h95function} \end{align}\tag{32}\] where \(\text{int}(\mathcal{S})\) and \(\partial\mathcal{S}\) denotes the interior and the boundary of the safe set \(\mathcal{S}\) respectively. The system has a relative degree \(r\) (positive integer) if, in some neighborhood of the origin, \[\begin{align} L_gL_f^{i-1}h({\boldsymbol{x}})=0,\quad L_gL_f^{r-1}h({\boldsymbol{x}})\neq 0,\quad\forall\quad i=1,2,\dots,(r-1)\nonumber \end{align}\] The CBF is defined as follows

Therefore, a feedback control input \({\boldsymbol{u}}_s({\boldsymbol{x}})\) that guarantees satisfaction of motion and safety constraints can be synthesized by solving the following (constrained) Quadratic Program (QP) as follows: \[\begin{align} &{\boldsymbol{u}}_s({\boldsymbol{x}})=\underset{{\boldsymbol{u}}\in\mathcal{U}}{\text{argmin}}\;\|{\boldsymbol{u}}-{\boldsymbol{u}}_0\|^2\\ & L_f^{r}h({\boldsymbol{x}})+L_gL_f^{r-1}h({\boldsymbol{x}}){\boldsymbol{u}}\geq -\boldsymbol{a}^\mathrm{T}\eta(h({\boldsymbol{x}}))\end{align} \label{eqn:cbf95qp95general}\tag{33}\]

where \({\boldsymbol{u}}_0\) is the nominal controller. Note that for any fixed \({\boldsymbol{x}}\), 33 is a QP with \({\boldsymbol{u}}\) as the optimization variable. The following subsection discusses the application of CBF for generating safe control inputs for spacecraft rendezvous and docking problem.

6.2 Safe spacecraft rendezvous and docking↩︎

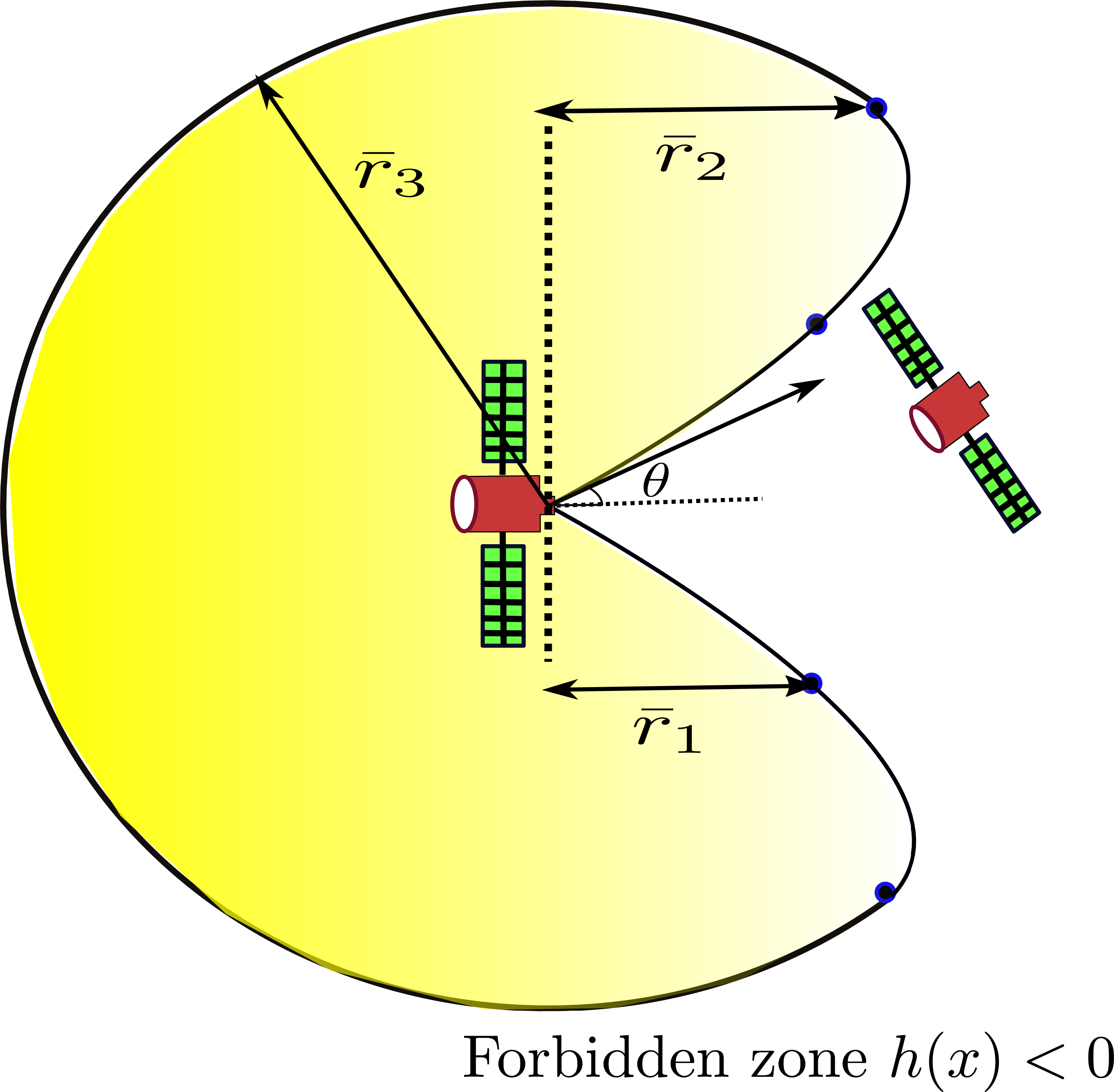

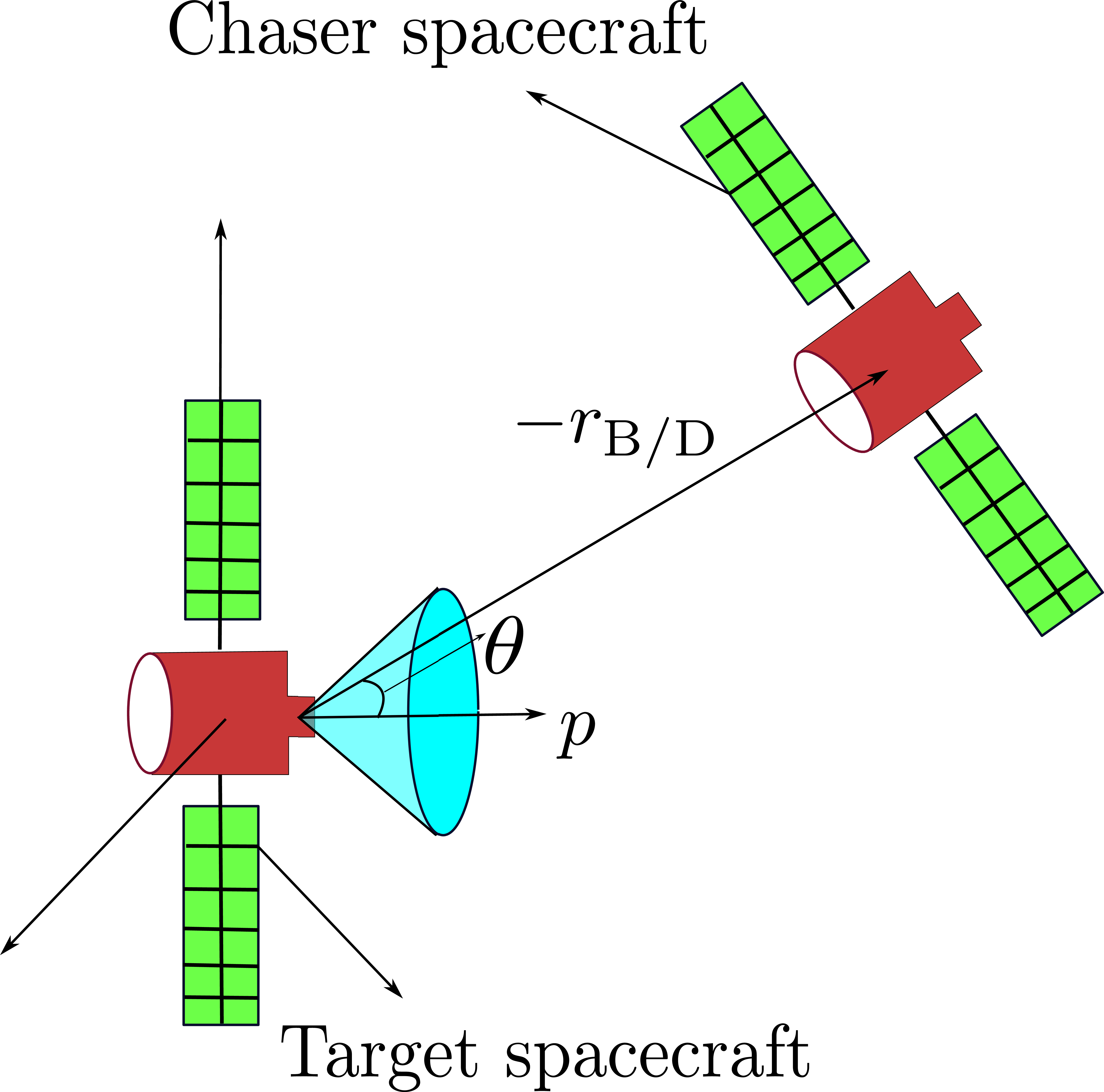

We consider the final phase of the spacecraft rendezvous and docking problem where the chaser spacecraft docks in the target spacecraft while satisfying motion constraints such as approach path and input constraints. As shown in Fig. ¿fig:fig:approach95path95constraint?, the approach path constraint ensures that the vector \(\boldsymbol{p}\) makes an angle of less than \(\theta\) with the vector pointing from the chaser to the target spacecraft. For the spacecraft docking problem that captures the approach path constraint and the input constraints, we define the CBF function \(h\) as follows: \[\begin{align} h({r}_{{\mathrm{B}/\mathrm{D}}})=\left\{\begin{array}{cc} \frac{\bar{x}^3 \tan ^2(\theta)}{2 \bar{r}_1-\bar{x}}-\bar{y}^2-\bar{z}^2 & \bar{x} \in\left[0, \bar{r}_1\right] \\ \bar{x}^2+\bar{y}^2+\bar{z}^2-\bar{r}_3^2 & \bar{x} \in\left[-\bar{r}_3, \bar{r}_2\right] \\ \bar{x}^2+\bar{y}^2+\bar{z}^2+r^\star \sin \left(\pi \frac{\bar{x}}{\bar{r}_2}\right)\left(\bar{y}^2+\bar{z}^2\right)-\bar{r}_3^2 & \bar{x} \in\left[\bar{r}_1, \bar{r}_2\right] \end{array}\right. \label{eqn:cbf95defn} \end{align}\tag{34}\] where \({r}_{{\mathrm{B}/\mathrm{D}}}=[\Bar{x},\;\Bar{y},\;\Bar{z}]^\mathrm{T}\), \(\bar{r}_3>\bar{r}_2>\bar{r}_1>0,\;\theta>0,\;r^\star>0\) are constants. The value of \(r^\star\) is chosen such that \(h\) is continuous and differentiable at \(x=\bar{r}_2\). To that end, \(r^\star\) is given by \[\begin{align} r^\star=\frac{\bar{r}_3^2-\bar{r}_1^2\left[1+\tan ^2(\theta)\right]}{\bar{r}_1^2 \sin \left(\pi\left(\bar{r}_1 / \bar{r}_2\right)\right) \tan ^2(\theta)}\nonumber \end{align}\] The mathematical equation 34 presents a composite surface (\(h=0\)), which comprises of three sections. The initial section is a curve based on the cissoid [29] and serves to delineate the ultimate approach corridor. Adjusting \(\bar{r}_1\) and \(\theta\) allows for modifications to the length and the angle included in the approach corridor, respectively. Although the second section consists of a partial spherical surface, its radius (\(\bar{r}_3\)) must be sufficiently large to encompass the target’s components. Fig. 3 shows the surface \(h=0\). The purpose of the third section is to link the preceding two sections. The control inputs are then synthesized by solving the following QP: \[\begin{align} & {\boldsymbol{u}}_s({r}_{{\mathrm{B}/\mathrm{D}}})= \underset{{\boldsymbol{u}}\in\mathcal{U}}{\text{argmin}}\;\|{\boldsymbol{u}}-{f}^\mathrm{B}\|^2\nonumber\\ &\frac{\partial^2 h({r}_{{\mathrm{B}/\mathrm{D}}})}{\partial {r}^2_{{\mathrm{B}/\mathrm{D}}}}\ddot{{r}}_{{\mathrm{B}/\mathrm{D}}}\geq -\alpha(h({r}_{{\mathrm{B}/\mathrm{D}}})) \end{align}\] where \({f}^\mathrm{B}\) is the nominal force (which is extracted from the \(\hat{f}^\mathrm{B}=(f^\mathrm{B},\tau^\mathrm{B})\) in 6 ) applied by the chaser spacecraft that guarantees semi-global exponential stability for the translation motion. Note that the input constraints (for instance ball or box constraints for the spacecraft’s thrust) can be incorporated in the set \(\mathcal{U}\) and the translational dynamics is of relative degree 2. Furthermore, in this formulation, since we have only considered the approach path and input constraints, we do not have to modify the torque applied by the chaser spacecraft.

7 Results↩︎

In this section, we verify the efficacy of our proposed tracking controller 6 on five realistic scenarios.

7.1 Mars Cube One (MarCO) mission↩︎

NASA’s Mars Cube One (MarCO) mission, launched in 2018, included two CubeSats—MarCO-A and MarCO-B—that showcased significant advancements in satellite technology. The two CubeSats possessed 6-DOF and had the ability to control both translational and rotational motion in deep space. We consider a typical Mars Cube One (MarCO) CubeSat with mass \(m=13.5\)kg. The moment of inertia of MarCO CubeSat is as follows : \[\begin{align} \bar{I}^\mathrm{B}=\begin{bmatrix} 0.0465&-0.0007&0.0004\\ -0.0007&0.0486&-0.0021\\ 0.0004&-0.0021&0.0482 \end{bmatrix}\text{kg.m}^2\nonumber \end{align}\]

7.1.1 Trajectory tracking↩︎

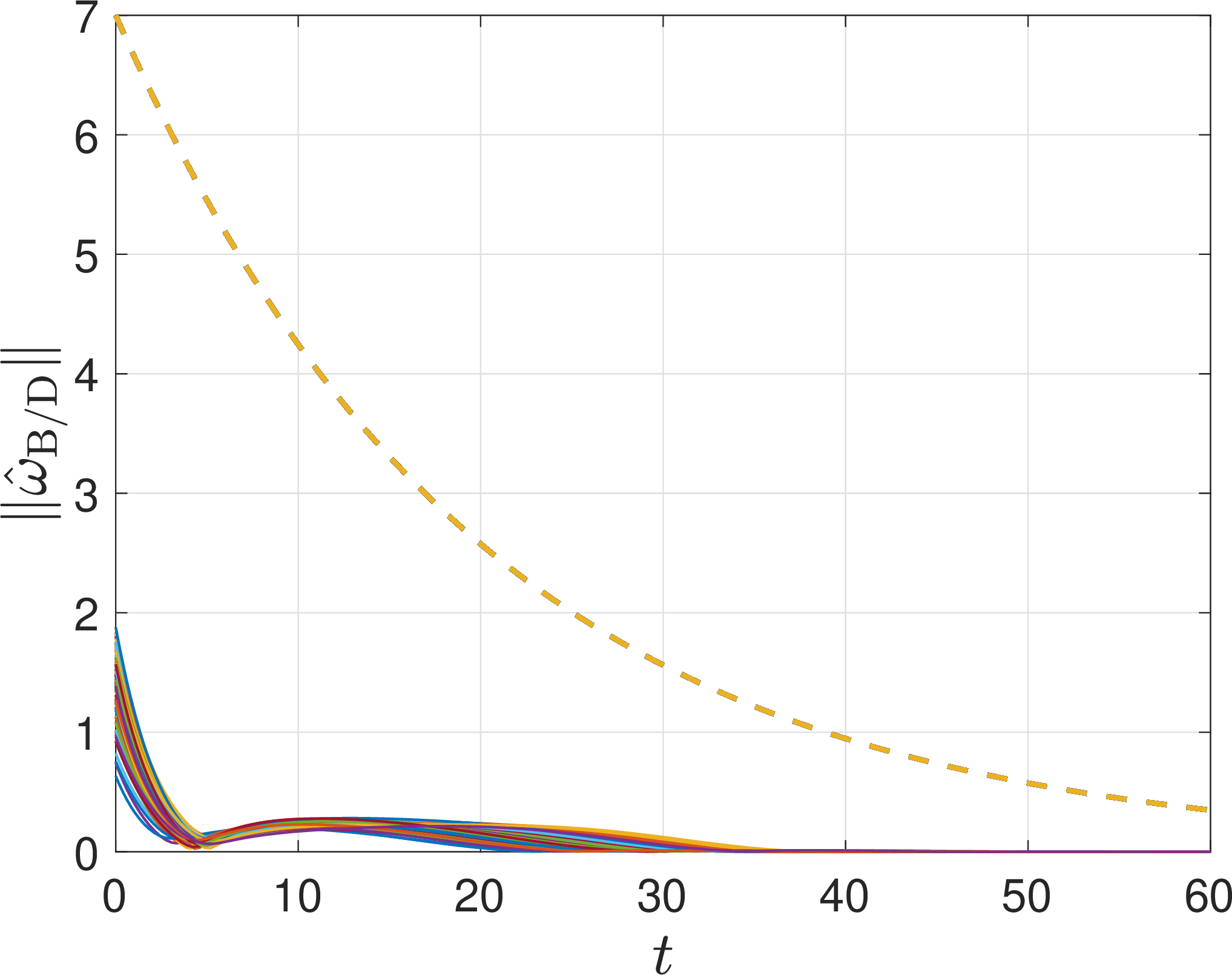

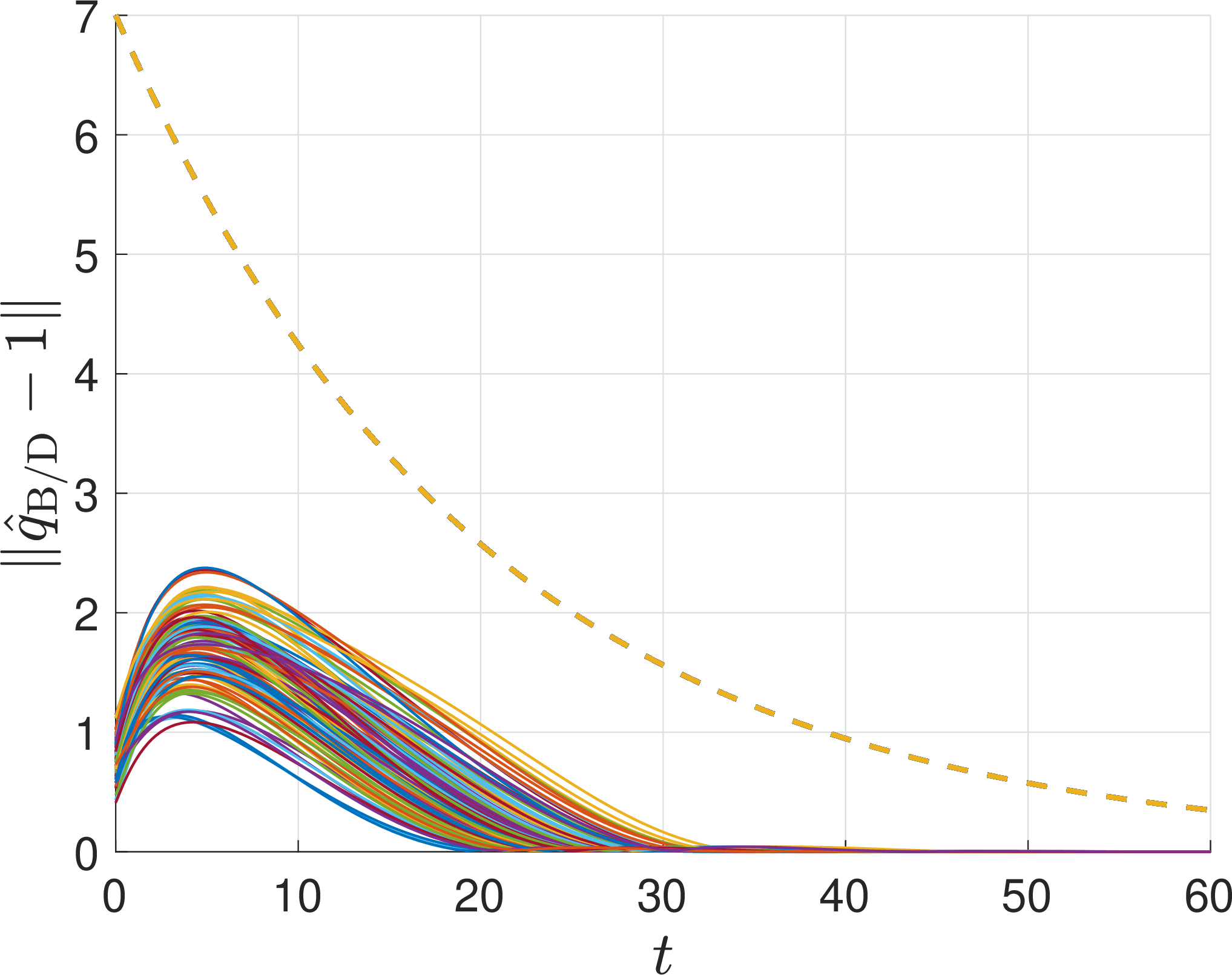

The objective is for the MarCO to track the desired trajectory governed by \({{\hat{q}}_{{\mathrm{D}/\mathrm{I}}}}=1\) and \({\hat{\omega}_{{\mathrm{D}/\mathrm{I}}}}=0\). The control gains for the feedback controller 6 are selected to be \(k_p=0.2\) and \(k_d=0.3\). 100 trajectories are generated from 100 initial conditions that are uniformly sampled inside the ball \(\mathcal{B}_R\) (defined by 12 ) with \(R=2.5\). Figures 5 and 6 show the plots of error quaternions \(\|{{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-1\|\) and \(\|{{\hat{\omega}}^\mathrm{B}_{{\mathrm{B}/\mathrm{D}}}}\|\) versus time respectively for these 100 trajectories. The dotted lines in Figs. 5, 6, and 7 show the decaying exponential upper bound. It can be observed that the errors \(\|({{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1})\|\) and \(\|{{\hat{\omega}}^\mathrm{B}_{{\mathrm{B}/\mathrm{D}}}}\|\) lie below these exponential curves (where the rate of convergence is governed by \(\alpha(R)\)) which verifies our claim that the feedback controller guarantees semi-global exponential stability.

7.1.2 Robustness against disturbances↩︎

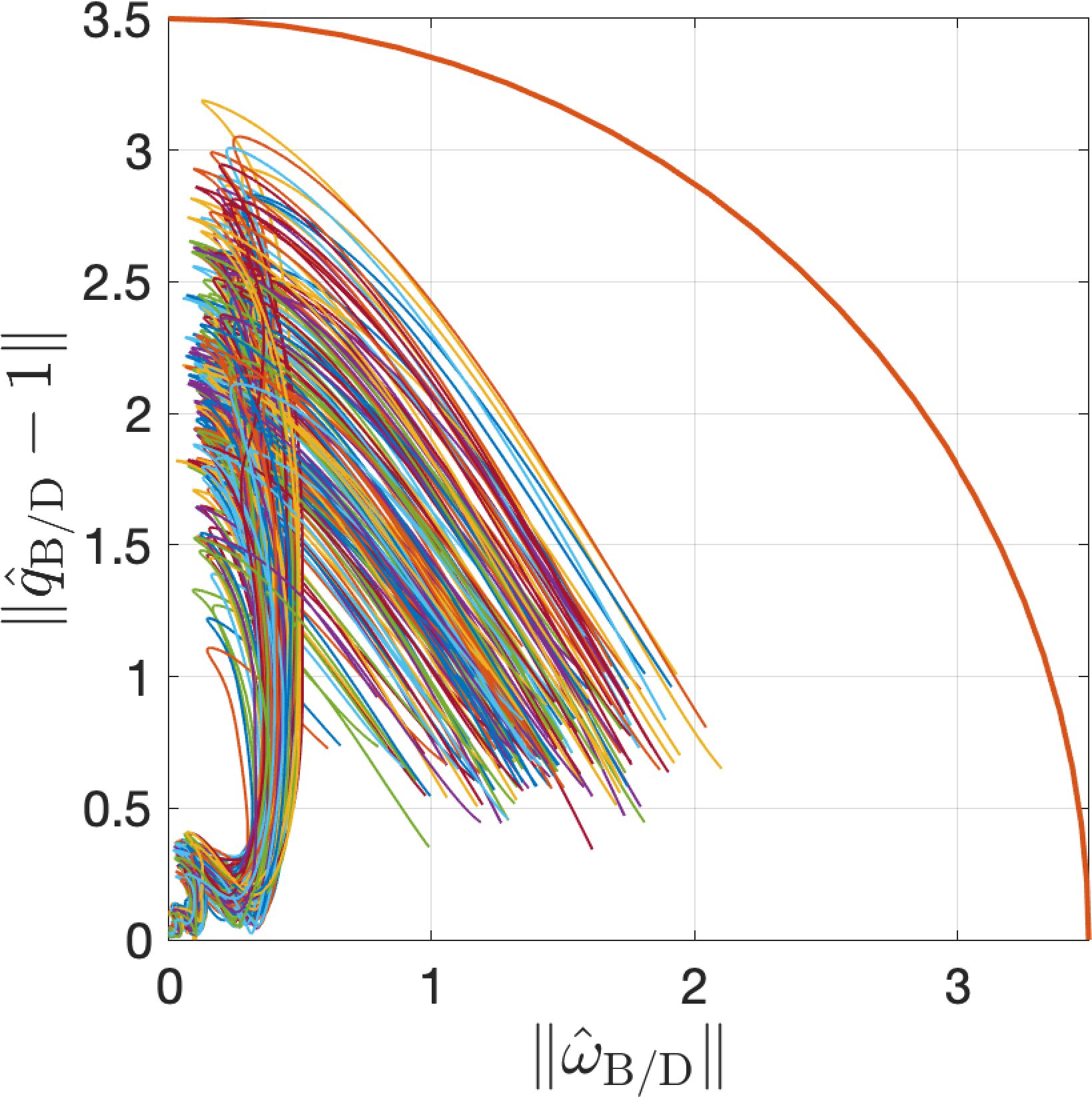

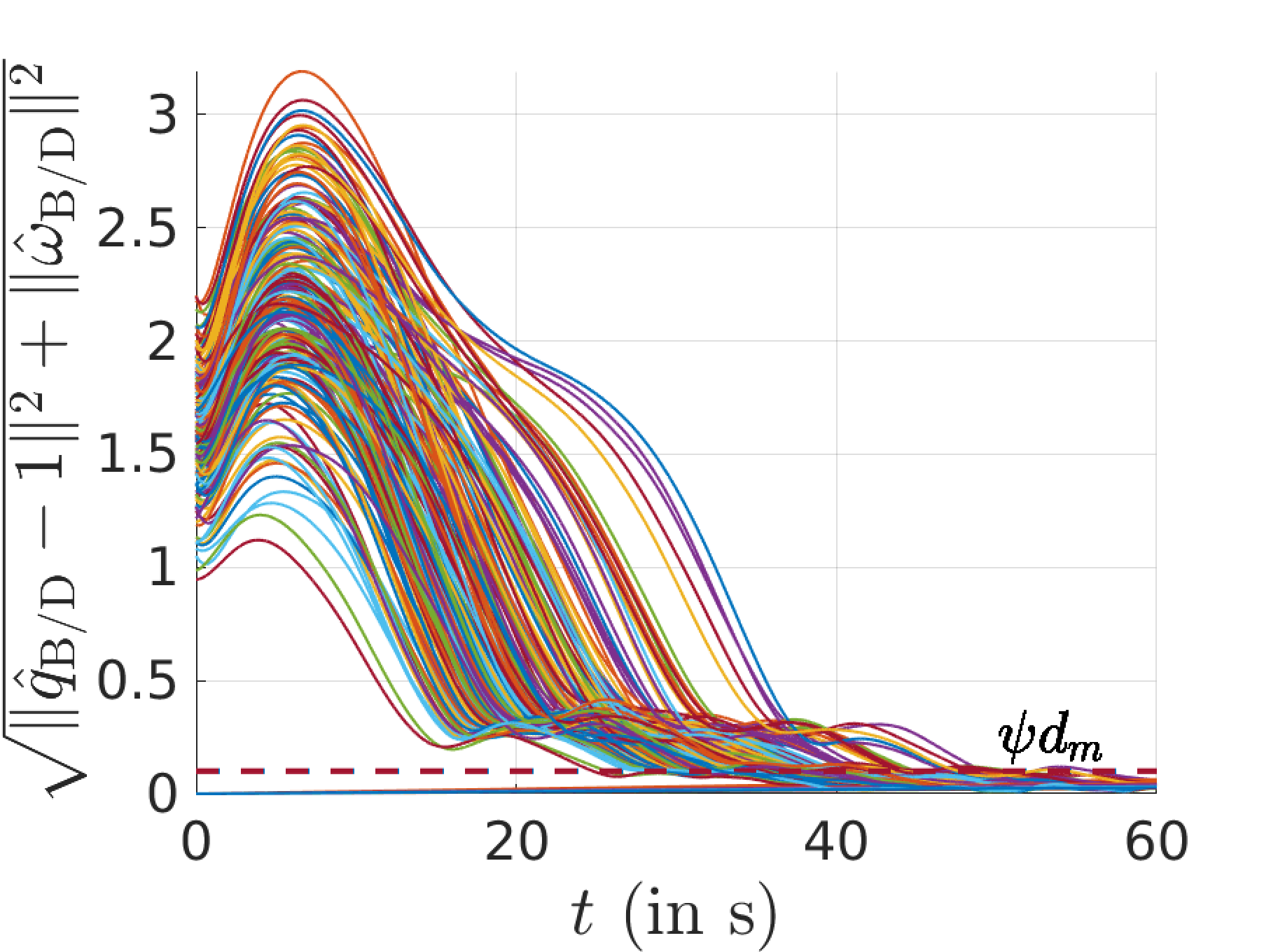

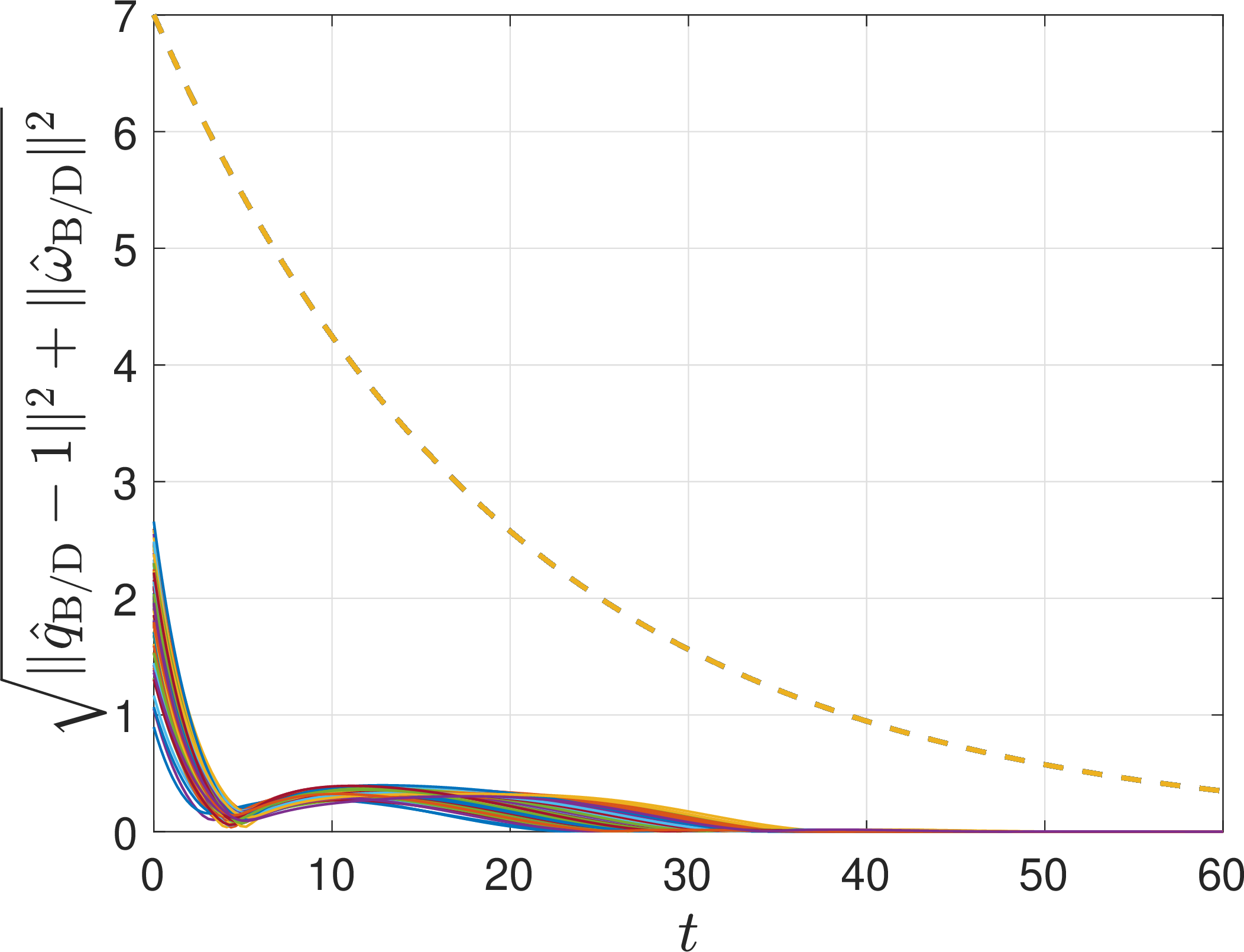

We evaluate the performance of our proposed feedback control law 6 for the system with time-varying additive bounded disturbances ?? . 100 trajectories are simulated with initial conditions chosen from a ball of radius \(3.5m\), The values for \(d_1(t)\) and \(d_2(t)\) are chosen uniformly from the set \(\mathcal{D}=[-10^{-2},\;10^{-2}]\). Note that this is a reasonable assumption to make as the external disturbances for practical applications are of the order of \(10^{-2}\) to \(10^{-3}\) as reported in [32]. As shown in Figs. 8 and 9, all these trajectories converge exponentially to a ball of radius less than or equal to \(\psi d_m\) where \(\psi\) is defined by 31 . This verifies the ISS claim made in Theorem 5.

7.2 Apollo Transposition and Docking↩︎

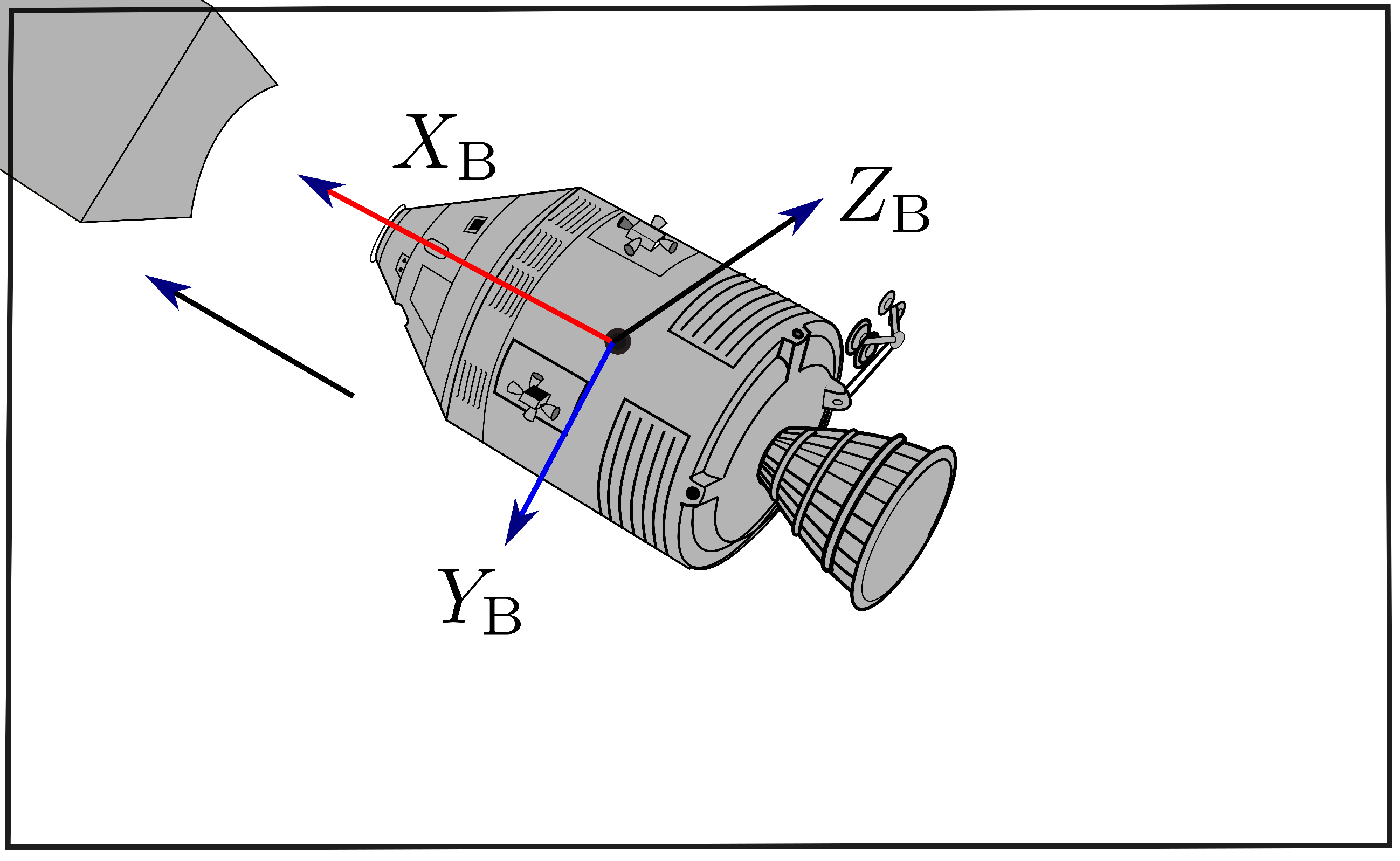

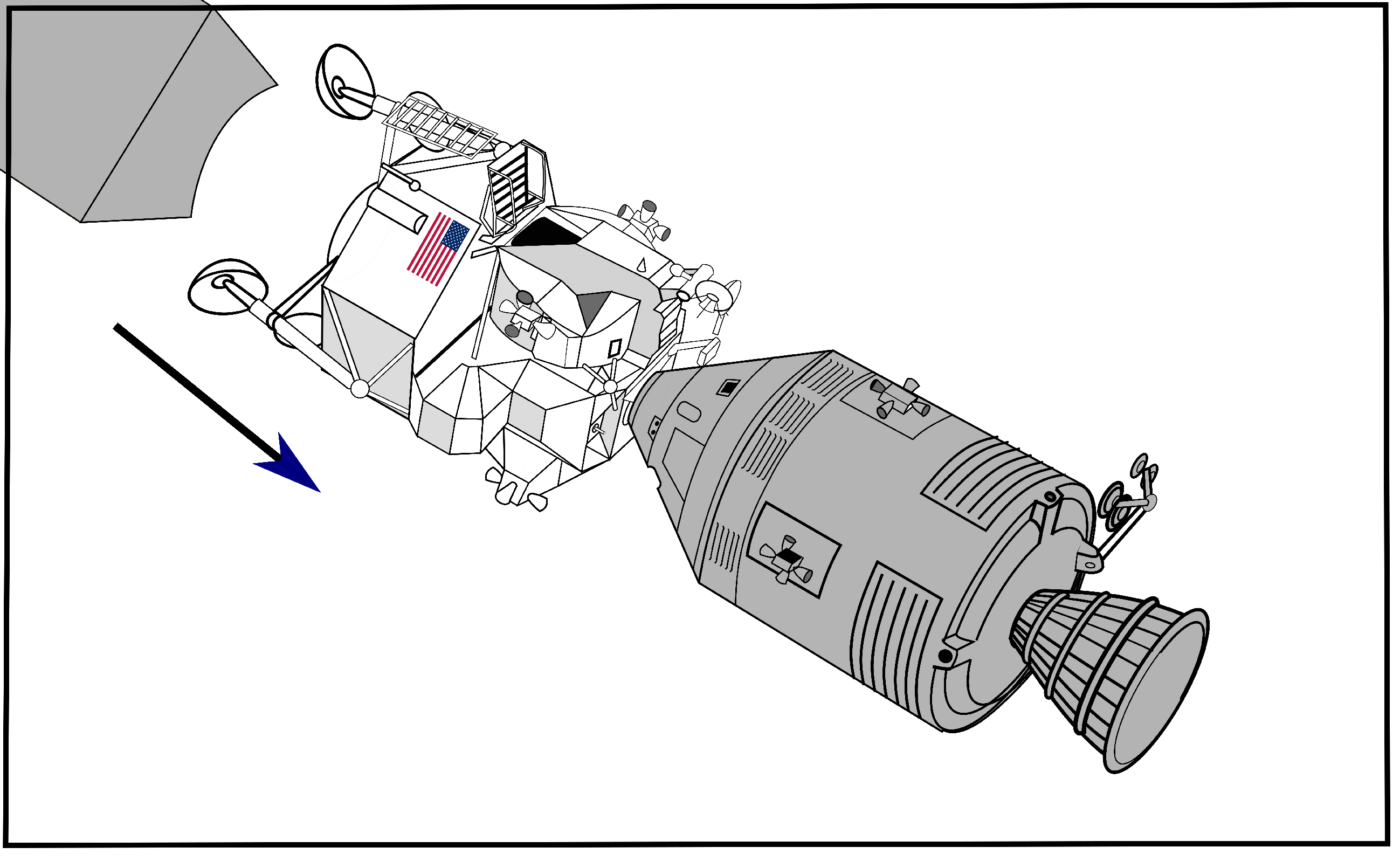

The Apollo Transposition and Docking maneuver was a crucial step during the Apollo missions to the Moon, carried out by NASA between 1968 and 1972. It involved separating (Fig. 10 (a)) the Apollo Command/Service Module (CSM) from the Saturn V rocket’s third stage (S-IVB), rotating the CSM, and then docking with the Lunar Module (LM), which was housed within the S-IVB. The transposition of the CSM occurs at a distance of approximately \(20m\) from the S-IVB (Fig. 10 (b)). The CSM then rotates by an angle of \(180^\circ\). Then the CSM docks (Fig. 10 (c)) in with the S-IVB to extract the lunar module (LM) and forms the combined CSM-LM spacecraft (Fig. 10 (d))⁹.

Spacecraft separation

Transposition

Docking

Lunar Module (LM) extraction

We apply our proposed feedback control law 6 to perform the Apollo Transposition and Docking maneuver. The gains \(k_p\) and \(k_d\) are chosen to be equal to \(10^2\). The CSM mass and inertia at the start of transposition and docking are specified in [[33], Table 3.1-2] and are given as follows: \[\begin{align} m \approx 30322.9 \mathrm{~kg}, \quad \Bar{I}^\mathrm{B} \approx\left[\begin{array}{ccc} 49248.7 & 2862.1 & -370.1 \\ 2862.1 & 108514.2 & -3075.0 \\ -370.1 & -3075.0 & 110771.7 \end{array}\right] \mathrm{kg} \cdot \mathrm{m}^2\nonumber \end{align}\]

7.2.1 Apollo Transposition and Docking maneuver↩︎

For the transposition maneuver, Figs. 11 (a) and 11 (b) shows the evolution of quaternion with time for a \(180^\circ\) rotation and the corresponding torque \(\tau^\mathrm{B}\) applied to the CSM respectively. Fig. 11 (c) verifies the SGES claim made by Theorem 1. For the docking maneuver, 50 trajectories are generated for initial conditions sampled within a ball of radius 0.1 centered at the origin. Fig. 12 (a) shows the evolution of the position of CSM along the docking axis with time. As observed, the terminal position of CSM is within the permissible range i.e. \(p_e=0.3m\) [[34], Section 3.8.2.3]. Fig. 12 (b) shows the corresponding input force applied along the docking axis.

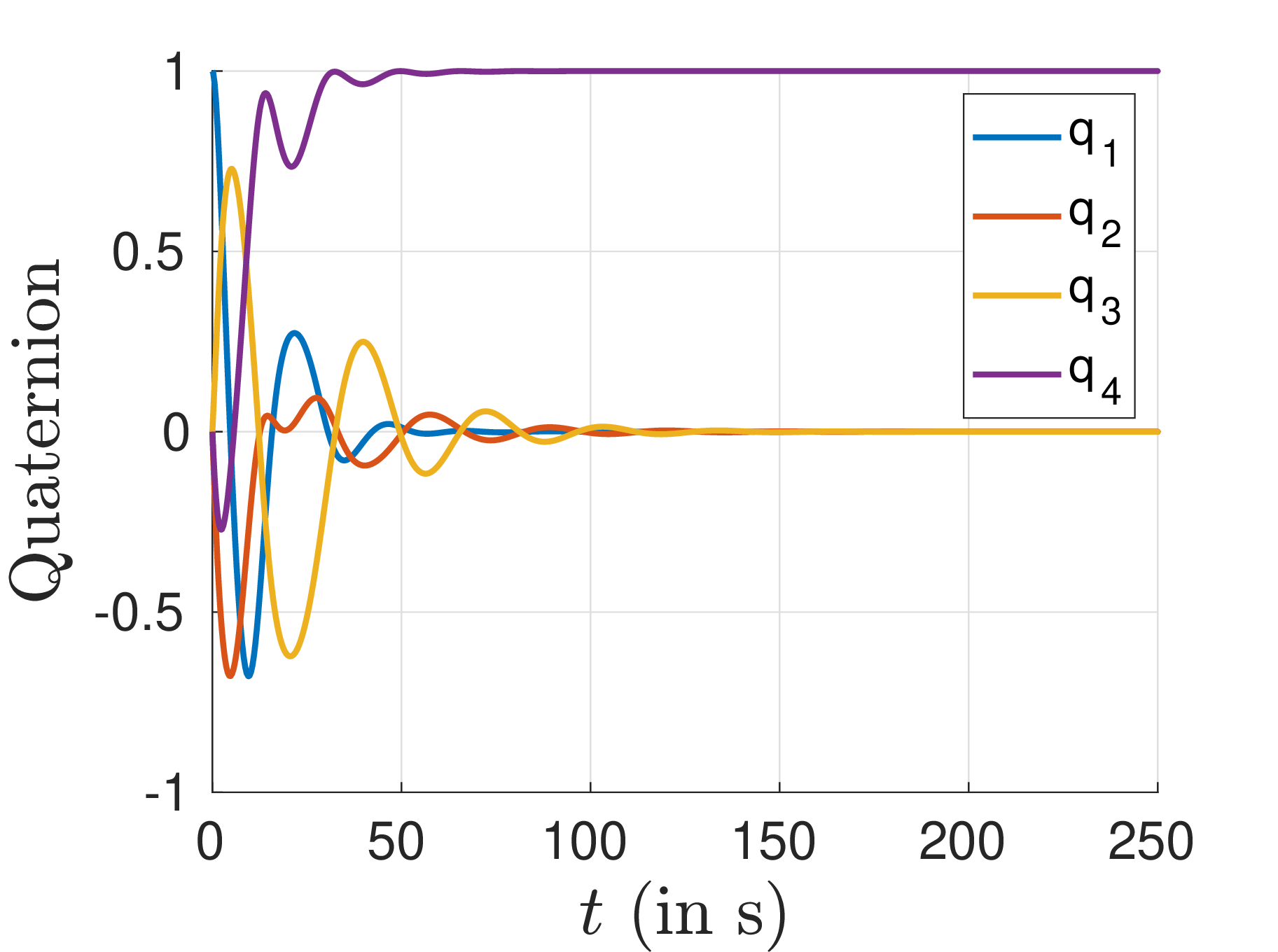

Evolution of quaternion with \(t\).

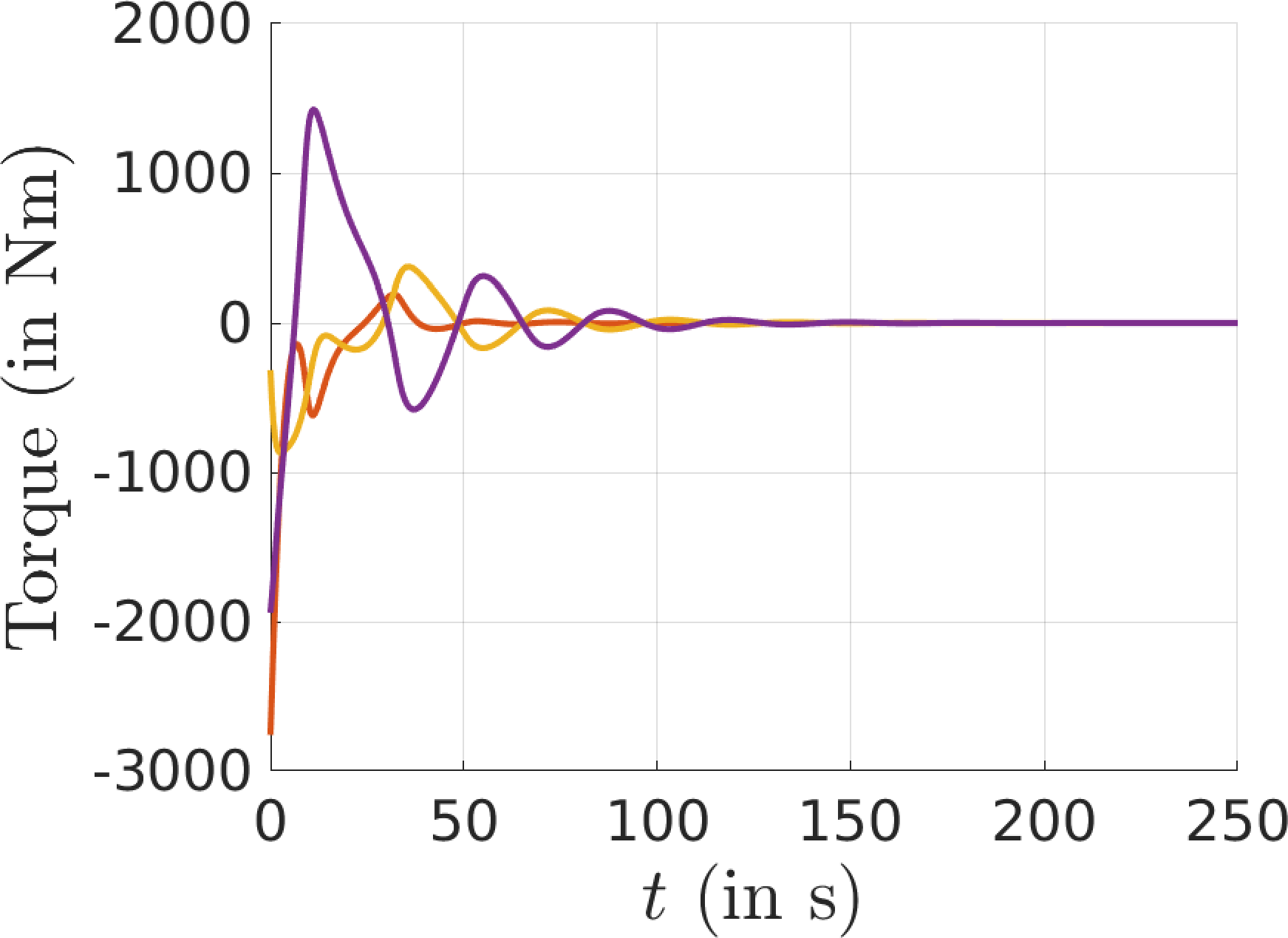

Evolution of torque with \(t\)

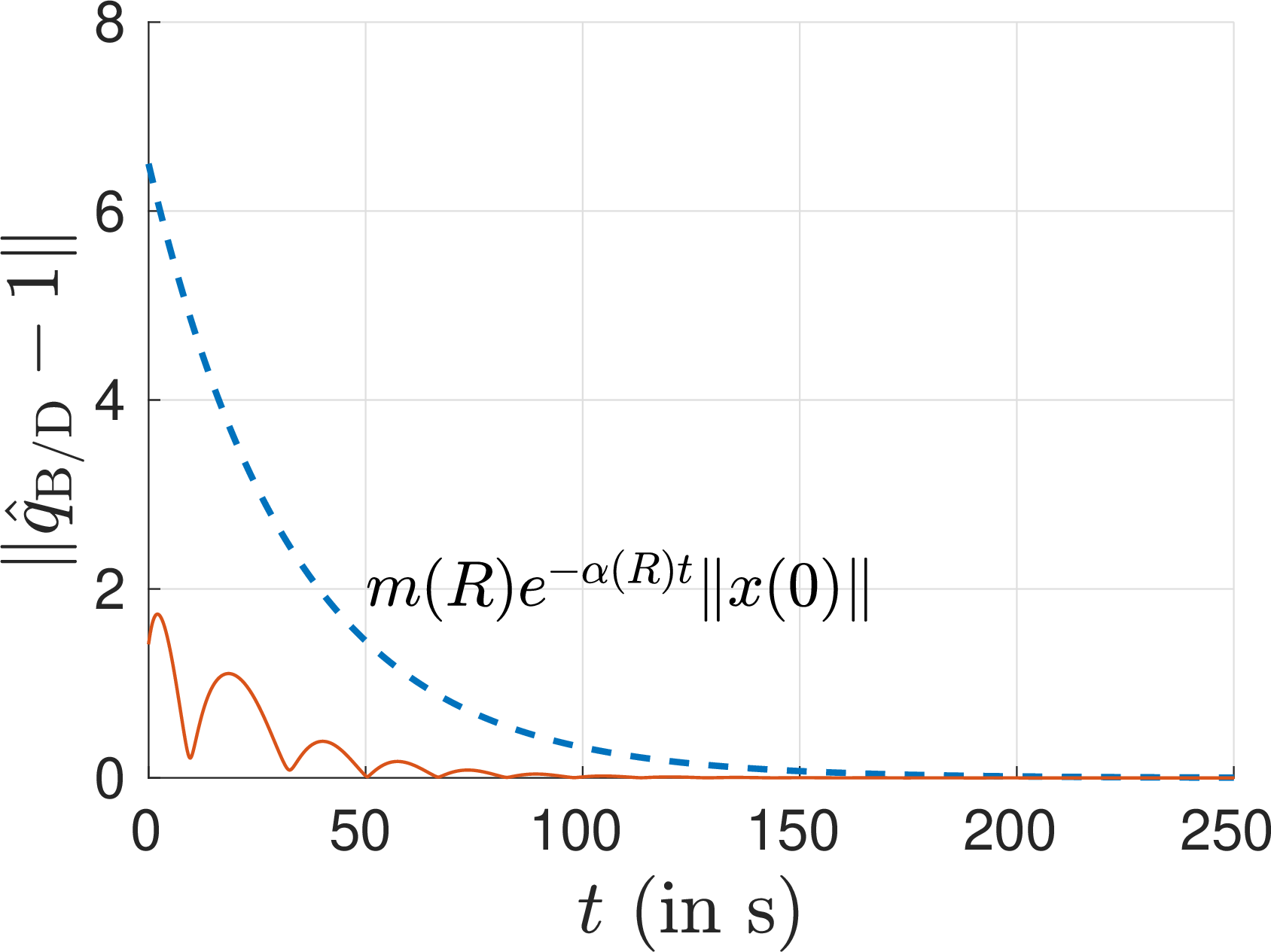

\(\|{{\hat{q}}_{{\mathrm{B}/\mathrm{D}}}}-\mathbf{1}\|^2\) along \(x\) versus \(t\)

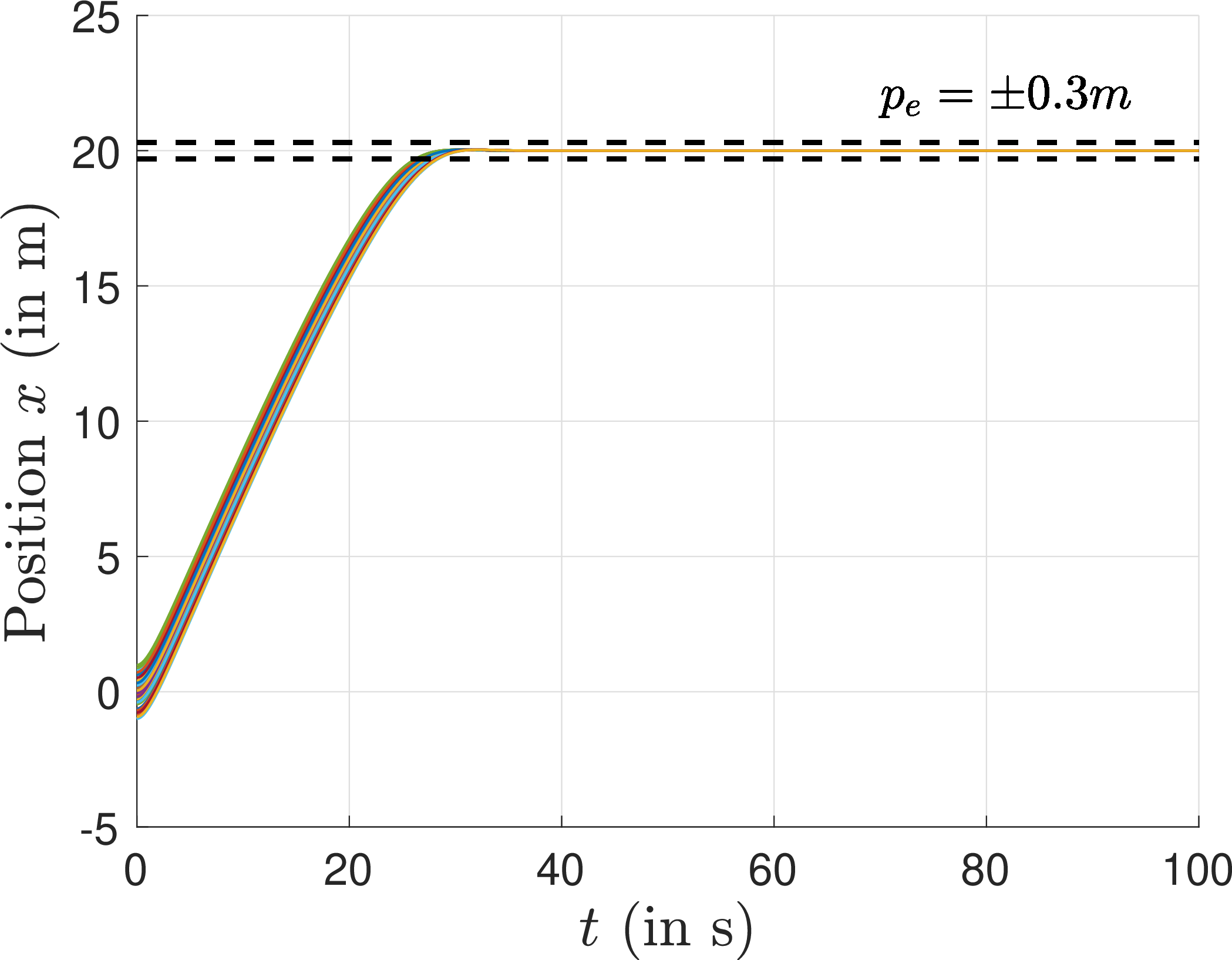

Evolution of position along \(x\) versus \(t\).

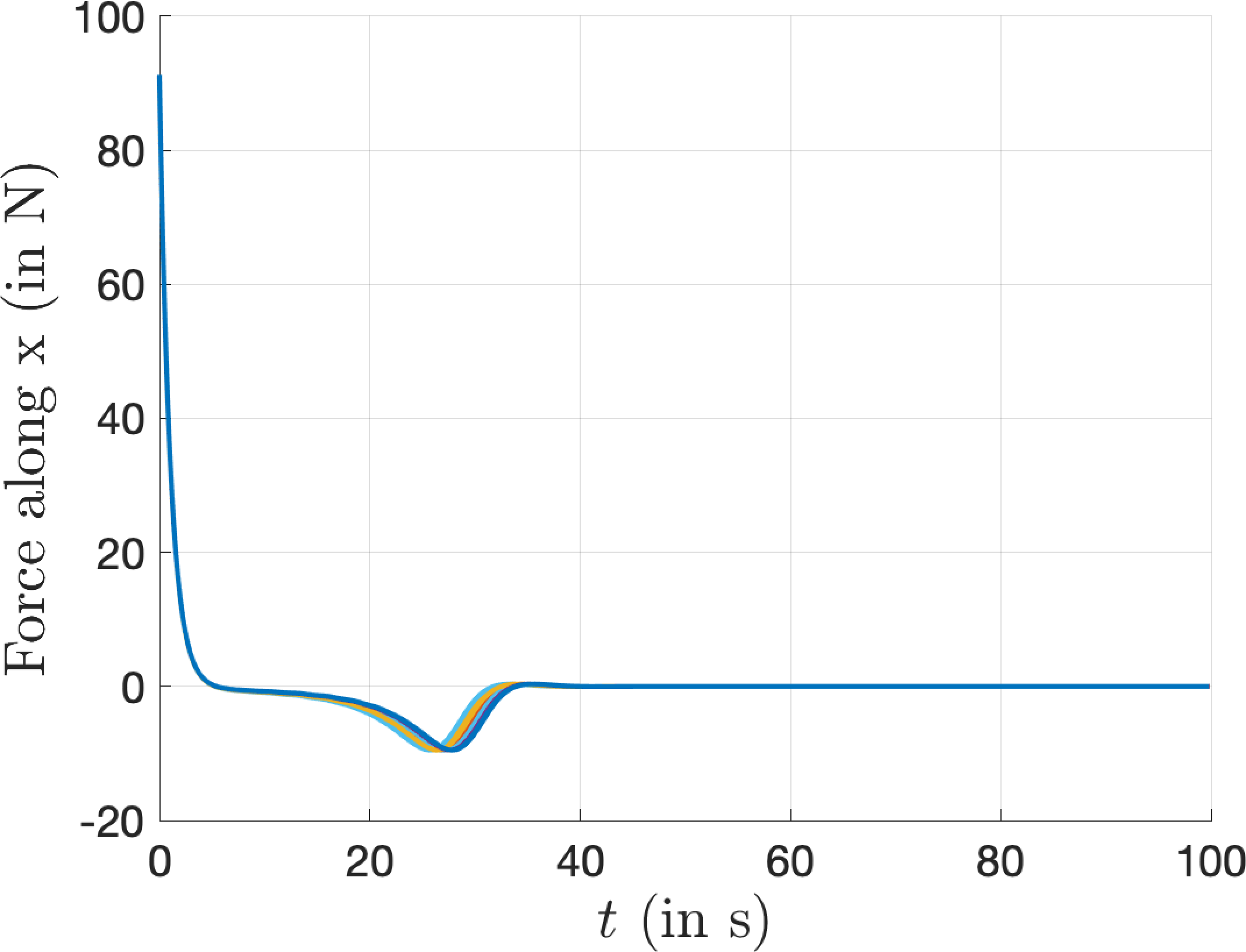

Input force \(f^\mathrm{B}\) along \(x\) versus \(t\)

7.2.2 Fuel consumption↩︎

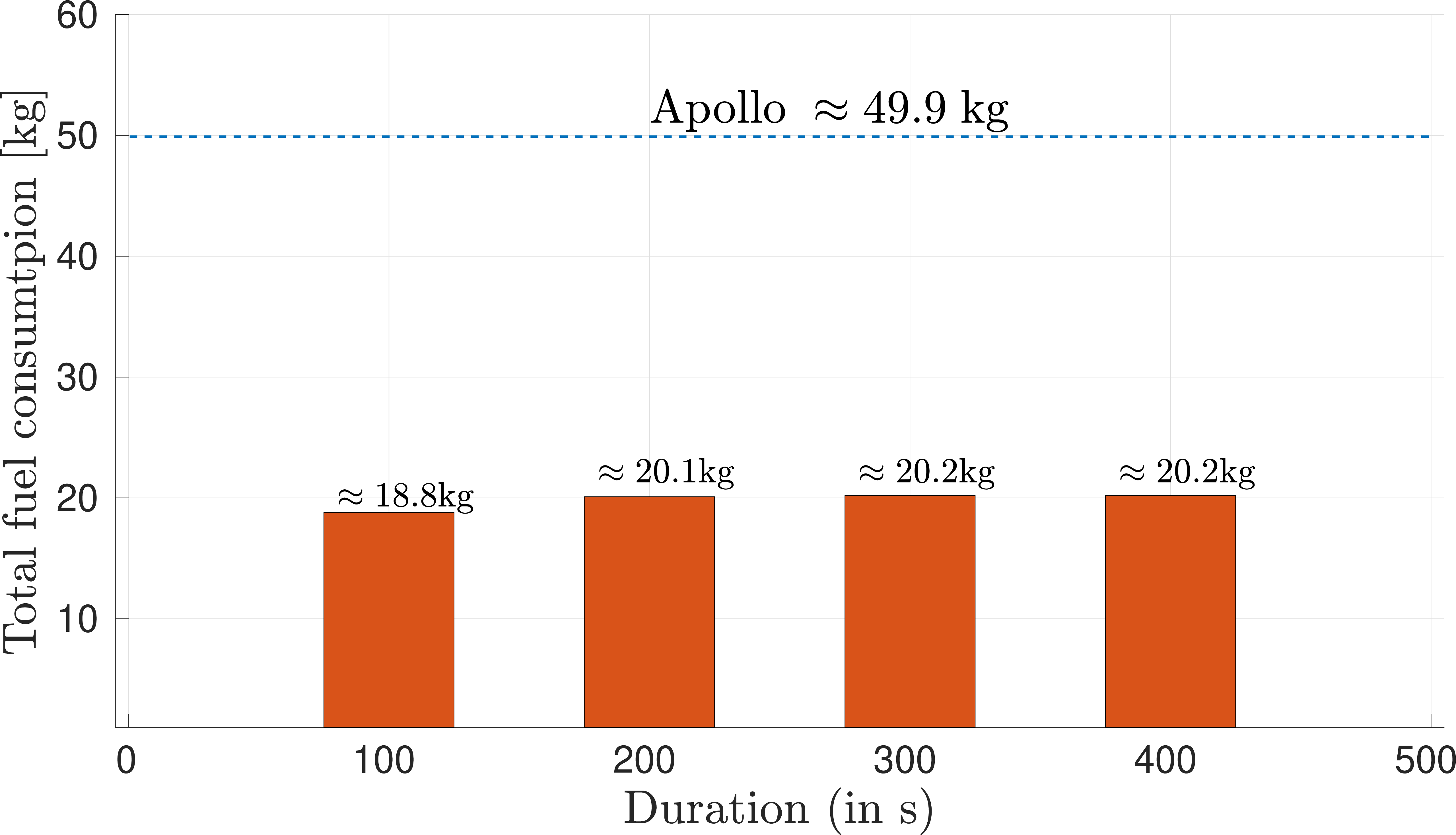

In this section, we compare the performance of our proposed controller in terms of fuel consumption with the actual fuel consumed during the Apollo transposition and docking maneuvers. The total fuel consumption of the CSM is given by the following expression: \[\begin{align} m(t)=m(0)+\int_0^tc_1\|\hat{{f}}^\mathrm{B}\|dt \end{align}\] where \(c_1=1.3\times10^{-3}\)kg/Ns. We apply the feedback control law 6 and compute the fuel consumed by CSM for final times \(t=\{100,\;200,\;300,\;400\}s\). Fig. 13 shows the fuel consumption using 6 and the actual fuel consumed during the Apollo transposition and docking maneuver for final time \(t_f=\{100,\;200,\;300,\;400\}s\). It can be clearly observed that the fuel consumed using our method is approximately \(62\%\) less than that consumed during the actual Apollo mission.

7.3 Starship flip maneuver↩︎

The Starship (developed by SpaceX) flip maneuver advances the controlled rocket descent and landing methodology. This maneuver is executed during the terminal phase of landing, following atmospheric re-entry where the vehicle adopts a belly-first orientation to maximize air resistance and thermal shielding. As the Starship approaches the landing site, it performs an aerodynamic inversion or flip to transition from a horizontal descent to a vertical orientation, a maneuver demanding precise control over the vehicle’s aerodynamic surfaces. Subsequently, the rocket engines are reignited to decelerate the spacecraft for a soft vertical landing. The initial condition for the state and the parameters of the starship are taken from [35]. The comparative analysis of trajectories, as depicted in Fig. 14 illustrates the distinct impact of control strategies on the system’s performance. While the open-loop control, as shown in 14 (a), demonstrates a tendency to violate critical constraints like glide slope under the influence of unknown smooth additive bounded disturbances, the integration of the proposed feedback controller with CBF, as seen in 14 (b), significantly mitigates these deviations, maintaining system safety/constraint satisfaction even in the presence of such disturbances. Further, the trajectory in 14 (b) converges to a region given in Theorem 5.

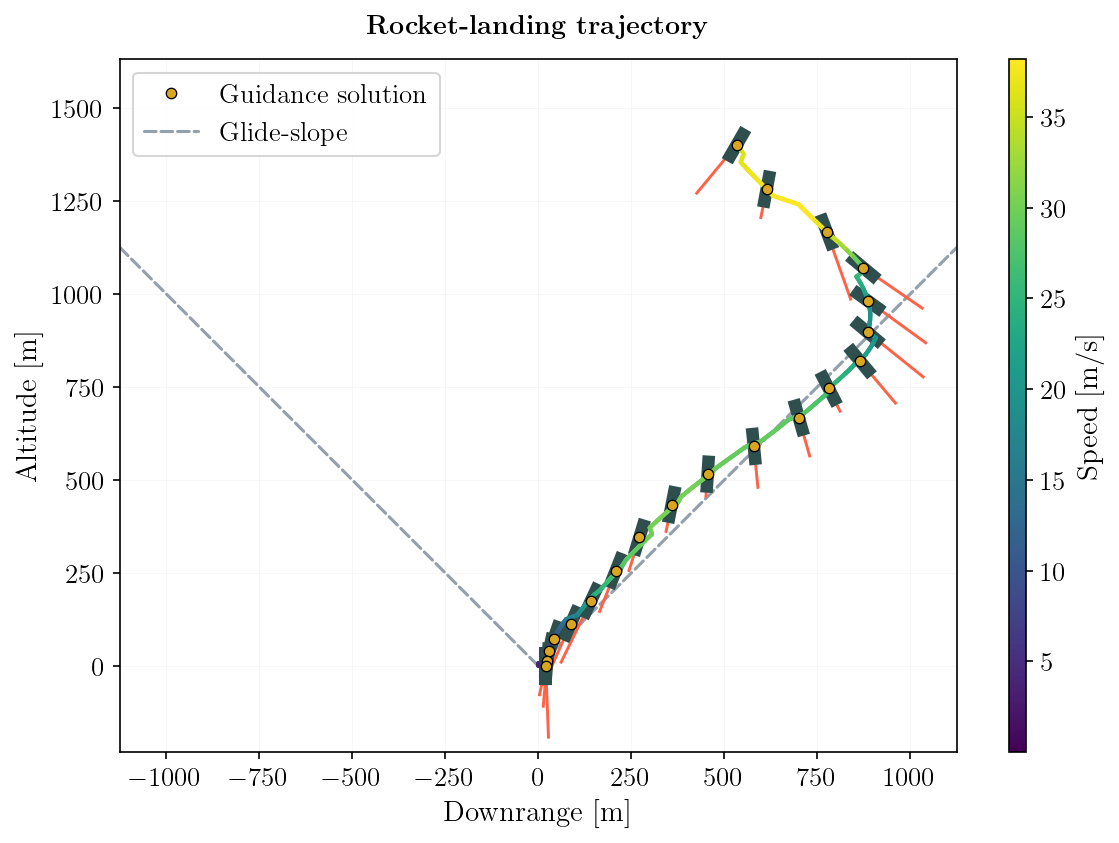

Trajectory using open loop control

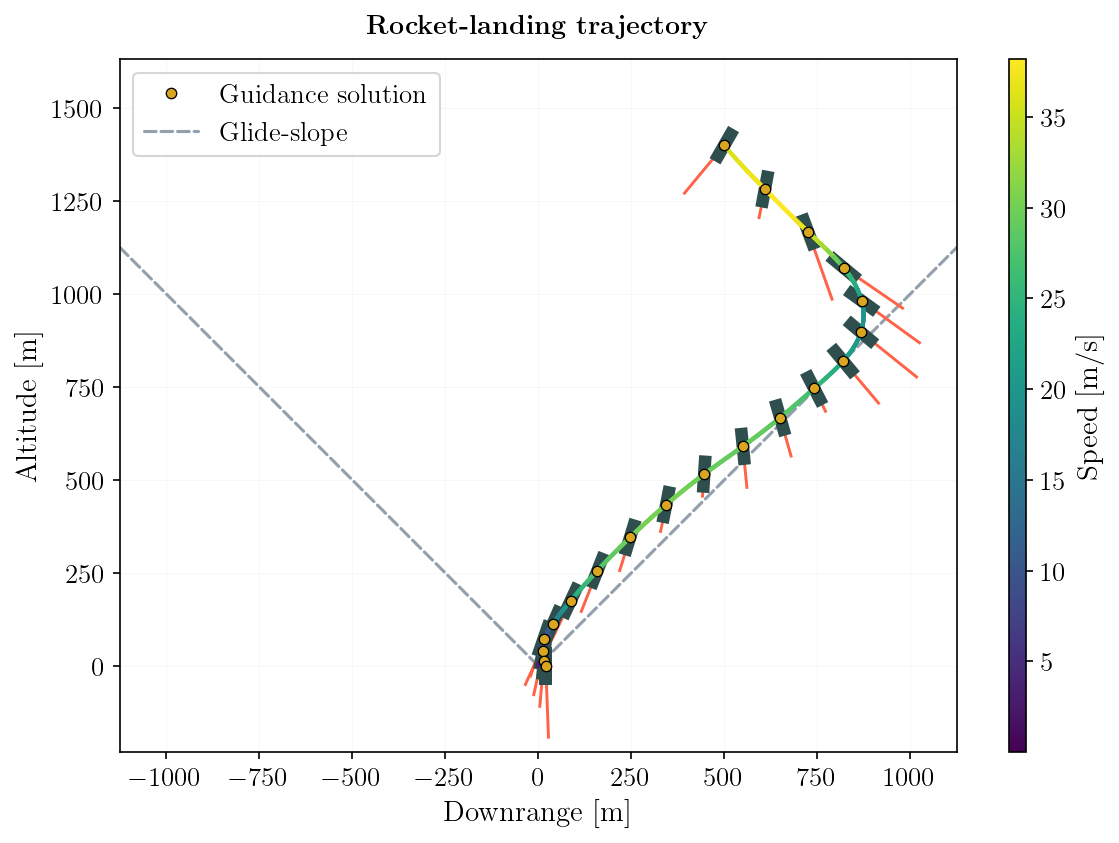

Trajectory using proposed feedback controller and CBF

7.4 Spherical rocks avoiding collision avoidance with martian rock↩︎

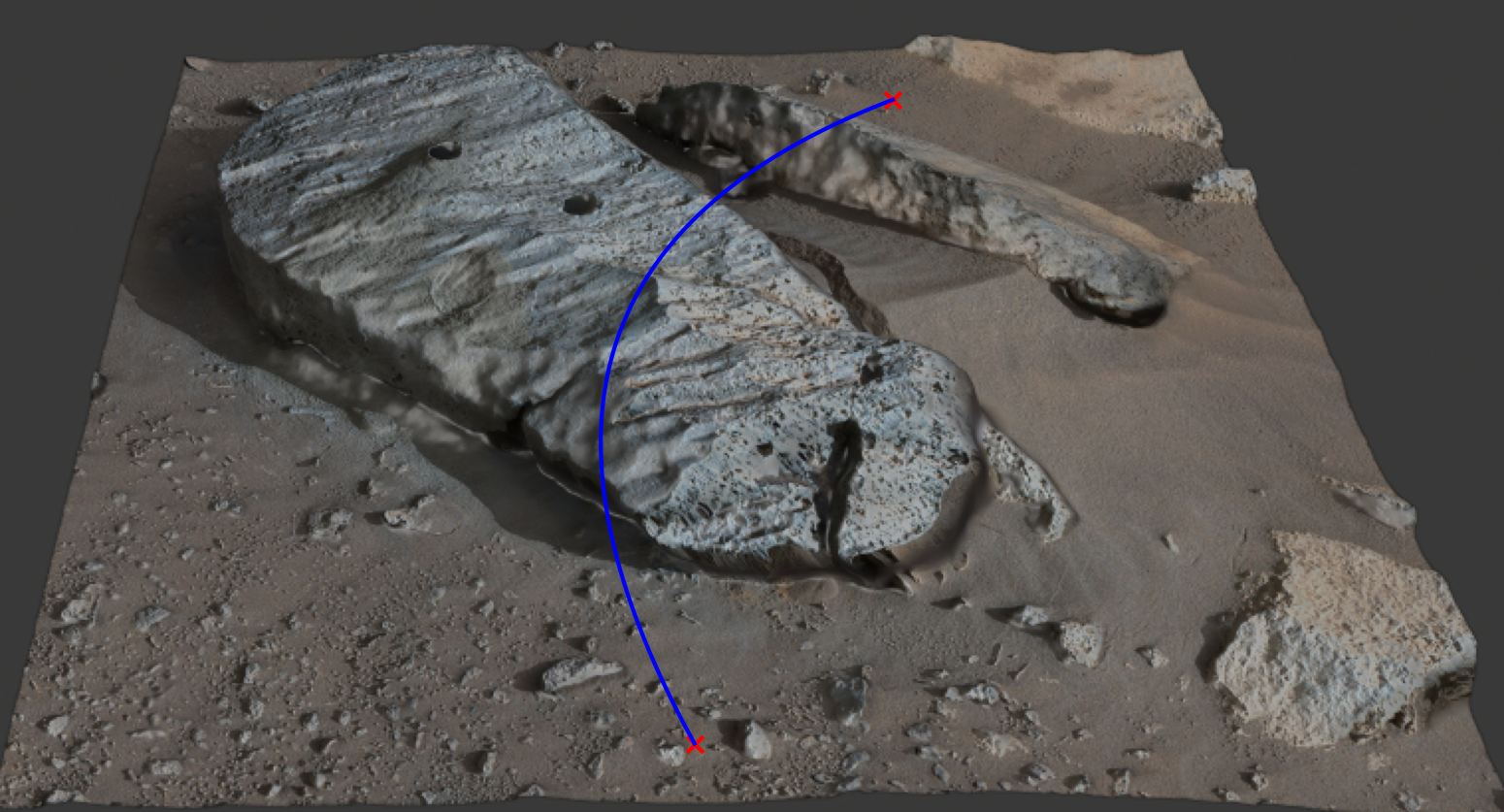

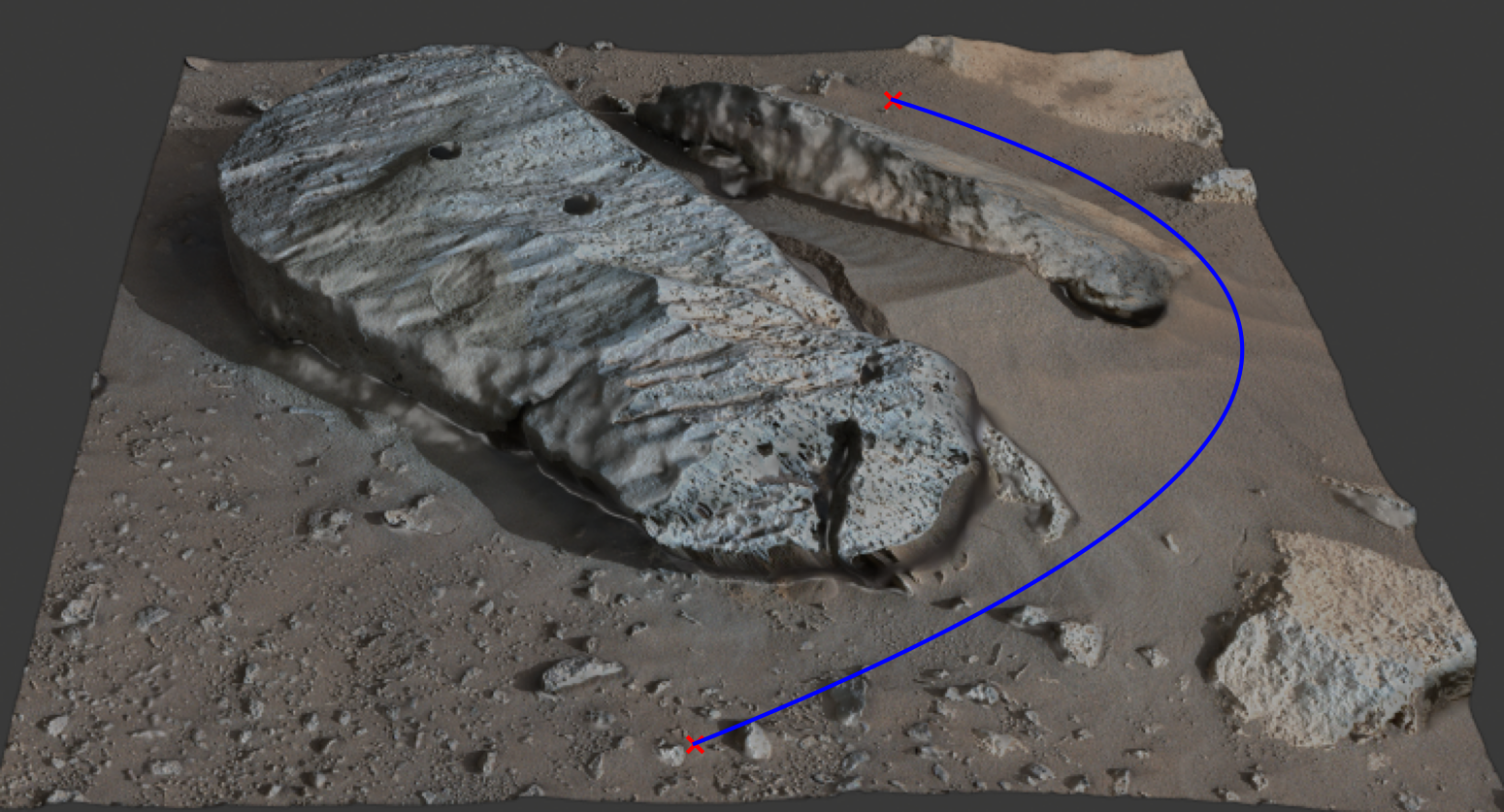

In the simulation setup to evaluate collision avoidance for spherical robots with a Martian rock, a realistic Martian Rochette rock and the 6-DOF spherical robot dynamics from [36] were used. We leverage Control Barrier Functions (CBFs) and the proposed feedback controller to navigate this environment, avoid collisions, and reach the goal. This scenario was designed to test the efficacy of the integrated feedback and CBF bases controller to avoid an obstacle (martian rock in this case) providing an assessment of their real-world application. In Fig. 15 (a), we use the proposed controller 6 and two CBF’s \(h_1({\boldsymbol{x}})={z}\) and \(h_2({\boldsymbol{x}})=H_m-z\), (\(h_1({\boldsymbol{x}})>0\) and \(h_2({\boldsymbol{x}})\) implies safety/collision avoidance) in 33 x where \(H_m\) is the maximum height of the rock and \(z\), is the height of the spherical robot from the martian surface to avoid collision with the rock. In Fig. 15 (b) we only use one CBF \(h_1({\boldsymbol{x}})={z}\) and the proposed controller 6 .

7.5 Docking and rendezvous of the SpaceX Dragon 2 spacecraft with the International Space Station↩︎

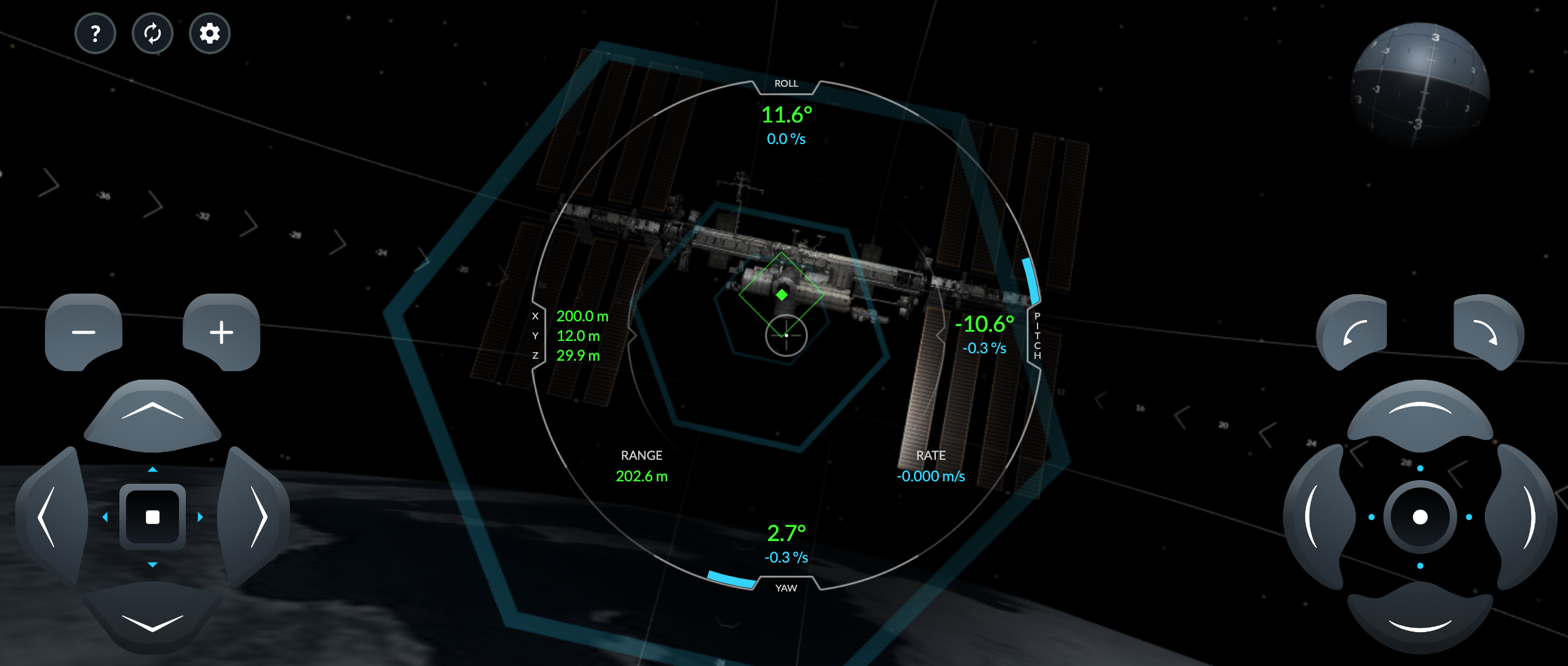

In this section, we implement our proposed nonlinear feedback tracking control law within the highly realistic, web-based simulator created by SpaceX. An illustrative screenshot of the simulator can be seen in Fig. [-fig. 16]¹⁰. Our goal is to enable the Dragon 2 spacecraft to autonomously and safely dock with the International Space Station, without the need for human intervention. The following video https://drive.google.com/file/d/1mQise2-45HY3LqHLdu-ovYfnYchMEG1f/view?usp=sharing demonstrates the successful implementation of our control law 6 , on Dragon 2. As seen in this video, the proposed control law allows the Dragon 2 to successfully dock with the International Space Station.

8 Conclusions↩︎

A novel dual quaternion based nonlinear feedback tracking controller is proposed in this paper. Using Lyapunov analysis, Semi-Global Exponential Stability is established for the closed-loop dual quaternion based tracking error dynamics without imposing any extra constraints on the feedback gains. Further, we perform robustness analysis by proving Input-to-State Stability for the closed-loop dynamics in the presence of time-varying additive and bounded external disturbances. Using the proposed controller as the nominal input, we leverage Control Barrier Functions to compute safe control inputs that ensure that motion and safety constraints are satisfied. Finally, we verify the efficacy of the proposed tracking controller in realistic scenarios such as the MarCO mission, the Apollo transposition and docking problem, Starship flip maneuver, the collision avoidance of spherical robots, and the docking of SpaceX Dragon 2 with the International Space Station. Future work includes redesigning the proposed tracking controllers so that their applicability does not require any model information such as mass and moment of inertia.

References↩︎

---

1. Graduate Student, Department of Aerospace Engineering and Engineering Mechanics, Student Member AIAA↩︎

2. Graduate Research Assistant and Ph.D. candidate, Aerospace Engineering and Engineering Mechanics, The University of Texas at Austin, Austin. Email: arjun.ram@utexas.edu↩︎

3. Professor and Cockrell Family Chair in Engineering #19, Aerospace Engineering and Engineering Mechanics, The University of Texas at Austin, Austin, Fellow AIAA. Email: makella@mail.utexas.edu↩︎

4. Associate Professor, Department of Aerospace Engineering and Engineering Mechanics, Senior Member AIAA. Email: bakolas@austin.utexas.edu↩︎

5. With slight abuse of notation we denote a dual quaternion \((\Bar{0},a)+\epsilon(\Bar{0},0)\) by \(\boldsymbol{a}\).↩︎

6. The \(\mathcal{L}_{\infty}\)-norm of a function \(\hat{f}:[0, \infty) \rightarrow\) \(\mathbb{D}_d\) is defined as \(\|\hat{f}\|_{\infty}=\underset{t\geq 0}{\sup}\;\|\hat{f}(t)\|\). The dual quaternion \(\hat{f} \in \mathcal{L}_{\infty}\), if and only if \(\|\hat{f}\|_{\infty}<\infty\).↩︎

7. A function \(\phi:[0,\infty)\rightarrow\mathbb{R}^+\) with \(\phi(0)=0\) is called a class \(\mathcal{K}\) function if it is continuous and strictly increasing. In addition, a function \(\phi\) is a class \(\mathcal{KR}\) function, if it is a \(\mathcal{K}\) function and \(\underset{r\rightarrow\infty}{\lim}\;\phi(r)=\infty\).↩︎

8. A continuous function \(\beta:[0,r)\times [0,\infty)\rightarrow [0,\infty)\) is a class \(\mathcal{KL}\) function if it satisfies the following three conditions. First, for a fixed \(y\), \(\beta(x,y)\in\mathcal{K}\) with respect to \(x\). Second, \(\beta(x,y)\) is decreasing with \(y\). Lastly, \(\underset{y\rightarrow\infty}{\lim}\;\beta(x,y)=0\).↩︎

9. Image edited from https://commons.wikimedia.org↩︎

10. Screenshot from https://iss-sim.spacex.com/↩︎
