We give a reduction of the conjugacy problem among outer automorphisms of free (and torsion-free hyperbolic) groups to specific algorithmic problems pertaining to mapping tori of polynomially growing automorphisms. We explain how to use this reduction
and solve the conjugacy problem for several new classes of outer automorphisms. This proposes a path towards a full solution to the conjugacy problem for \({\mathrm{Out}\left(F_n\right)}\).
The decidability of the conjugacy problem in \({\mathrm{Out}\left(G\right)}\), the outer automorphism group of a torsion-free hyperbolic group \(G\), and in particular the conjugacy
problem in \({\mathrm{Out}\left(F_n\right)},\) remains an outstanding conjecture in geometric group theory. While this conjecture has been established in various specific cases, as well as for certain subclasses of outer
automorphisms (see [1]–[4]), the general case remains mostly open.
Given a word metric on \(G\), the dynamics of an automorphism \(\alpha\) on \(G\) distinguish specific elements and their conjugacy classes, namely those
that are polynomially growing under \(\alpha\). Assuming \(G\) is torsion-free hyperbolic, a theorem of Levitt and Lustig [5] (see also [6]) implies that polynomially growing elements form a family of subgroups.
The objective of this work is twofold: firstly, to completely reduce the conjugacy problem in \({\mathrm{Out}\left(G\right)}\) to problems relating to the restrictions of automorphisms to polynomially growing
subgroups
and secondly to provide new classes of outer automorphisms in which we can decide conjugacy.
It is tempting to see the first objective as an analogue of a reduction for automorphisms of finite dimensional vector spaces: conjugacy classes of matrices in \(GL(n,{\mathbb{C}})\) are classically understood throught
their restriction to generalised eigenspaces on which they induce certain dynamics. Exponential growth in these dynamics is related to eigenvalues of modulus \(\neq 1\).So our reduction appears as an analogue of a reduction
to generalised eigenspaces of modulus 1 eigenvalues, i.e. to those eigenspaces where growth is polynomial. We will give examples of applications after stating our main result.
We now give the terminology and notation to state our main result. The mapping torus of a group \(A\) for an automorphism \(\beta\), is \(A\rtimes_\beta \langle
t \rangle\). Its fiber is \(A\), its orientation is the coset \(tA\).
Let \(\alpha\) be an automorphism of \(G\). For each \(A\) among the maximal subgroups of \(G\) on which \(\alpha\) has polynomial growth, there is a minimal \(k_A >0\) and an element \(g_A\in G\) such that \(A\) is invariant under
\(\beta= {\mathrm{ad}_{g_A}} \circ \alpha^{k_A}\), and this allows to us consider the mapping torus \(A\rtimes_\beta \mathbb{Z}\) induced by \(\alpha\),
which encodes the dynamics of \(\alpha\) on \(A\). We call these subgroups the maximal polynomial growth sub-mapping-tori of \(\alpha\).
The configuration of the maximal polynomial growth sub-mapping-tori of the mapping torus of \(\alpha\) in \({\mathrm{Out}\left(G\right)}\) is a useful conjugacy invariant. Our result not
only confirms this, it actually states that once given solutions to problems that are completely intrinsic to these sub-mapping-tori, it is then possible to independently compute all the remaining information needed to distinguish conjugacy classes in
\({\mathrm{Out}\left(G\right)}\). Here are algorithmic properties we will require for our polynomial growth sub-mapping-tori:
A class of groups, that is closed under taking finitely generated subgroups, is hereditarily algorithmically tractable (see [7]) if its members are
effectively coherent, with recursively enumerable presentations, and have uniformly solvable conjugacy problem and generation problem.
A class of groups has effective congruences separating torsion (see [8]) if there is an algorithm that, given any group \(H\) in that class, will output a characteristic finite index subgroup \(H_0\) such that \({\mathrm{Out}\left(H\right)} \to {\mathrm{Out}\left(H/H_0\right)}\) has
torsion free kernel.
A class of mapping tori has solvable fiber-and-orientation-preserving mixed Whitehead problem on a family of tuples of group elements, if the orbit problem for the action of fiber-and-orientation-preserving outer automorphism groups on
tuples of conjugacy classes of tuples of elements from this family, is solvable (see [9]).
Although our original motivation was the conjugacy problem in \({\mathrm{Out}\left(F_n\right)}\), our proof relies on relative hyperbolicity in such a way that the generalization to arbitrary torsion-free hyperbolic
groups is immediate.
Theorem 1. Let \(G\) be a residually finite torsion-free hyperbolic group, and consider a class \(\calO\calA\) of outer automorphisms of \(G\). Let \(\calP\) be the collection of all maximal polynomial growth sub-mapping-tori given by the elements in \(\calO\calA\) and let \(\calP'\) be the class of their subgroups that arise as the images of edge groups of the JSJ decompositions of mapping tori of automorphisms in \(\calO\calA\). Assume that \(\calP\) and \(\calP'\) satisfy the following algorithmic properties:
the groups in \(\calP\) have a recursively enumerable set of presentations, and have uniformly solvable conjugacy problem, the groups in \(\calP'\) belong to a hereditarily algorithmically tractable class of groups, their small subgroups are finitely generated and it is possible to decide if a group in \(\calP'\) coincides
with the group that contains it in \(\calP\),
the fiber-and-orientation-preserving isomorphy (or isomorphism) problem is solvable for mapping tori in \(\calP\),
the groups in \(\calP'\) have congruences that effectively separate the torsion, and
for every mapping torus \(P\in \calP\), the fibre-and-orientation preserving mixed Whitehead problem on the class of generating tuples of the subgroups \(P' \in \calP'\), is solvable whenever \(P'\leq P\).
Then the conjugacy problem in \({\mathrm{Out}\left(G\right)}\) for elements in class \(\calO\calA\) is solvable.
The class \(\calP\) might seem impenetrable, but actually it consists of mapping-tori of malnormal quasi-convex subgroups of \(G\), and if \(G\) is free,
it consists of mapping-tori of free groups of smaller rank. The algorithmic properties in Theorem 1 could be simplified by relaxing the distinction between \(\calP\) and \(\calP'\), see Example 7 or the statement of Corollary 21. That said, it is also worth noting that in the case of mapping tori of automorphisms of one-ended torsion-free hyperbolic groups, although the groups in \(\calP\) need not be coherent (see
[10]), the groups in \(\calP'\) turn out to be virtually \(\mathbb{Z}^2\). It is this
important case that has guided our formulation of the main result.
At the end of this paper in Section 3.2 we show the required algorithmic properties are satisfied in the following most basic situation.
Proposition 2. If \(\calP\) consists of groups that are direct products of a finitely generated free group with \(\mathbb{Z}\), and if \(\calP'\) consists of finitely generated subgroups of groups in \(\calP\), then the four algorithmic properties given in Theorem 1 are satisfied for \(\calP\) and \(\calP'\).
As we’ll see, even this seemingly trivial case has applications.
The following are examples of groups and classes of outer automorphisms in which it is possible to decide conjugacy using our main result and Proposition 2. Some of these
examples are already well-known whereas others are new even for free groups.
Example 3. (Atoroidal automorphisms, well known). If \(G\) is a free group, and \(\alpha\) is atoroidal, then by [11], all non-trivial elements of \(G\) have exponential growth, the only maximal polynomial growth sub-mapping-tori of \(\alpha\) is
that of the trivial subgroup. Mapping tori with trivial fiber satisfy the four algorithmic properties of Theorem 1, which solves the conjugacy problem for the class \(\calO\calA\) of atoroidal automorphisms. This case was the object of [2].
Example 4. (Exponential-or-pointwise-inner automorphisms of free groups, new). Recall that in free groups (and torsion free hyperbolic groups), any pointwise inner automorphism is inner [9]. If \(\alpha\) is an automorphism of free group that is pointwise inner on its polynomially growing elements, then its maximal polynomial growth sub-mapping-tori are
direct products of f.g.-free groups with \(\mathbb{Z}\). By Proposition 2 the four required algorithmic properties are satisfied in this
case.
This applies in particular if \(G\) is a free group, with a free factor system \(G=A_1*A_2*\dots*A_k*F\) and \(\alpha\) has the property that \(\alpha^k(g)\) is conjugate to \(g\) (for \(k\geq 1\)) if and only if \(g\) is conjugate into one of the \(A_i\). In fact, such \(\alpha\) is easily seen to be relatively atoroidal (i.e. no elements that are hyperbolic w.r.t. the free factor systems are mapped via a power of \(\alpha\) to their conjugates) and has no twin pair of subgroups (no pairs of conjugates of the \(A_i\) are sent on conjugates by a same conjugator), so [12] can be applied to identify the polynomially growing subgroups.
Corollary 5. The conjugacy problem for outer automorphisms of free groups that are pointwise inner on their polynomially growing elements, is solvable.
Example 6. (Almost toral relatively hyperbolic outer automorphisms of free groups, new). Brinkmann’s theorem [11] says that the automorphisms
of a free group that are atoroidal are exactly those producing a word-hyperbolic mapping torus. Consider now those producing mapping tori that are almost-toral relatively hyperbolic: those are those that are exponentially growing on all elements except on
a collection of invariant (up to conjugacy) cyclic subgroups. Their polynomial submapping tori are either isomorphic to \(\mathbb{Z}^2\) or to \(\bbZ\rtimes\bbZ\). Since the four algorithmic
properties given in Theorem 1 are solvable for the class that consists of \(\bbZ\rtimes\bbZ\), the fundamental group of the Klein bottle and its
subgroups (see [13]), one can apply Theorem 1 to solve the conjugacy problem within the
class of so-called almost toral relatively hyperbolic outer automorphisms of \(F_n\). This class contains (but is much larger than) the class of automorphisms arising from pseudo-Anosov mapping classes of surfaces with
boundary, for which the conjugacy problem is well known.
The next example is studied in a subsequent work.
Example 7. (Polynomial part that is unipotent of linear growth)In [14] the authors show that if the class \(\calP\)
consists of mapping tori of unipotent linearly growing free group automorphisms, then \(\calP\) itself is algorithmically tractable, has effective congruences separating torsion, and has solvable fibre and orientation
preserving mixed Whitehead problem for arbitrary finite tuples of tuples. This readily implies that the algorithmic properties required in Theorem 1 are satisfied and therefore
that if \(G=F_n\), the free group of rank \(n\), and \(\calO\calA\) is the class of mixed growth outer automorphisms whose polynomial parts are unipotent
linear, then the conjugacy problem is solvable within \(\calO\calA\). This result is the base case (\(n=1\)) of a program to solve the conjugacy problem among automorphisms in \({\mathrm{Out}\left(F_n\right)}\) with unipotent polynomially growing part.
We now discuss examples that are not about automorphisms of free groups.
Example 8. (Some mapping classes of surfaces, well known). If \(G\) is a closed orientable surface group \(\Sigma\) of genus \(g\geq 2\), and
\(\alpha\) is an automorphism of \(G\), induced by a mapping class \(\phi\) on \(\Sigma\). Assume \(\phi\) is of infinite order. If it is pseudo-Anosov, then it only the trivial element is polynomially growing and the assumptions of Theorem 1 are
trivially satisfied.
If it is not pseudo-Anosov, it is reducible: it preserves a maximal disjoint collection of closed simple curves, and some power of \(\phi\) preserves the associated subsurfaces. On some of these subsurfaces it induces a
pseudo-Anosov mapping class, on the other ones it induces a finite order outer automorphism. The polynomial growth submapping tori are given by, first, simple curves between two subsurfaces on which \(\phi\) is
pseudo-Anosov, and second, by the components of the complement of these pseudo-Anosov subsurfaces (i.e. subsurfaces obtained by glueing along their common boundary curves the elementary subsurfaces on which \(\phi\) has
finite order). These latter ones are the Seifert-fibered pieces of the classical 3-manifold JSJ decomposition of the mapping torus of \(\Sigma\) by \(\phi\). On the group theoretical level,
these are exactly the polynomial growth sub mapping-tori that are not virtually \(\bbZ^2\).
For the sake of the example, assume that the collection of disjoint simple closed curves is not properly permuted by \(\phi\) and that the finite order mapping classes induced by \(\phi\)
on subsurfaces are trivial, then we are exactly in the case of Proposition 2 since surfaces with boundary have free fundamental group.
Example 9. (Certain automorphisms of residually finite one-ended torsion-free hyperbolic groups, new). Let \(G\) be a one-ended residually finite torsion-free hyperbolic group and let \(\alpha\) be an automorphism that is pointwise inner on its polynomially growing part. Then by [15] it is possible to refine the JSJ
decomposition of \(G\) in the QH subgroups so that certain vertex groups of the refinement are \(\pi_1\)-images of compact subsurfaces \(\Sigma_1,\ldots,\Sigma_p\) of the surfaces underlying the QH groups of the JSJ decomposition of \(G\) on which \(\alpha\) induces pseudo-Anosov mapping classes.
We call such vertex groups active. \(\alpha\) restricts to a trivial outer automorphism on the subgroups of \(G\) that come from the subgraphs of groups coming from the connected
components of the complement of the active vertices. These (fundamental groups of) subgraphs of groups \(G_i\) are the maximal polynomially growing subgroups and the mapping tori are seen to be direct products of the form
\(G_i\times \bbZ\). The edge groups of JSJ decomposition of the mapping torus \(G\rtimes \langle t \rangle\) are copies of \(\bbZ^2\) that have one generator
in the fiber \(G\) and another generator in the coset \(tG\). Since edge groups are always \(\bbZ^2\) and the \(G_i\) are
all torsion-free hyperbolic with computable presentations algorithmic properties [it:alg-tract], [it:owski], follow immediately from known facts about \(\bbZ^2\), hyperbolic groups, and direct products with \(\bbZ\). Within every maximal trivial growth
mapping torus \(P \in \calP\) the image of an edge group can be given by a generating set of the form \(\langle{g_e,t_P}\rangle\) where \(t_P\) is central in
\(P\) and picked out from \(\{t_p^{\pm 1}\}\) by the orientation and \(g_e\) lies in the fiber \(G_i\). In particular
algorithmic property [it:MWHP] follows from the solution to the isomorphism problem for hyperbolic groups relative to cyclic groups (see [16], [17]) or directly from [9], which also implies that property [it:FOP95IP] is satisfied. Thus we have:
Corollary 10. The conjugacy problem for outer automorphisms of one-ended torsion-free hyperbolic groups that are pointwise inner on their polynomially growing elements, is solvable.
Although, given [15], this example seems tame, the machinery we are using, particularly the mixed Whitehead problem on generating tuples of edge groups, is
exactly what is needed to handle the case where two outer automorphisms \([\alpha],[\beta]\) that are pointwise inner on their polynomially growing parts are conjugate by an automorphism that induces a non-trivial
automorphism of the graph underlying the JSJ decomposition. The next is an example involving a many-ended non-free hyperbolic group.
Example 11. (Free products of free and surface groups, new, see Figure 1) If \(G\) is a free product of free groups and closed surface groups, and \(\alpha\) is an automorphism of \(G\) that restricts to a pseudo-anosov an automorphisms of the closed surface free factors and all fixed subgroups are cyclic. Once again, the four algorithmic
properties of our main result are solvable in the class of maximal polynomial growth sub-mapping-tori of \(\alpha\) since these will be virtually \(\bbZ^2\). \(\alpha\) could also restrict to automorphisms such as the ones given in Example 8, in which case Proposition 2 also applies.

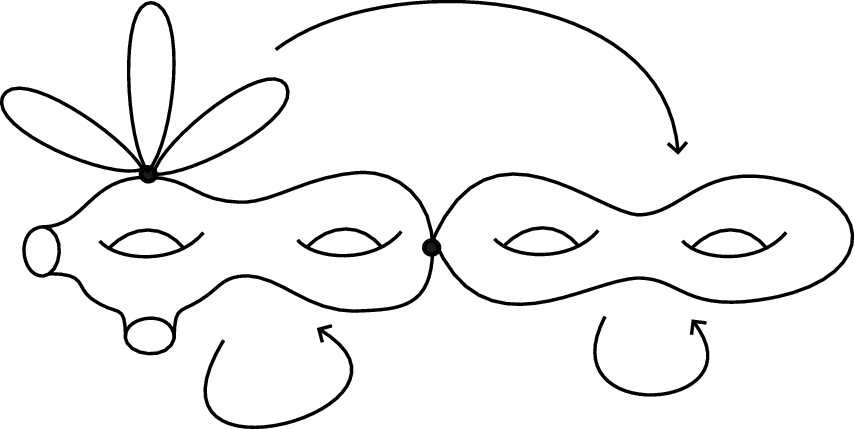

Figure 1: An automorphism carried by a homotopy equivalence that restricts to pseudo-Anosov maps on surfaces with or without boundary. A remaining free factor is not preserved and all its elements grow
exponentially.
The conjugacy problem for outer automorphisms of a group \(G\) is equivalent to the fibre-and-orientation-preserving isomorphy problem for mapping tori of \(G\) given by the considered
automorphisms.
Our theorem will be obtained via the relative hyperbolicity of the semidirect products \(G\rtimes \mathbb{Z}\). This geometric feature, suggested by Gautero and Lustig [18], and proved by Ghosh [19], Li and the first author [12], lets us apply the body of work on the isomorphy (or isomorphism) problem for relatively hyperbolic groups [8], [20]. However, the constraint of preserving the fiber and the orientation is important and difficult.
The theory of Dehn fillings of relatively hyperbolic groups will be a crucial ingredient in two steps of the argument.
It first appears as co-finite Dehn fillings of the peripheral edge groups of a JSJ decomposition, which allow us to compute the finite groups of outer-automorphisms that may twist the glueing maps in this JSJ decomposition. These are the Dehn fillings
that appear in [8], [20]. Unfortunately, the fibered structure of our mapping tori does
not persist in these Dehn fillings. In particular this technique alone is insufficient to solve the fiber and orientation preserving isomorphism problem.
A crucial innovation in this paper is the use of a second sequence of Dehn fillings that only fill-in subgroups of the fiber in such a way that the parabolic subgroups of the mapping torus are mapped to virtually cyclic groups. The quotient is therefore
word hyperbolic and furthermore it is fibered. Using these co-virtually-cyclic Dehn fillings, and arguments involving the small modular group of the quotient, it is then possible to decide the existence of fiber and preserving isomorphisms between the the
given mapping tori.
Acknowledgments. We would like to thank the referees for useful comments. We also thank Armando Martino and Stefano Francaviglia for encouraging discussions around the methods and the applications. The second named author is supported by an
NSERC Discovery grant.
1.1 Graphs, graphs of groups, and their fundamental groups↩︎
A graph \(X= ({{X}^{(0)}}, {{X}^{(1)}}, \iota, \tau, -)\) is a set of vertices \({{X}^{(0)}}\), a set of oriented edges \({{X}^{(1)}}\), endowed with two
maps \(\iota:{{X}^{(1)}} \to
{{X}^{(0)}}\), \(\tau:
{{X}^{(1)}} \to {{X}^{(0)}}\) and a fixed-point free involution \(-: {{X}^{(1)}}\to {{X}^{(1)}}\) satisfying \({\iota(\bar e)} =
\tau(e)\). We will freely use the geometric realisation of a graph, and the vocabulary from it.
A graph of groups \(\bbX\) is given by a graph \(X\), a group \(G_v\) for each vertex \(v\), a group \(G_e = G_{\bar e}\) for each unoriented edge \(\{e, \bar e\}\), and an injective homomorphism \(t_e : G_e \to G_{\tau(e)}\) for each oriented edge \(e\) of terminal vertex \(\tau(e)\).
The Bass group of \(\bbX\) is the group generated by the collection of all vertex groups \(G_v, v\in X^{(0)}\), and the collection of all edges \(e\in
X^{(1)}\), subject to the relations that, for all \(e\), \(e\bar e = 1\) and that, for all \(e\) and all \(g\in
G_e\), \(\bar e t_{\bar e}(g) e = t_e(g)\). The generators corresponding to edges are called Bass generators.
Given \(v_0\), a vertex of \(X\), the fundamental group\(\pi_1(\bbX, v_0)\) is the subgroup of the Bass group whose elements are given by a word
\(g_0e_1g_1e_2g_2\dots g_ne_ng_{n+1}\) such that \(g_0, g_{n+1}\in G_{v_0}\), \(\iota(e_1) = v_0= \tau (e_{n})\), and for all \(i>0\), with \(i\leq n\), \(g_i\in G_{\tau(e_{i})}\) and \(\tau(e_{i})=\iota(e_{i+1})\).
Given \(\tau_0\) a spanning subtree of \(X\), the fundamental group\(\pi_1(\bbX, \tau_0)\) is the quotient of the Bass group obtained by
identify all edges in \(\tau_0\) to the identity.
An important theorem of the theory of Bass-Serre decompositions is that this quotient map induces an isomorphism from \(\pi_1(\bbX, v_0)\) to \(\pi_1(\bbX, \tau_0)\).
In a group, we denote conjugation as follows \(a^g = g^{-1}a g = {\mathrm{ad}_{g}}(a)\). An automorphism \(\Phi\) of a graph of groups \(\bbX\) is a tuple
consisting of an autormorphism \(\phi_X\) of the underlying graph \(X\), an isomorphism \(\phi_v : G_v\to G_{\phi_X(v)}\) for every vertex \(v\), an isomorphism \(\phi_e : G_e\to G_{\phi_X(e)}\) for every edge \(e\), with \(\phi_{\bar e} = \phi_e\), and elements \(\gamma_e\in G_{\phi_X(\tau(e))}\) for every edge \(e\), that satisfy the Bass diagram:
One can check that an automorphism of the graph of groups \(\bbX\) extends naturally to an automorphism of the Bass group, by sending the generator \(e\) to \(\gamma_{\bar e}^{-1} \phi_X(e) \gamma_e\). While this does not necessarily preserves the vertex \(v_0\) or the spanning subtree \(\tau_0\), it induces an
isomorphism between \(\pi_1(\bbX, v_0)\) and \(\pi_1(\bbX, \phi_X(v_0))\). See [21, Sec. 2.3],
[17].
The composition rule is as follows (where we replaced the notations \(\phi_X, \phi_X'\) by \(f, f'\) for readability) \[\begin{gather} (f, (\phi_v)_v,
(\phi_e)_e, (\gamma_e)_e) \circ (f', (\phi'_v)_v, (\phi'_e)_e, (\gamma'_e)_e) = \\ ( f\circ f', \, (\phi_{f'(v)} \circ \phi_v)_v, \, (\phi_{f'(e)} \circ \phi_e )_e, \, (\phi_{f'(\tau(e))}(\gamma'_e)) \gamma_{f'(e)}).
\end{gather}\]
The group of all automorphisms of the form \((\phi_X, (\phi_v)_v, (\phi_e)_e, (\gamma_e)_e)\) satisfying the Bass diagram is denoted \(\delta \mathop{\mathrm{Aut}}(\bbX)\), and maps
naturally to a well defined subgroup of \({\mathrm{Out}\left( \pi_1(\bbX, v)\right)}\).
The subgroup \(\delta_0 \mathop{\mathrm{Aut}}(\bbX)\) consists of automorphisms of the form \[(Id_X, (\phi_v)_v, (\phi_e)_e, (\gamma_e)_e).\] If \(\Phi_1,
\Phi_2\) define the same underlying graph isomorphism, then \(\Phi_1^{-1} \Phi_2 \in \delta_0 {\mathrm{Aut}\left(\bbX\right)}\). In particular, \(\delta_0
{\mathrm{Aut}\left(\bbX\right)}\) is of finite index in \(\delta \mathop{\mathrm{Aut}}(\bbX)\).
Proposition 1. Consider a finite graph of groups \(\bbX\), whose vertex groups lie in a class of groups for which the isomorphism problem and the mixed Whitehead problem are solvable. Then there is
an algorithm that computes a complete set of coset representatives of \(\delta_0 \mathop{\mathrm{Aut}}(\bbX)\) in \(\delta \mathop{\mathrm{Aut}}(\bbX)\).
Proof. Let \(\phi_X:X\to X\) be a graph isomorphism. We wish to know whether it can be extended into a graph of groups automorphism in \(\delta {\mathrm{Aut}\left(\bbX\right)}\).
By hypothesis, we may determine whether for each vertex \(G_v\) is isomorphic to \(G_{\phi_X(v)}\), and if so, find such an isomorphism. If for one vertex \(v\), the vertex groups \(G_v\) and \(G_{\phi_X(v)}\) are not isomorphic, then \(\phi_X\) cannot be extended into an automorphism
of graph of groups. We can therefore produce the finite list of these graph automorphisms.
[8] then ensures that the graphs of groups are isomorphic if and only if there exists an extension adjustment (see [8]). The solution to the mixed Whitehead problem for vertex groups ensures that one can decide whether such an adjustment exists. ◻
Recall that, following [2], the small modular group of a graph of groups \(\bbX\) is the subgroup of \(\delta{\mathrm{Aut}\left(\mathbb{X}\right)}\)whose elements are of the form \((Id_X, ({\mathrm{ad}_{\gamma_v}}), (Id_e), \gamma_e)\), for \(\gamma_v \in
G_v\). We note that the Bass diagram imposes that \(\gamma_v\gamma_e^{-1} \in Z_{G_{\tau(e)}} (t_e(G_e))\) for all edge \(e\). Recall also that it is generated by Dehn twists over
edges of the graph of groups \(\bbX\).
We now need to detail our vocabulary on mapping tori. Let \(F\) be a group, \(\alpha\) an automorphism of \(F\), and \({{\bbT_{\alpha }}}= F \rtimes_\alpha \langle t_\alpha\rangle\) its mapping torus. This means that in \({{\bbT_{\alpha}}}\), if \(a\in F\), then \({\mathrm{ad}_{t_\alpha}}(a) = \alpha(a)\). We will often write \(t\) for \(t_\alpha\) if the context allows the abuse.
The group \({{\bbT_{\alpha}}}\) is equipped with a fibre and an orientation: we call \(F\) the fibre of the semi-direct product \({{\bbT_{\alpha}}}\), and we say that the coset \(F t\) determines the positive orientation of the semi-direct product.
Consider now \({{\bbT_{\alpha}}}\) and \({{\bbT_{\beta}}}\) the mapping tori of the same group \(F\), by automorphisms \(\alpha\) and \(\beta\). If \(\psi: {{\bbT_{\alpha }}}\to {{\bbT_{\beta}}}\) is an isomorphism, we say that it is fibre preserving if \(\psi(F) = F\), and in this case we say that it is orientation preserving if \(\psi(t_\alpha) \in F
t_\beta\).
For a subgroup \(H\) of \(F\) whose conjugacy class is preserved by some power of \(\alpha\), the sub-mapping torus of \(H\) is obtained as follows. Let \(k>0\) the smallest integer such that there exists \(a\in
F\) for which \(\alpha^k(H) = {\mathrm{ad}_{a}}(H)\). The sub-mapping torus of \(H\) is the subgroup \(\langle H, t_\alpha^ka^{-1} \rangle\), of \({{\bbT_{\alpha}}}\). It does not depend on the choice of \(a\), and is isomorphic to \(H\rtimes_{({\mathrm{ad}_{a^{-1}}} \circ \alpha^k)}
\langle t_\alpha^ka^{-1}\rangle\).
A group is small if it does not contain a non-abelian free subgroup. We may now state our main result. In its statement, \(F\) is not necessary a free group (\(F\) stands for Fibre). We
refer to the introduction for the definitions of the algorithmic problems.
Theorem 2.
Let \(F\) be a finitely generated, torsion-free group, and let \(\calO\calA\) be a collection of outer automorphisms of \(F\). Consider the class
\(\calT\) of mapping tori \({{\bbT_{\alpha }}}= F\rtimes_\alpha \bbZ\) of \(F\), over automorphisms in the classes of \([\alpha]
\in \calO\calA\). Assume that each \({{\bbT_{\alpha}}}\) is relatively hyperbolic with respect to a collection \(\calP_\alpha\) of residually finite sub-mapping tori. Let \(\calP'_\alpha\) be the class of all finitely generated subgroups of groups in \(\calP_\alpha\), that arise as edge groups in the JSJ decompositions of groups in \(\calT\). Assume that \(\calP' = \bigcup_{[\alpha]\in \calO\calA} \calP'_\alpha\) and \(\calP = \bigcup_{[\alpha]\in \calO\calA} \calP_\alpha\)
satisfy:
the groups in \(\calP\) have a recursively enumerable set of presentations and have uniformly solvable conjugacy problem, the groups in \(\calP'\) belong to an hereditarily algorithmically tractable class of groups, their small subgroups are finitely generated, and it is possible to decide if a group in \(\calP'\)
coincides with an overgroup in \(\calP\),
the fibre and orientation preserving isomorphism problem is solvable for the class \(\calP\),
the groups in \(\calP'\) have congruences that separate the torsion effectively,
in the class of mapping tori in \(\calP\), for each group in \(\calP_\alpha\) the fibre-and-orientation preserving mixed Whitehead problem on the family of generating tuples of
its subgroups in \(\calP'_\alpha\) is solvable.
Then in the class \(\calT\), the fibre and orientation preserving isomorphism problem is solvable, and in the collection \(\calO\calA\), the conjugacy problem in \({\mathrm{Out}\left(F\right)}\) is solvable.
Remark 3. Theorem 1 of the introduction follows from this and the relative hyperbolicity proved in [6], [12].
Remark 4. The assumptions such as of belonging to an hereditarily algorithmically tractable class of groups in item [it:al-tract]. of Theorem 2 allow the computation of the canonical JSJ splitting, which includes finding presentations of the vertex. This assumption can be substituted with another way of computing
the canonical JSJ splitting, without changing the argument.
We call a subgroup of \({{\bbT_{\alpha}}}\)elementary if it is either cyclic or a subgroup of a group in \(\calP_\alpha\). For the rest of the paper we consider \(F\), \({{\bbT_{\alpha}}}\) and \({{\bbT_{\beta}}}\) as in the statement of Theorem 2, and aim to determine whether they are isomorphic via a fibre and orientation preserving isomorphism. We will sometimes write \(t\) for either \(t_\alpha\) or \(t_\beta\), when the context is clear.
First we record that no splitting of a mapping torus \({{\bbT_{\alpha}}}\) of a finitely generated, torsion-free group \(F\) has a vertex group that is (QH) – quadratically hanging (or
hanging fuchsian).
Proposition 5 ([2]). If \({{\bbT_{\alpha}}}\) acts co-finitely on a tree \(T\) and if \(G_v\) is the stabilizer of \(v\), and if \(\calP_v\) is the peripheral structure on \(G_v\) given by the collection of adjacent edge stabilizers, then \((G_v, \calP_v)\) is not isomorphic to the fundamental group of a surface, with the peripheral structure of its boundary
components.
The given reference covers trees with cyclic edge groups, we explain why it is sufficient.
Proof. Consider the tree \(\dot{T}\) obtained from \(T\) by collapsing all edges with non-cyclic stabilizer. Arguing by contradiction, if there exists a vertex \(v\) of \(T\) whose group \((G_v, \calP_v)\) is isomorphic to the fundamental group of a surface with the peripheral structure of its boundary components, then
its star would be unchanged in the collapse \(\dot{T}\), and its image in \(\dot{T}\) would have same stabilizer. However \(\dot{T}\) satisfies the
assumptions of [2], which outrules such stabilizers. This proves the Proposition. ◻
There is a specific \({{\bbT_{\alpha}}}\)-tree that is called the \(JSJ\)-tree of the relatively hyperbolic group \(({{\bbT_{\alpha}}}, \calP_\alpha)\)
that is invariant by automorphisms of \({{\bbT_{\alpha}}}\). We refer the reader to [22], and to [8] for a convenient characterisation.
Recall that Bass-Serre theory dualises actions on trees and decompositions into graphs of groups (or splittings). We call a splitting essential if there is no valence \(1\) vertex, whose group is equal to its adjacent
edge group. The following is an immediate consequence of [8] and Proposition 5 above, which guarantees the absence of QH vertex groups.
Proposition 6. The JSJ decomposition of \({{\bbT_{\alpha}}}\) is the unique essential splitting that is a bipartite graph of groups, with white vertices, and black vertices, such that black vertices
are maximal elementary, white vertices are rigid (in the sense that they have no further compatible elementary splitting), and such that for any two different edges adjacent to a white vertex \(w\), the image of the two
edge groups in the vertex group \(G_w\) are not conjugate in \(G_w\) into the same maximal elementary subgroup of \(G_w\).
Proposition 7. Assume that the class of peripheral subgroups in \(\calP_\alpha\) and edge groups in \(\calP_\alpha'\) satisfy the requirements of item [it:al-tract] of Theorem 2. Then, there exists an algorithm that, given \({{\bbT_{\alpha}}}\), computes the JSJ splitting of \({{\bbT_{\alpha}}}\).
The algorithm is actually as explicit as the given algorithms in the assumptions. The proposition follows from [8] Theorem 3.26 after
observing that \({{\bbT_{\alpha}}}\) is always one-ended and torsion-free and that full hereditary algorithmic tractability is only needed for the class of edge groups \(\calP_\alpha'\).
2.3 On white vertices: Congruences and Dehn fillings for lists↩︎
In the following, the graphs of groups \(\bbJ_\alpha\), \(\bbJ_\beta\) are the JSJ decompositions of \({{\bbT_{\alpha}}}, {{\bbT_{\beta}}}\) respectively.
Let \(J_\alpha\) and \(J_\beta\) the underlying graphs of these graph of groups. We assume that we are given an isomorphism of graphs \(\phi_J: J_\alpha \to
J_\beta\).
All our tuples will be ordered (and finite), while sets are not ordered. Let \(G\) be a group. A peripheral structure on \(G\) is a finite set of conjugacy classes of subgroups.
An ordered peripheral structure is a tuple of conjugacy classes of subgroups. A marked peripheral structure is a finite set of conjugacy classes of tuples of elements, while a marked ordered peripheral structure is a tuple of
conjugacy classes of tuples of elements. For each marked structure, there is an associated unmarked structure, by taking the subgroups generated by the tuples of elements.
We sometimes abuse terminology by saying that a peripheral structure is the (usually infinite) set of all subgroups whose conjugates belong to the given finitely-many conjugacy classes.
Let \(G\) be a group endowed with a peripheral structure \(\calE\), and \(G'\) another group.
We say that two isomorphisms \(\phi, \psi: G \to G'\)peripherally coincide on a peripheral structure\(\calE\) if for every subgroup \(E \in
\calE\), there exists \(h=h(E) \in G'\) such that the restriction \(\psi|_{E}\) differs from \(\phi|_{E}\) by the (post)-conjugation by \(h\) in \(G'\).
2.3.2 White vertices of the JSJ decompositions and peripheral structures↩︎
We apply this setting to the white vertices of the JSJ decompositions.
Consider a white vertex \(w\) of the JSJ decomposition \(\bbJ_\alpha\). We endow its group \(G_w\) with several peripheral structures. First there is
\(\calP(w)\) the relatively hyperbolic peripheral structure coming from that of the ambient relatively hyperbolic group: it consists of the subgroups that are intersection of \(G_w\) with
maximal parabolic subgroups of \({{\bbT_{\alpha}}}\) in \(\calP_\alpha\).
Second there is \(\calE_\calZ(w)\) a cyclic peripheral structure coming from the cyclic edge groups that are not subgroups of groups in \(\calP(w)\). It is the collection of conjugacy
classes of subgroups of \(G_w\) that are cyclic, conjugate to an adjacent edge group in \(\bbJ_\alpha\), and not subgroups of groups in \(\calP(w)\). We say
that this peripheral structure is transverse (to \(\calP(w)\)).
Observe that these groups intersect trivially the fibre: by finiteness of the graph of groups, and invariance by \(t_\alpha\), it needs to be a semi-direct product of its intersection with the fibre by \(\mathbb{Z}\).
Third, there is the non-transverse edge peripheral structure \(\calE_\calP(w)\) consisting of edge groups that are subgroups of groups in \(\calP(w)\): they are parabolic in the
relatively hyperbolic structure. Observe that all edge groups, which are cyclic or parabolic, are in one of the peripheral structures \(\calE_\calP(w)\), or \(\calE_\calZ(w)\).
These three peripheral structures are unmarked but ordered (by choice of an order on the set of edges of \(J_\alpha\) around each vertex): they correspond to an ordered finite family of conjugacy classes of subgroups,
but they do not correspond to classes of generating sets of these subgroups. However, \(\calE_\calZ(w)\) is naturally marked: each of its subgroups has a unique generator with positive orientation.
We denote by \(\calE_w\) the ordered concatenation of the peripheral structures \(\calE_\calZ(w)\) and \(\calE_\calP(w)\). It is the peripheral structure
of adjacent edge groups of \(G_w\). The group \({\mathrm{Out}\left(G_w, \calE_w\right)}\) acts on the set of markings of \(\calE_\calZ(w)\) and \(\calE_\calP(w)\)
We need now to discuss Dehn fillings, Dehn kernels, and the \(\alpha\)-certification property, given in [23].
Given a relatively hyperbolic group \((G,\calP)\), with a choice of conjugacy representatives \(\{P_i\}\) of the peripheral structure \(\calP\), a
Dehn kernel is a normal subgroup \(K\) of \(G\) normally generated by subgroups \(N_i\) of the peripheral groups \(P_i\): in other words \(K = \langle \langle \bigcup N_i \rangle\rangle_G\). The quotient of \(G\) by the Dehn kernel \(K\) is a
Dehn filling of \(G\).
The Dehn filling theorem [24] states that there exists a finite set \(S\) of \(G\setminus\{1\}\) such that, whenever \(N_i \cap S\) is empty for each \(i\), the group \(G/K\) is hyperbolic relative to the
injective images of \(P_i/N_i\).
If one is given a quotient \(G \twoheadrightarrow\mathbb{Z}\), we call its kernel \(F\) a fibre for \(G\), and we say that a Dehn kernel is in the
fibre (or is fibered) with respect to this quotient, if each \(N_i\) is contained in \(F\). We will say a Dehn filling fibered if it is obtained by quotienting by a fibered
Dehn kernel.
When \(G\) maps onto \(\bbZ\) as before, with fibre \(F\), two sequences of Dehn kernels will be of interest to us.
First, for each \(m \geq0\), the kernel \(K^{(m)}\) is defined by setting \(N_i^{(m)}\) to be the intersection of all index \(\leq m\) subgroups of \(P_i\); observe that they are not fibered Dehn kernels. We will denote \(G/K^{(m)}\) by \(\overline{G}^{(m)}\).
Second, for each \(m \geq0\), the kernel \(K^{(m,f)}\) is defined by setting \(N_i^{(m,f)}\) to be the intersection \(N_i^{(m)}
\cap F\), where \(F\) is the given fibre. We will denote \(G/K^{(m,f)}\) by \(\overline{G}^{(m,f)}\). These Dehn kernels are thus fibered. Observe
that the Dehn filling theorem gives the following (recall that peripheral subgroups of finitely generated relatively hyperbolic groups are finitely generated).
Proposition 8. If \(G\) is a finitely generated relatively hyperbolic group, that is residually finite, with a fibre \(F\), then for every sufficiently large \(m\), the group \(G/ K^{(m)}\) is hyperbolic relative to the subgroups \(P_i/N_i^{(m)}\), which are finite, and the group \(G/
K^{(m,f)}\) is hyperbolic relative to the subgroups \(P_i/N_i^{(m,f)}\), which are virtually cyclic.
In both cases, \(G/ K^{(m)}\) and \(G/ K^{(m,f)}\) are word-hyperbolic. Moreover, in the second case, the image of \(P_i/N_i^{(m,f)}\) in \(G/ K^{(m,f)}\) is a subgroup that is its own normaliser.
Only the last conclusion requires an explanation: any infinite maximal parabolic subgroup of a relatively hyperbolic group is its own normaliser, by [25] Thm
1.14. The Dehn filling theorem actually says that the image of \(P_i/N_i^{(m,f)}\) is a maximal parabolic subgroup of a relatively hyperbolic structure and it is infinite. The conclusion follows.
Consider a white vertex \(w\) of the JSJ decomposition \(\bbJ_\alpha\), and its group \(G_w\), and its relatively hyperbolic peripheral structure \(\calP(w)\).
The considerations above apply to \((G_w, \calP(w))\) since it is residually finite, relatively hyperbolic, and endowed with a natural quotient onto \(\bbZ\).
For fibered Dehn fillings, we must introduce some conditions and find Dehn fillings that satisfy them. In particular we introduce the \(\alpha\)-certification of Dehn fillings, already used in [23], that will permit, first the use of [23] (that we can collect a list of
automorphisms for which the images of edge groups through Dehn fillings is well-behaved), and later, to prove Proposition 14 (through Lemma 16) that collects a list of so-called fibre-controlled automorphisms (see the definition before the
said Proposition).
We call a Dehn filling \(\overline{G_w}^{(m,f)}\) a resolving Dehn filling if all the following conditions are fulfilled:
the quotient is hyperbolic and rigid (in the sense that it has no elementary splitting and it is not a virtual surface group), and for any \(P_i\) in \(\calP(w)\), its image in \(\overline{G_w}^{(m,f)}\) is naturally isomorphic to \(P_i/N_i^{m,f}\),
and the Dehn filling is \(\alpha\)-certified as defined in [23], that is: for each (cyclic) subgroup \(C\) in \(\calE_\calZ(w)\), the centraliser of the image of \(C\) in the quotient is equal to the image of the centraliser of \(C\).
Observe that the kernel of the quotient map \(G_w\to \overline{G_w}^{(m,f)}\) is in the fiber, hence the peripheral subgroups in \(\calE_\calZ(w)\) (that are transverse to \(\calP(w)\)) map injectively in the quotient.
Lemma 9. If all small subgroups of the fibres of the peripheral subgroups of \(G_w\) are finitely generated, then there is an algorithm that, given a resolving Dehn filling of \(G_w\), terminates and produces a proof that it is resolving. Moreover, for all \(m_0\), there are resolving Dehn fillings of \(G_w\) obtained by a choice of
\(m\) larger than \(m_0\).
Proof. By the Dehn filling theorem, for sufficiently deep Dehn fillings, the quotient is hyperbolic relative to virtually cyclic subgroups, hence word-hyperbolic, and the peripheral quotients inject. By [23], sufficiently deep Dehn fillings satisfy the \(\alpha\)-certification property.
Let us argue that they are rigid. For that we will show that they have no peripheral splitting (i.e. no splitting relative to the peripheral structure \(\calP(w) \cup \calE_{\calZ}(w)\), over some parabolic subgroups),
and no splitting relative to their parabolic peripheral structure, over a maximal cyclic subgroup. We need a short digression in order to use Groves and Manning’s result [26]. Any small subgroup \(U\) of \(G_w\) has to intersect the fibre as a small group, hence in the peripheral structure. By assumption, this intersection is
finitely generated. Therefore, \(U\) is finitely generated, since it is (f.g. small)-by-cyclic. Also, the group \(G_w\), as a semidirect product of a finitely generated group with \(\mathbb{Z}\), is one-ended. We can therefore use [26] Theorem 1.8 to conclude that sufficiently deep Dehn fillings have no
peripheral splittings, for the peripheral structure \(\calP(w) \cup \calE_{\calZ}(w)\). Finally, in order to check that they don’t have splittings relative to the peripheral structure \(\calP(w)
\cup \calE_{\calZ}(w)\) over a maximal cyclic subgroup, we invoke [20]: if a sequence of such Dehn fillings all had such a splitting, considering a
diagonal sequence of Dehn twists over these splittings, one gets a contradiction to [20], applied to \(G'=G=G_w\).
Therefore, sufficiently deep Dehn fillings of \(G_w\) are rigid.
All the properties are algorithmically verified, by [27] (for word hyperbolicity), [17] Corollary 3.4 (for rigidity), and [17] Lemma 2.8 (for the computation of
centralizers, and identification of the images of the peripheral quotients). ◻
We come back to our context, in which \(w\) is a white vertex of the canonical JSJ decomposition of \({{\bbT_{\alpha}}}\), and \(w'\) is its image by
some graph isomorphism \(\phi_J\).
Observe that the groups \(G_w\) and \(G_{w'}\) are finitely presented, relatively hyperbolic with respect to the peripheral structures \(\calP(w),
\calP(w')\), which consist of infinite residually finite groups, and admit no peripheral splitting over an elementary group. We may therefore apply [8] in order to obtain the following.
Assume that congruences effectively separate the torsion in the peripheral subgroups of \(G_w\).
Given a marking of \(\calE_\calZ(w) \cup \calE_\calP(w)\), its orbit under the group \({\mathrm{Out}\left(G_w, \calE_w\right)}\) is computable.
In order to prove this Proposition, Dehn fillings were used such that the corresponding Dehn kernels were finite index subgroups of the maximal parabolic subgroups, and, in particular, it is important that these subgroups are chosen deep enough to
ensure that Dehn fillings are congruences that separate the torsion (in \({\mathrm{Out}\left(G_w\right)}\)). We do not give the detail of the argument, since it is covered by the case treated in [8].
In the next Proposition, we will use Dehn fillings with fibered Dehn kernels (i.e. lying in the fibre). It will not be important here whether or not there are congruences that separate the torsion.
Proposition 11. Consider \(w\) a white vertex in the graph of groups \(\bbJ_\alpha\), and \(w' = \phi_J(w)\) a white vertex in
the in graph of groups \(\bbJ_\beta\). Consider the groups \(G_w, G_{w'}\) with their (unmarked ordered) peripheral structures \(\calP(w)\), \(\calE_\calZ(w)\) and \(\calE_\calP(w)\), and \(\calP(w')\), \(\calE_\calZ(w')\) and \(\calE_\calP(w')\). Choose a marking \((\calE_\calZ(w))_\frakm, (\calE_\calP(w))_\frakm\).
It is decidable whether there exists a fibre-and-orientation preserving isomorphism from \((G_w, \calE_\calZ(w), \calE_\calP(w))\) to \((G'_{w'}, \calE_\calZ(w'),
\calE_\calP(w'))\).
If there exists such an isomorphism, let \((\calE_\calZ(w'))_{\frakm}, (\calE_\calP(w'))_\frakm\) be the image in \(G_{w'}\) of the chosen marking in \(G_w\). One can compute the finite orbit of \((\calE_\calZ(w'))_\frakm, (\calE_\calP(w'))_\frakm\) by \({\mathrm{Out}\left(G_{w'},
\calE_{w'})\right)}\).
For any marking \(\calE_\calZ(w')_{\frakm'}, \calE_\calP(w')_{\frakm'}\) in this orbit, it is decidable whether there exists a fibre-and-orientation preserving isomorphism \[(G_w, (\calE_\calZ(w))_\frakm, (\calE_\calP(w))_\frakm) \to (G_{w'}, \calE_\calZ(w')_{\frakm'}, \calE_\calP(w')_{\frakm'}).\] (We then say that \(\calE_\calZ(w')_{\frakm'},
\calE_\calP(w')_{\frakm'}\) is an admissible marking).
For all markings \(\calE_\calZ(w')_{\frakm'}, \calE_\calP(w')_{\frakm'}\) an algorithm computes a list \(\calL_{\frakm, \frakm'}\) of fibre-and-orientation
preserving isomorphisms of the form \[(G_w, \calE_\calZ(w)_\frakm, \calE_\calP(w)_\frakm) \to (G'_{w'}, \calE_\calZ(w')_{\frakm'}, \calE_\calP(w')_{\frakm'}),\] such that the following holds
:
for any fibre-and-orientation preserving isomorphism \[\psi: (G_w, \calE_\calZ(w)_\frakm, \calE_\calP(w)_\frakm) \to (G'_{w'}, \calE_\calZ(w')_{\frakm'}, \calE_\calP(w')_{\frakm'}),\] there
exists a resolving Dehn kernel \(K'\) of \(G_{w'}\), and \(g\in G_{w'}\), and an element \(\phi\in \calL_{\frakm,
\frakm'}\) such that \({\mathrm{ad}_{g}} \circ \psi\) and \(\phi\) coincide in the quotient \(G_{w'}/K'\).1
Observe that in the third statement, the peripheral structures are marked. From the second point we already know that there exists an isomorphism from \(G_w\) to \(G_{w'}\)
intertwining the markings, but we have no guarantee that this isomorphism can be taken fibre-and-orientation preserving. Thanks to the third point we will know whether it can or not.
The first and last points of the statement of Proposition 11 make a reformulation of [23], to which we refer, but that we don’t syntactically reproduce. This [23] gives an algorithm that, given relatively
hyperbolic groups with residually finite peripheral subgroups (that fiber, endowed with a fiber and an orientation), without any non-trivial peripheral splitting (relative to their transversal peripheral structures), terminates and provides a certificate
of non-isomorphy, or a collection of isomorphisms as in the last point, or a certain cyclic splitting of one of the groups. We note that the argument of the proof of [23] does not require the fiber \(F\) to be free, nor finitely generated. The crucial properties are the existence of the fiber, a well-defined orientation, that the suspension is relatively
hyperbolic relative to residually finite peripheral subgroups, and that there are no peripheral edge groups in its JSJ decomposition. In our case, there are no non-trivial peripheral splittings or cyclic splittings (relative to their transversal peripheral
structures), because we consider white vertex groups in a JSJ decomposition.
Proof. The first assertion is thus ensured by [23]. The second is the previous Proposition 10. The third assertion is an application of [20] used with the constraint that the markings must be intertwined, as we
detail now. If there is no such isomorphism, [20] ensures that, in some characteristic fibered Dehn fillings \(\overline{G_w}^{(m,f)}, \overline{G_{w'}}^{(m,f)}\) of \(G_w\) and \(G_{w'}\) (with same \(m\)), this will be
apparent.
However, in such a Dehn filling, all parabolic subgroups have become virtually cyclic, and therefore, by the Dehn filling theorem, the Dehn filling is word-hyperbolic.
Therefore, for a fixed pair of corresponding fibered Dehn fillings as above, by the solvability of the isomorphism problem for hyperbolic groups with marked peripheral structure [17], it is decidable whether or not there is such isomorphism between these Dehn fillings.
Enumerating the characteristic Dehn fillings in the fibre, and checking for each corresponding pairs of them this absence allows to detect if there exists indeed a pair for which there is no isomorphism. On the other hand, if there is an isomorphism of
the correct form between \(G_w\) and \(G_{w'}\), it will be found by enumeration.
Proposition 12. Consider \(w\) a white vertex in the graph of groups \(\bbJ_\alpha\), and \(w' = \phi_J(w)\), and \(G_w\) and \(G_{w'}\) their groups with (unmarked ordered) peripheral structures \(\calP(w), \calE_\calZ(w),
\calE_\calP(w)\), and \(\calP(w'), \calE_\calZ(w'),
\calE_\calP(w')\). One can compute a finite list \(\calL_w\) that
is empty if and only if \[(G_w, \calP(w), \calE_\calZ(w), \calE_\calP(w)),and(G_{w'}, \calP(w'), \calE_\calZ(w'), \calE_\calP(w'))\] are not isomorphic by a fibre and orientation preserving
isomorphism,
is such that, for all isomorphisms \[\psi: (G_w, \calP(w), \calE_\calZ(w),
\calE_\calP(w)) \to (G_{w'}, \calP(w'), \calE_\calZ(w'),
\calE_\calP(w')),\] there is \(\phi\) in \(\calL_w\), \(g\in G_{w'}\) and a resolving Dehn kernel \(K'\)
of \(G_{w'}\) such that for all \(h\in G_w\), \(\psi^g (h)\in \phi(h) K'\).
Proof. By Proposition 11 one can decide whether the two groups with (unmarked ordered) peripheral structures \[(G_w,
\calP(w), \calE_\calZ(w), \calE_\calP(w))\;and\; (G_{w'}, \calP(w'), \calE_\calZ(w'), \calE_\calP(w'))\] are fibre and orientation preserving isomorphic or not, and if so, once a marking \(\mathfrak
m\) on \(( \calE_\calZ(w), \calE_\calP(w))\) is chosen, one can compute all admissible markings (in the sense of Proposition 11) \(\mathfrak m'\) on \((\calE_\calZ(w'), \calE_\calP(w'))\). Now \(\calL_w = \bigcup_{\mathfrak{m}'}
\calL_{\mathfrak{m}, \mathfrak{m}'}\), whose computability is given by Proposition 11. It clearly satisfies the two first points of the conclusion of
Proposition 12. The last point of the Proposition 11
ensures the third point, and thus proves Proposition 12. ◻
2.4 On black vertices: Navigating the Mixed Whitehead Problem↩︎
Recall that we are considering a fixed isomorphism \(\phi_J: J_\alpha \to J_\beta\) of the graphs underlying the JSJ decompositions of \(G\) and \(G'\). We first mark the images of edge groups in white vertices of \(G\). We make a list exhausting all possible matching markings of the corresponding white vertices in \(G'\) (by isomorphisms preserving fibre and orientation). We pull back these markings on the edge groups (through the attachment maps toward the white groups), and then we push the markings on the black groups, through the
attachment maps of the reversed orientation edges, in \(G'\) and in \(G\).
We thus have, for each choice of white matching marking, several markings of each black vertex, coming from the adjacent white vertices. Choosing an order between neighbors, that is matched by the graph isomorphism, we create the ordered tuple of these
markings. Call these tuples compounded markings. We have them for each black vertex of \(G\), of \(G'\), for each choice of white matching marking. We are moreover given an unmarked
isomorphism between the matched black vertices, that preserves fibre and orientation, by assumption (2) in the statement of Theorem 2. We want to know whether one can
post-compose these isomorphisms with automorphisms of the black vertices that preserve fibre and orientation, and that send the image of the compounded marking of each \(G_b\) to the compounded marking of \(G_{b'}\). This is exactly the fibre-and-orientation preserving mixed Whitehead problem, as explained in the next proposition.
If \(b\) is a black vertex, we denote its image \(\phi_J(b)\) by \(b'\). By assumption, we can decide whether there exists a fibre-and-orientation
preserving isomorphism between \(G_b\) and \(G_{b'}\). If there is none, we cannot promote \(\phi_J\) into an isomorphism of graphs of groups.
In the following, we will assume there is at least one such isomorphism and we shall denote it \(\phi_b^{(0)}\).
Proposition 13. Assume the fibre preserving mixed Whitehead problem has a solution for groups in \(\calP_\beta\).
Then there exists an algorithm such that, given \(\phi_b^{(0)}\), and given, for each edge \(e_j= (b,w_j)\) adjacent to \(b\), a fibre preserving, and
peripheral structures preserving isomorphism \(\phi_{w_j}: G_{w_j} \to G_{w'_j}\), will indicate whether there is an isomorphism \(G_b \to G_{b'}\) that preserves the fibre, the
orientation, the unmarked ordered peripheral structures, and that peripherally coincides with \(t_{e_j'} \circ t_{\overline{e_j'}}^{-1} \circ \phi_{w_j} \circ t_{\overline{e_j}} \circ t_{e_j}^{-1}\) (i.e. that, for
all \(j\), in restriction to \(t_{e_j} (G_{e_j})\), coincide to this map postcomposed by a conjugation by an element \(p_{e_j}\) of \(G_{b'}\)).
Proof. For each edge group \(G_e=G_{\bar e}\), take a generating set: it defines a marking of the attachement subgroups of adjacent vertex groups. Given \(\phi_b^{(0)}\), one
looks for a fibre and orientation preserving automorphism of \(G_{b'}\) that sends, for each adjacent edge \(e'_j\), the conjugacy classes of the marking of \(t_{e_j} (G_{e_j})\), on the marking of \(t_{e_j} (
i^{-1}_{\bar{e}'_j} ( \phi_{w_j} (t_{\bar e_j}(G_{\bar{e_j}} )) ))\).
Therefore, the problem to solve is a reformulation of the fibre-and-orientation preserving mixed Whitehead problem in \(G_{b'}\), which is given by assumption. ◻
Recall that we want to determine whether there exists an isomorphism \({{\bbT_{\alpha }}}\to {{\bbT_{\beta}}}\) that is fibre and orientation preserving.
Recall that \(\bbJ_\alpha\) and \(\bbJ_\beta\) are the canonical JSJ decompositions of \({{\bbT_{\alpha}}}\) and \({{\bbT_{\beta}}}\). We say that an isomorphism of graphs of groups \(\Psi: \bbJ_\alpha \to \bbJ_\beta\), noted \(\Psi= (\psi_J, (\psi_v)_v, (\psi_e)_e,
(\gamma_e)_e)\) (for \(\gamma_e \in G_{\tau(\psi_J(e))}\)) is fibre and orientation preserving for the vertices, if each \(\psi_v\) is fibre preserving, and at least one of
\(\psi_v\) or \(\psi_e\) is orientation preserving (it is easy to see that it forces all \(\psi_v\) to be orientation preserving).
In spite of these conditions, it is not automatic that the whole fibre is preserved by \(\Psi\). This motivates the following definition.
Recall that we introduced, in Section 1.2, the definition of small modular group, as a subgroup of the automorphism group of a graph of groups. We say that an isomorphism \(\Psi\)
as described above is fibre-controlled if there exists an isomorphism \(\Psi^{(0)}= (\psi_J, (\psi^{(0)}_v), (\psi^{(0)}_e),
(\gamma^{(0)}_e))\) from \(\bbJ_\alpha\) to \(\bbJ_\beta\), that is the composition of a fibre and orientation preserving isomorphism, with an element of the small modular group of
\(\bbJ_\beta\), and such that, there is a resolving Dehn filling of \({{\bbT_{\beta}}}\) in which the image of \(\psi_v\) and \(\psi^{(0)}_v\) coincide, and the images of \(\psi_e\) and \(\psi^{(0)}_e\) coincide too. Thus, in general the collections \((\psi^{(0)}_v), (\psi^{(0)}_e)\) will be different from \((\psi_v), (\psi_e)\), but will agree in a resolving Dehn filling.
Proposition 14. There exists an algorithm that, given \({{\bbT_{\alpha}}}, {{\bbT_{\beta}}}\), and \(\bbJ_\alpha, \bbJ_\beta\) as above, terminates and with an output
\(\calO\) such that
if there exists an isomorphism \({{\bbT_{\alpha }}}\to {{\bbT_{\beta}}}\) that is fibre and orientation preserving, the algorithm outputs \(\calO\), a non-empty finite collection
of isomorphisms of graphs of groups \(\bbJ_\alpha \to \bbJ_\beta\), that are fibre and orientation preserving for the vertices. Furthermore, at least one isomorphism in \(\calO\) is
fibre-controlled.
if there no such fibre and orientation preserving isomorphisms \({{\bbT_{\alpha }}}\to {{\bbT_{\beta}}}\), but if there exists \(\Psi: \bbJ_\alpha \to \bbJ_\beta\) that is fibre
and orientation preserving for the vertices, the algorithm outputs \(\cal O\), a non-empty finite collection of such isomorphisms of graphs of groups.
If there is no \(\Psi: \bbJ_\alpha \to \bbJ_\beta\) that is fibre and orientation preserving for the vertices, the algorithm outputs \(\calO\), the empty set.
Proof. Again we work with a fixed graph isomorphism \(\psi_J: J_\alpha \to J_\beta\) between the underlying graphs \(J_\alpha, J_\beta\).
Let \(\calW\) be the set of white vertices of \(\bbJ_\alpha\), and \(\calB\) the set of black vertices of \(\bbJ_\alpha\).
For all white vertices \(w\in \calW\), we use Proposition 12 to get lists \(\calL_w\) of isomorphisms from \(G_w\) to \(G_{\psi_J(w)}\) that are fibre, orientation, and peripheral structure preserving, and that satisfy the conditions of
the third point of Proposition 12. If one of them is empty, we may discard \(\psi_J\), hence we assume that all are
non-empty.
For every \(b\in \calB\), one may decide whether there exists a fibre-and-orientation preserving isomorphism \(\phi_b^{(0)} : G_b \to
G_{\psi_J(b)}\). If for some \(b\) there is none, we may discard \(\psi_J\), otherwise, we compute such an isomorphism for each \(b\in \calB\).
For every tuple \((\phi_w)_{w\in \calW} \in \prod_{w\in \calW}
\calL_w\), we use Proposition 13 for each black vertex in \(\calB\) to establish whether there exists, for each black
vertex \(b\), a fibre and orientation preserving isomorphism \(G_b\to
G_{b'}\) that agrees with the marking of the neighboring white vertices (in the sense of Proposition 13).
If, given \((\phi_w)_{w\in \calW} \in \prod_{w\in \calW} \calL_w\), for some \(b\in \calB\), it is revealed that it is impossible to find such an isomorphism, then again we may discard
this tuple. Otherwise, we compute such isomorphisms \(\phi_b: G_b\to G_{\phi_J(b)}\) for each \(b\in \calB\).
Assume that one has found, for the given \(\psi_J\), and a given \((\phi_w)_{w\in \calW} \in \prod_{w\in \calW}
\calL_w\), isomorphisms \((\phi_b)_{b\in \calB}\) as above. Then one has a complete collection, \((\phi_v)_v\) of isomorphisms of vertex groups. For each edge \(\{e, \bar e\}\), selecting an orientation unambiguously fixes \(\tau(e)\), and by restriction of \(\phi_{\tau(e)}\) one may define \(\phi_e\). One also defines \(\gamma_e\) for each \(e\) such that \(\tau(e) =
b\in \calB\) as the element \(p_e\) given by Proposition 13, and for \(\tau(e) =w \in
\calW\), as an element that conjugates \(\phi_w
(t_e(G_e))\) to \(t_{\psi_J(e)} (G_{\psi_J(e)})\) (which exists since \(\phi_w\) preserves the ordered peripheral structure).
One thus obtains that \((\psi_J,
(\phi_v), (\phi_e), (\gamma_e) )\) is a graph of groups isomorphism, as it satisfies the commutativity of Bass diagram (see Section 1.2).
The algorithm then either has discarded \(\psi_J\), or, for each tuple \((\phi_w)_{w\in \calW} \in \prod_{w\in \calW}
\calL_w\), outputs a graph of groups isomorphism \((\psi_J,
(\phi_v), (\phi_e), (\gamma_e) )\) for this \(\psi_J\), if one exists. Thus the eventual output \(\calO\) of the algorithm is a finite collection of such isomorphisms, for \(\psi_J\) and for \((\phi_w)_{w\in \calW} \in \prod_{w\in \calW}
\calL_w\) ranging over the set of graph isomorphisms for which the process has been completed. We call this collection the selected isomorphisms.
We need three lemmas. The first is an observation.
Lemma 15. Assume that there is \(\Psi^{(0)} = ( \psi_J, (\psi_v), (\psi_e), (\gamma_e^{(0)}))\) an isomorphism of graph of groups that preserves the fibre and the orientation in the
vertices.
Then there exists, for each white vertex \(w\), an isomorphism \(\phi_w \in \calL_w\), that satisfies the conclusion of Proposition 12 for \(\psi=\psi_w\), and for each black vertex \(b\), an isomorphism \(\phi_b\) as
above, agreeing on its neighboring edge groups with the isomorphisms of its adjacent white vertices. In particular, the output \(\calO\) is non-empty.
Proof. The existence of \(\phi_w\) is precisely Proposition 12, and determines the edge isomorphisms
\(\phi_e\). The isomorphisms \(\phi_b\) can be taken to be the \(\psi_b\) since \(\phi_w\) agrees with \(\psi_w\) on its adjacent edge groups. Finally, the elements \((\gamma_e)_e\) can be taken to be \((\gamma_e^{(0)})_e\) since the Bass diagram (of Section 1.2) depends only on the restriction of the isomorphisms to edge groups. ◻
The second is the following. It is similar to [23].
Lemma 16. If there is \(\Psi\), an isomorphism of graphs of groups, that preserves the fibre and the orientation in the whole groups \({{\bbT_{\alpha}}}\), \({{\bbT_{\beta}}}\), then there is a selected isomorphism of graph of groups, that, not only preserves the fibre and orientation in the vertices, but also is fibre-controlled.
Proof. Let \(\Psi= ({\psi_J}, (\psi_v)_v, (\psi_e)_e, \gamma_e)\) as in the statement. By the composition rule of isomorphisms of graphs of groups, we have \[\Psi^{-1} = ( \psi_J^{-1},
( \psi_{{\psi_J}^{-1}(v)}^{-1})_{v}, (\psi_{{\psi_J}^{-1}(e)}^{-1})_{e}, ( \psi^{-1}_{{\psi_J}^{-1}(\tau(e))} ( (\gamma_{{\psi_J}^{-1}(e)})^{-1} ) )_e ).\]
By construction of \(\calO\), there is a selected isomorphism \(\Phi = (\psi_J, (\phi_v)_v, (\phi_e)_e, \gamma'_e)\), and a resolving Dehn filling of \({{\bbT_{\beta}}}\), such that in this Dehn filling, all \(\psi_v\) and \(\phi_v\) coincide, up to conjugation in \(\overline{G_{{\psi_J}(v)}}\), and moreover, \(\Phi\) (as any element of \(\calO\)) preserves the fibre and the orientation in the vertices.
Consider the composition \(\Phi \circ \Psi^{-1}: {{\bbT_{\beta}}} \to {{\bbT_{\beta}}}\). It is an automorphism of \(\bbJ_\beta\), and it can be written as \[\Phi \circ \Psi^{-1} =(Id_{J_\beta}, (\epsilon_v\circ {\mathrm{ad}_{g_v}})_v , (\epsilon_e\circ {\mathrm{ad}_{g_e}})_e , (\eta_e)_e )\] in which \(\epsilon_v\) is a fibre-and-orientation
preserving automorphism of \(G_v\), that induces the identity in \(\overline{G_v}\), and \(g_v\) is an element of \(G_v\),
and similarily for \(\epsilon_e\) and \(g_e\). For the record, \(\eta_e = \phi_{{\psi_J}^{-1} (\tau(e))} ( \psi_{{\psi_J}^{-1}(\tau(e))}^{-1} (
(\gamma_{{\psi_J}^{-1}(e)})^{-1} ) ) \gamma'_{{\psi_J}^{-1}(e)}\), but this plays no role in the argument.
We need to show that some post-composition of this automorphism with an element of the small modular group is fibre and orientation preserving. In other words, we need to show that there is a fibre and orientation preserving automorphism \(\Upsilon\) such that \(\Upsilon\circ \Phi \circ \Psi^{-1}\) is in the small modular group.
We will consider \(\Upsilon\) of the form \(\Upsilon = (Id, (\epsilon_v^{-1})_v, (\epsilon_e^{-1})_e, (y_e)_e )\), where the \(y_e\) are yet unknown. It
suffices then to show that there is such an automorphism with the \(y_e\) such that \(\Upsilon\) preserves the fibre and orientation.
We begin to prove that there is such an automorphism \(\Upsilon\) with all \(y_e\) in the fibre (compare to [23]).
\(\Upsilon\) being an automorphism of graphs of groups, it is obvious that each \(\epsilon_v^{-1}\) sends each adjacent edge group to a conjugate of itself, by a conjugator in \(G_v\). Since \(\epsilon_v^{-1}\) induces the identity on a resolving Dehn filling, such a conjugator must be in the pre-image of the centralizer of the image of the edge group. However, because
the Dehn filling is resolving, the image of the centralizer of the edge group in \(G_v\) is the centraliser of the image of the edge group in \(\overline{G_v}\). The centralizer of the edge
group in \(G_v\) is not other than the edge group itself in \(G_v\), therefore, the conjugator that we considered is a product of an element of the edge group in \(G_v\) and an element of the Dehn kernel. Therefore, it can be chosen in the Dehn kernel, hence in the fibre.
Now, it suffices to choose the \(y_e\) to be these conjugating elements that send the edge groups to their images by \(\epsilon_v^{-1}\), and are in the fibre, and then to choose \(\epsilon_e\) the induced automorphism of the edge groups, in order to make the Bass diagrams commute. Thus, the elements \(y_e\) are in the fibre.
We check that this choice is fibre and orientation preserving. (Compare to [23])
To see this, let the fibre \(F\) act on the tree \(J_\beta\). This action defines a free decomposition of \(F\) as a graph of groups, hence \(F\) is generated by its intersection with the vertex groups, and the Bass generators (corresponding to edges of the graph of groups. The automorphism \(\Upsilon\) preserve the cosets of the
fibre in the vertex groups, and sends the Bass generator \(e\) to \(y_{\bar e}^{-1} e y_e\).
Since \(y_e\) and \(y_{\bar e}\) are in the fibre, the image of \(e\) is in the same coset of the fibre as \(e\). It
follows that the generators of \(F\) given by the graph of groups decomposition are sent in \(F\), thus \(\Upsilon\) is fibre preserving.
Finally, it is orientation preserving because it is so on any edge groups, so it must be the case for the whole group. The Lemma is proved. ◻
Lemma 17. If there is no isomorphism of graphs of groups from \(\bbJ_\alpha\) to \(\bbJ_\beta\) that is fibre and orientation preserving for the vertices, then the
output \(\calO\) is empty.
Proof. By construction of the output \(\calO\) (see before Lemma 15), its elements are isomorphisms of graphs of groups
that when restricted to white vertices are in lists \(\calL_w\), hence fiber and orientation preserving for the vertices (by Proposition 12). The lemma follows. ◻
The three lemmas above together ensure the proposition holds. ◻
2.6 The rest of the fibre and completing the proof of Theorem 2.↩︎
We now finish the proof of Theorem 2. We assume that the output of the algorithm of Proposition 14 is a non-empty set \(\calO\) of isomorphisms of graphs of groups, that are fibre and orientation preserving for the vertices. However,
we do not yet know whether we are in the first or the second case of the conclusion of the Proposition 14.
Consider \(\{h_1, \dots h_s\}\), a generating set of the fibre \(F\) of \({{\bbT_{\alpha}}}\).
Proposition 18.
There exists a fibre and orientation preserving automorphism from \({{\bbT_{\alpha}}}\) to \({{\bbT_{\beta}}}\) if and only if, there is an element \(\Phi\) of \(\calO\), and an element \(\eta\) of the small modular group of \(\bbJ_\beta\) that sends \(\Phi(h_1), \dots, \Phi(h_s)\) inside the fibre of \({{\bbT_{\beta}}}\), and such that \(\eta \circ \Phi\) is fibre and orientation preserving on the
vertices.
Proof. If there is such an element \(\Phi\), and such an \(\eta\), then \(\eta \circ \Phi\) is fibre and orientation preserving, because the
fibre in \({{\bbT_{\alpha}}}\) is generated by the fibre in the vertices, and the elements \(h_1, \dots, h_s\), and all this generating set is indeed sent to the fibre of \({{\bbT_{\beta}}}\).
Assume now conversely that there exists a fibre and orientation preserving automorphism from \({{\bbT_{\alpha}}}\) to \({{\bbT_{\beta}}}\). Then we are in the first case of Proposition 14. There exists a fibre-controlled isomorphism \[\Phi = (\phi_J, (\phi_v)_v, (\phi_e)_e,
(\gamma_e)_e) \; \in \; \calO.\] By definition, there is also an isomorphism \[\Phi^{(0)} = (\phi_J, (\phi^{(0)}_v)_v, (\phi^{(0)}_e)_e, (\gamma^{(0)}_e)_e),\] for which \(\phi_v\)
and \(\phi^{(0)}_v\) coincide on a resolving Dehn filling, and such that some post-composition with an element of the small modular group is fibre and orientation preserving.
Therefore, there exists \(\eta\) in the the small modular group of \(\bbJ_\beta\) that sends \[\Phi(h_1), \dots, \Phi(h_s)\] inside the fibre of \({{\bbT_{\beta}}}\), and such that \(\eta \circ \Phi\) is fibre and orientation preserving on the vertices. ◻
It follows from Proposition 18 that we reduced the problem to deciding, for each \(\Phi\) in \(\calO\), whether there exists an element \(\eta\) in the small modular group of \(\bbJ_\beta\), sending \(\Phi(h_1), \dots,
\Phi(h_s)\) into the fibre of \({{\bbT_{\beta}}}\).
Given \(\Phi\) in \(\calO\), the problem of deciding whether such an element \(\eta\) of the small modular group as described above exists is treated by
interpreting it in the cohomology \(\mathbb{Z}\)-module \(H^1({{\bbT_{\beta}}}, \bbZ) = \mathrm{Hom}({{\bbT_{\beta}}},\bbZ)\): each Dehn-twist over an edge of \(\bbJ_\beta\) (i.e. each generator of the small modular group for the generating family proposed in Section 1.2) acts as a transvection on the module. Let \(\bar
F\) be the image of \(F\) in \(H^1({{\bbT_{\beta}}},\bbZ)\). Because the fibre \(F\) is the kernel of a homomorphism \({{\bbT_{\beta }}}\twoheadrightarrow\bbZ\), for all \(g \in {{\bbT_{\beta}}}\), \(g\in F\) if and only if, \(\bar g \in \bar
F\).
Each image \(\overline{\Phi(h_i)}\) is the sum of an element of \(\bar F\) and of a multiple of \(\bar t\), the image of \(t\). The transvections apply some translation in projection on the line generated by \(t\). The existence of some element in the small modular group sending all \(\overline{\Phi(h_i)}\) in \(\bar F\) is therefore encoded in an explicit system of linear diophantine equations, whose existence of solution is thus decidable. We thus have proved Theorem 2.
We end this paper with the simplest possible type of maximal polynomial growth subgroup. Not only does this serve as an illustration of our algorithmic properties, but even this simplest case yields new results.
In Corollary 10 for relatively hyperbolic groups, the result follows relatively easily since edge groups of the mapping tori are virtually \(\bbZ^2\). In the case of automorphisms of free groups, edge groups of the mapping tori can be more complicated. Consider the following example.
Example 1. Write a free group as \(F=\langle x_1,y_1 \rangle*M*F\langle x_2,y_2\rangle\) and write \(M = \langle H_1,H_2 \rangle\) where \(H_1,H_2\) are subgroups. Let \(\alpha\) be an automorphism of \(F\) that is pointwise inner on \(M\) and that maps the subgroups
\(K_i=\langle x_i,y_i, H_i \rangle\) to themselves for \(i=1,2\). Suppose that \(x_i,y_i\) are mapped to sufficiently complicated elements of \(K_i\) so that the JSJ decompositions of the mapping tori \(K_i \rtimes_{\alpha|_{K_I}}\bbZ\) relative to the maximal polynomial growth sub mapping tori are trivial. If we consider the full
mapping torus \(F \rtimes_\alpha \bbZ\), we have that the maximal polynomially growing sub mapping torus of \(\alpha\) is of the form \(M\times\bbZ\), and it
will be a parabolic type vertex group of the JSJ decomposition of \(F \rtimes_\alpha \bbZ\). There will be two non-parabolic vertex groups, isomorphic to the mapping tori \(K_i
\rtimes_{\alpha|_{K_i}}\bbZ\). The edge groups will be isomorphic to \(H_i\times \bbZ\).
Thus, for automorphisms of free groups, or of many-ended hyperbolic groups, there is less control over the types of edge groups that can arise in the JSJ decomposition of mapping tori and a result like Corollary 21 proven below is what is needed.
3.1 A criterion for congruences to effectively separate torsion.↩︎
Proposition 19. Let \(G\) be a finitely presented group such that the following hold:
\(G\) is conjugacy separable,
for any \(\alpha \in {\mathrm{Aut}\left(G\right)}\) such that the image \([\alpha] \in {\mathrm{Out}\left(G\right)}\) is non-trivial and of finite order, there exists \(g_\alpha \in G\) such that \(g_\alpha\) and \(\alpha(g_\alpha)\) are non-conjugate in \(G\), (i.e. \(G\) has no pointwise inner* finite-order outer automorphisms), and*
we are given a finite list \(\{\alpha_1,\ldots,\alpha_k\} \subset {\mathrm{Aut}\left(G\right)}\) containing a representative of the conjugacy class of every finite order element of \({\mathrm{Out}\left(G\right)}\).
Then \(G\) has effective congruences separating torsion.
Proof. Let \(\{\alpha_1,\ldots,\alpha_k\} \subset {\mathrm{Aut}\left(G\right)}\) be a list of representatives of the conjugacy classes of finite order elements in \({\mathrm{Out}\left(G\right)}\). Since \(G\) is finitely presented, we can enumerate \(G\) as well as all its finite quotients. For each \(\alpha_i\) in our list, by this enumeration we can find some \(g_{\alpha_i}\in G\) and a finite quotient of \(G\) in which the images \(\alpha_i(g_{\alpha_i})\) and \(g_{\alpha_i}\) are not conjugate. It follows that we can find finite index characteristic subgroup \(K\leq G\) in which the image
\(\bar \alpha_i\) in \({\mathrm{Aut}\left(G/K\right)}\) of each automorphism in our list is not inner, and the result follows. ◻
Finitely generated free groups are conjugacy separable, by a result of Baumslag [28], and their non-trivial outer-automorphisms are never pointwise
inner, by a result of Grossman [29]. By Culler’s Realization Theorem [30], to obtain a list of all representatives for each finite order outer automorphism, it is sufficient to enumerate the finite number of homeomorphism types of graphs with vertices of degree at least 3 whose fundamental
group is \(F_n\), and, for each such graph graph, to enumerate the graph’s symmetry group (which is finite). This immediately gives.
Corollary 20. \(F_n\), the free group or rank \(n\), has effective congruences separating torsion.
3.2 Algorithmic properties of mapping tori of unipotent non-growing automorphisms of free groups↩︎
We finish by mentioning a direct application, which is formally stronger than Proposition 2.
Corollary 21. Let \(\calP\) be the class of direct products of finitely generated free groups with \(\mathbb{Z}\), that we consider to be equipped with an explicit
fiber and orientation. Then
\(\calP\) is hereditarily algorithmically tractable,
the fiber an orientation preserving isomorphism problem is decidable with \(\calP\),
finitely generated subgroups of groups in \(\calP\) have effective congruences separating torsion, and
the fibre and orientation preserving mixed whitehead problem is solvable for arbitrary tuples of tuples for every group in \(\calP\).
It is worth reminding that Corollary 3.3 is not true for torsion-free for hyperbolic groups by [10].
Proof. First, note that the uniform conjugacy problem, the uniform generation problem are classical in free groups, and in the class \(\calP\).
For groups in \(\calP\), the fibre-and-orientation preserving isomorphism problem is solvable, since it is the question of the rank of the direct factor that is free.
Take \(G\) in the class \(\calP\). Either \(G \simeq \bbZ^2\) or there is a unique cyclic subgroup \(C\) for which \(G = H\times C\). Observe that \(H\) is not unique, but all such factors are free subgroups of \(G\) of same rank. Given \(G\) in
\(\calP\) with a fibre and an orientation, the fibre-and-orientation preserving automorphism group is thus isomorphic to \({\mathrm{Aut}\left(H\right)}\). The mixed Whitehead problem in
\(G\) by the fibre and orientation preserving automorphism group then easily reduces to the mixed Whitehead problem in \(H\), which is solvable by Whitehead’s algorithm.
It remains to see that in \(\calP\) and its subgroups, congruences effectively separate the torsion. It is Minkowski’s theorem if \(G \simeq \bbZ^2\). Take \(G
=F\times \bbZ\), where \(F\) is a non-abelian free group.
A non-trivial torsion element in \({\mathrm{Out}\left(G\right)}\) either has even order, inducing a flip of orientation of the center, or maps to a non-trivial torsion element in \({\mathrm{Out}\left(F\right)}\) by quotient by the characteristic subgroup \(\bbZ\) (the center). Indeed, assume the contrary. Write \(G=F\times C\) with \(C={\left\langle c \right\rangle}\) the infinite cyclic center, and \(\alpha \in {\mathrm{Aut}\left(G\right)}\) such that \(\bar \alpha : H\to H\) is inner: \(\bar \alpha = {\mathrm{ad}_{h_0}}\). Since \(c\) is central, for all \(h\in H\), there is \(n_h\) such that \(\alpha(h) = {\mathrm{ad}_{h_0}} (h) c^{n_h}\), and if \(\alpha\) is not inner, there is \(h\) such that \(n_h\neq 0\), and
assume it positive. Also observe that \(\alpha(c)= c^{\pm1}\). If \(\alpha(c) = c^{-1}\), we are in the first case of the claim. Thus assume that \(\alpha(c) =
c\). It follows (still using that \(c\) is central) that \(\alpha^k(h) = {\mathrm{ad}_{h_0^k}} (h) c^{kn_h}\), and it is never inner, and thus \(\alpha\) does not have finite order.
Now, the free group \(F\) itself has congruences effectively separating the torsion by Corollary 20. It follows that
one can effectively find congruence separating all non-trivial torsion elements in \({\mathrm{Out}\left(G\right)}\) except possibly those of even order inducing a flip of orientation of the center. Those later ones are
easily separated, by choosing a finite quotient of \(G\) on which the center \(C\) maps on a subgroup of order \(\geq 3\). ◻
Mark Feighn and Michael Handel, The Conjugacy Problem for UPG elements of \(\out{F_n}\), Geom. Topol. 29, No. 4, 1693-1817 (2025).
[2]
François Dahmani, On suspensions and conjugacy of hyperbolic automorphisms, Trans. Amer. Math. Soc. 368 (2016) 5565-5577.
[3]
Zlil Sela, The isomorphism problem for hyperbolic groups I, Ann. of Math. (2), 141 (1995), 217–283.
[4]
Stefano Francaviglia, and Armando Martino, Displacements of automorphisms of free groups. II: Connectivity of level sets and decision problems, Trans. Amer.
Math. Soc. 375 (2022), no. 4, 2511–251.
[5]
Gilbert Levitt, Counting growth types of automorphisms of free groups, Geom. Funct. Anal. 19, 1119 (2009).
[6]
François Dahmani and Suraj Krishna, Relative hyperbolicity of hyperbolic-by-cyclic groups, Groups Geom. Dyn. 17, No. 2, 403-426 (2023).
[7]
Nicholas Touikan, Detecting geometric splittings in finitely presented groups, Trans. Amer. Math. Soc. 370 (2018), 5635-5704.
[8]
François Dahmani and Nicholas Touikan, Deciding isomorphy using Dehn Fillings: the splitting case, Invent. Math. 215, no.1, (2019) 81-169.
[9]
Oleg Bogopolski and Enric Ventura, On endomorphisms of torsion-free hyperbolic groups. Internat. J. Algebra Comput. 21 no. 8 (2011): 1415-1446.
[10]
Eliyahu Rips, Subgroups of small cancellation groups, Bull. London Math. Soc. 14 (1982), no. 1, 45–47.
[11]
Peter Brinkmann, Hyperbolic Automorphisms of Free Groups. Geom. Funct. Anal. 10 (2000), no. 5, 1071-1089.
[12]
François Dahmani and Ruoyu Li, Relative hyperbolicity for automorphisms of free products, J. Topol. Anal. 14, No. 1, 55-92 (2022).
[13]
François Dahmani, Stefano Francaviglia, Armando Martino, and Nicholas Touikan, The conjugacy problem in \(\out{F_3}\), Forum Math Sigma.
2025;13:e41.
[14]
François Dahmani and Nicholas Touikan, Unipotent linear suspensions of free groups, arXiv:2305.11274.
[15]
Gilbert Levitt, Automorphisms of hyperbolic groups and graphs of groups, Geom. Dedicata 114 (2005), 49–70.
[16]
François Dahmani and Daniel Groves, The isomorphism problem for toral relatively hyperbolic groups, Publ. Math. Inst. Hautes Études Sci . 107 no.1 (2008) 211-290.
[17]
François Dahmani and Vincent Guirardel, The isomorphism problem for all hyperbolic groups, Geom. Funct. Anal. 21 no.2 (2011) 223-300.
[18]
François Gautero, Martin Lustig, The mapping-torus of a free group automorphism is hyperbolic relative to the canonical subgroups of polynomial growth, preprint, arXiv:0707.0822.
François Dahmani and Vincent Guirardel, Recognizing a relatively hyperbolic group by its Dehn Fillings, Duke Math J. 167 no. 12. (2018) 2189-2241.
[21]
Hyman Bass, Covering theory for graphs of groups. J. Pure Appl. Algebra, 89(1- 2):3–47, 1993.
[22]
Vincent Guirardel and Gilbert Levitt, JSJ decompositions of groups. Astérisque No. 395 (2017), vii+165 pp.
[23]
François Dahmani, On suspensions and conjugacy of a few more automorphisms of free groups. In Hyperbolic Geometry and Geometric Group Theory, Proceedings of the 7th Seasonal
Institute of the Mathematical Society of Japan, K. Fujiwara et al. (ed.). Adv. Stud. Pure Math. 73 (2017) 135-158.
Daniel Groves and Jason Manning, Dehn fillings and elementary splittings, Trans. Amer. Math. Soc. 370 (2018), 3017-3051.
[27]
Panos Papasoglu, An algorithm detecting hyperbolicity. In Geometric and computational perspectives on infinite groups (Minneapolis, MN and New Brunswick, NJ, 1994),
v.25 DIMACS Ser. Discrete Math. Theoret. Comput. Sci. (1996) 193–200.
[28]
Gilbert Baumslag, Residual nilpotence and relations in free groups. J. Algebra 2, 271–282, 1965.
[29]
Edna Grossman, On the residual finiteness of certain mapping class groups. J. Lond. Math. Soc., II. Ser. 9, 160-164 (1974).
[30]
Marc Culler, Finite groups of outer automorphisms of a free group. In Contributions to group theory. Contemp. Math. 33, 197-207 (1984).
that is: for all \(h\in G_w\), there exists \(z_h\in K'\) for which \(\psi(h)^g=\phi(h)z_h\).↩︎
